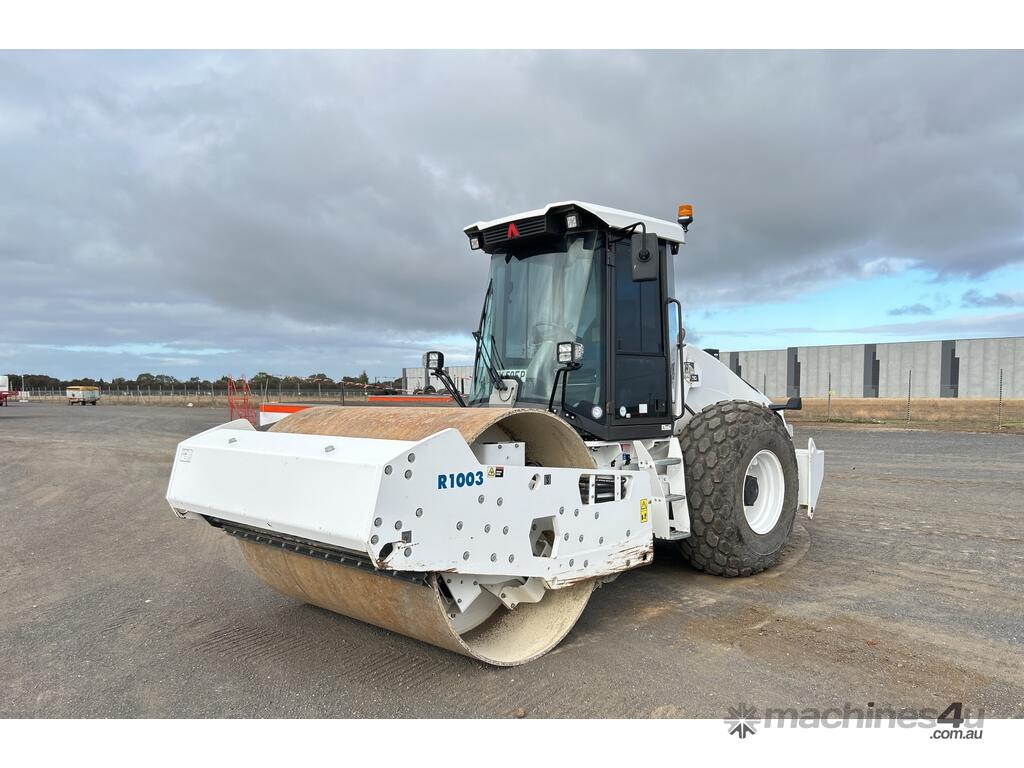

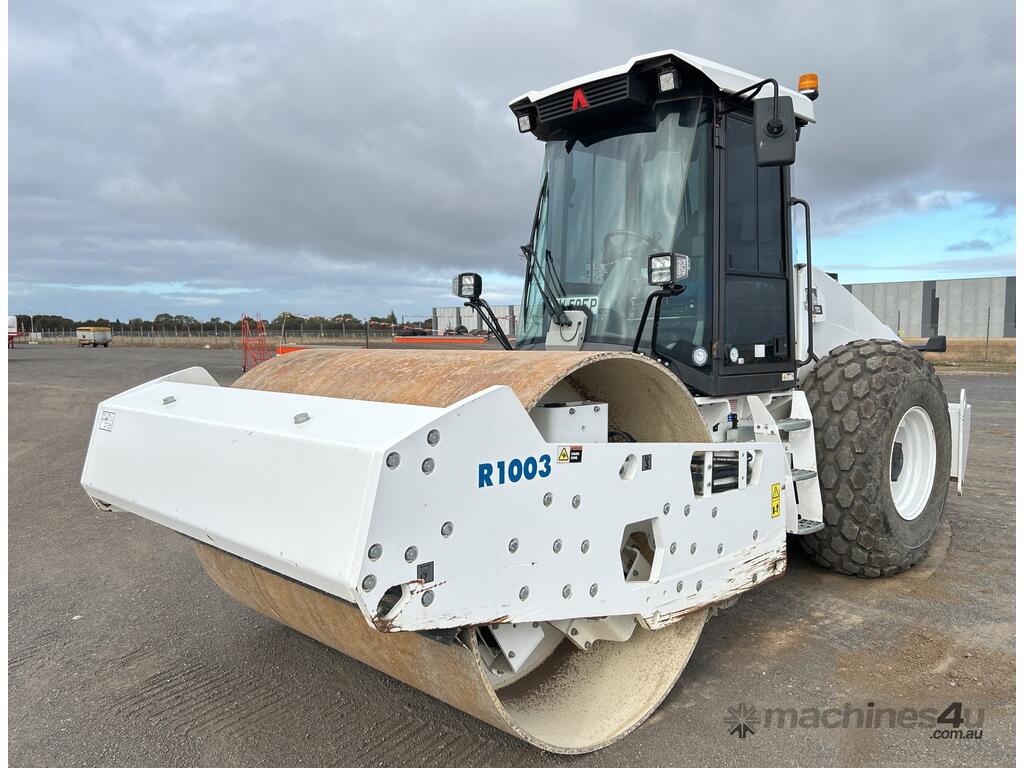

2022 Ammann ARS 110 HX Smooth Drum Compactor

Name: 2022 Ammann ARS 110 HX Smooth Drum Compactor
Brand: ammann
SKU: R1003
Price: 135000 AUD
Availability: InStock

Geelong, VIC

$135,000 AUD($148,500 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$475.86
Per Week

3.99% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Specifications

Condition:

Used

Category:

Single Drum Smooth Rollers

Make:

AMMANN

Model:

ARS 110

Year:

2022

Member Since: Aug 2025

Gold Member

Listings: 39

Hours:

409 Hours

Operating Weight (T):

Roller Features:

Enclosed Cab

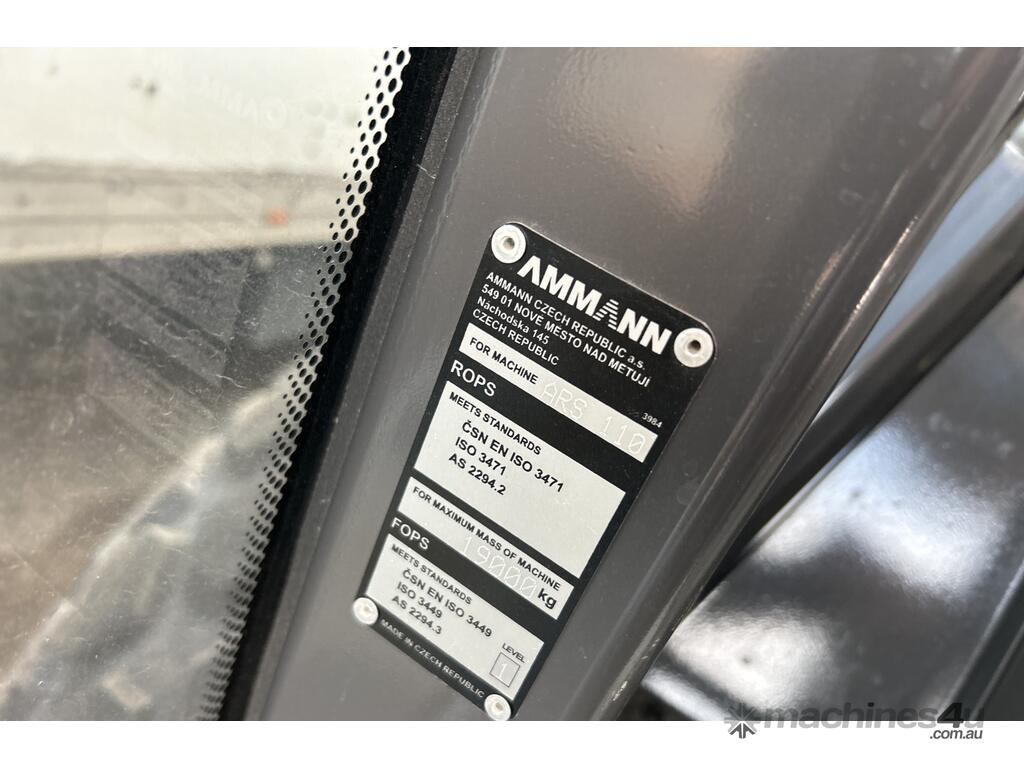

ROPS

Sellers stock ID:

R1003

Description

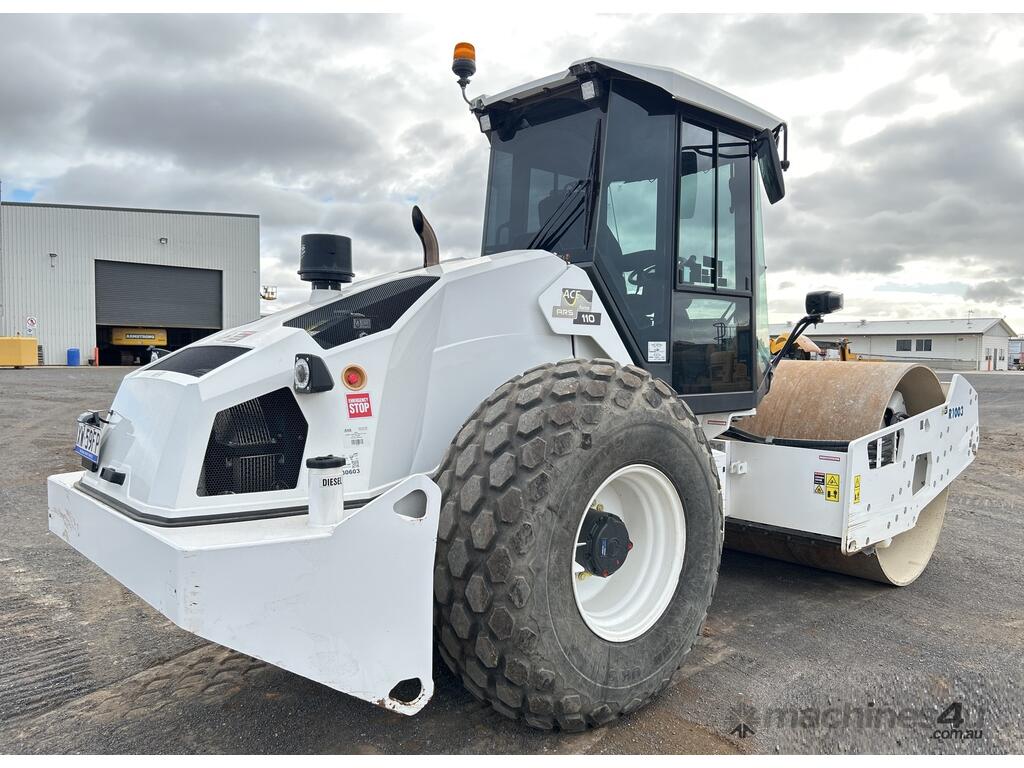

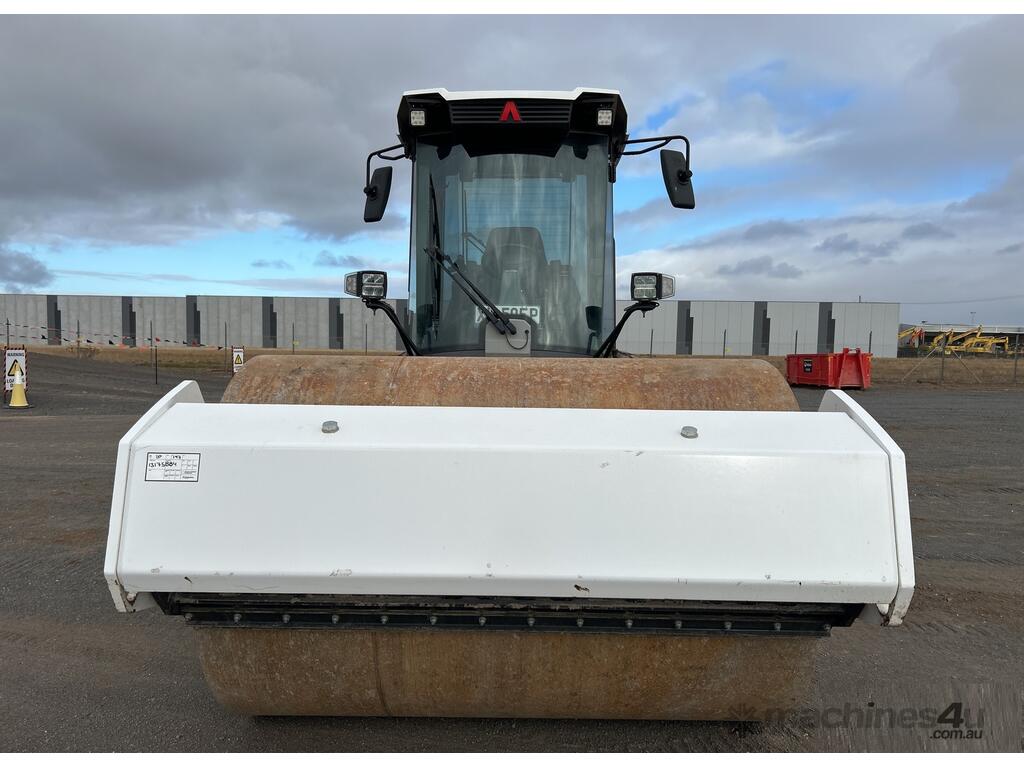

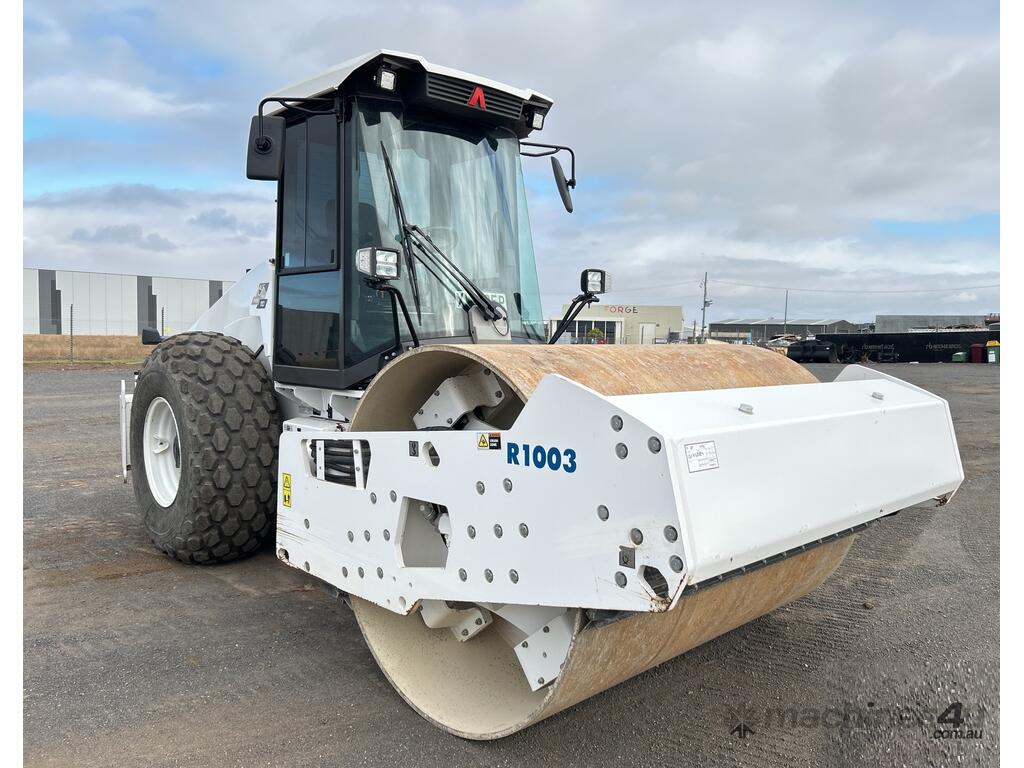

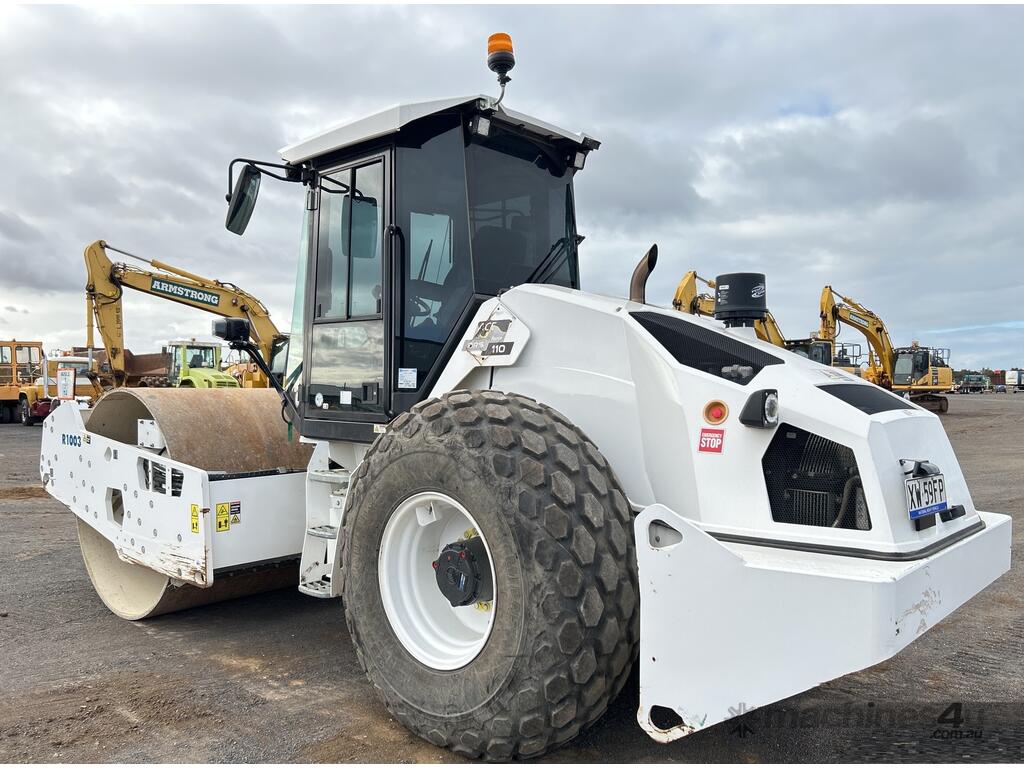

This 2022 Ammann ARS 110 Smooth Drum Compactor is a robust and efficient machine, bearing low hours, strong Deutz power, and smart soil adaptability with the included padfoot kit. Built for versatility, efficiency, and operator comfort, it is inspection-certified and ready to perform across tough compaction environments, from roadway construction to industrial baseworks.

2022 Ammann ARS 110 Smooth Drum Compactor

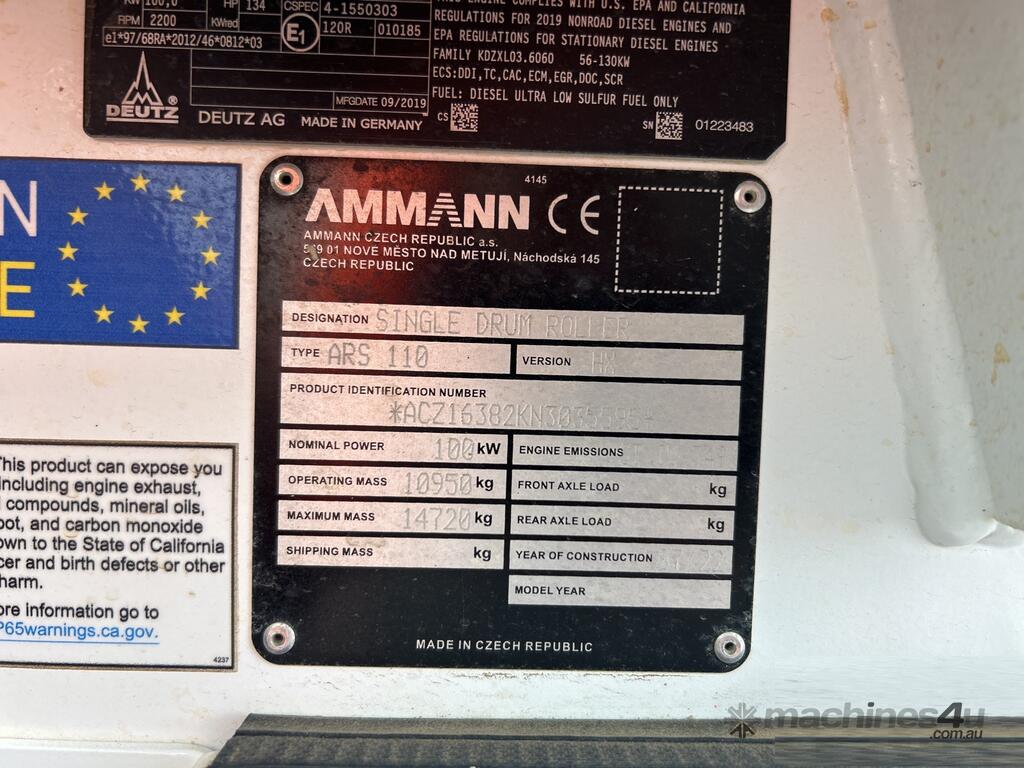

Serial Number: ACZ16382KN3035595
Meter Reading (Hours): 409 hrs

Key Features

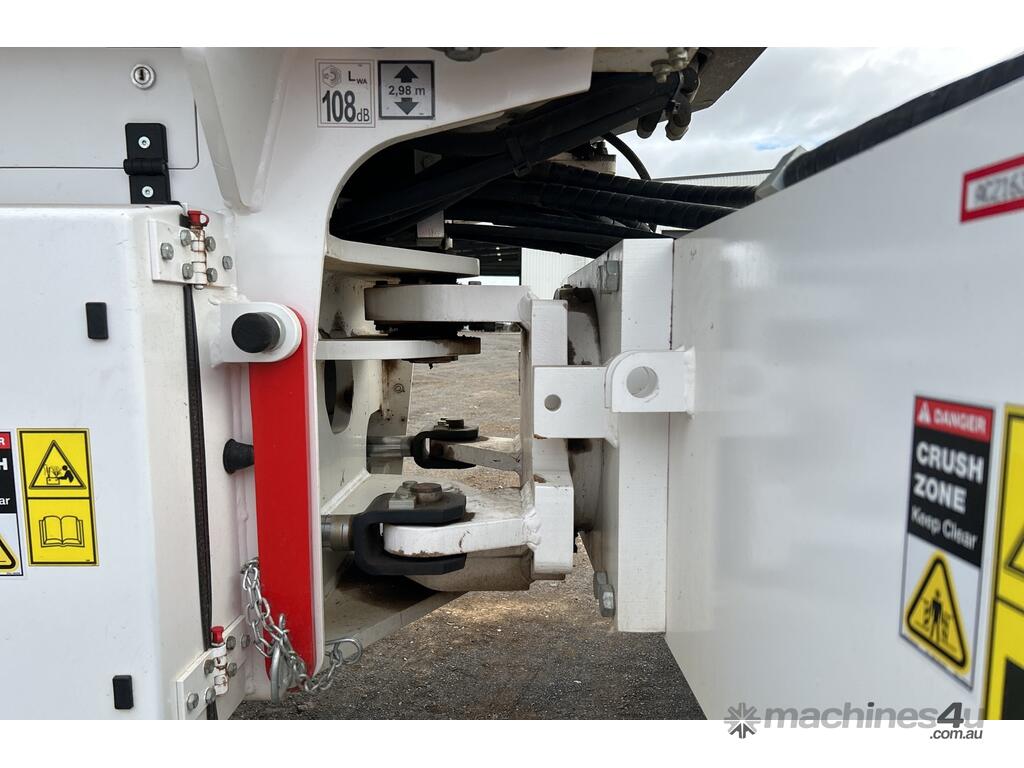

- Compact & Stable Design: No rear axle increases stability and lowers the centre of gravity for safe, agile performance

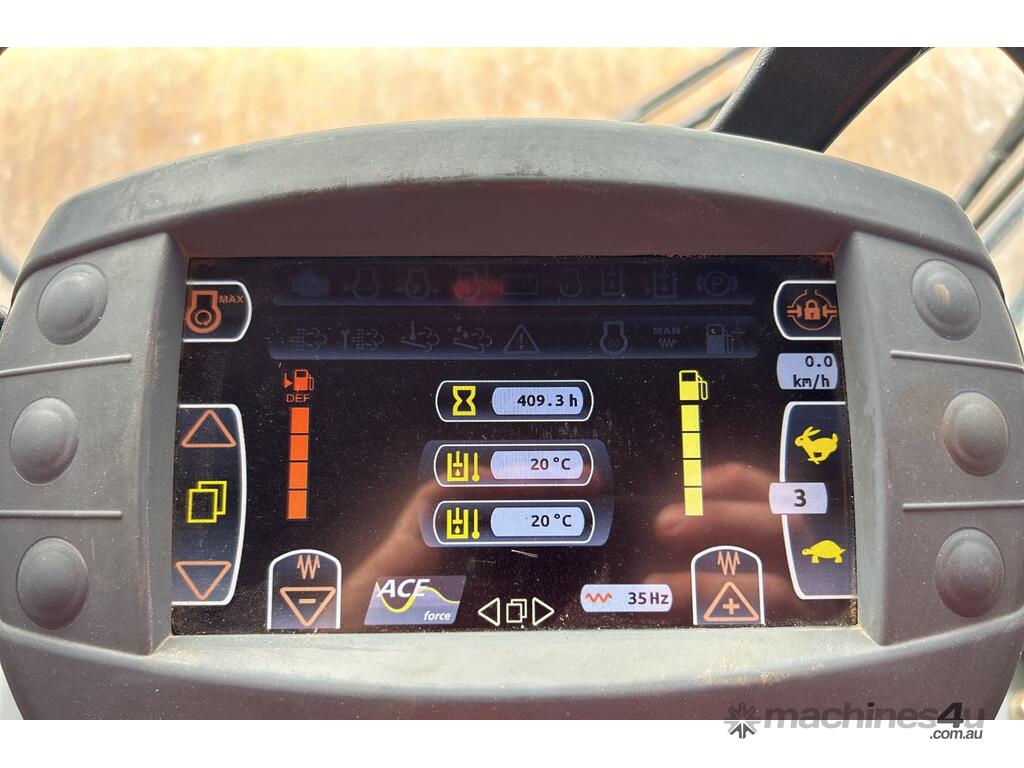

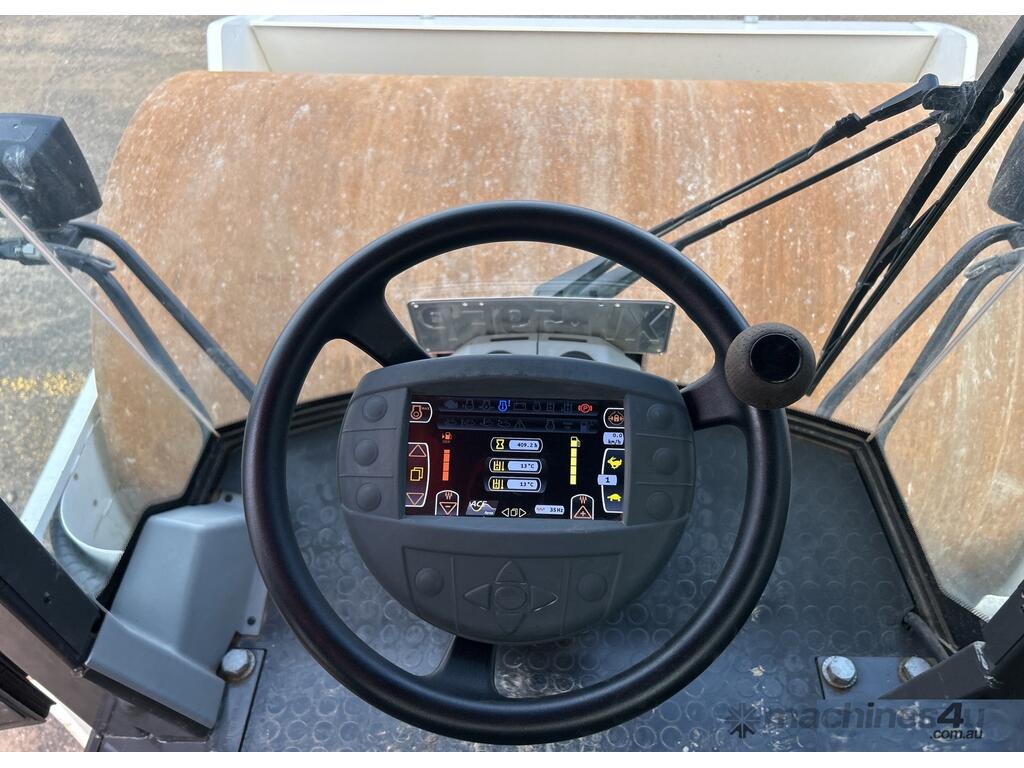

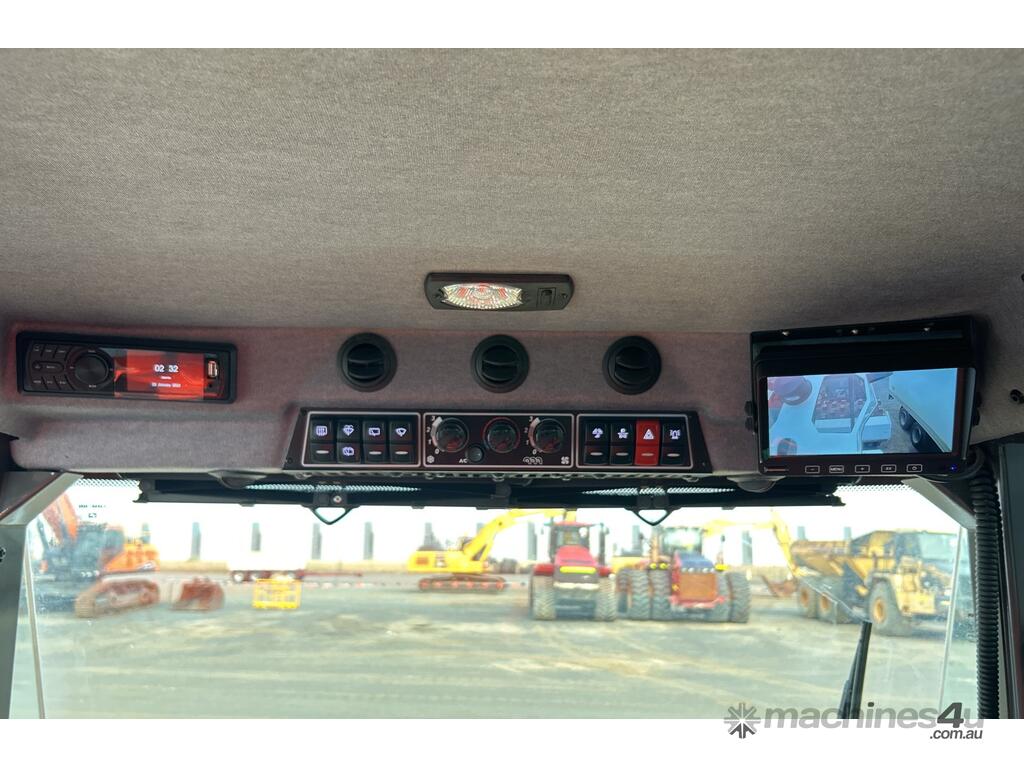

- Superior Visibility & Controls: Operator cab boasts 360° visibility and a multifunctional intuitive display for enhanced safety and ease of use
- Highly Productive Vibration System: Offers variable vibration frequencies and optional ACEforce Intelligent Compaction for improved efficiency and compaction quality

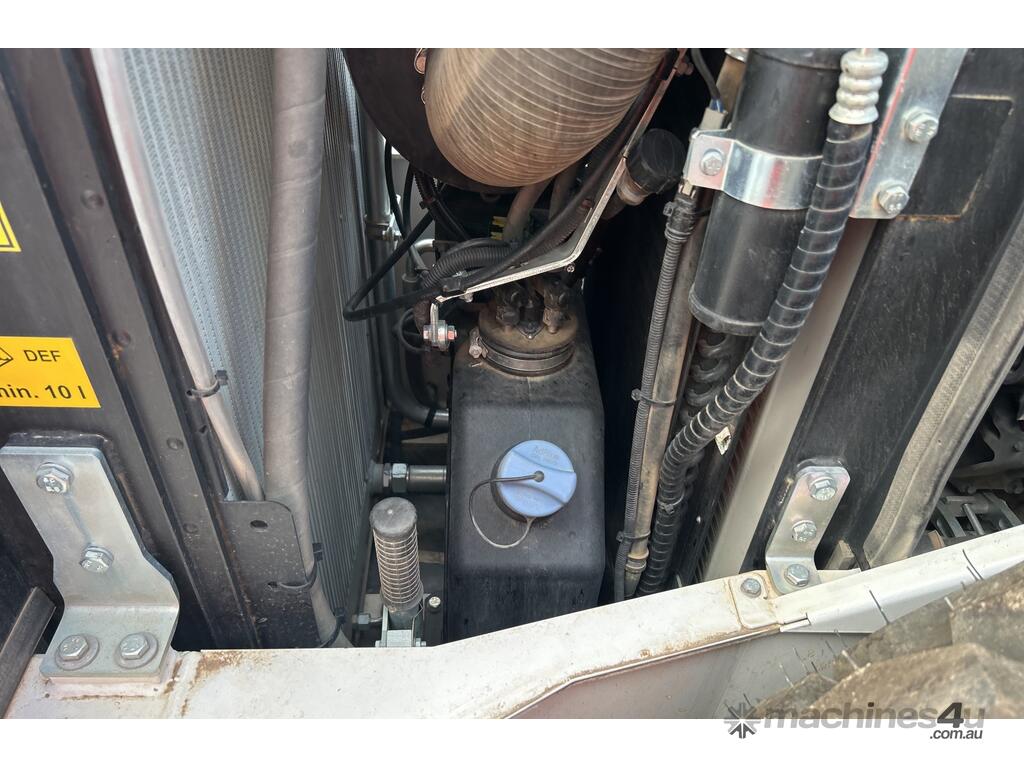

- Fuel Efficient Design: Features ECOdrop technology to reduce fuel consumption and operating costs
- Ground-Level Service Access: Wide-opening rear hood, tiltable cab, and accessible service points minimize maintenance time and labor

Specification Details

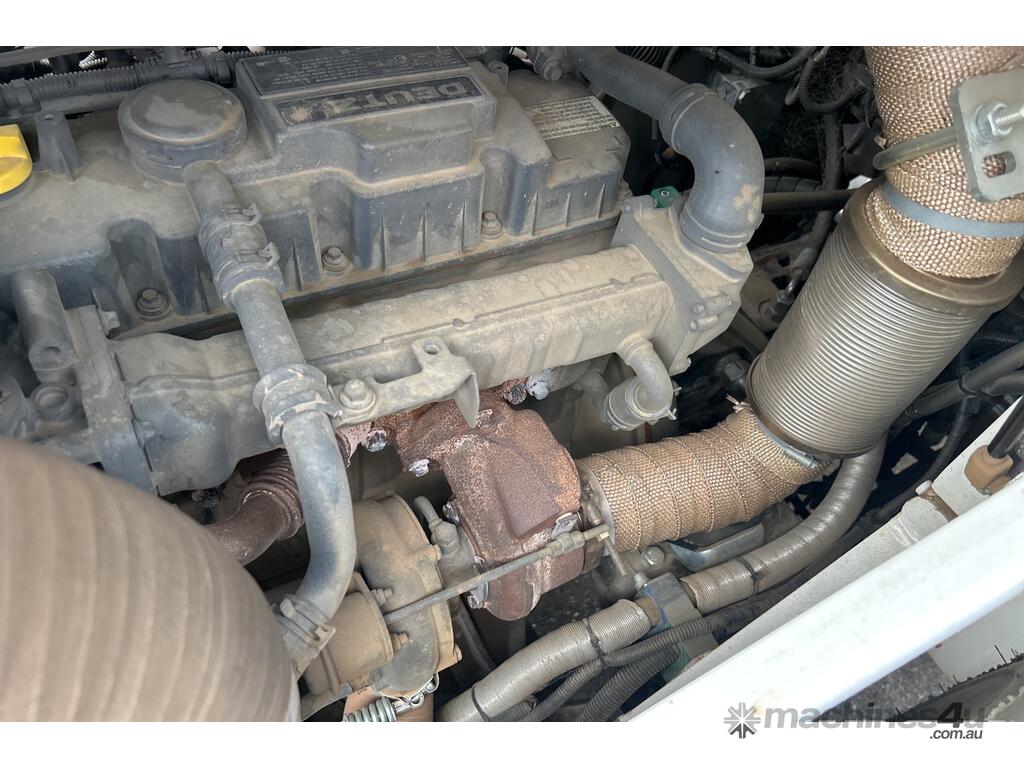

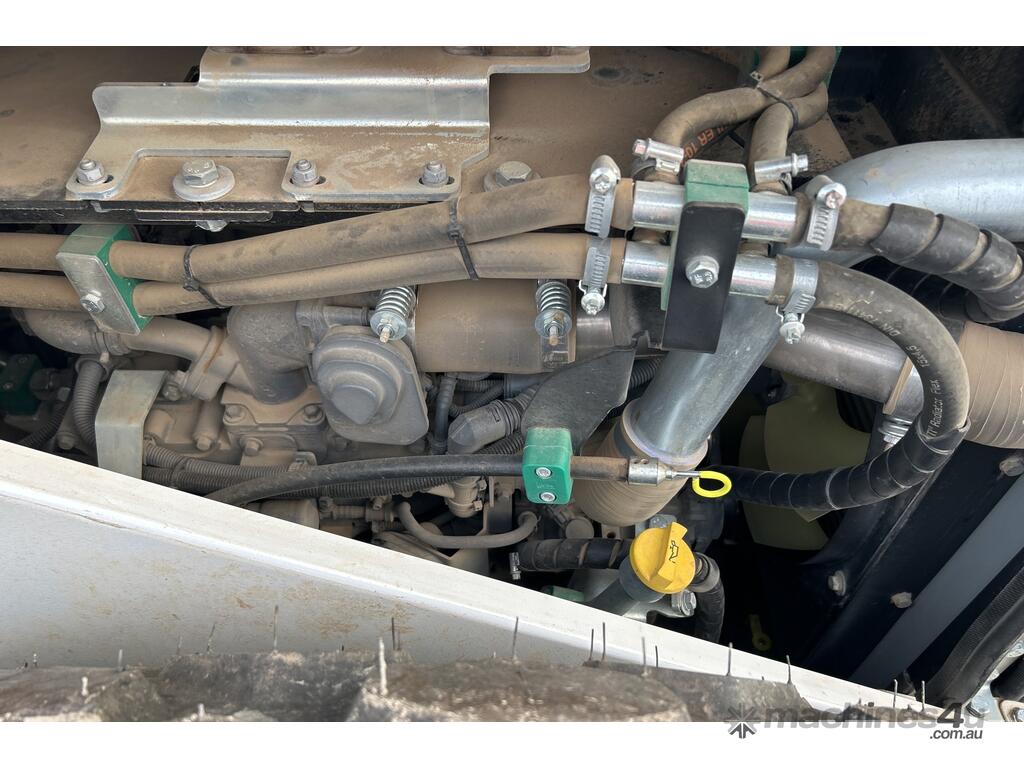

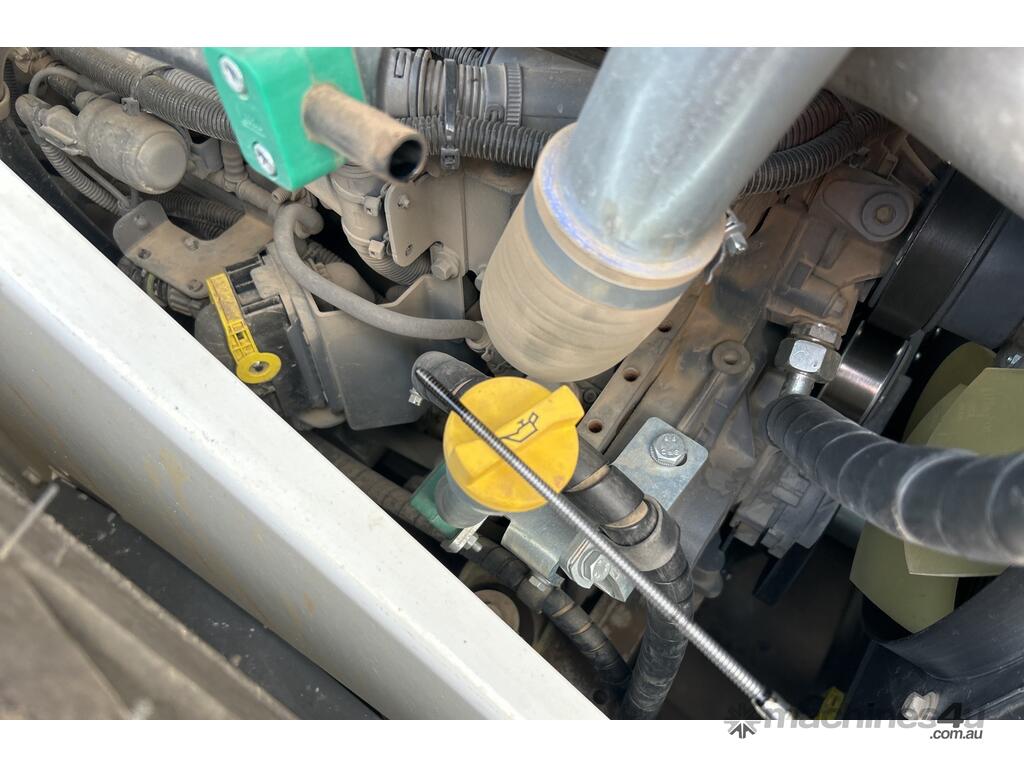

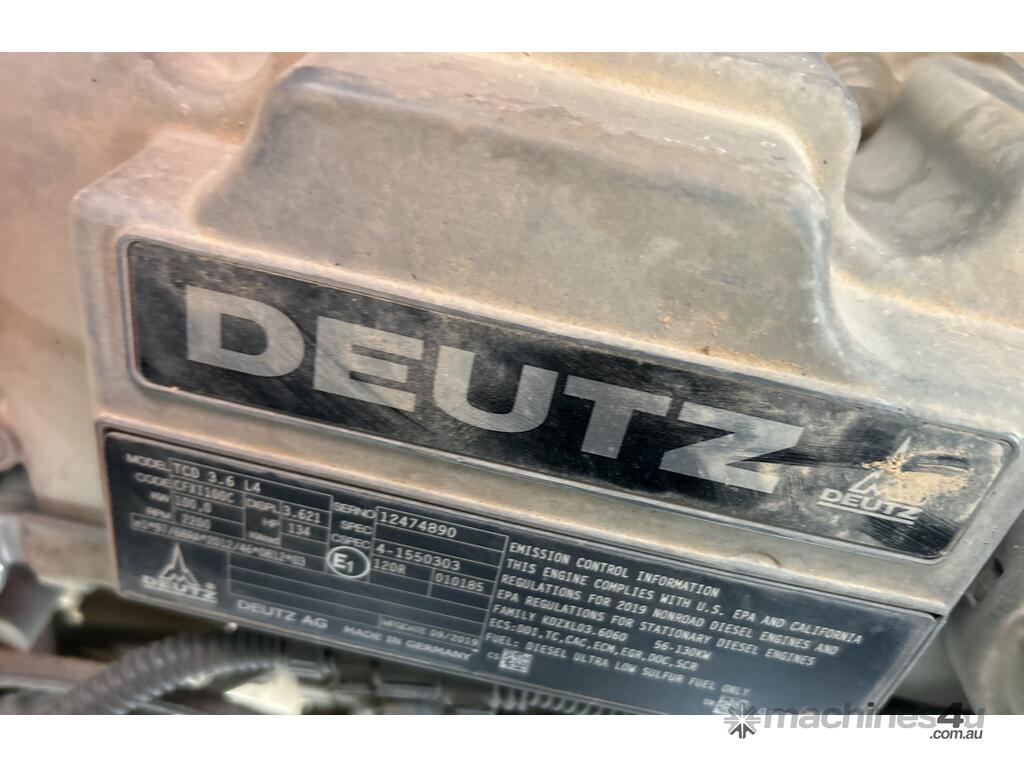

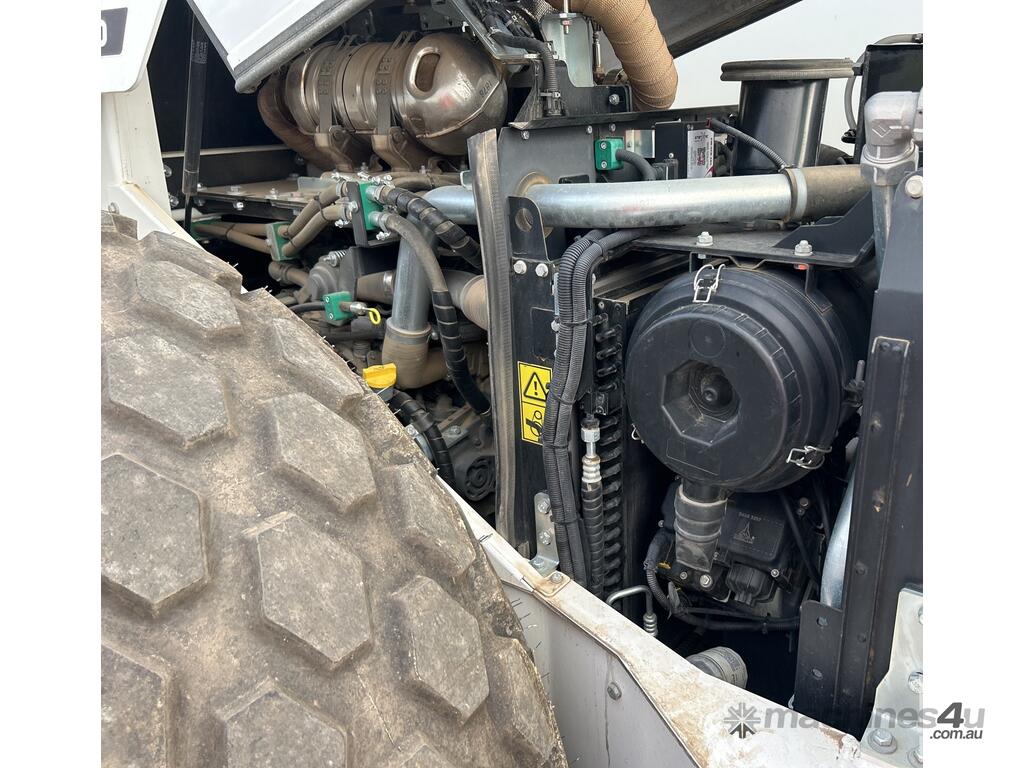

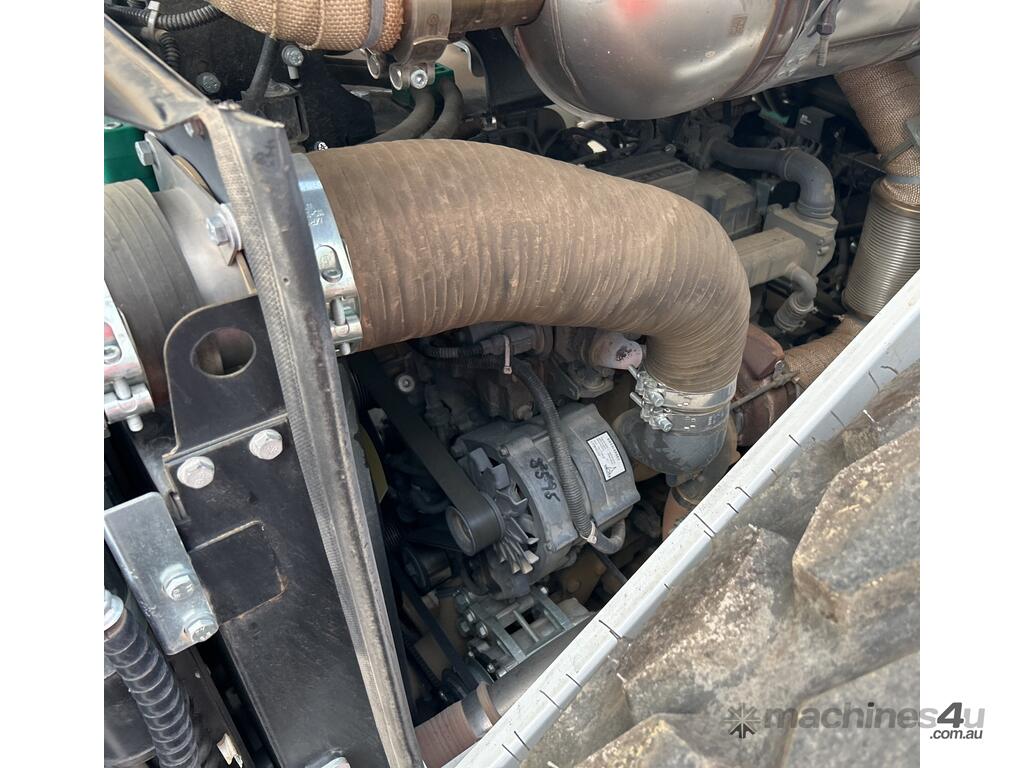

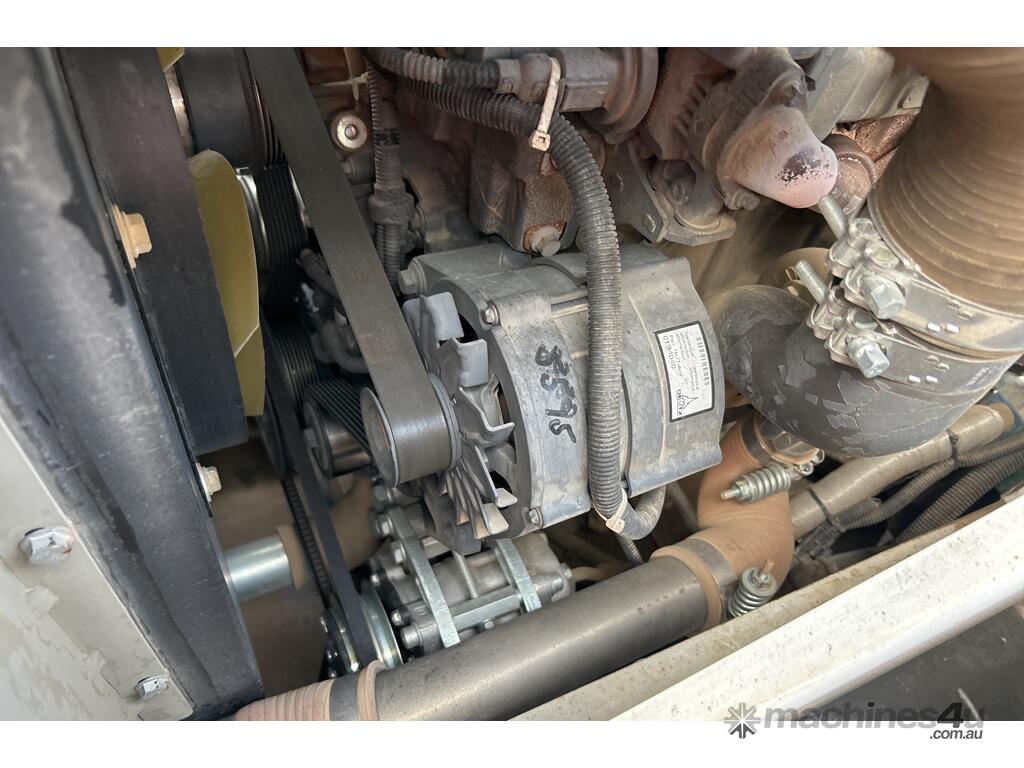

Engine: Deutz TCD 3.6 L4, ~100 kW (134 HP)
Emissions: EU Stage IV / EPA Tier 4 Final
Operating Weight: 10,860–11,575 kg

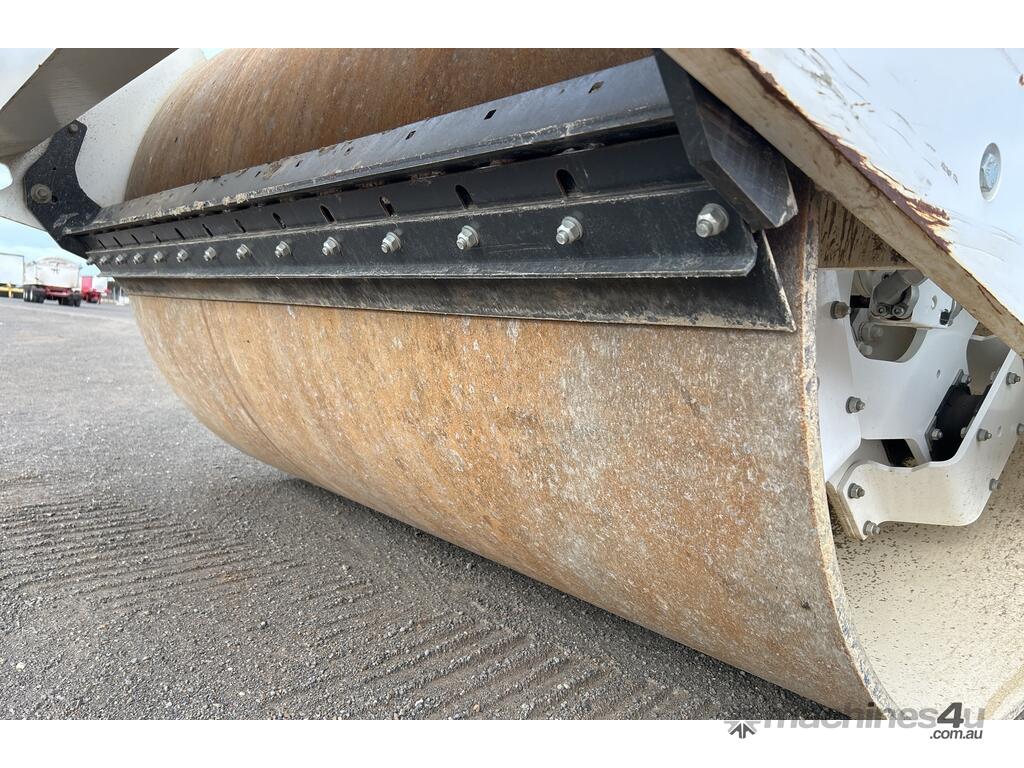

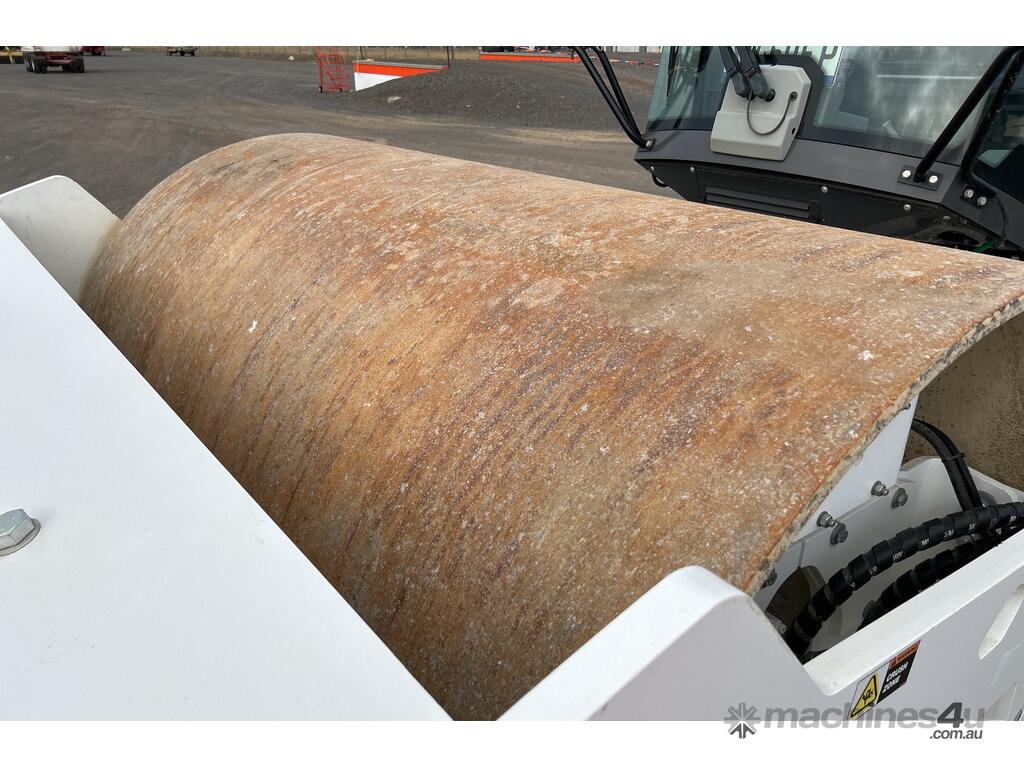

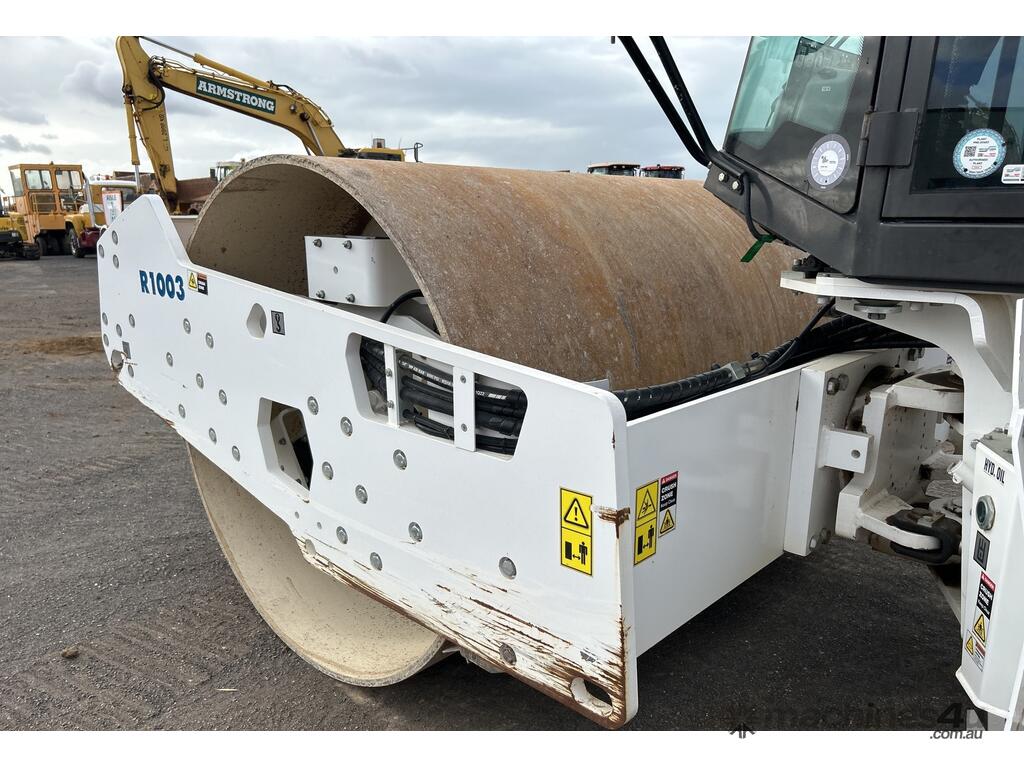

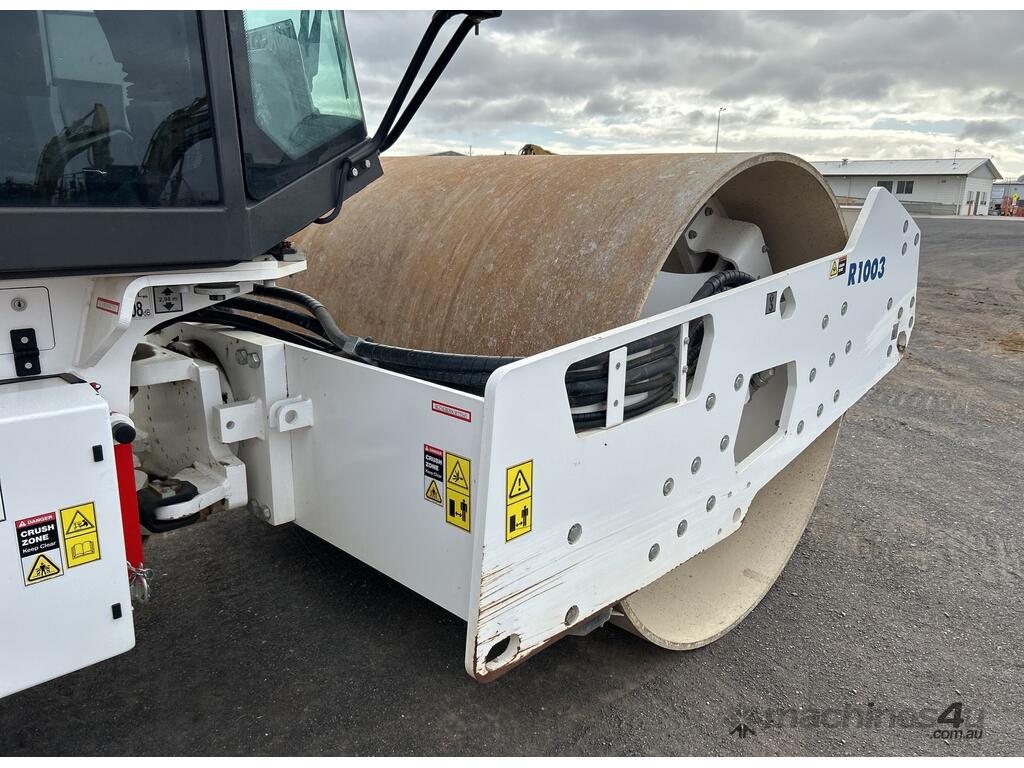

Drum Width: 2,130 mm (83.9 in)
Dimensions (L×W×H): 5.9 m × 2.26 m × 2.97 m
Max Speed: ? 10 km/h
Climbing Ability: 52% (no vibration) / 50% (with vibration)
Vibration Frequencies: 25–31 Hz / 25–35 Hz
Vibration Amplitudes: 1.95 mm / 0.83 mm
Centrifugal Forces: 186–285 kN / 79–155 kN

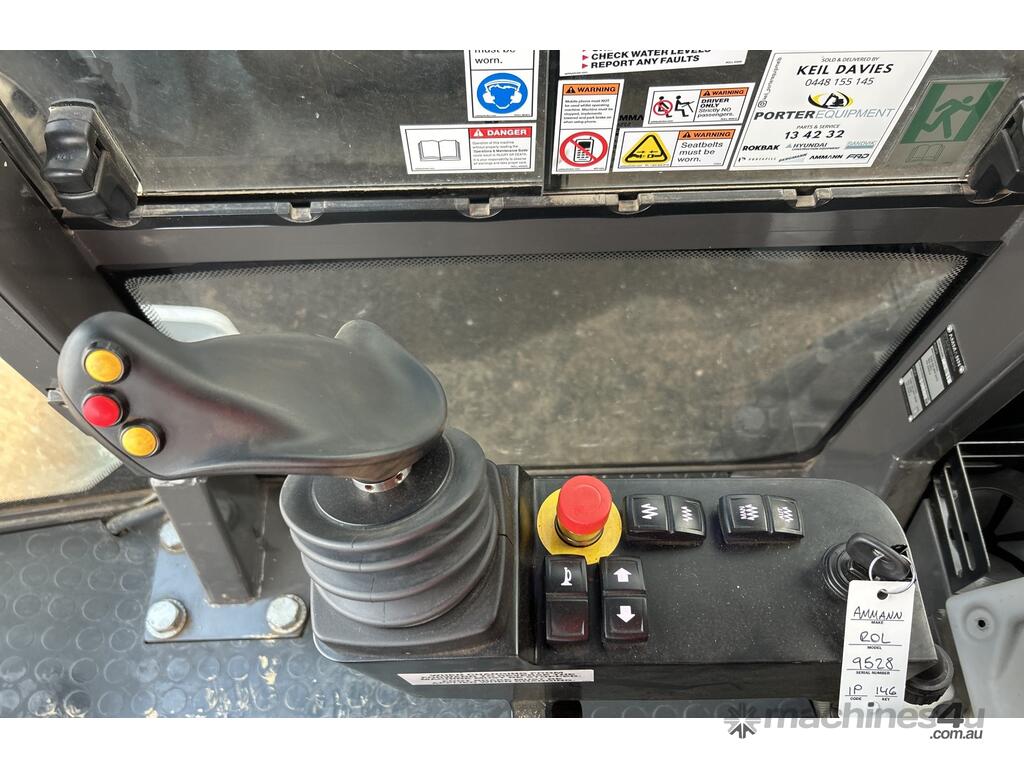

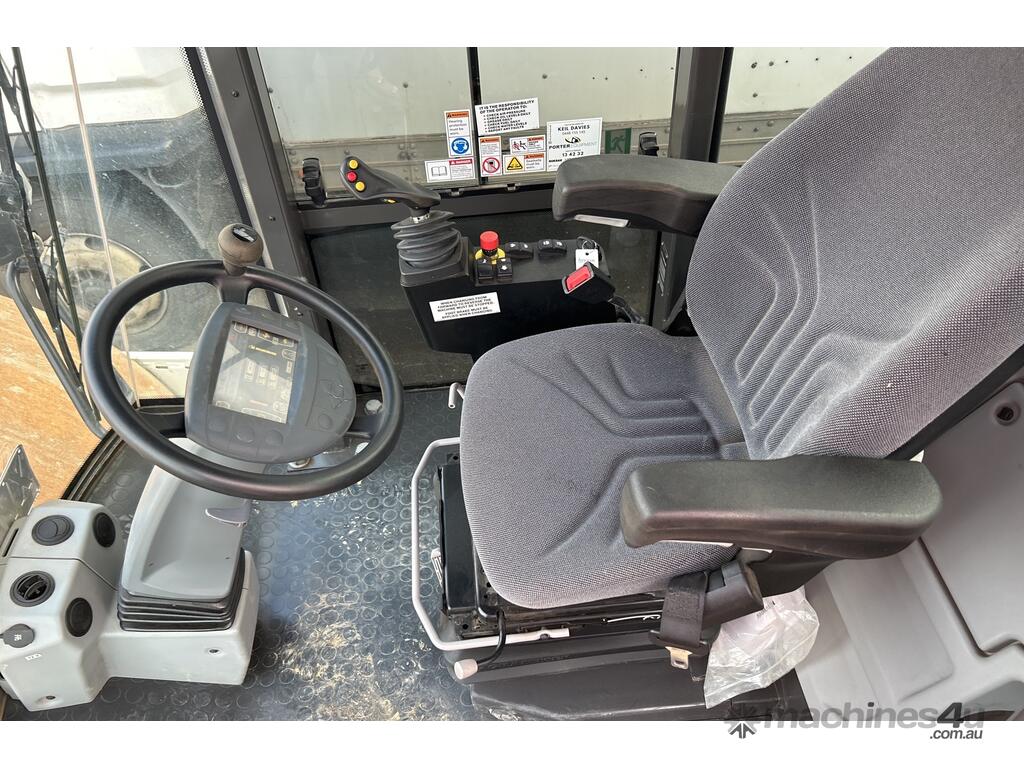

Operator Environment: ROPS cab, multifunction display, optional A/C
Maintenance Features: Ground-level access, ECOdrop, tiltable cab
Optional Systems: ACEforce, ATC
