2022 Ammann ARS 110 HXPD Padfoot Drum Compactor

Name: 2022 Ammann ARS 110 HXPD Padfoot Drum Compactor
Brand: ammann
SKU: RP1001
Price: 125000 AUD
Availability: InStock

Geelong, VIC

$125,000 AUD($137,500 Inc. GST)
Confirm with seller if additional costs apply

Commercial Finance
Estimate

$440.61
Per Week

3.99% p.a.
Rate From

5 year term, 30% final payment. View disclaimer

View Instant Finance Quote

Specifications

Condition:

Used

Category:

Single Drum Padfoot Roller

Make:

AMMANN

Model:

ARS 110

Year:

2022

Member Since: Aug 2025

Gold Member

Listings: 37

Hours:

157 Hours

Operating Weight (T):

Roller Features:

Enclosed Cab
Padfoot Kit Included
ROPS

Sellers stock ID:

RP1001

Description

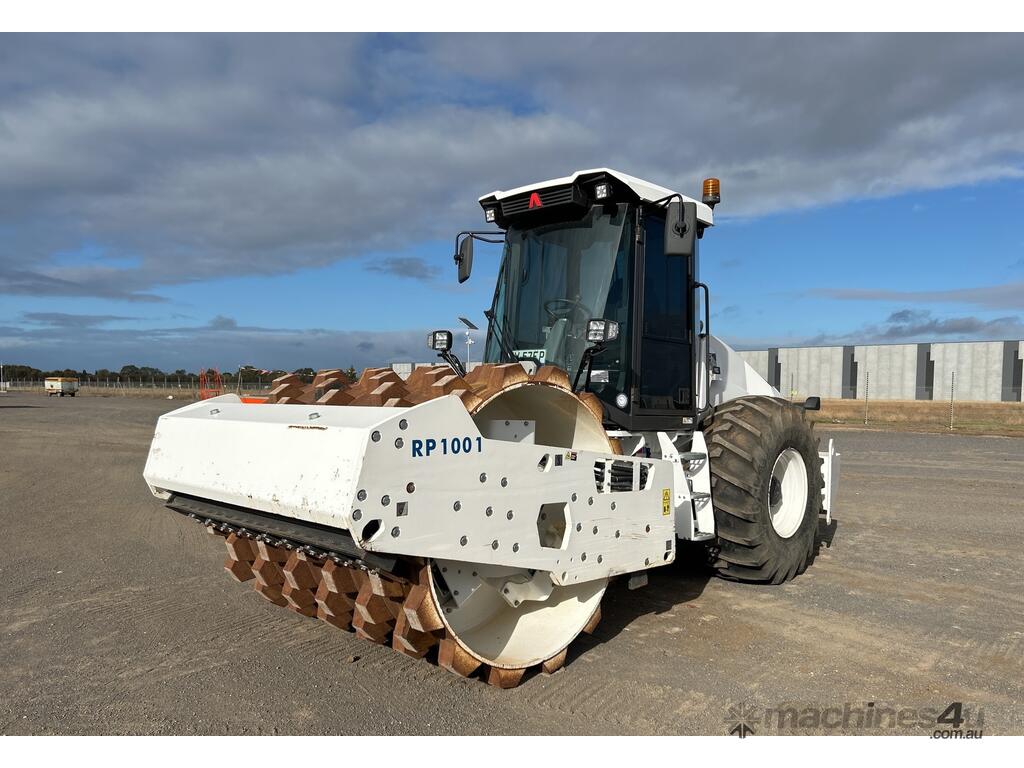

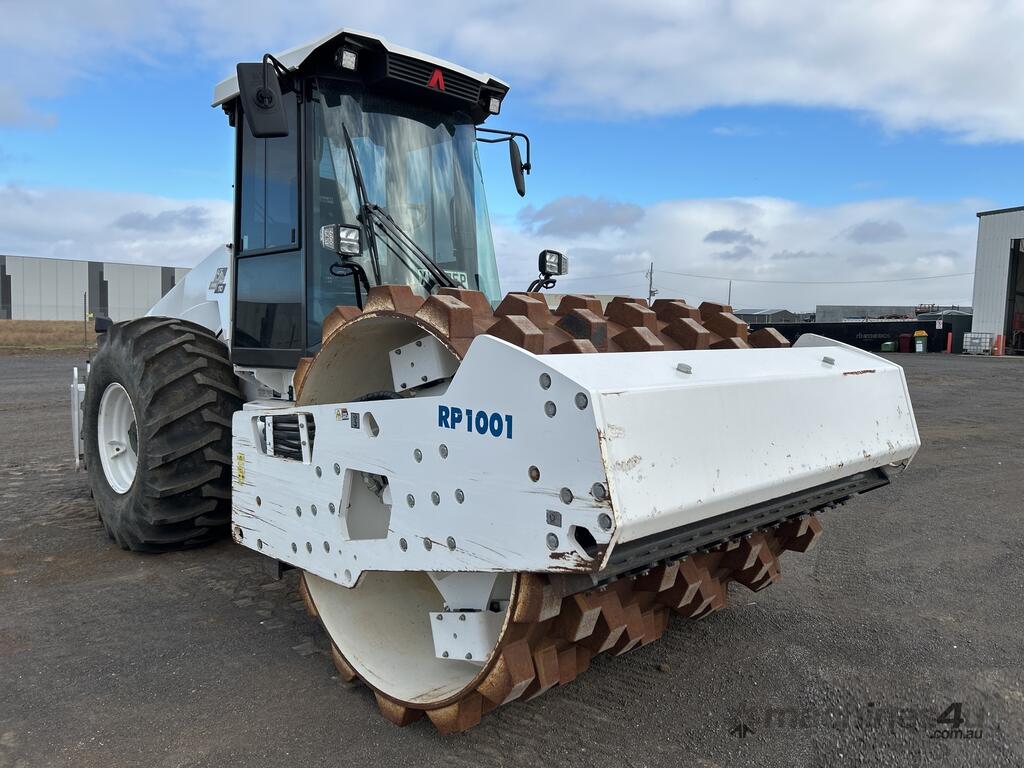

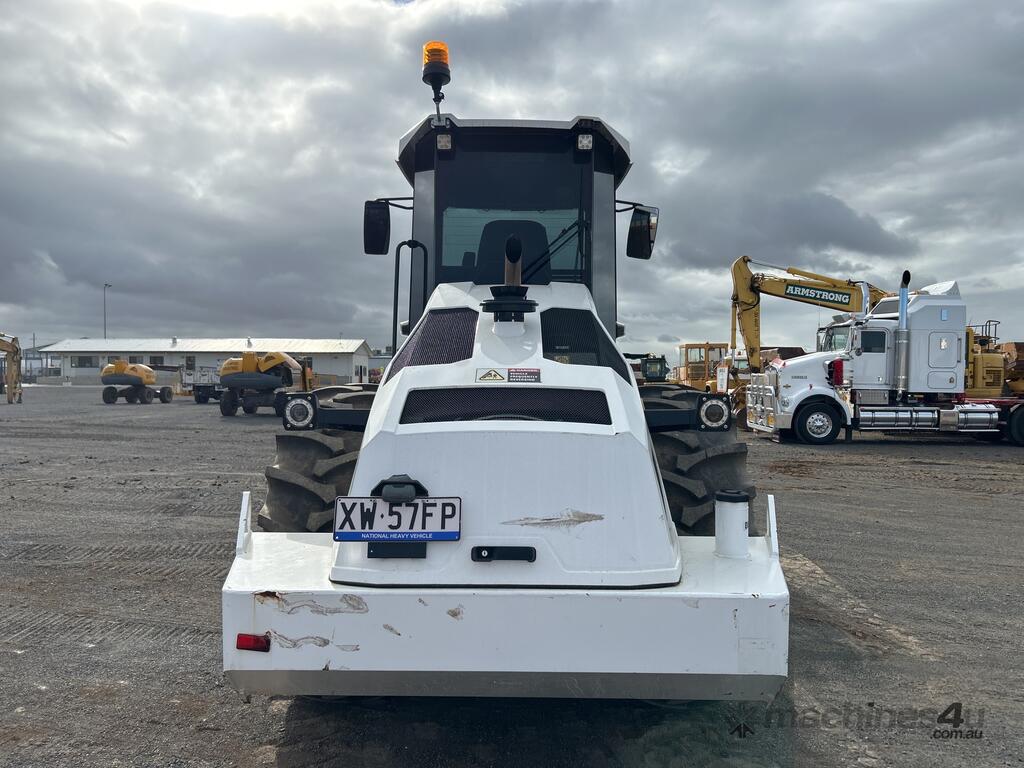

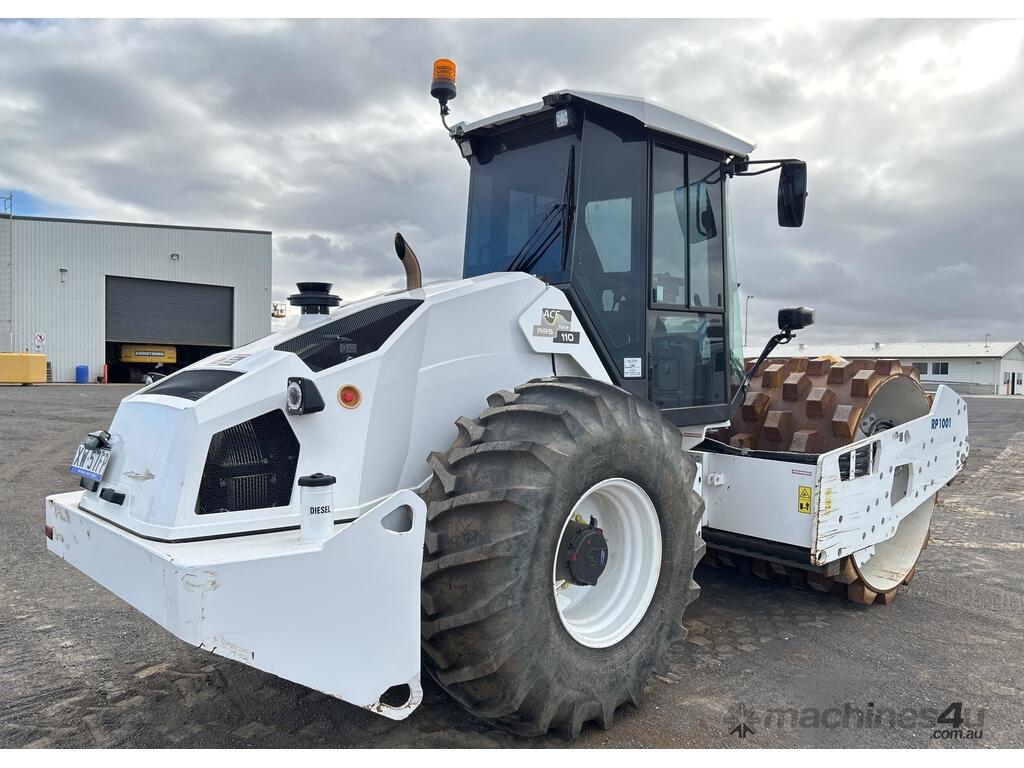

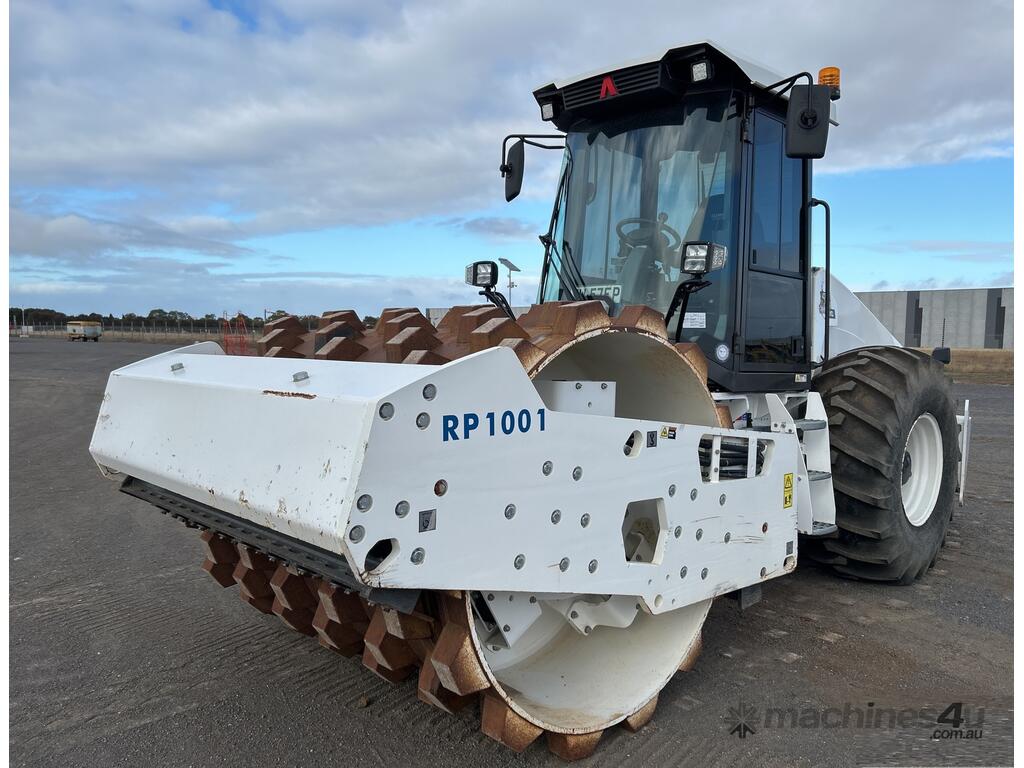

2022 Ammann ARS 110 HXPD Padfoot Drum Compactor
This 2022 ARS 110 HXPD is exceptionally suited for demanding cohesive soil compaction jobs, road base, rail subgrade, embankments, with advanced operator comfort, efficient compaction tracking, and strong performance. The enclosed cab, intelligent compaction, and robust Deutz engine make it a standout choice.
SN: ACZ16382JN3035596
Hours: 157 hrs

Key Features:

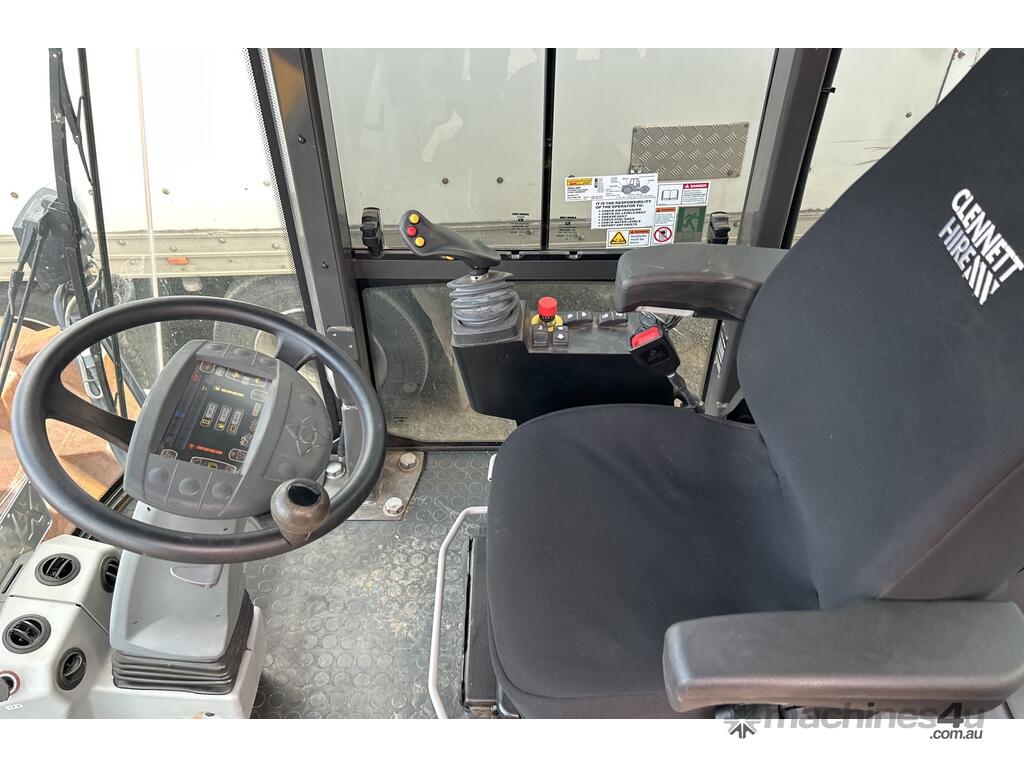

- Advanced Operator Comfort & Visibility: Enclosed cab with air conditioning, rear-view camera, emergency stops—designed for comfort, safety, and enhanced control
- Emission & Engine: Equipped with a Deutz 4-cylinder TCD 3.6 L4 Diesel engine requiring AdBlue (U.S. EPA 2019 / EU Stage IV compliant)

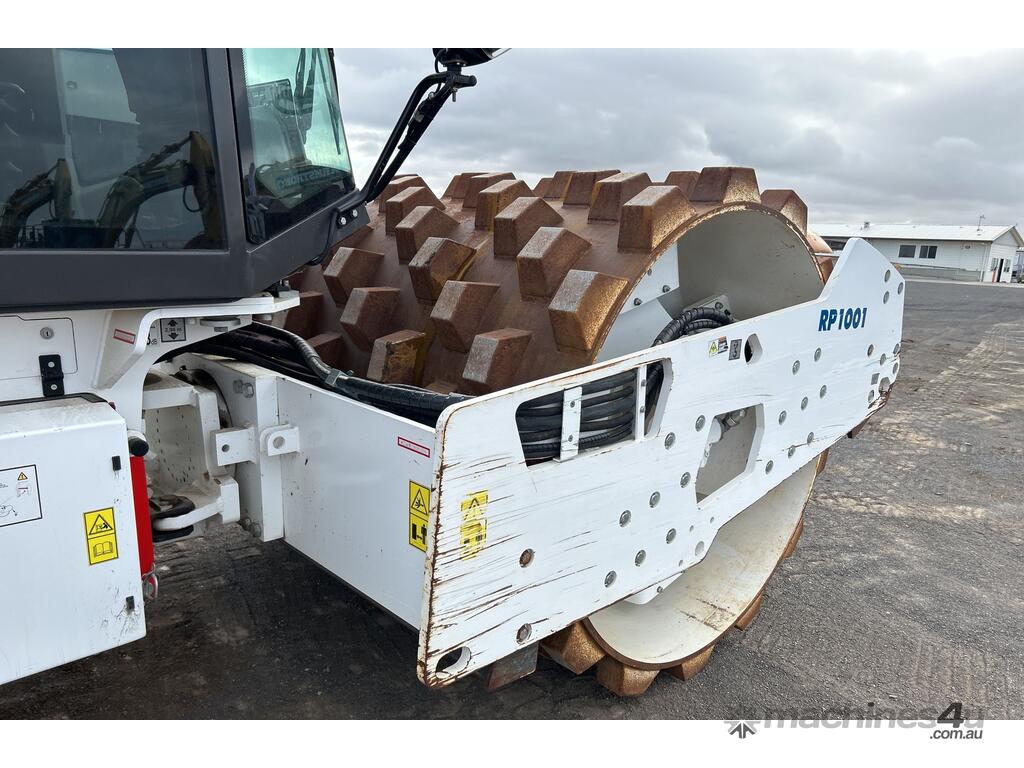

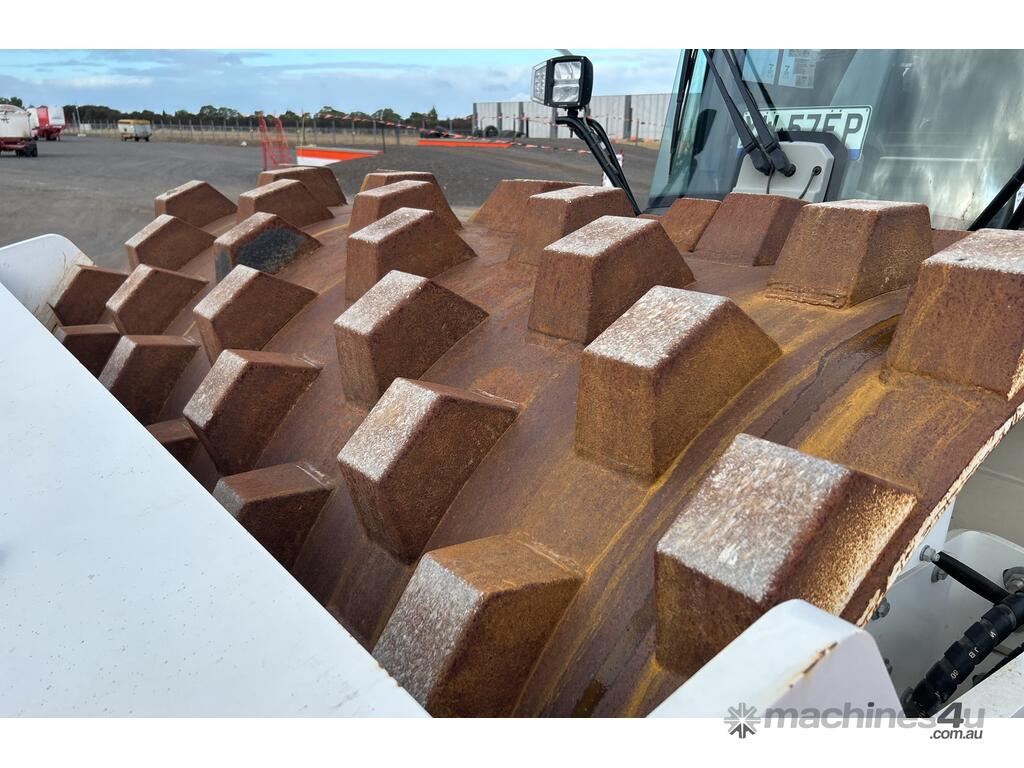

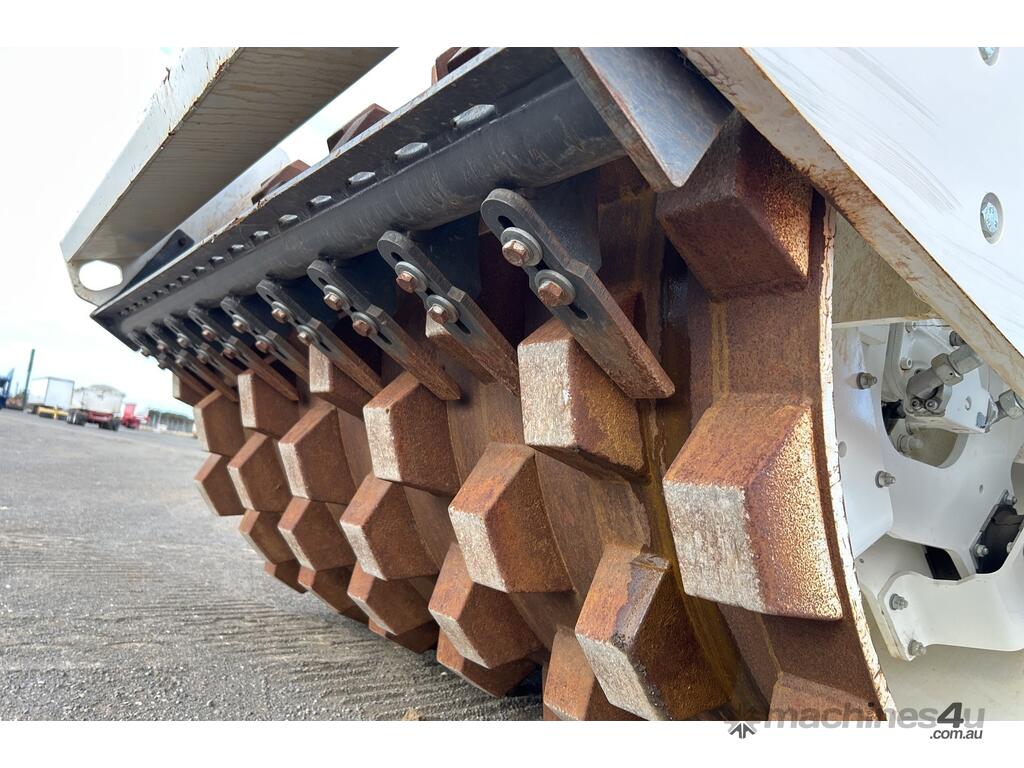

- Padfoot Drum Performance: 2,130 mm drum width with padfoot shell kit for cohesive soil compaction (deep penetration with fewer passes)
- Intelligent Compaction: ACEforce system for real-time compaction measurement and documentation boosts efficiency and quality
- No-Rear-Axle Design: Lowers centre of gravity, maximising stability and site safety

Engine & Emissions

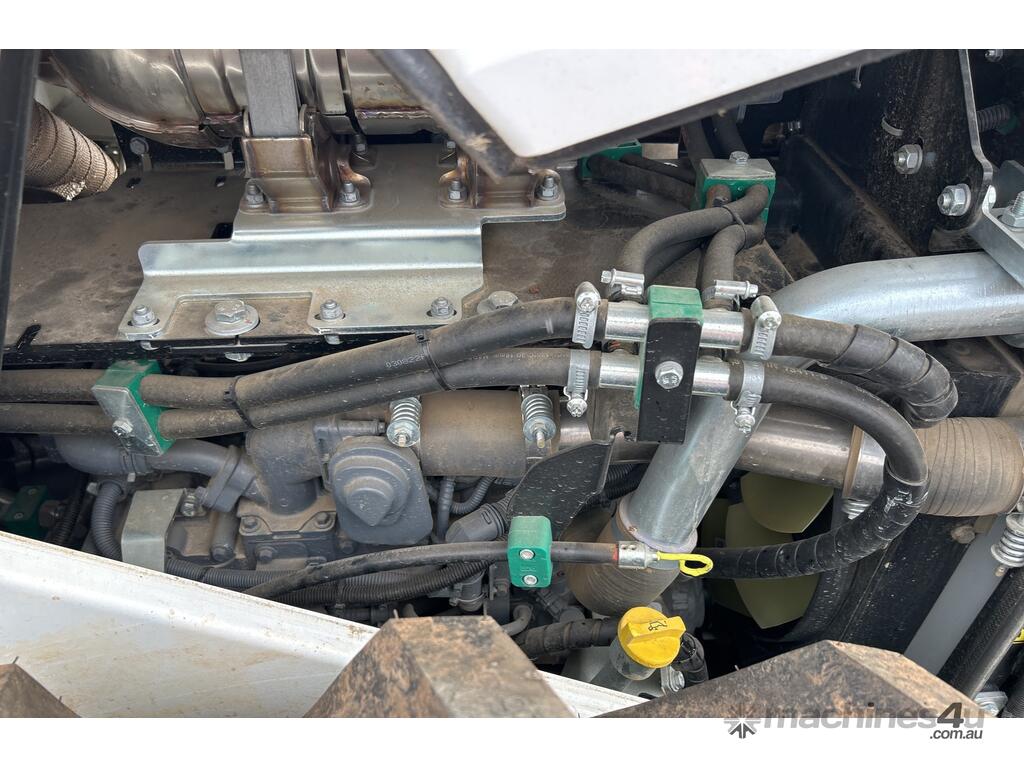

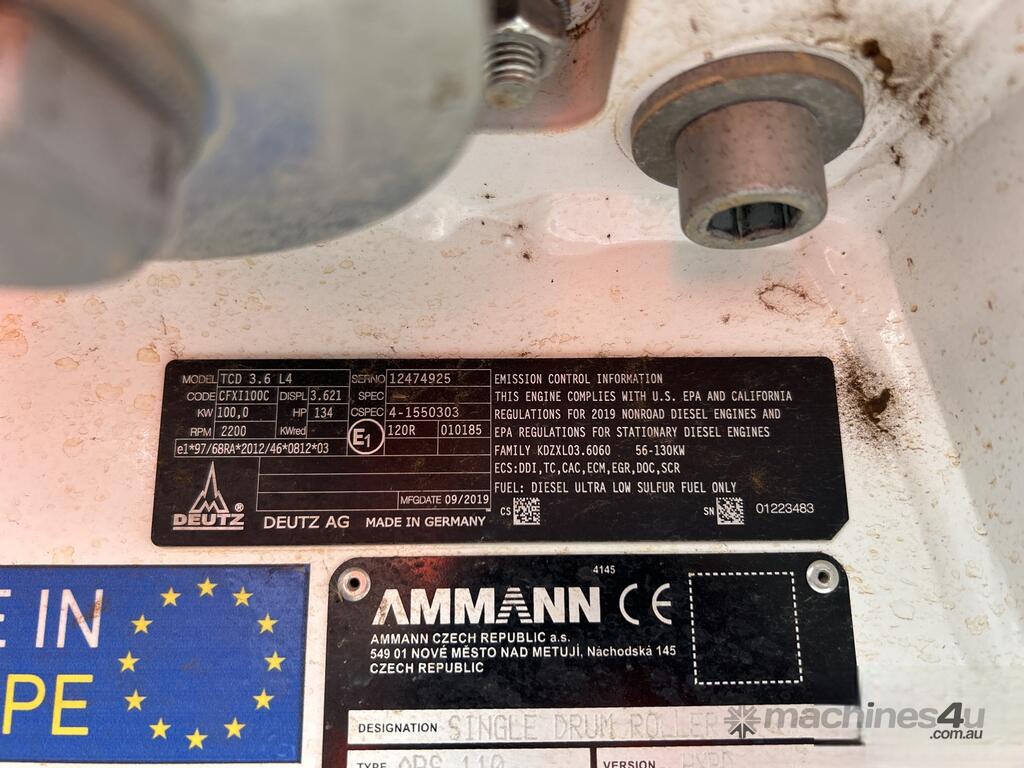

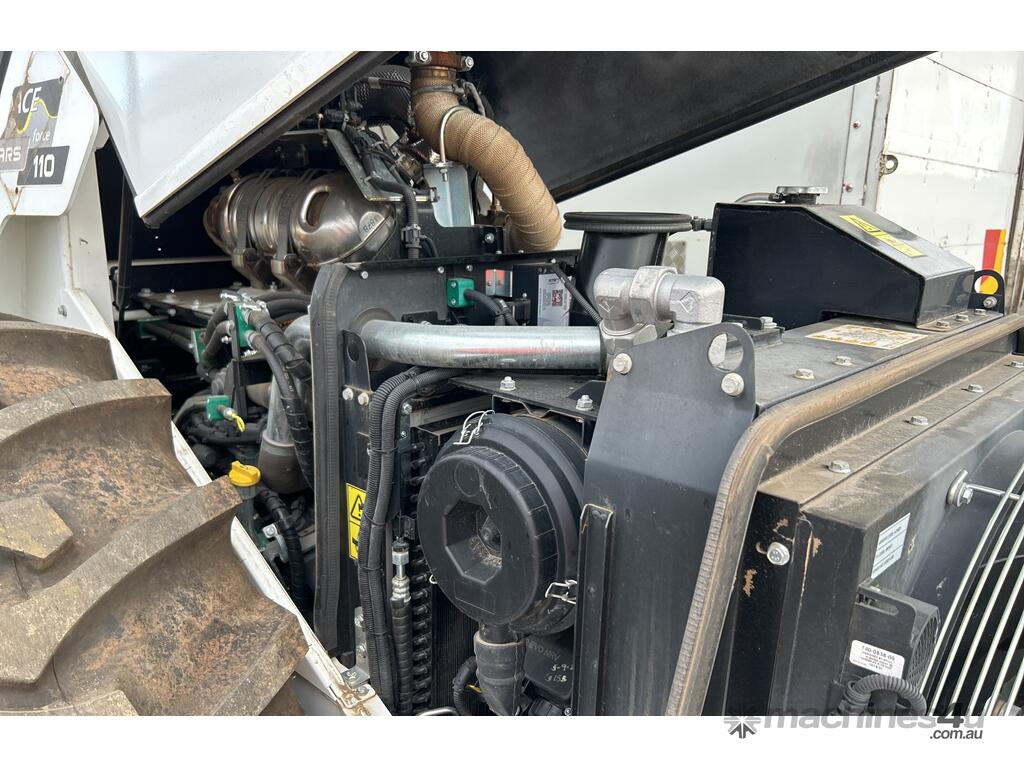

Engine: Deutz TCD 3.6 L4 (4-cylinder diesel)
Power: 100 kW (134 HP) per ISO 14396
Emission Compliance: EU Stage IV / U.S. EPA Tier 4 Final
After-Treatment: EGR + DOC + DPF + SCR

Dimensions
Machine Length: 5,900 mm
Wheelbase: 2,990 mm
Machine Width: 2,260 mm
Machine Height: 2,970 mm (operator seat height: 2,200 mm)

Drum

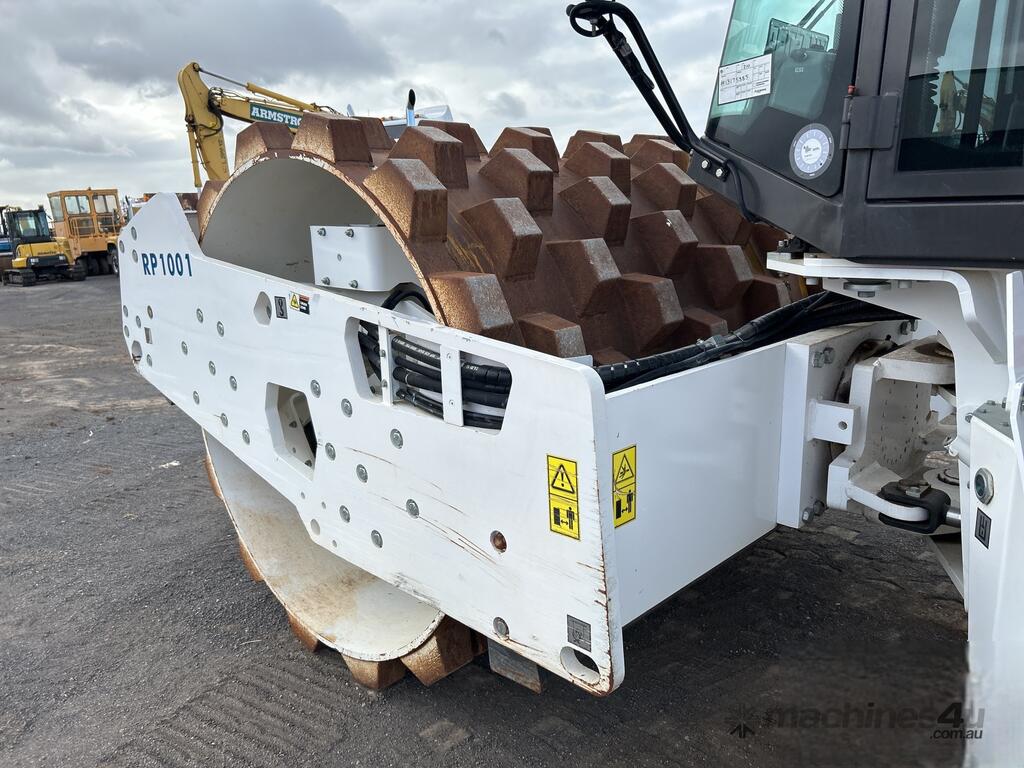

Drum Width: 2,130 mm
Drum Diameter: approx. 1,500 mm (smooth drum) or 1,694 mm depending on variant
Drum Thickness: 25 mm

Weight & Load
Operating Weight (HXPD): approx. 11,575 kg
Max Operating Weight: approx. 12,630 kg
Static Linear Load: 30.3 kg/cm

Compaction Forces
Frequency I / II: 25–31 Hz / 25–35 Hz
Amplitude I / II: 1.95 mm / 0.83 mm
Centrifugal Force I / II: 186–285 kN / 79–155 kN

Performance & Mobility
Max Transport Speed: 12 km/h
Max Working Speed: 7.6 km/h
Climbing Ability (without / with vibration): 67% / 55%
Inner Turning Radius: 3,625 mm

Miscellaneous
Brakes: Hydrostatic (operating), Multi-disc spring (parking & emergency)
Fuel Tank Capacity: 345 L

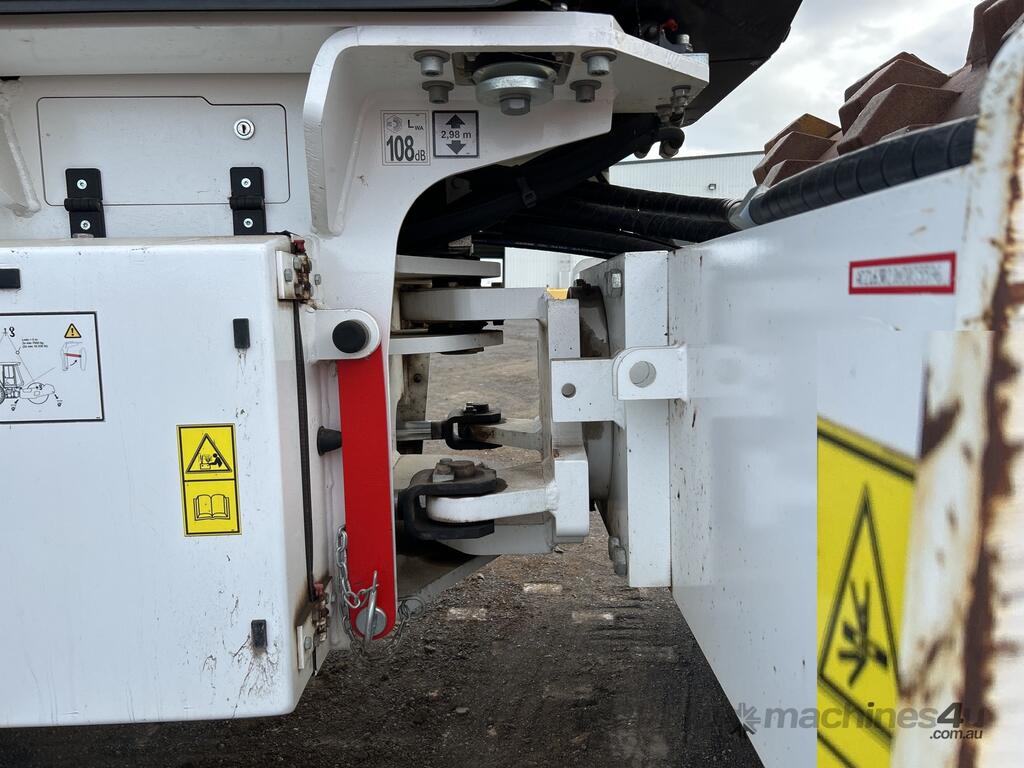

Articulation Angle: ±36°, Oscillation Angle: ±10°

Key Features & Comfort
Cab with ROPS, 360° visibility, multifunctional display, ACEforce Intelligent Compaction, no-rear-axle design, ECOdrop system for fuel efficiency, optional air-conditioning, ATC (traction control), etc.
