This 2022 Ammann ARX 90 Double Drum Roller is a low-hour (254 hrs), premium performer, featuring enclosed climate-controlled cab, advanced compaction control, robust Deutz engine, water efficient sprinkling, and operator-focused ergonomics. Ideal for municipal roads, airport runways, industrial floors, or complex asphalt jobsites—this machine offers serious productivity from day one

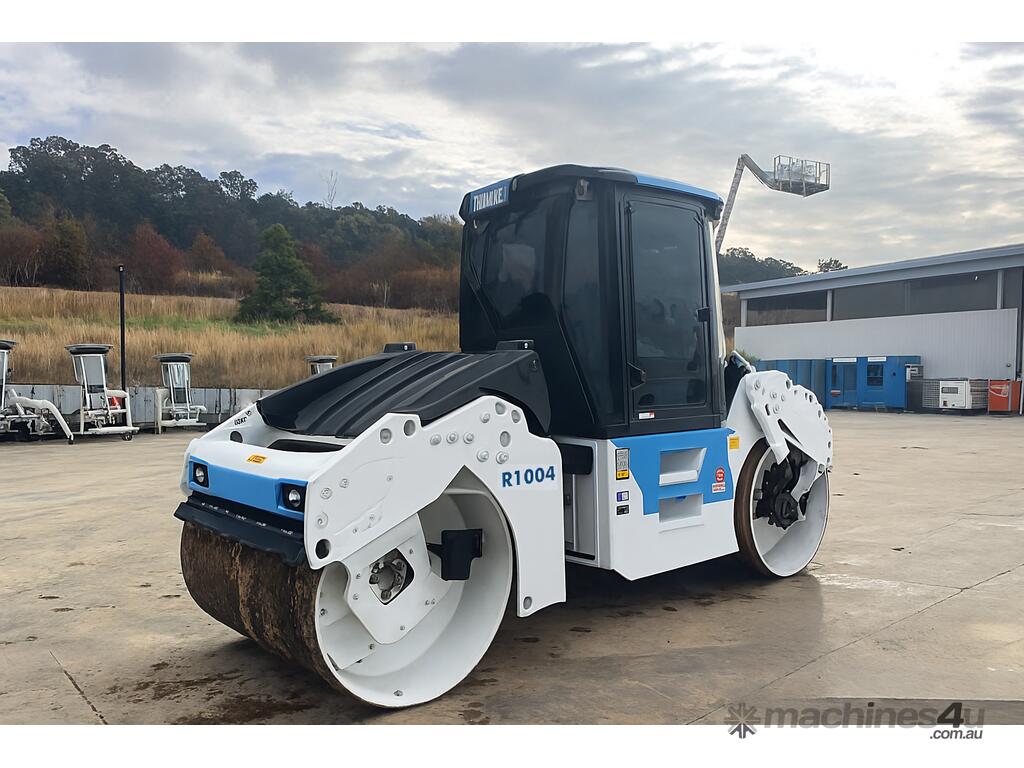

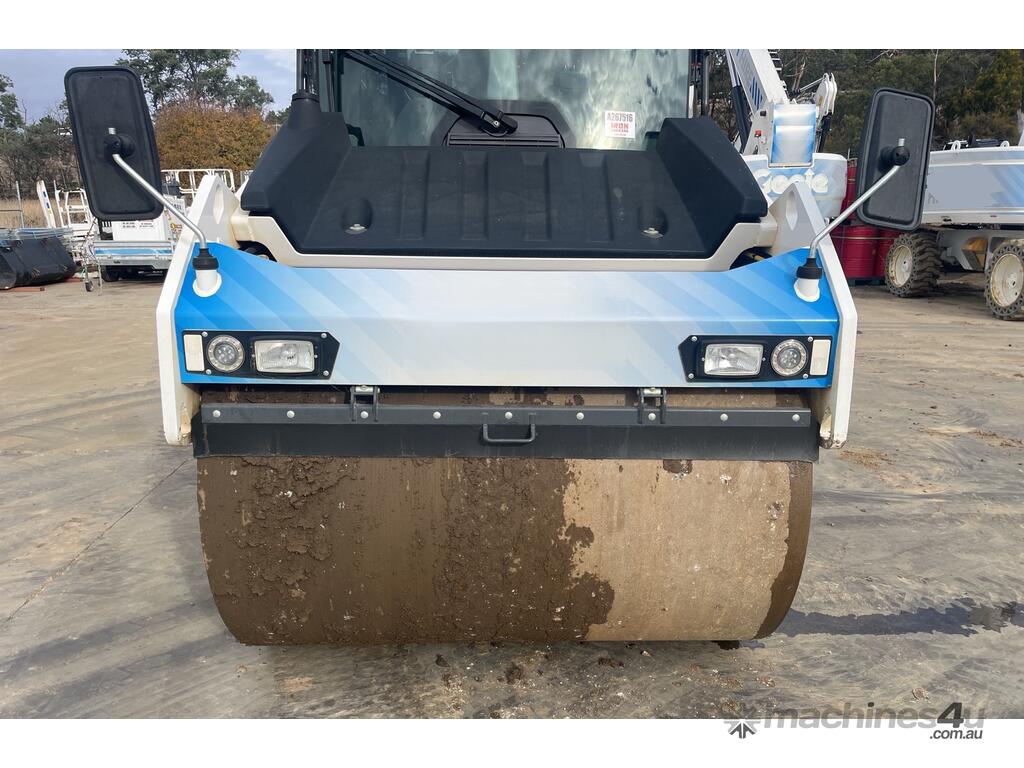

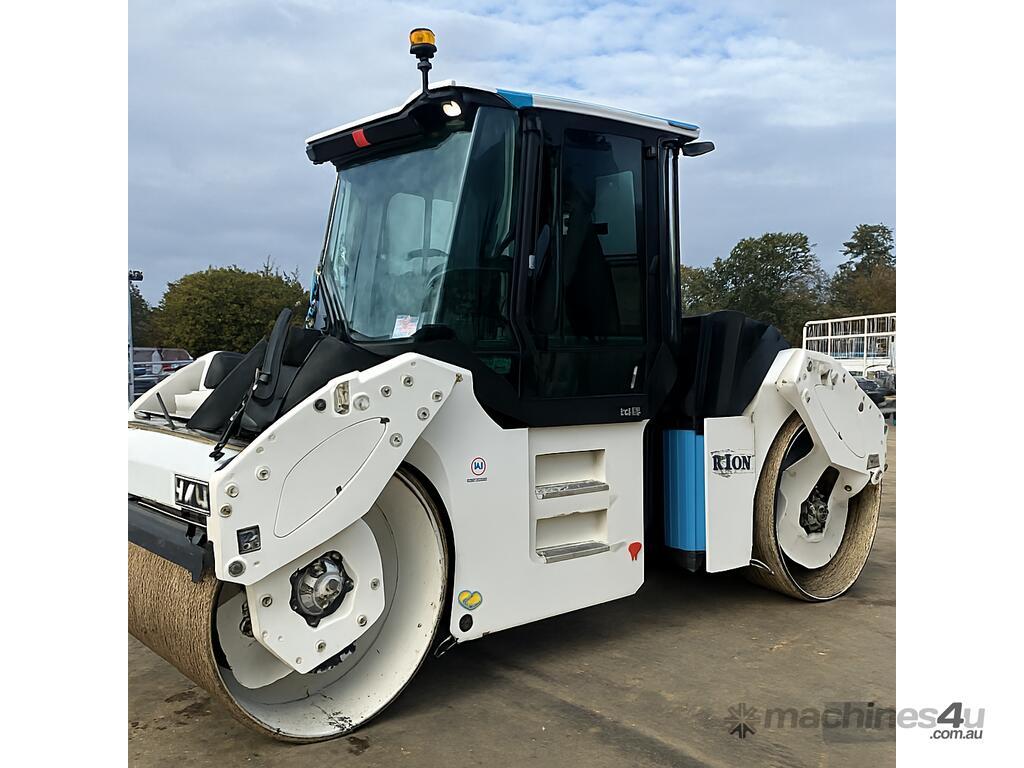

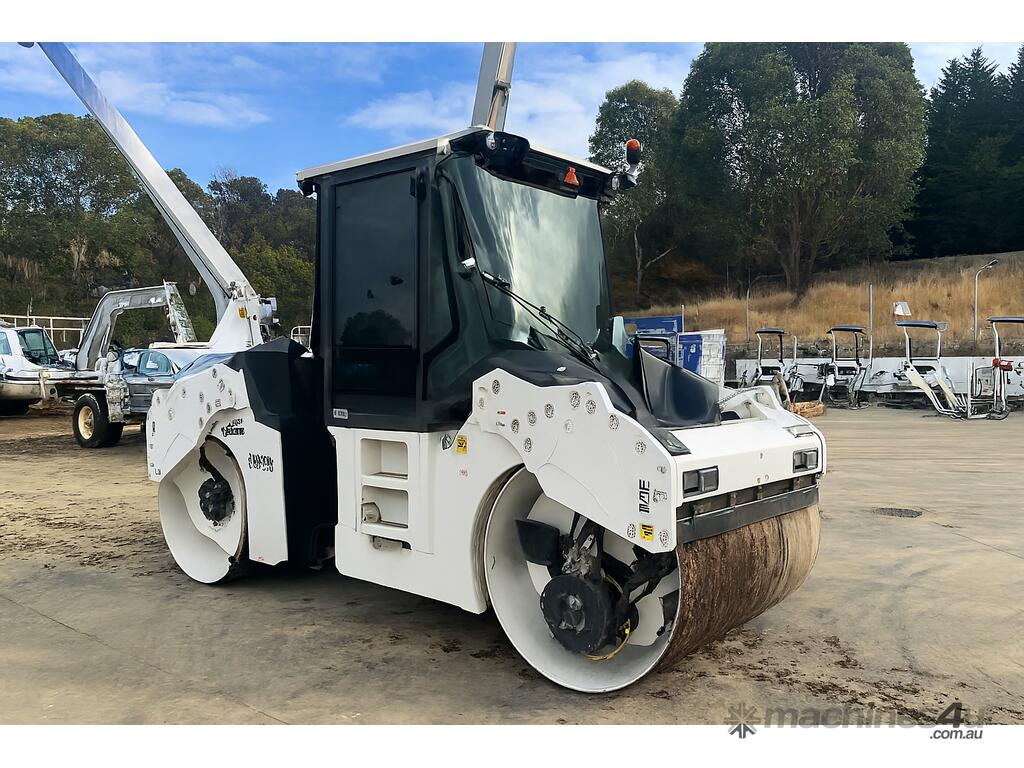

2022 Ammann ARX 90 Double Drum Roller

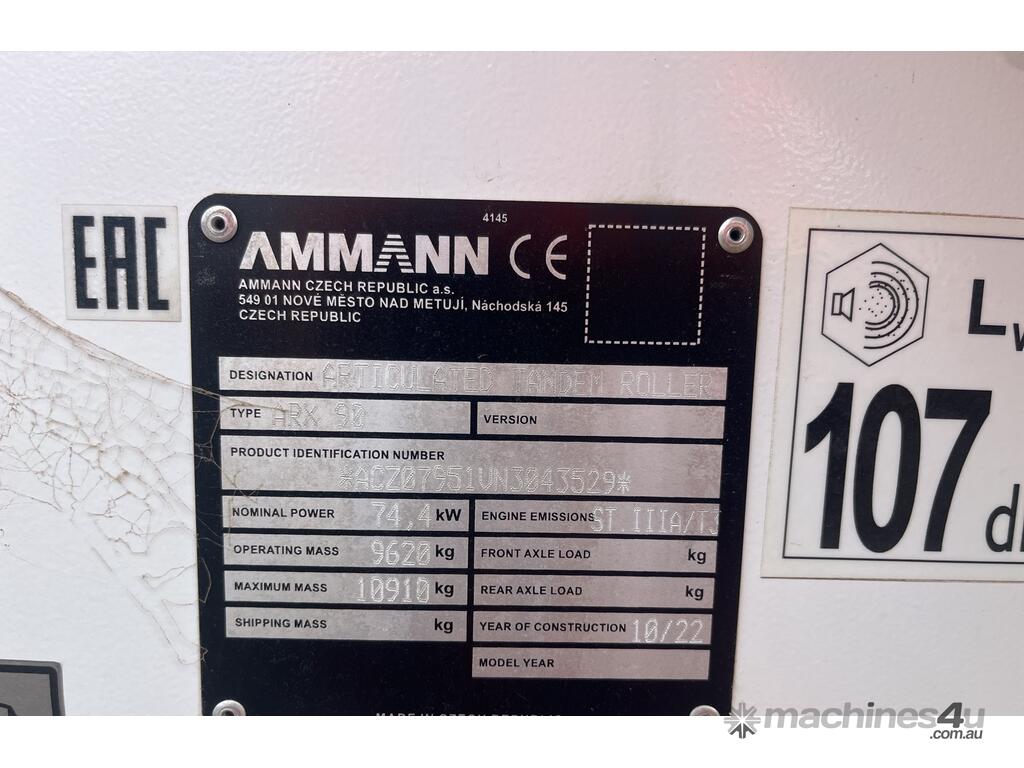

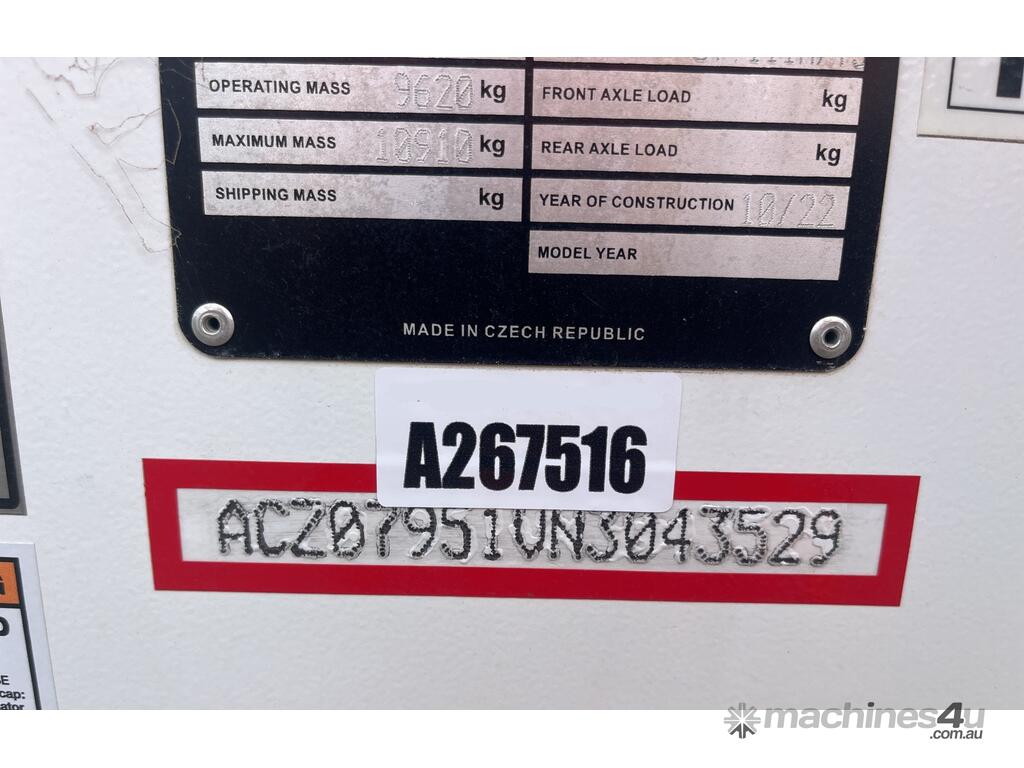

Serial Number: ACZ07951VN3043529
Meter Reading (Hours): 254 hrs
Key Features

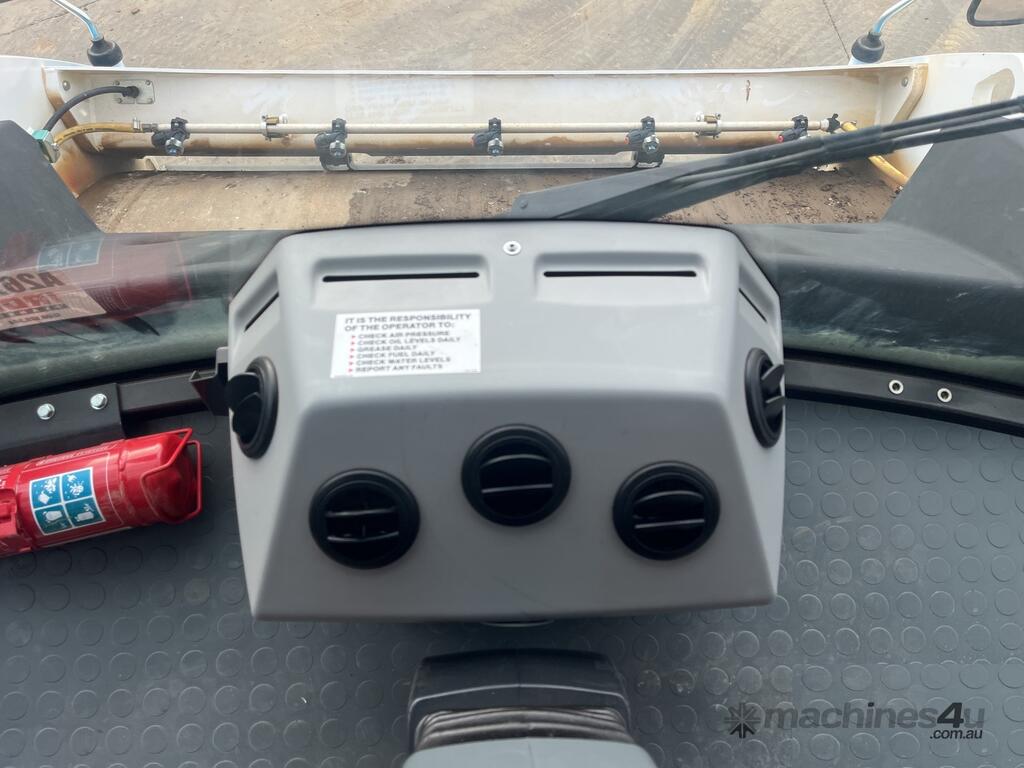

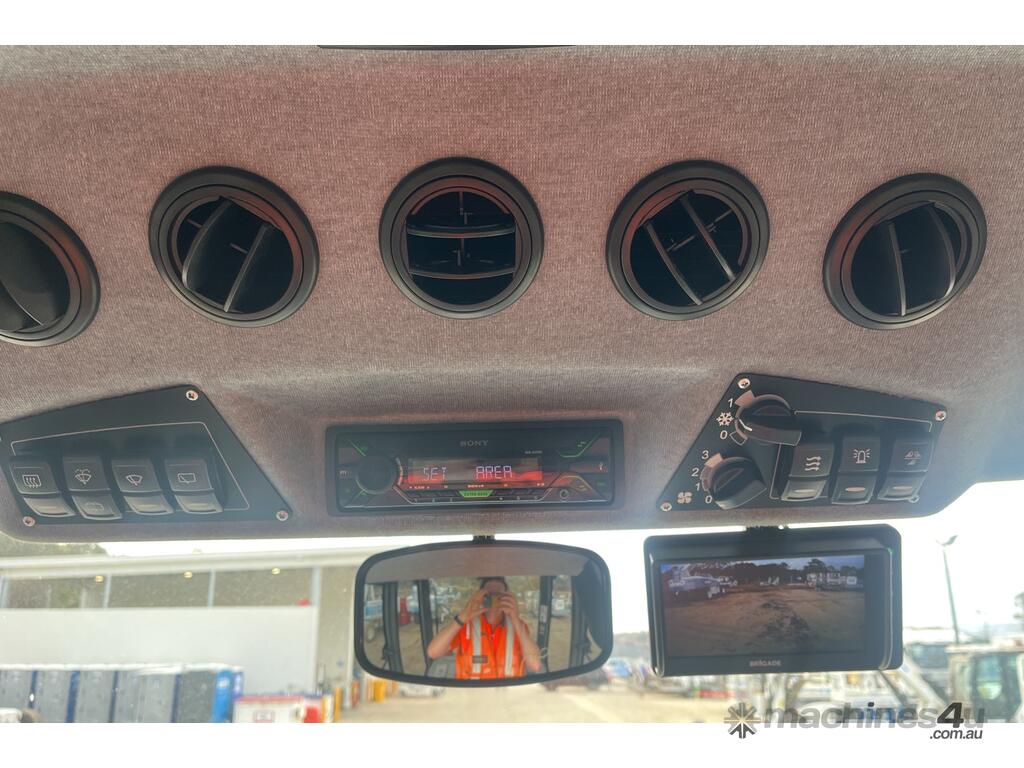

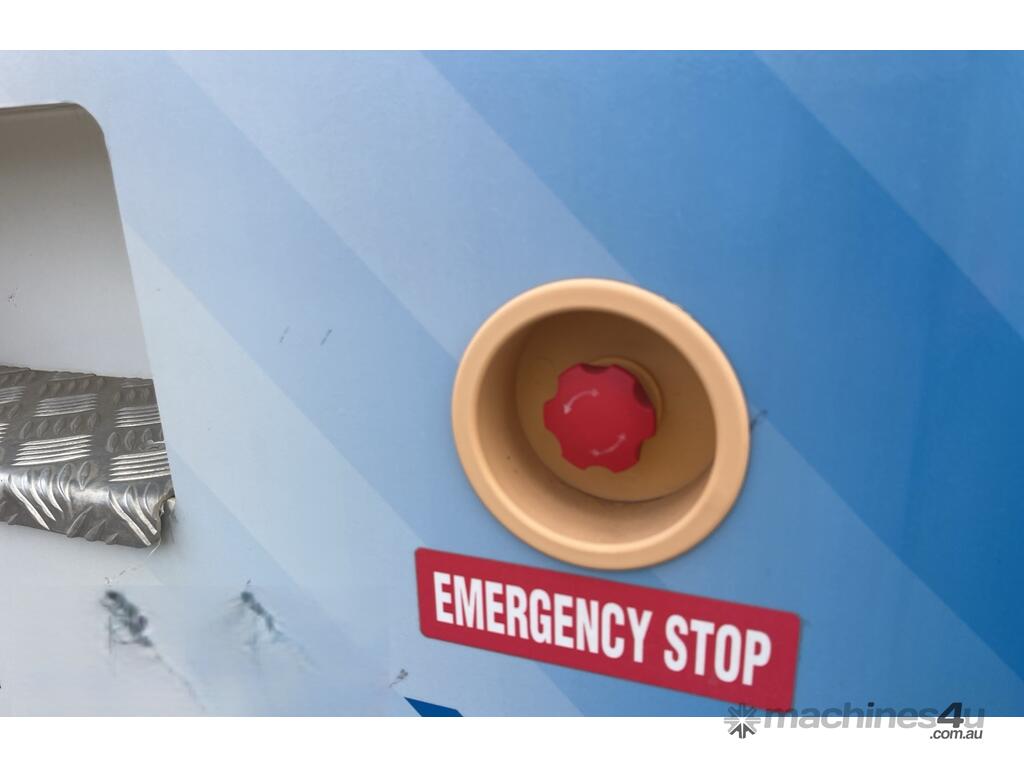

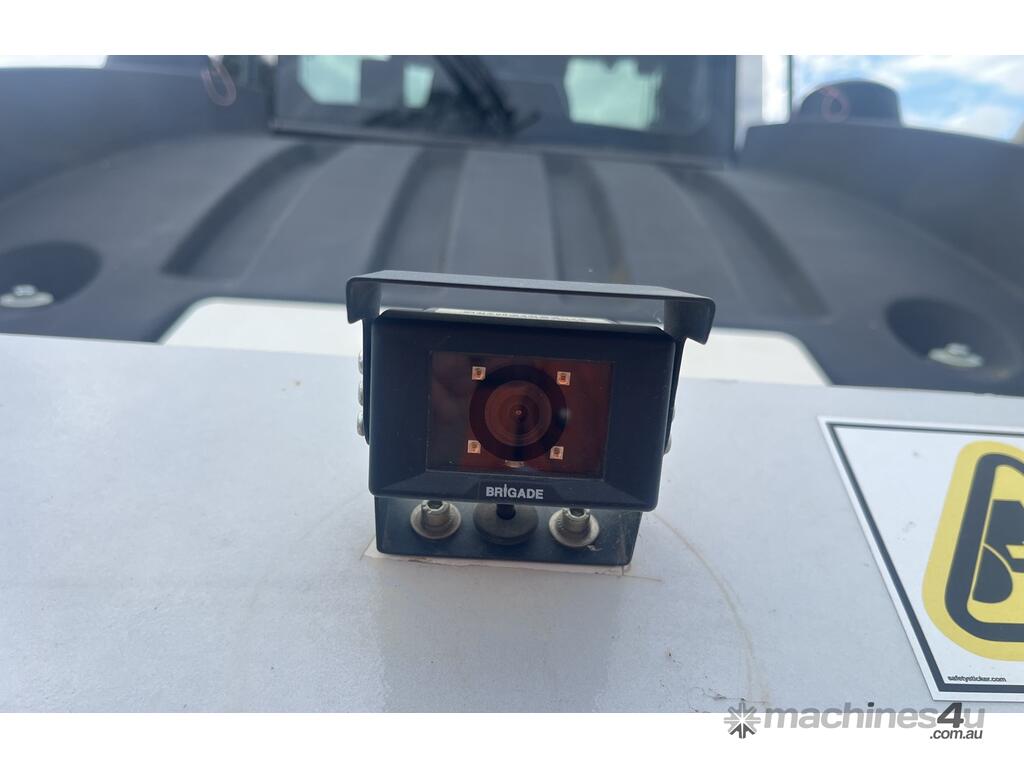

- Enclosed Cab with Comfort Upgrades: Features an enclosed air-conditioned cab with rear-view camera, swivel operator controls, and e-stop safety system

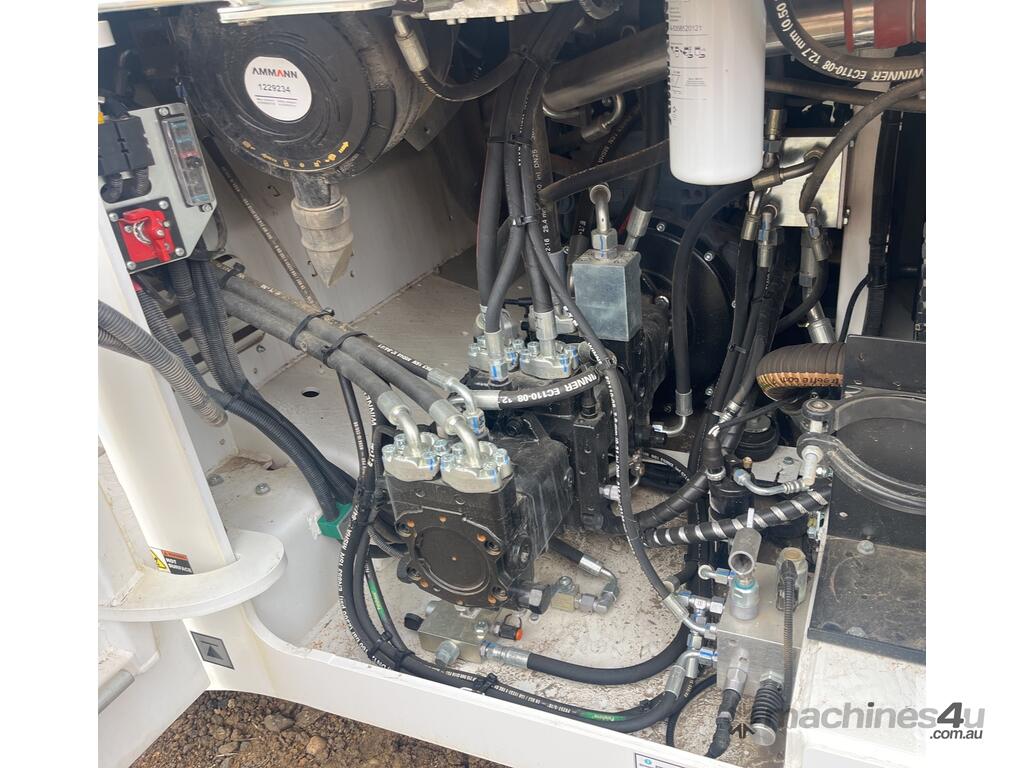

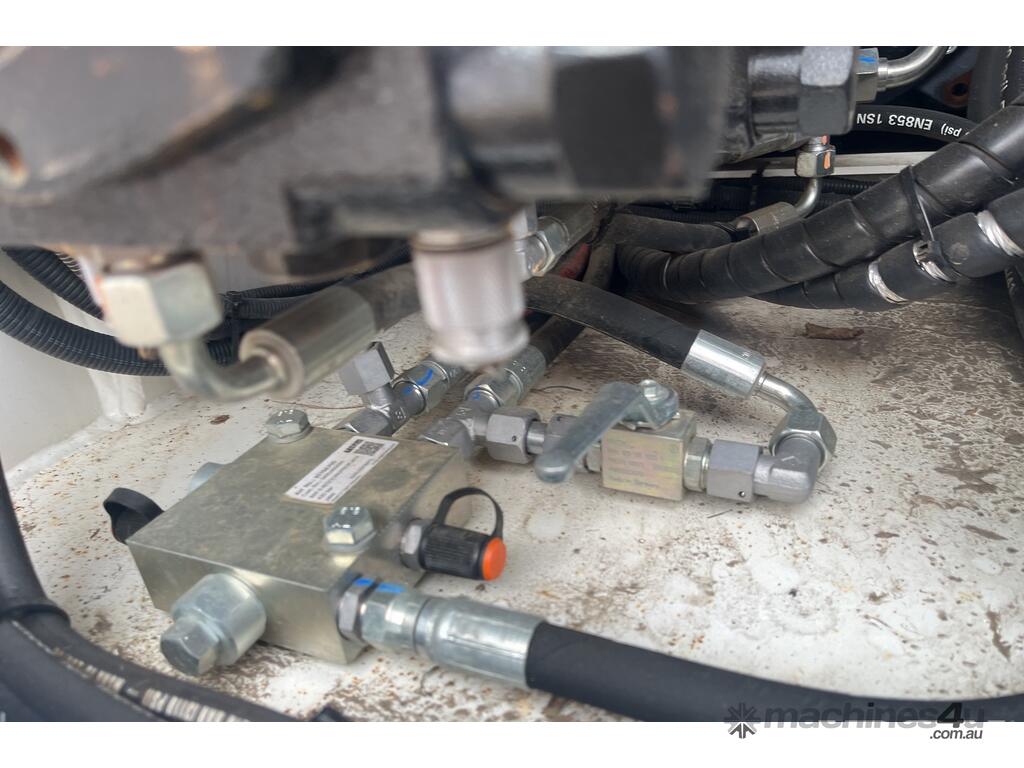

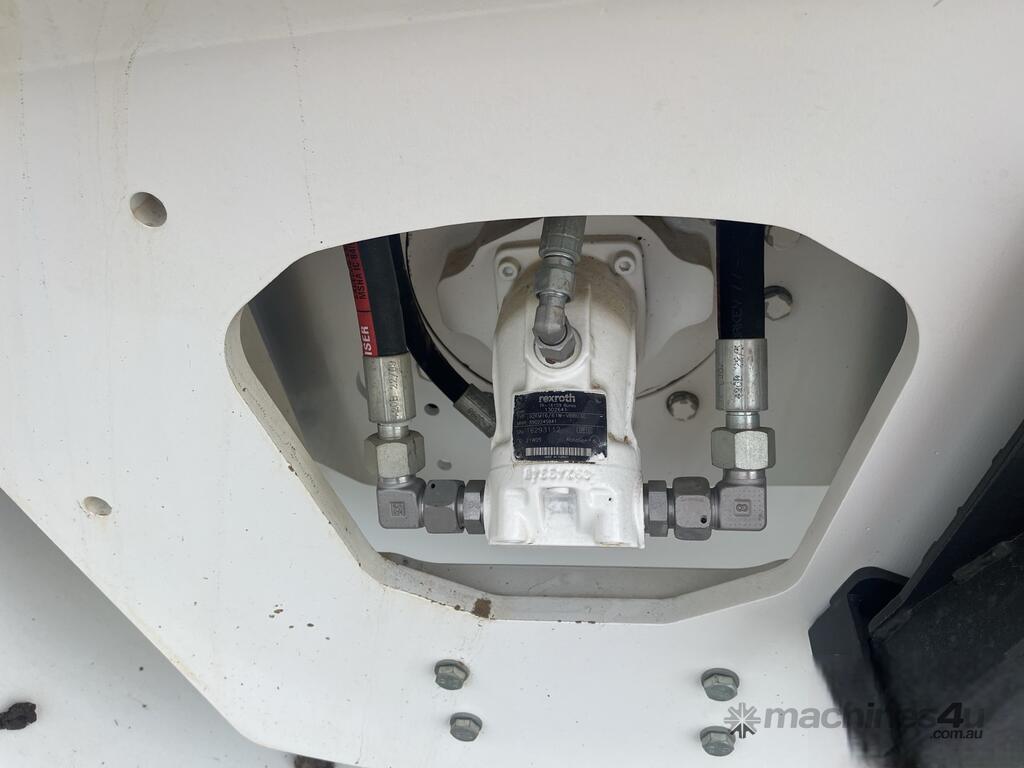

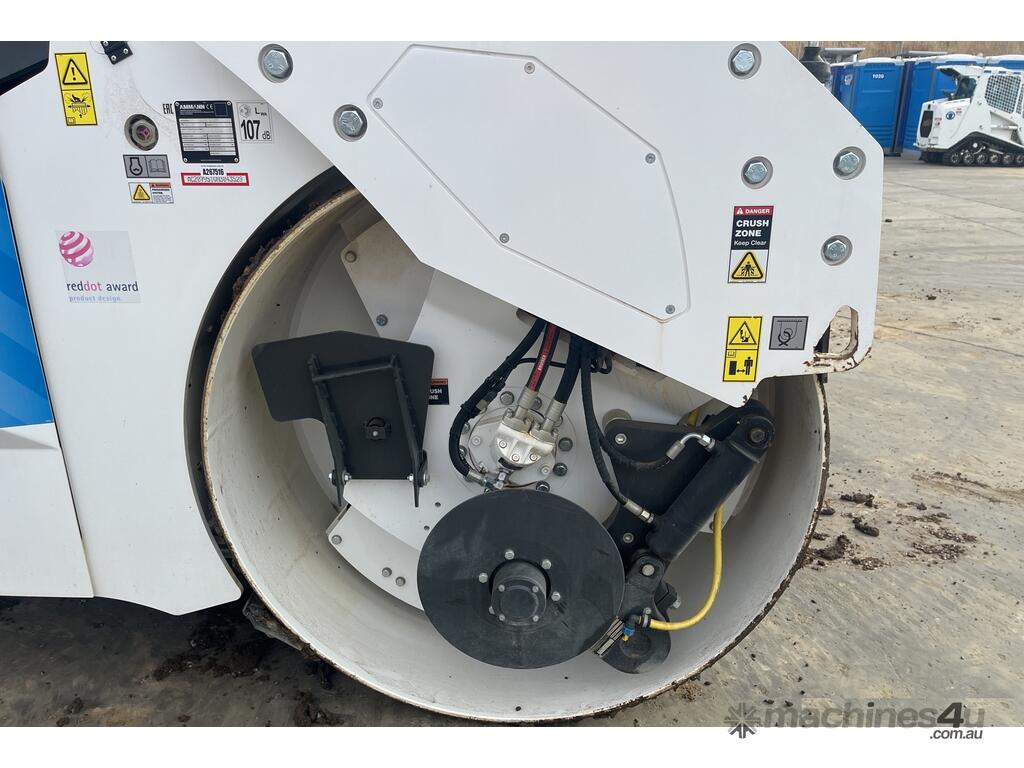

- Precision Compaction: Independent vibratory pumps on each drum with two-stage vibrator, adjust amplitude and frequency for ultimate compaction fidelity

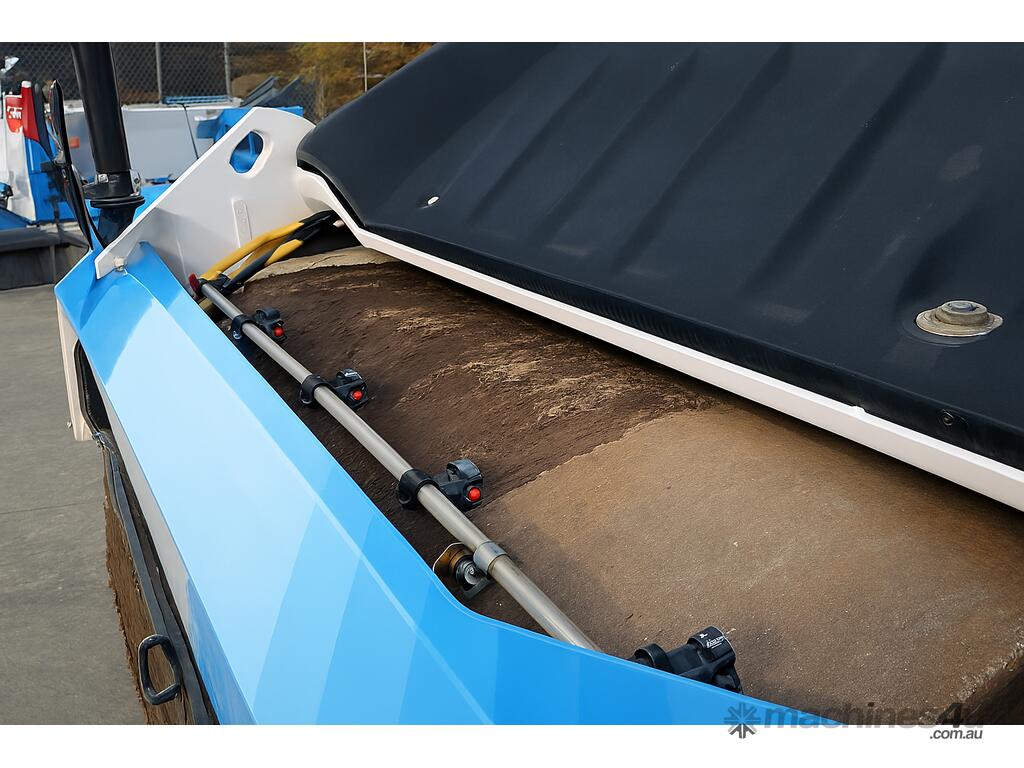

- Advanced Water Management: Efficient 3-stage filtration prevents nozzle clogging, paired with a high-capacity water tank to reduce refill frequency
- Fuel-Efficient & Sustainable: ECOdrop system (where available) helps lower fuel/fluid consumption; HVO-compatible for up to 90% CO? reduction

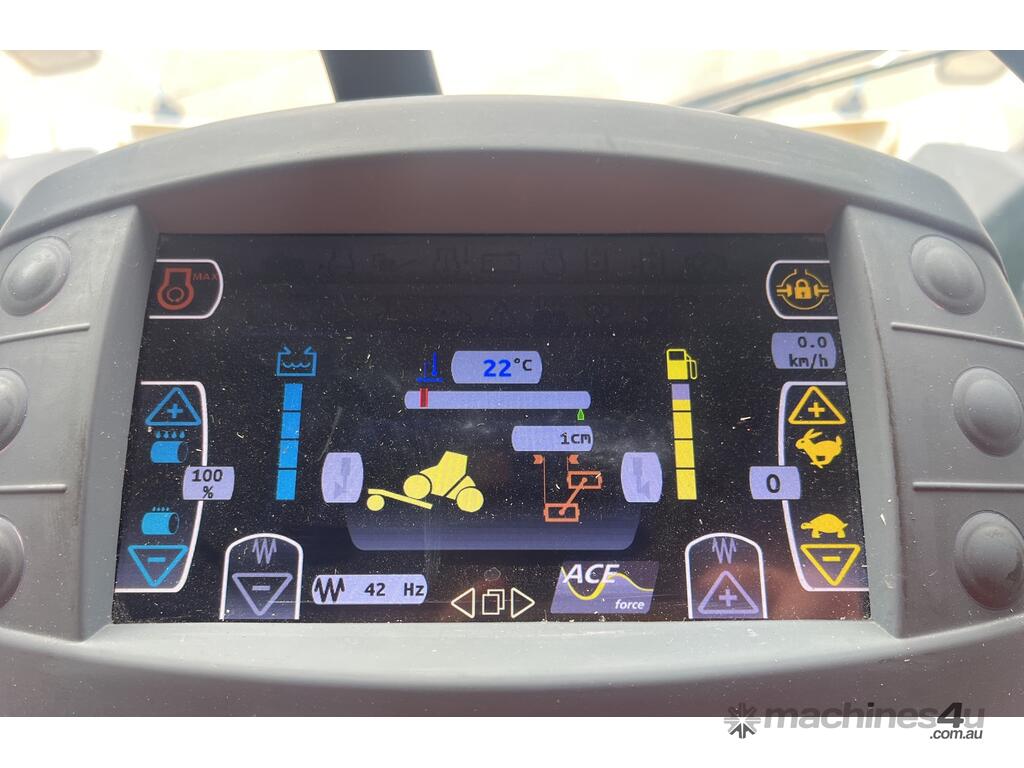

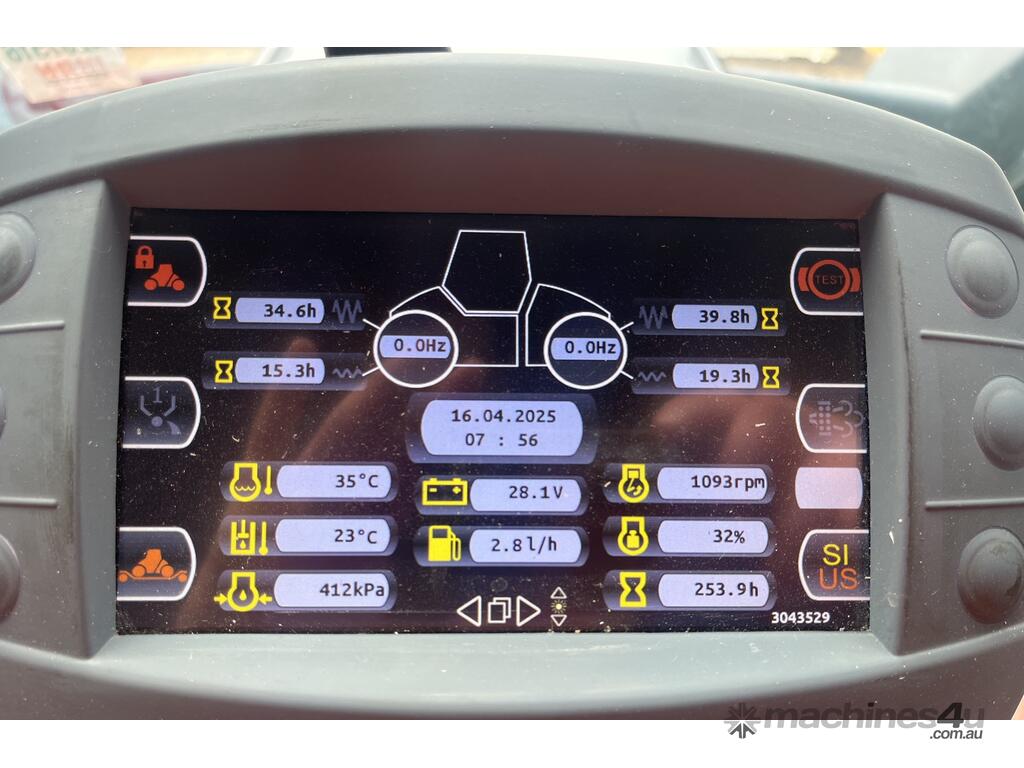

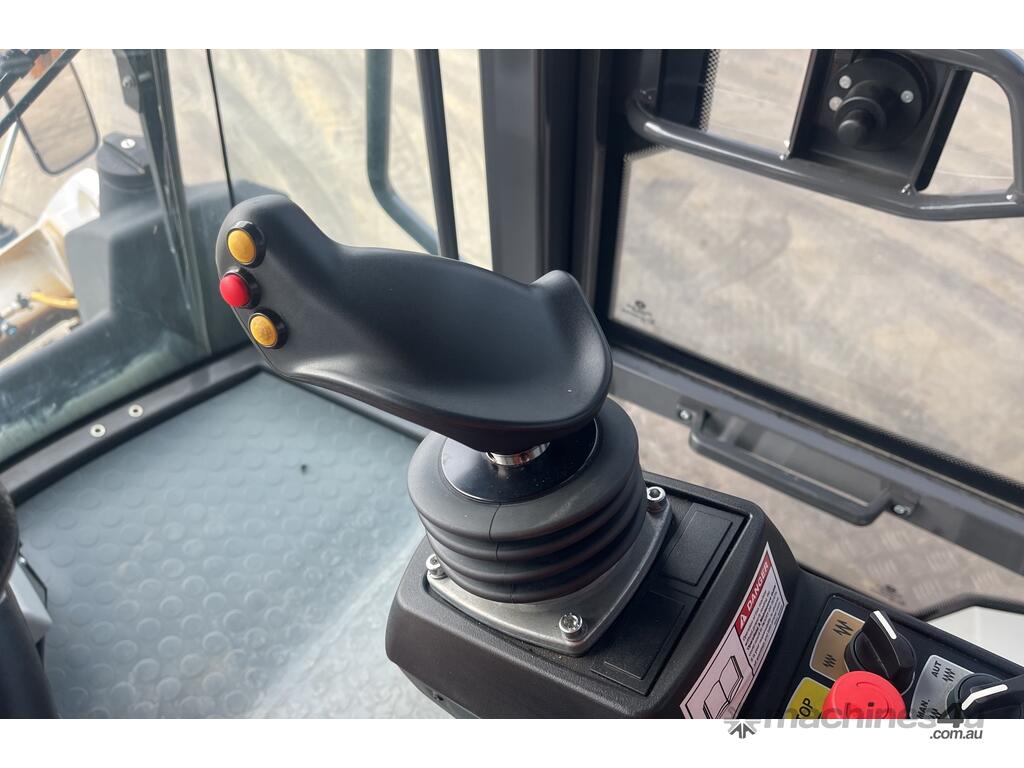

- Operator-Focused Design: 170° rotatable and sliding adjustable seat, multi-functional display, fingertip steering, all crafted for operational ease

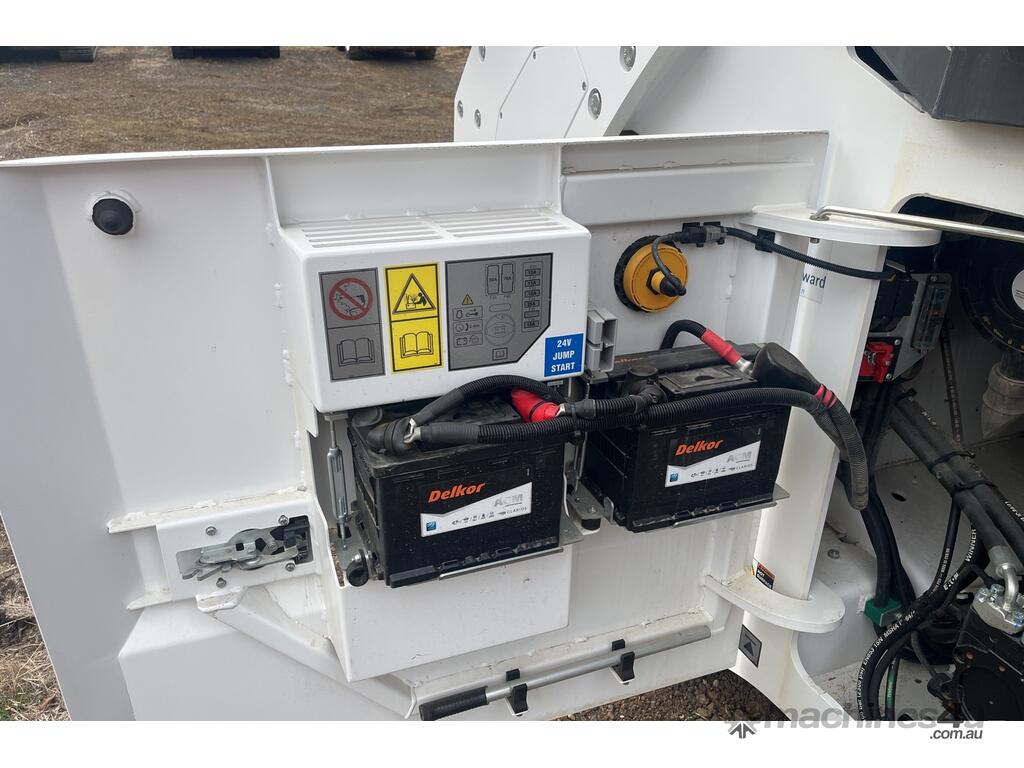

- Simplified Maintenance: Ground-level service points, centralized draining, tiltable hoods, minimal downtime and easy daily checks
- Optional Enhancements: Can be equipped with ACEforce compaction measurement, ACE GPS Q-Compaction, edge cutters, rear camera, LED beacons and more
Operating Weight: 9,720 kg (up to 11,170 kg maximum)
Drum Width: 1,680 mm (66 in)

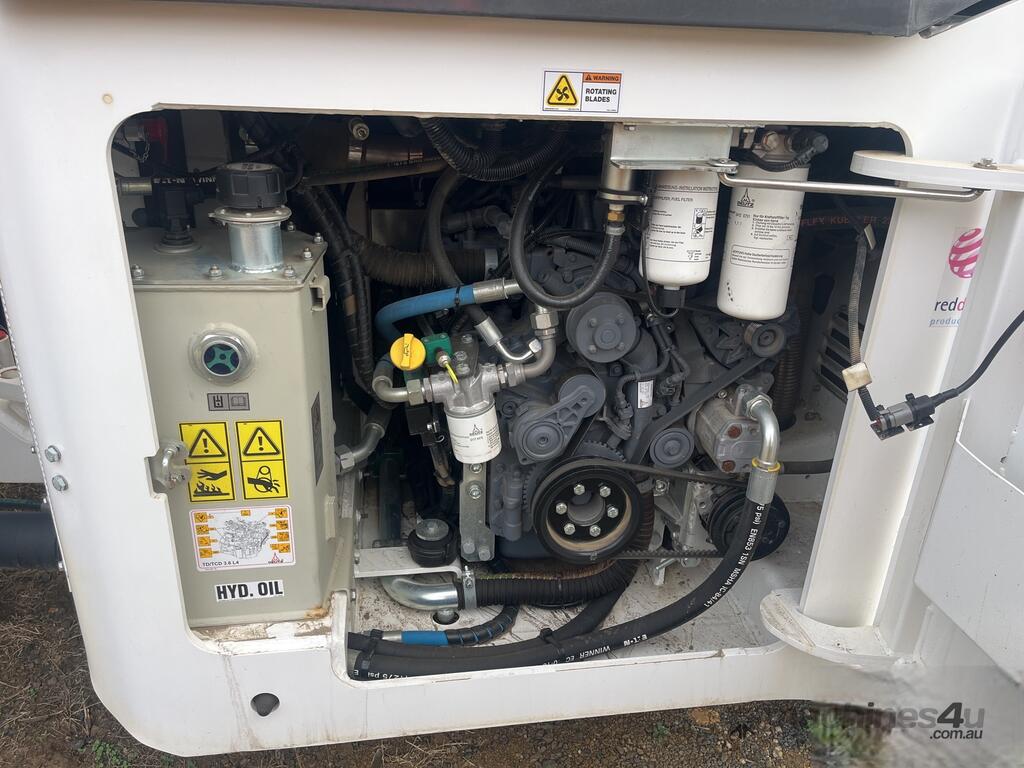

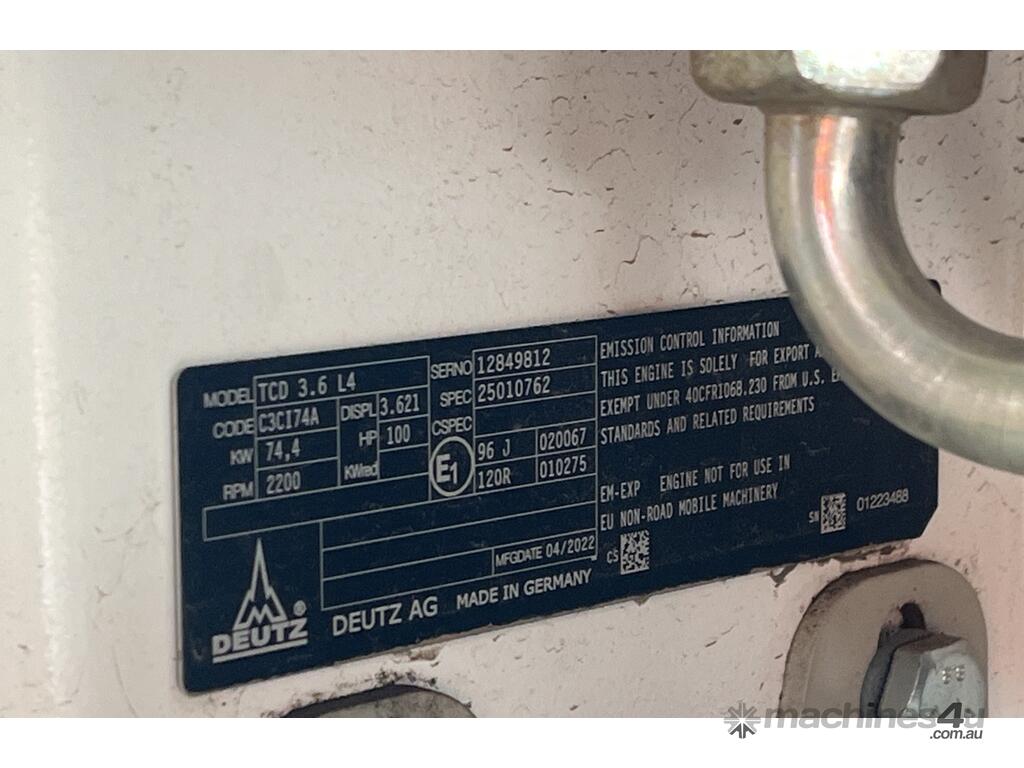

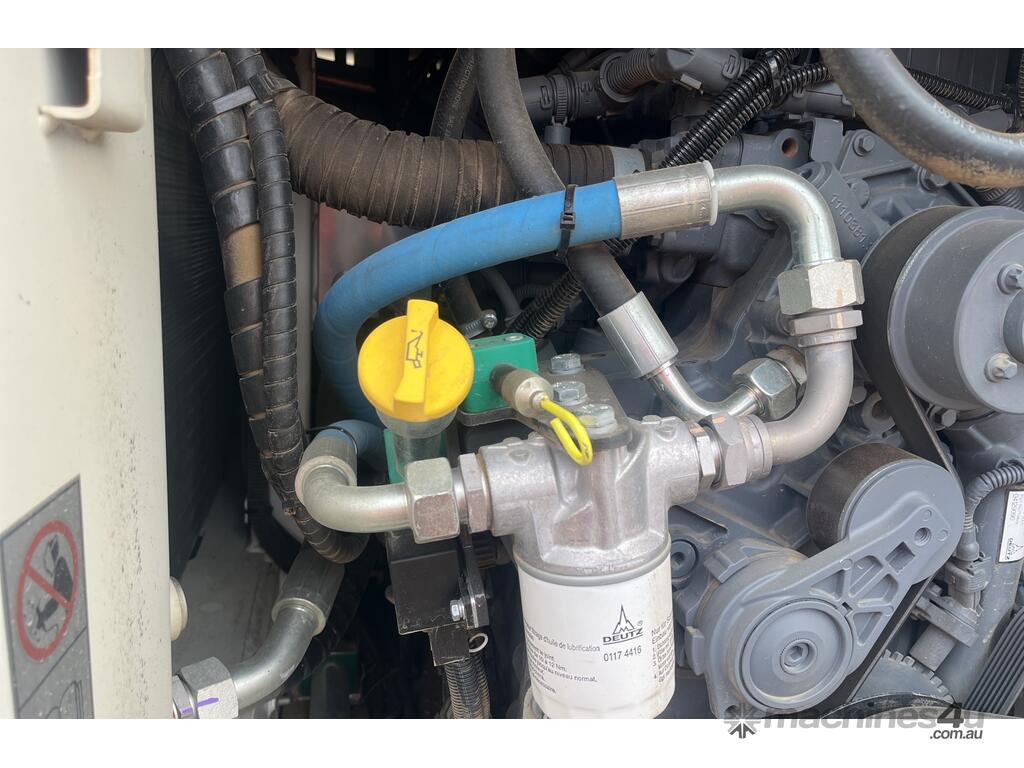

Engine: Deutz TCD 3.6 L4 4-cylinder diesel, 74.4 kW (100 HP), EU Stage V / EPA Tier 4 Final, EGR + DOC + DPF + SCR
Max Travel Speed: 10.5 km/h
Gradeability: 30% with vibration / 25% without

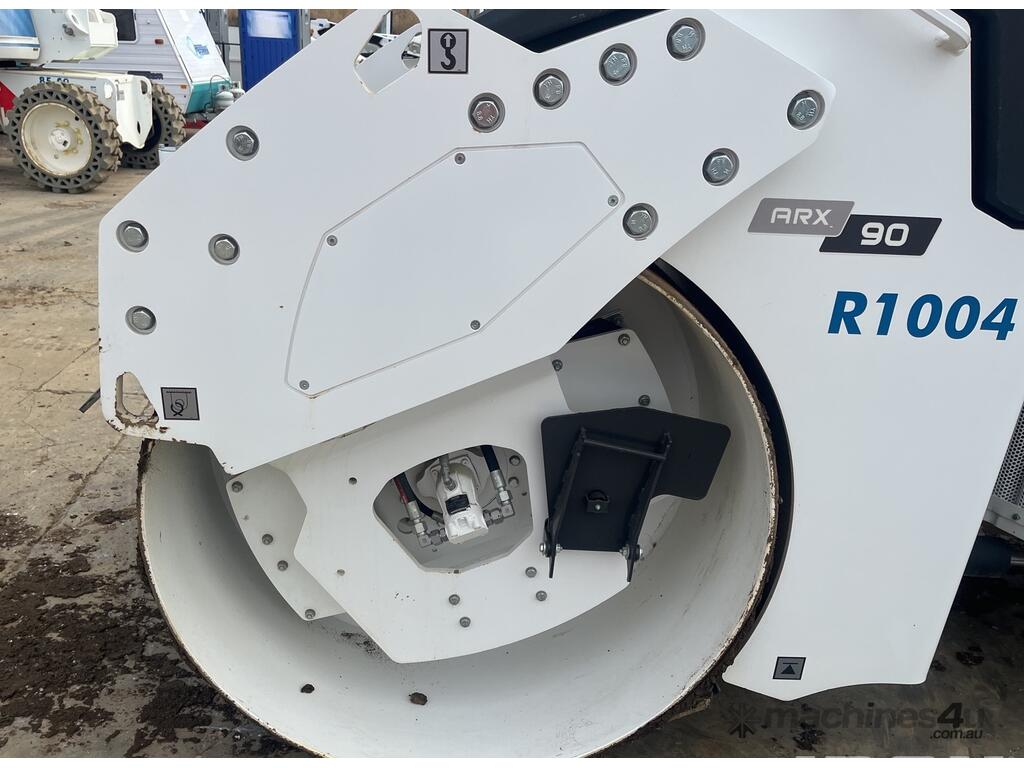

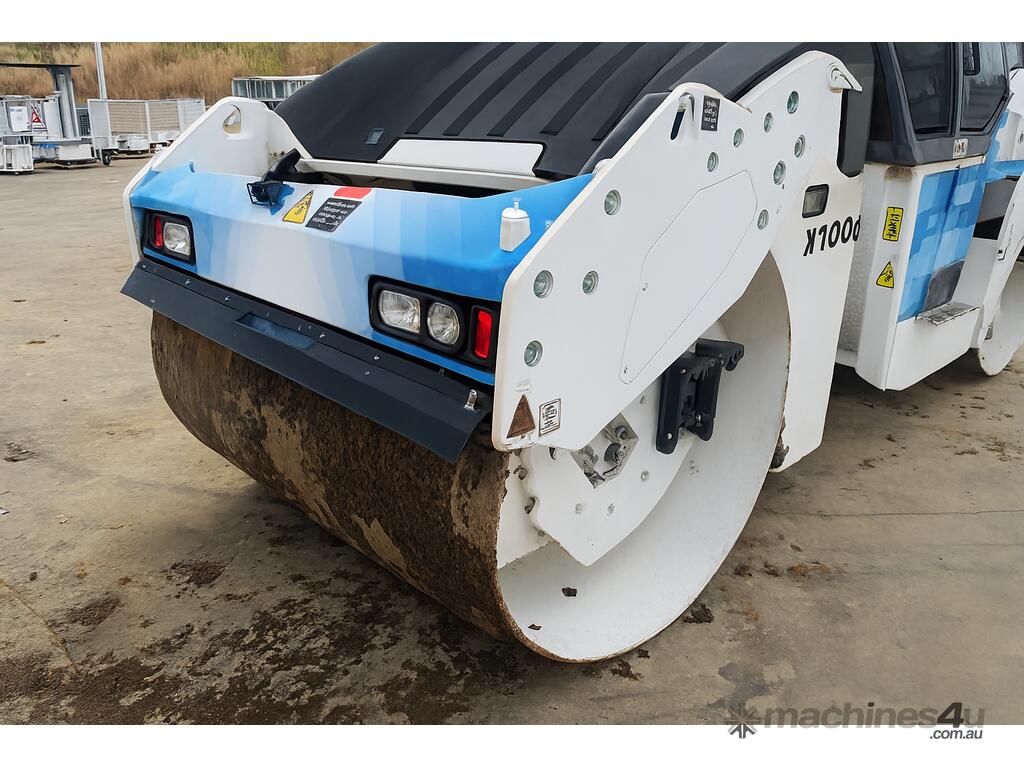

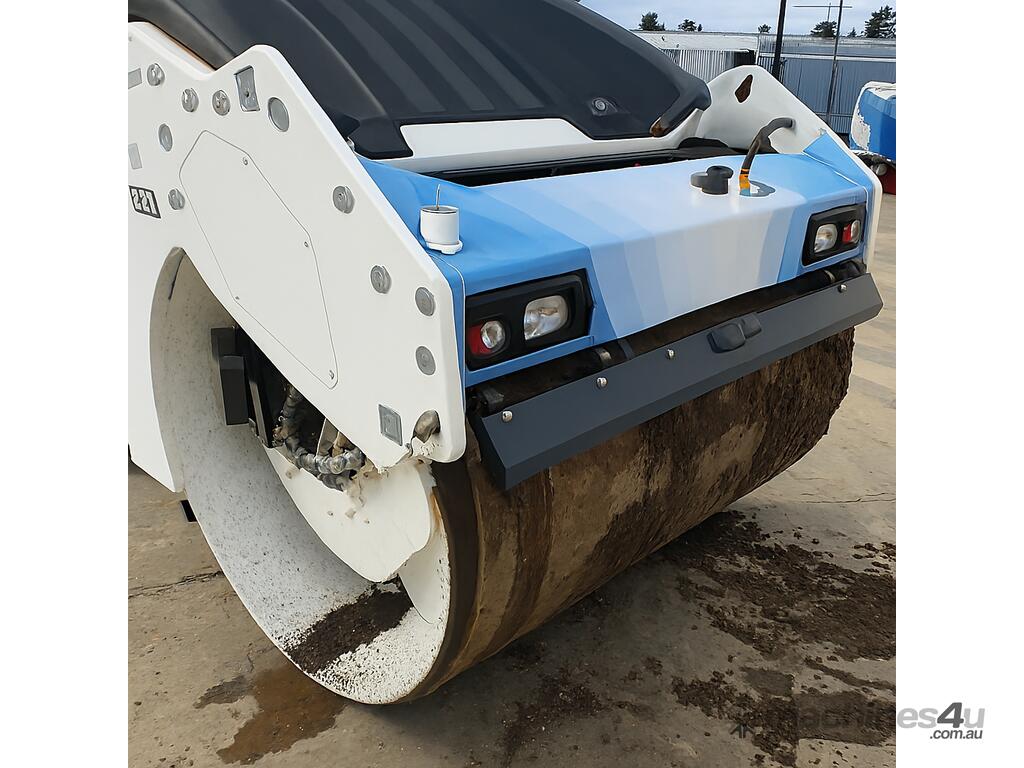

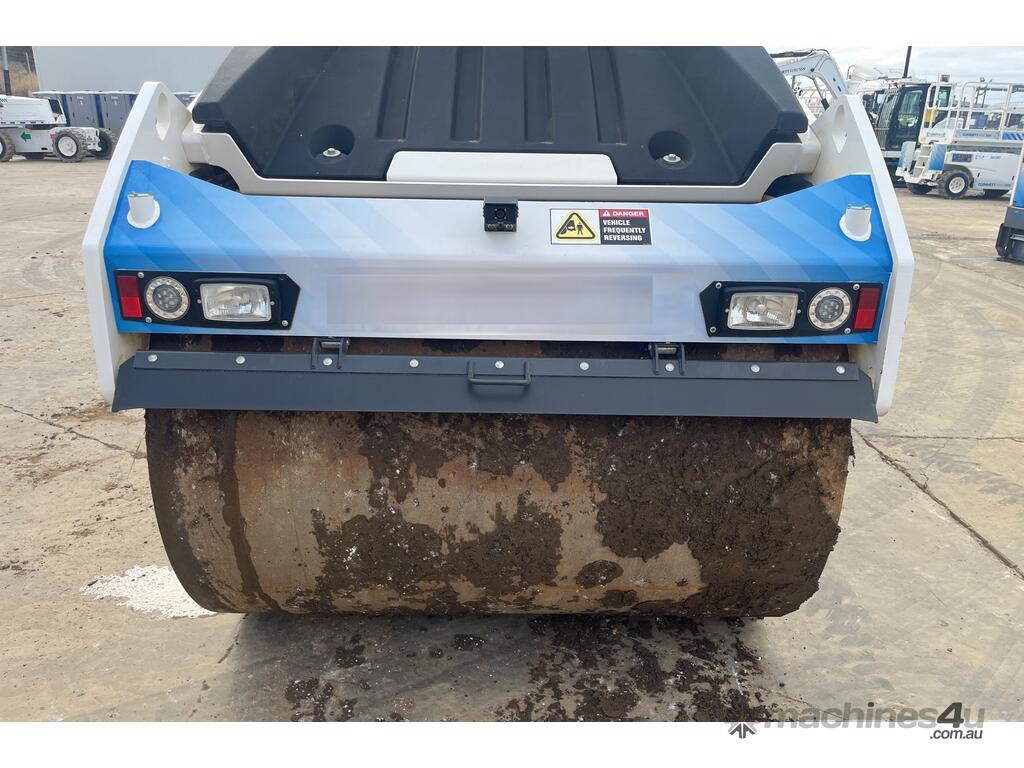

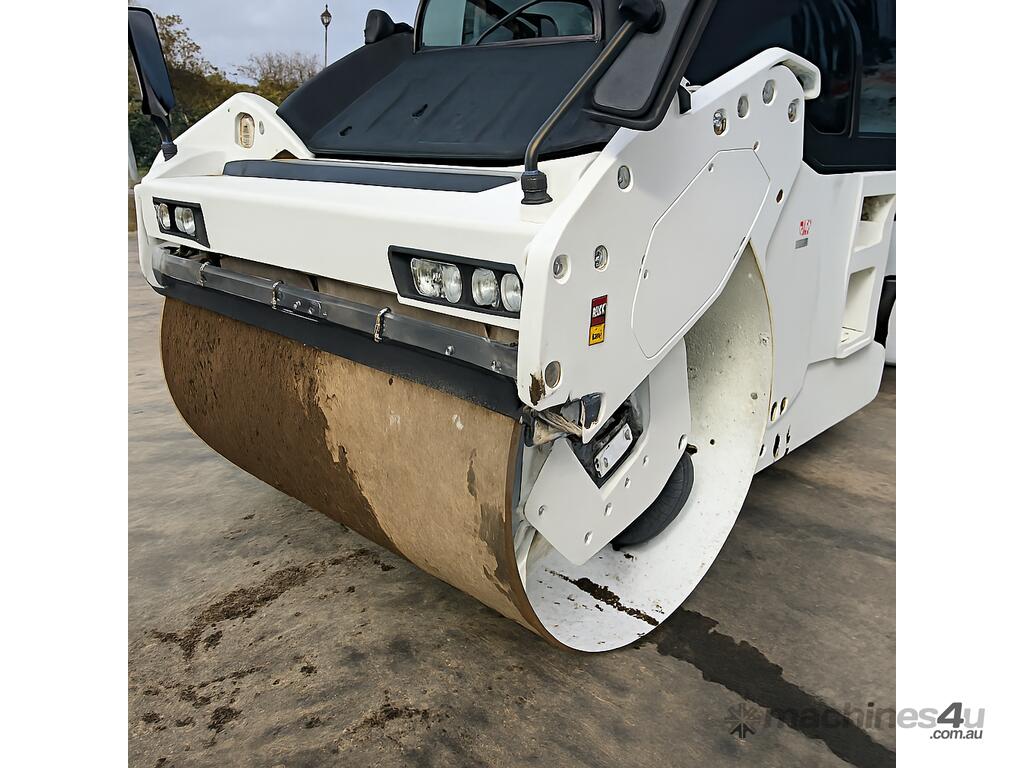

Drum Dimensions:

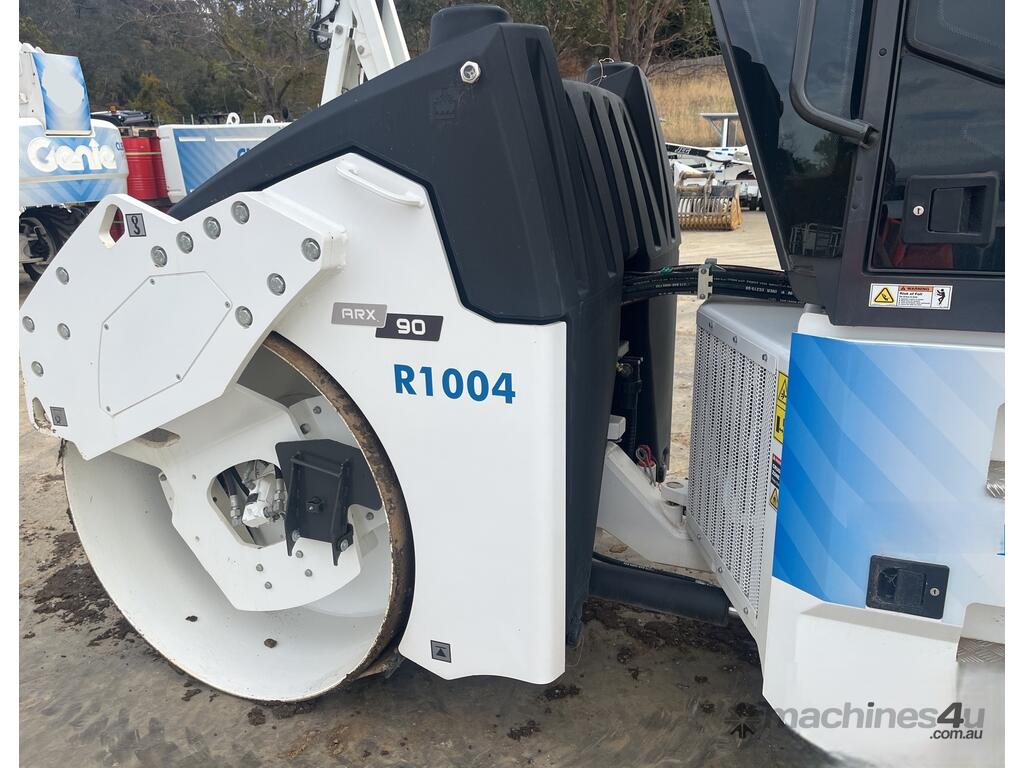

-Diameter: 1,220 mm
- Shell thickness: 19 mm
-Offset: 170 mm
Compaction Forces & Vibration:
- Frequency Stage I: 38–42 Hz, Stage II: 45–54 Hz
- Amplitude I: 0.7 mm, II: 0.34 mm
- Centrifugal Force I: 47–68 kN, II: 69–84 kN
- Oscillation: 40 Hz, amplitude 1.3 mm, force 77 kN
Fuel & Water Capacities
- Fuel: 220 L
- Water tank: 840 L
Brakes:
- Operating: Hydrostatic
- Parking/Emergency: Mechanical multiple-disc
Dimensions:
Length: 4,720 mm; Width: 1,800 mm; Height: 3,000 mm;
Ground clearance: 300 mm;
Turning radius (inner): 5,470 mm
Water System: 3-stage filtration with interval switch and efficient sprinkling system
