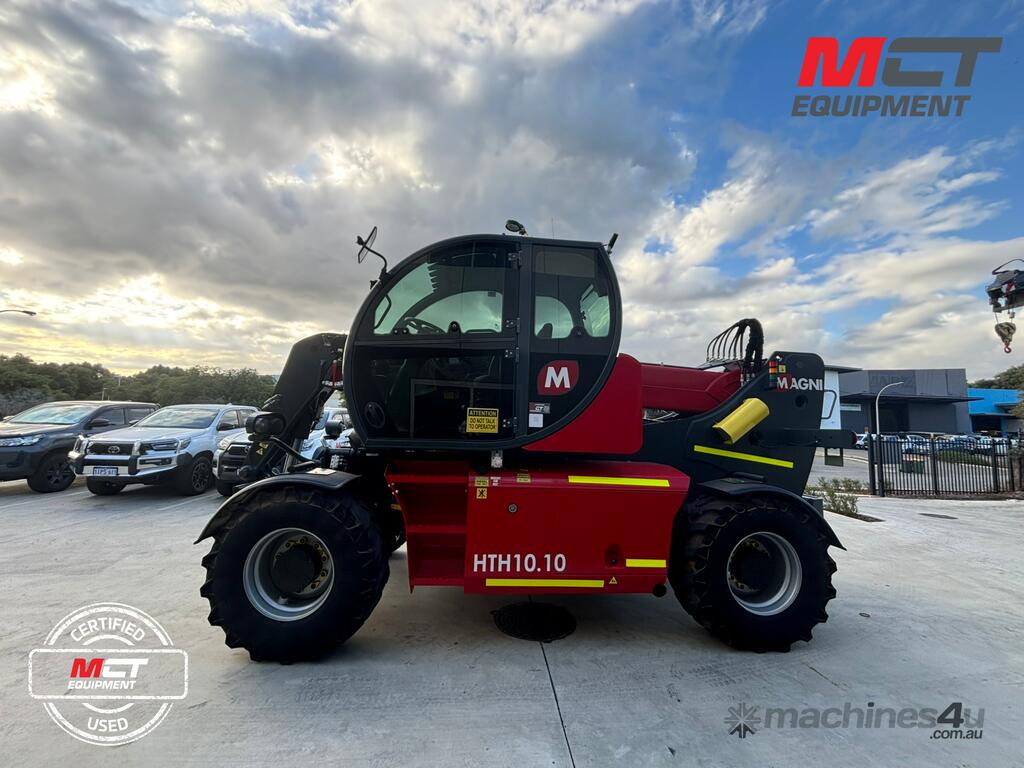

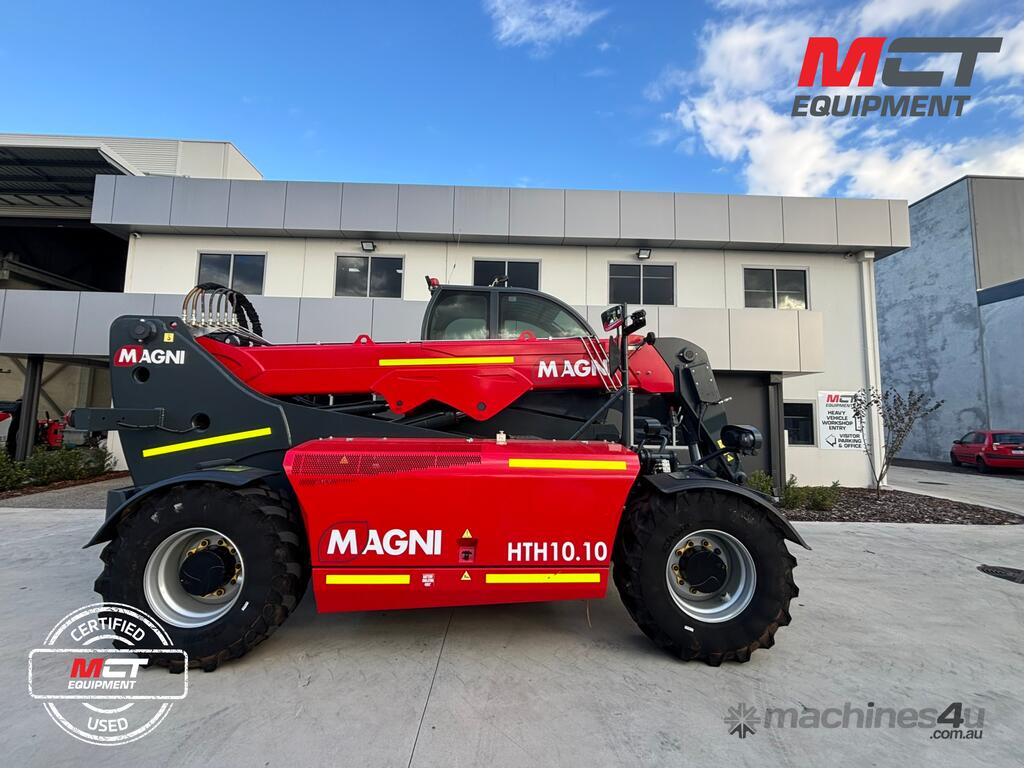

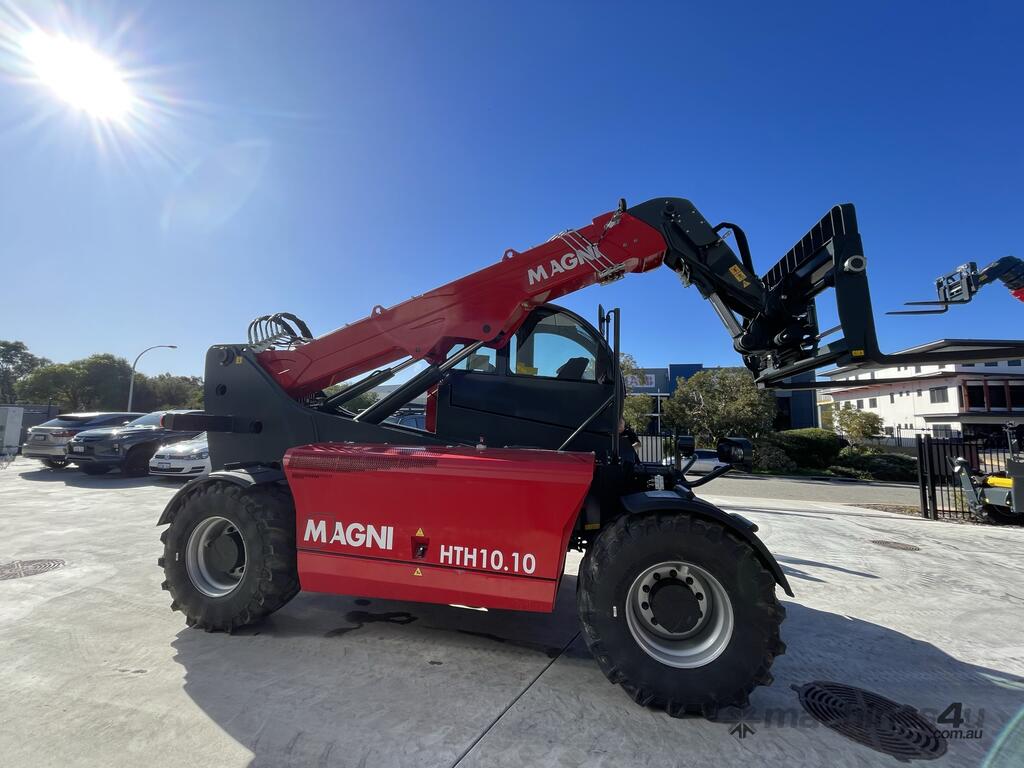

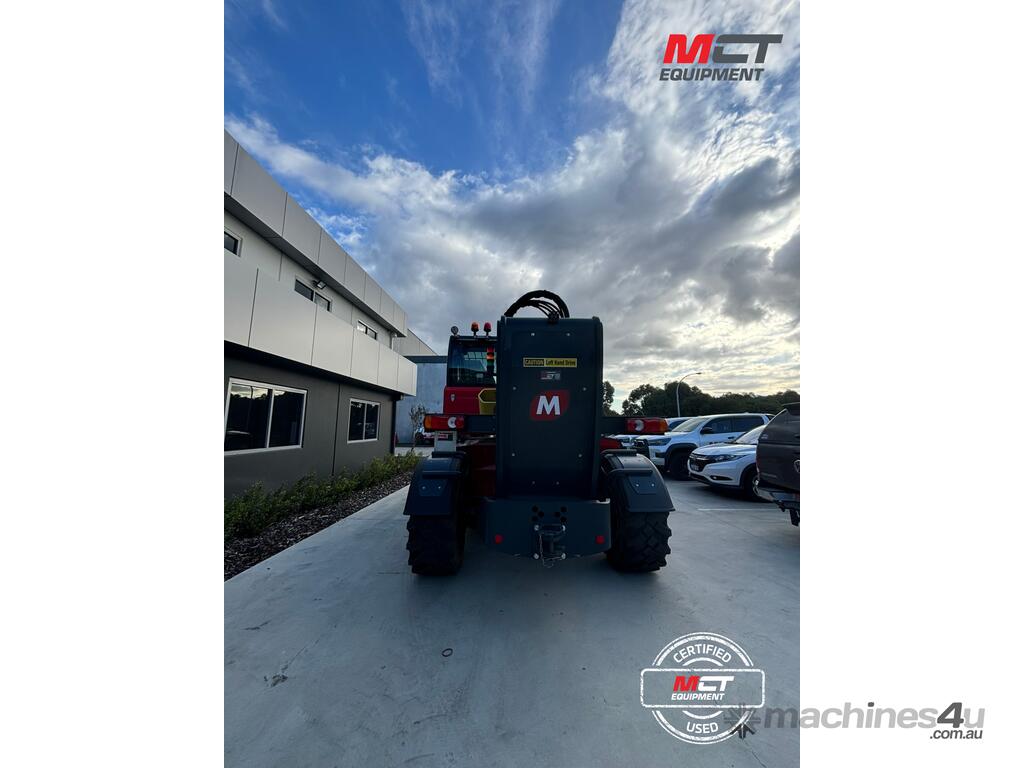

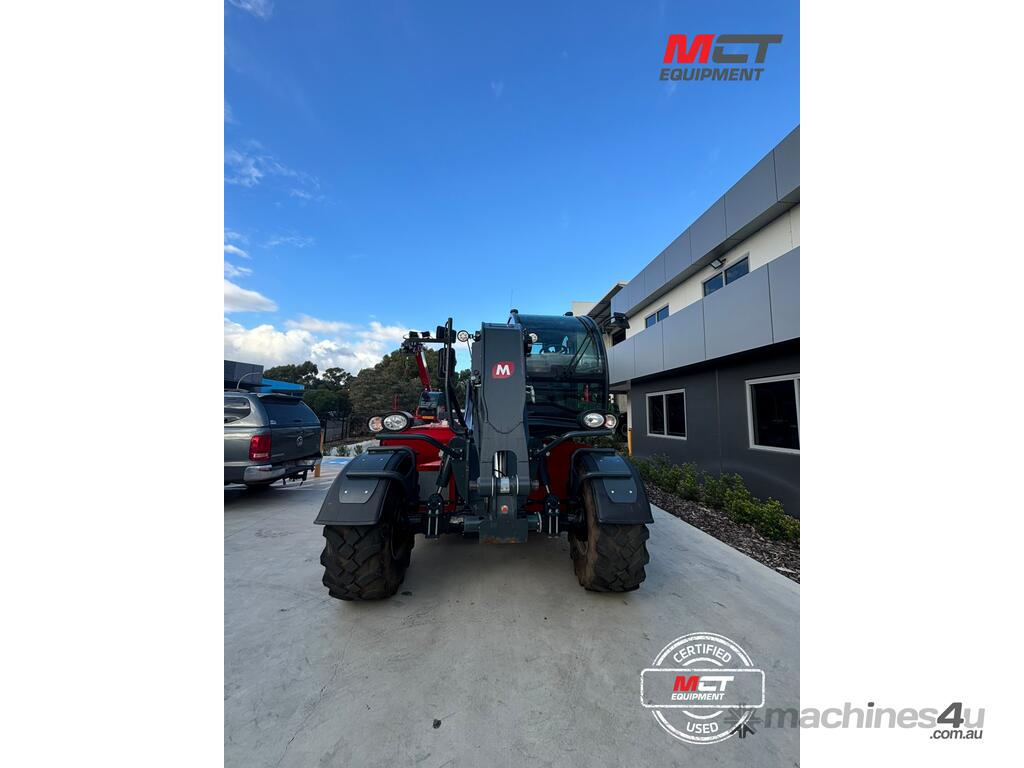

2022 Magni Heavy Telescopic Handler (Telehandler) HTH 10.10

The HTH 10.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 10 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

The standard machine configuration includes:

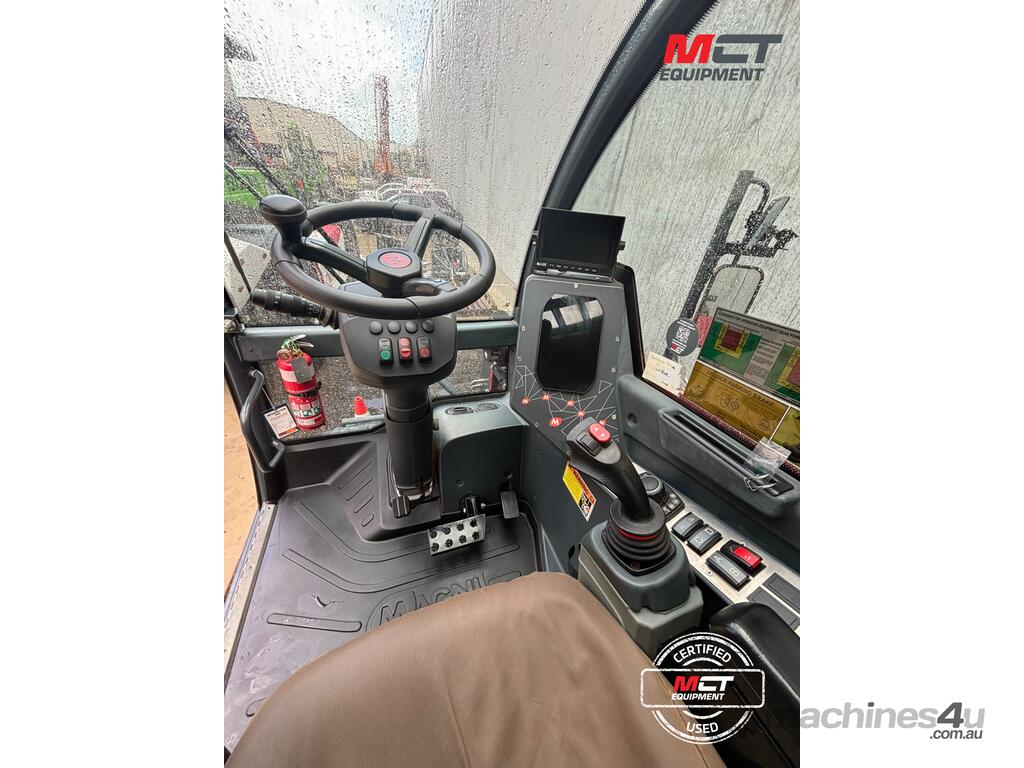

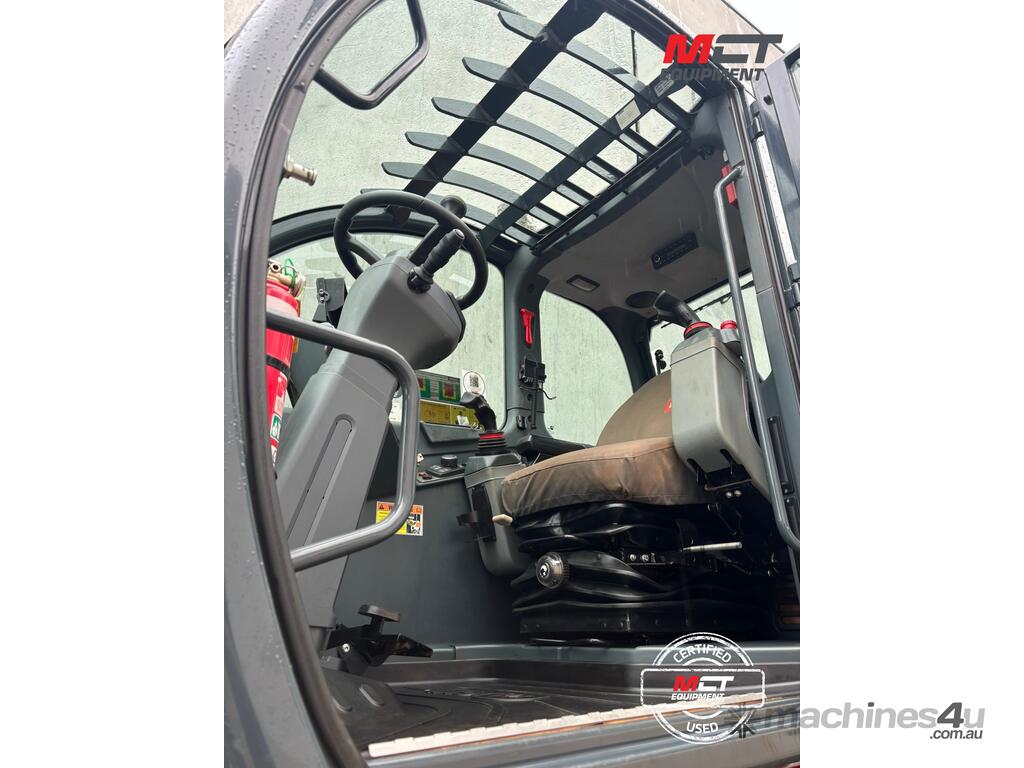

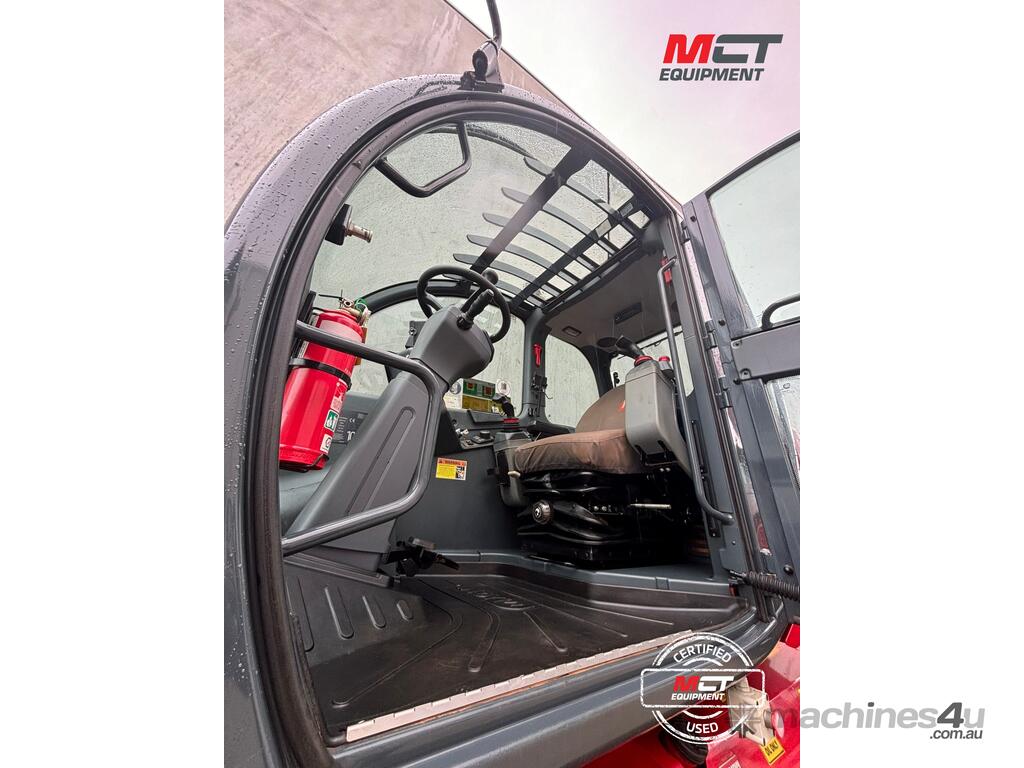

CAB
Comfort seat
Adjustable steering column
Analogue joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A (5 V) inputs

REAL TIME INFORMATION
Touchscreen, 7”
MCTS – Magni Combi Touch System on-board software
Automatic RFID tools recognition system
LMI – Load Moment Indicator
Onboard and remote integrated diagnostics

TECHNICAL SPECIFICATIONS
Q-Fit standard
Provision for platform
Two-line CAN BUS system
Automatic front and rear wheel alignment
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V – IP67

Specifications:
o Lifting capacity: 10,000 kg
o Capacity at maximum height: 5,500 kg
o Lifting height: 9.50 m
o Reach: 5 m

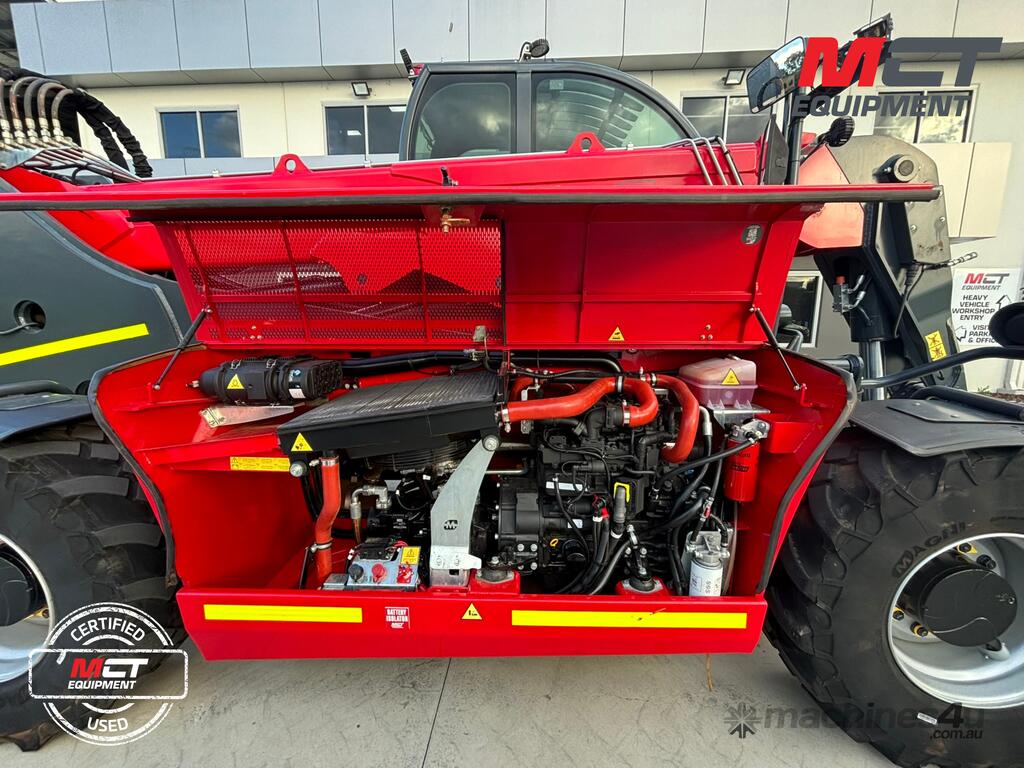

o Engine: Deutz TCD 3.6 L4 - stage V
o Rated power: 100 kW (134 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 5.66 m
o Width: 2.55 m
o Ground clearance: 370 mm
o Unladen weight: 13,200 kg
o Travel speed: 40 km/h
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversable fan drive: Yes
o Year: 2022
o Hours: 671
o 10T Fork Carriage
o Hook
