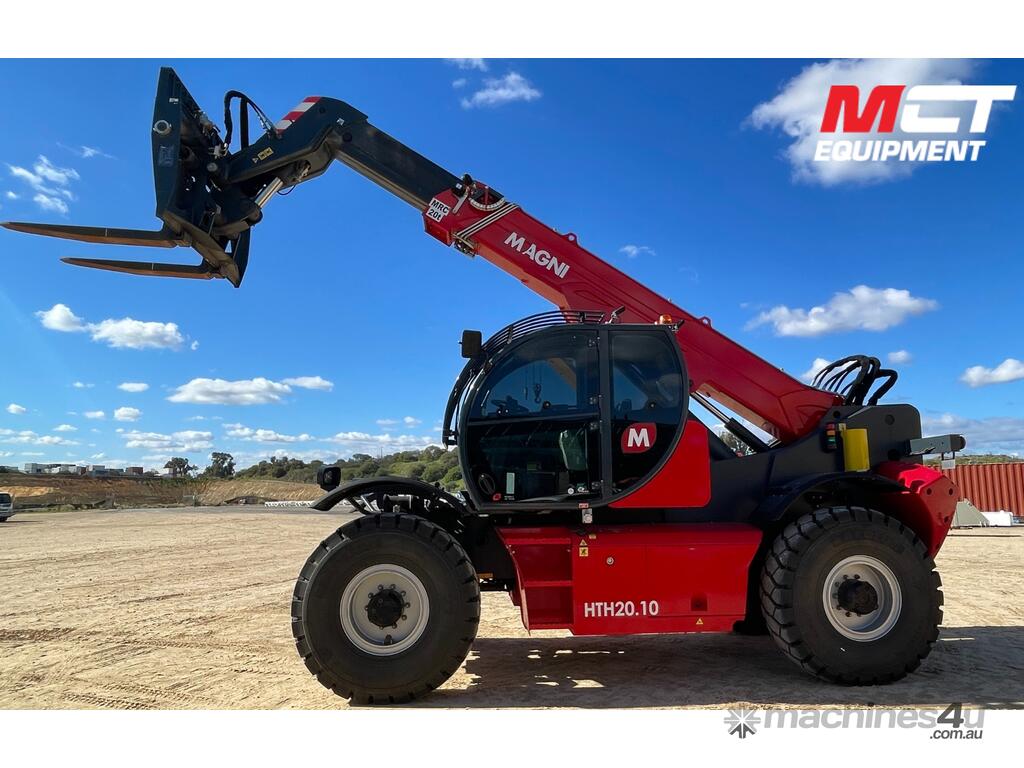

2022 Magni Heavy Telescopic Handler (Telehandler) HTH 20.10

The HTH 20.10 telescopic handler is ideal for moving large, bulky loads in complete safety.

Able to lift up to 20 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

Specifications:
o Lifting capacity: 19,999 kg
o Capacity at maximum height: 15,000 kg
o Lifting height: 9.70 m
o Reach: 5.10 m
o Engine: Volvo TAD552 VE - Stage IIIA
o Rated power: 160 kW (218 hp) 2.300 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.13 m
o Width: 2.55 m
o Ground clearance: 400 mm
o Unladen weight: 24,000 kg
o Travel speed: 25 km/h
o Climate control as standard: Yes
o Automatic accessory recognition: Yes
o Reversable fan drive: Yes
o Year: 2022
o Hours: 360
o 20T Fork Positioning Carriage
o Hook
o Mine Spec
