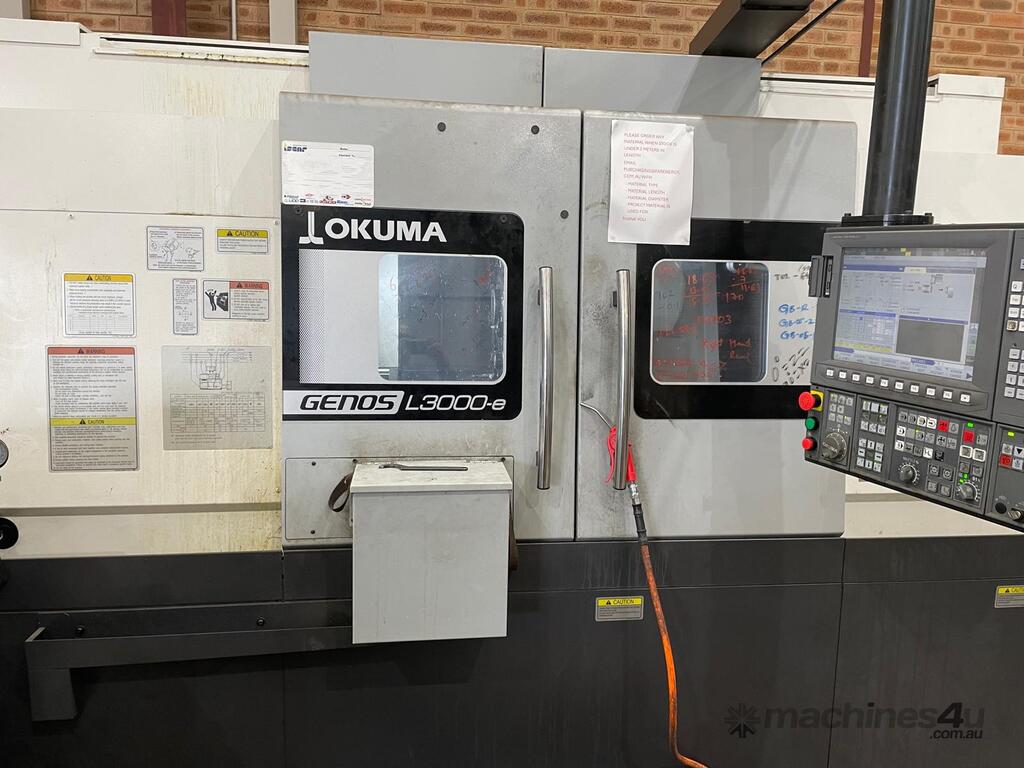

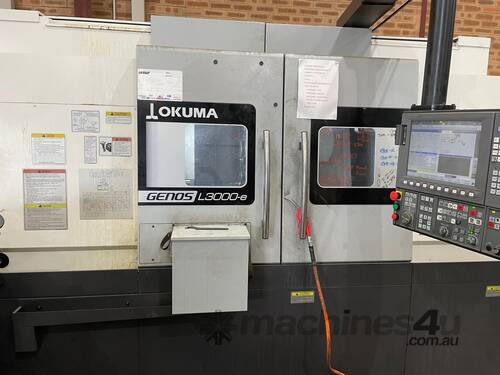

Available for sale is a 2022 TATUNG-OKUMA GENOS L3000-E MY 4-Axis CNC Lathe, equipped with Y-axis and C-axis functionality for advanced contouring and milling operations. This lathe is built for precision and productivity, ideal for both short and long production runs.
Key Features:
Model: GENOS L3000-E MY
Year: 2022
Axes: 4-Axis (X, Y, Z, C)

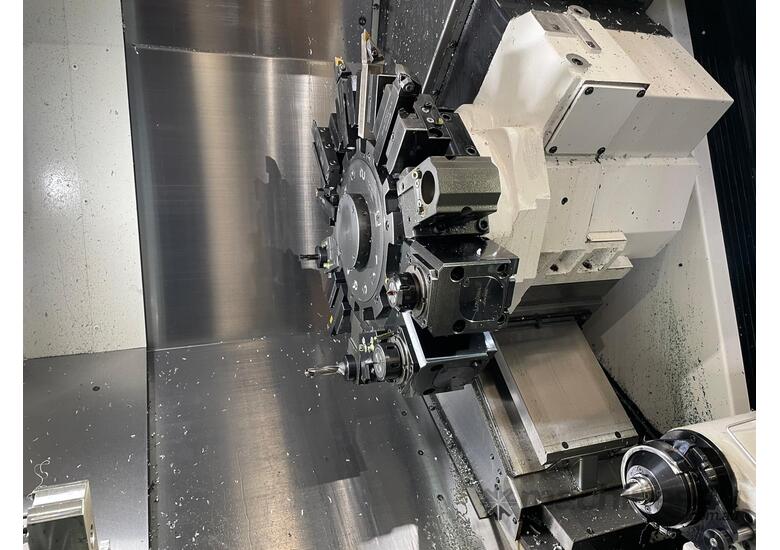

Turret: 12-Station V12 NC Turret
Spindle Speed: Up to 3,800 RPM
Spindle Nose: JIS A2-8
Chuck Size: 10 inch (254 mm)
Chuck Bar Capacity: 3 inch (76.2 mm)
Swing Over Bed: 31.75 inch (806.4 mm)
Max. Turning Diameter: 390 mm (15.35 inch)
Max. Turning Lengths: 500 mm or 1,100 mm options
Y-Axis Travel: ±50 mm (100 mm total)
C-Axis: Full 360° indexing (0.001° increments)
Motor Power: 22/15 kW (30 min/Continuous)
Rapid Traverse Rates: X: 25 m/min, Z: 30 m/min
Tooling Included:
2 Live Tool Holders for X-axis
2 Live Tool Holders for Z-axis
Manual Steady Rest included
This machine is in excellent condition, offering multi-tasking capability in a compact footprint—ideal for complex components requiring turning, milling, and drilling in a single setup.
For more details, contact us.
We're happy to provide additional specs, photos, or arrange a viewing.
