2022 Varo TRF8 CNC Wire Straightening and Cutting Machine with AM30Q Wire De-coiler ($200,000 est re

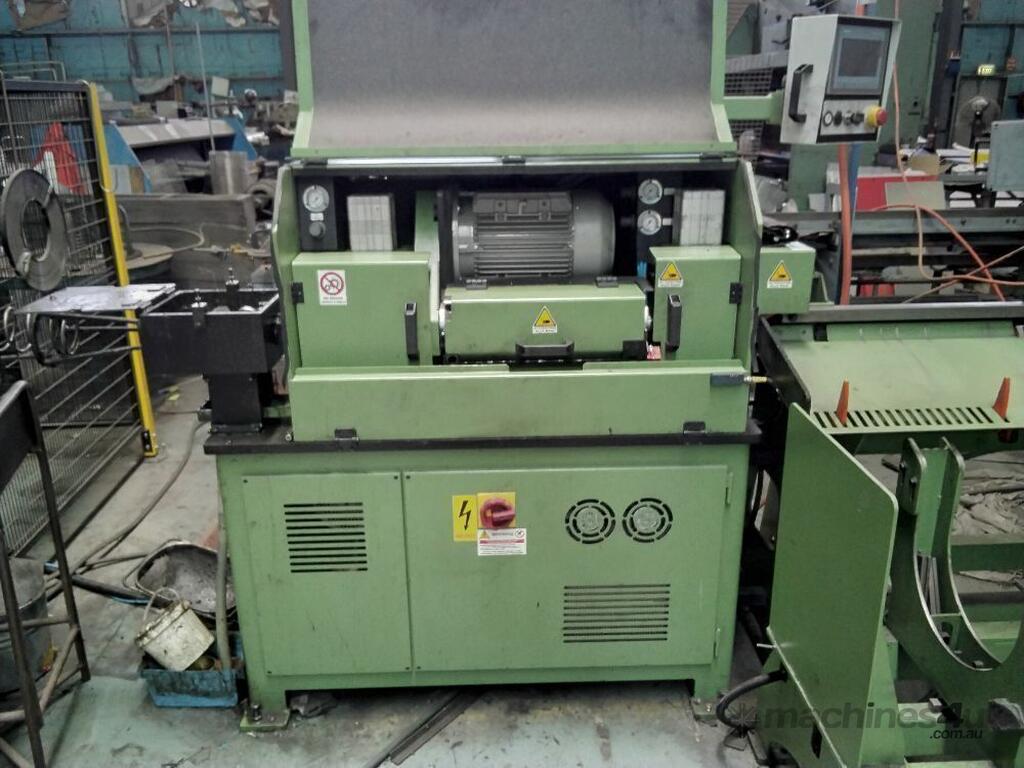

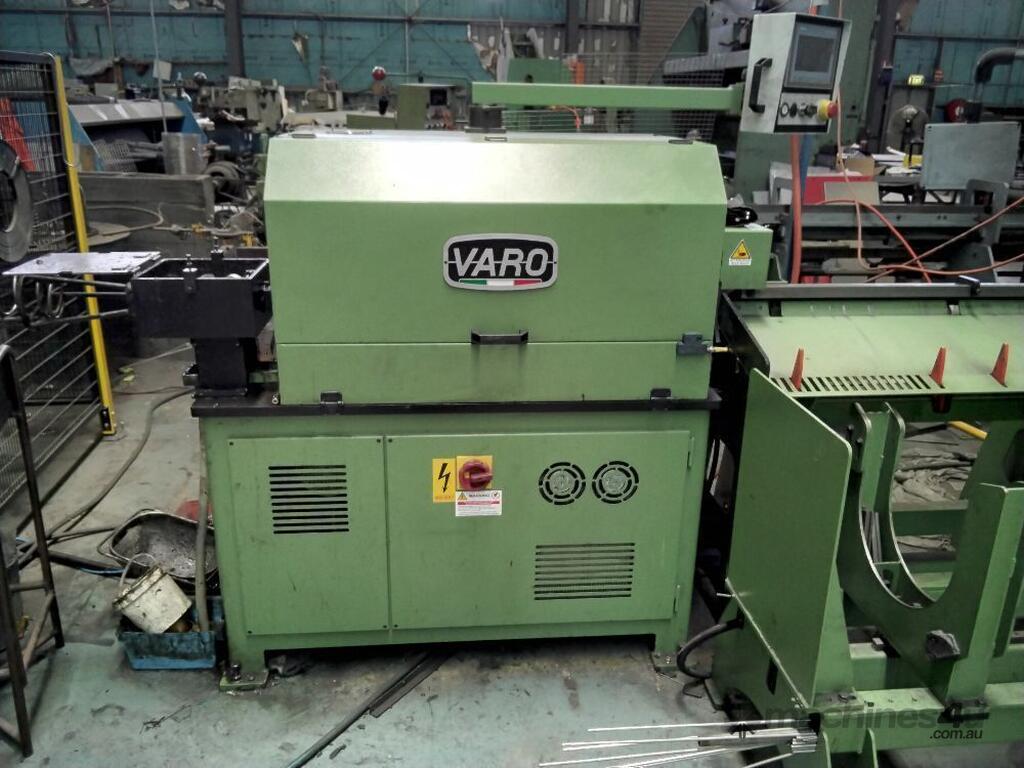

2022 Varo TRF8 CNC Wire Straightening and Cutting Machine with AM30Q Wire De-coiler

CNC controlled machine

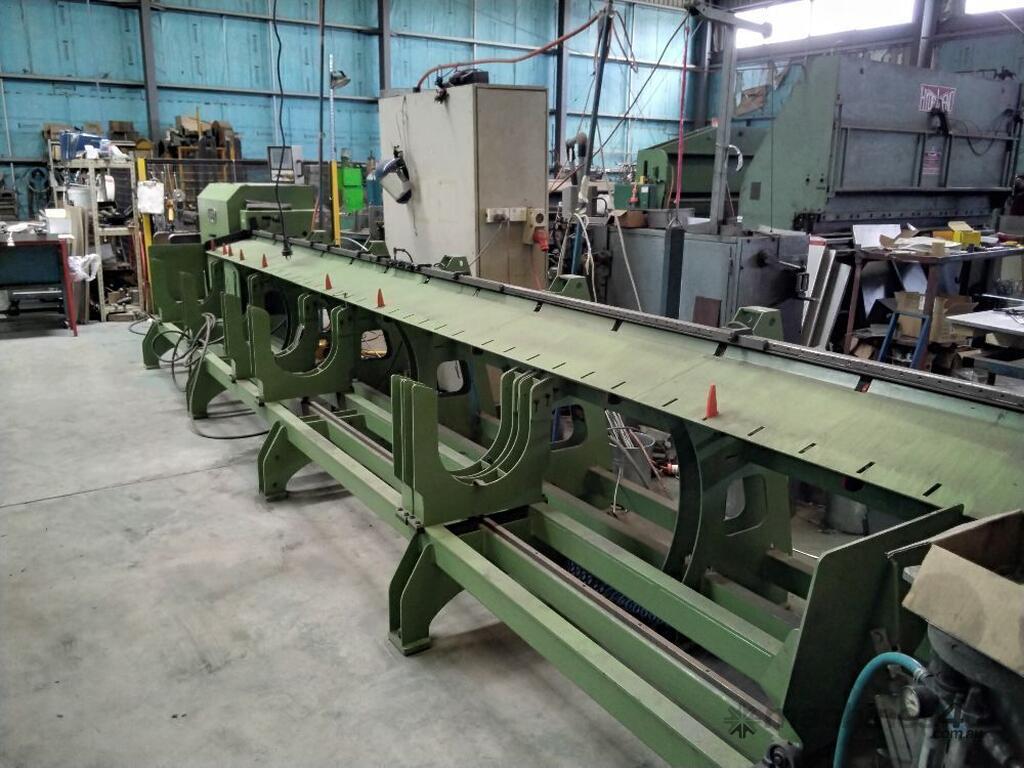

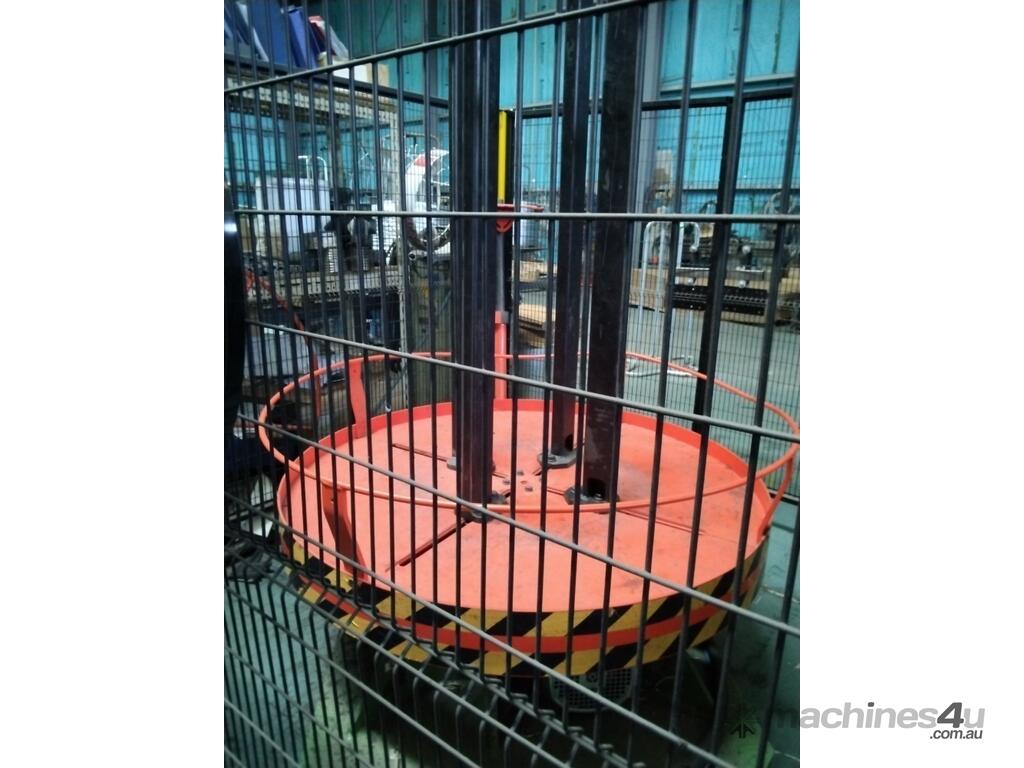

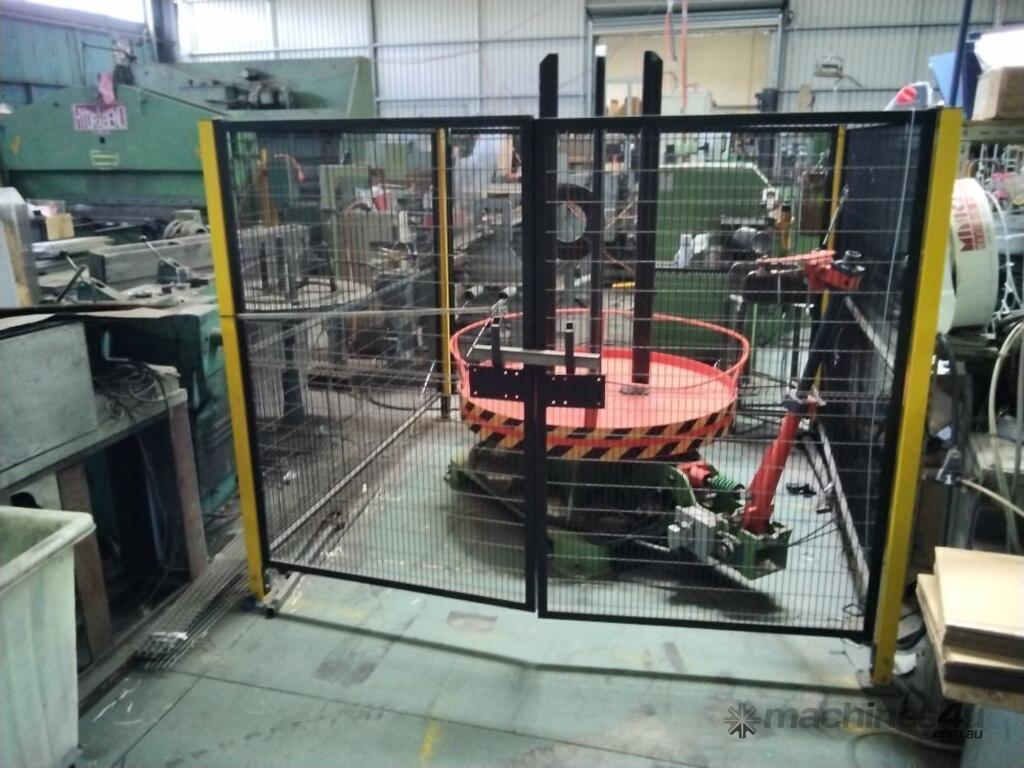

AM30Q Motorized Wire and Flat Wire Decoiler: 1.5-ton De-coiler with safety fence and 6m run off table.
Net Weight: 3,200 kg
Min / Max wire diameter: 3 - 8mm
Max Speed: 120 m/min
Accuracy length of wire: +/- 0,1 mm/n
Power 21 kW
Cut min. 100mm long to maximum 6000mm long
Accuracy +/- 1.00mm under 1000mm. +/- 2.00mm over 1000mm
Comes with inserts and drive roller for sizes 3.15, 4.00, 5.00, 6.00 and 8.00mm
Machine has worked 3-4 hours a week Since Purchase.

Complete equipment for 3 wire diameters (dragging guides, cutting unit, wire straightening bushes)
Reel and straightening rotor with variable speeds and electronically controlled by the machine
Mechanical stops far checking the cutting lengthFeed ing with reels from 1 2 to 30 qt.
Paid for $180,000 in 2022

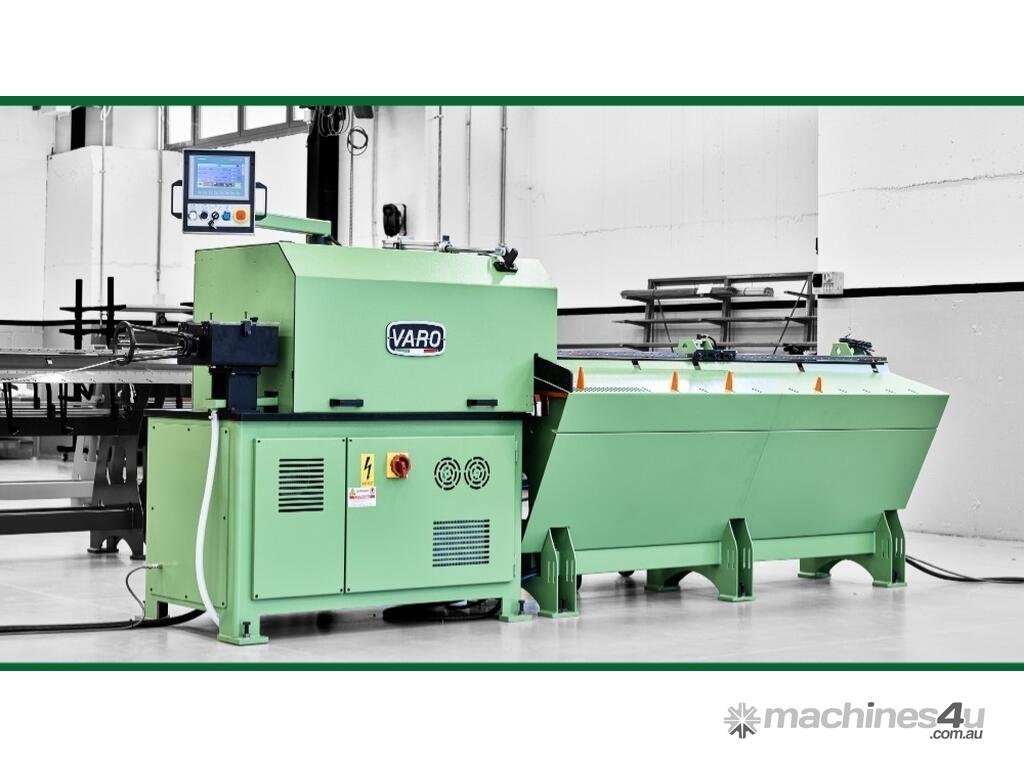

Note: Hero Images Used for Varo Machine & AM30 De-coiler (First 2 Images)

Item Location : Victoria
