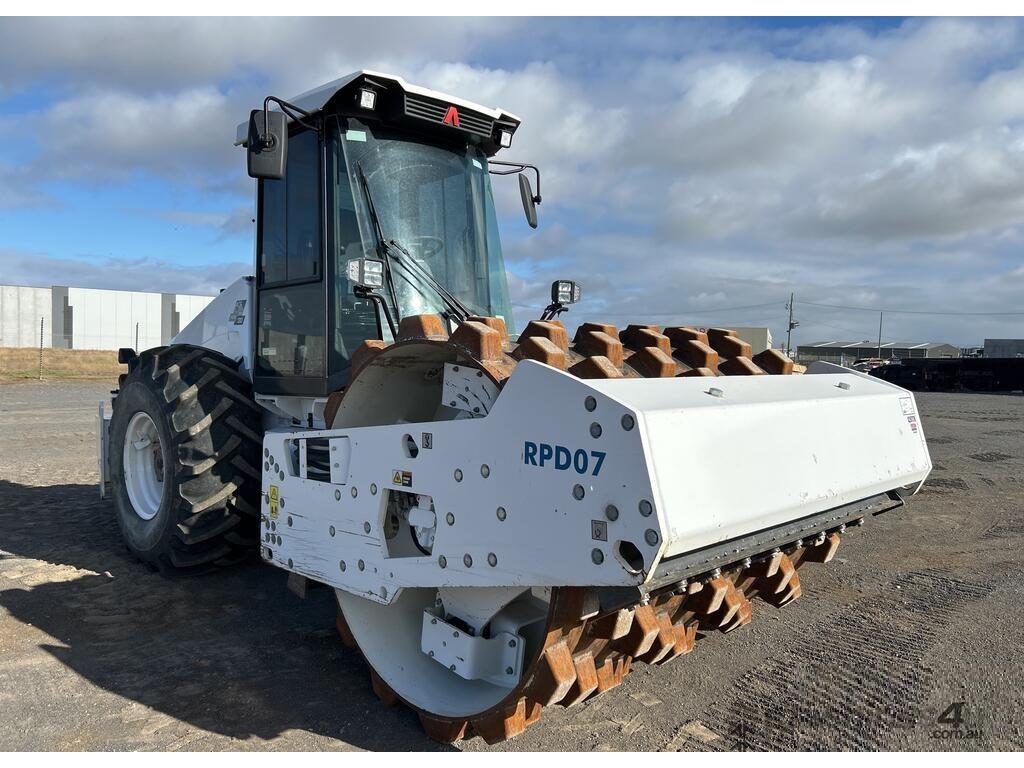

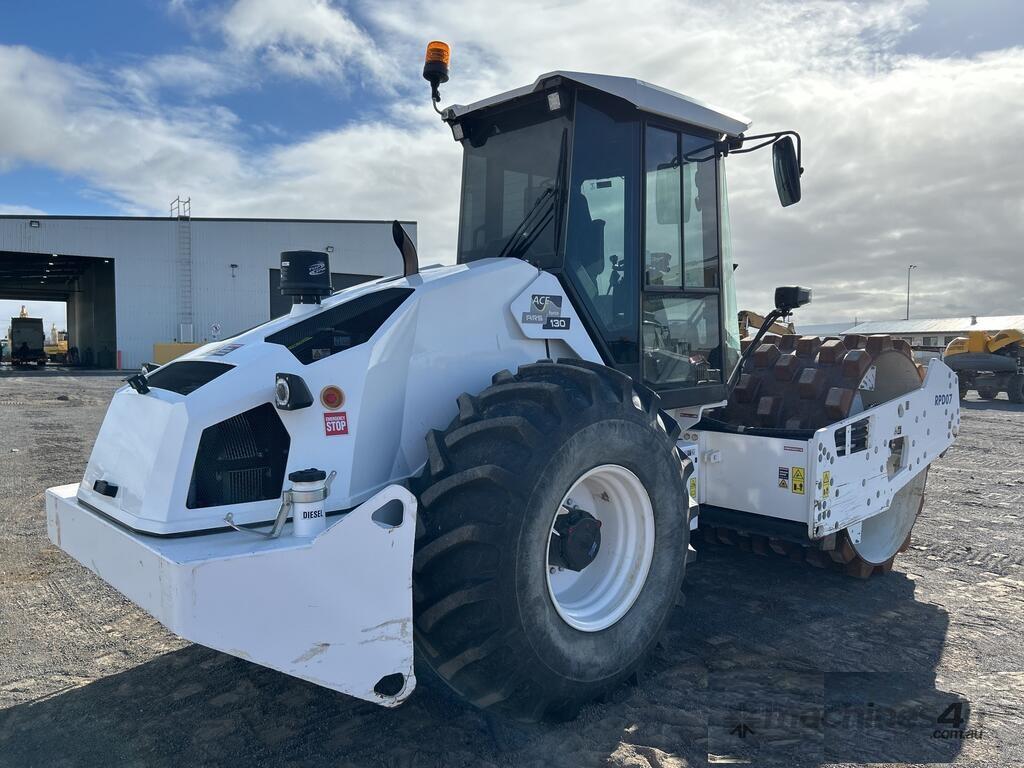

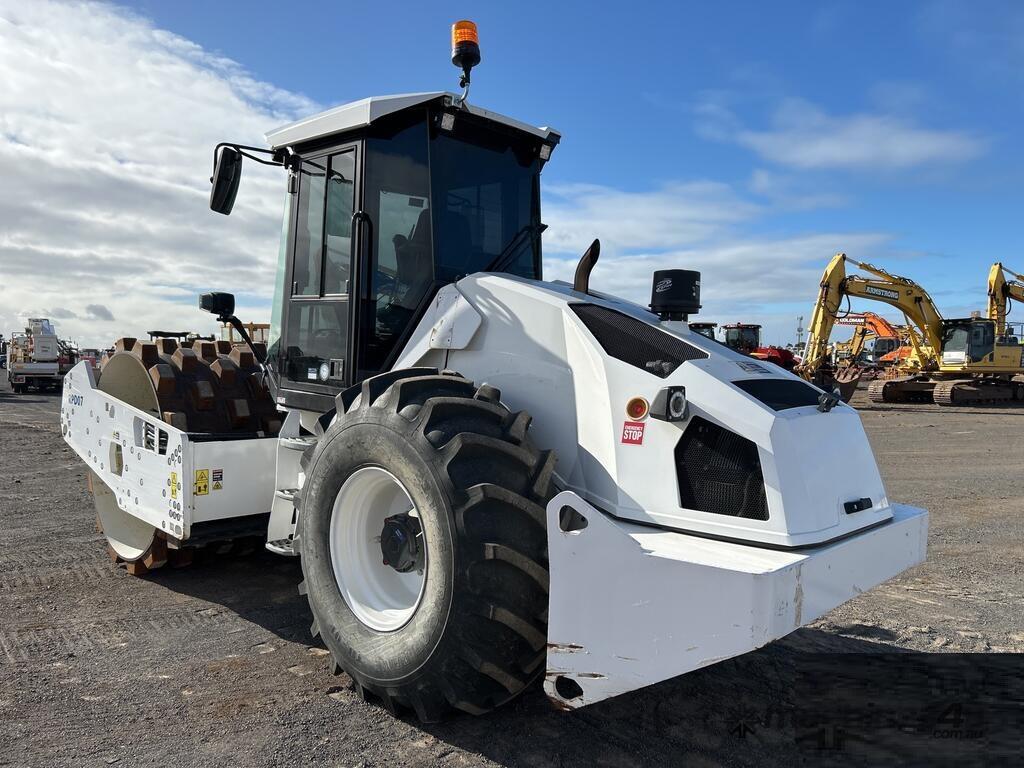

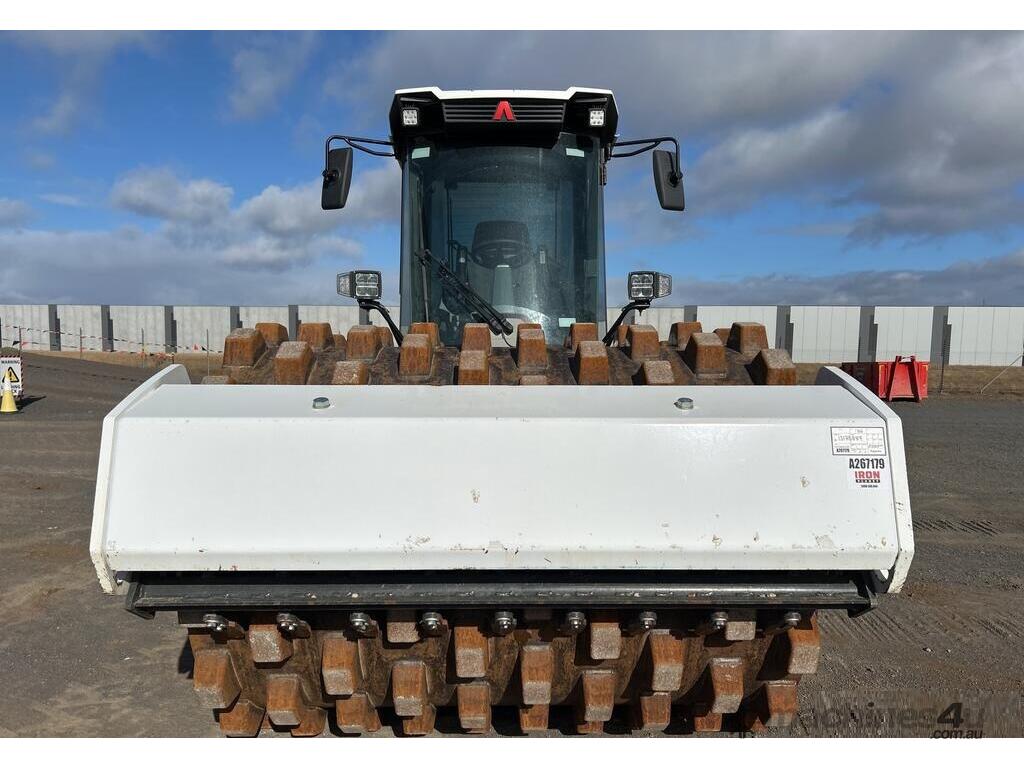

Ammann ARS 130 12T Smooth Drum Roller
The Ammann ARS 130 Soil Compactor delivers powerful performance with a compact, maneuverable design ideal for a wide range of compaction tasks. Engineered for operator safety and efficiency, it features 360° visibility, intuitive controls, and Ammann’s proprietary ACEforce Intelligent Compaction system for real-time compaction feedback and documentation.

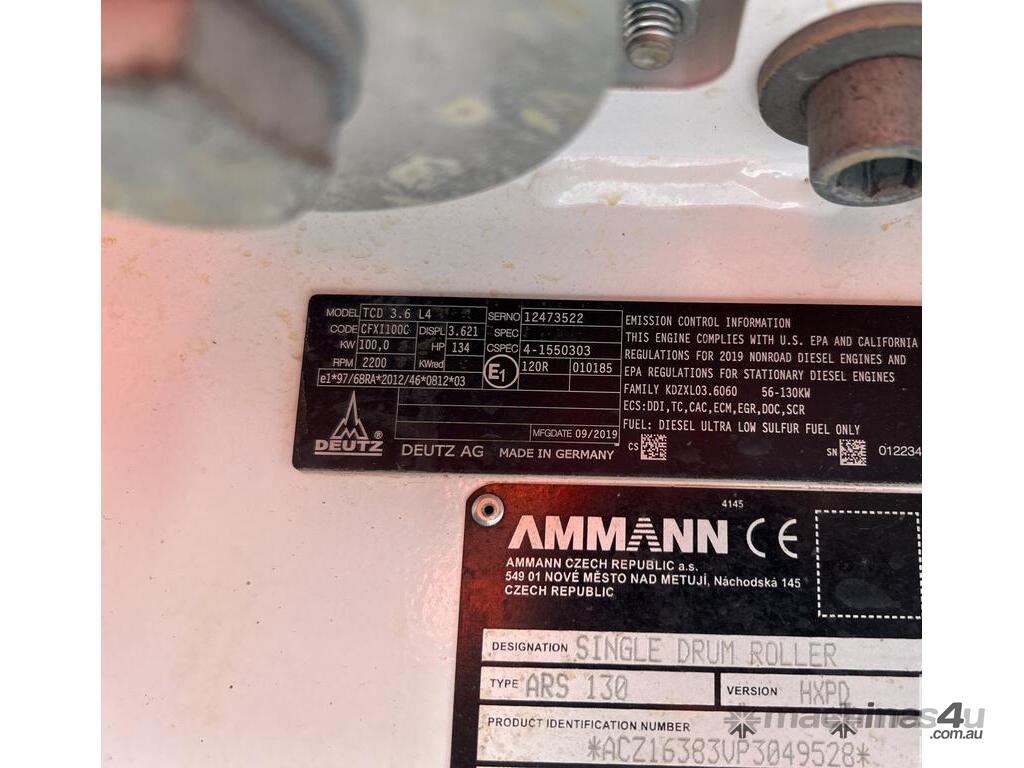

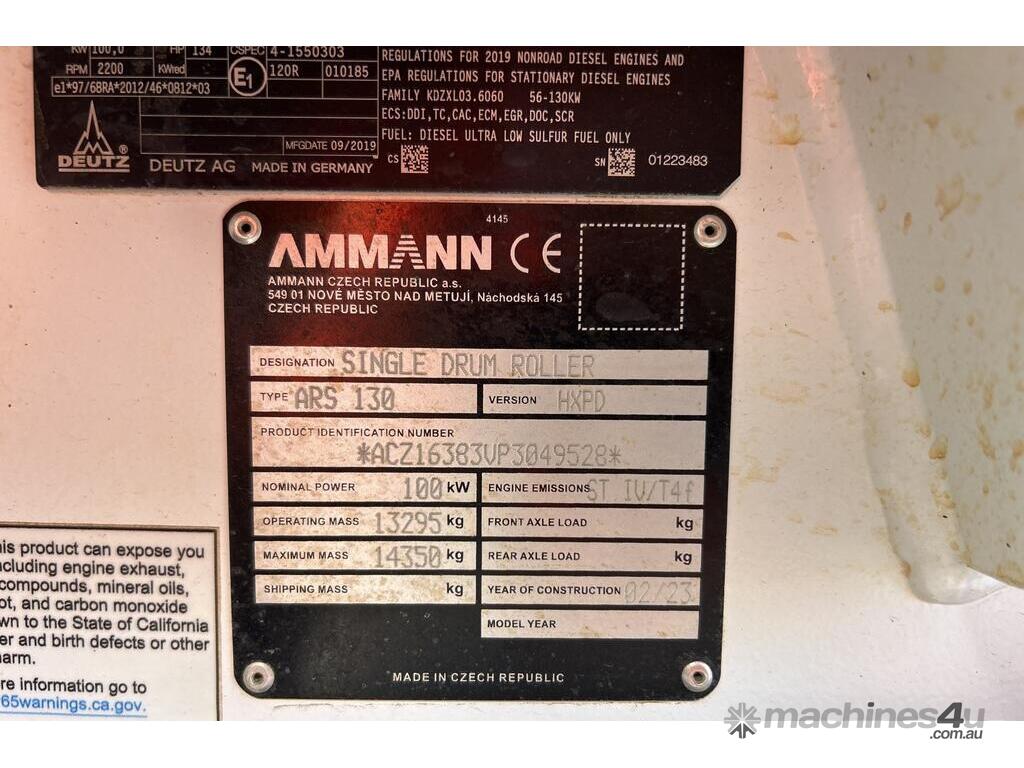

SN: ACZ16383VP3049528
Key Features:
High Compaction Output: Faster compaction of thicker layers in fewer passes
No-Rear-Axle Design: Provides low center of gravity and enhanced jobsite safety
Variable Vibration Frequencies: Increases application versatility
ACEforce System: Boosts compaction efficiency with measurement and documentation tools
Wide Range of Centrifugal Forces: Suitable for varied materials and applications
Specifications:
Dimensions
Machine Length: 5900 mm
Wheelbase: 2990 mm
Machine Height: 2970 mm (2200 mm without ROPS)
Drum Width: 2130 mm
Machine Width: 2260 mm
Curb Clearance: 400 mm
Ground Clearance: 430 mm

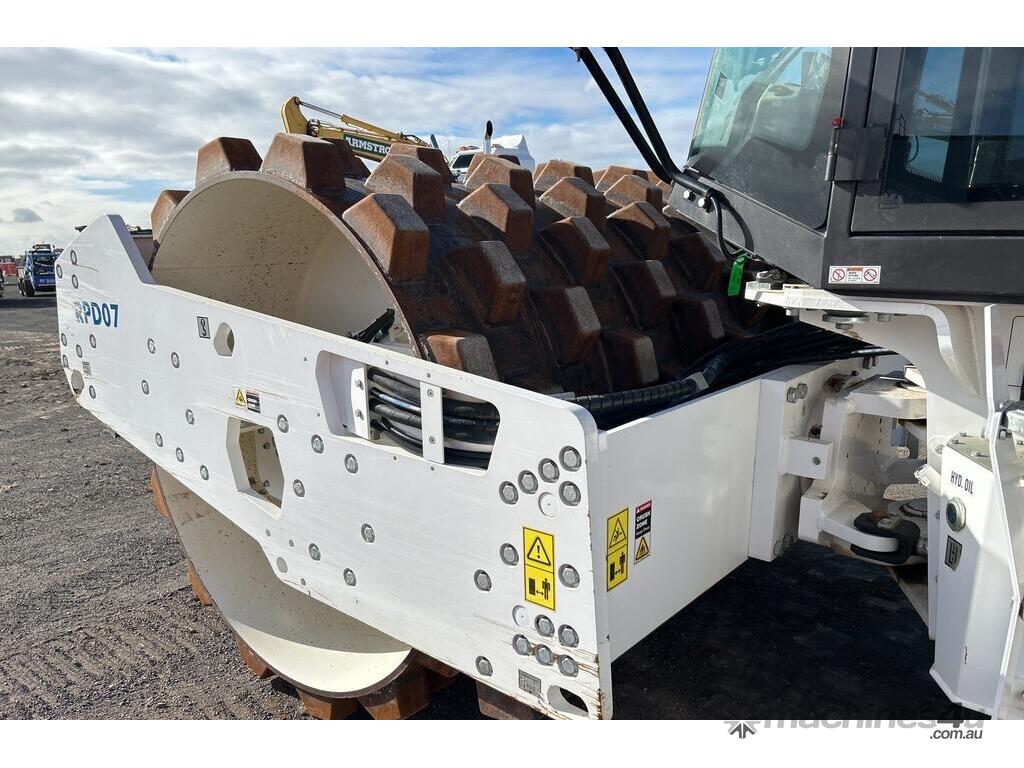

Drum Diameter: 1500 mm
Drum Thickness: 25 mm

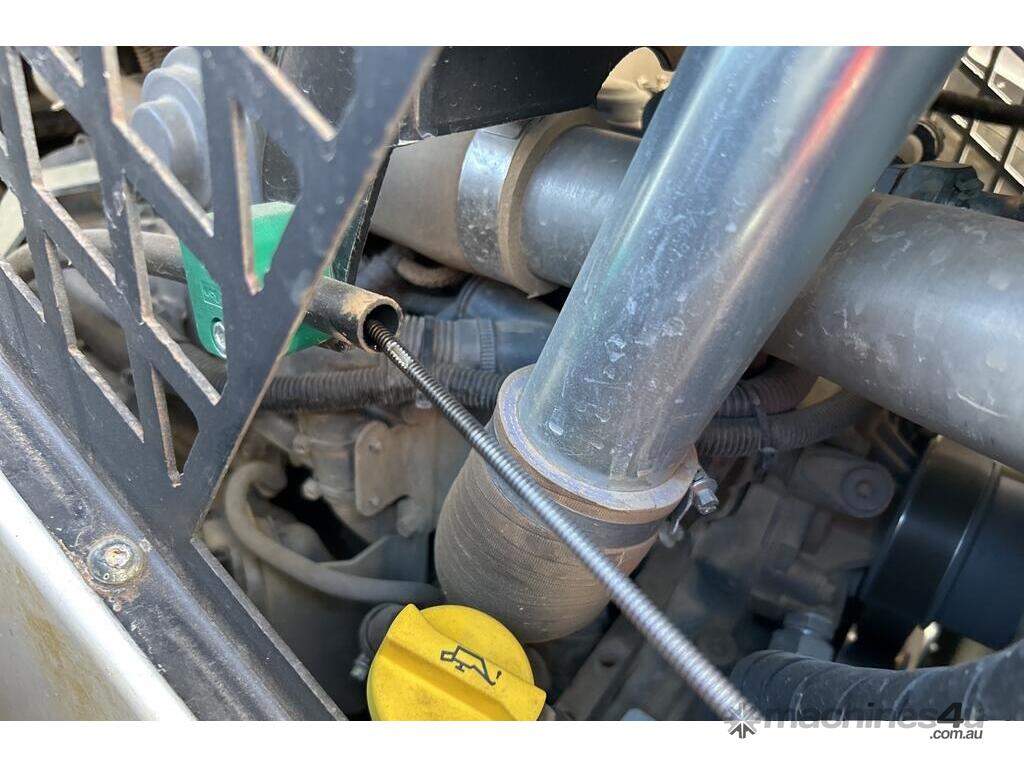

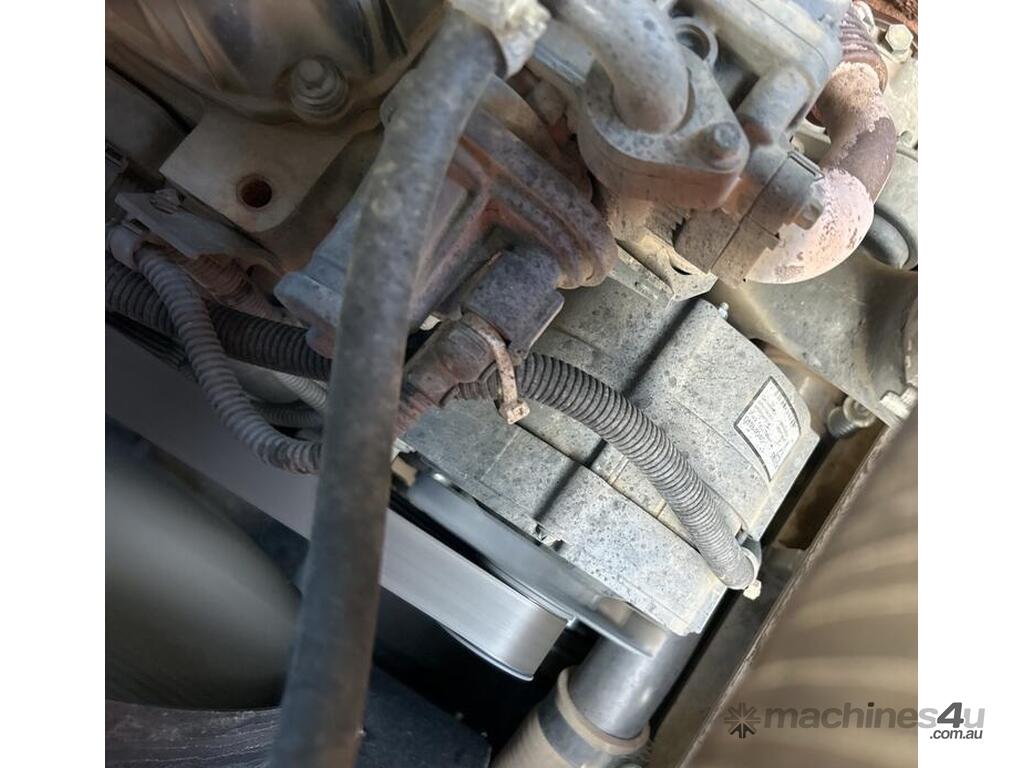

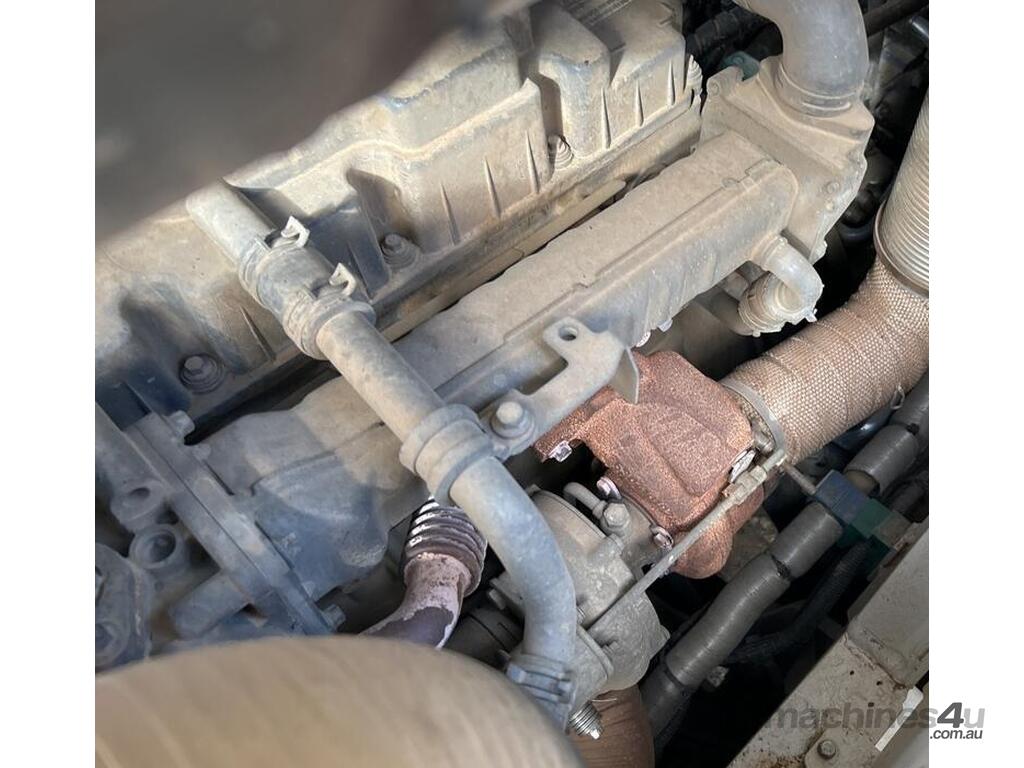

Engine:

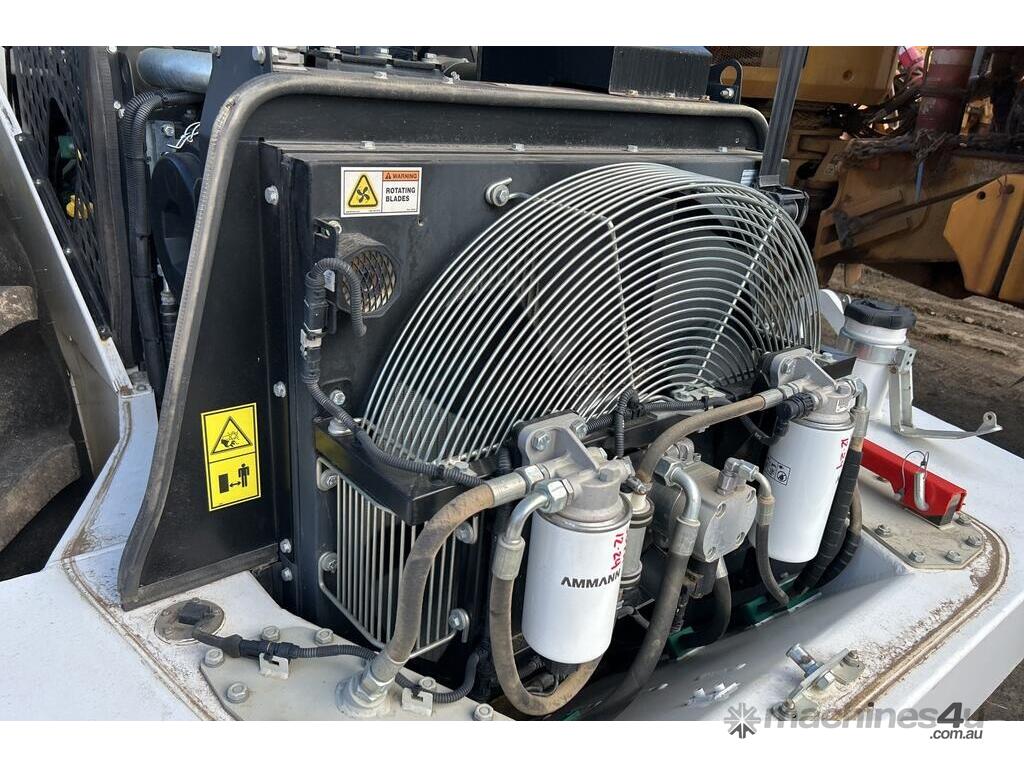

Model: Deutz TCD 3.6L4
Power: 100 kW (134 HP)
Emission Rating: EU Stage IV / US EPA Tier 4 Final

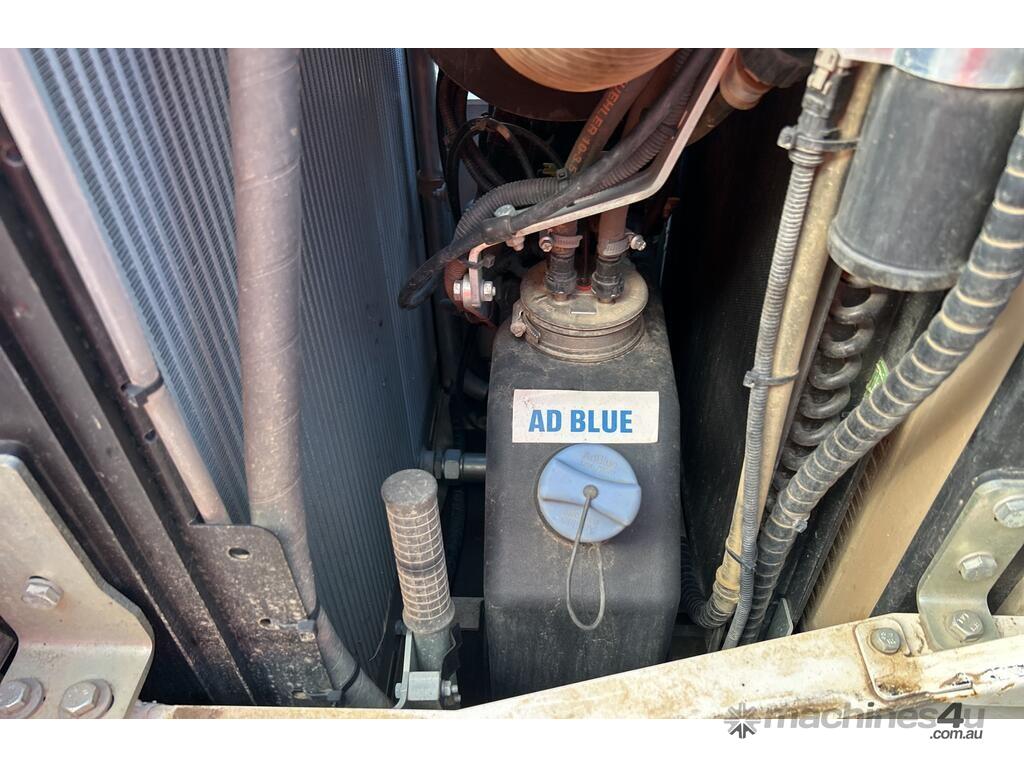

After-Treatment: DOC + DPF + SCR
Performance (HX Model)
Operating Weight: 12,580 kg
Max Weight: 15,150 kg
Static Linear Load (Front Drum): 33.8 kg/cm
Max Transport Speed: 12 km/h
Max Working Speed: 7.6 km/h
Climbing Ability (No/With Vibration): 48% / 45%
Turning Radius (Inner): 3625 mm
Compaction Forces:
Frequency I / II: 31 Hz / 35 Hz
Amplitude I / II: 1.96 mm / 0.83 mm
Centrifugal Force I / II: 285 kN / 155 kN
Miscellaneous:
Brakes: Hydrostatic (Operating), Multi-disc Spring Brake (Parking & Emergency)
Fuel Tank Capacity: 345 L

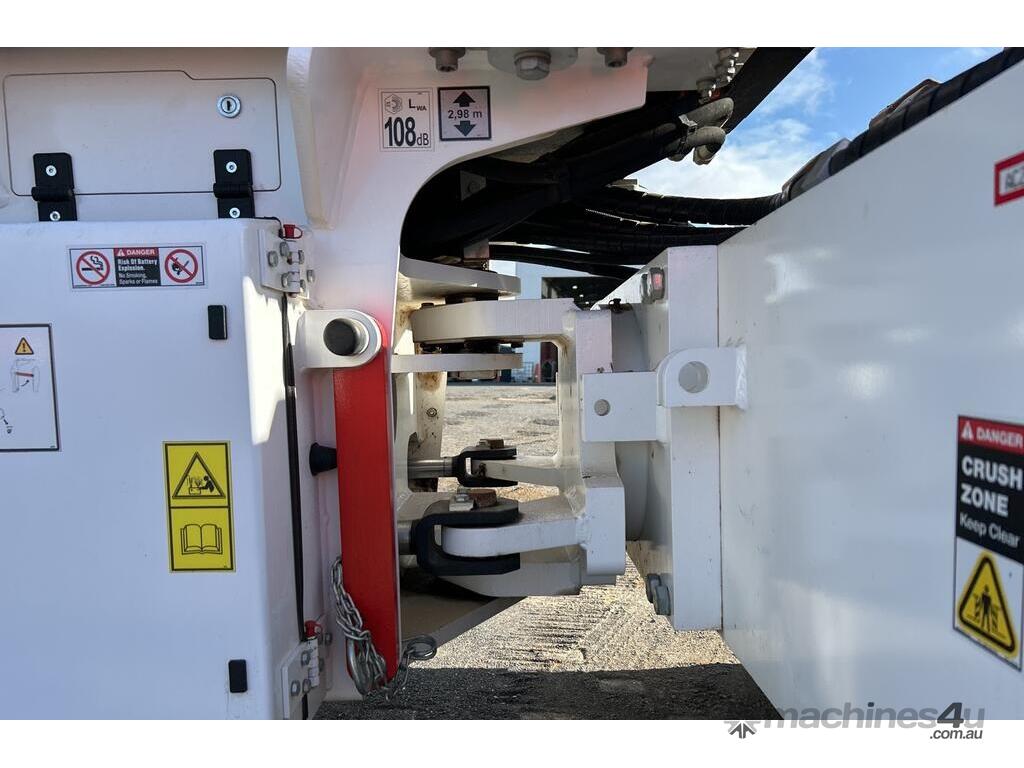

Articulation Angle: ±36°

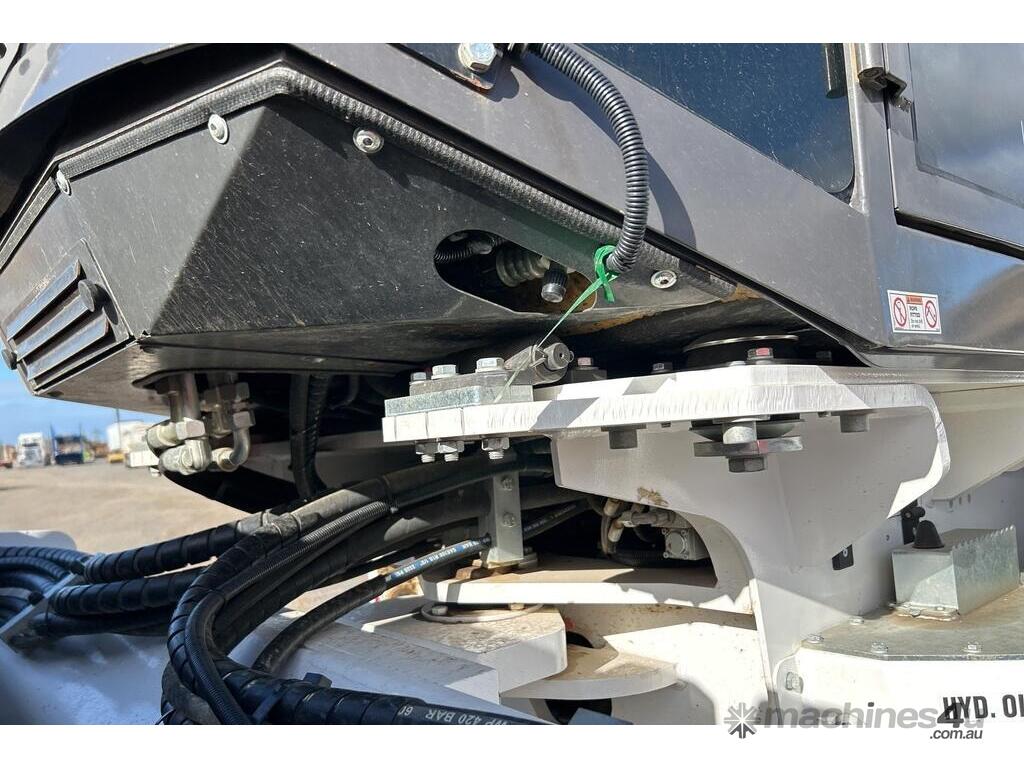

Oscillation Angle: ±10°
Operator Comfort & Serviceability
Ergonomics:

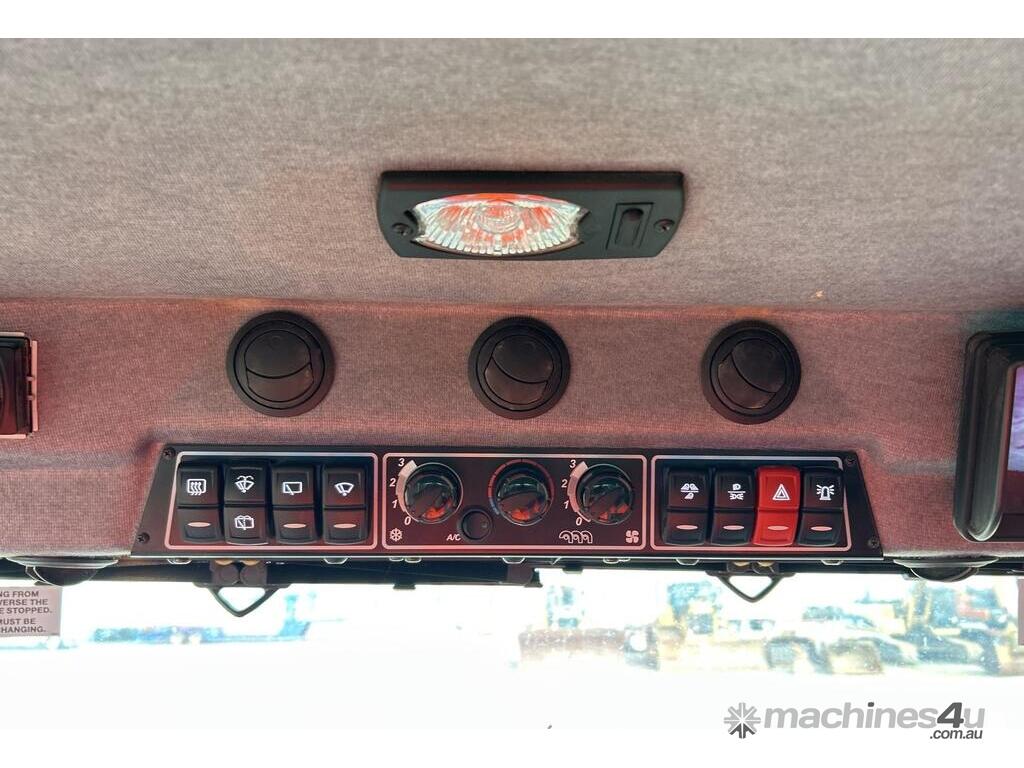

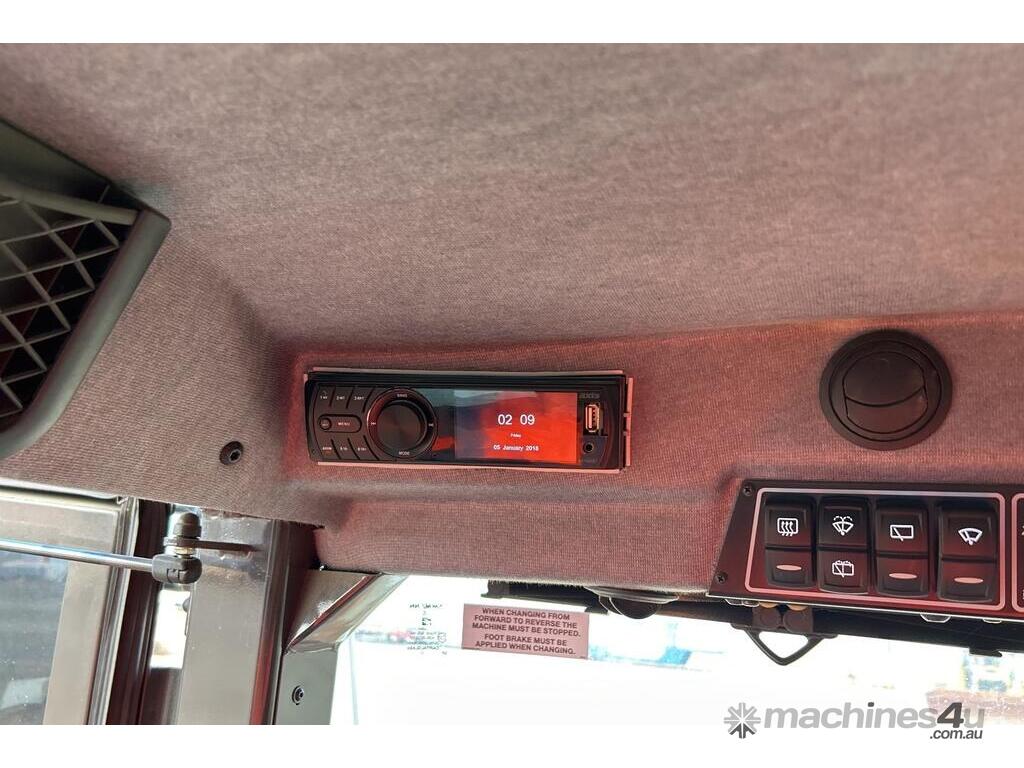

Spacious, quiet cab with integrated ROPS

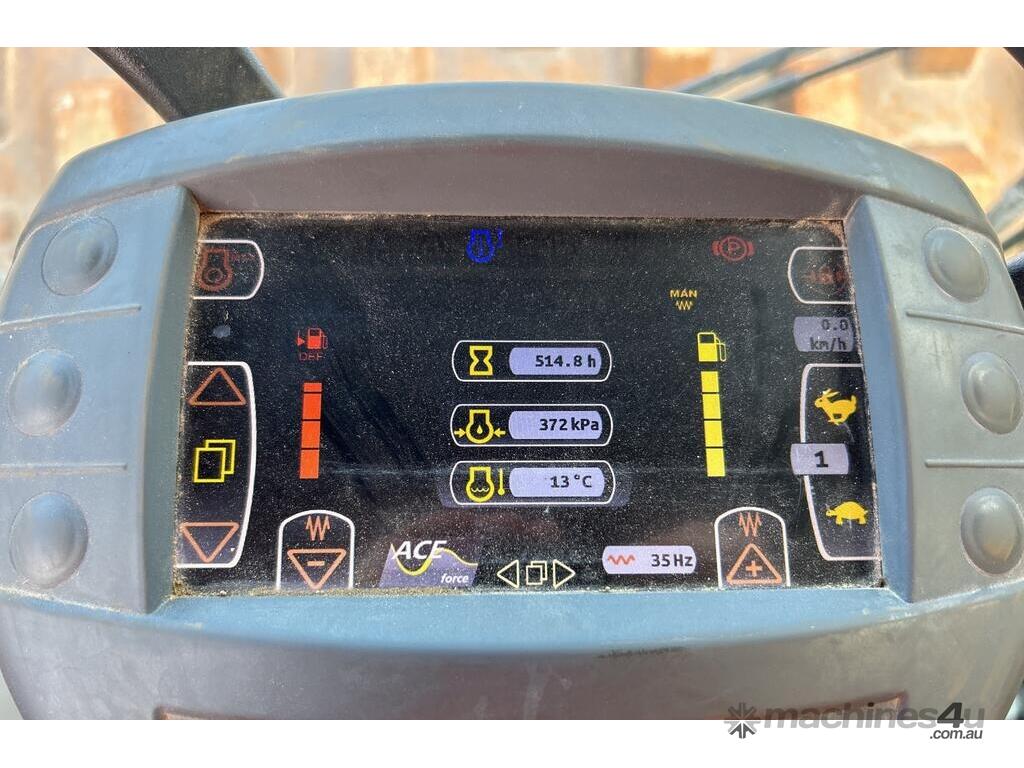

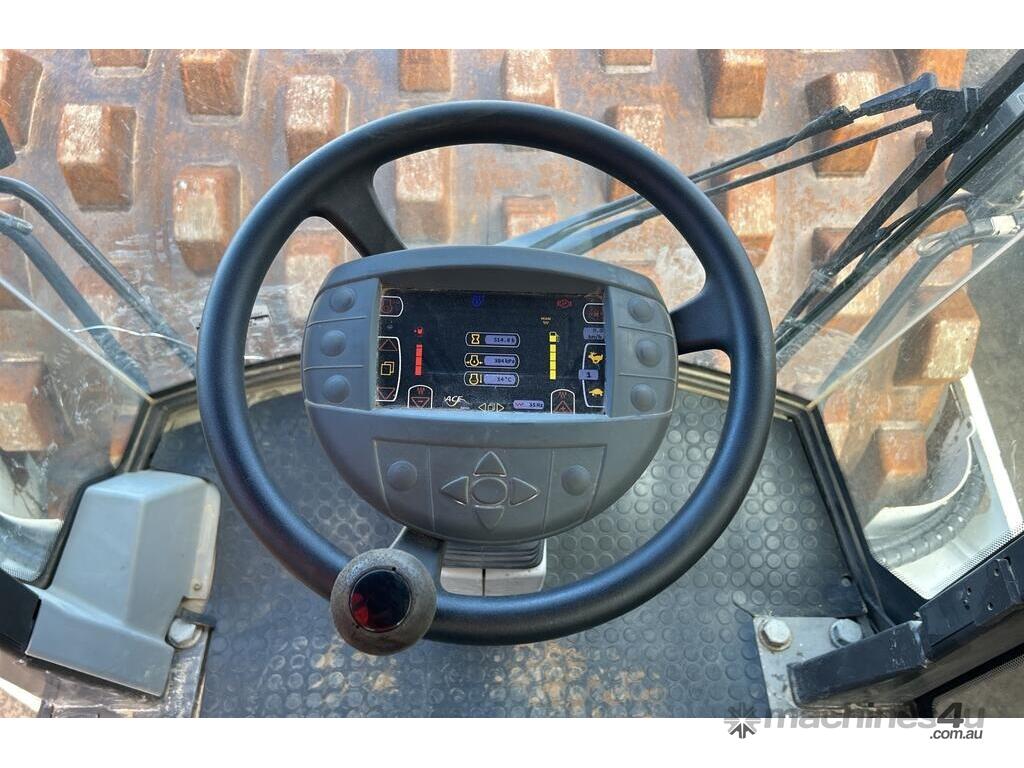

Multifunctional display for intuitive control
360° visibility to machine edges

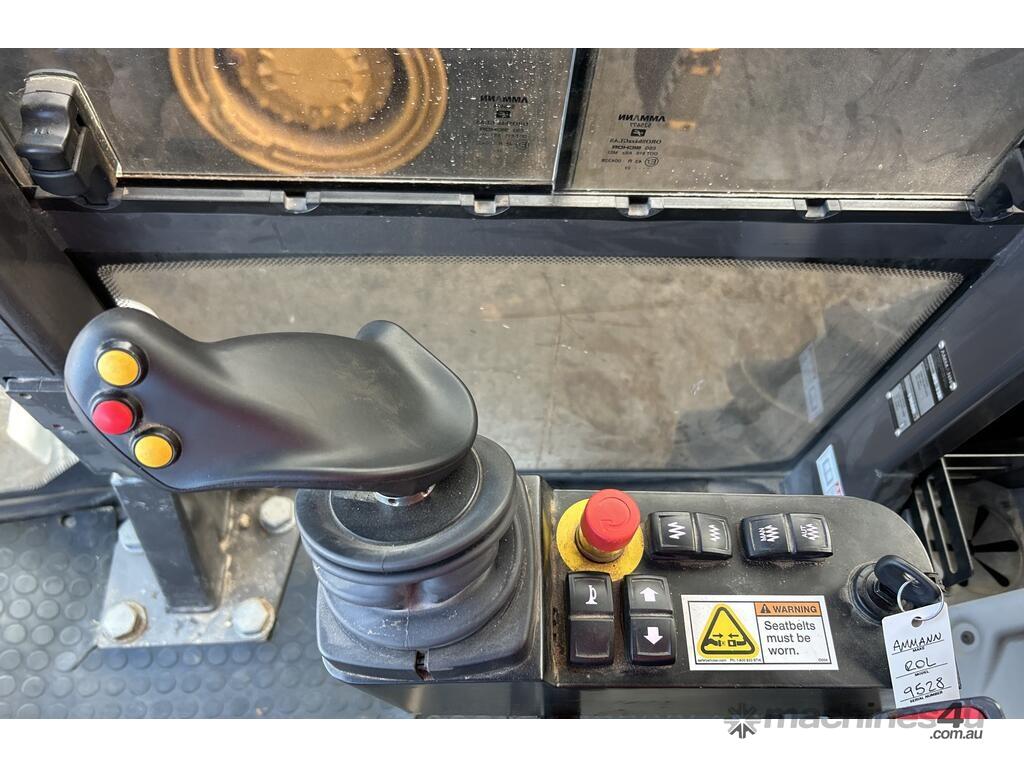

Travel lever with 5+1 speed adjustment
Serviceability:
All service points accessible from ground level
Wide rear hood for fast daily maintenance
Tiltable cab for easy access to hydraulic components
ECOdrop system for reduced fuel and fluid usage
