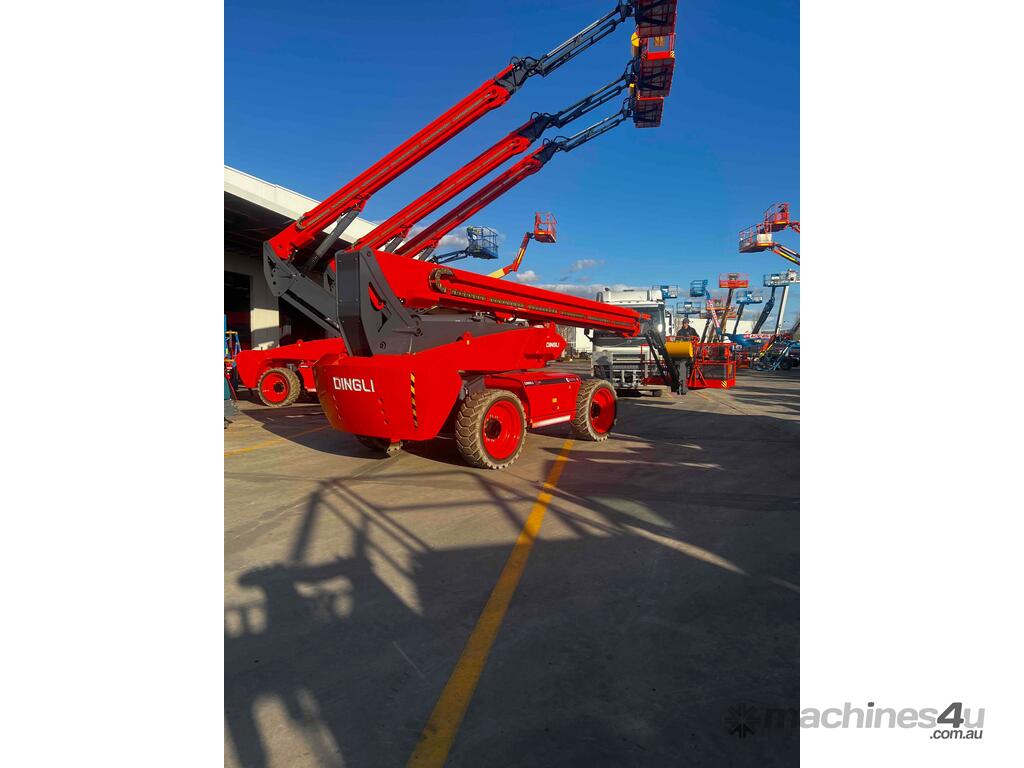

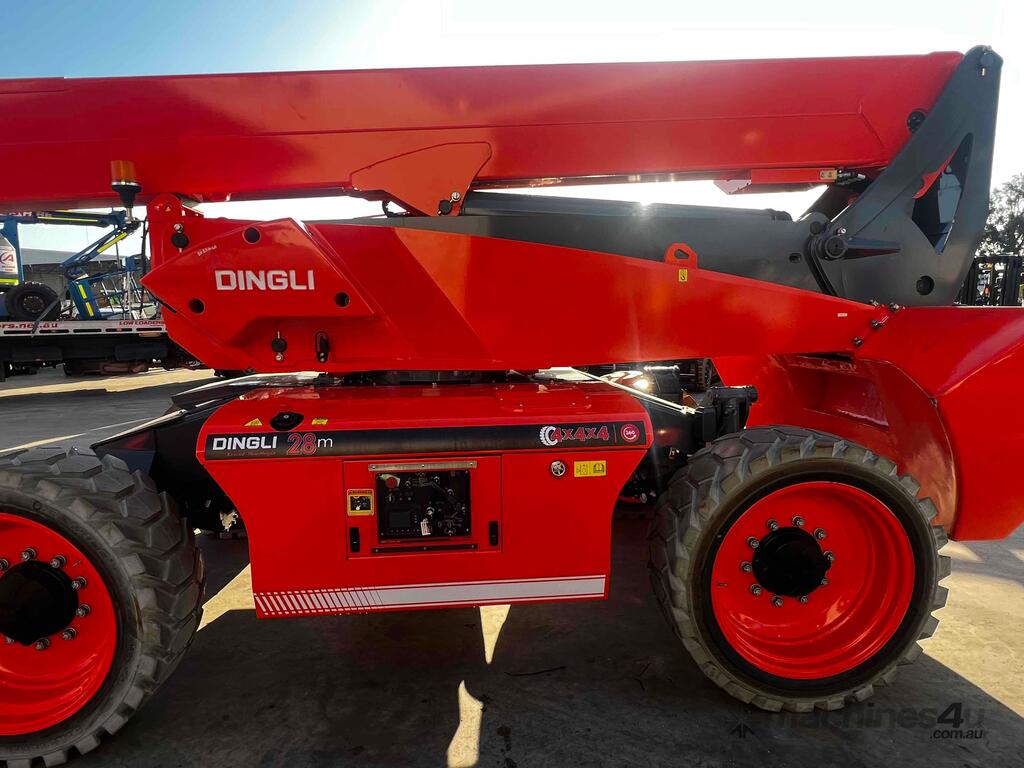

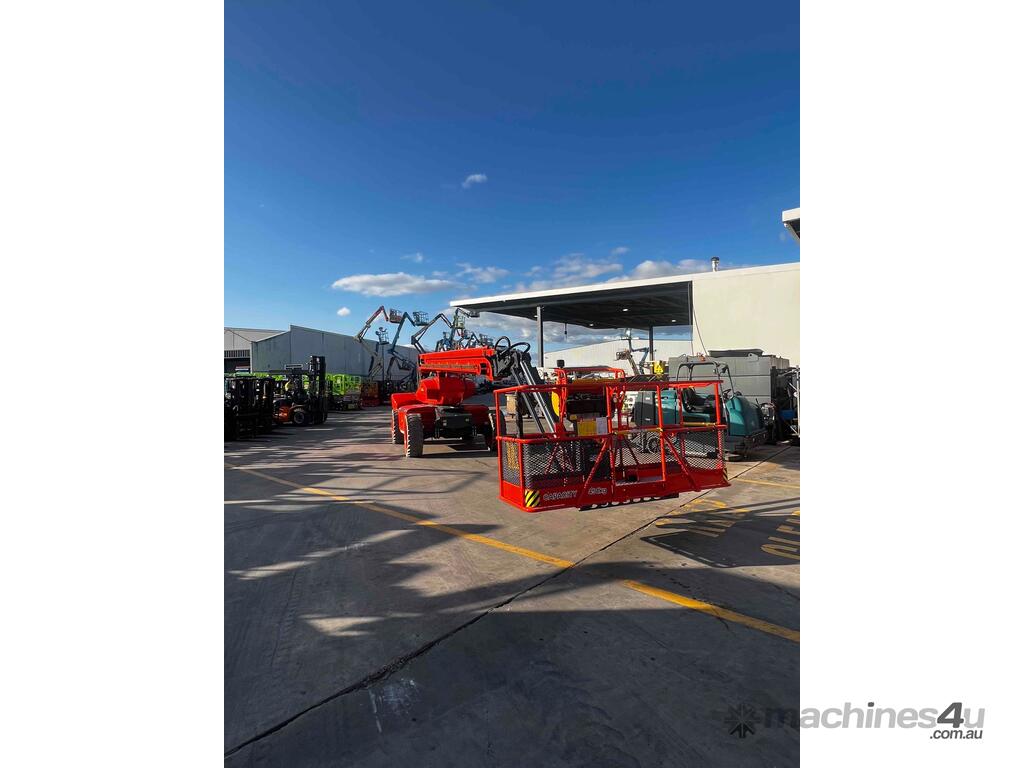

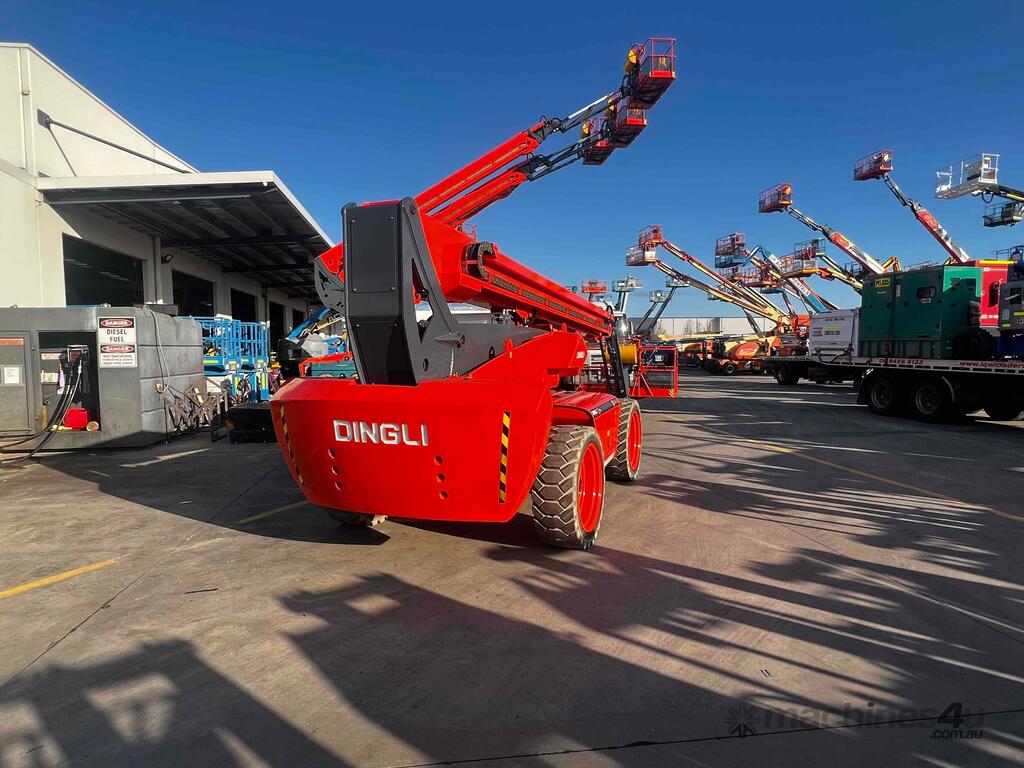

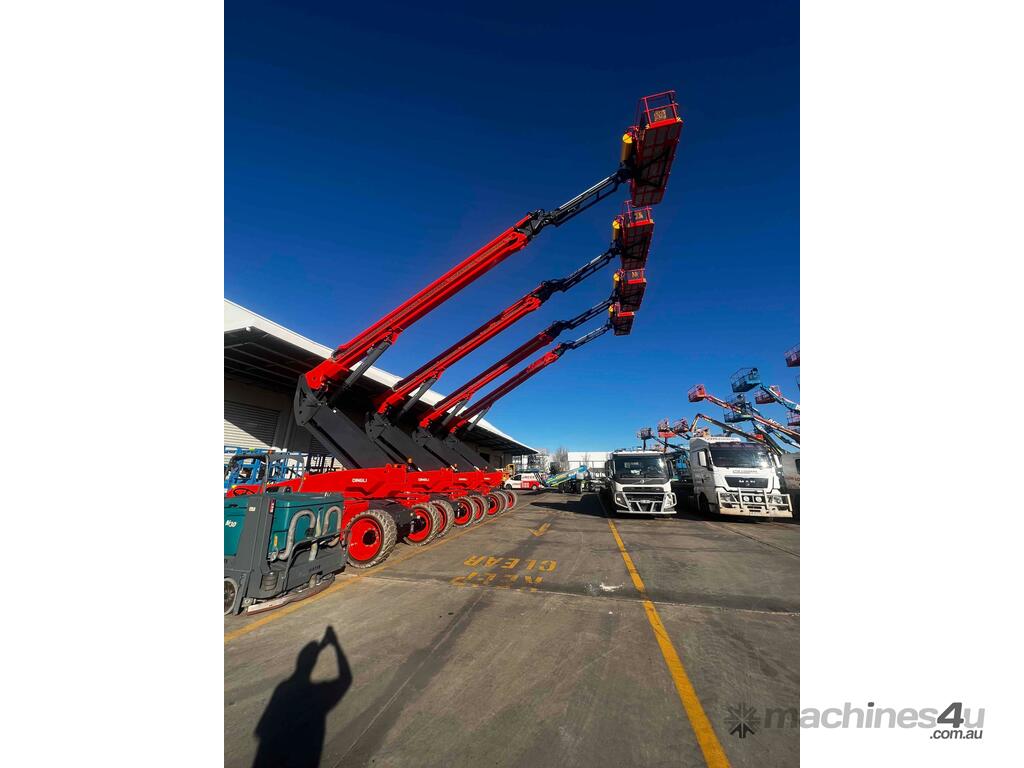

Our 2023 Dingli 73/54 RT is a high-capacity rough terrain articulating boom lift designed for demanding construction, industrial and infrastructure applications. With a platform height of 26.6m and a working height of 28.6m, it delivers strong up-and-over access combined with an impressive 21.3m horizontal reach. The large platform capacity of 454kg allows multiple operators with tools, making it ideal for productivity-focused works at height. Powered by a Deutz diesel engine and equipped with four-wheel drive and high gradeability, this boom lift performs confidently on rough and uneven ground.
Key Details
- Platform height: 26.6m
- Working height: 28.6m
- Horizontal outreach: 21.3m

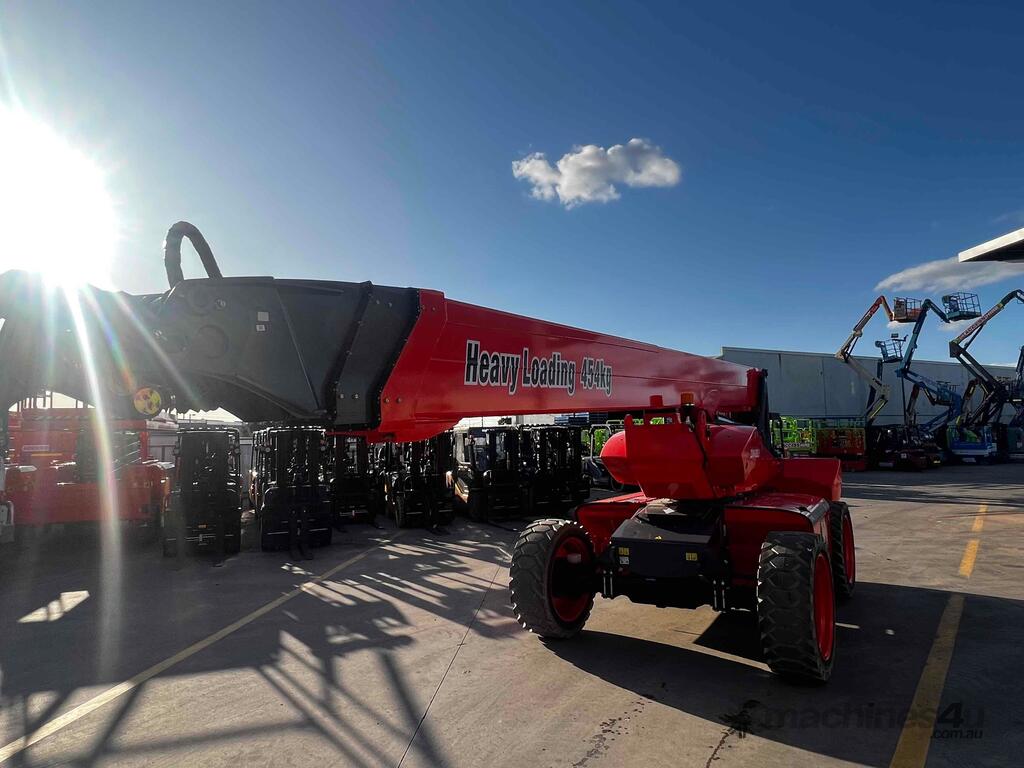

- Platform capacity: 454kg

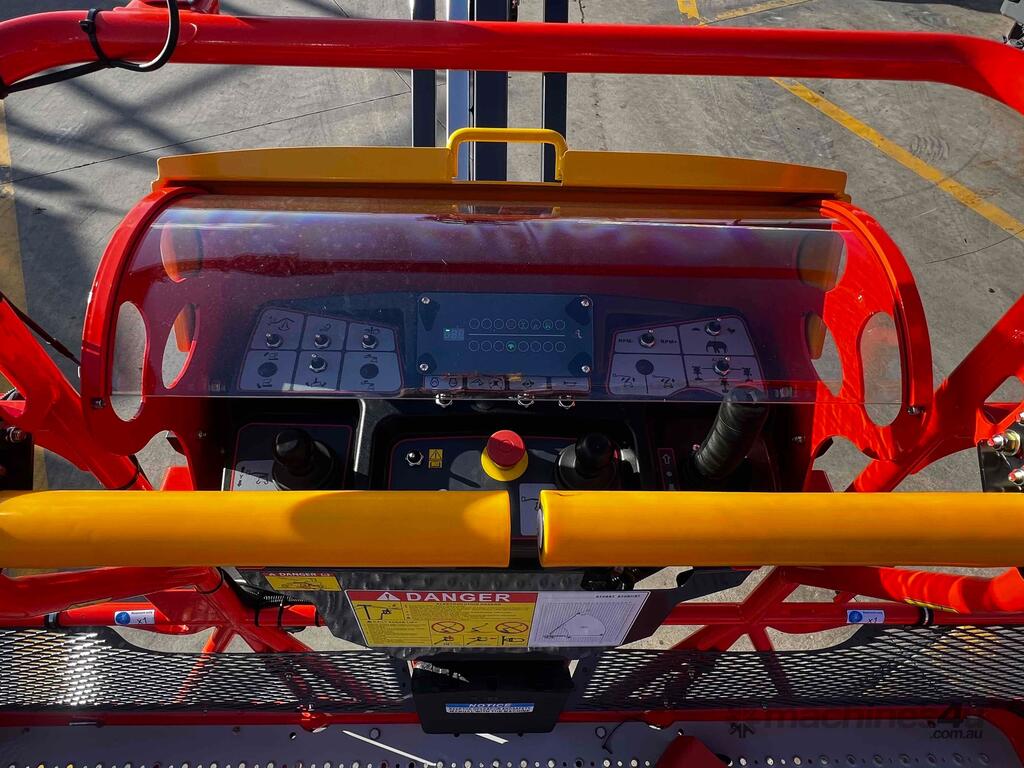

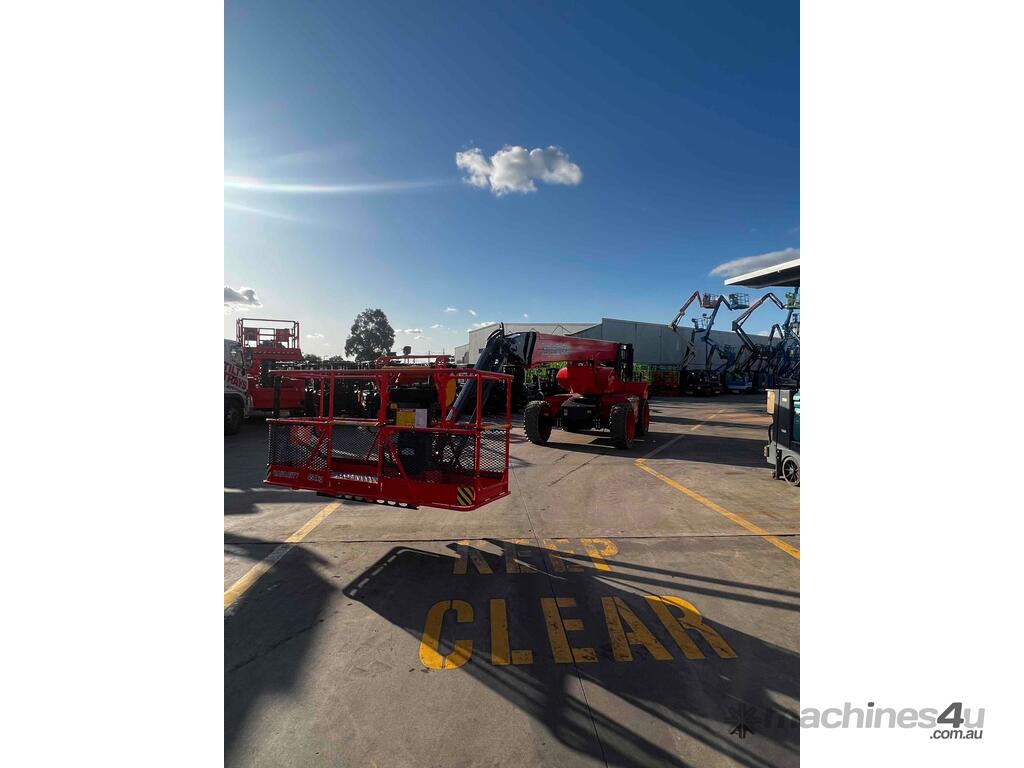

- Platform size: 2.44m x 0.91m
- Platform rotation: 180°
- Jib articulation: 135°
- Drive: 4-wheel drive
- Gradeability: 45%
- Travel speed: 6.0km/h stowed, 1.1km/h raised

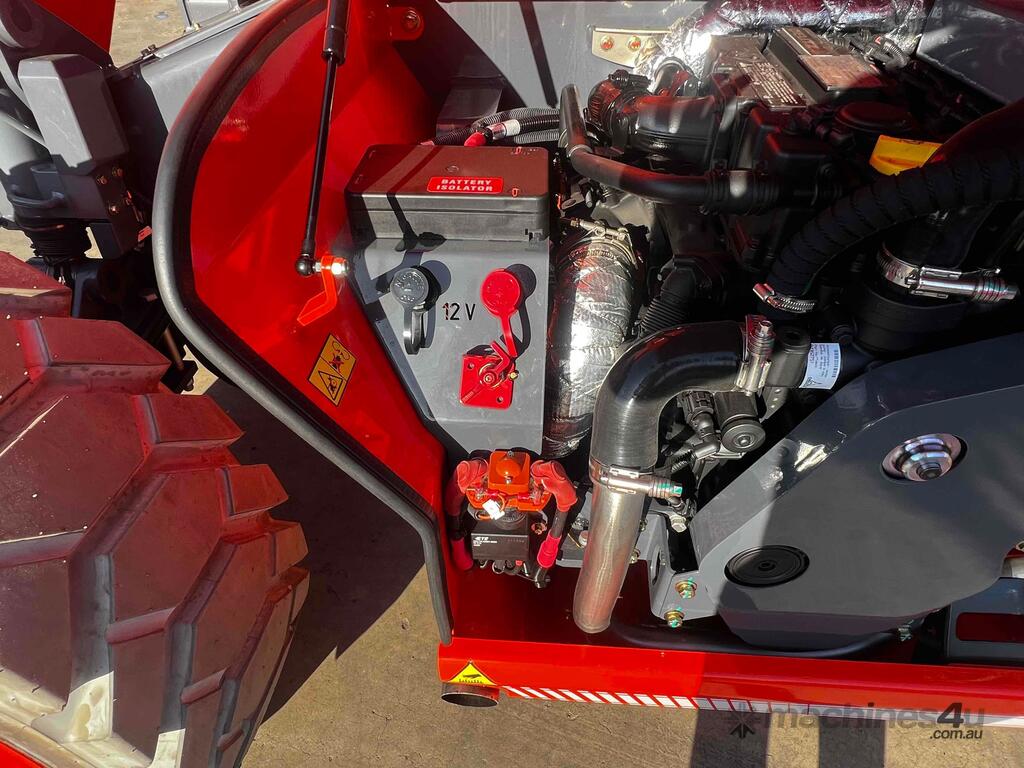

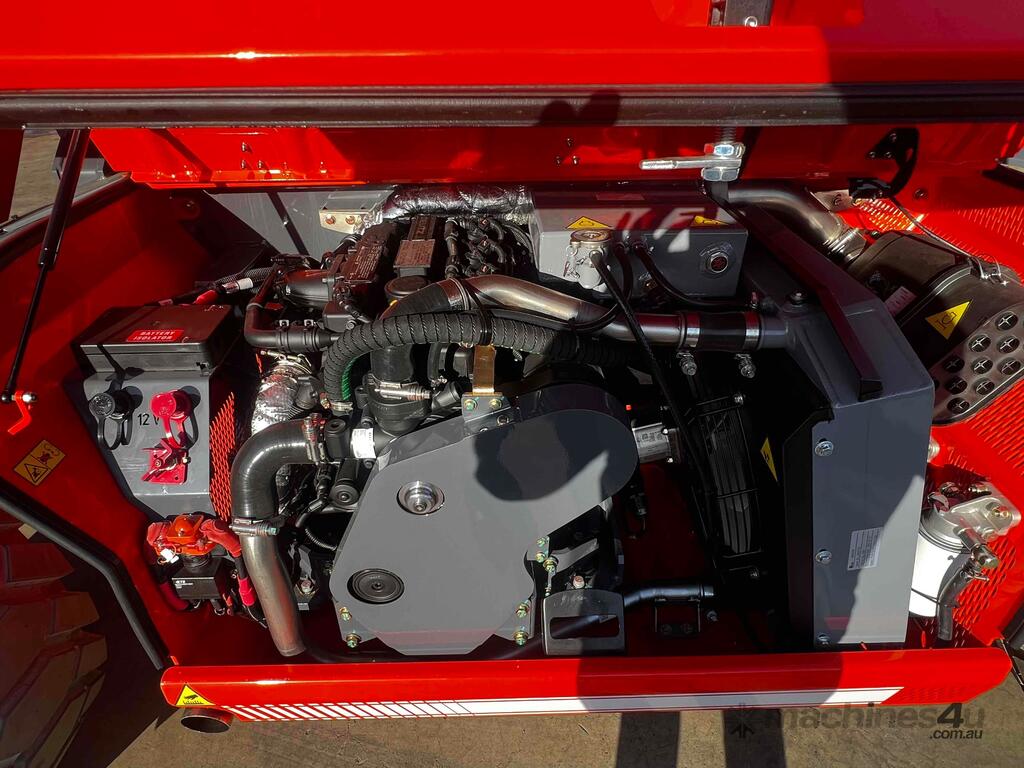

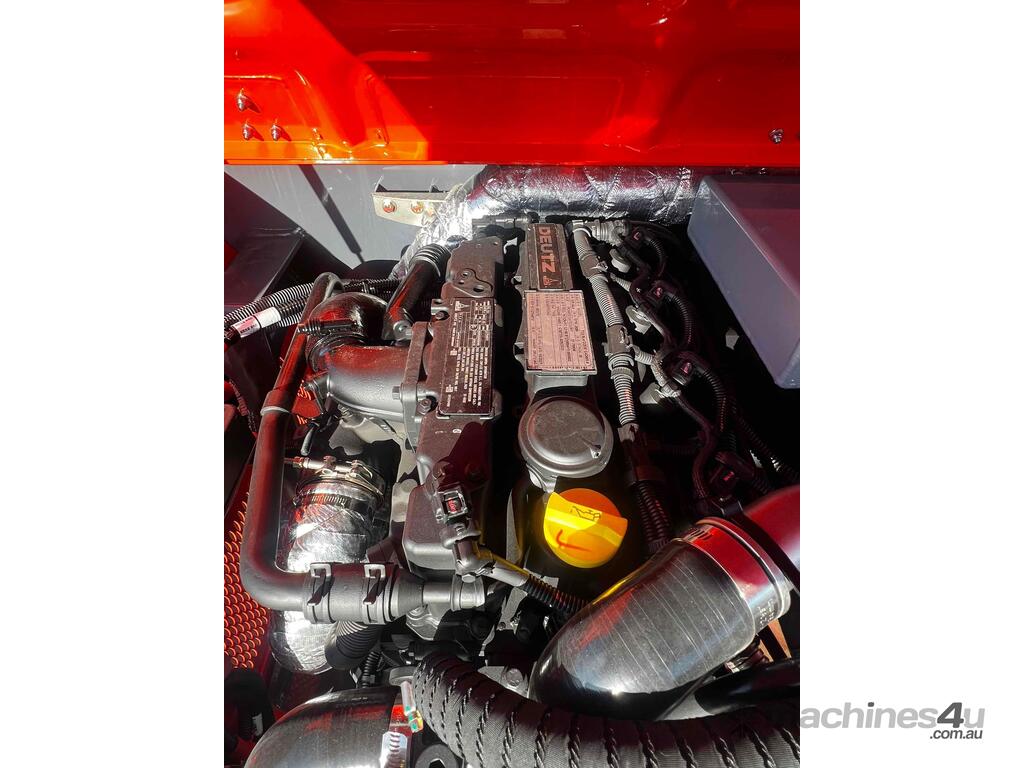

- Power: Deutz TD2.9 L4 diesel, 55.4kW

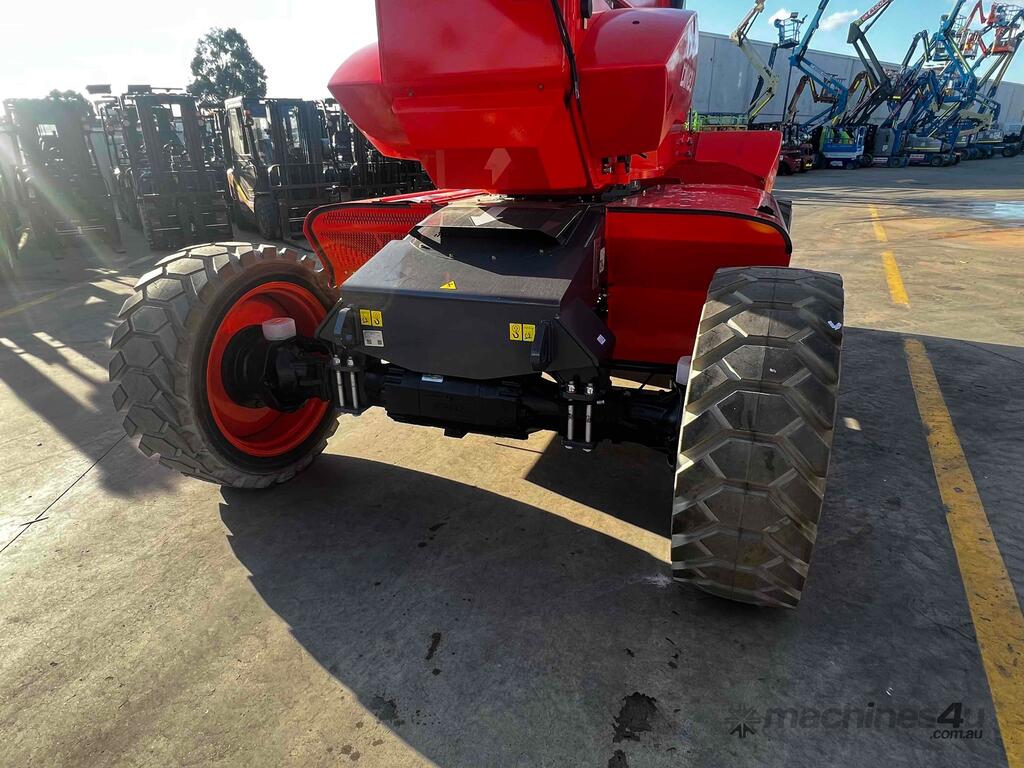

- Tyres: 385/45-28
- Machine weight: 18,400kg
Applications
- Construction and steel erection
- Infrastructure and civil works
- Industrial maintenance
- Large-scale installation and access tasks
