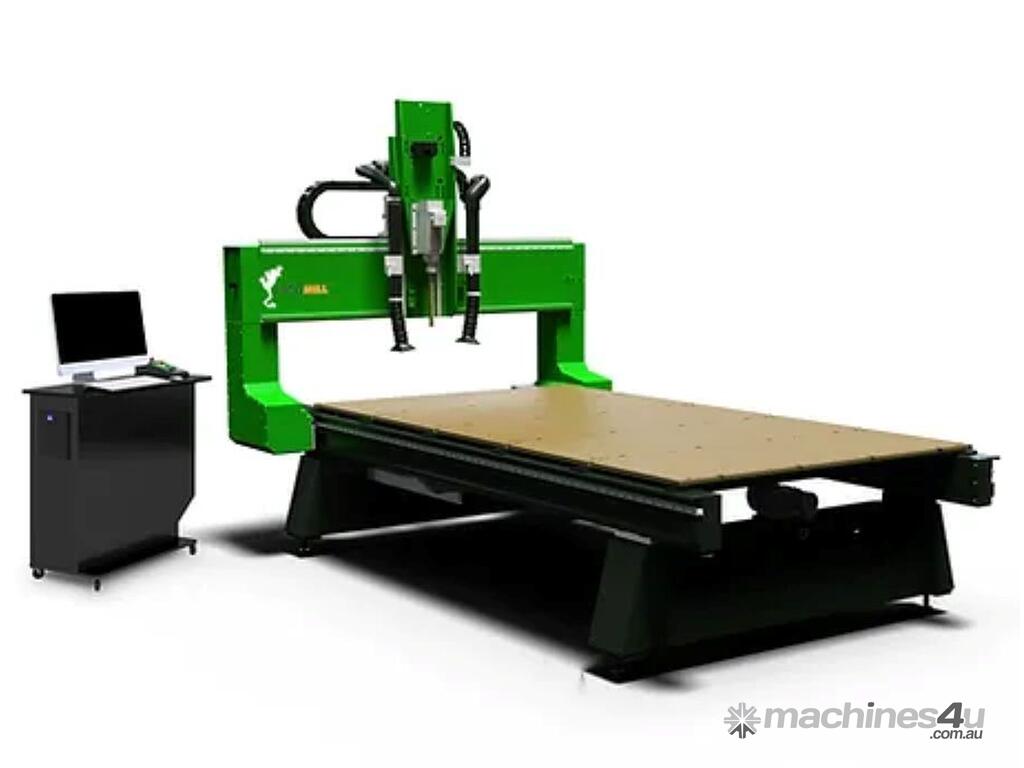

2023 Frogmill III 4-Axis CNC Foam Carving Router

This machine is new and has never been used. It was bought and imported from Canada for around $230,000 AUD landed.
We are taking expression of interest and offers on this machine.

The FROGMill is the most versatile 4-axis CNC router available. Combined with industrial strength, unequalled quality and precision, the FROGMill provides you the capabilities you need to create larger and more intricate pieces.

The 4th axis offers index cutting capabilities to create full 3D carvings (up to a 4’ diameter and 8’ length) from a single piece. Mounting onto FROGMill, the 4th axis rotational capabilities lets you go from ‘art to part’ in the shortest amount of time possible. The FROGMill 4-axis CNC router creates production efficiencies, but it also provides the accuracy and detail you need to create stunningly detailed projects.

SPECS

Overall Length: 366 cm
Overall Width: 222 cm
Overall Height: 242 cm
Weight: 1134 kg
Process Area L x W: 315 cm x 162.5 cm
Under Gantry Clearance: 40.6 cm
Z-Axis Stroke: 66 cm
Maximum Cutting Speed: 432 mm/s
Maximum Traverse Speed: 508 mm/s
Accuracy: 0.025 mm
Repeatability: +/-0.05mm
Maximum Column Diameter: 116 cm
Maximum Column Length: 252 cm

An impressive 26” stroke and 16.5” under gantry clearance puts FROGMill in a class of its own, allowing thicker cuts on larger blocks of material.

X-Y-Z Axis Drive System
FROGMill’s drive system uses an industrial strength heavy gauge rack and pinion rack drive system that’s sure to last the life of your machine.

Servo Motors
FROGMill’s high quality industrial motors provide traverse speeds of 1,200 inches per minute along with hassle-free durability.

Steel Frame Construction
Precision engineered, heavy-duty steel construction provides the strength and rigidity needed to eliminate vibration and maintain accurate tolerances

Heavy 4th-Axis
Engineered to handle up to 1,000 lbs for milling of heavy materials, such as wood the 4th axis feature precision linear rail and linear bearings to ensure maximum resolution and accuracy

Interface Software
FROGMill’s control centre runs easy to use software as the interface between the operator and FROGMill™. A user-friendly interface makes machining possible with little or no experience.
