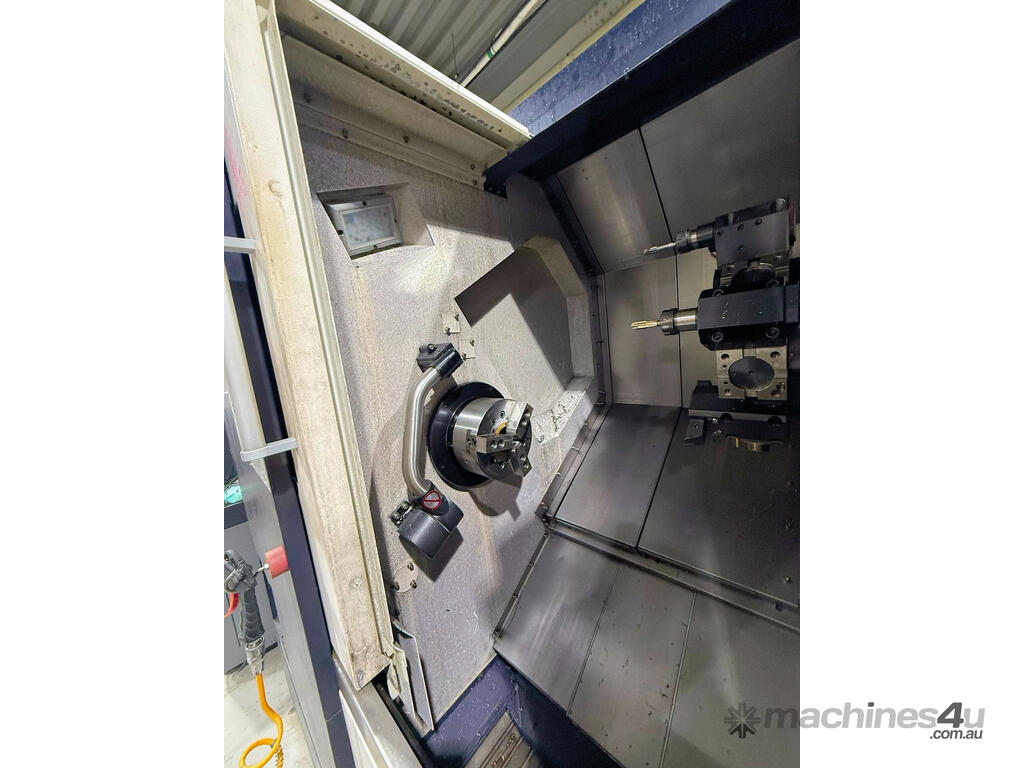

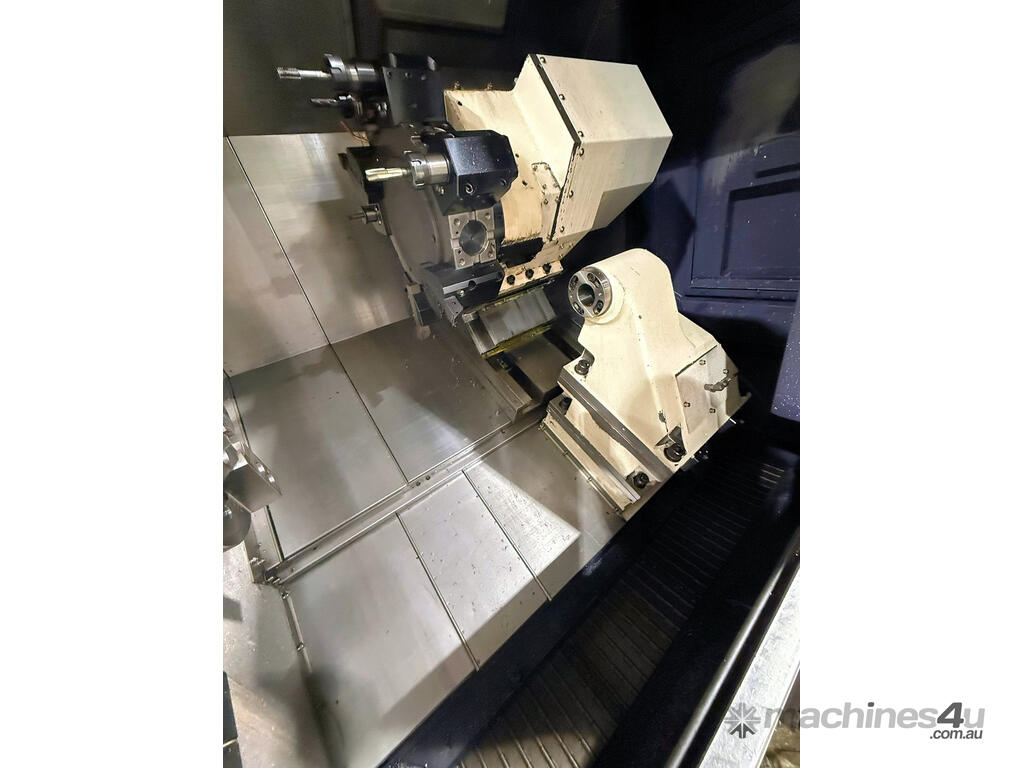

2023 Hwacheon Hi-Tech 230A YMC Turn Mill CNC Lathe

CNC MACHINERY SALES AUSTRALIA PRESENTS - Hwacheon Model : Hi-Tech 230A YMC Turn Mill CNC Lathe

Year of manufacture : 2023

Max cutting diameter : 400mm

Max cutting length : 340mm

Spindle bore : 76mm,

Bar capacity : 65mm

Travels X/Z/Y : 240mm x 450mm x 120mm

Spindle speed : 4500rpm

Motor : 15/18.5 kw

Milling speed : 5000rpm

Motor : 3.5/5.5kw

8” chuck

Tool pre-setter

Milling holders

Chip conveyor

Fanuc control

Delivery, commissioning, training and ongoing support Australia wide.

Since 1989, CNC Machinery Sales Australia's commitment has extended beyond the sale. We prioritize seamless service and support to all of our clients, large and small. Our in-house service engineers and network of industry professionals ensure swift response to any machine issue at any location across Australia.

Go to the CNC Machinery Sales showroom on Machines4u to see the rest of our range, send us a message about the product you are interested in, or give CNC Machinery Sales a call, we are happy to answer any of your questions and provide professional advice.

*CLICK ON THE PDF SPEC SHEET FOR MORE DETAILED INFORMATION *
