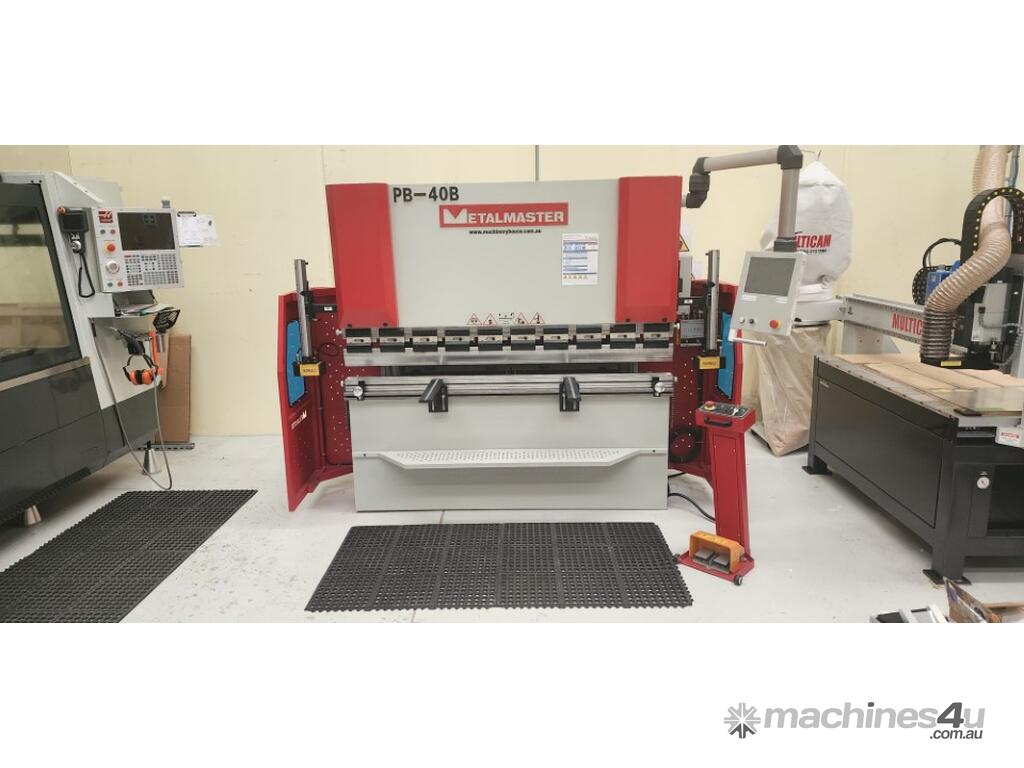

2023 - MetalMaster PB-40A - 44T Press brake

For sale one 44T Metalmaster PB-40B Press Brake. Very low use.
Touchscreen, laser safety guard, heavy duty, CNC control.
Easy to operate and maintain.

Underutilised within our company, this machine has very low use, and deserves to see more action.


Machine Specifications

Model Range: PB-40B

Control Unit: Cybelec CT12 CNC Controller

Laser Guarding System: Yes (Type 4 electronic safety system - SDKELI BLPS Laser Safety Protective Device - SP Controller)

Axes: 2-Axis (Y1/Y2 + X Backgauge)

Tonnage: 44

Work Table Lengths: 2000mm

Distance Between Columns: 1615mm

Ram Stroke: 100mm

Max Open Height: 330 mm

Backgauge Travel: 520 mm

Motor Power: 5 kW (depending on model)

Voltage: 420V, 3 Phase

Weight: 3,800 kg


Controller & Safety

Cybelec CT12 CNC Controller: intuitive touchscreen interface for fast program setup, tool management, material selection, and bend sequencing.

Laser Safety Guarding: high-speed E1, E2, E3 triple-beam system with self-monitoring fault detection and muting modes for complex workpieces (operates at slow speed).

Smart Safety Controller: Type 4 safety-rated circuit ensuring automatic stop if obstruction is detected



Features

Heavy-Duty Frame: rigid welded steel construction for precision bending and durability.

Automatic Hydraulic System: smooth, stable, and powerful with adjustable tonnage control.

Front Sheet Supports and mobile foot pedal control for ergonomic operation.

Quick-change segmented punch and 4-sided die for maximum flexibility in tooling setup.

Adjustable Backgauge with 520mm travel and fine precision control.

Integrated Lubrication System to maintain bending accuracy and extend component life.

Full Safety Compliance: laser guarding, emergency stops, side and rear fences.


Included Equipment

Mobile Foot Pedal

Laser Safety Guarding with Calibration Tools

Standard Punch and 4-sided Die Set

Front Sheet Supports
