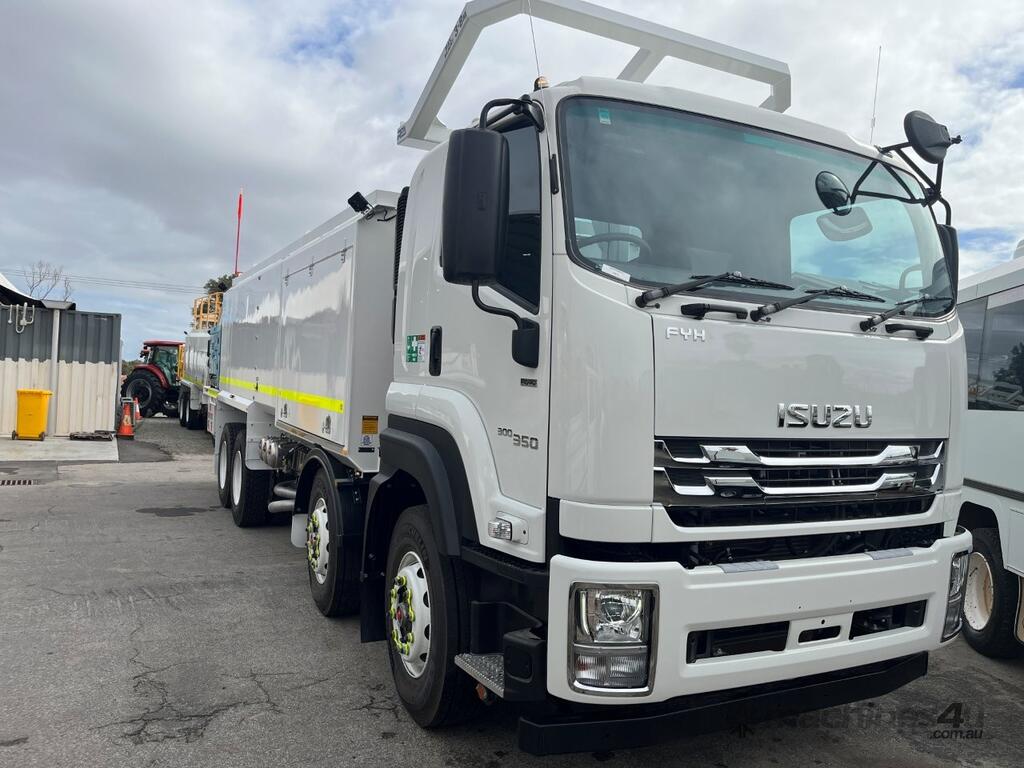

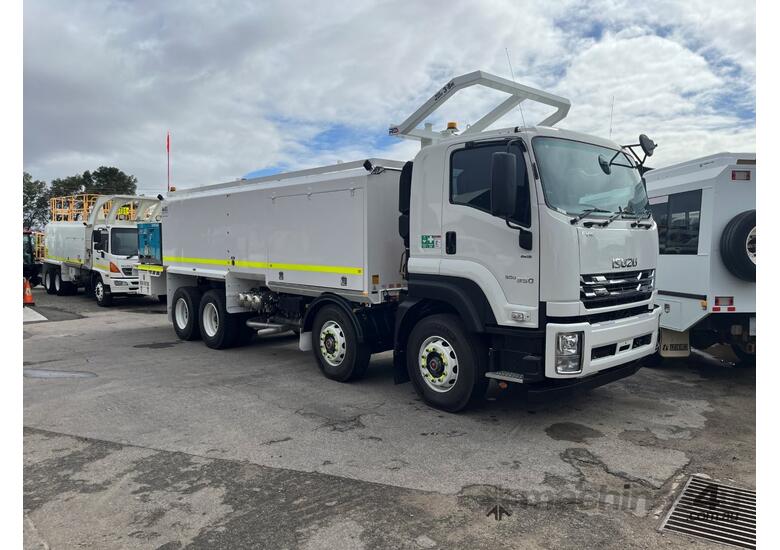

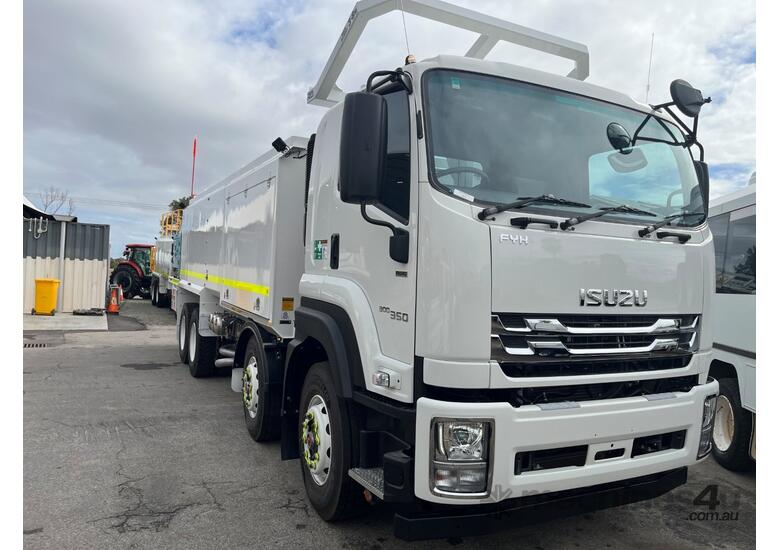

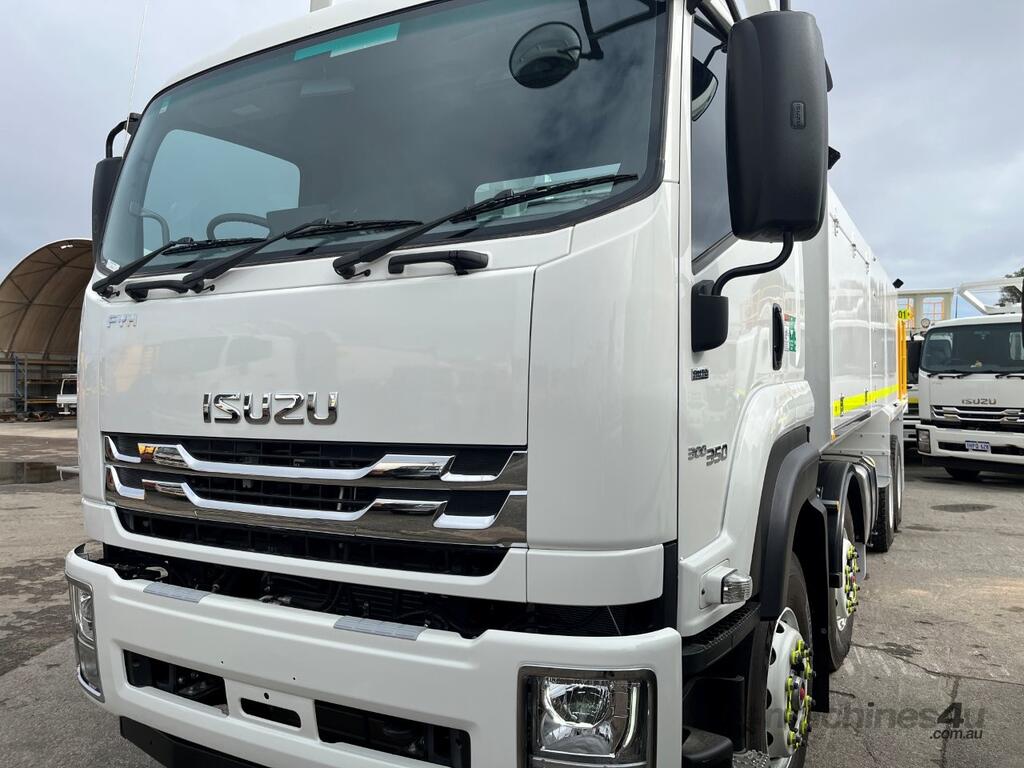

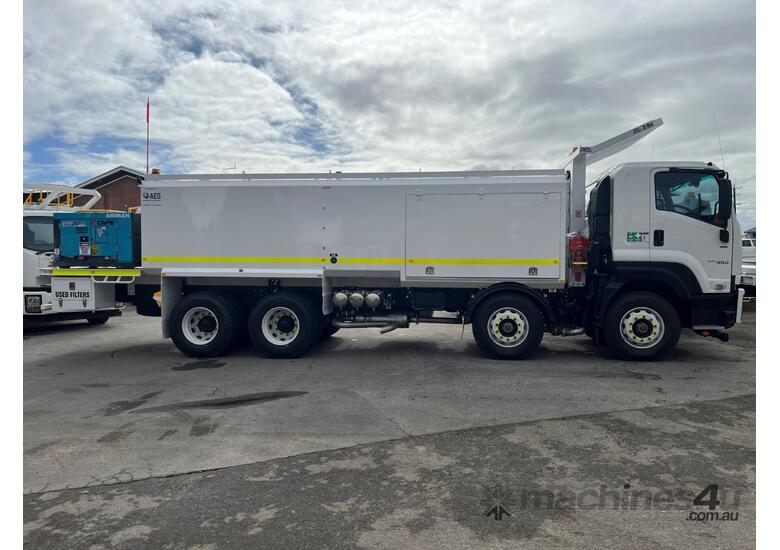

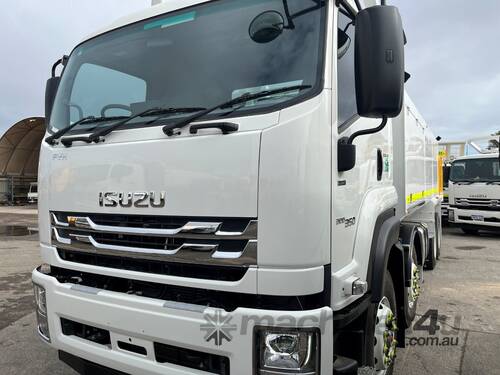

NEW 2024 ISUZU FYH 300/350 MLWB 8x4 Service Truck with AES 11,000 Service Module
Large 8-compartment heavy-duty steel chassis-mounted tank module
Rear tray with steel checker plate floor and steel guards over tandem wheels
Fully independent ROPS system, tested and certified to ISO 3471/3449
Equipment & Components:
1 × 10-1 grease pump
1 × 5-1 high-volume oil pump for gear oils
2 × 3-1 high-volume oil pumps for hydraulic and engine oils
1 × PDS 80 screw compressor
Husky double diaphragm pumps for diesel (2"), waste (1"), water (¾"), and coolant (¾")
All fill points and internal sight glasses inside reel cabinet; diesel fill sight glasses external
Auto-on headlights
Pressureless fast-fill fuel system to prevent tank overpressurization
Beacons fitted at front and rear
Compressor fueled from sub-tank inside main diesel tank
DG3 Hi-Vis tape
Emergency stops (1 inside, 1 outside of cab)
First aid and eyewash kits in truck cabin
Graco hose reels
LED whip aerial
Single-action ball valve isolators on all tank compartment outlets
Reversing camera
Safety triangles
Six roof-mounted LED service lights (rear, front, and cabinet) for enhanced operator vision and safety
Two 9kg DCP fire extinguishers accessible from ground level
UHF radio
Wheel nut indicators and wheel chocks
¾" hose reels for oil delivery and waste suction
½" hose reels for coolant, air, and water
AES 11,000 Standard Tank Specifications:
Tank 1 – Water: 650 litres
Tank 2 – Coolant: 550 litres
Tank 3 – Spare: 560 litres
Tank 4 – Waste Oil (Evac Tank): 680 litres
Tank 5 – Hydraulic Oil: 1430 litres
Tank 6 – Engine Oil: 1100 litres
Tank 7 – Gear Oil: 540 litres
Tank 8 – Diesel Fuel: 11,000 litres
Externally Fitted Grease Pod: 300 kilos
