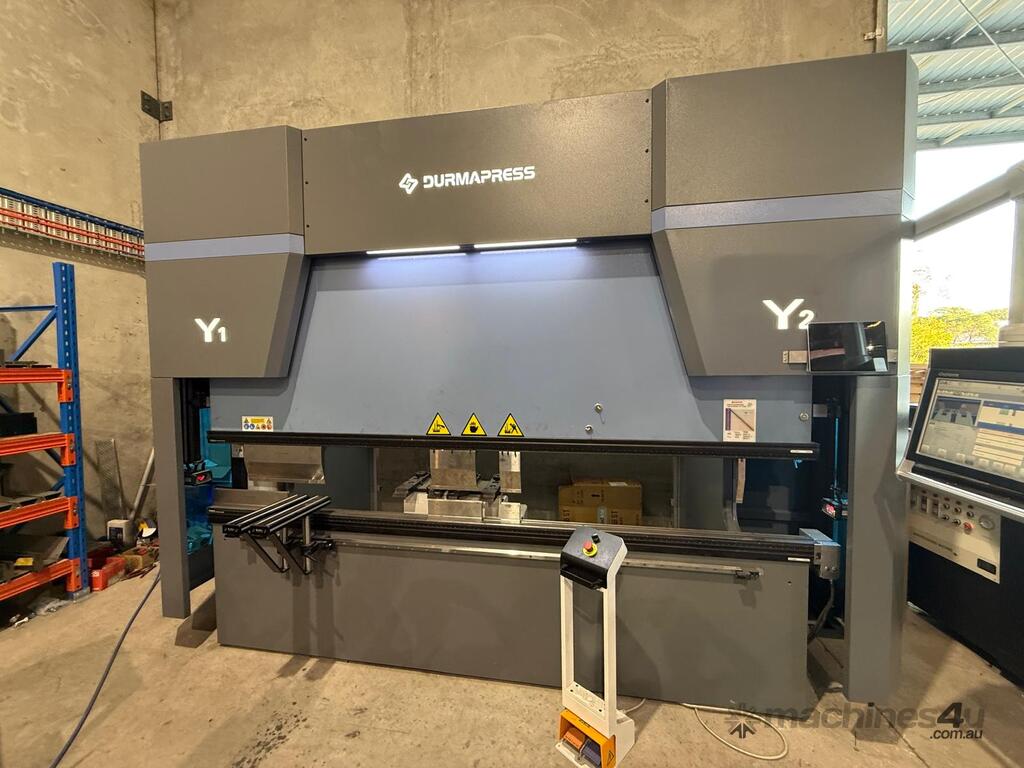

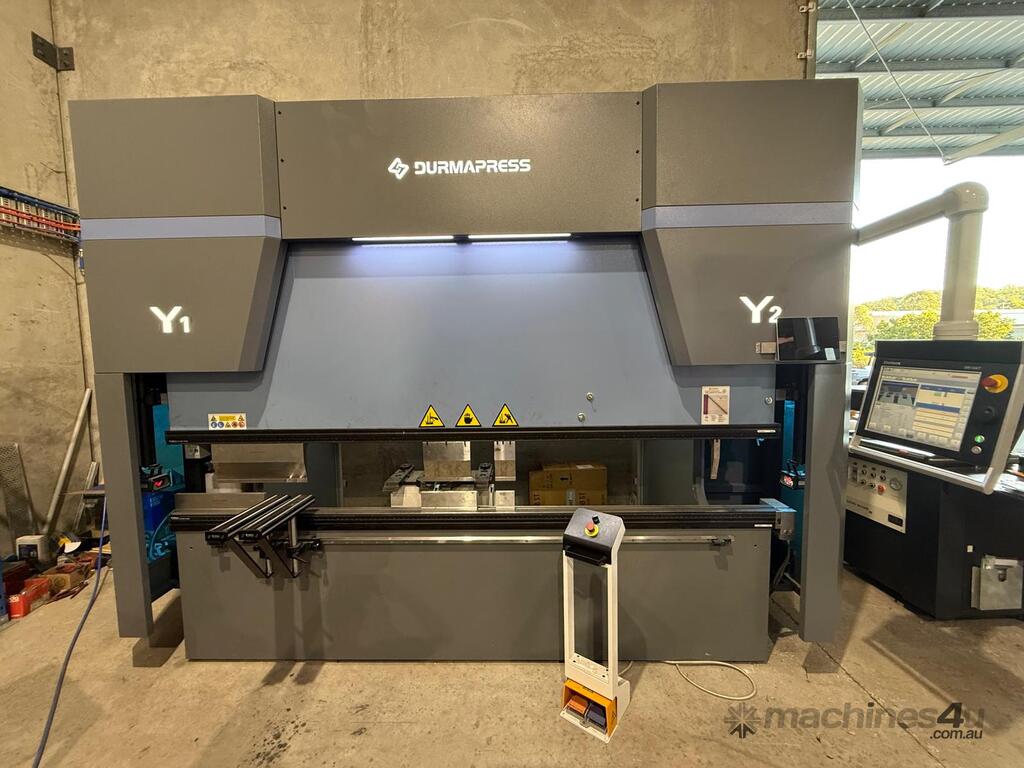

2025 6 Axis 135T 3.2M Pressbrake fully optioned

135 tonne / 3200mm 6-Axis CNC press brake, fully loaded with genuine WILA hydraulic clamping top and bottom, complete laser safety system, and a comprehensive tooling package at 3200mm, Still under Warranty.
Machine specs:

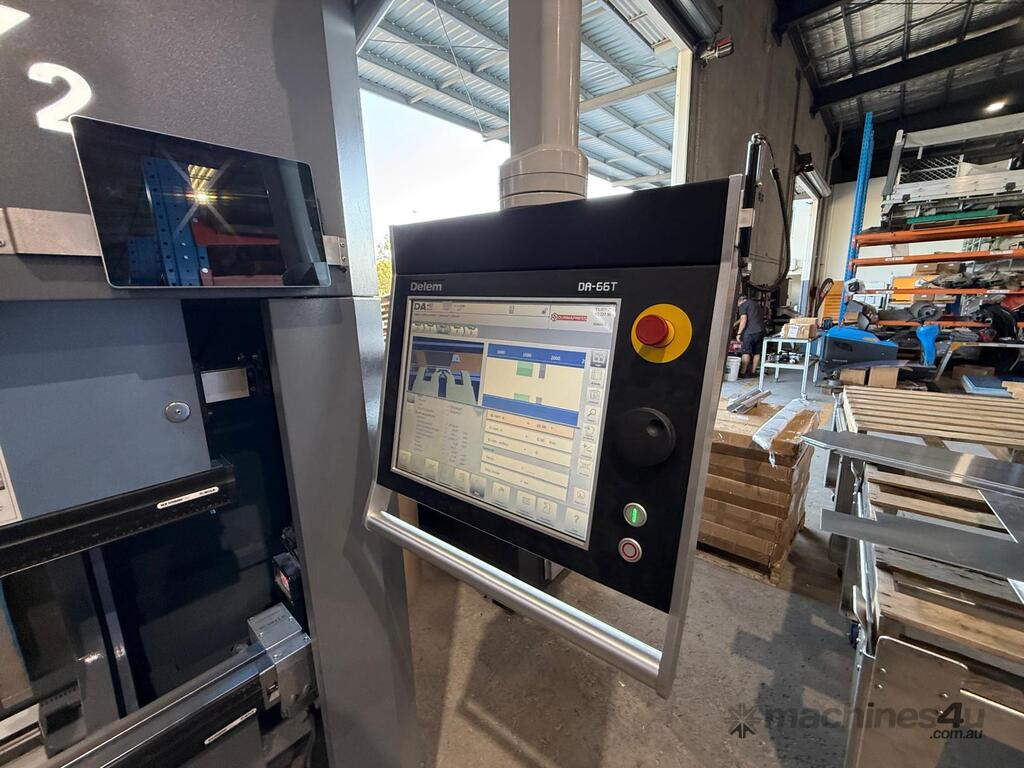

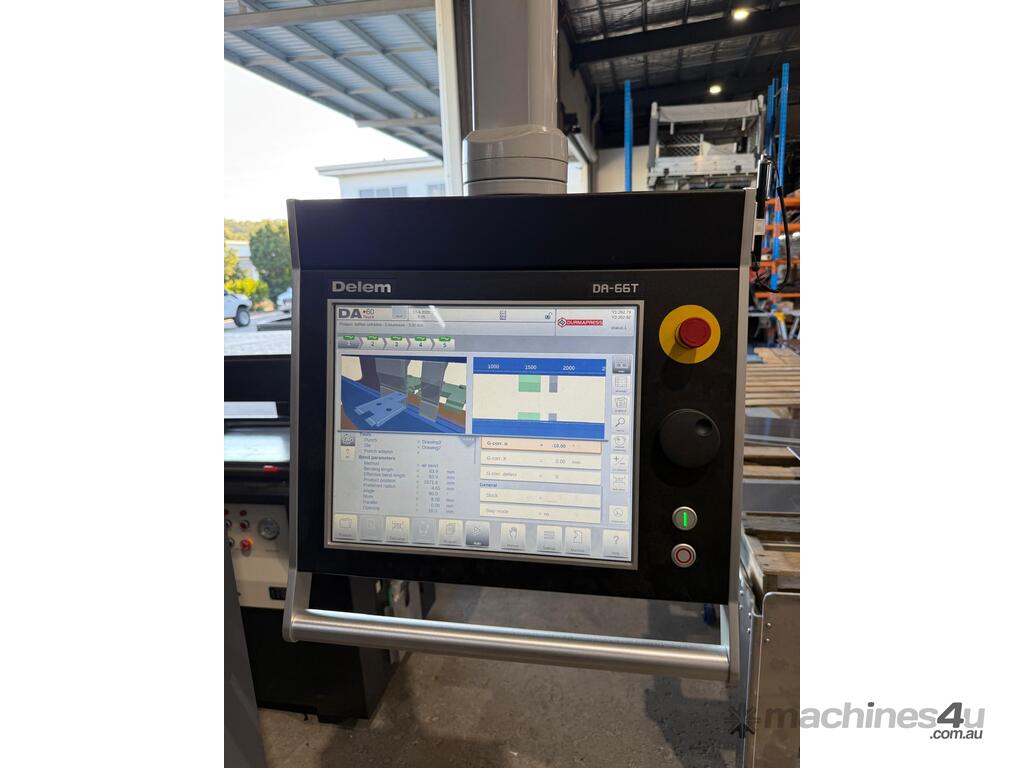

DELEM DA66T CNC controller with 2D and 3D colour graphics
DELEM Profile T dongle included for offline programming

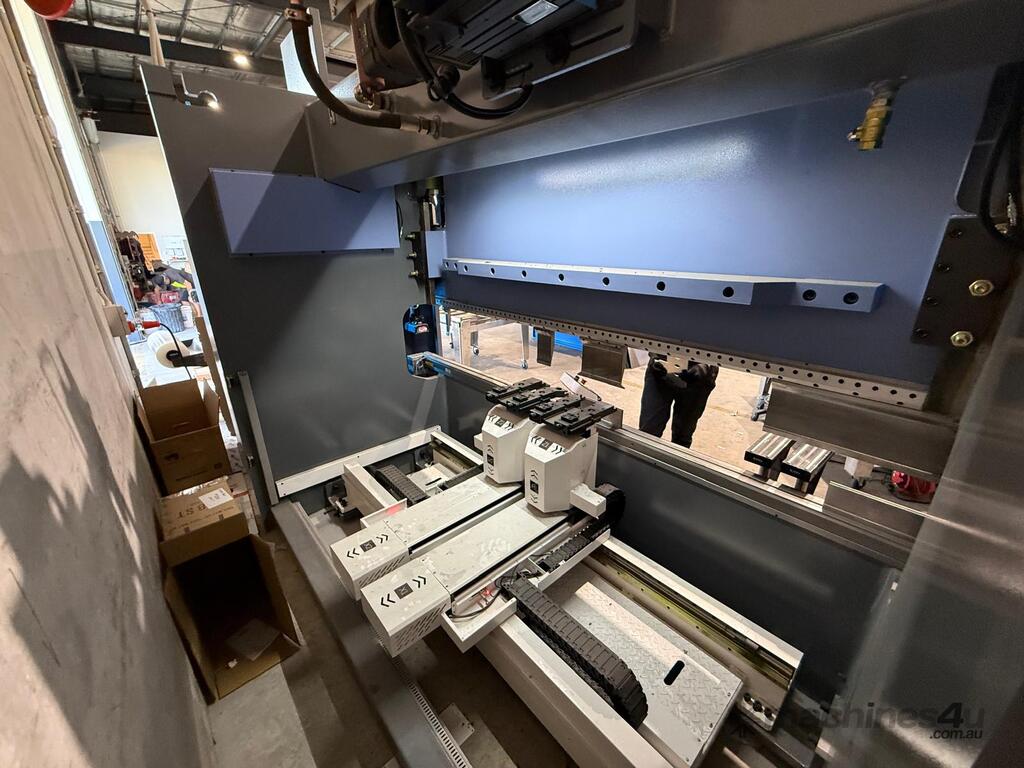

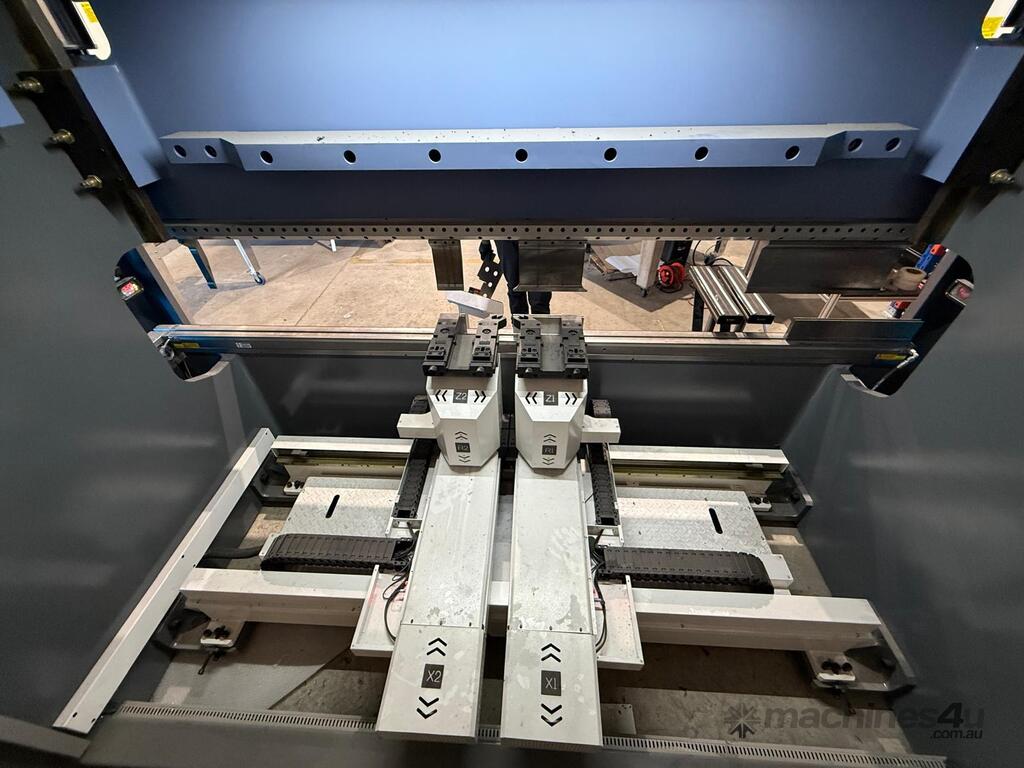

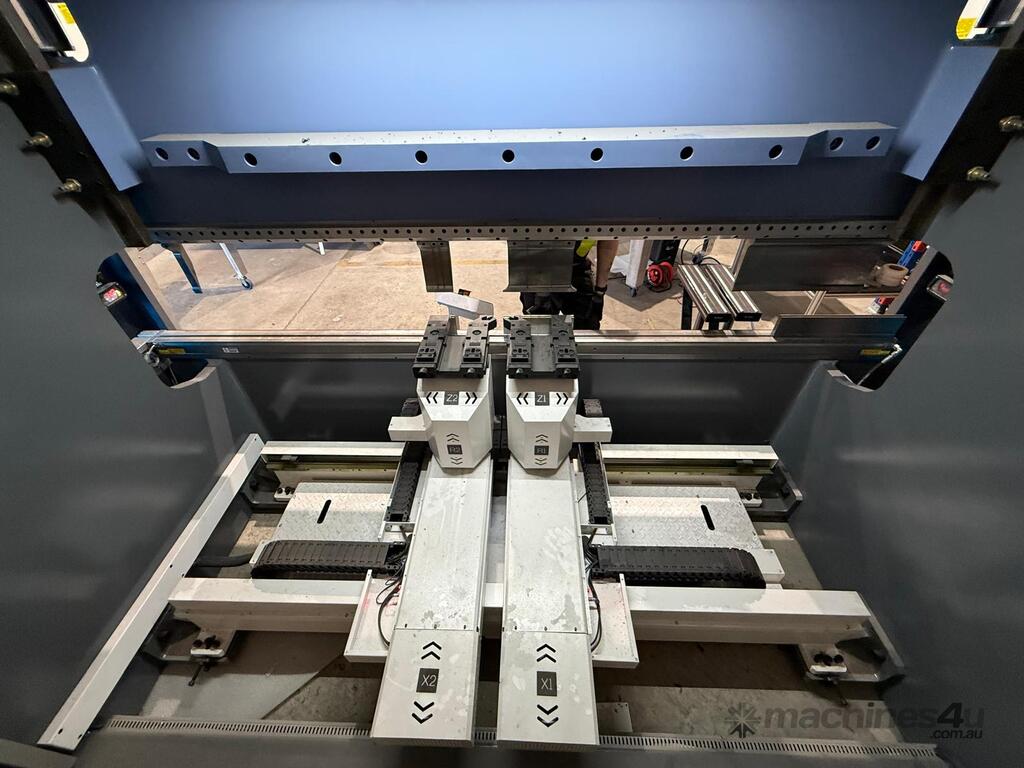

6-axis back gauge — X1, X2, R1, R2, Z1, Z2
Opening height 680mm (custom)
Oil cylinder stroke 350mm (upgraded)
Tooling height 256mm (custom)
Mechanical auto crowning system
Bosch Rexroth hydraulic system
FAGOR optical linear scales
Schneider & Siemens electrical components

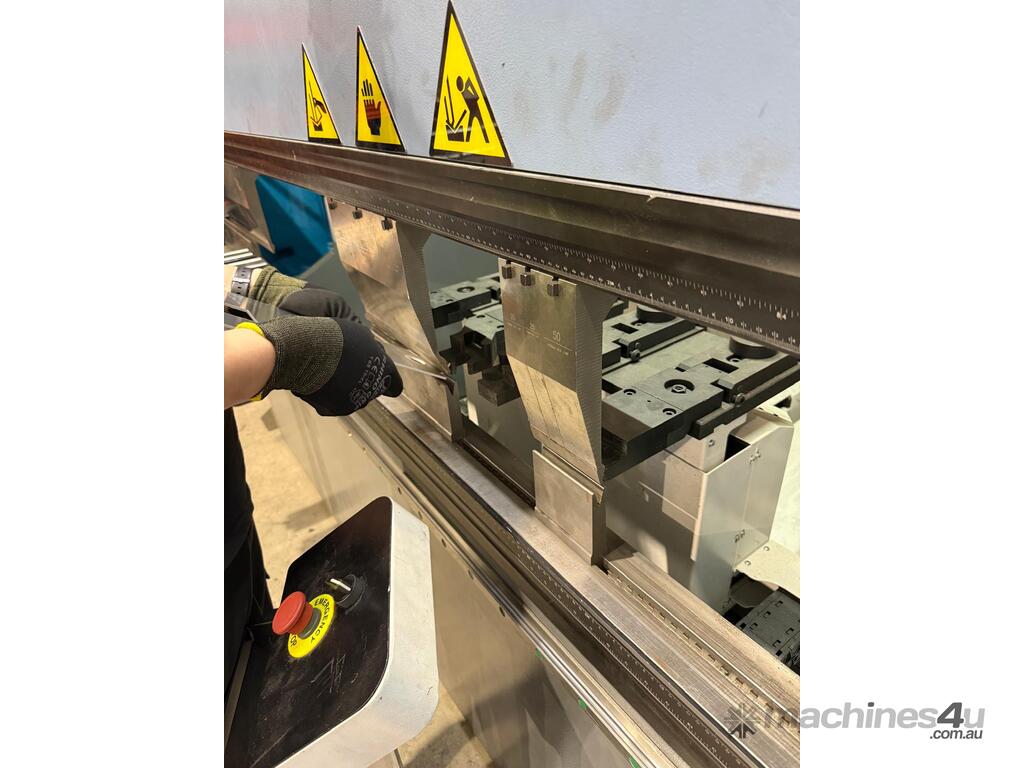

Genuine WILA Hydraulic Clamping — Top & Bottom:

NSCL-I-HC New Standard Pro upper tool holder
OB-I-HC New Standard Pro bottom tool holder
Individual segment clamping at 15mm increments
Working surface precision ±0.01mm
High quality tool steel 600–720 MPa
Perfect automatic alignment

DSP Laser NR12 Safety System:

CLASS 1M block laser, CAT.4 / SIL3 rated
European CE certified, IP65 protection
5ms response time, protection distance up to 15m

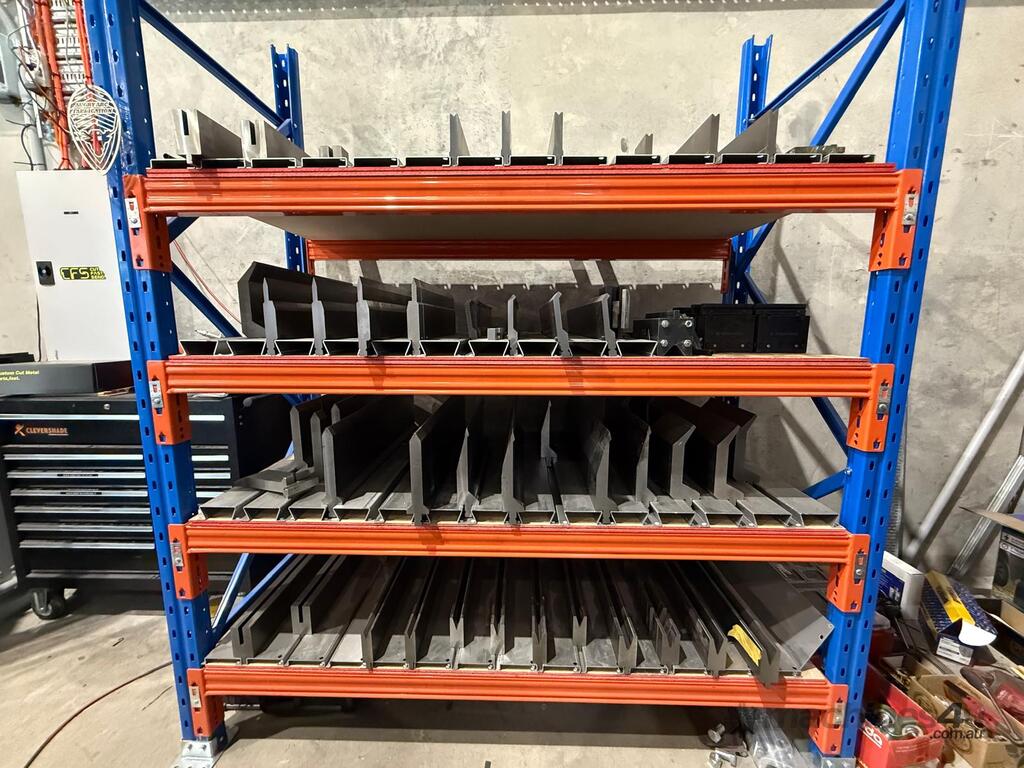

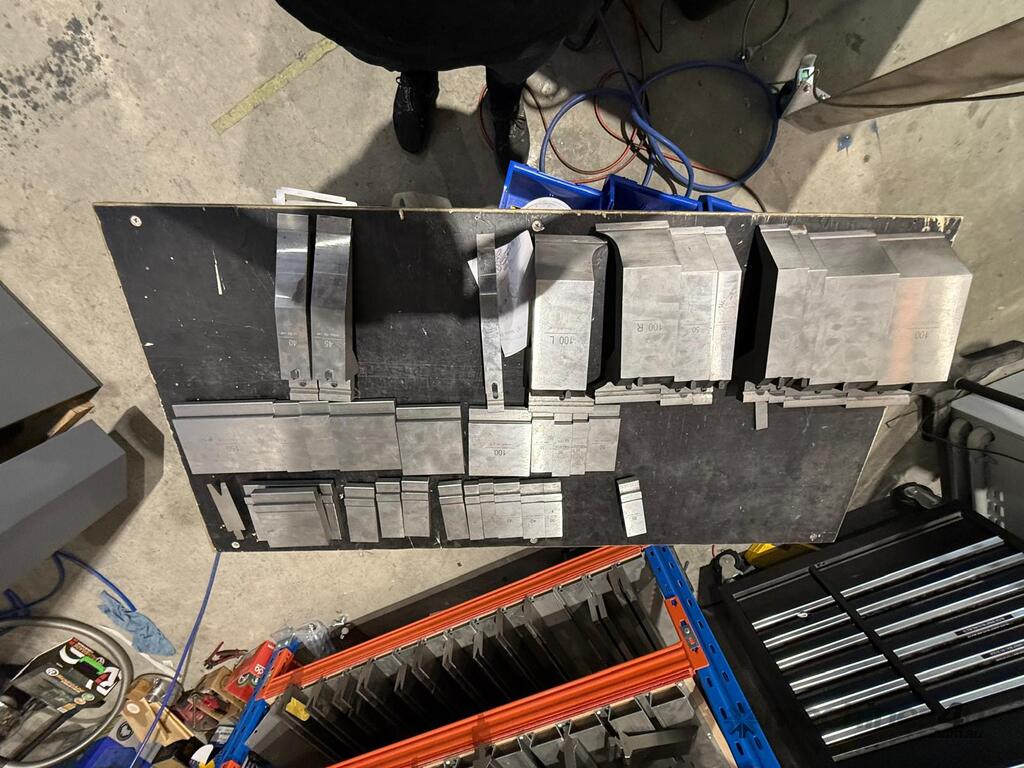

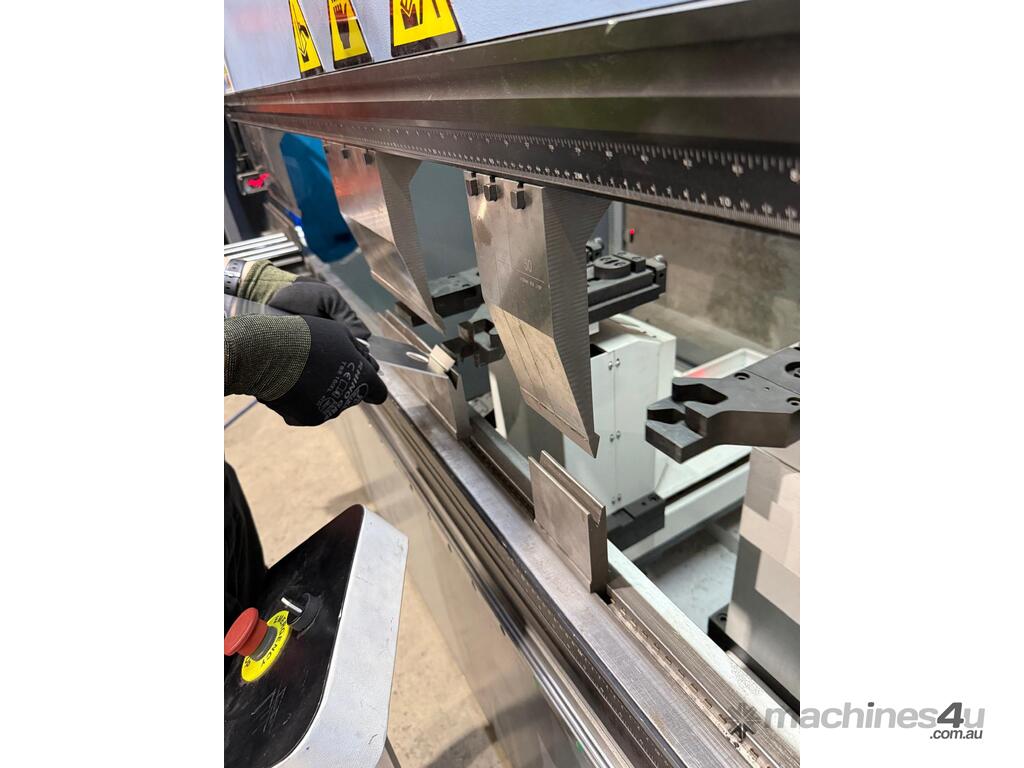

Tooling — Punches:

R1.6 Knife blade punch
R4.0 Standard punch
Gooseneck R1.0 punch
Small gooseneck punch
Hemming tool punch

Tooling — Dies:

12mm die
12mm die 86°
16mm die
24mm die
30mm die
Hemming die

Why are we selling?
We purchased this machine in late 2025 for a new business venture and are now upgrading to an automated system. The machine is in near new condition and has seen very light use. This is a genuine sale and a great opportunity to pick up a high-spec machine with a full tooling package at well below new price.
