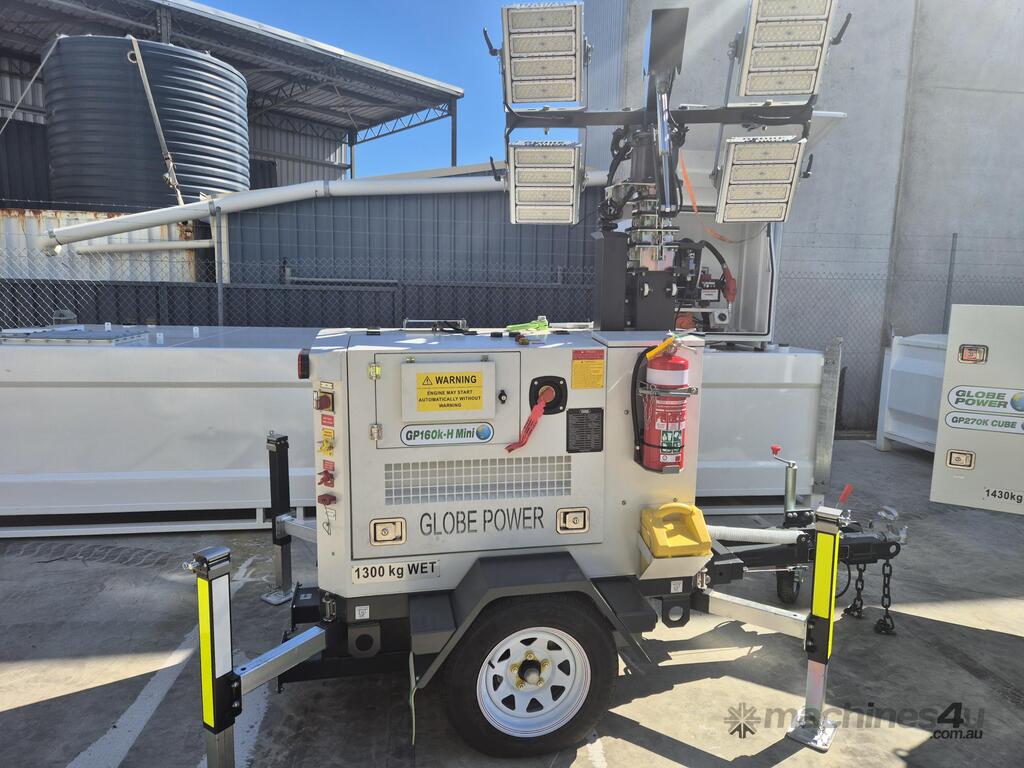

2025 Globe Power GP160K-H Mini Hybrid Lighting Tower | 160,000 Lumens | 5kWh Battery

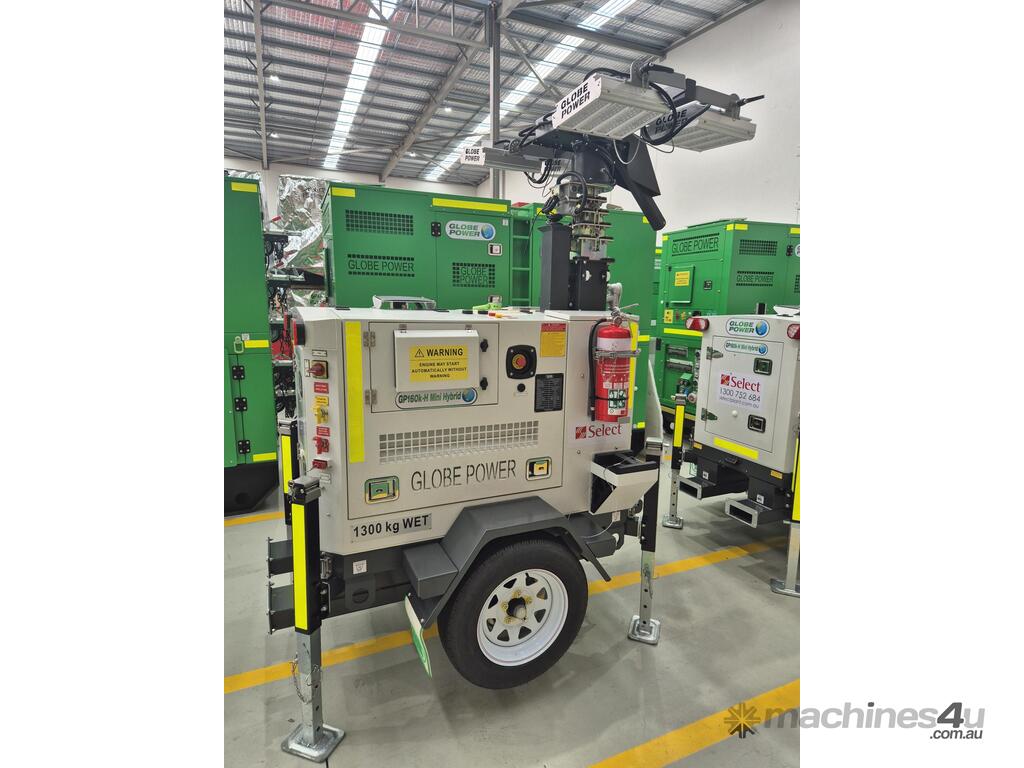

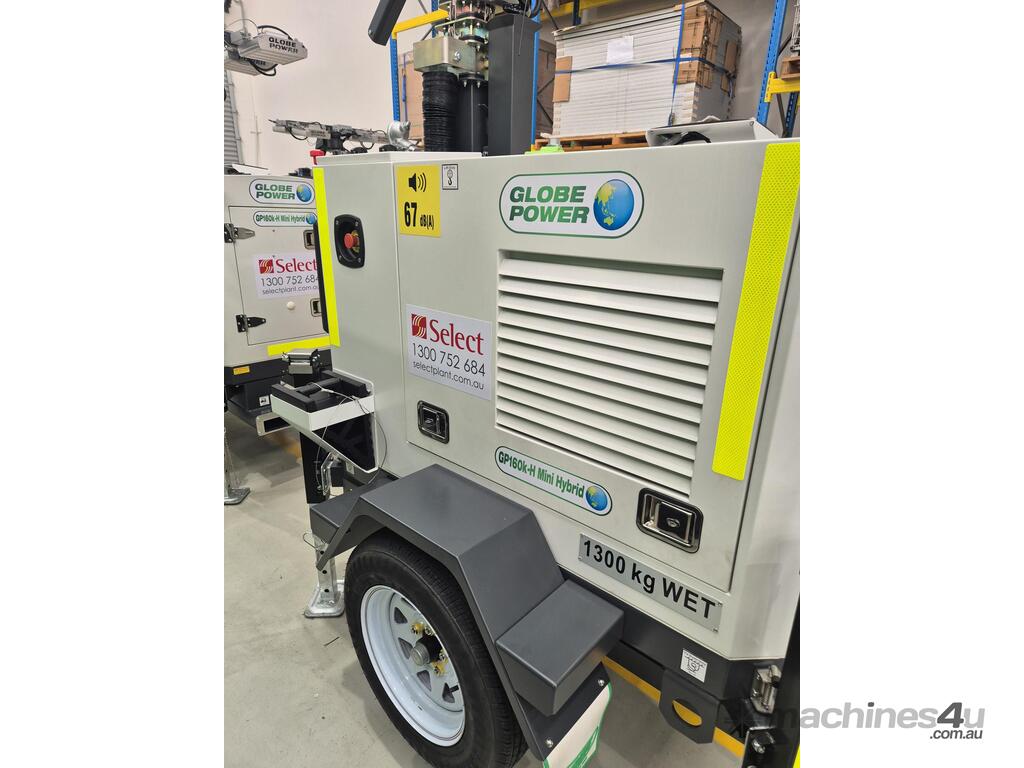

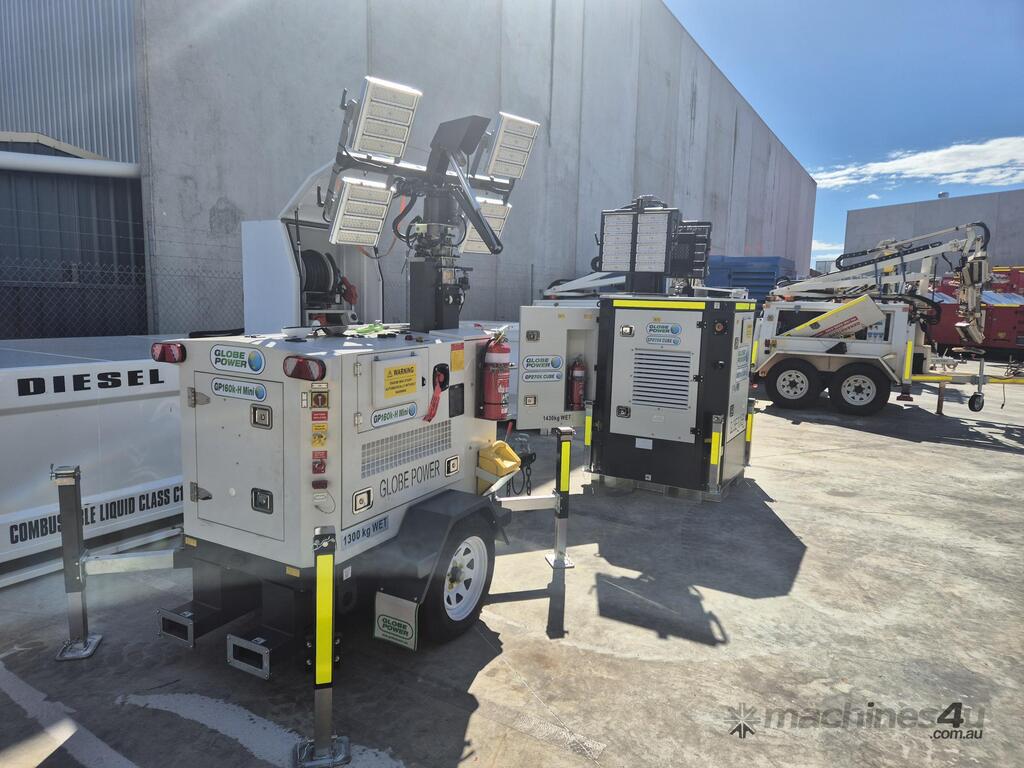

The Globe Power GP160K-H Mini Hybrid Lighting Tower combines cutting-edge hybrid technology with compact, rugged design perfect for construction, mining, civil, and event lighting applications. Designed and manufactured in Australia, this model delivers 160,000 lumens of high-efficiency LED lighting while reducing engine use by 65%, tripling service intervals and engine life.

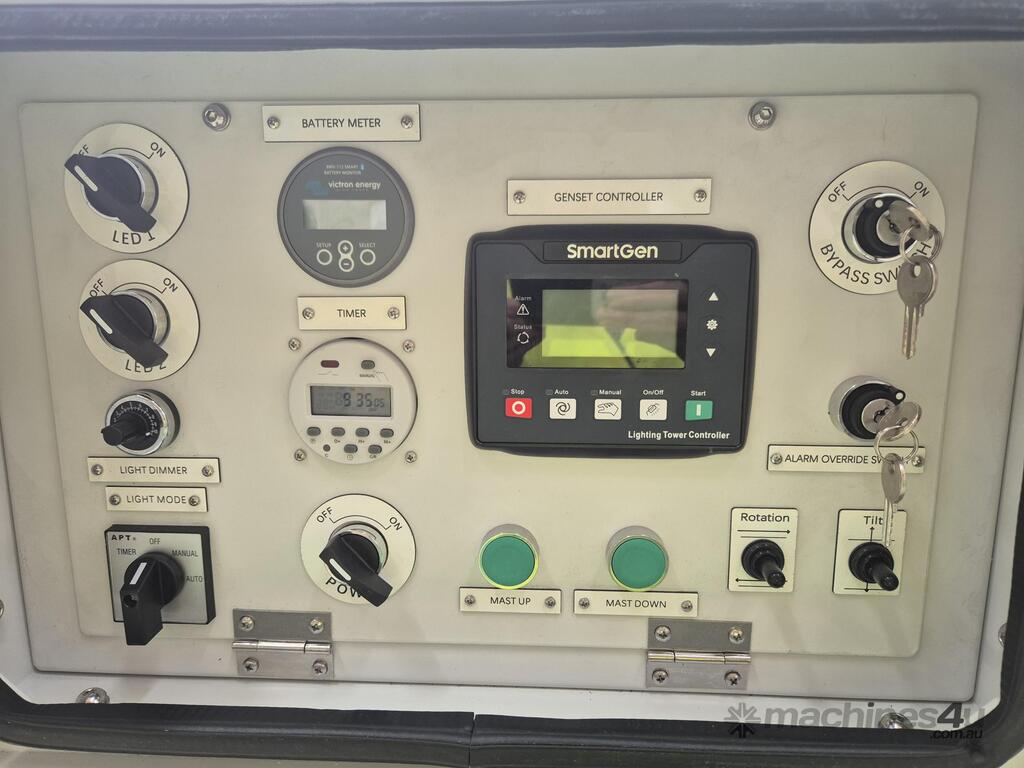

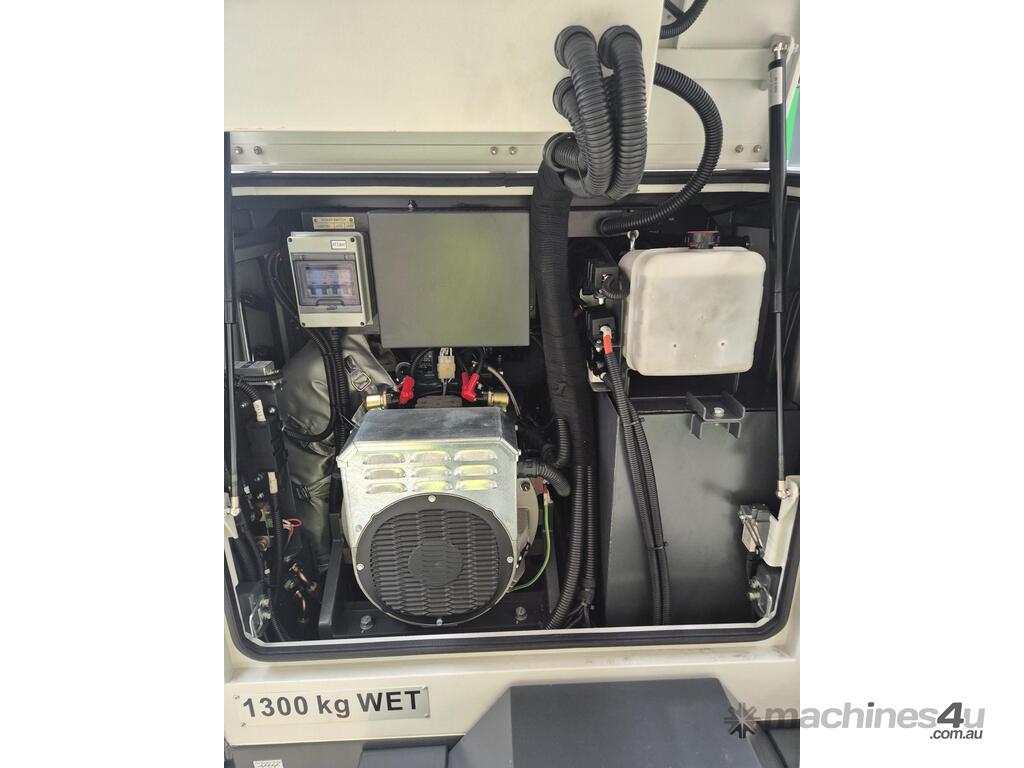

Powered by a Kubota Z482 Stage 4 diesel engine and 5kWh 48V LFP battery, the unit operates efficiently with just 0.38L/hr fuel consumption and up to 250 hours runtime. The Mecc Alte PMG 3kW alternator ensures reliable hybrid charging, while a Smartgen lighting tower controller offers automatic light and mast control for seamless operation.

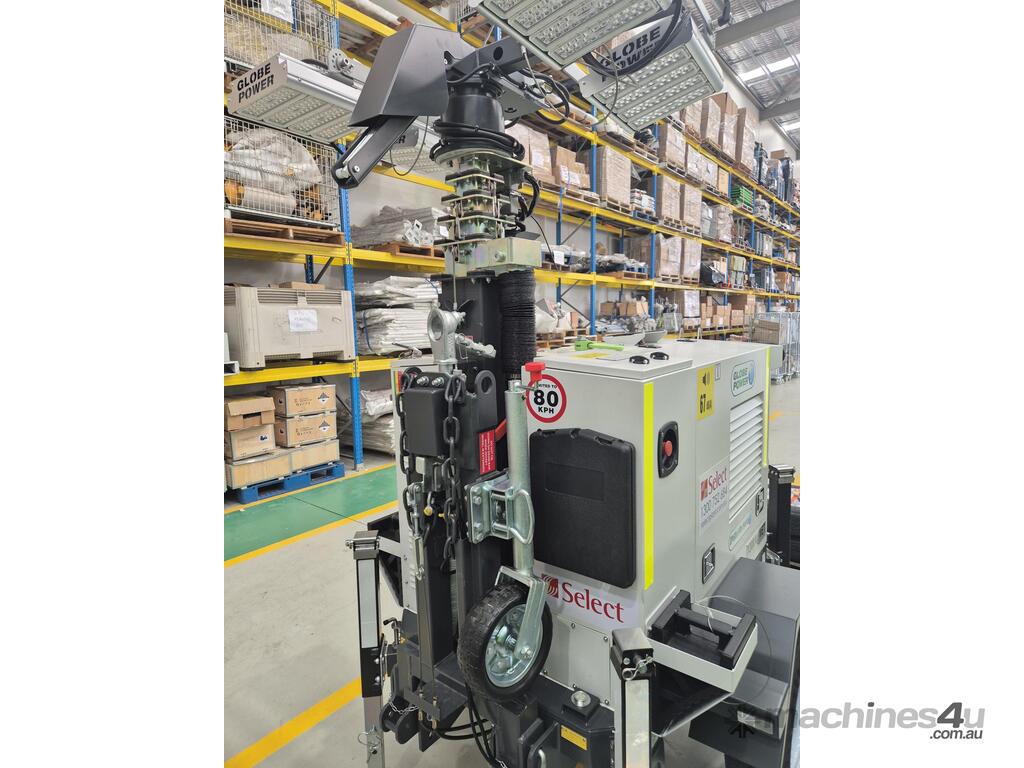

The hydraulic 7.1m mast provides 355° electric rotation and 0°–90° electric tilt, allowing precise lighting direction. Safety and reliability are ensured with dusk and level sensors, door safety switches, fire extinguisher, wheel chocks, fork pockets, jump-start receptacle, and an auto-lower mast system.

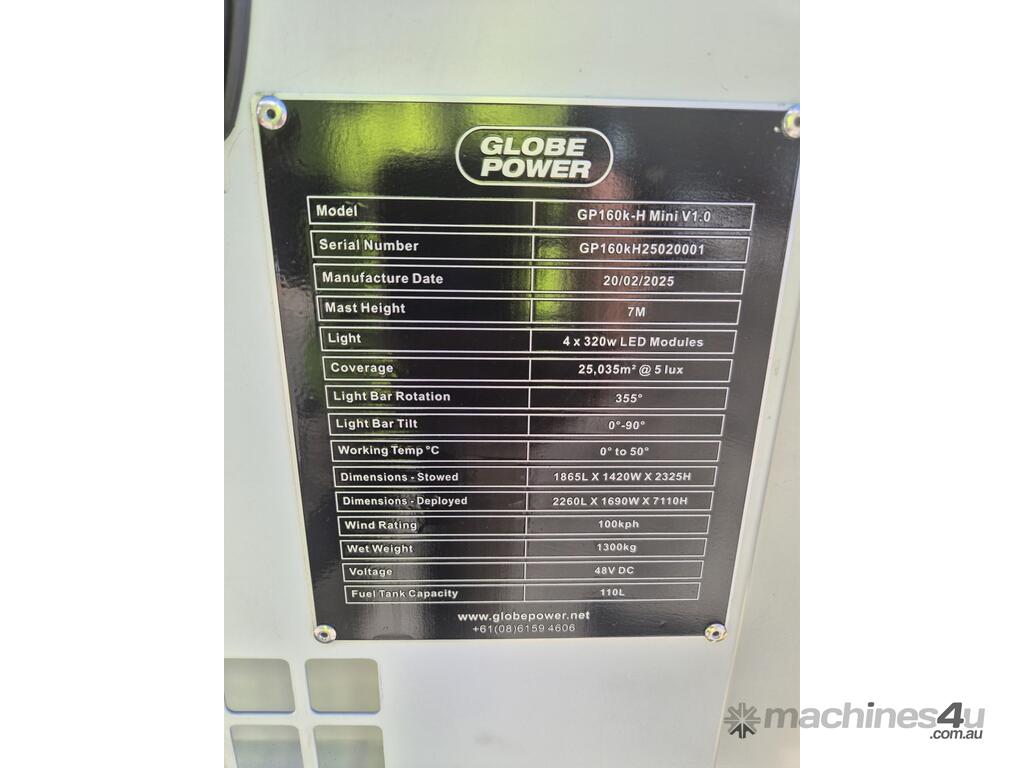

Built for durability, the tower features a single-axle trailer with mechanical brakes, a fully bunded 110L fuel tank, and a wind rating of 100km/h. Compact dimensions—1865×1420×2325mm stowed and 2260×1690×7110mm deployed—make it easy to transport and deploy on any site.

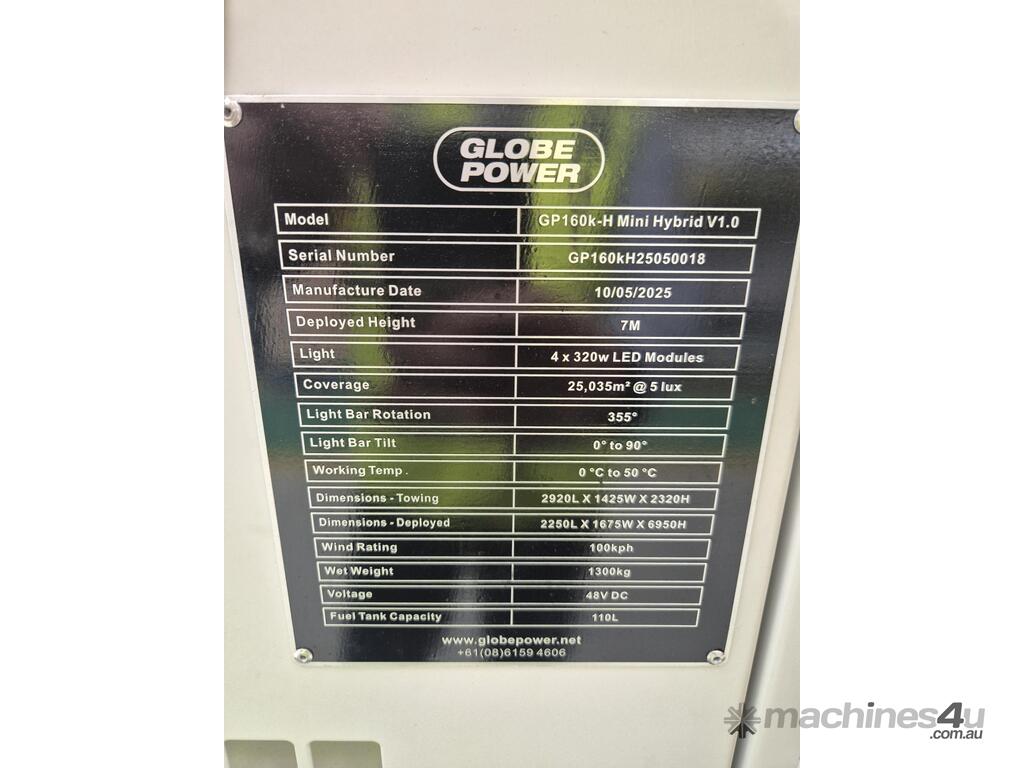

Key Features:

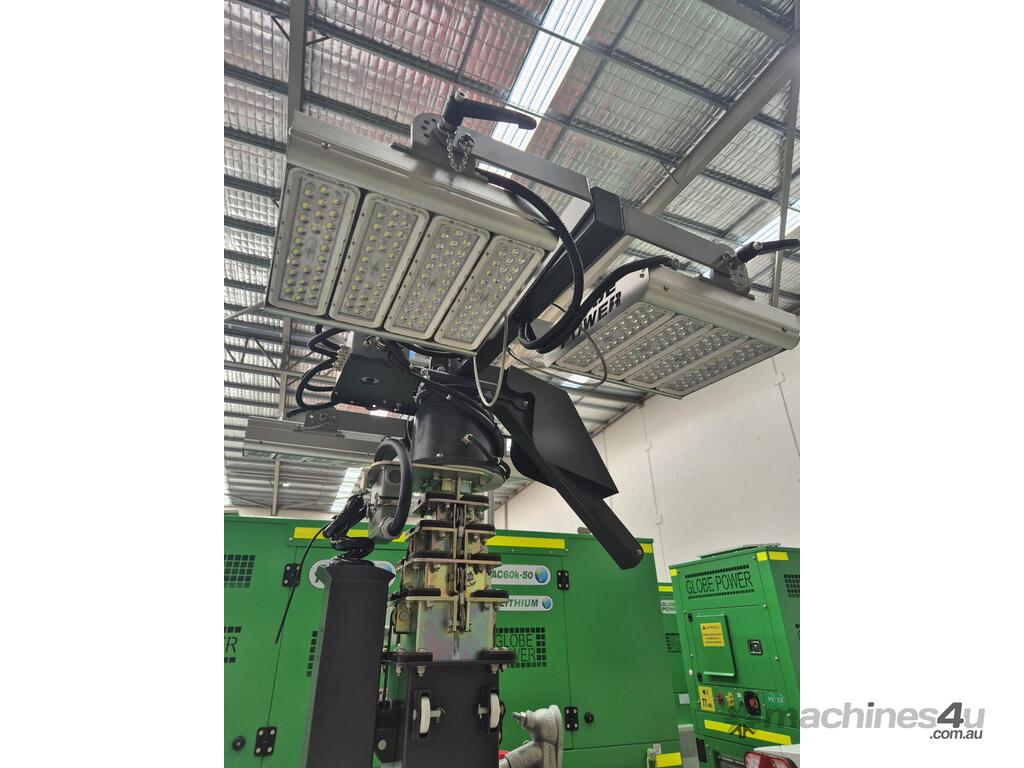

- Light Power: 4 × 300W dimmable LED
- Light Output: 160,000 lumens
- Mast Height: 7.1m, hydraulic lift
- Mast Rotation: 355° electric rotation
- Light Bar Tilt: 0°–90° electric tilt

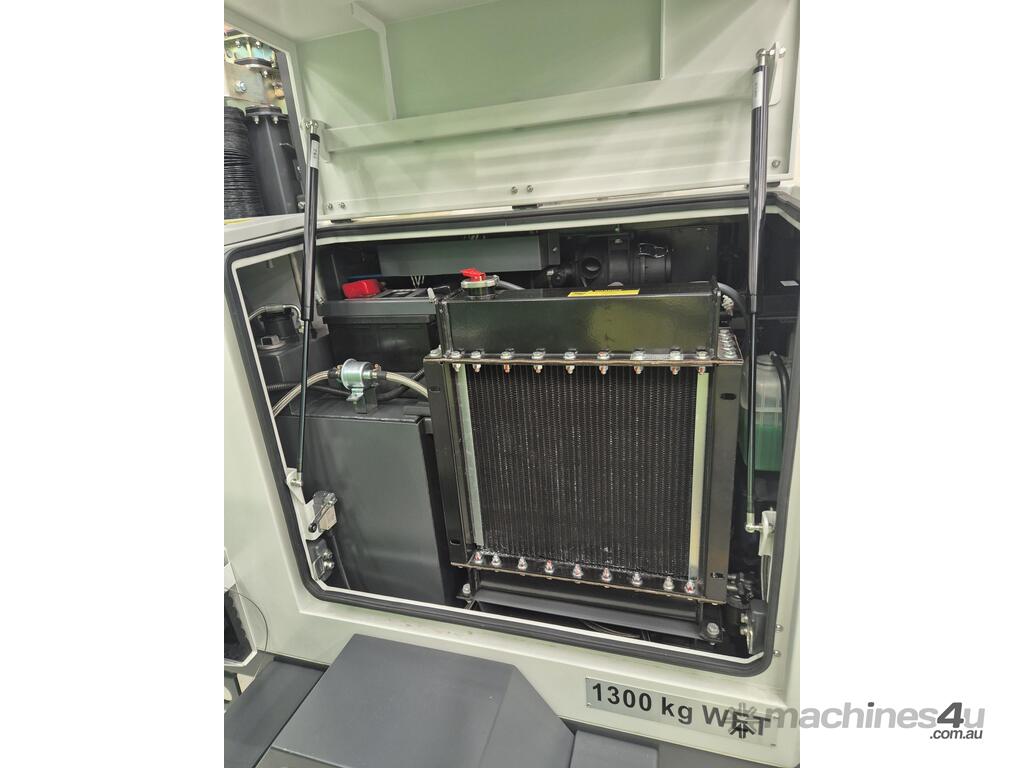

- Engine: Kubota Z482 – T4 diesel
- Battery: 5kWh (48V LFP)
- Alternator: Mecc Alte PMG – 3kW
- Fuel Tank: 110L fully bunded
- Fuel Consumption: 0.38L/hr*
- Runtime: 250 hours*
- Noise Level: 68 dB(A) 7m
- Wind Rating: 100km/h
- Control System: Smartgen lighting tower controller

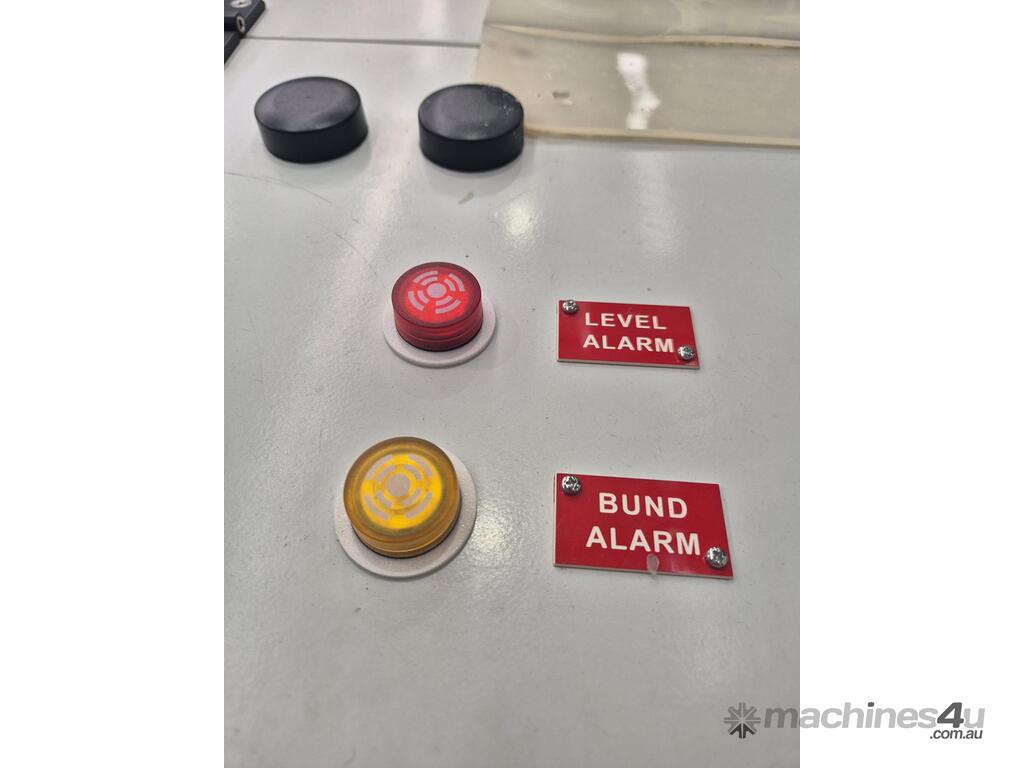

- Safety Features: Dusk sensor, level sensor, door switches, fire extinguisher, isolators, jump-start receptacle, wheel chocks, fork pockets, auto-lower mast

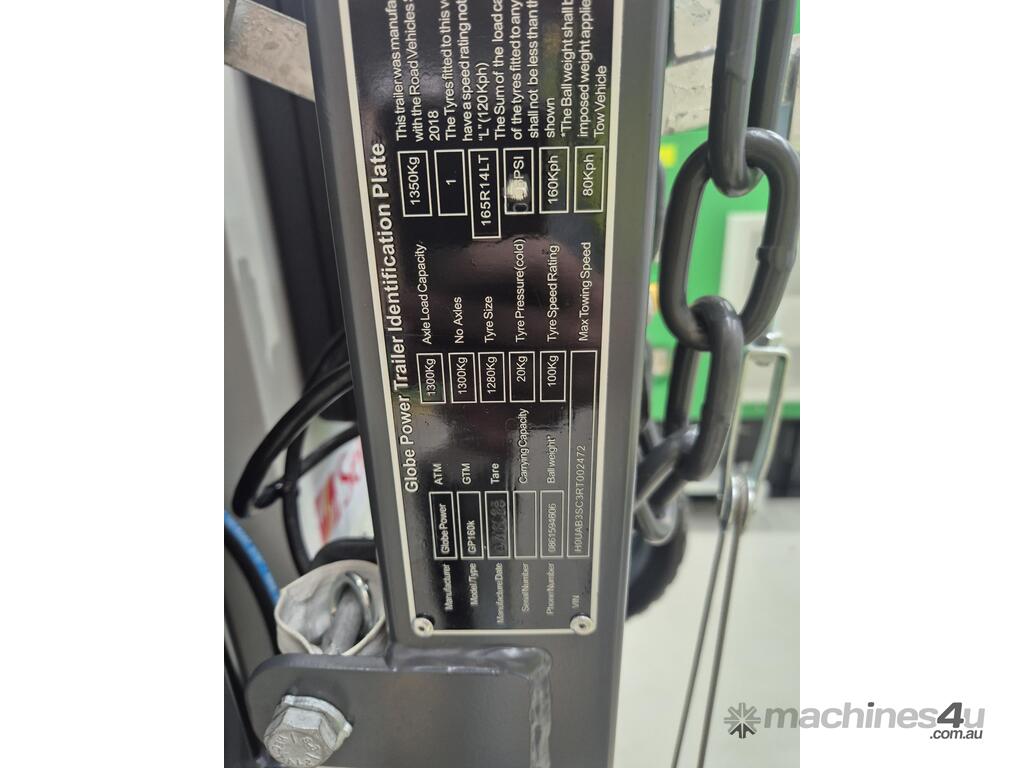

- Trailer Type: Single axle, mechanical brake
- Weight: 1275kg

Call Mark for more info.
