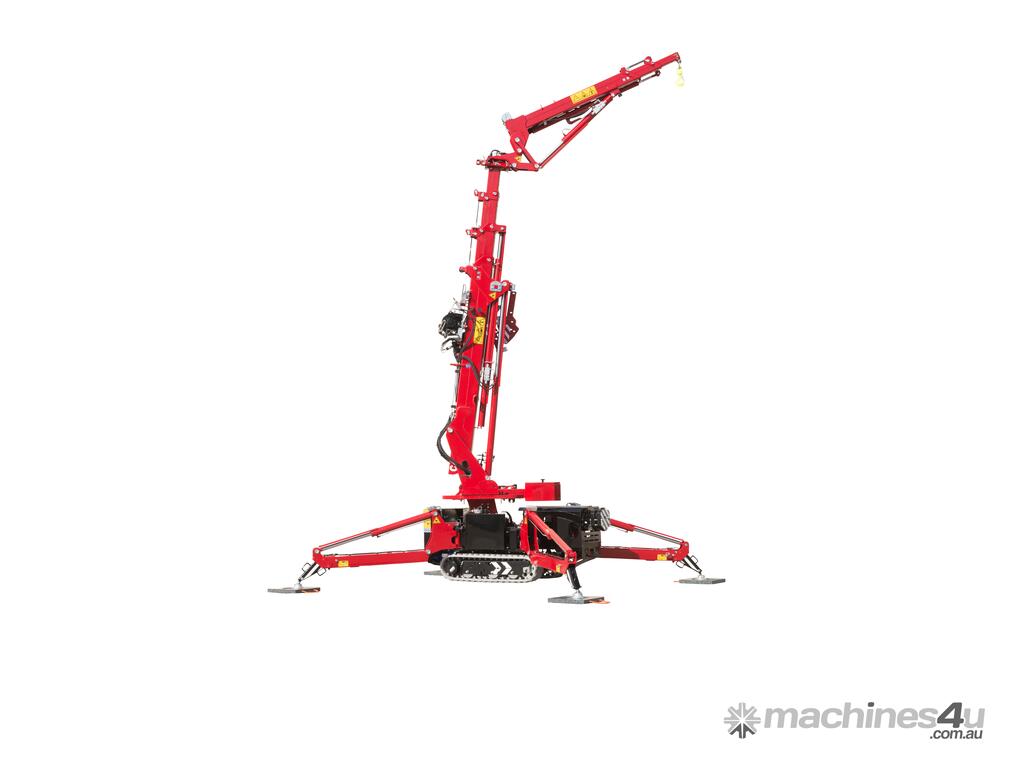

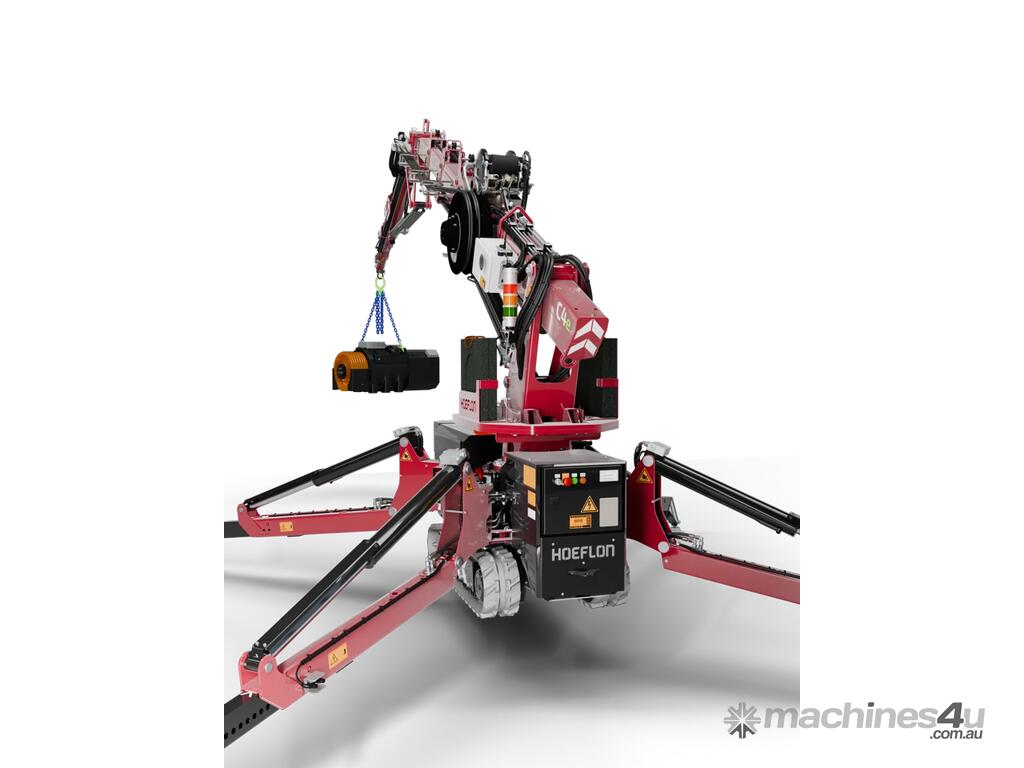

The Hoeflon C4e is a true all-rounder in the world of compact cranes. Combining strength, reach, and manoeuvrability, it’s designed to handle tough lifting challenges in the tightest of spaces. With a maximum lifting capacity of 2,350 kg, this mini crane delivers exceptional performance across construction, industrial, and maintenance applications.
SPECIFICATIONS:
o Capacity: 2,350 kg
o Capacity at max. outreach: 144 kg
o Winch capacity: 3000 kg, 1000 kg

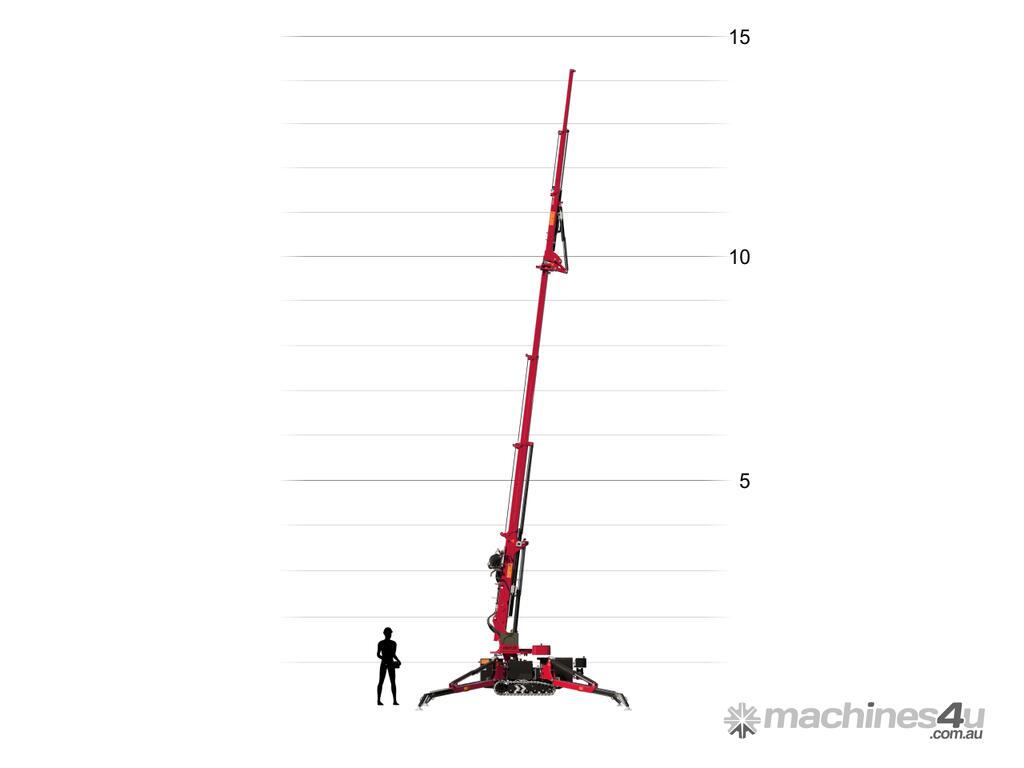

o Lifting height incl. jib: 15.1 metres
o Max. outreach incl. jib: 11.7 metres
o Jib length 4.3 metres
o Boom outreach: 11.7 m and without options 7.3 m
o Boom angle: -5 to 83 degrees
o Incline angle: 20 degrees
o Slewing range: Endless
o Dimensions L x W x H: 2.8m x 0.75m x 1.2m
o Dimensions incl. options: 3.04m x 0.75m x 1.95m, 3,04m x 0,75m x 1,95m
o Total weight incl. options: 2,150 kg
o Total weight excl. options: 1,900 kg
o Ground pressure: 0.59 kg/cm2
o Charging options: 230 V
