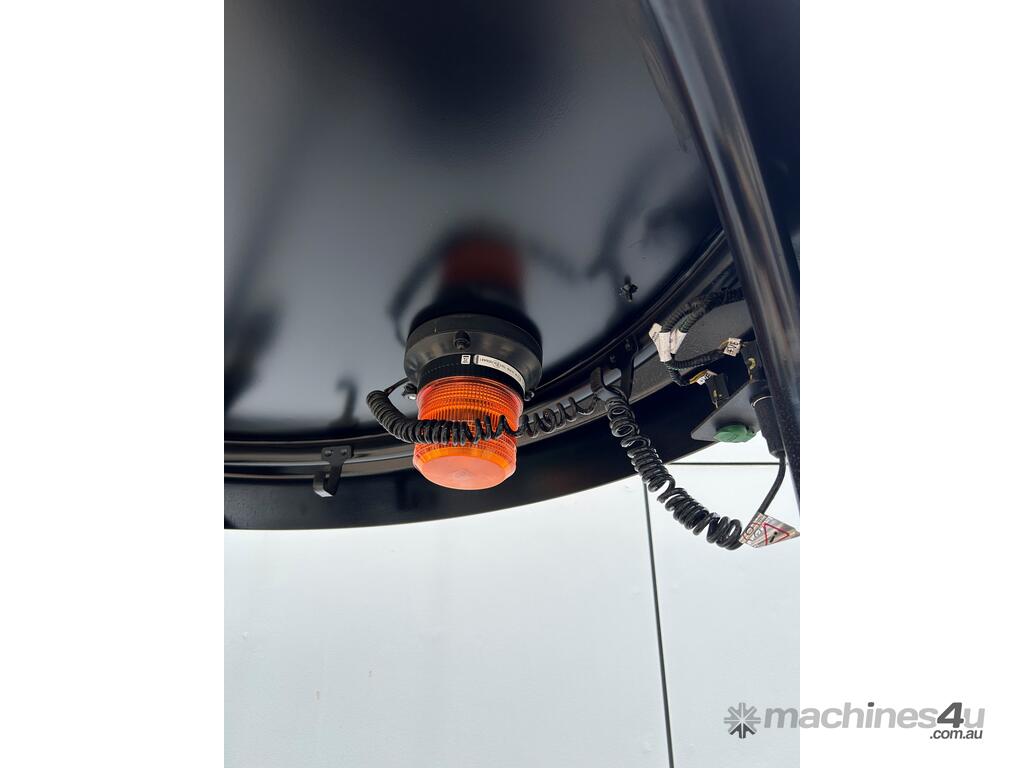

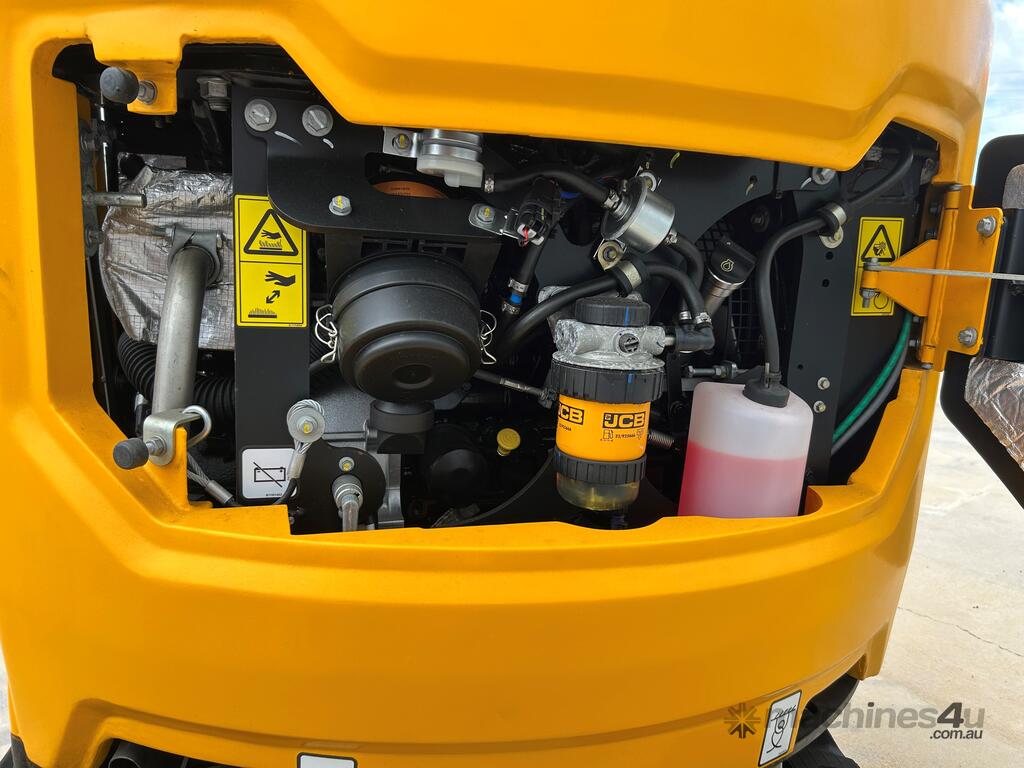

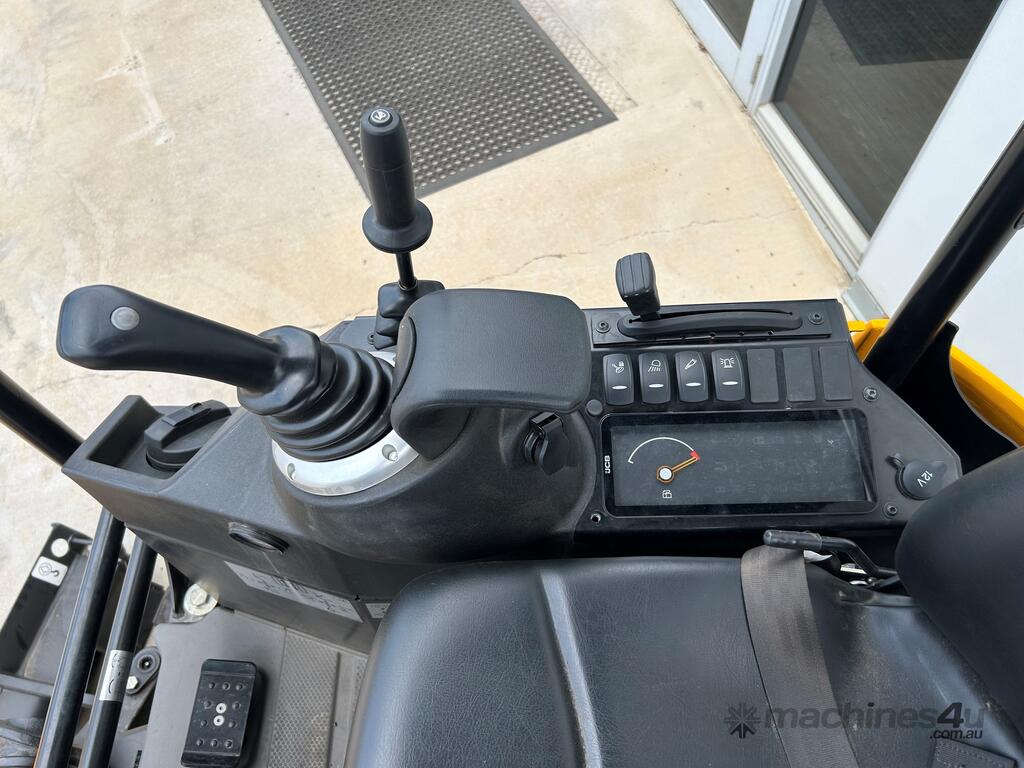

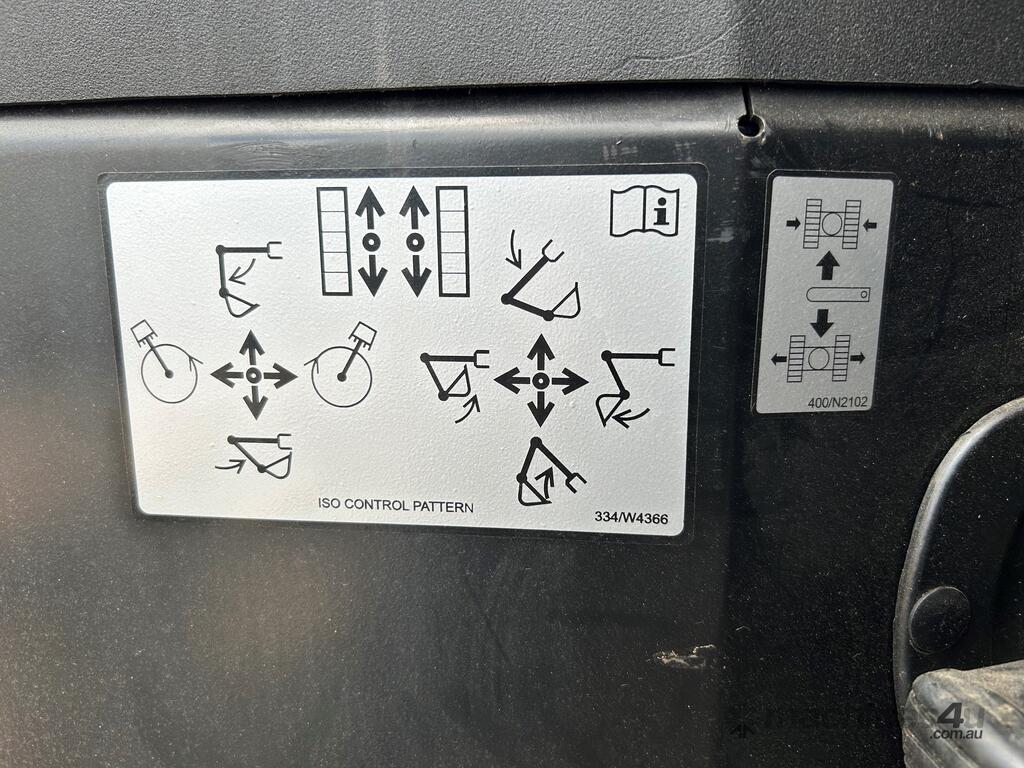

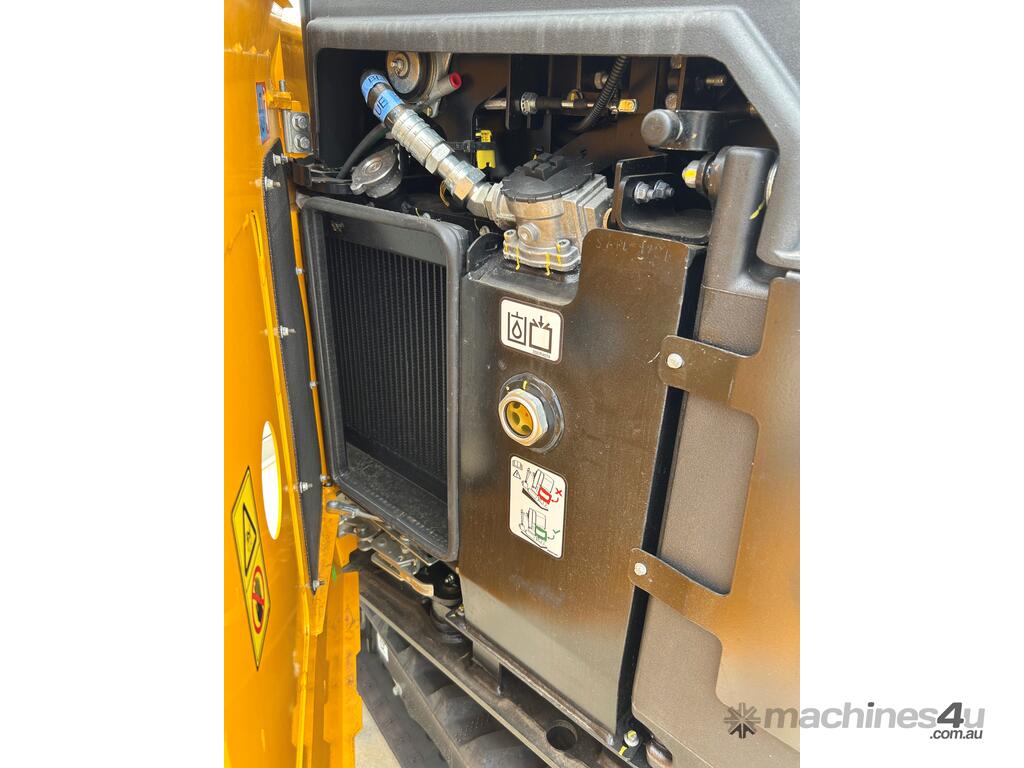

Engine Perkins 403D-07 Tier III Diesel, Water Cooled Engine, 762cc Displacement, 11.7kW, 5.6Nm2000rpm 3 Cylinder 35 Degrees Gradeability. Excavator Boom Length 1,800mm, Dipper Length 950mm, Bucket Tear-out 18kN, Dipper Tear-out 10.1kN, 500 Hour Dig End Greasing Intervals, Bushed Kingpost, JCB Mechanical Hitch (30mm Pins, 120mm Pin Centres, 96.5 BTE), ISO Pattern, Boom Work Light. Undercarriage Retractable Track Frames (980-1330mm width) with Two Speed Track Motors, 3 Bottom Rollers, Hydraulic Slew Braking with Disc Type Park Brake, 230mm Rubber Tracks. Curved Faced 2 Way Hydraulic Short Blade with Easy Pivot Extensions and 25.3 Degree Approach Angle. Hydraulics Bosch-Rexroth Hydraulic System with Variable Displacement 18cc Piston Pump, Nominal Output 36 l/min 2000rpm, 235Bar Main Relief Valve Pressure, Auxiliary Hydraulic Service with Switchable Hammer and Auger Modes, Male and Female Quick Coupler, ORFS Hydraulics, Colour Coded Hydraulic Hoses. Operator Station 4-Post Canopy with Certified ROPS & TOPS, JCB "2 GO" Risk Management Safety Isolation System with Neutral Start, 3 Points of Contact Access, Clearview Instrument Cluster, Magnetic Rotating Beacon, Adjustable Vinyl Seat with belt, Removable Floor Mat, 100% Steel Bodywork, 4 Integrated Chassis Tie Down Eyes, Operators Manual.
