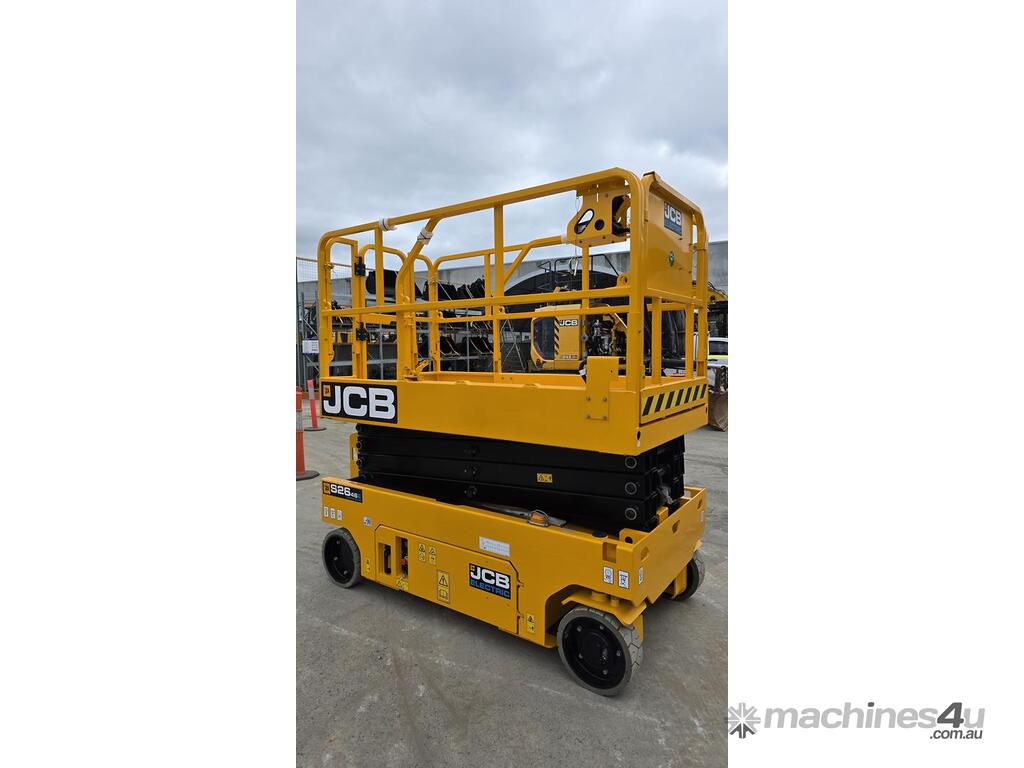

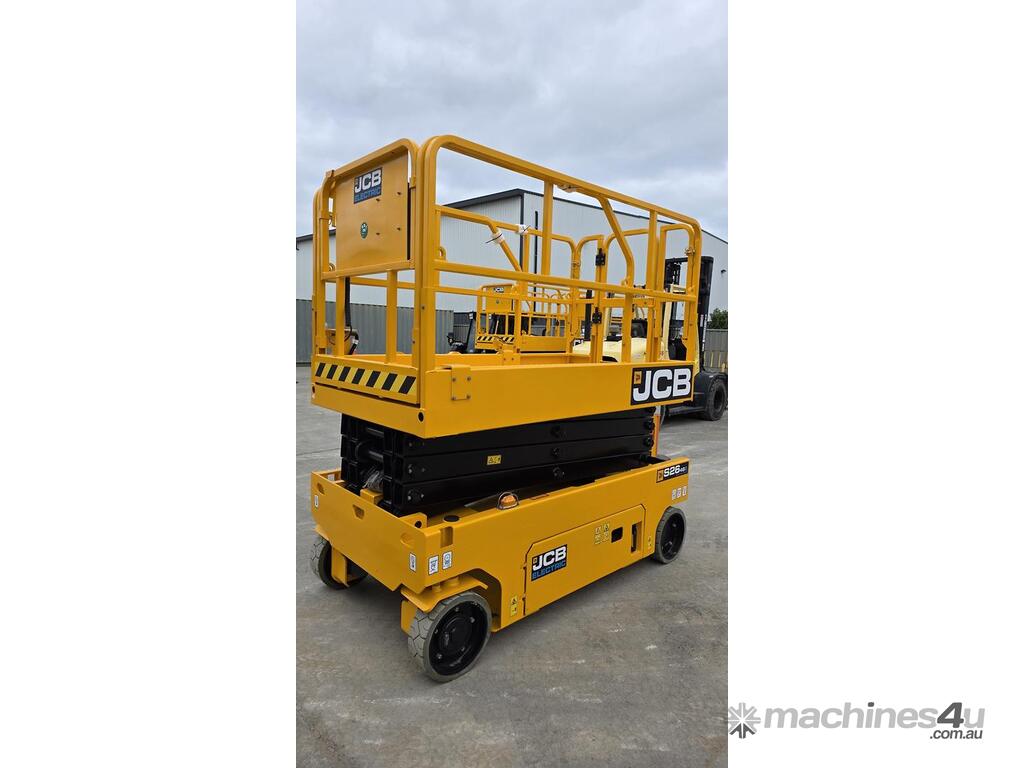

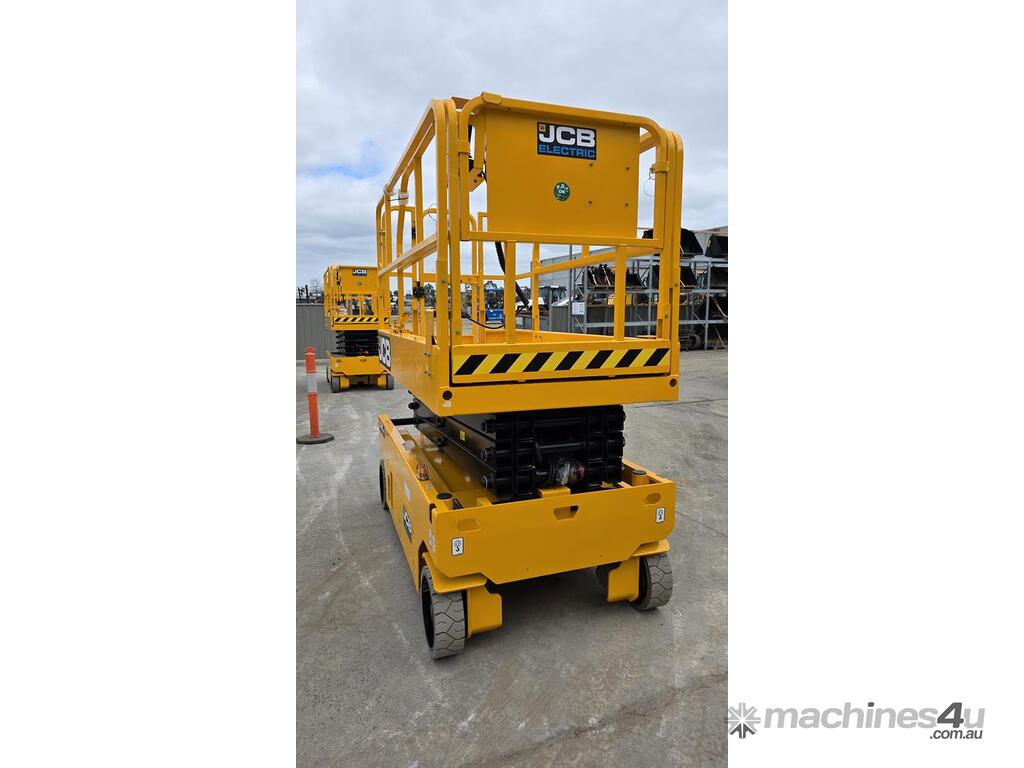

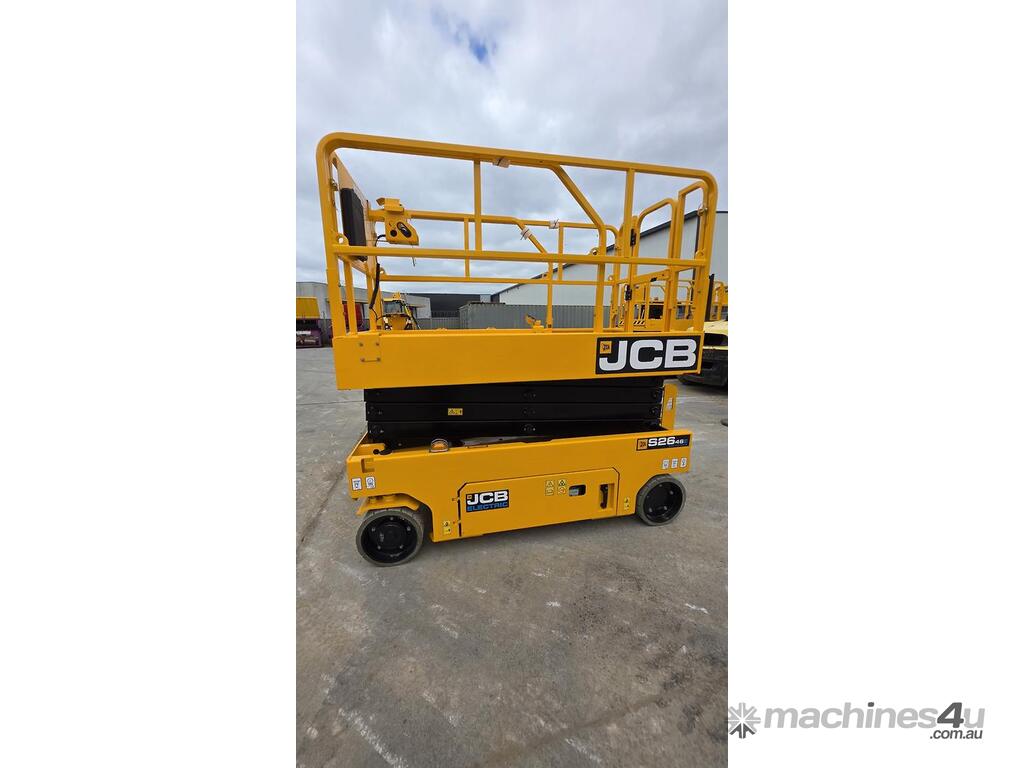

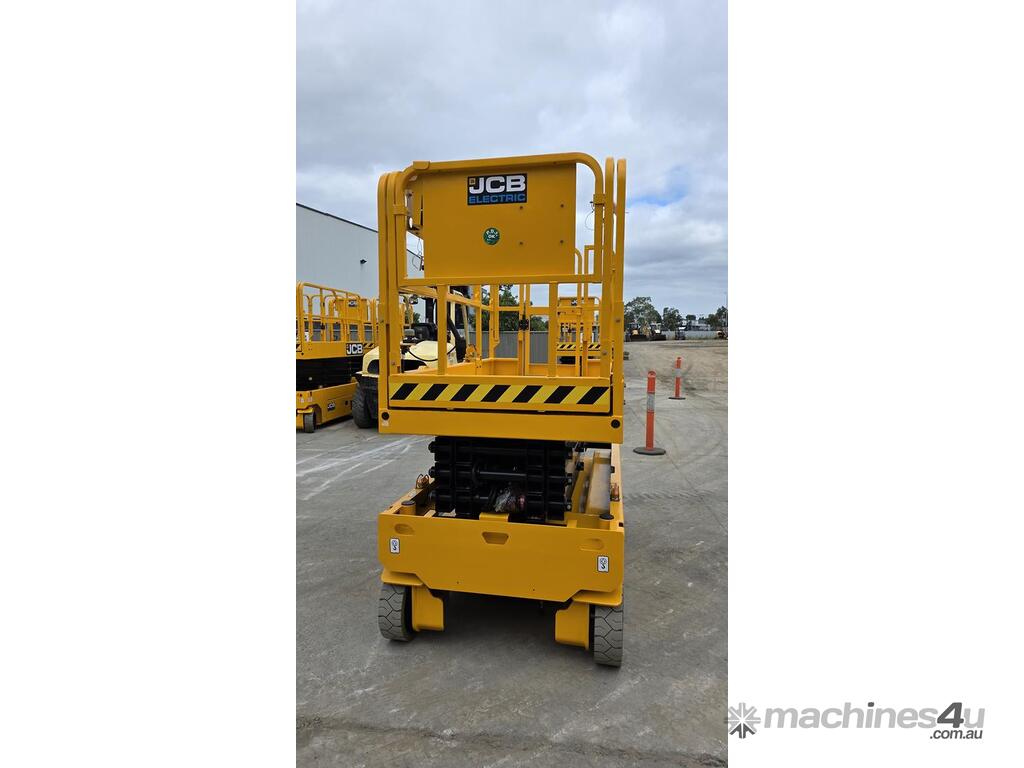

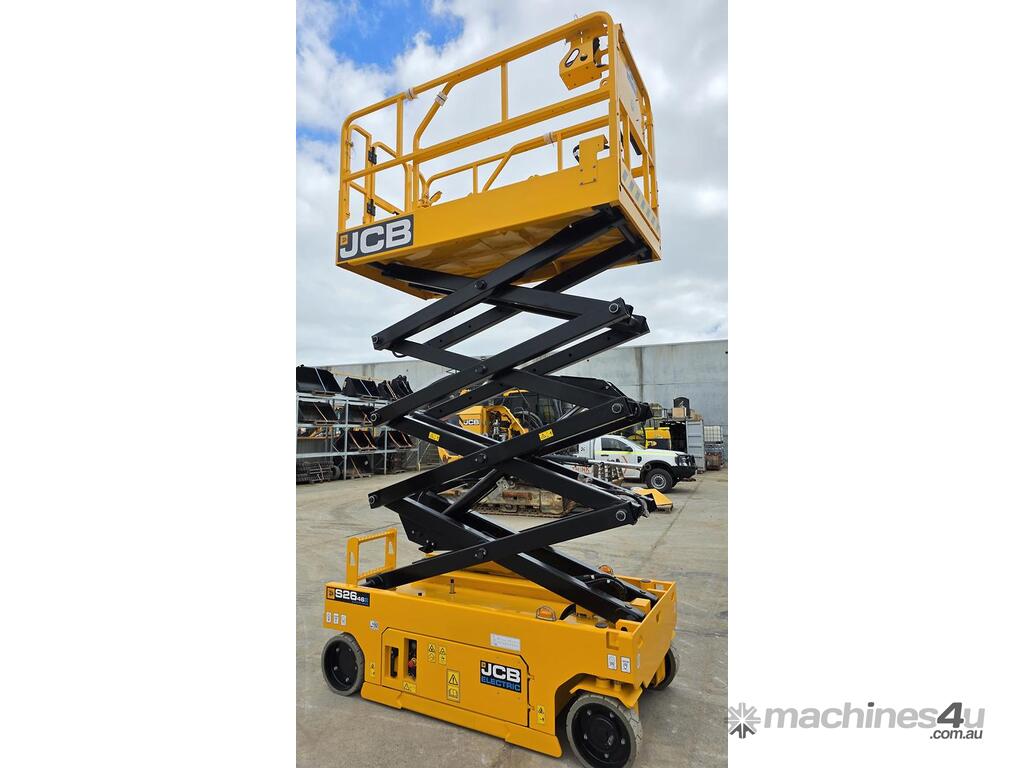

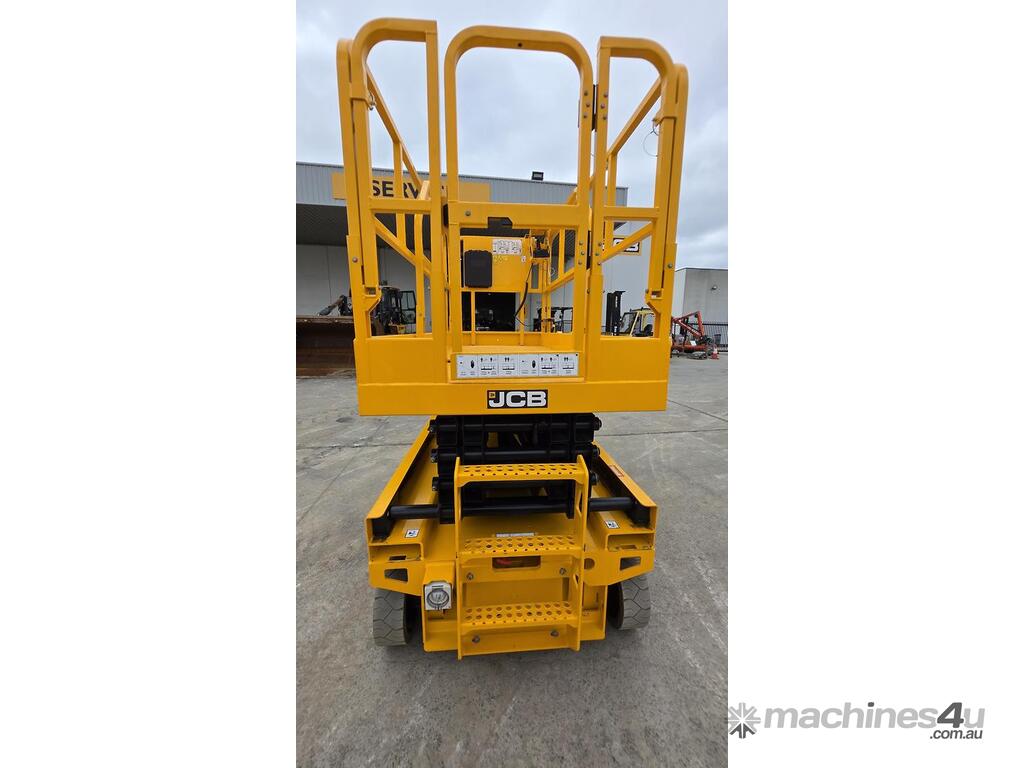

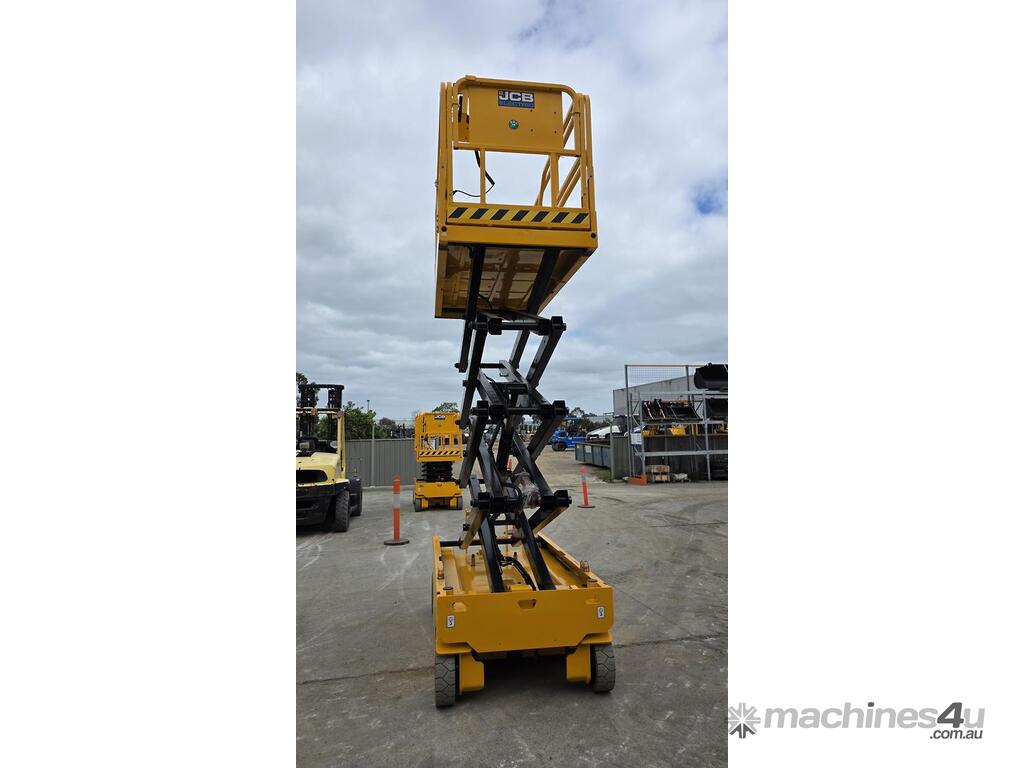

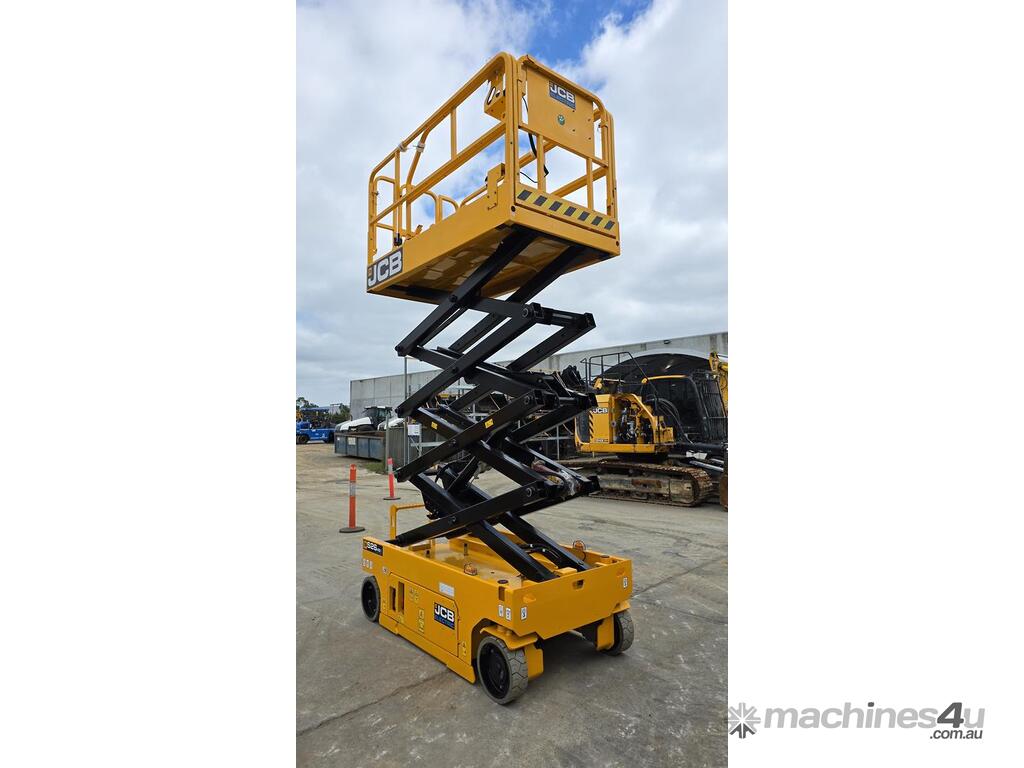

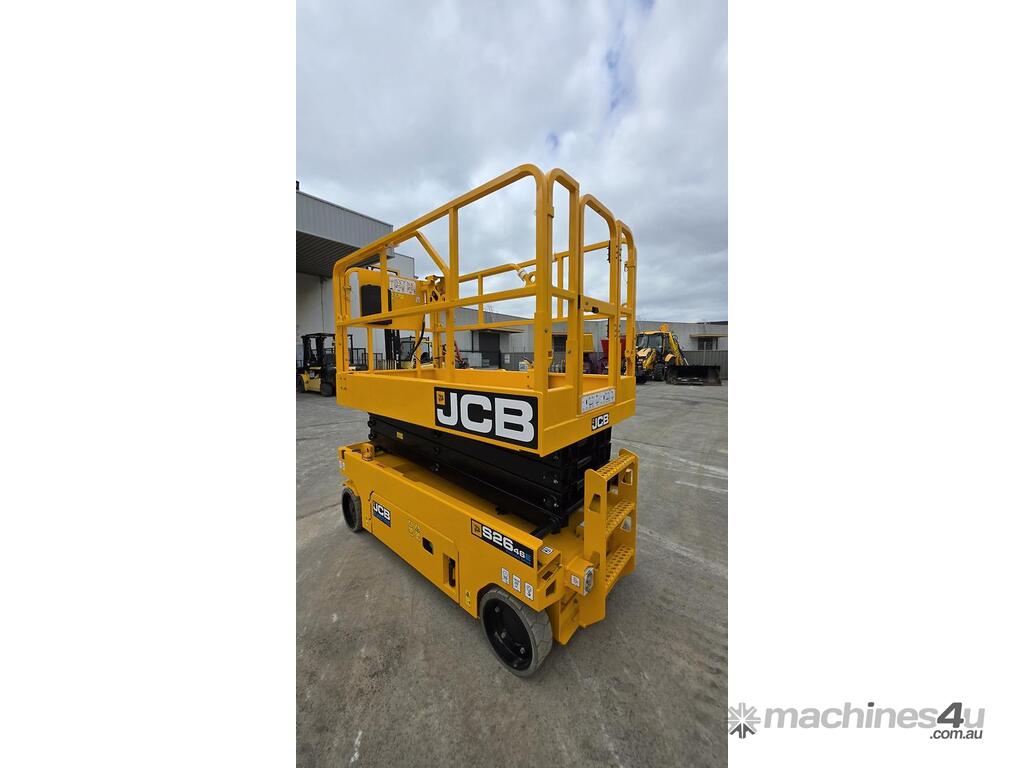

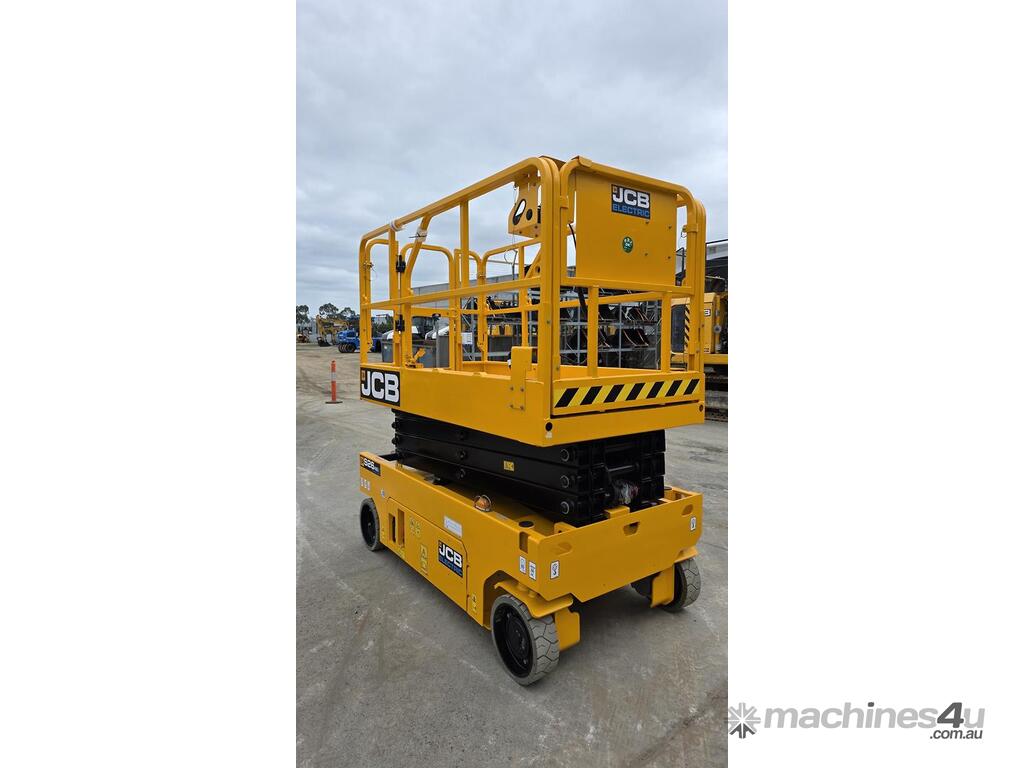

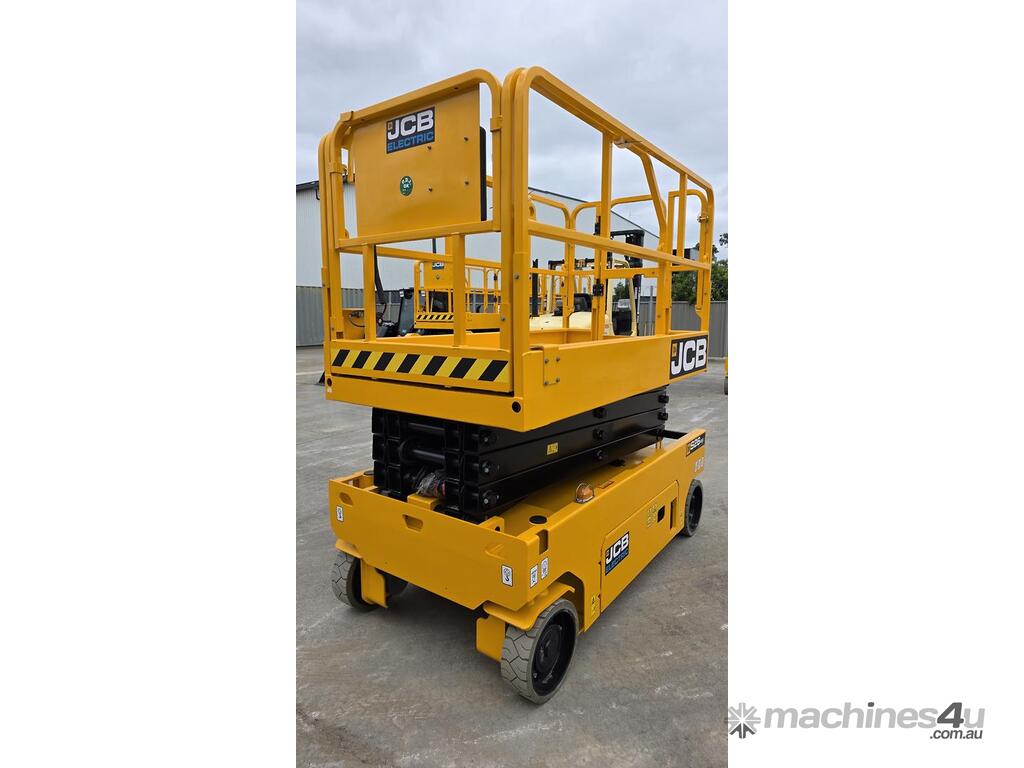

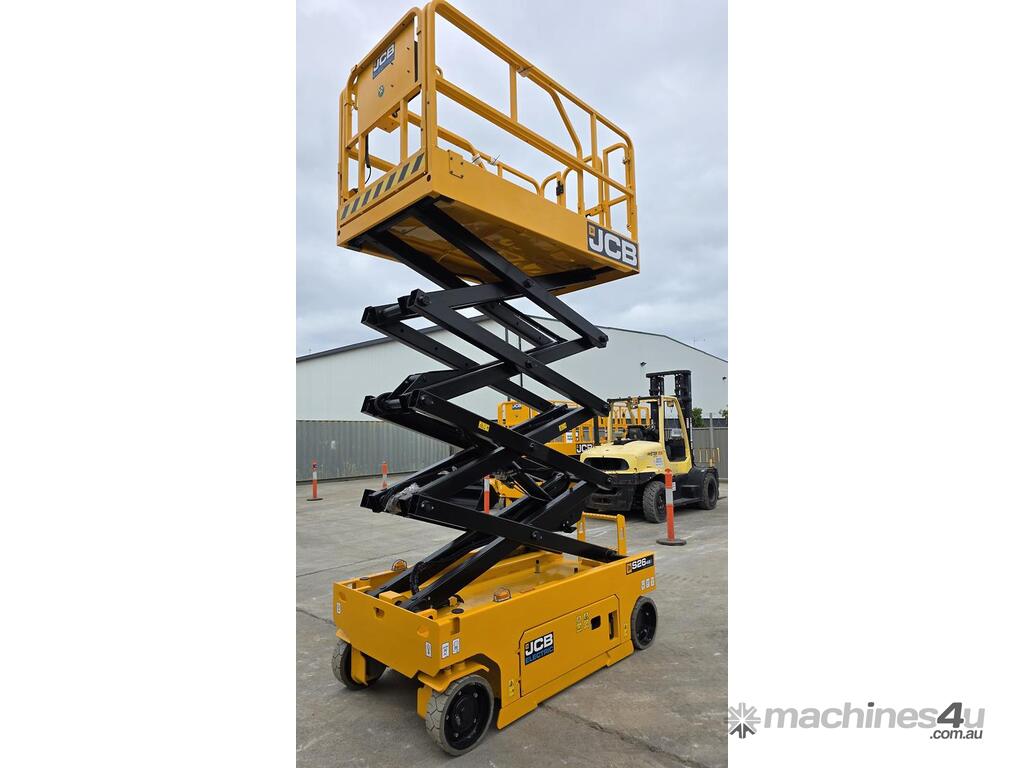

2025 JCB S2646E ELECTRIC SCISSOR LIFT 10m WORKING HEIGHT

A reliable, high-capacity electric scissor lift perfect for warehousing, construction fit-outs, maintenance, and access contractors who need strong performance, long battery life, and safe operation both indoors and outdoors.

KEY FEATURES

32.6 ft (10.1 m) Max Working Height – ideal for ceiling access, lighting installs, racking, signage & facility maintenance.
450 kg Platform Capacity – carry more tools, materials, and two operators with room to spare.
Electric, zero-emissions operation – perfect for indoor work and noise-sensitive sites.
0.9 m Extension Deck – giving extra outreach for accessing over obstacles and shelving.
Compact 1.15 m Width – moves comfortably through tight aisles and standard double doors.
Strong gradeability (25%) for easy manoeuvring on ramps and uneven surfaces.
Built tough with JCB durability and reliable hydraulic & electrical systems.

Performance & Reach

Platform Height: 8.1 m
Working Height: 10.1 m
Extension Deck Outreach: 0.9 m
Gradeability: 25%

Dimensions

Stowed Length: 2.39 m
Stowed Width: 1.15 m
Stowed Height (Rails Up): 2.35 m
Stowed Height (Rails Folded): 1.96 m

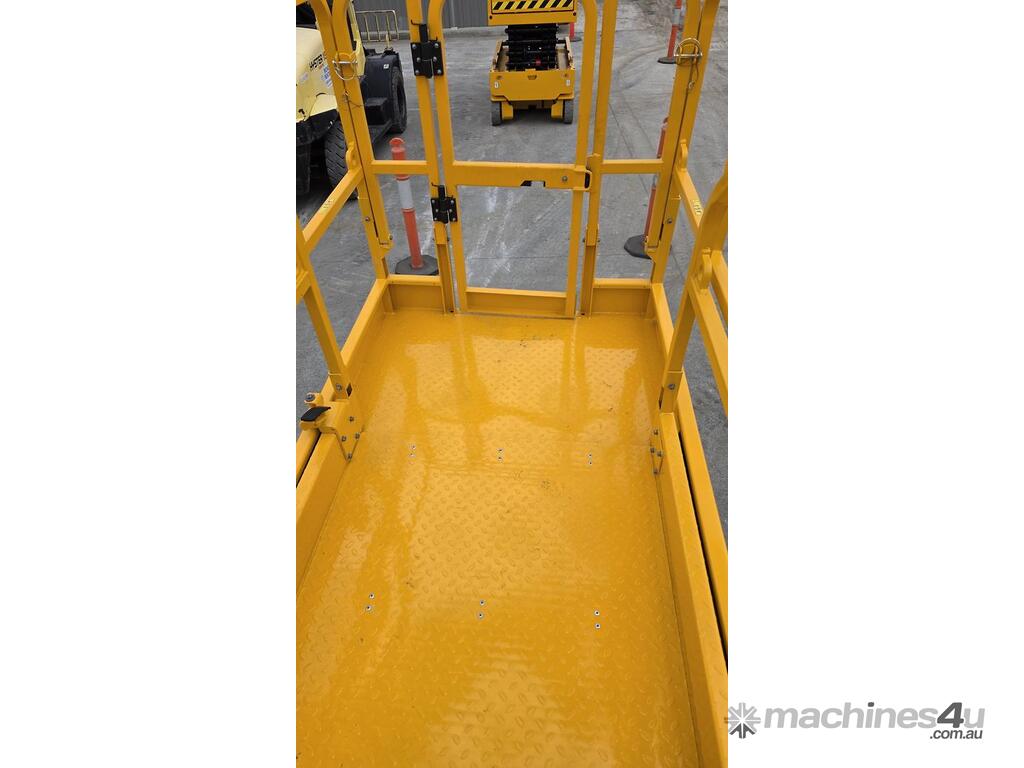

Platform Size: 2.25 m × 1.15 m
Ground Clearance: 100 mm

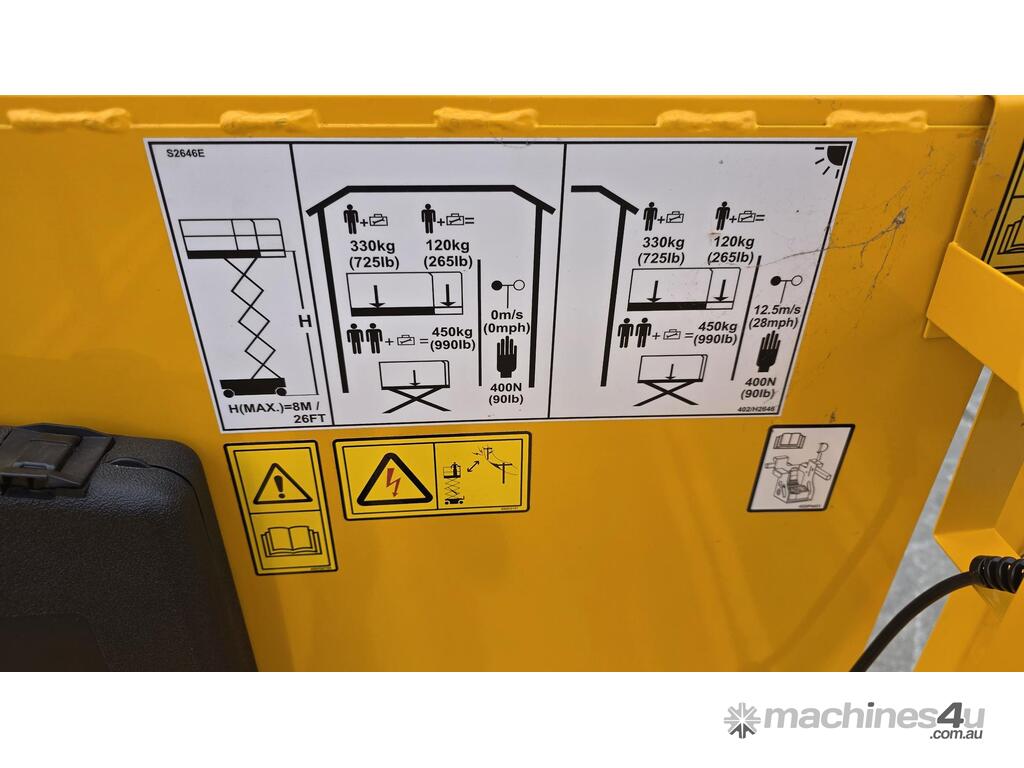

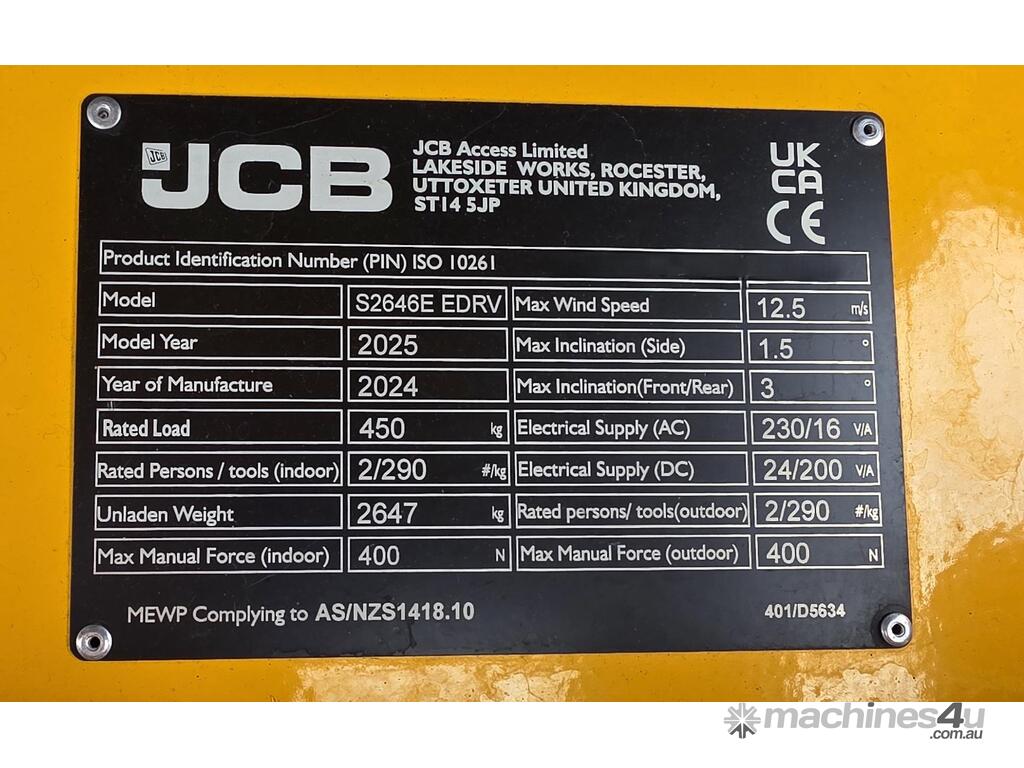

Capacity & Safety

Platform Load Capacity: 450 kg
Extension Deck Capacity: 120 kg
Indoor/Outdoor Rated (max 12.5 m/s wind)
Maximum Occupants: 2
Side-force rating: 400 N

Drive & Power System

Drive: Front-wheel drive, 2-wheel steer
Batteries: 4 × 6V (225Ah) deep cycle
Power Unit: 24V / 3.3 kW
Charger: 120–240V input
Max Drive Speed (Stowed): 3.2 km/h
Max Drive Speed (Raised): 0.8 km/h

Cycle Times

Lift: 30–35 sec
Lower: 35–40 sec

High capacity – significantly stronger load rating than many units in its class.

Very stable and safe – large platform + strong wheel loading gives confident operation.

Low maintenance – electric drive, simple hydraulics, and solid tyres (380×125 mm).

Perfect for warehouses – compact, manoeuvrable, tight turning radius (zero inside radius).

Trusted JCB build quality – robust components, long operational life, and wide parts availability.

Looking for a reliable lift for your fleet or workplace?
This JCB S2646E is suitable for rental fleets, facility management, trades, fit-out contractors, and industrial users needing a dependable 10m-class scissor lift.

****PLEASE CONTACT US FOR COMPETITIVE PRICING****
