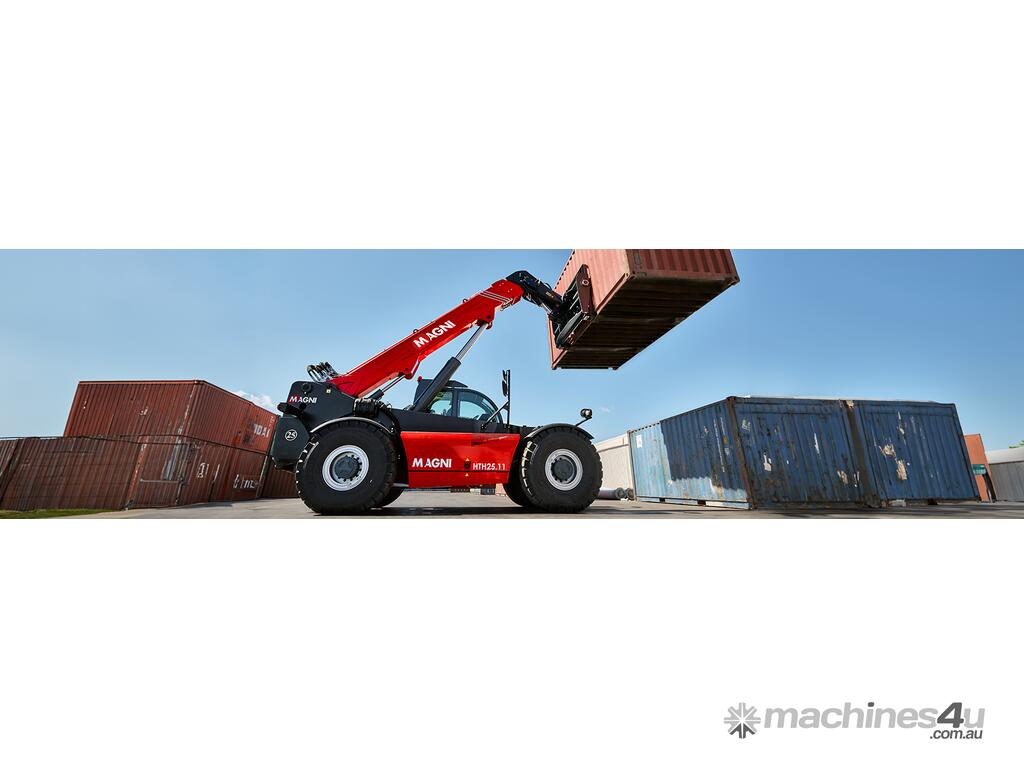

2025 Magni Heavy Telescopic Handler (Telehandler) HTH 25.11

The HTH 25.11 high-capacity telescopic handler is an evolution of the previous HTH 24.11 model, retaining the same dimensions and main technical specifications but with a substantial improvement in load capacity.

One of the main innovations provided by the model HTH 25.11 is the completely revised load chart, which delivers a genuine improvement in performance. With a load capacity of 18,000 kg at the maximum height of 10.5 metres, the new model offers a significant increase over the previous version’s 14,000 kg, with an impressive gain of 4,000 kg at full height (+29%).

The load capacity at maximum horizontal reach of 5.8 m has also been optimised through in-depth research: while the previous model offered a capacity of 7,200 kg, the new HTH 25.11 can lift up to 8,000 kg (+11%), thus ensuring greater operating capacity in even the toughest jobs.

The standard machine configuration includes:
CAB
Comfort seat
Adjustable steering column
Analogue joypad
Heating
Air conditioning
FM/AM radio with USB and Bluetooth connectivity
USB Type-A (5 V) inputs

REAL TIME INFORMATION
Touchscreen, 7”
MCTS – Magni Combi Touch System on-board software
Automatic RFID tools recognition system
LMI – Load Moment Indicator
Onboard and remote integrated diagnostics

TECHNICAL SPECIFICATIONS
Q-Fit Heavy-Duty
Two-line CAN BUS system
Automatic front and rear wheel alignment
Automatic parking brake
Mechanical battery cut-off in engine compartment
Electrical system: 24 V – IP67

Specifications:
o Stabilizers: None
o Lifting capacity: 25,000 kg
o Capacity at maximum height: 14,000 kg
o Lifting height: 10.50 m
o Reach: 5.65 m
o Engine: Volvo TAD583 VE-Stage V
o Rated power: 175 kW (238 hp) 2.300 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 6.92 m
o Width: 2.96 m
o Ground clearance: 430 mm
o Unladen weight: 29,700 kg
o Travel speed: 25 km/h
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
o Reversable fan drive: Yes
