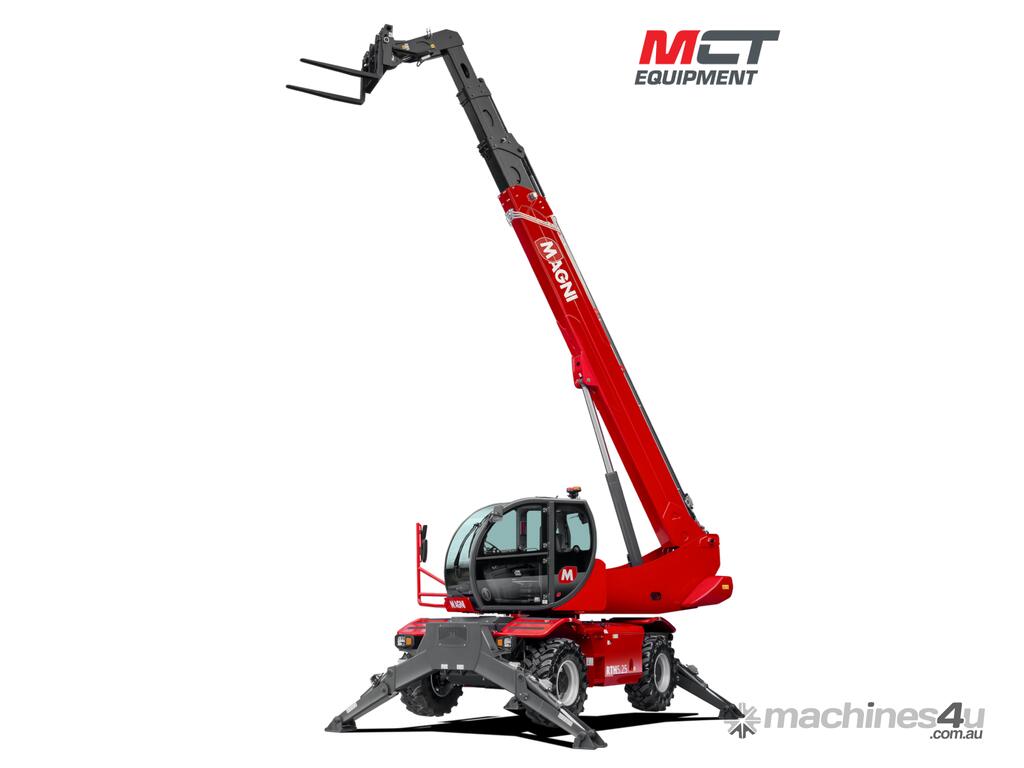

2025 Magni Rotating Telescopic Handler (Telehandler) RTH 5.25

The RTH 5.25 is a compact yet high-performance rotating telescopic handler.

It can lift loads up to a height of 81 ft, and is equipped with pivoting stabilisers to guarantee stability and safety during all manoeuvres.

It is compatible with a huge range of accessories, thanks also to the RFID system which provides automatic recognition and creation of the relative load charts; this telescopic handler is able to meet a wide range of applications in construction and industry.

Specifications:
o Stabilizers: Pivoting
o Lifting capacity: 4,999 kg
o Capacity at maximum height: 2,000 kg
o Lifting height: 24.60 m
o Reach: 19 m
o Engine: Deutz TCD 3,6 L4 Stage V
o Rated power: 100 kW (136 hp) 2.200 rpm
o Number of gears: 2/2
o Hydraulic system: 350 bar (Load Sensing)
o Length: 7.62 m
o Width: 2.54 m
o Ground clearance: 320 mm
o Unladen weight: 16,600 kg
o Travel speed: 40 km/h
o Rotation: 360° (continuous)
o Climate control as standard: Yes
o Automatic attachment recognition: Yes
