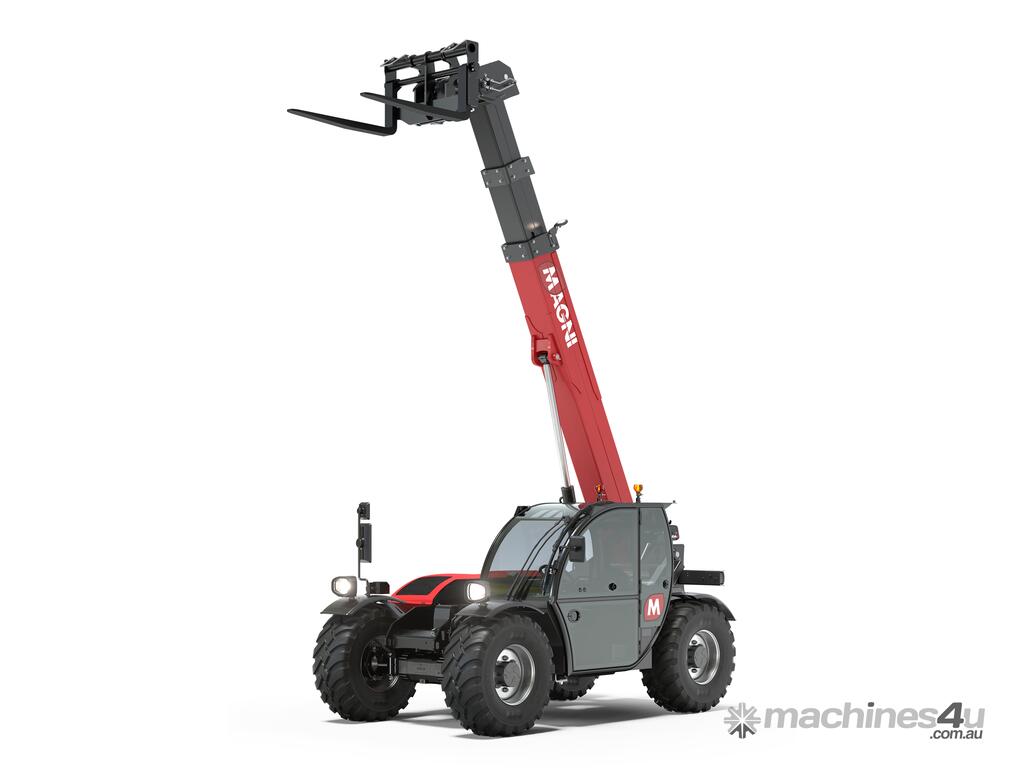

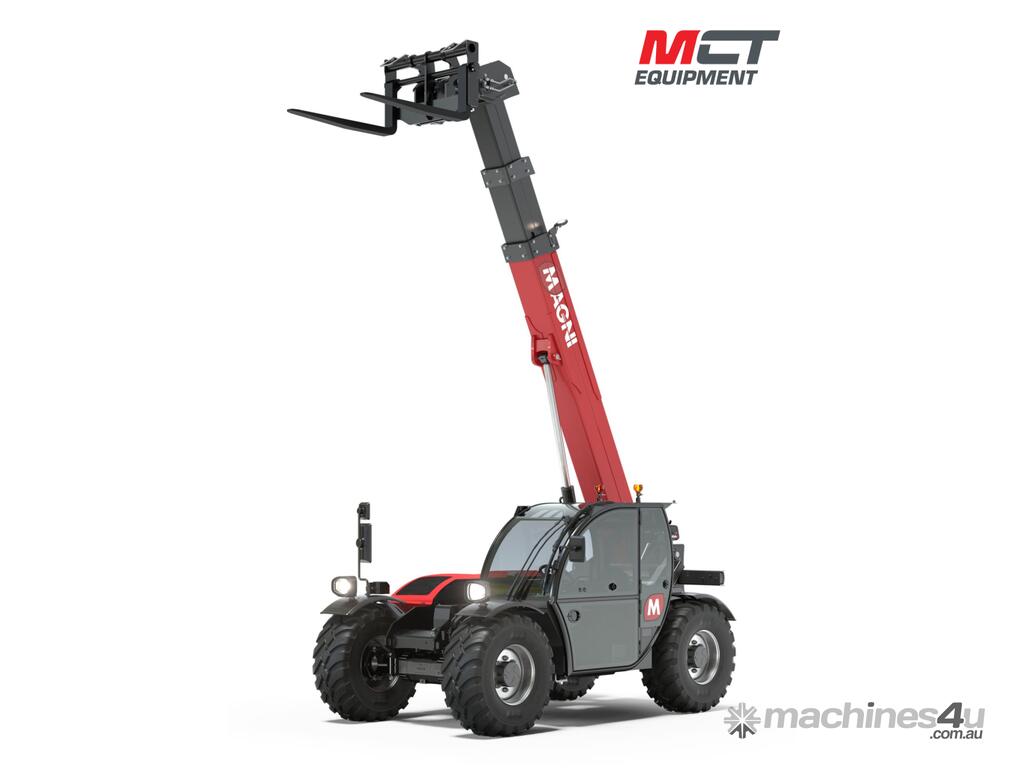

2025 Magni Telescopic Handler (Telehandler) TH 3.5-9

The TH 3.5.9 is a compact and powerful product, capable of lifting up to a maximum of 3,500 kg and reaching a height of 8,9 metres. In line with all other Magni telescopic handlers, this model is also equipped with the Load Moment Indicator (LMI), which is integrated into the Magni Combi Touch System (MCTS), and therefore guarantees absolute operational safety with any compatible attachment.

Superior performance and versatility of use:
The TH 3.5.9 is designed to tackle a wide range of applications thanks to its compactness and versatility, making it ideal for a variety of sectors: from construction through logistics to events, guaranteeing maximum efficiency and safety even on the most complex jobs.

One of the distinguishing features is the cab, derived from that of the TH 3.6 model, but with a more spacious design to ensure even greater operator comfort. Thanks to a wide visibility and a meticulous ergonomic study of the cab itself, which has left no element to chance, comfortable and safe use is ensured during every operation.

This telehandler is distinguished by its compact dimensions: 2 metres in height, 2.07 metres in width and a closed boom length of 4.31 metres. All this is possible thanks to the boom’s double extension system, which allows for optimum lifting height without compromising manoeuvrability. It is also ideal in confined spaces and for work in urban environments or crowded construction sites.

Advanced technology for superior performance:
the TH 3.5.9 is equipped with a 75 hp Deutz engine and a hydrostatic transmission, which, combined with the Dropbox gearbox with two forward and reverse gears, allows the machine to tackle slopes of up to 89% and reach a maximum speed of 32 km/h. The hydraulic pressure of more than 300 bar, and the sophisticated load sensing system, guarantee fast, fluid and precise movements, even when several actions are required at the same time, making these machines ideal for operations requiring speed and fluidity of movement.

Safety is one of the fundamental aspects and, as anticipated, the standard LMI system ensures constant control in all lifting phases, avoiding overloading compared to common load cells and, above all, complete load management with all compatible accessories, thus guaranteeing maximum safety. In both models, the 7? touchscreen with MCTS system will be available as standard, allowing diagrams to be displayed in real time according to the attachment being used.

Specifications:
o Stabilizers: None
o Lifting capacity: 3,500 kg
o Capacity at maximum height: 1,800 kg
o Lifting height: 8.90 m
o Reach: 6.05 m
o Engine: Deutz TCD 2,9 L4 Stage V
o Rated power: 55.40 kW (75,30 hp) 2.600 rpm
o Number of gears: 2/2
o Hydraulic system: 315 bar (Load Sensing)
o Length: 4.40 m
o Width: 2.06 m
o Ground clearance: 321 mm
o Travel speed: 32 km/h
o Climate control as standard: No
o Automatic attachment recognition: No
o Reversable fan drive: No
