2025 Zoomlion Telescopic Crawler Crane | 100t Capacity | 66m boom + jib

HEIGHT AND WEIGHT CAPACITIES
-100 tonne maximum rated lifting capacity
-Working main boom height 50.0m maximum
-16 metre Fly Jib
-8,620kg Line Pull

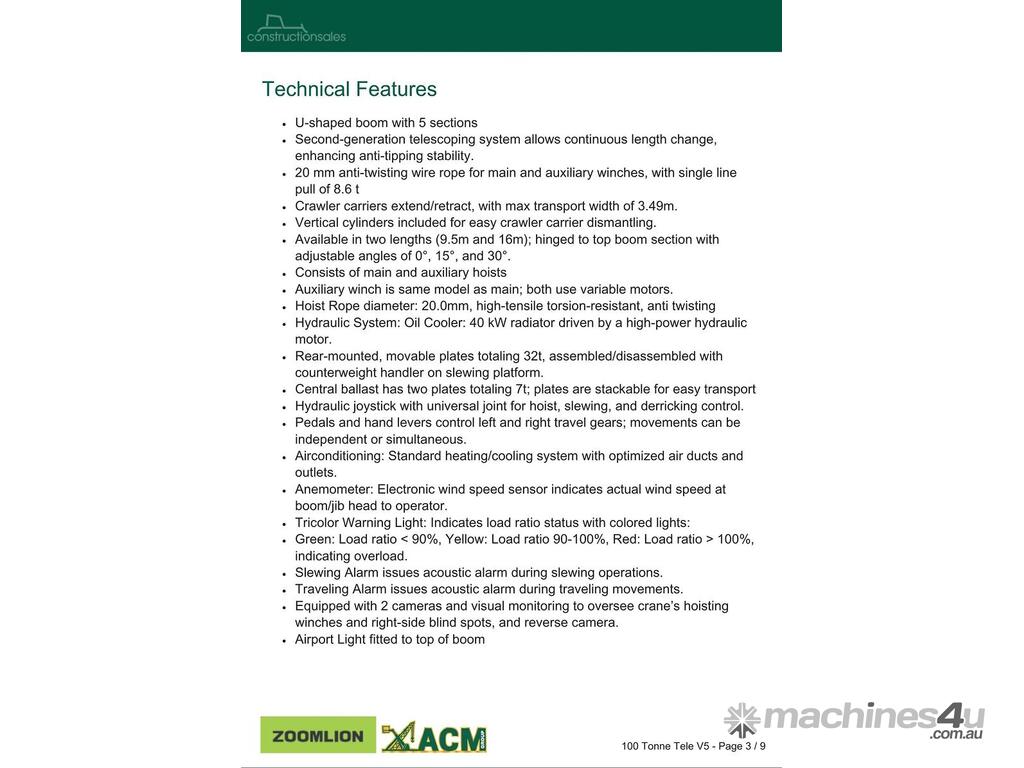

TECHNICAL SPECIFICATIONS
-2 winches
-Full power boom
-Counterweight is Rear-mounted, movable plates totaling 32t, assembled/disassembled with counterweight handler on slewing platform.
-Central ballast has two plates totaling 7t; plates are stackable for easy transport
-Hoisting Mechanism consists of main and auxiliary hoists, each with an axial plunger hydraulic motor and built-in planetary gear reducer.
-Brake positioned between motor and reducer; both winches can operate independently or simultaneously.
-Anemometer fitted to measure wind speed.
-Airport Light fitted and movable to any position.
-Rated Power / rotational speed - 199 / 2000 kW/rpm
-Max output torque / rotational speed - 1200 / 1500 Nm/rpm

TRANSPORTATION REQUIREMENTS:
-Crane Body (boom, slewing platform, crawlers): 52t
-Requires 1 low loader.
-Other Parts (counterweight, ballast, hook, etc.): 39.3t
-Requires 2 standard 3-axle trailers.
-Total Mobility:
-3 trailers required for transportation.
-3.49m transport width retracted

FINANCE OPTIONS:
-Easy finance from Zoomlion to any Approved customer
-Payment in accordance with the terms outlined below.
