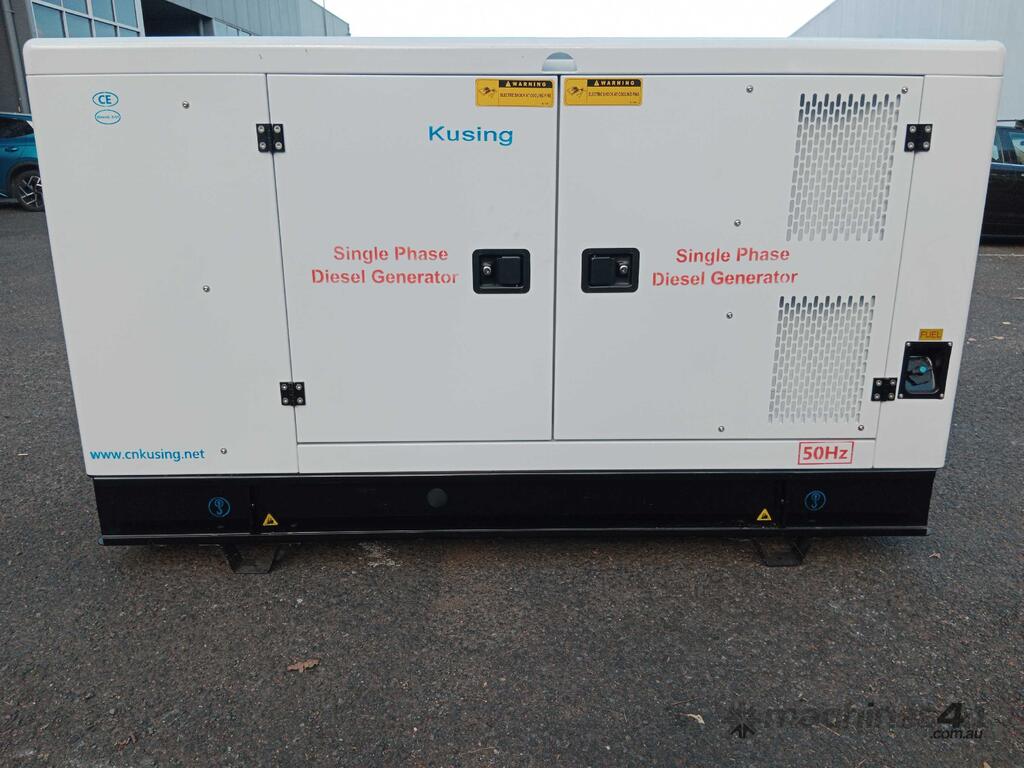

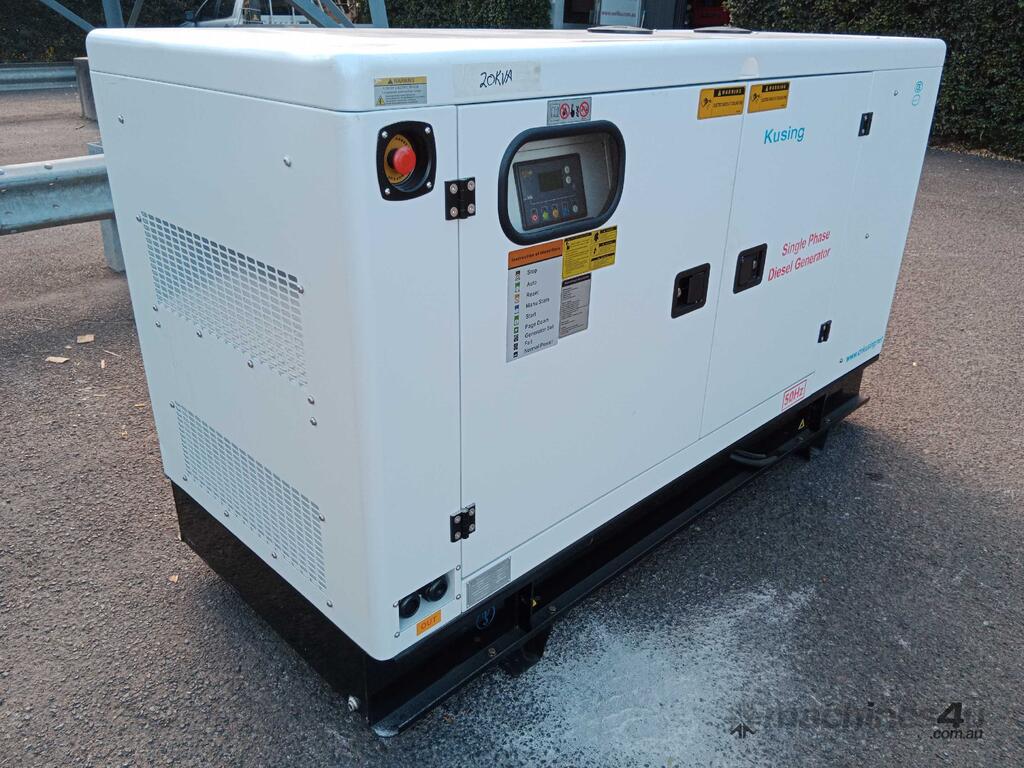

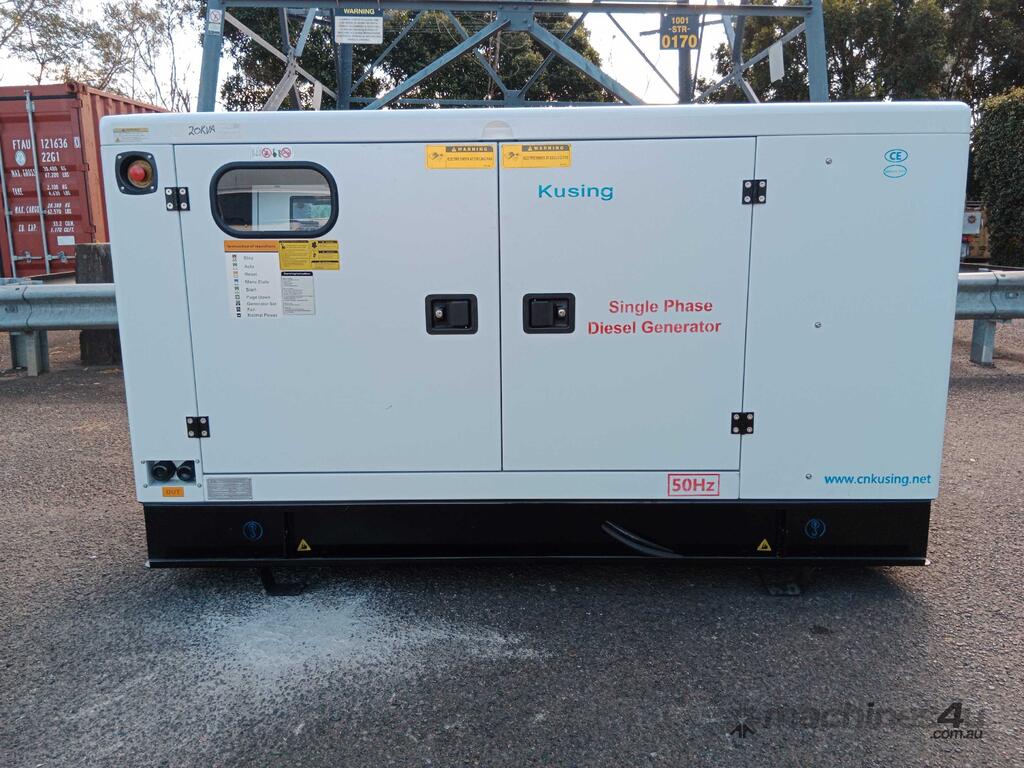

20KVA Silenced Diesel Generator Single Phase 240V

Main Features

• 2 pole brushless alternator with zero THD delivering clean stable energy.
• Safe to use on digital electronic equipment.
• Water-cooled diesel engine for round the clock use in extreme conditions.

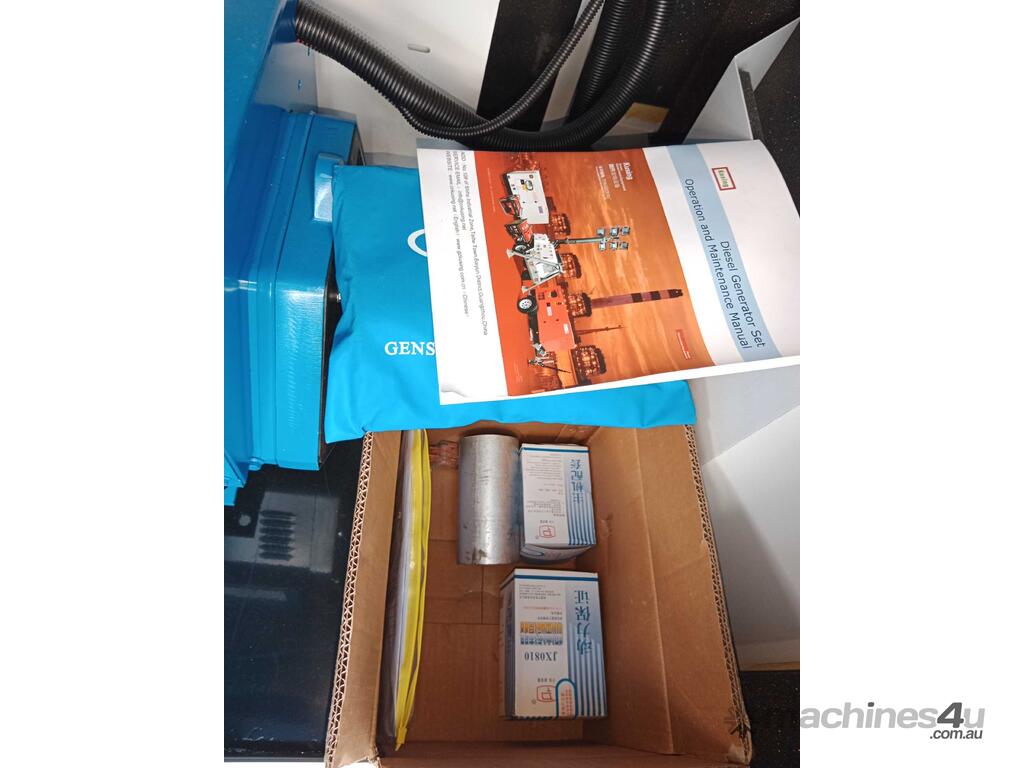

• User friendly controller with instruction manuals available.
• ATS/Auto 2 wire start connection equipped.
• Compliant with Australian safety standards.

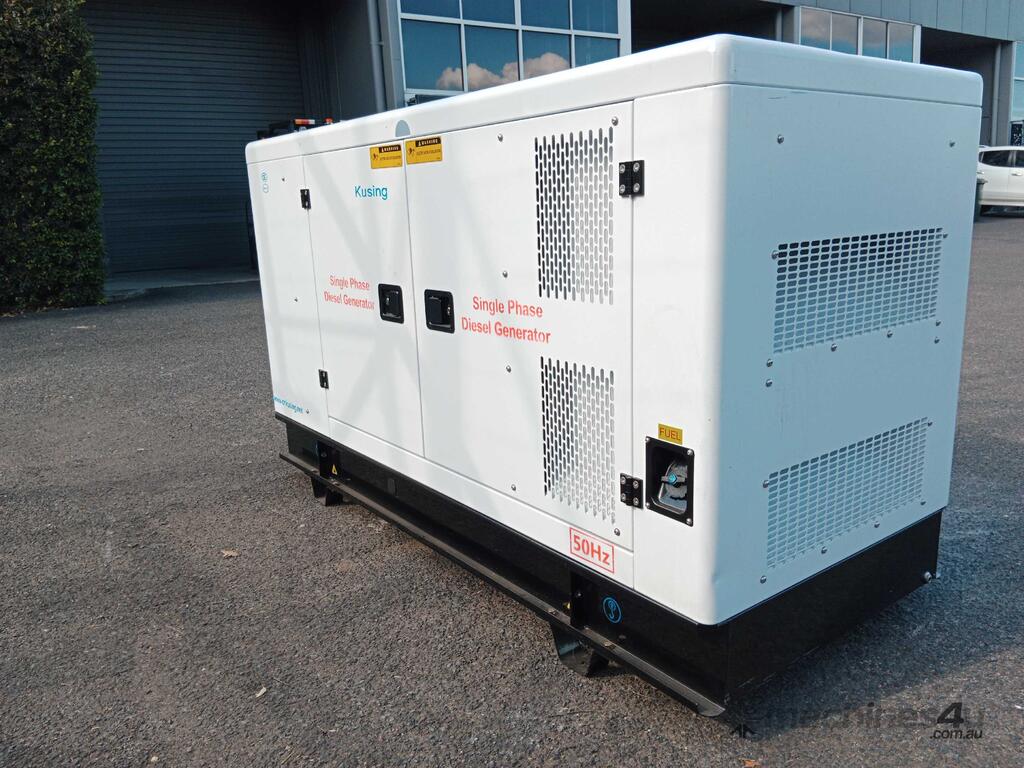

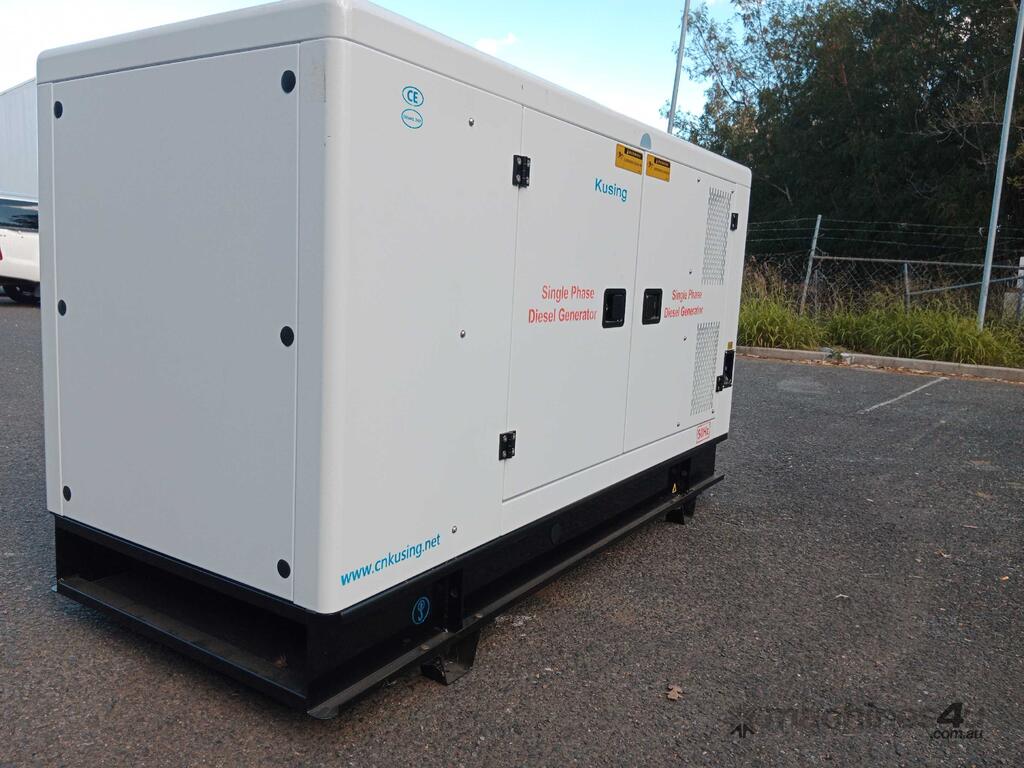

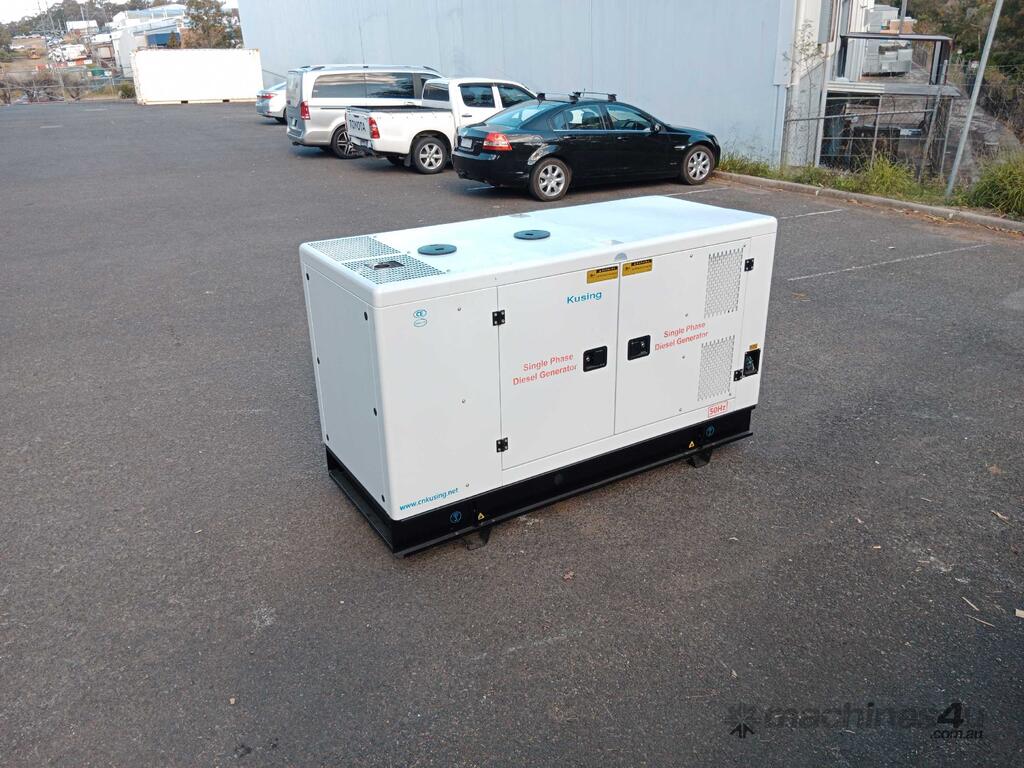

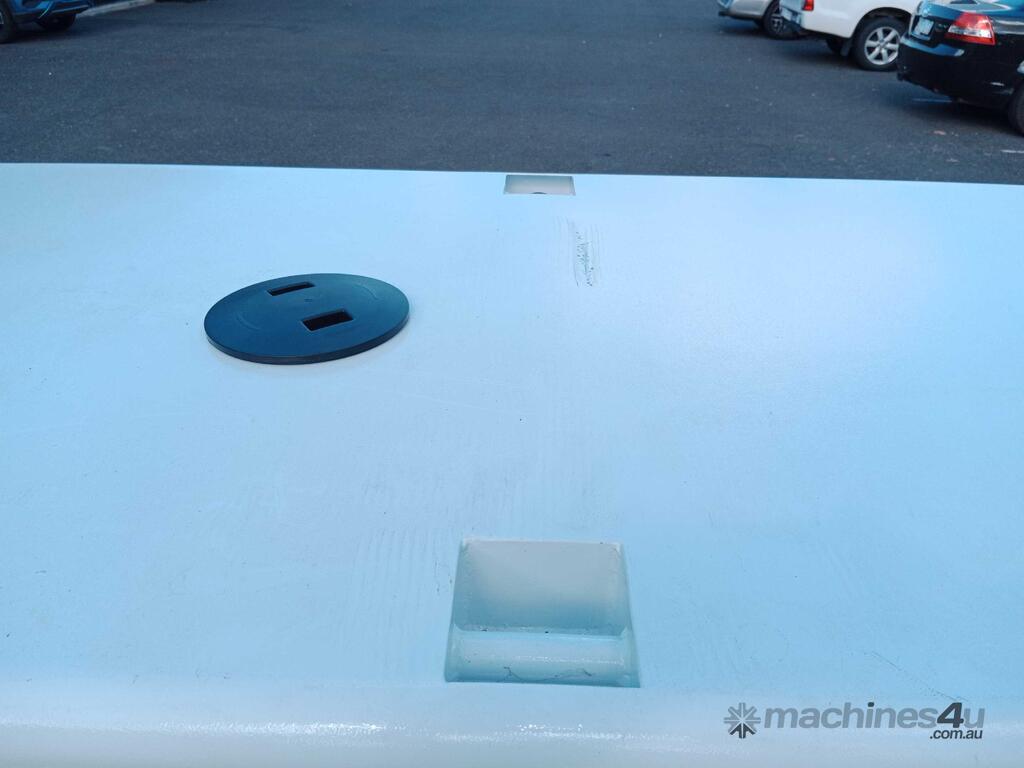

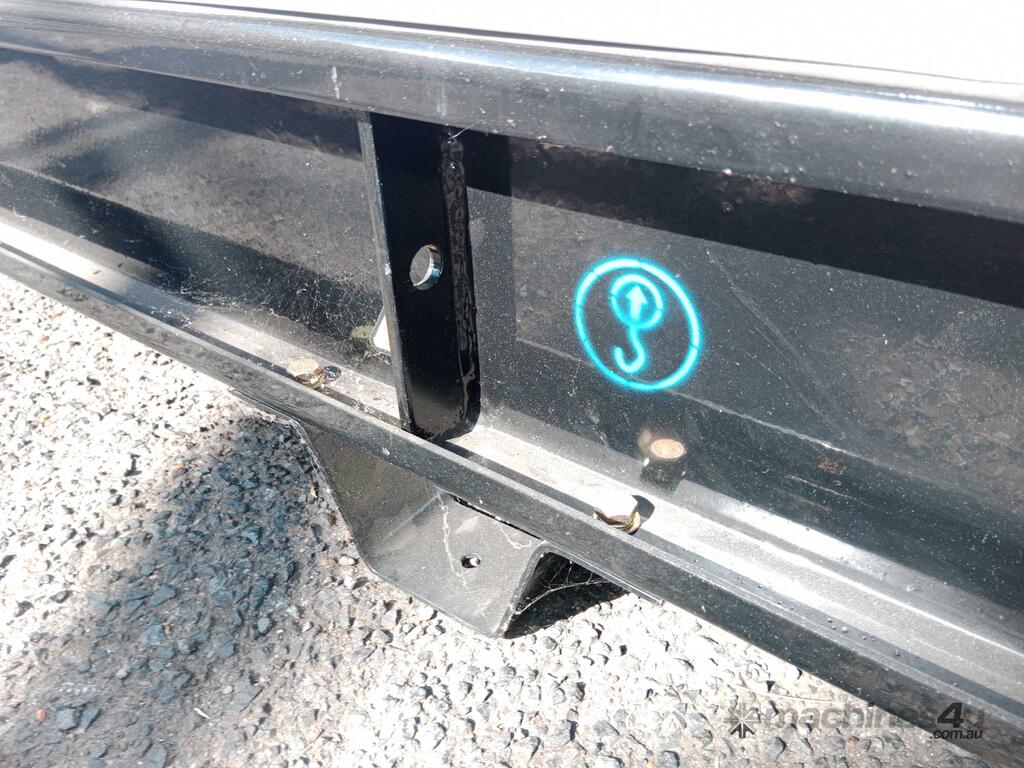

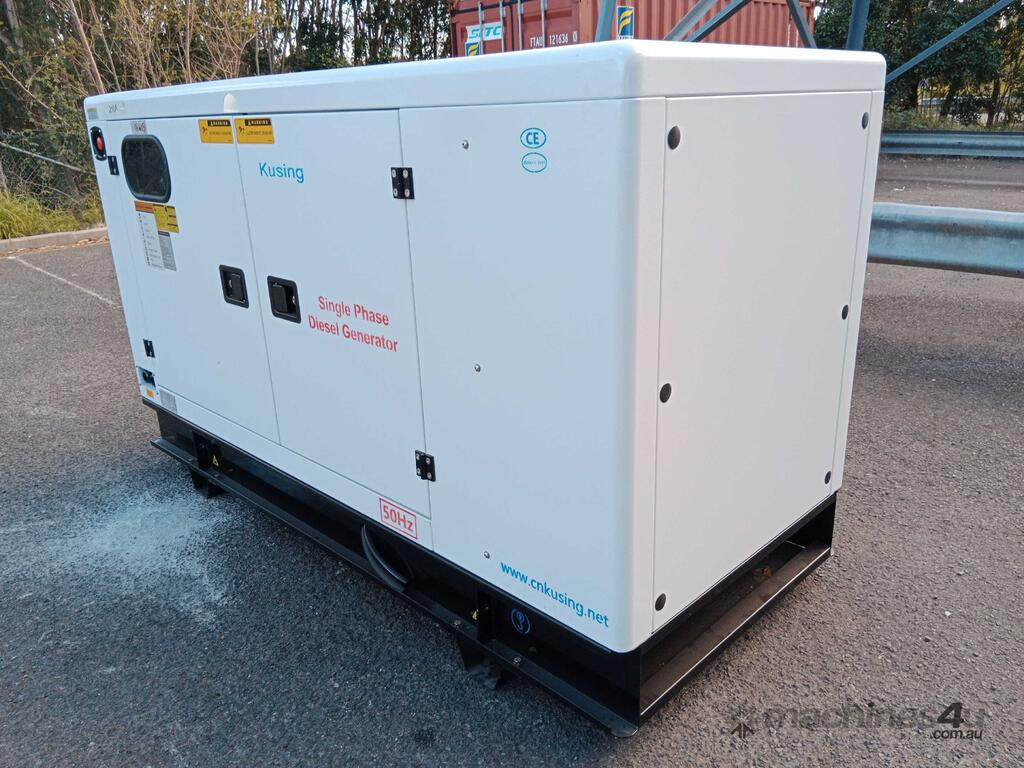

• Strong weatherproof silent canopy with various lifting locations

Safety Features

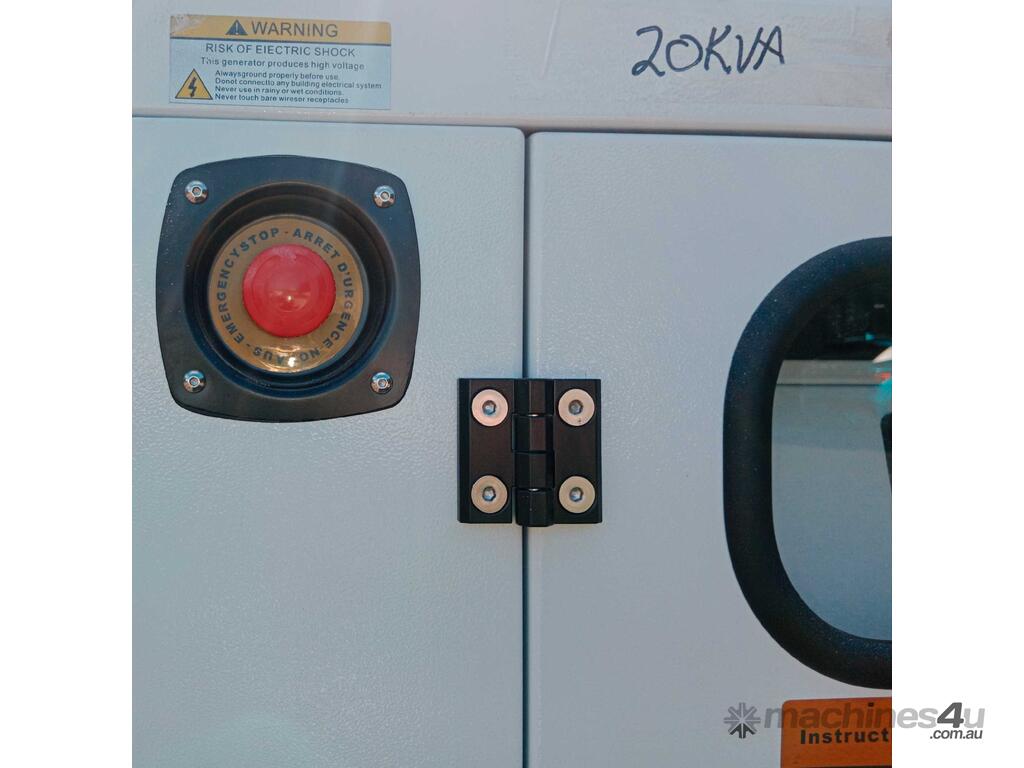

• Emergency stop

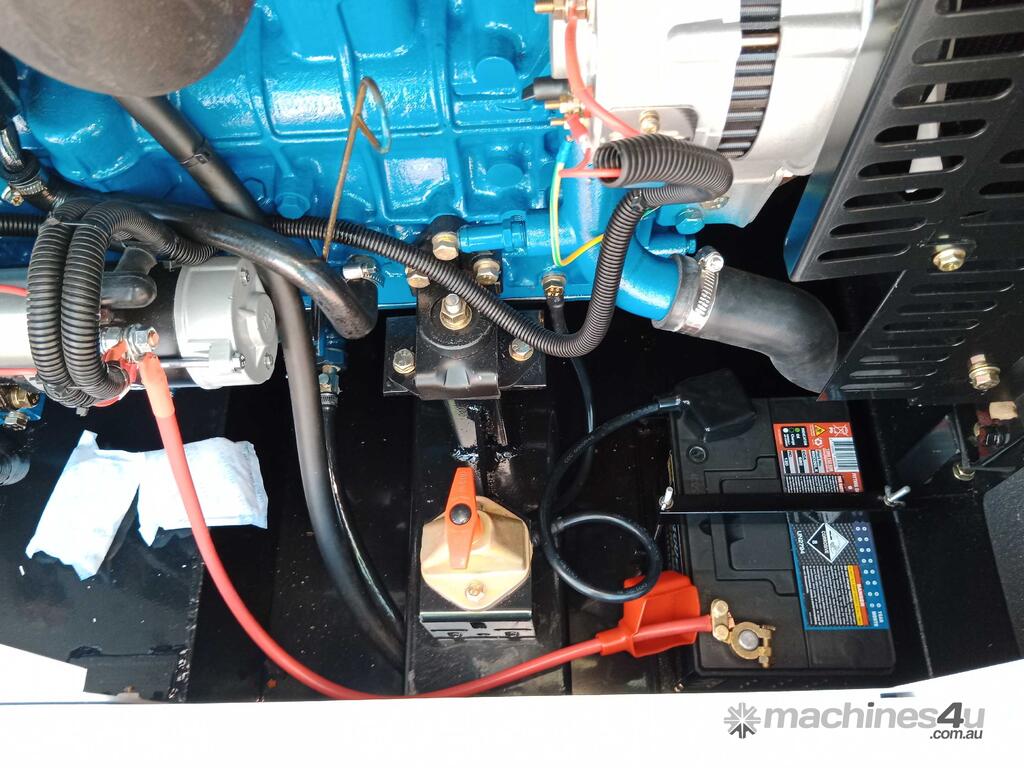

• Battery Isolator
• Over temperature protection
• Low oil protection
• Low fuel alarm
• RCD protection
• Over current protection
• Battery DC charge fault alarm
• Full canopy soundproofing with lockable doors
• Poly baffled fuel tank
• Fire extinguisher (by request)

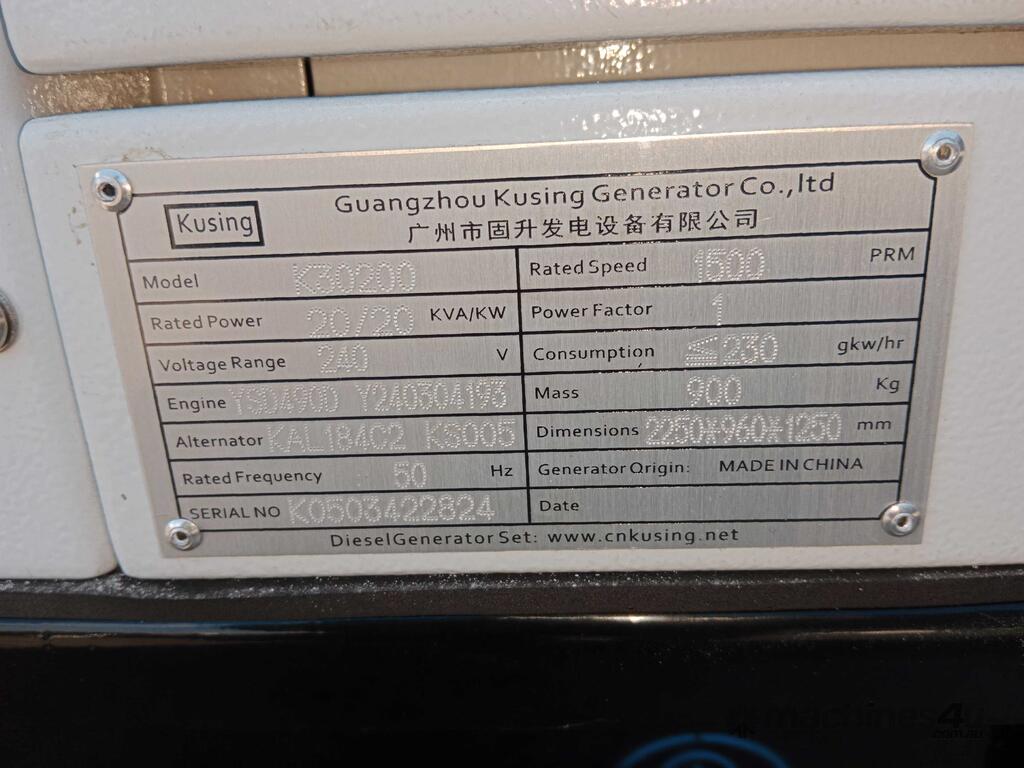

Specifications:

Generator Model K30200
Prime Power 20KVA
Standby Power 22KVA
Rated Current 91 Amps
Canopy Silenced
ATS (Auto Transfer Switch) 2 wire start connection installed for ATS (ATS add $350)
Fuel Tank Capacity 80 Litres
Noise Level 75dB 7m

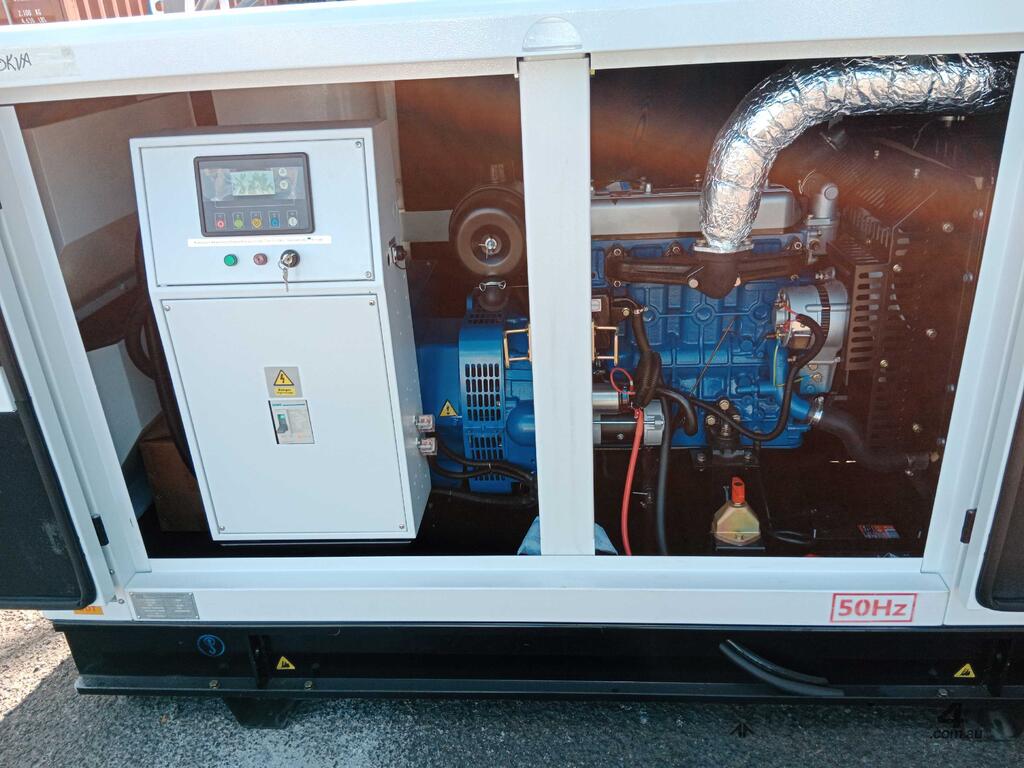

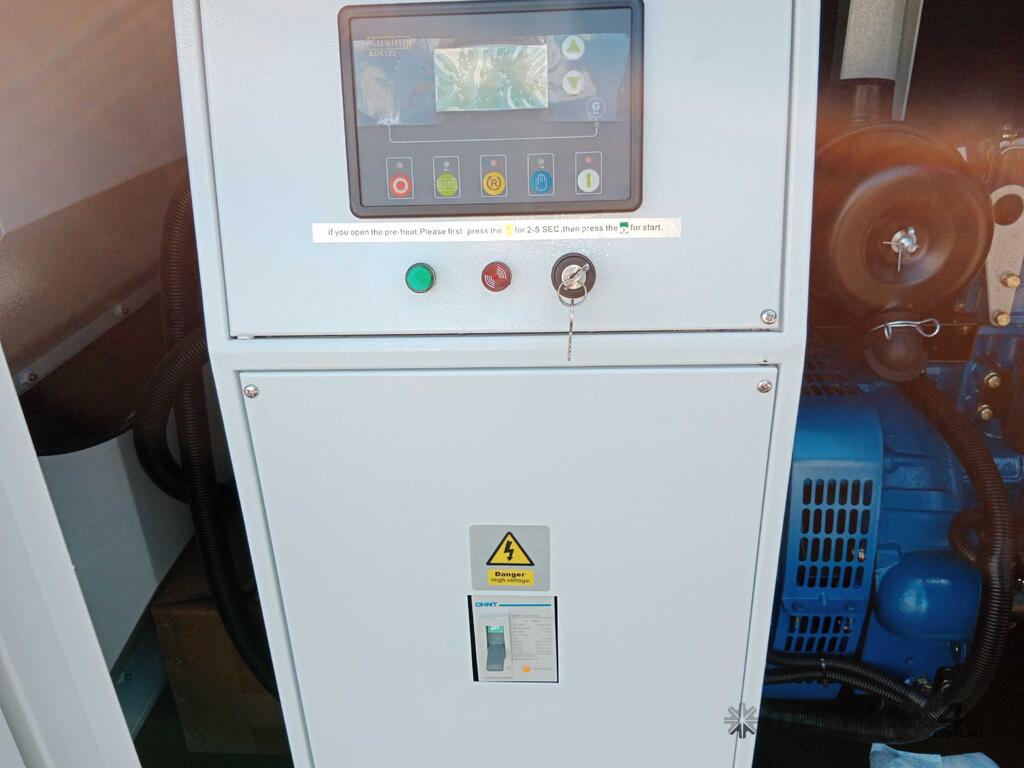

Controller Kusing AD6122
Main Breaker Switch 100A
Power Outlets N/A
Internal Protection IP23
Dimensions 2250L x 960W x 1250H mm
Weight 900kg

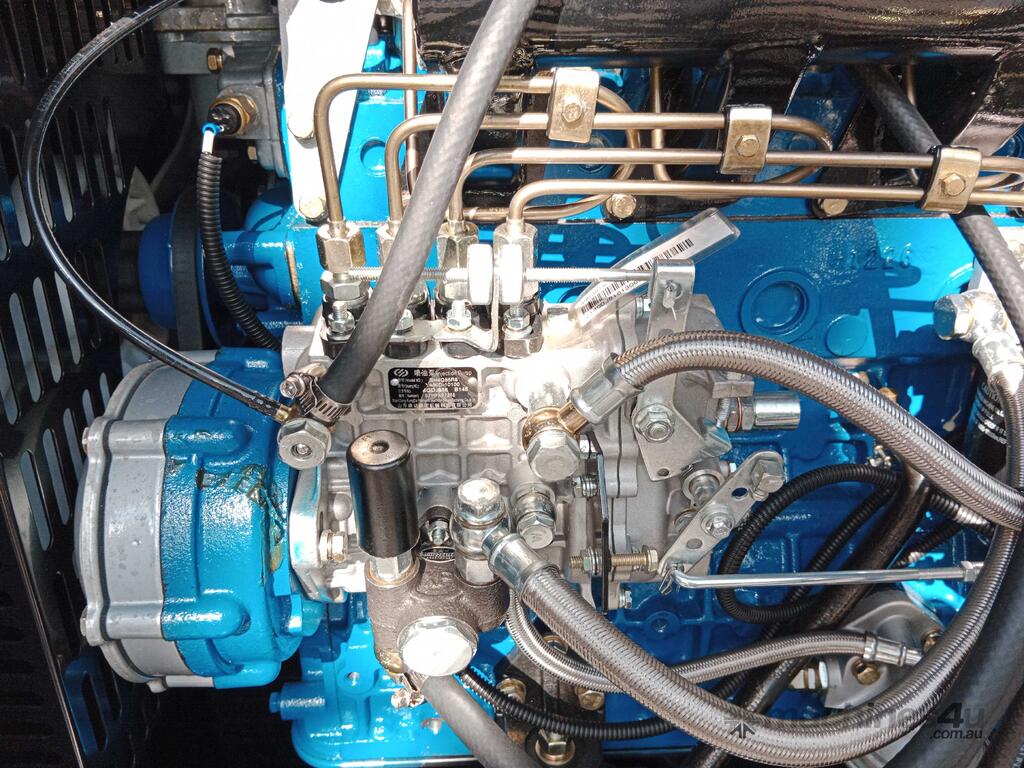

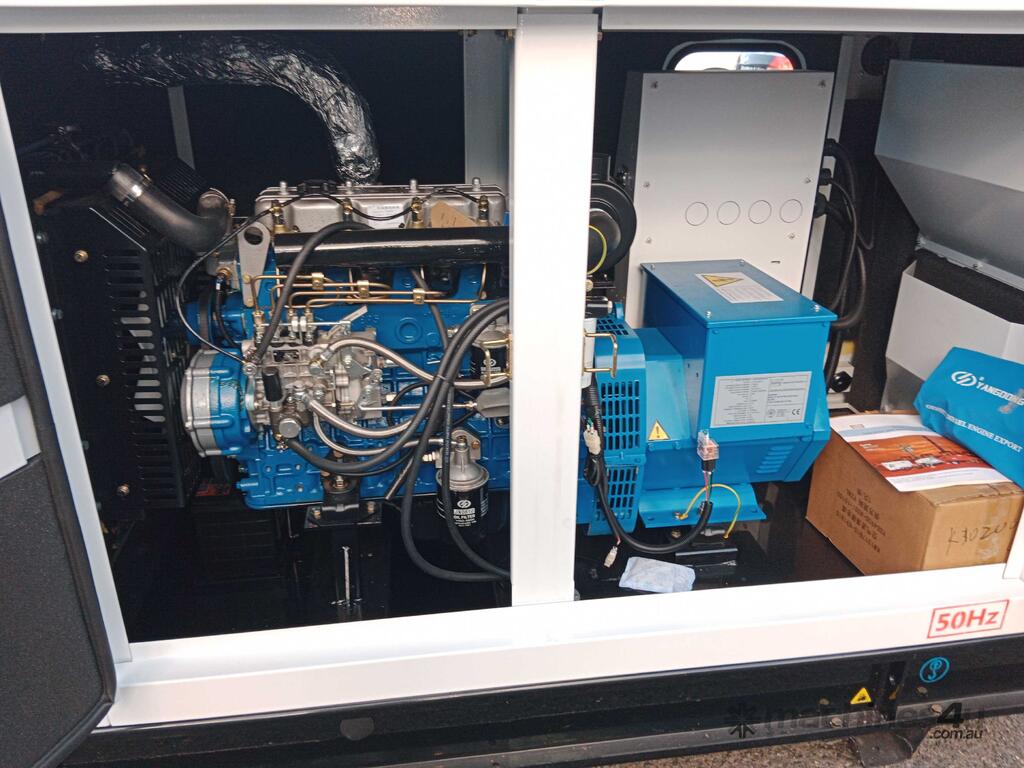

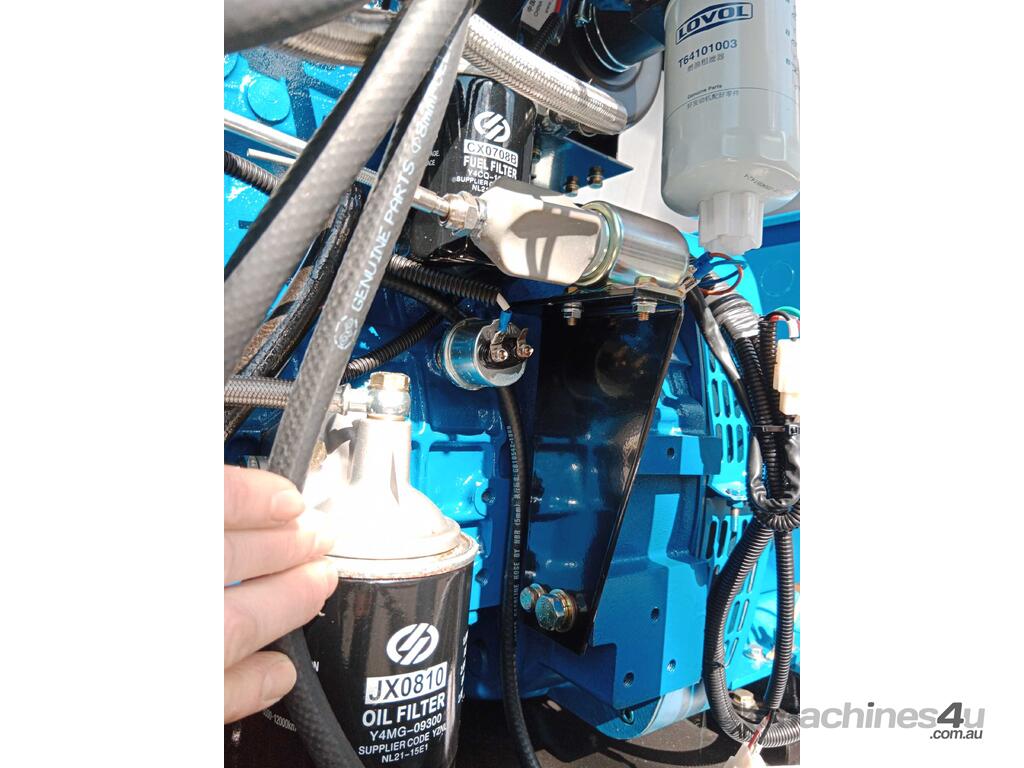

Engine Yang Dong YND490 4 Cylinder Inline Diesel
Bore 90mm
Stroke 100mm
Air Aspiration Natural
RPM 1500
Speed Governor Mechanical
Start System 12V
Fuel Consumption 4.4 L/hr at 100% load
Oil Specification 15W/40
Oil Sump Capacity 6.5-7.5 Litres
Coolant Capacity 9-10 Litres

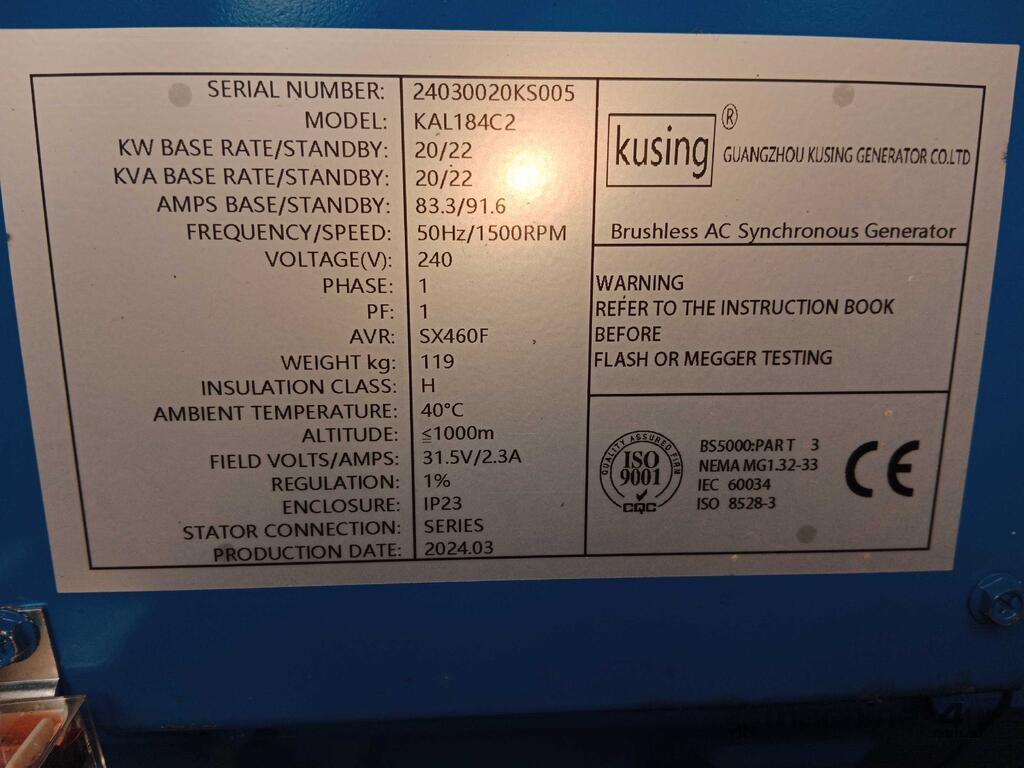

Alternator Make Kusing
Alternator Model KAL184C2 2 Pole Brushless
Voltage 240V
Phase Single phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Voltage Tolerance 1%
Insulation Class H

Warranty

All of our industrial diesel generators come with a standard 12 month/1000 hour warranty. Expert presales advice and after sales service provided.

Shipping

For a shipping price to deliver to your location, please contact us.
We deliver anywhere in Australia with a few exceptions, also servicing PNG and the South Pacific regions.
For all deliveries, we recommend delivery to your nearest major centre for depot collection.

For showroom inquiries
Wellku Power Pty Ltd, 1/60 Machinery St., Darra, 4076, QLD.
Right next to the Ipswich Motorway.
Business hours are 8:30-4:30pm Monday to Friday.
