22-47 ton (90mm pin) 2100mm JB/AHE Excavator Tilting Mud Batter Bucket

Used 2100mm JB Attachments (Bucket) & Atlas Heavy Engineering (Headstock) Excavator Hydraulic Tilting Mud Batter Bucket suit 22-47 Ton machines.

Designed for Case CX330, Caterpillar 235, Halla HE280, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK290LC / SK300 / SK310 / SK330LC / SK350LC, Link-Belt 4300 QUANTUM, Sumitomo SH300 etc. but will fit other machines (see below list of machines we have found so far).

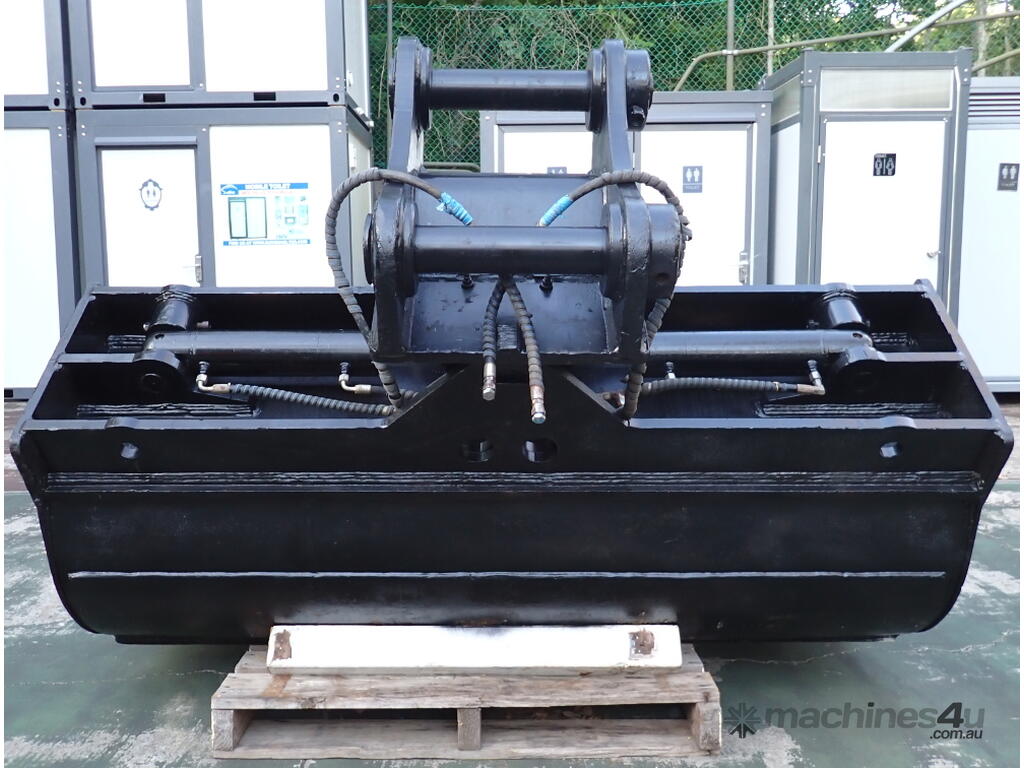

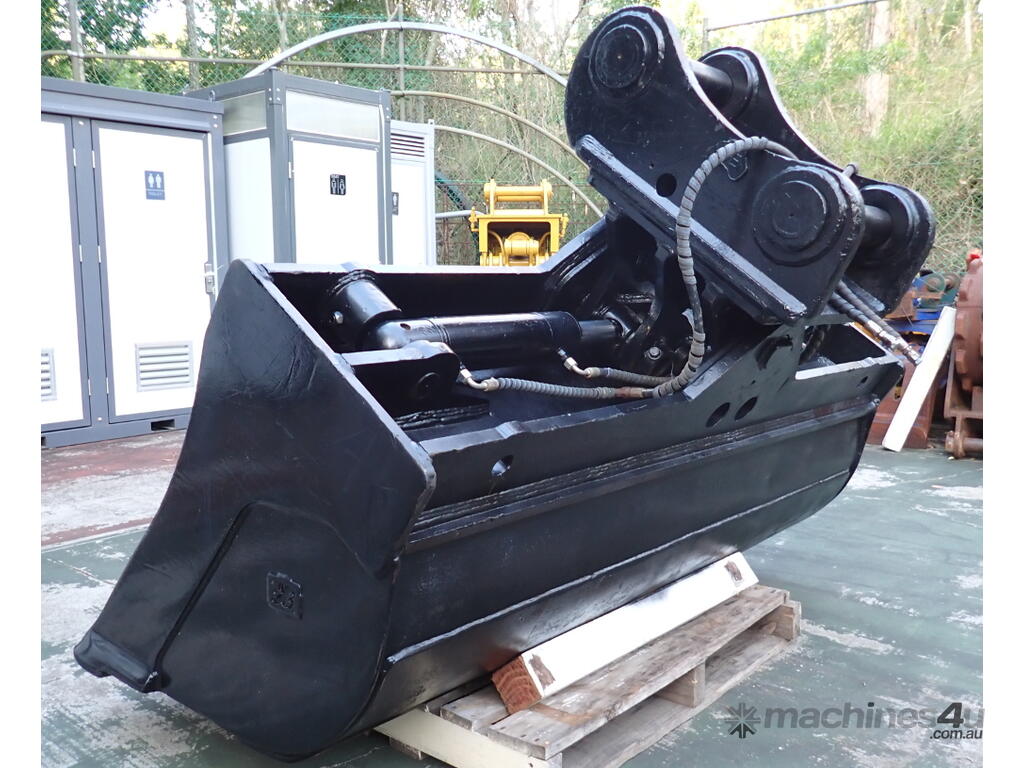

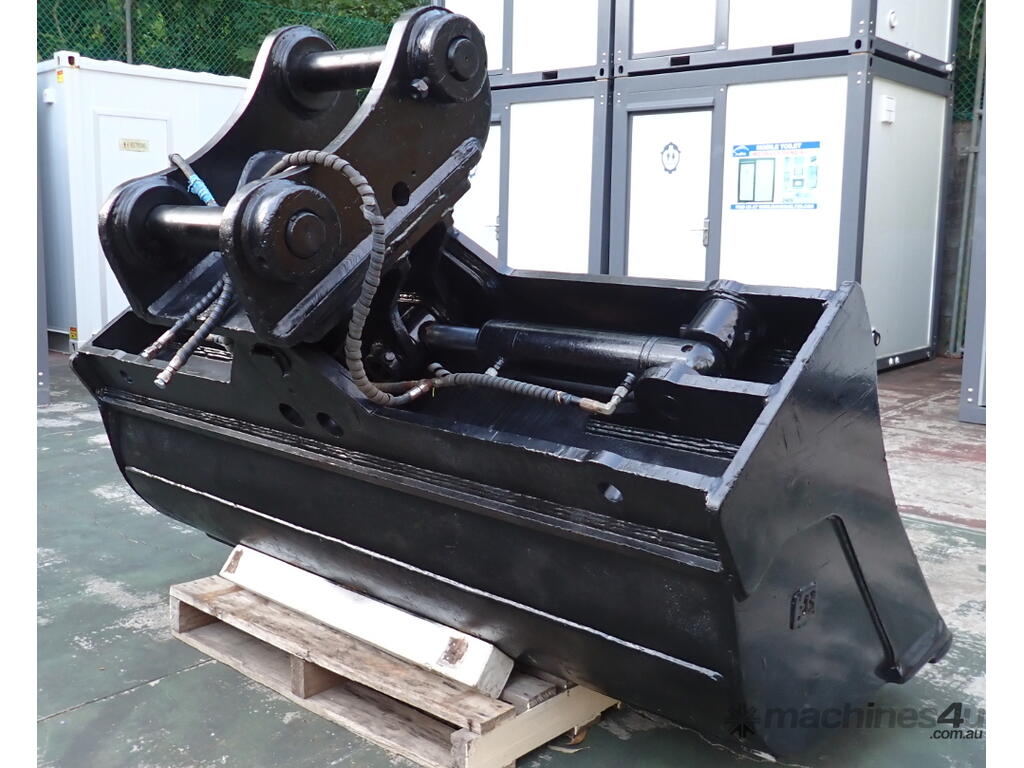

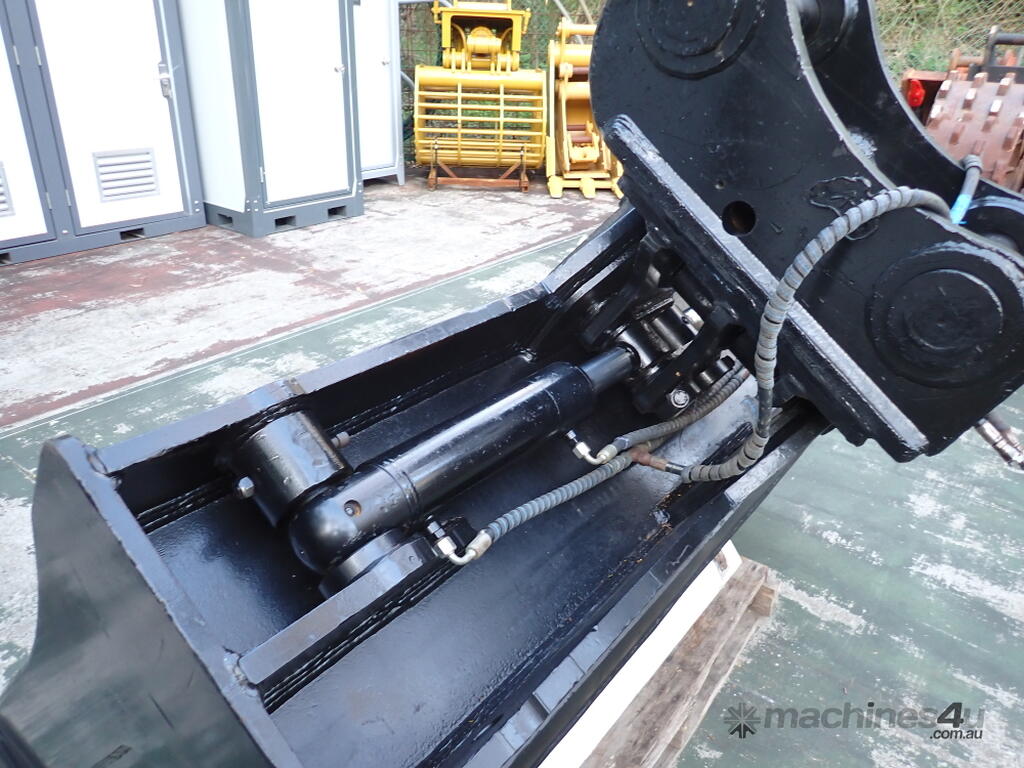

Twin Ram design, the ram chrome is in great condition.

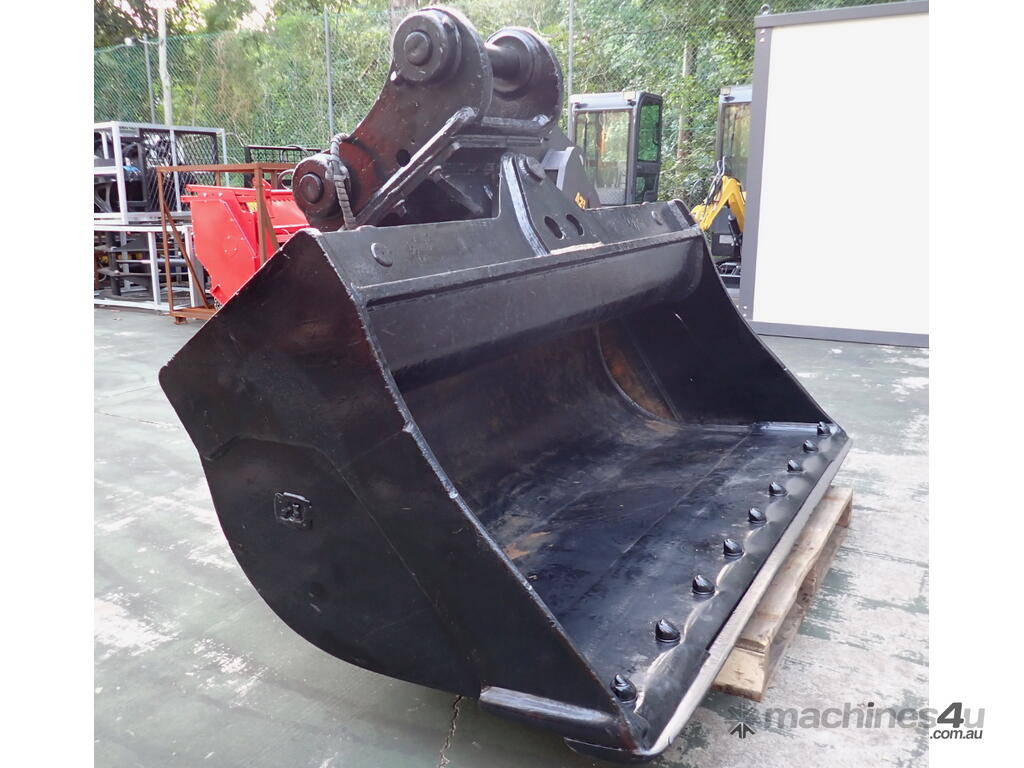

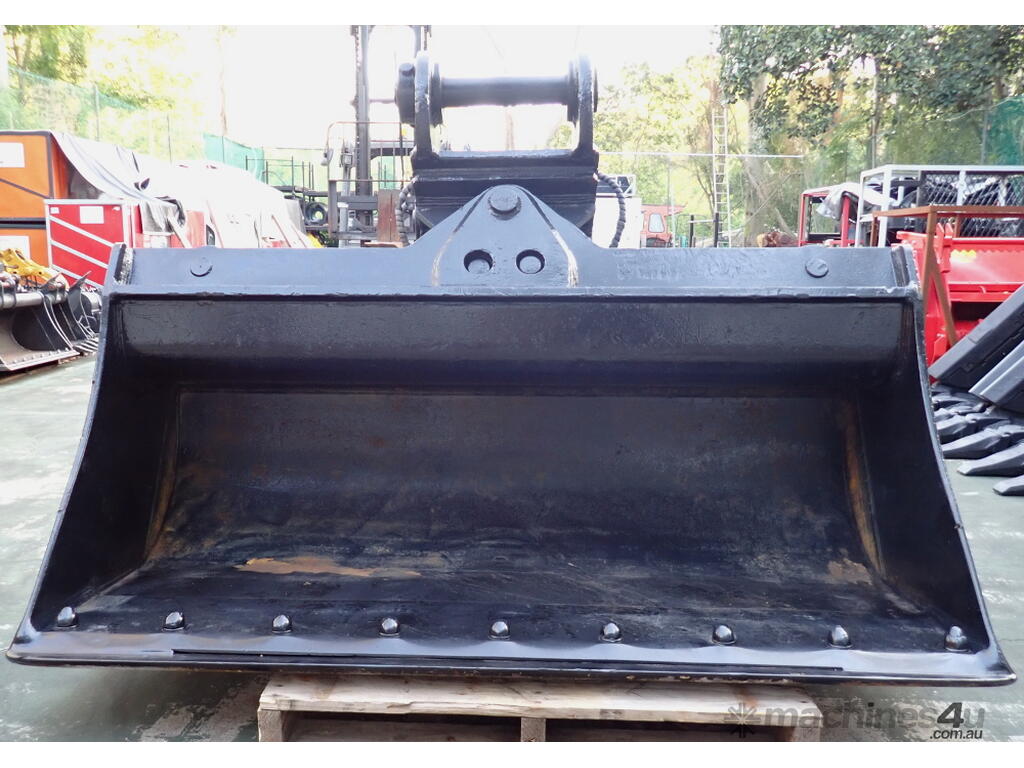

Has a replaceable, bolt-on front cutting edge.

There is also extra wear strips welded underneath for durability.

Condition is used and in great working condition. There is some normal wear on the removable front cutting edge, the bolts that hold it on, and half way up the side cutting edges. Elsewhere the bucket has minimal to no wear at all.

This is a quality built Bucket Made in Australia by JB Attachments (the bucket) and Atlas Heavy Engineering (AHE) (The Headstock) and has plenty of life left.

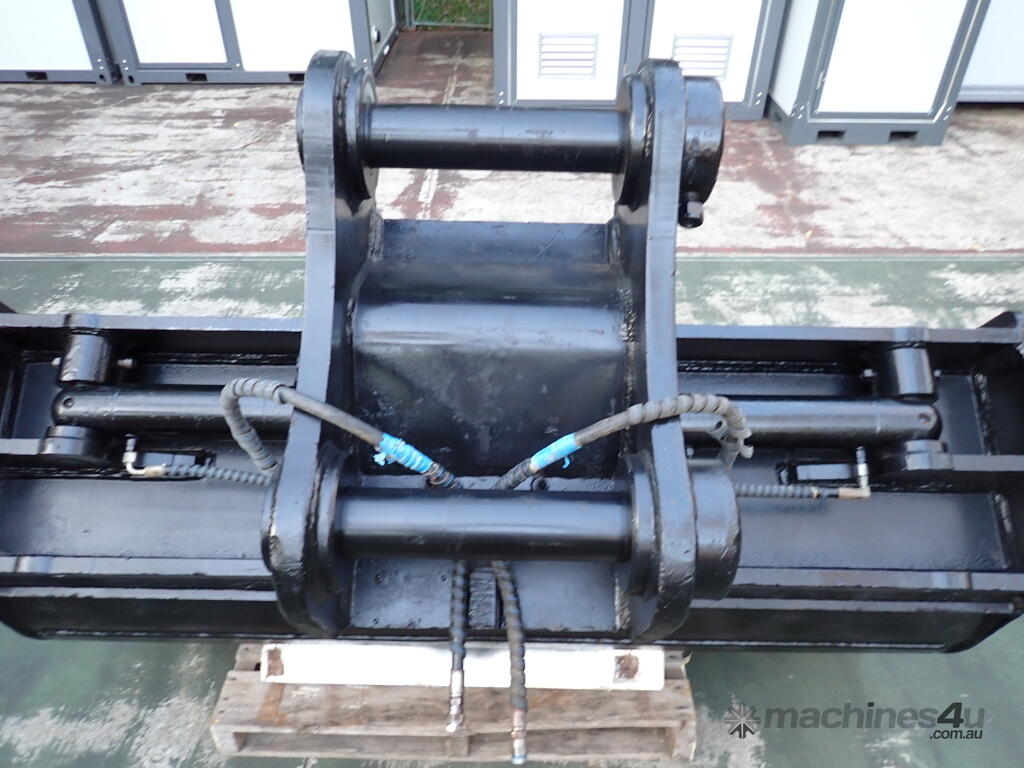

Current Headstock configuration:
90mm Pin Diameter, 540mm Pin Center to Pin Center (CtoC), 350mm Between the inside Ear Bosses (which can be shaved back up to 408mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

Should fit: Case CX330, Caterpillar 235, Halla HE280, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK290LC / SK300 / SK310 / SK330LC / SK350LC, Link-Belt 4300 QUANTUM, Sumitomo SH300.

Maybe fit: Case 9033 / 9050B / CX240 / CX290, Caterpillar 330D w/DB Link, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, JCB JS300 / JS330, Kato HD1430, Kobelco SK220 / SK230 / SK250 / SK250LC / SK260LC-8 / SK320 / SK330, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 330LX, Samsung SE240LC / SE240-3, Sumitomo SH300-3 / SH300LC-3 / SH330-5 / SH350HD-3, Volvo EC240 / EC240B / EC240C / EC250D / MX255LS / SE240LC-3 and possibly other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).

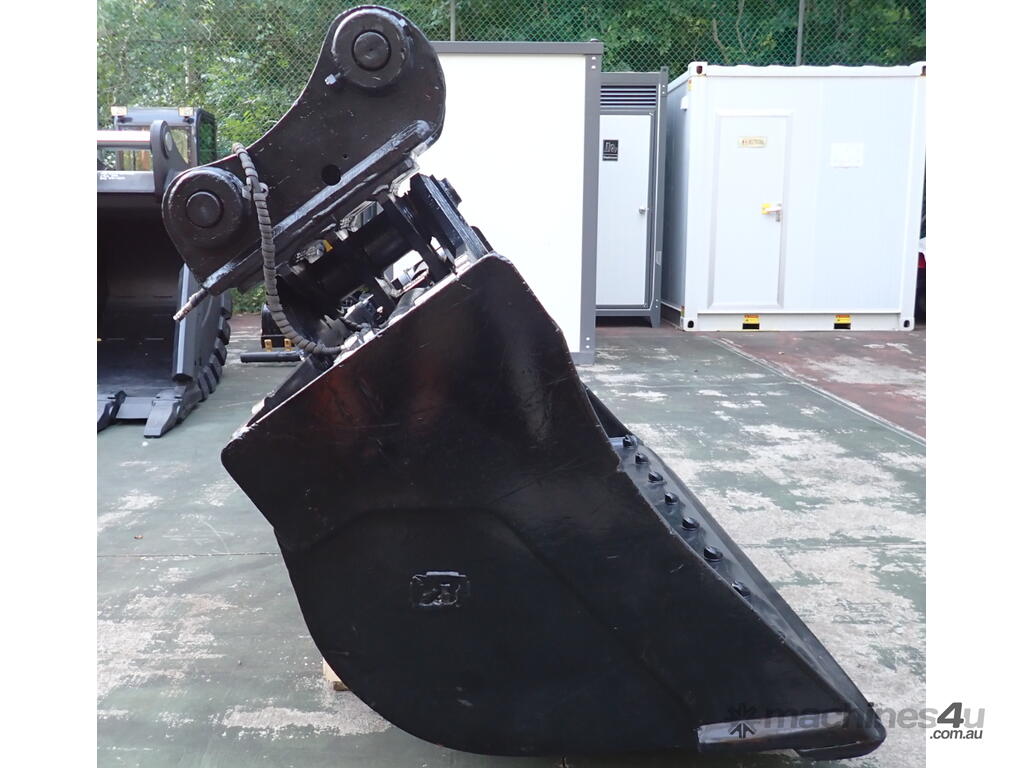

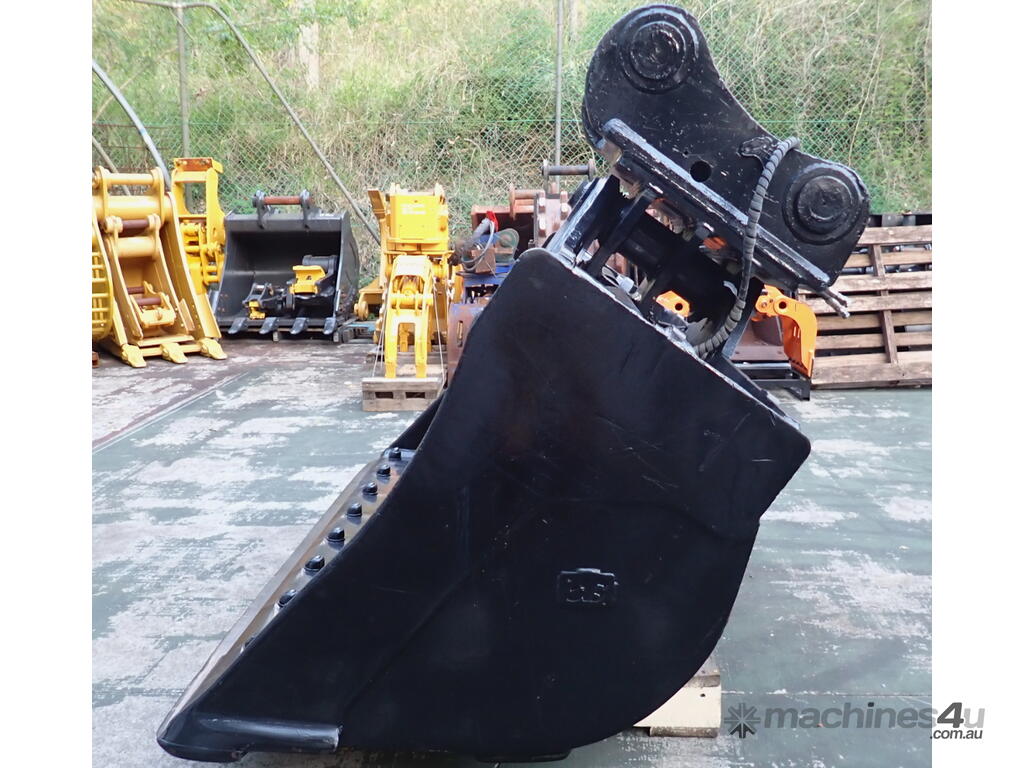

Dimensions (as sitting in pics): 2190mm Wide, 1530mm Deep, 1455mm High. Weight: 2,052kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
