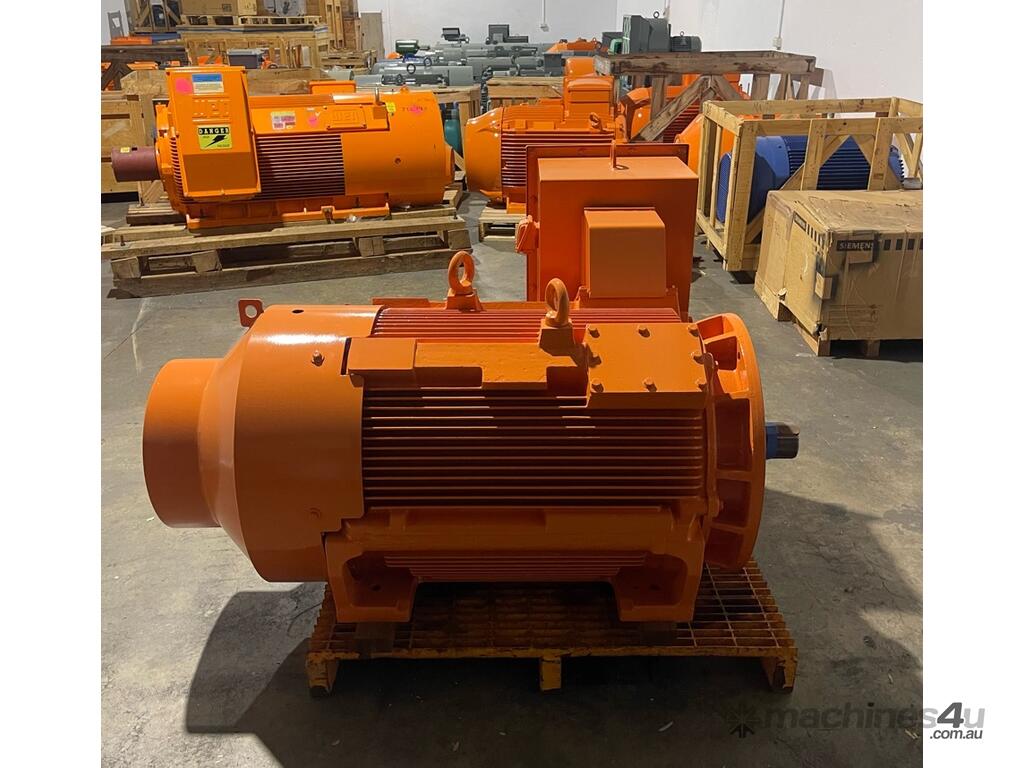

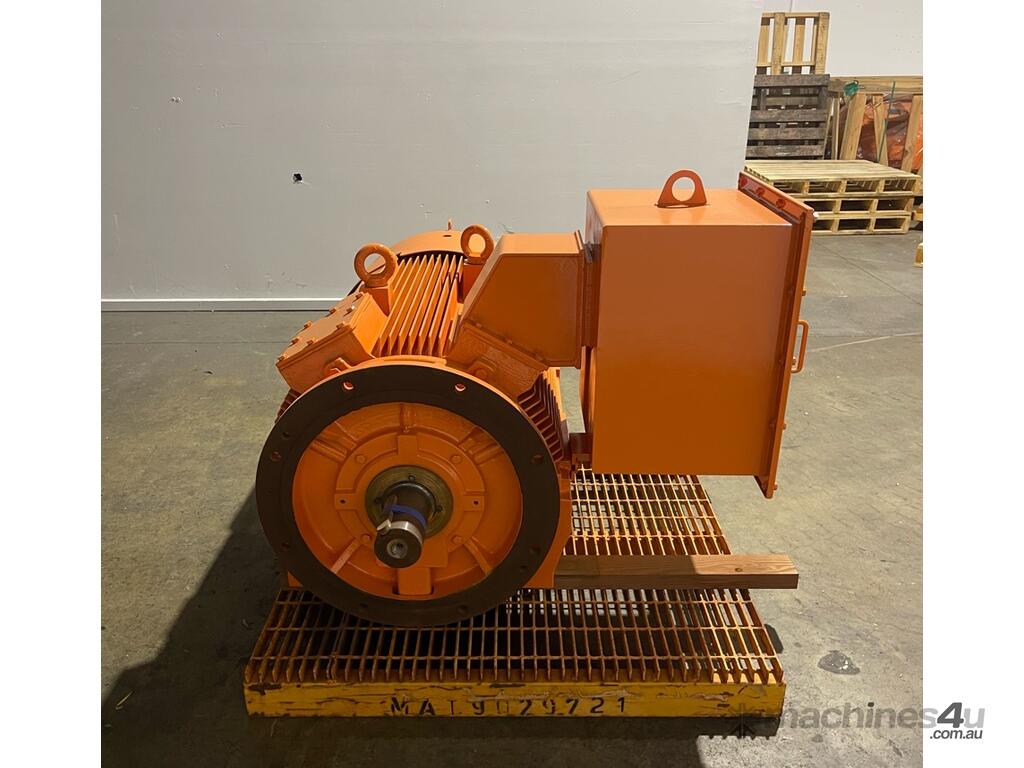

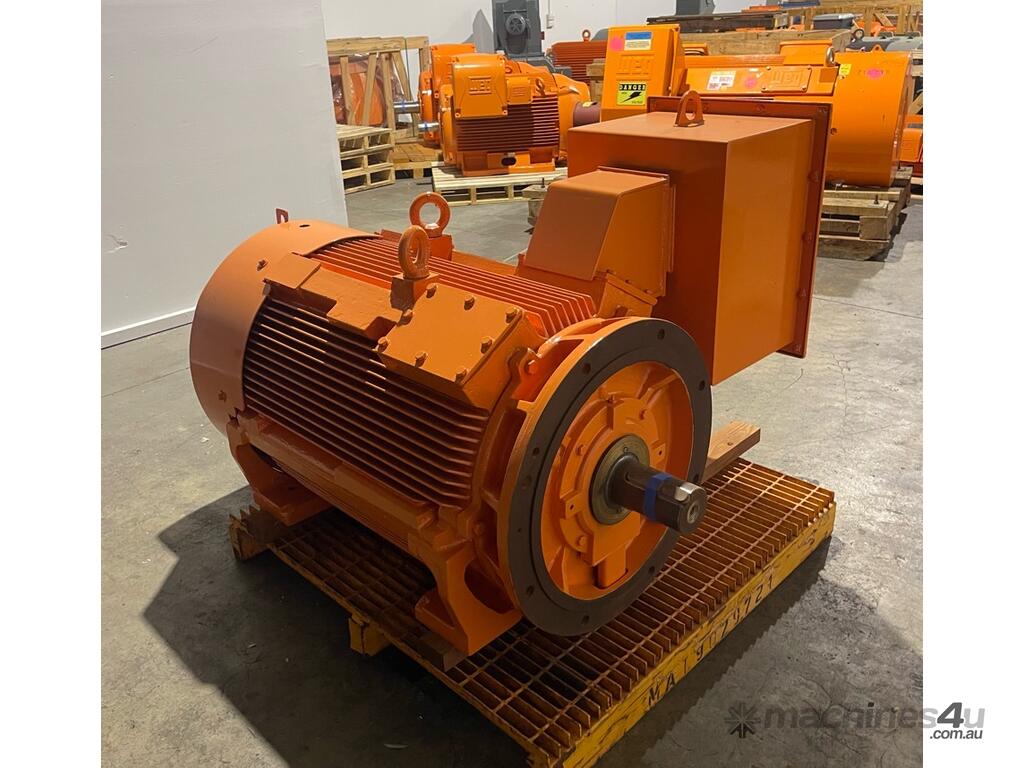

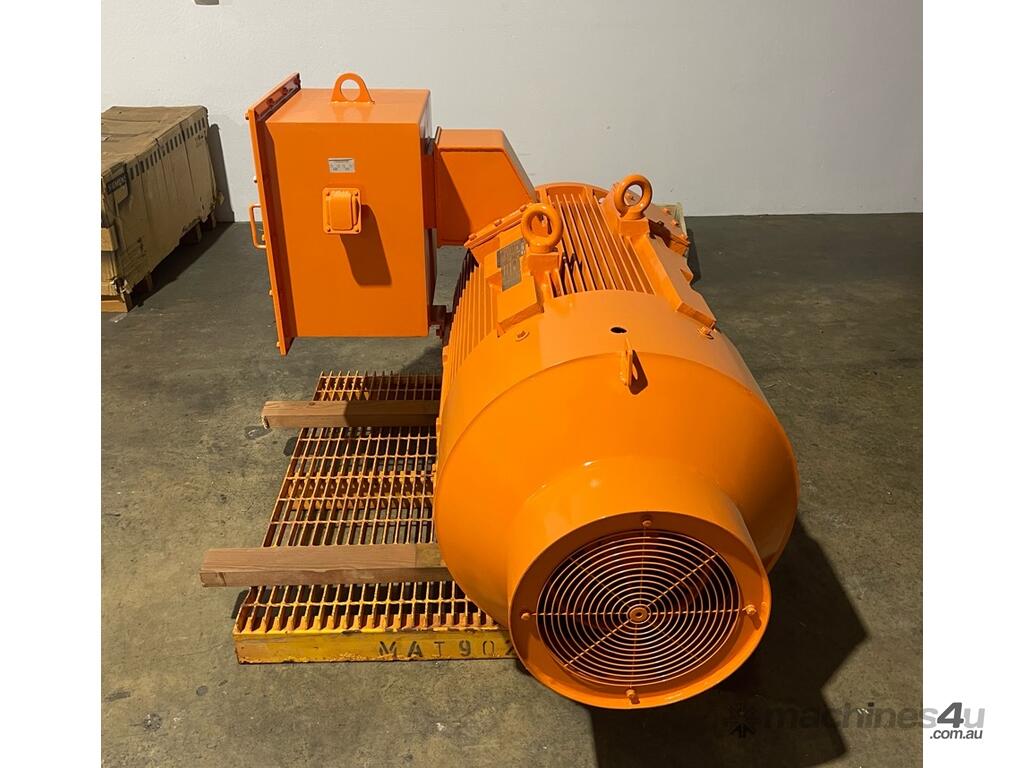

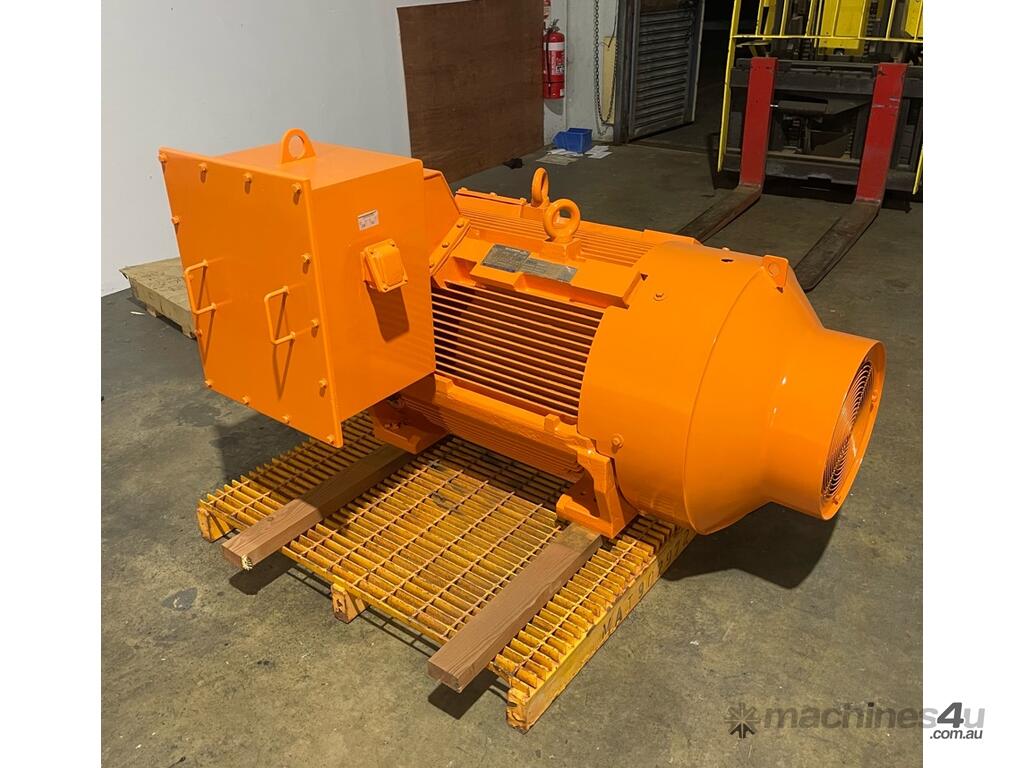

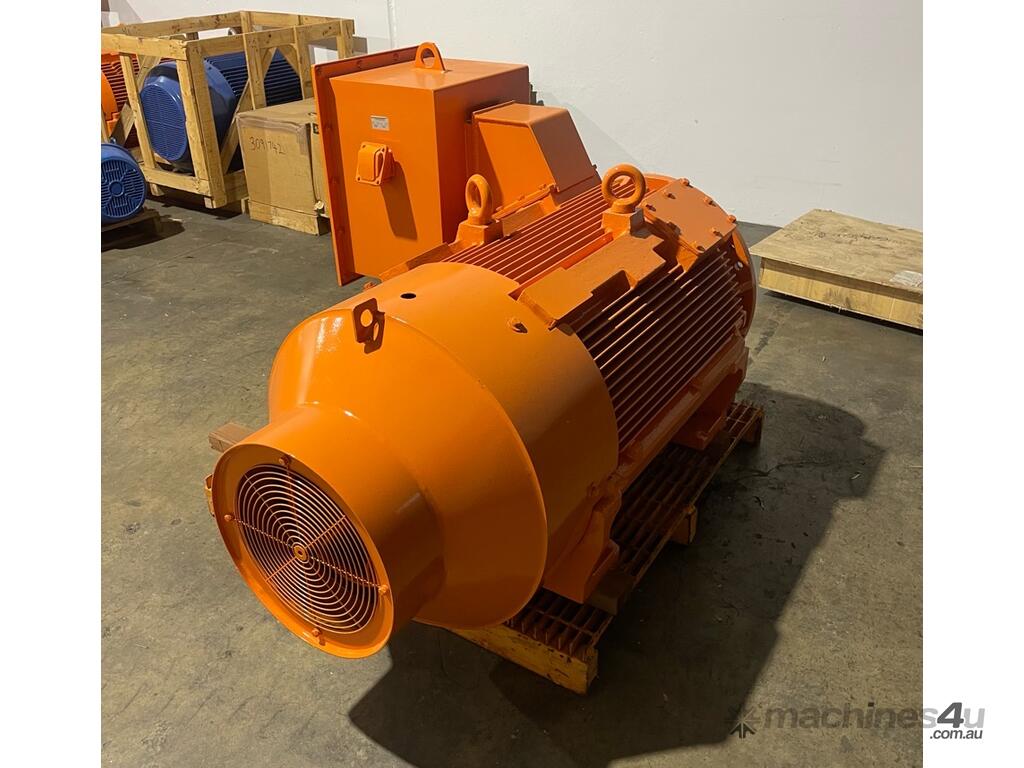

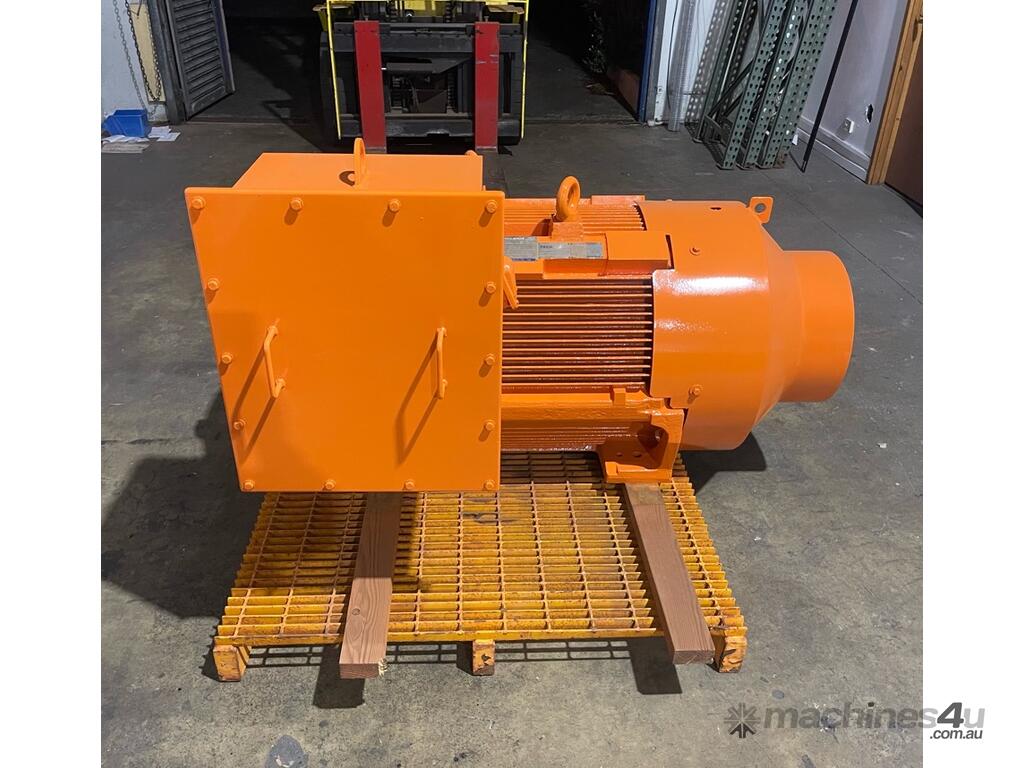

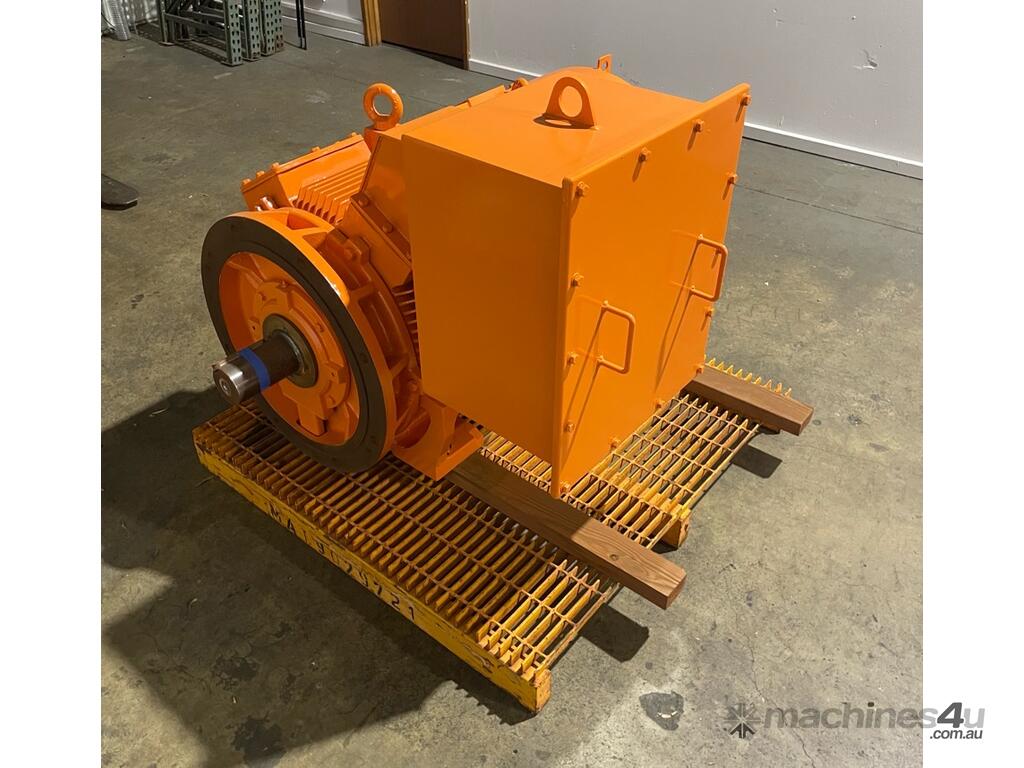

220 kw 300 hp 4-pole 1491 rpm 415 volt B35 Foot & Flange IP66 Mining AC Electric Motor TECO Type AFJE-MC Unused YOM 2019
Category: AC Squirrel Cage Electric Motor
3-phase induction motor

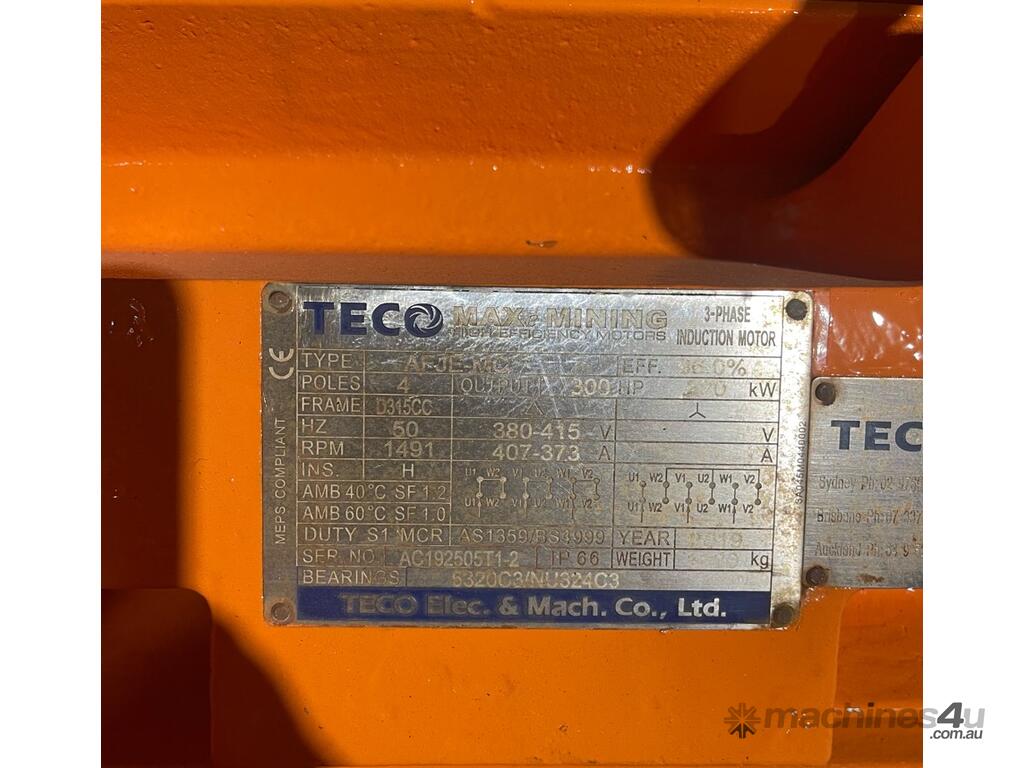

Make: TECO
Type: AFJE-MC D315CC
YOM: 2019
Power: 220 KW (300 HP)
Speed: 4-Pole (1491 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 373 A
Mount: B35 Foot & Flange
Frame: D315CC
Weight: 1580 kg
Protection rating: IP66 Mining
Insulation Class: H
Notes: Includes drive-end Roller Bearing (for belt-driven application)
Centre Shaft height: 315 mm
Shaft DIA: 95 mm (by 210 mm Long)
Total Length: 1681 mm (incl. shaft)
Total Width: 1211 mm (incl. standard RHS to D.E. terminal box)
Total Height: 1042 mm
Feet Measurements;
- Across 'A' - 508 mm
- Front to Back 'B' - 710 mm
- Front hole to shaft 'C' - 216 mm
Available QTY: 1
Condition: YOM 2019 unused. Decommissioned critical spare. N/L test run in motor workshop. Warehouse Storage
Delivery Point: exStock Seaford VIC 3198 Australia
Supply: Available for immediate despatch - Freight services available on request
