220 kw 300 hp 6-pole 985 rpm 415 volt Foot Mount 315CB frame AC Squirrel cage Electric Motor for VSD TECO Type AEJE-WT 315CB New Unused YOM 2024
Category: AC Squirrel Cage Electric Motor

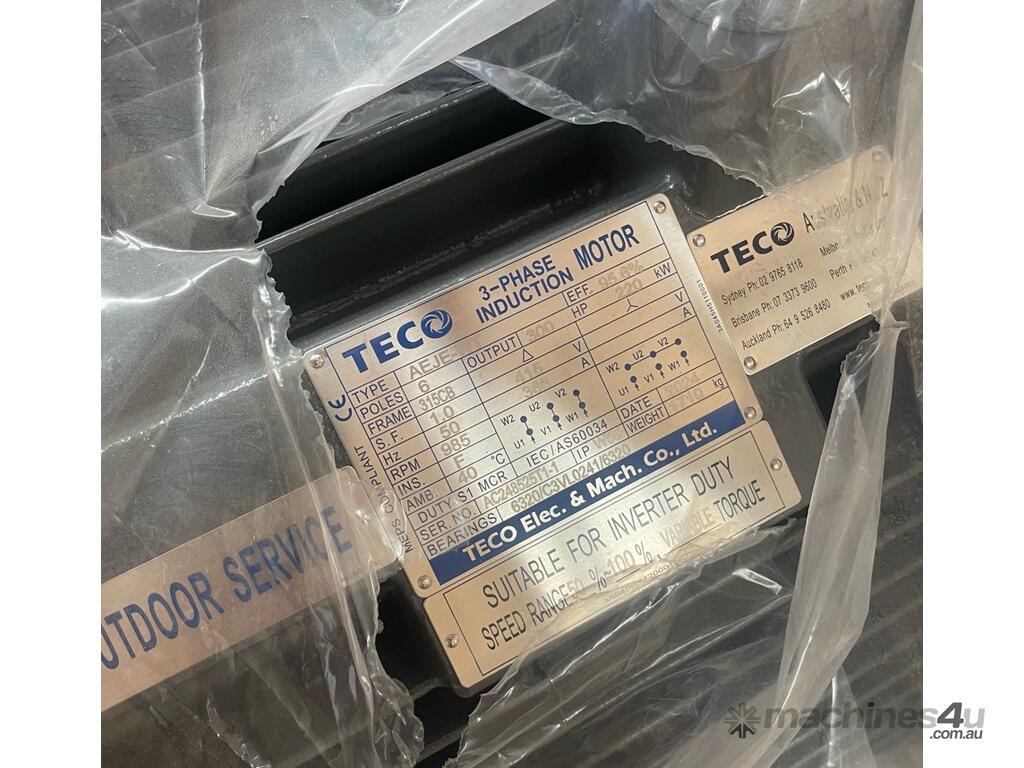

3-phase induction motor
Make: TECO
Type: AEJE-WT
Power: 220 KW (300 HP)
Speed: 6-Pole (985 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415v
Full Load Amperage: 366 A
Mount: B3 Foot
Frame: 315CB
Weight: 1710 kg
Notes: Set up for VSD use (NDE Insulated Bearing, plus Carbon Brush fitted to shaft)
Critical DIMS:
Shaft DIA: 95mm
Shaft Length: 170mm
Centre shaft height: 315 mm
Total Length: 1681 mm (incl. shaft)
Total Width: 1211 mm (incl. standard RHS to D.E. terminal box)
Total Height: 1042 mm
Feet Measurements: Across 'A' - 508 mm, Front to Back 'B' - 710 mm
Available QTY: 1

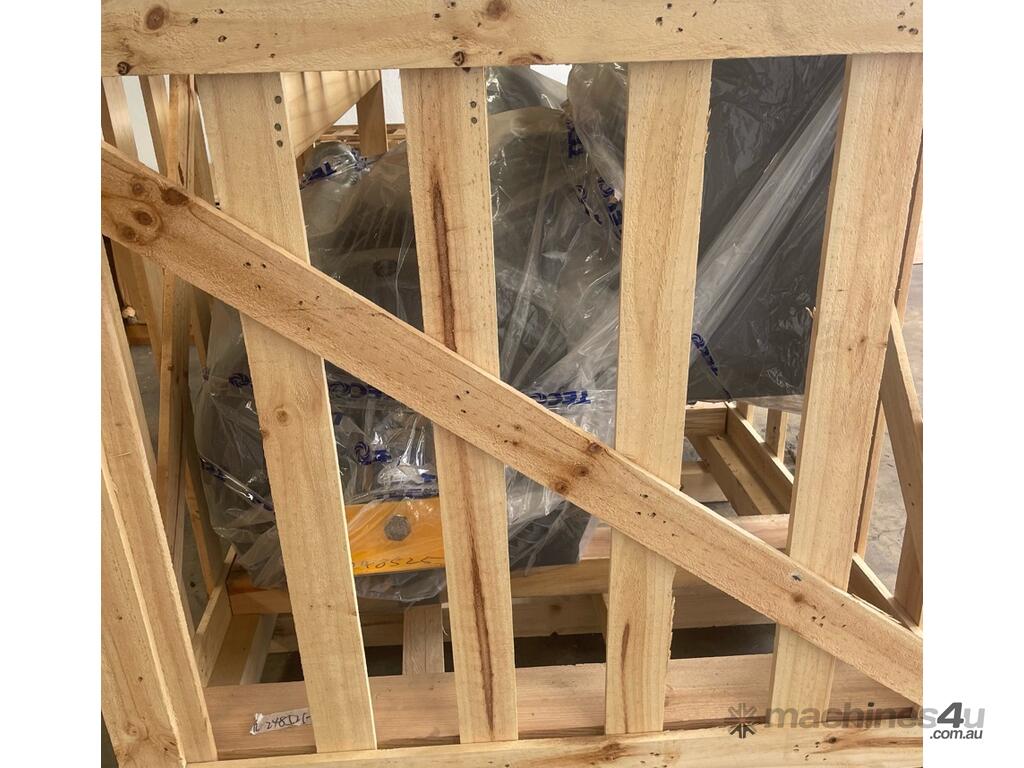

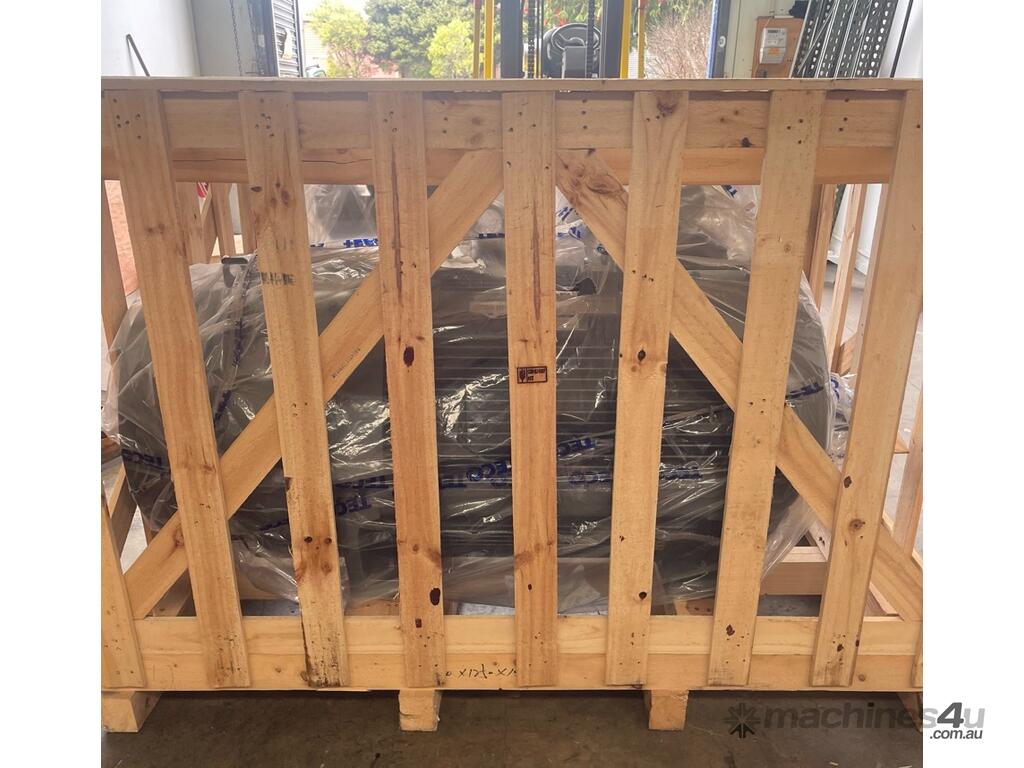

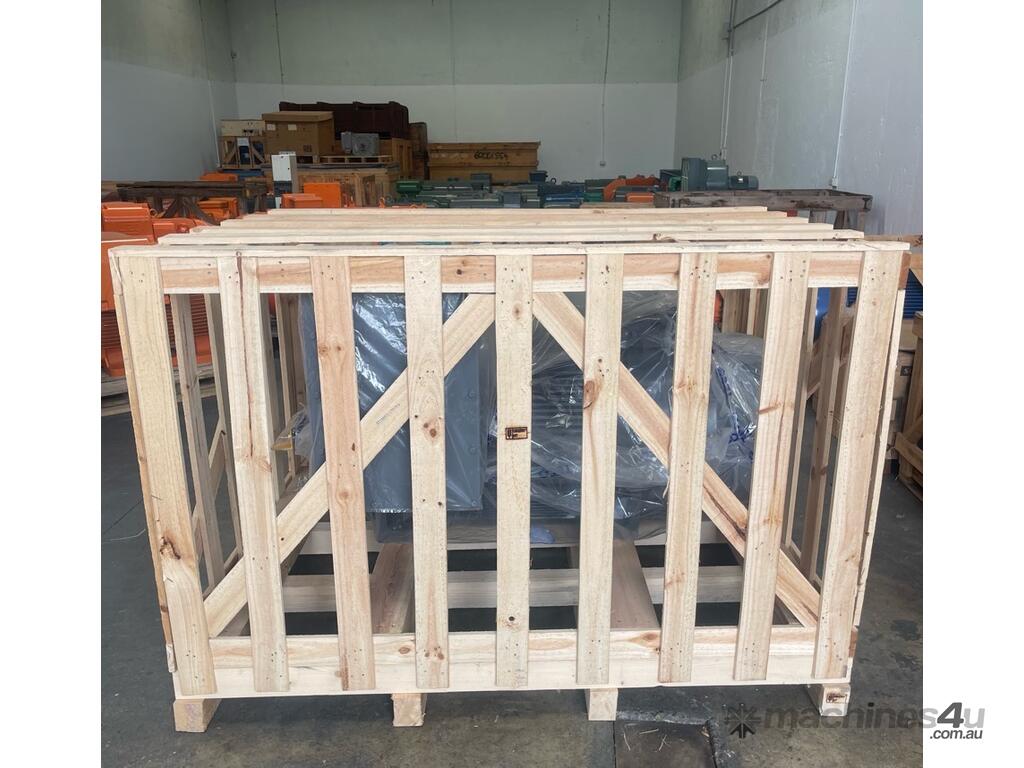

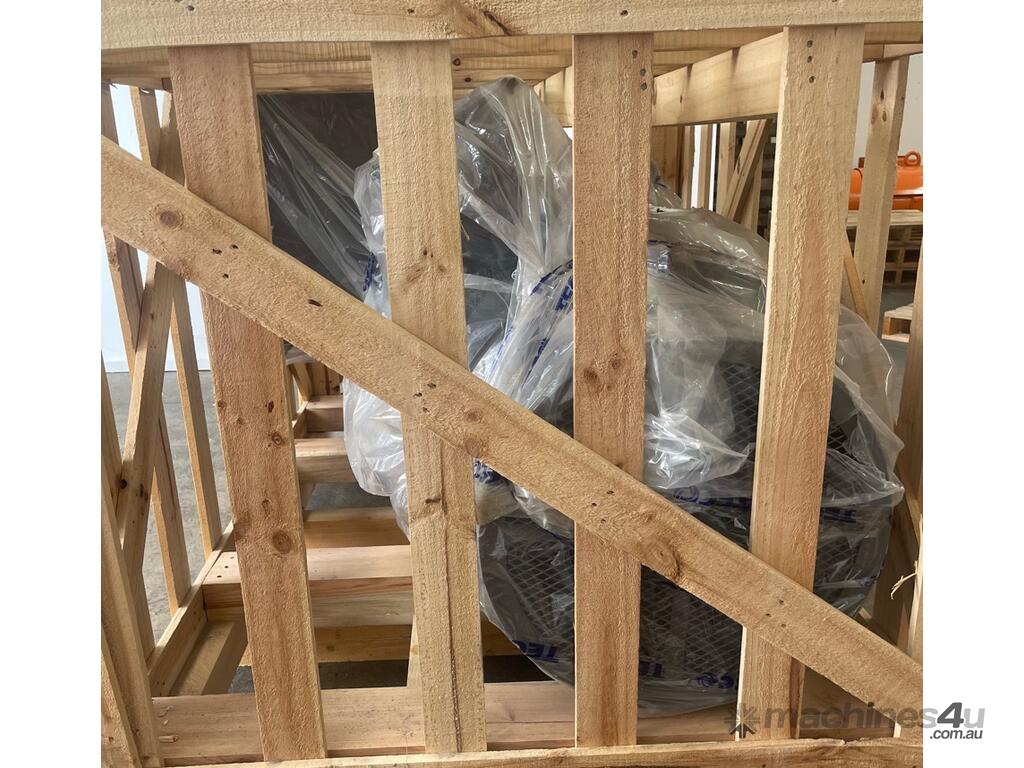

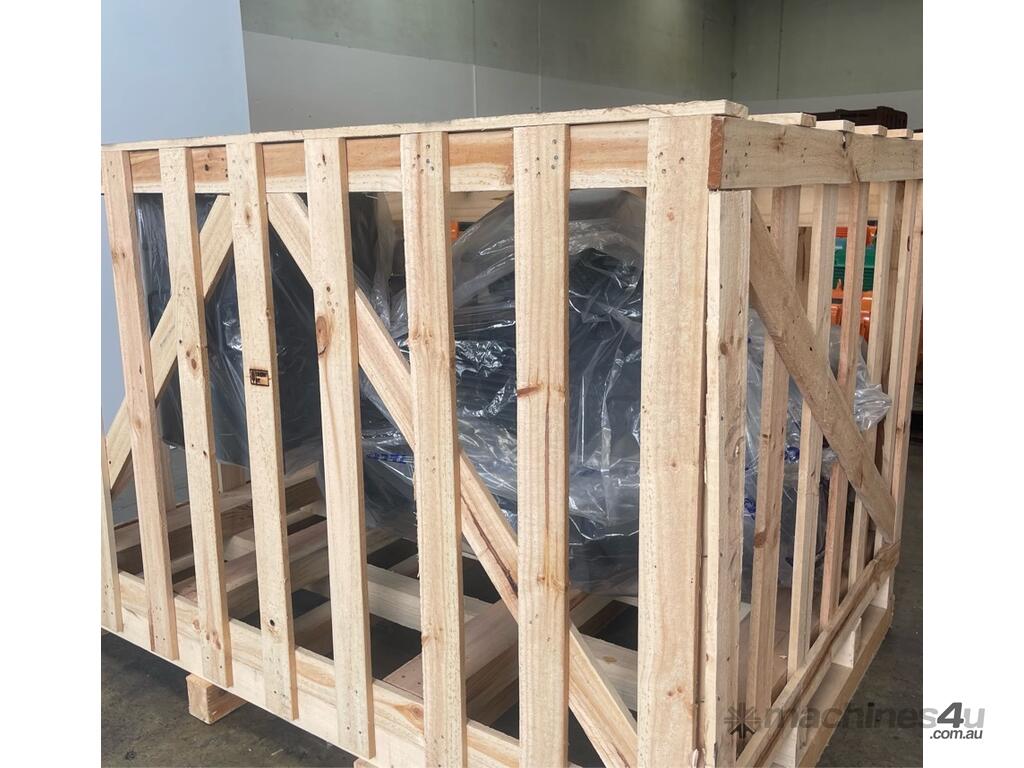

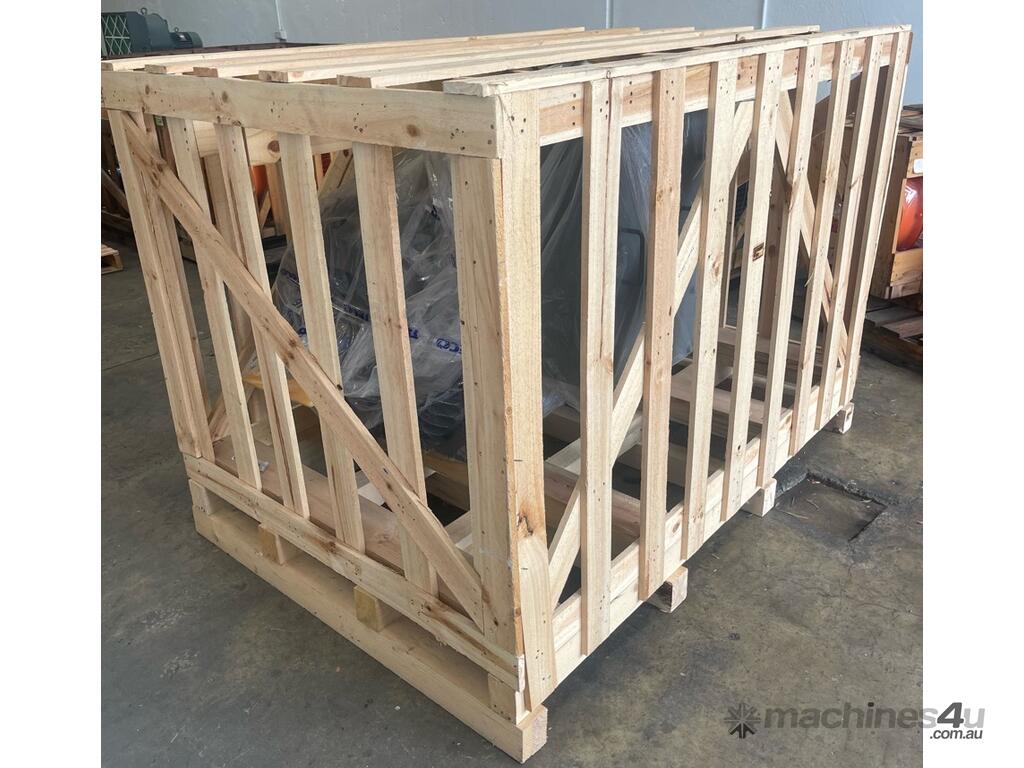

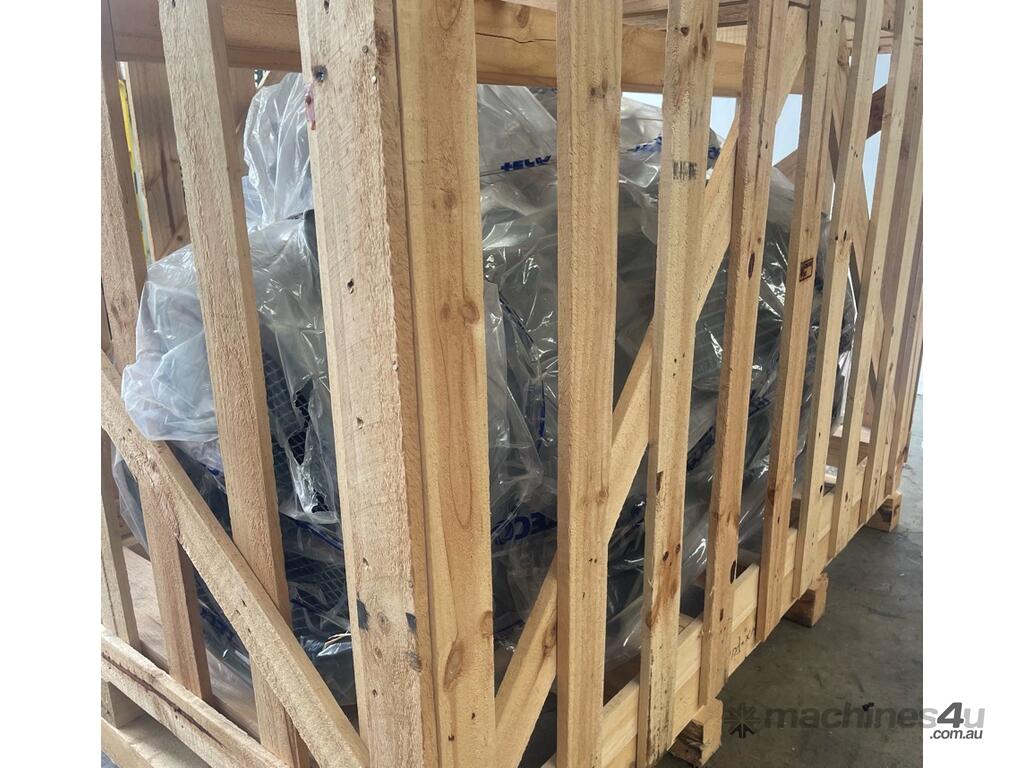

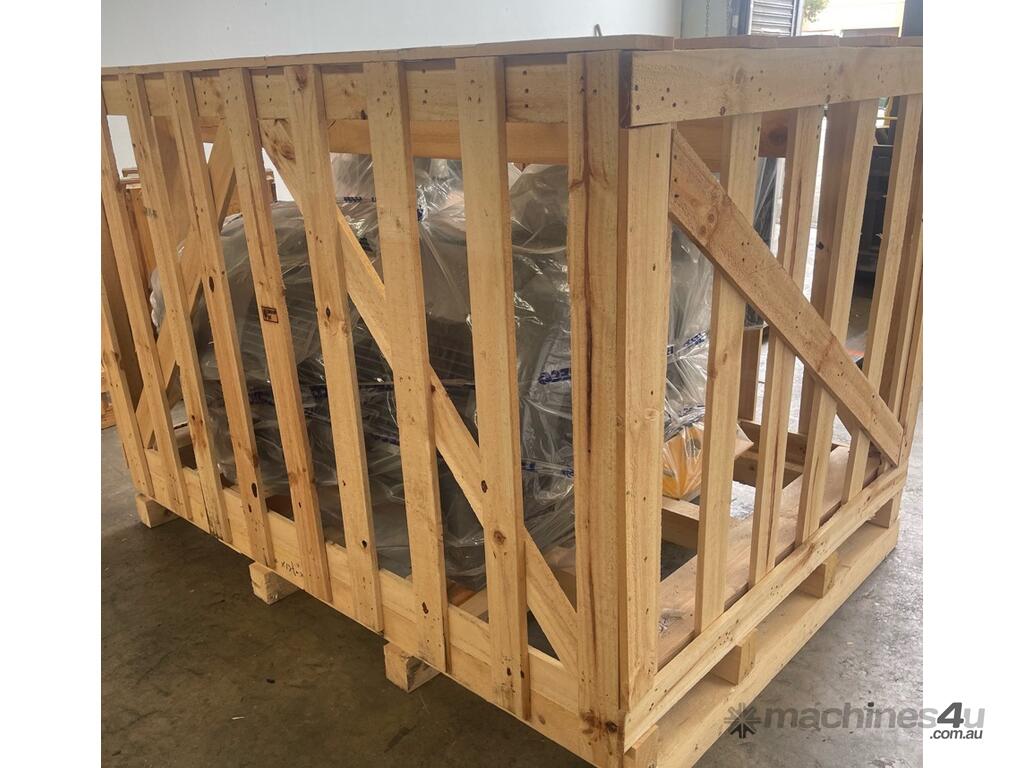

Condition: New/Unused in Crate YOM 2024
Delivery Point: exStock Seaford VIC 3198 Australia
Available for immediate despatch - Freight services available Australia Wide on request
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
