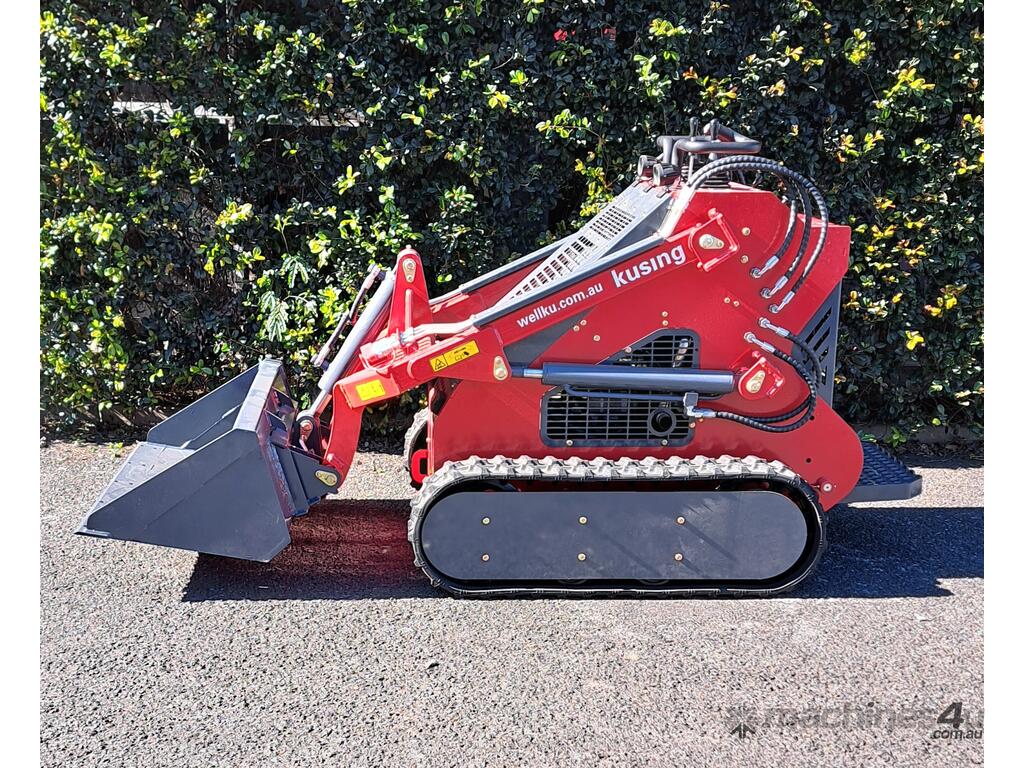

23HP Mini Track Loader

Whether you need to dig, dump, or carry the LXHY-380 mini track loader is compact unit with a large load capacity bucket as standard. You can operate it by one person and where space is limited, and its selection of optional attachments like Excavator Toothed Bucket, Trencher, Mower, Auger, Rock Breaker, Adjustable Width Fork allows it to complete more tasks with one machine reducing your costs.

The LXHY-380 can meet a variety of work scenarios, and you only need to use the quick-change device to replace the attachments. The LXHY-380 is designed to operate in temperatures typically encountered in the earthmoving and construction work environment.

Machine Load Capacity :400 Kg
Speed: 0-4 km/hr
Engine : B&S 3864 V-Twin ,
Max Power:18.2KW/3600RPM
Max Torque:45.5N.M/2800RPM
Engine Fuel: Petrol
Fuel Tank Volume :30 L
Starter: Key start
Battery:12v 36Ah Maintenance Free
Air Filter: B&S comes with it
Hydraulic Valve : HC Control Valve
Hydraulic Pump: G5 Pump 21.6 L/min, 18 MPa/3000rpm
Hydraulic Oil Tank : 30 L
Hydraulic Oil Cooler: Standard
Hydraulic Connections: Spanish brand Flat Faced G1/2, G3/8 Quick Connects?can choose Italian DNP brand, need +?200?
Tracks :Heavy Duty Rubber Construction
Machine Weight: ~880 kg

Max working height 2100 mm 82.7inch
Max pin height 1880 mm 74.01 inch
Max Dumping height 1480mm 58.26 inch
Max Dumping distance 430 mm 16.92 inch
Max Dumping Angle 30°
Rollback of bucket on ground 25°
Departure angle 27°
Total height 1270mm 50 inch
Ground clearance 110 mm 4.33inch
Wheel base 760 mm 29.92inch
Overall length without bucket 1782mm 70.15 inch
Total width 810mm 31.88inch
Bucket width 1090 mm 42.91 inch
Total length with bucket 2285 mm 89.96 inch
Turn radius forward turning 1300 mm 51.18inch

Engine. Briggs & Stratton V Twin
Rated Power (KW) 18.2KW(23HP)
Rotating speed (rpm) 3600
Noise (Db) 95
Hydraulic System
Pressure (Mpa) 17
Working Time (s)
Raise 4
Dump 1.3
Lower 3.2
Operating Load 280 Kg 617 Lb
Bucket Capacity 0.13 m³ 4.59 ft³
Max Lifting Force 458Kg 1009Lb
Travel Speed 0-5.5Km/h 3.5 mlie/h
Operating Weight 880 Kg 1940 Lb

12 MONTHS WARRANTY
