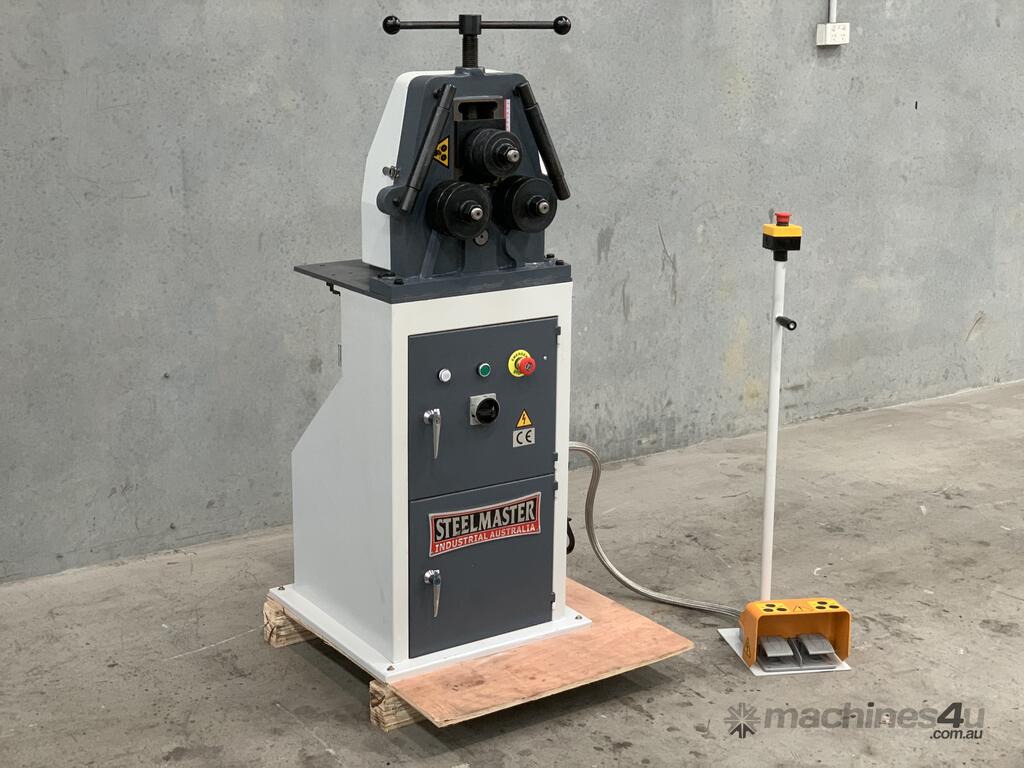

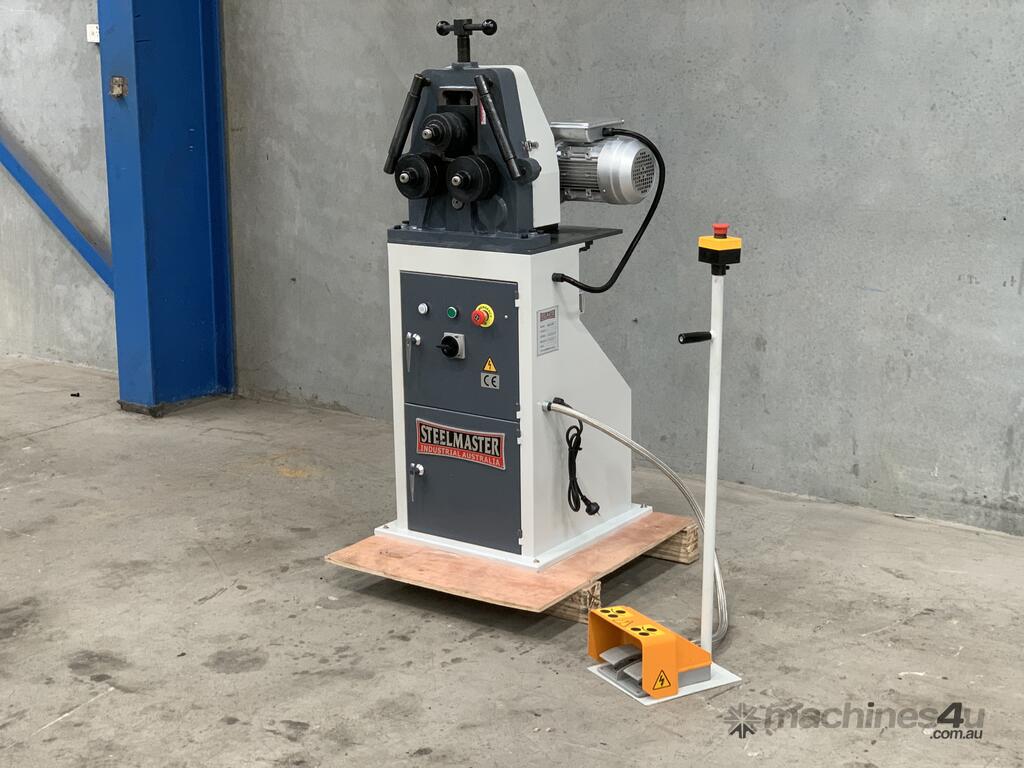

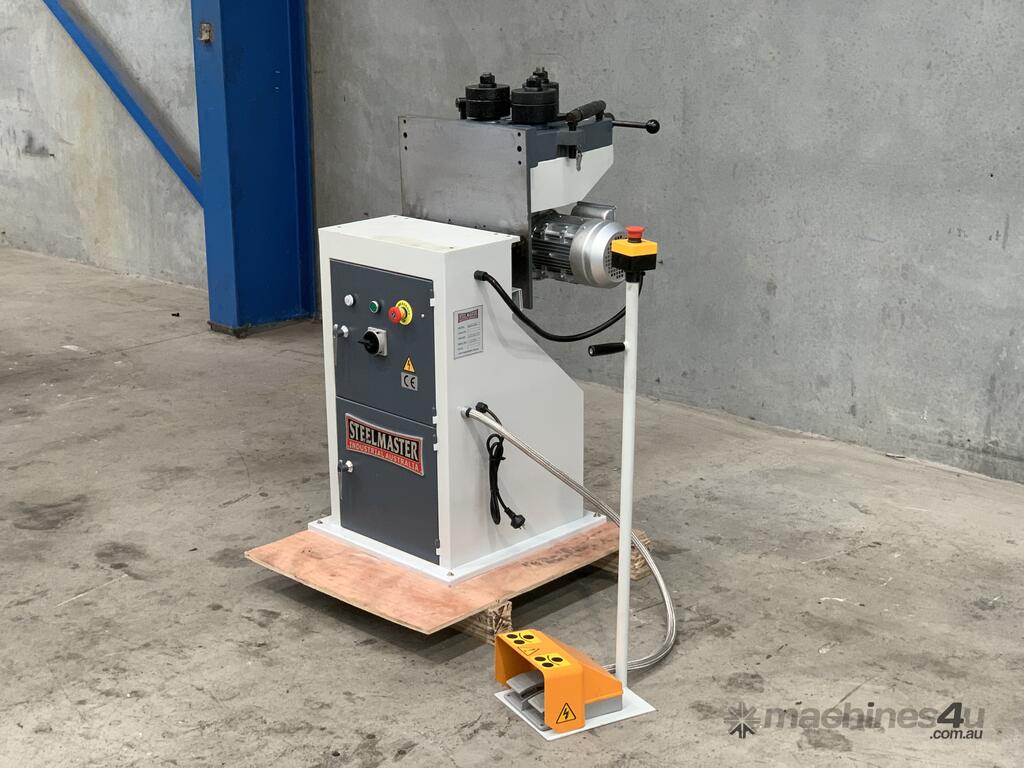

240Volt Powered Section Roller - Vertical Horizontal Operation - Heavy Duty Build

Description
This European designed section - ring roller will partner you through all your rolling applications.

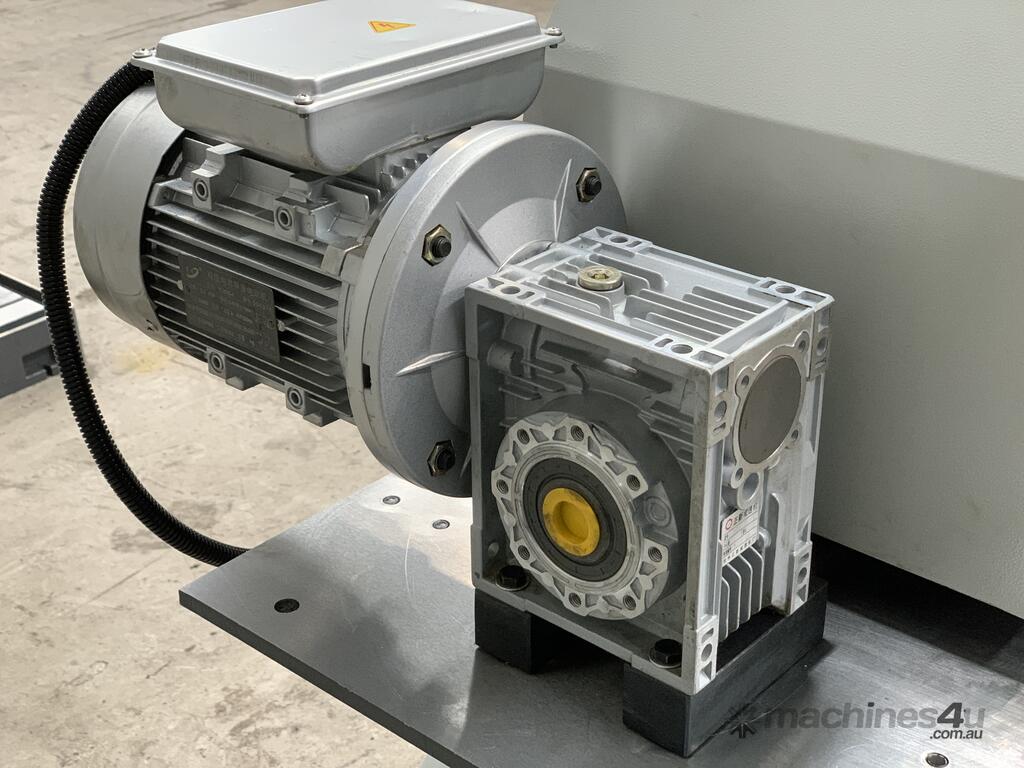

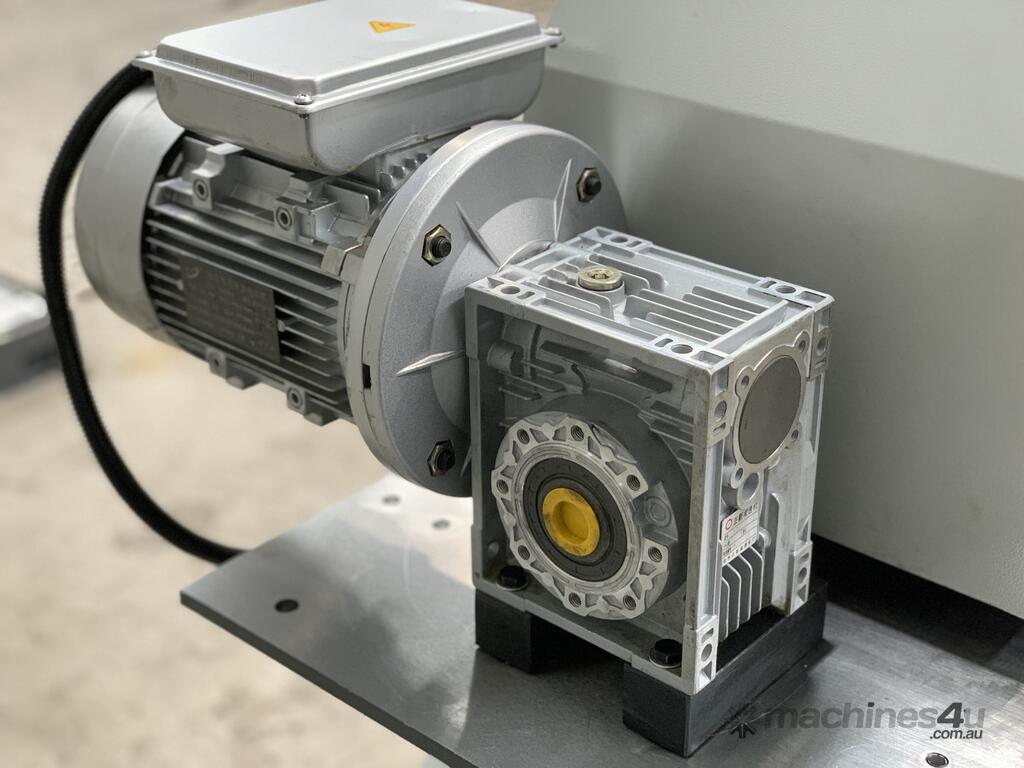

240V powered operation. complete with stand, this handy roller is also fantastic value for its price.

Features
?heavy duty steel fabricated fame
?manual adjustment of top roller
?side supports on all models
?calibrated scale for roller adjustment
?one piece guiding mono block mounted on cross head

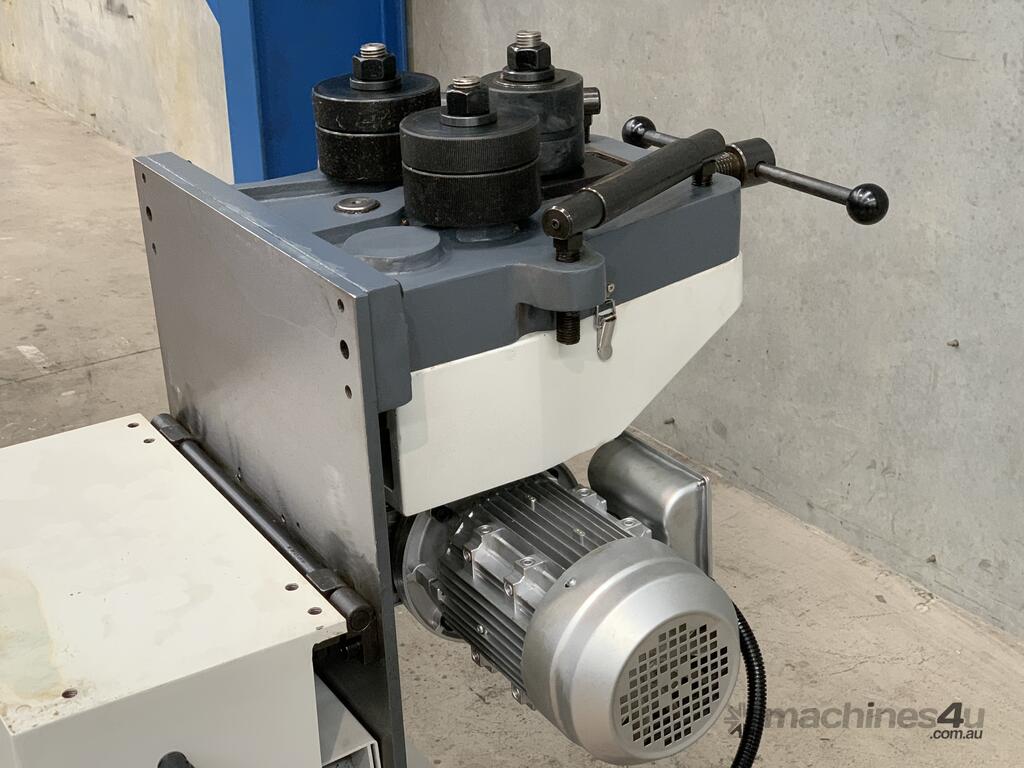

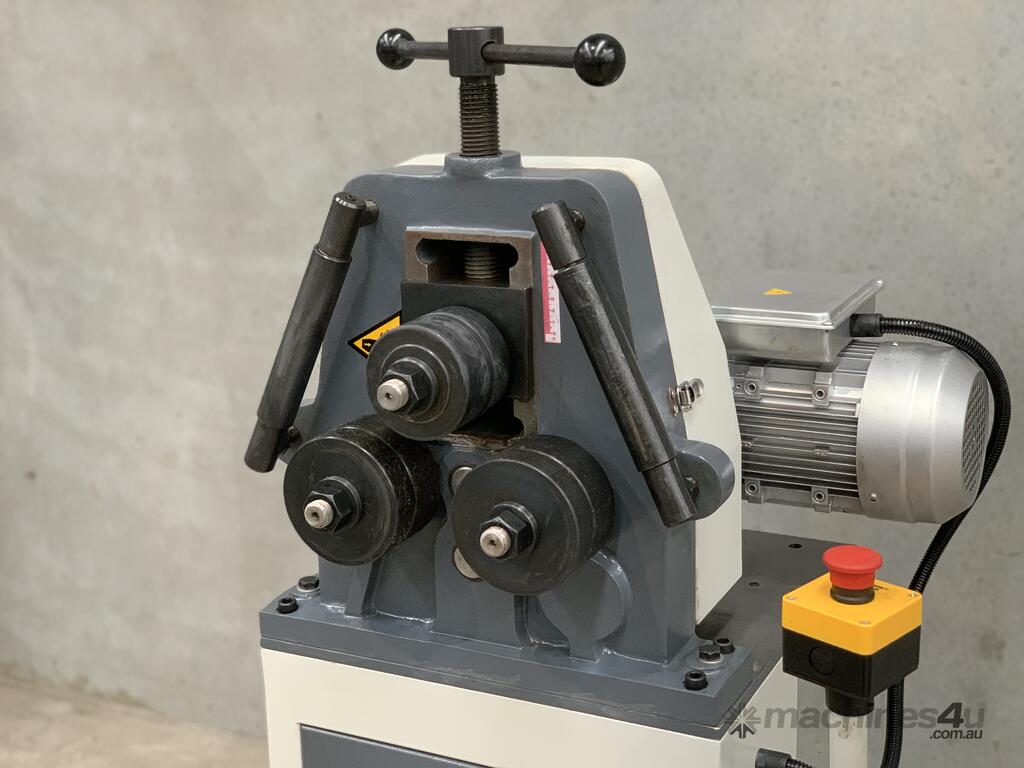

?powered hardened 98mm top & 118mm bottom rolls
?standard flat & angle rolls are included
?bottom rolls are knurled for additional grip on material
?additional dies are required to roll round bar, round pipe/tube & square tube
?CE compliant

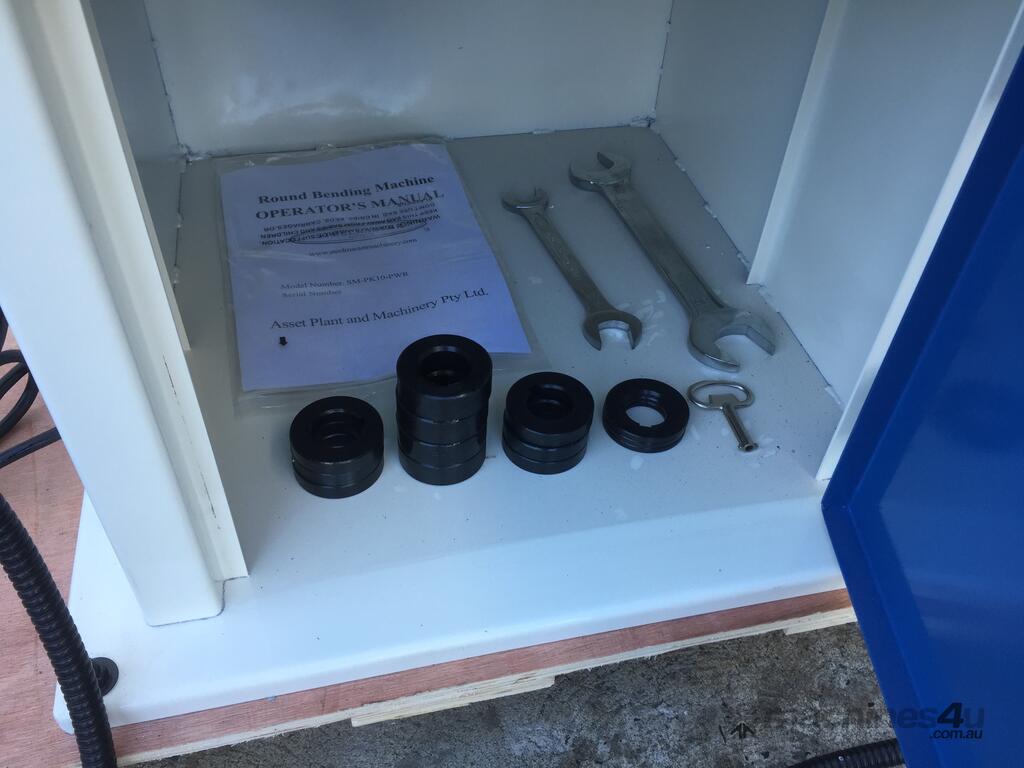

Includes
standard section rollers and spacers

Technical data
pipe capacity – 30mm / min. dia.– 700mm
tube capacity – 32mm x 2mm / min. dia.– 800mm
angle iron capacity – 30mm / min. dia.– 760mm
solid capacity – 20mm / min. dia.– 500mm
flat bar (easy way) – 50mm / min. dia.– 300mm
flat bar (easy way) – 19mm / min. dia.– 400mm
top roll diameter - 98mm
bottom roll diameter – 115mm
dimensions - 600mm x 600mm x 1750mm
weight - 230kg

Optional Round Tooling
?23+00069 – 19mm Round Set 3 Hardened Formers
?23+00070 – 20mm Round Set 3 Hardened Formers
?23+00071 – 25.4mm Round Set 3 Hardened Formers
?23+00072 – 26.9mm Round Set 3 Hardened Formers
?23+00073 – 38.1mm Round Set 3 Hardened Formers


Search Asset Plant on the web.
Steelmaster Metalworking Manual Section – Ring Rolling Machine.
When looking for a quality Metalworking Ring / Section Rolling Machine, look no further than Steelmaster Industrial. Steelmaster Industrial’s Metalworking Ring / Section Rolling Machines offer the Sheetmetal worker a very high quality machine with superb features and tight tolerances at reasonable prices. Steelmaster carries over 4 models of Metalworking Ring / Section Rolling Machines in stock at all times for quick shipments. Steelmaster Industrial’s ever growing line of Metalworking Ring / Section Rolling Machine consists of manual & motorized, along with a large range of accessories. Depending on your needs we have the model for you, starting with our cost effective manual machine to our large motorized models.

Manual Metalworking Ring / Section Rolling Machine
With several models to choose from our manually operated SM-PK10 gives the best “bang for the buck” of any of the Steelmaster Metalworking Ring / Section Rolling Machines. This model comes standard with one set of multipurpose rollers suitable for flat bar, rod and general rolling. Also fitted are adjustable side support guides, metric calibrated measuring guide for the top roller and a sturdy well built cabinet. With a heavy duty quality cast frame – this is no toy weighing in at 185Kg it bats up great with the heavy weights!

Motorized Metalworking Ring / Section Rolling Machine

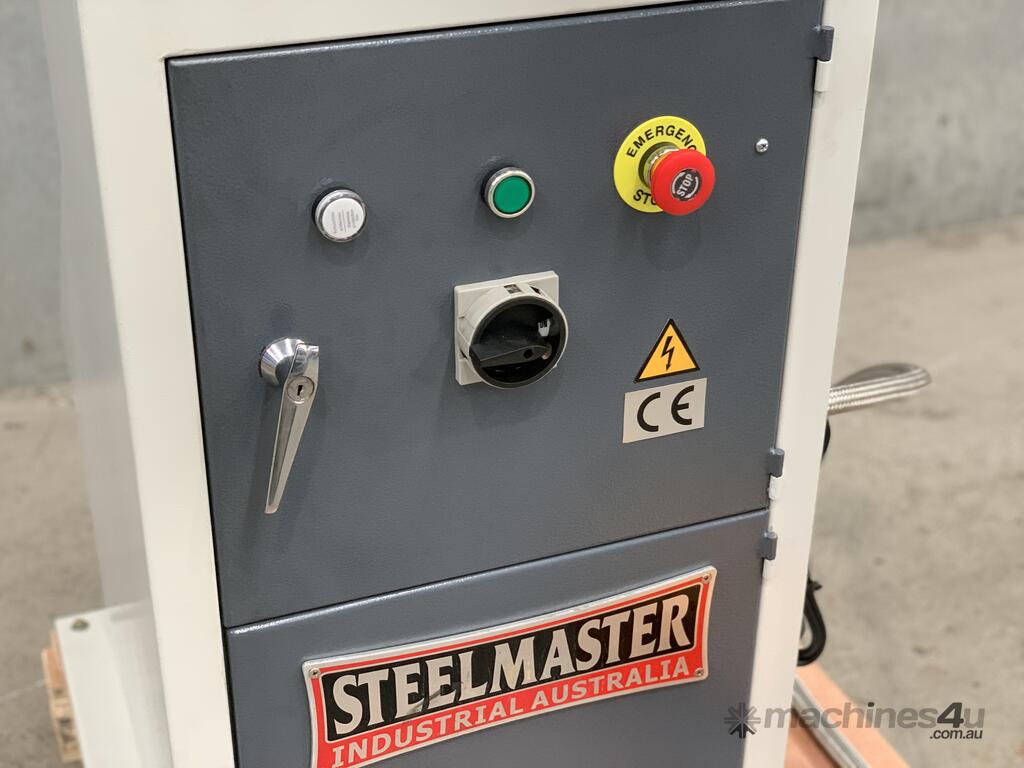

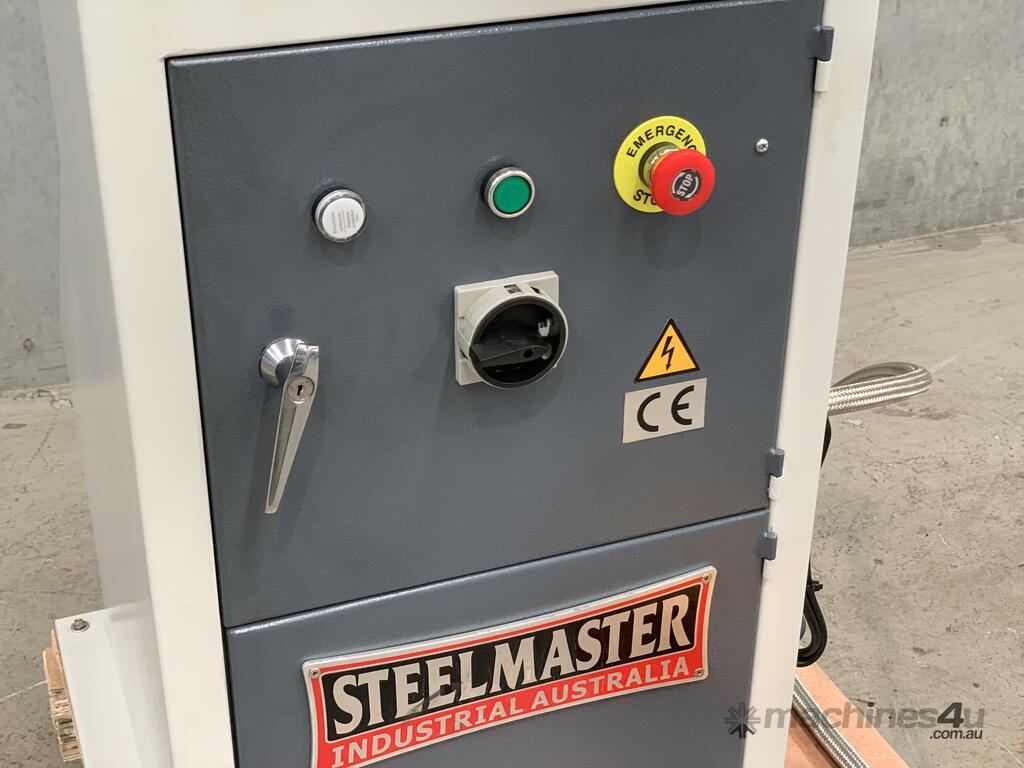

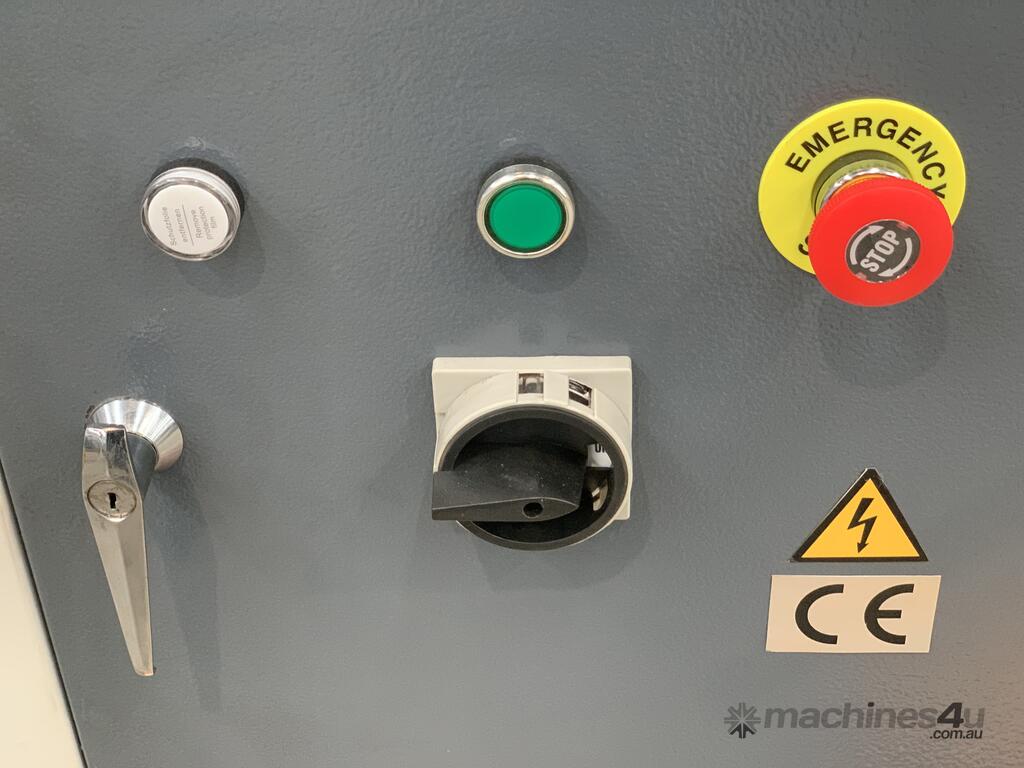

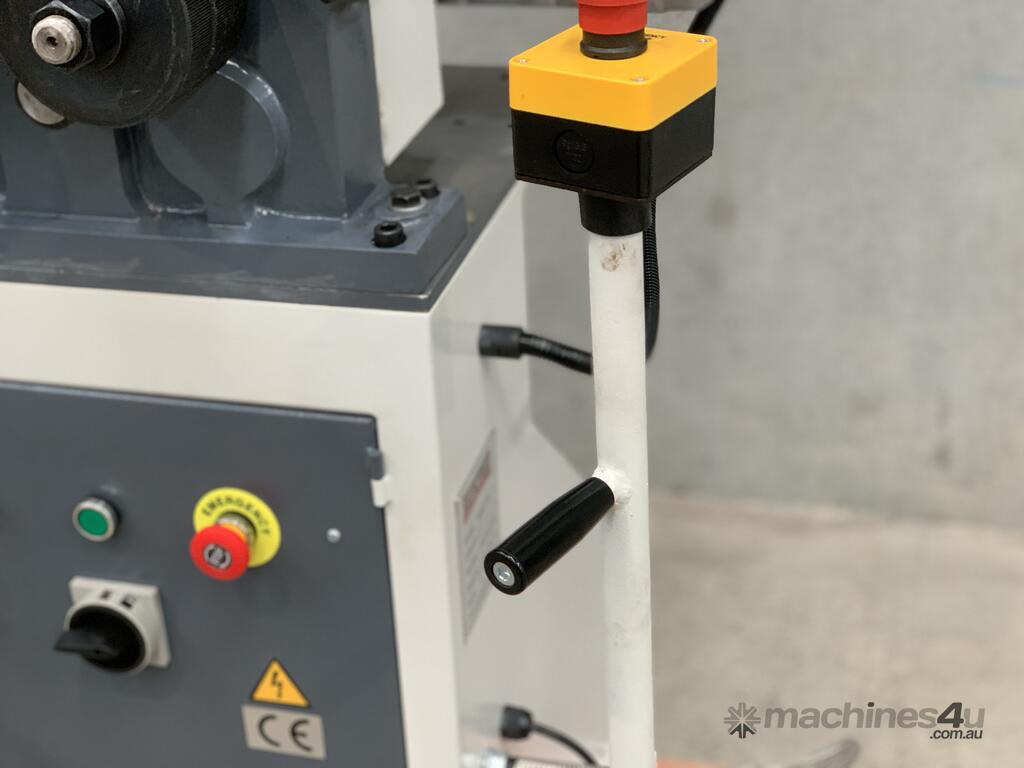

Steelmaster Industrial offer one of the best selections of Metalworking Ring / Section Rolling Machines around. From our motorized SM-SR76 to our heavy duty SM-PK50 offering both vertical and horizontal operation. Our Metalworking Ring / Section Rolling Machines have been fitted up to offer you the best selection of features and come standard with safety e stops to ensure all round safe operation.


MAKE YOUR NEXT PURCHASE AN ``ASSET`` TO YOUR COMPANY!
Please contact us for more information.
