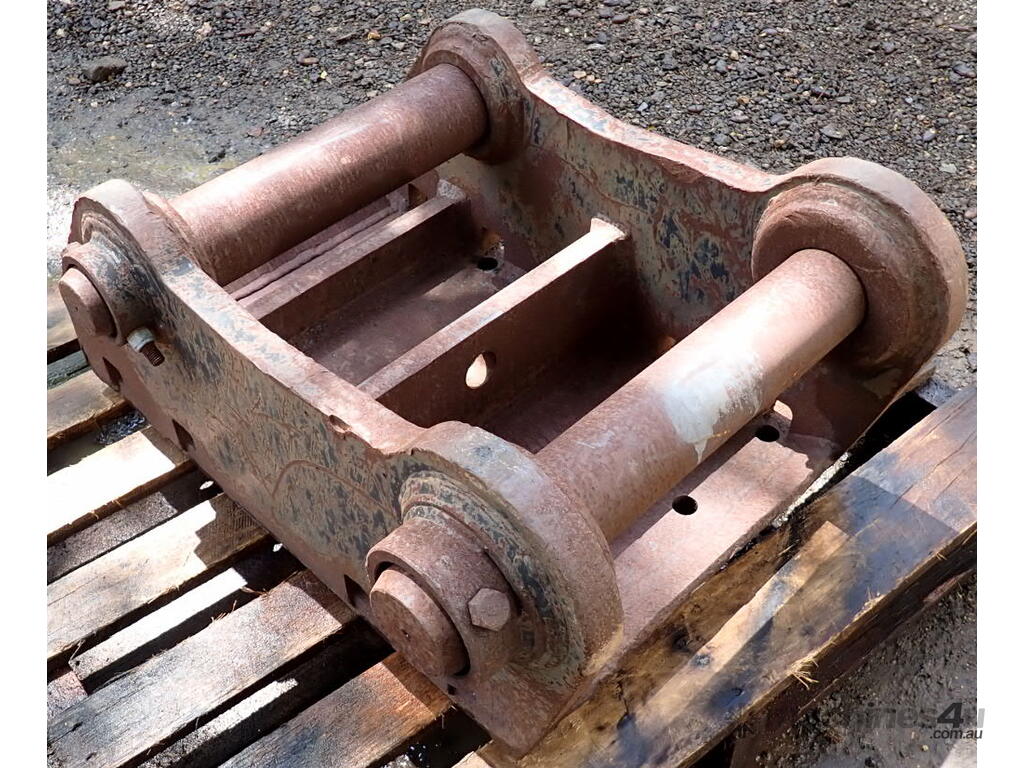

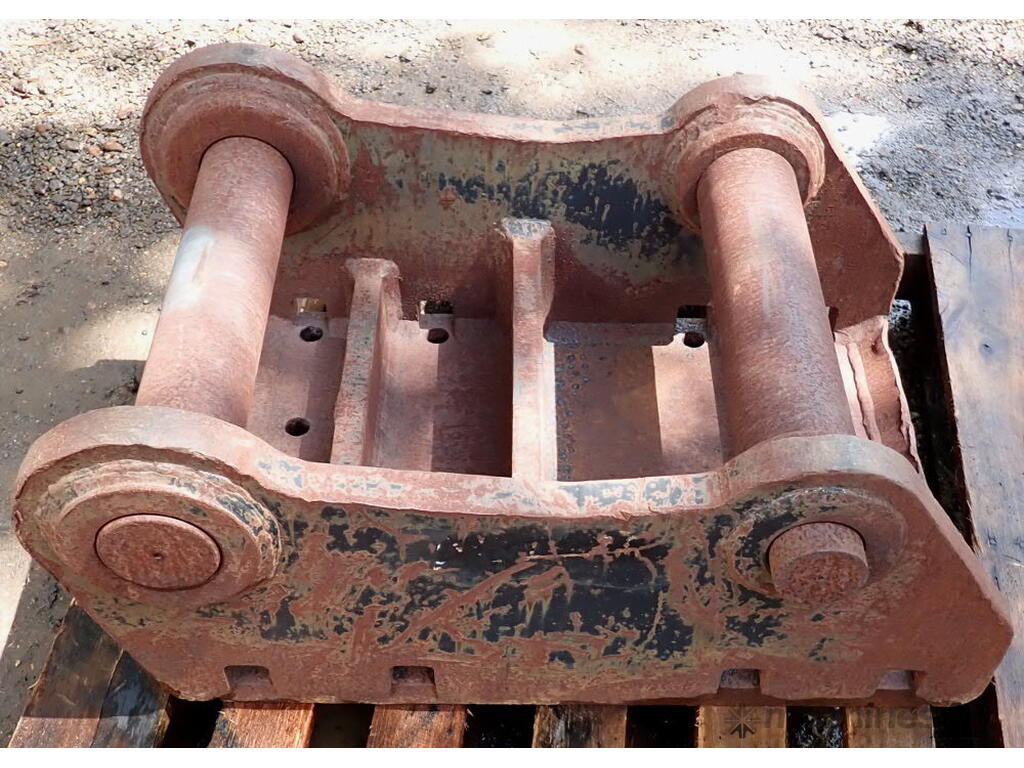

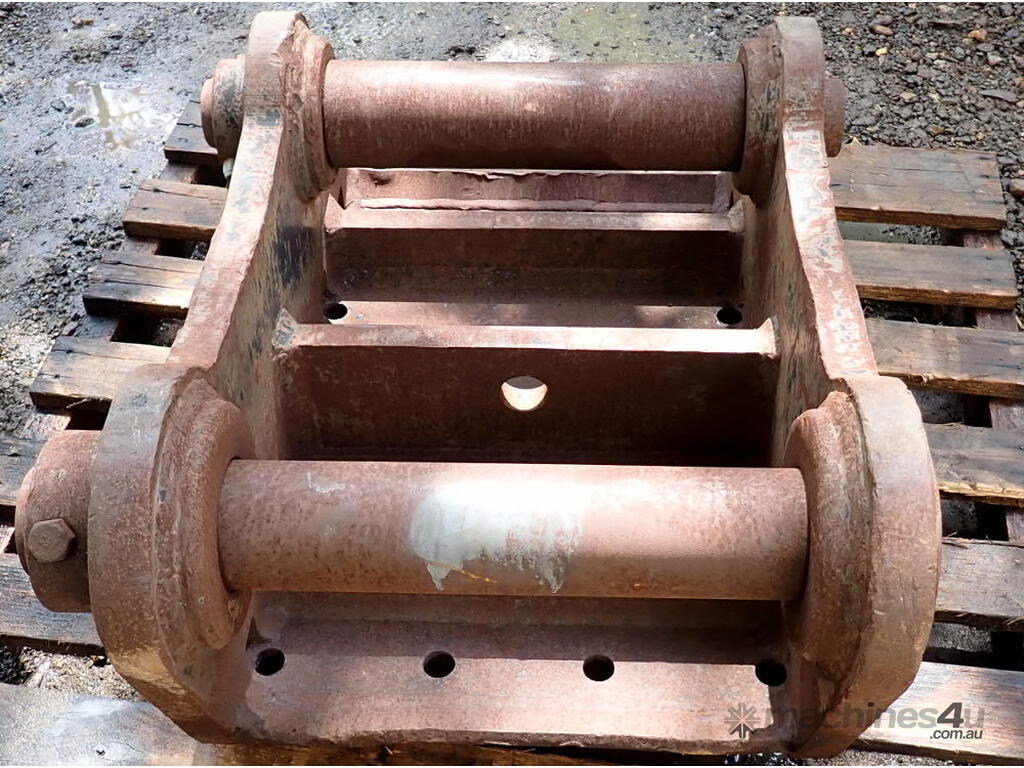

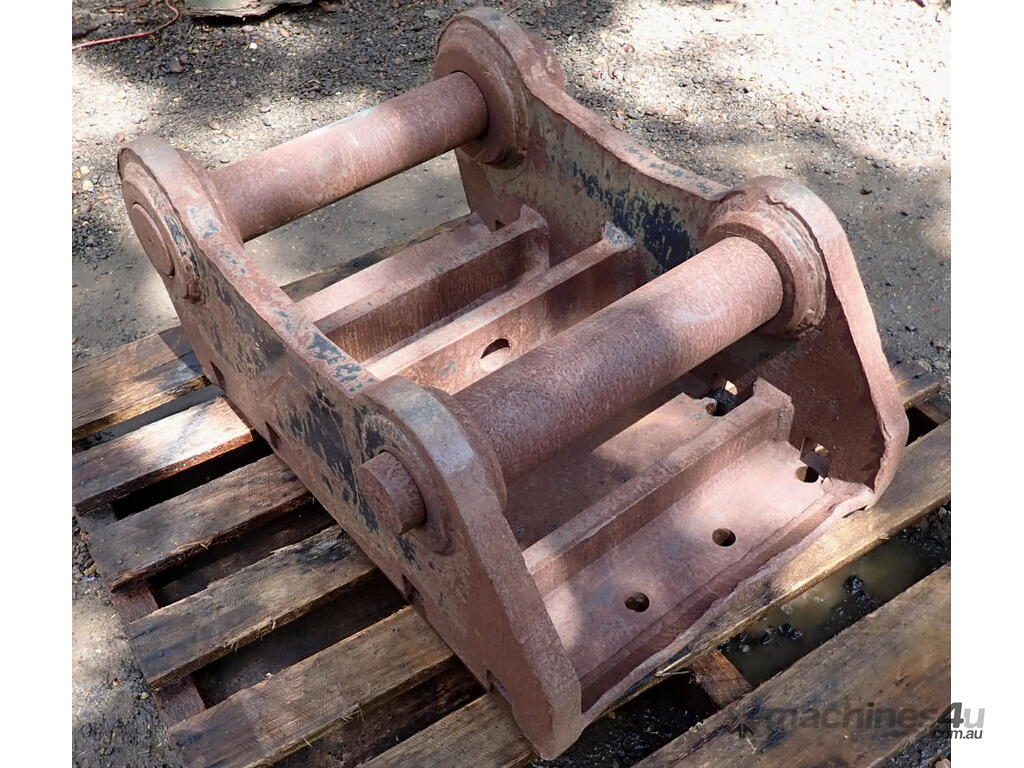

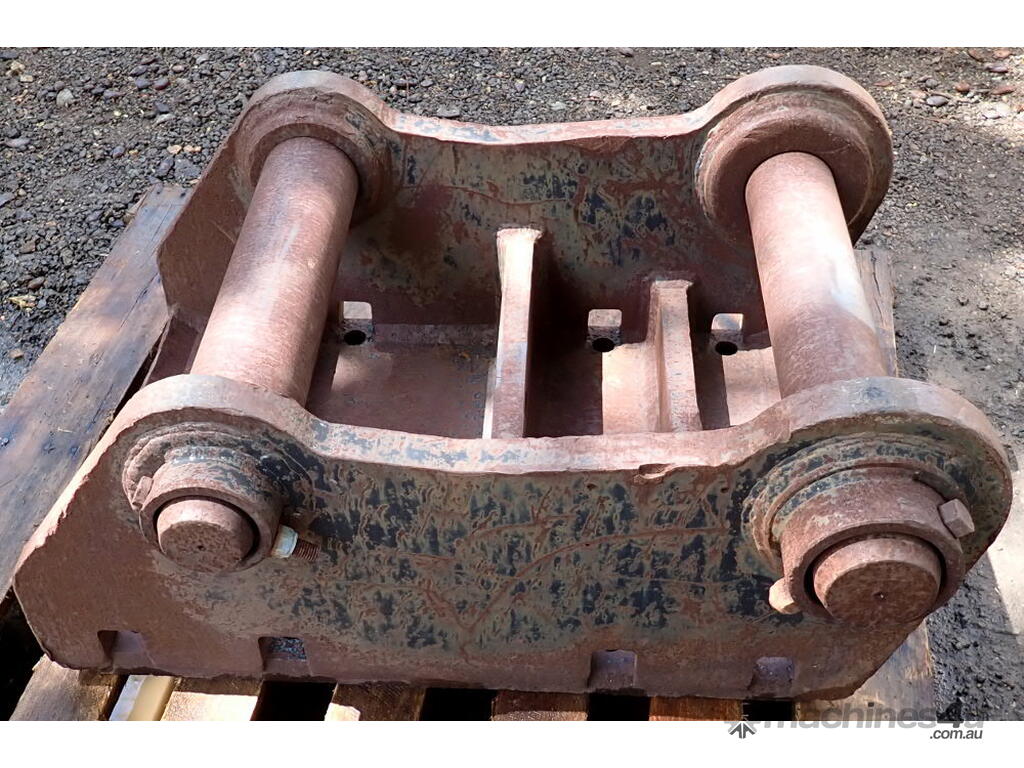

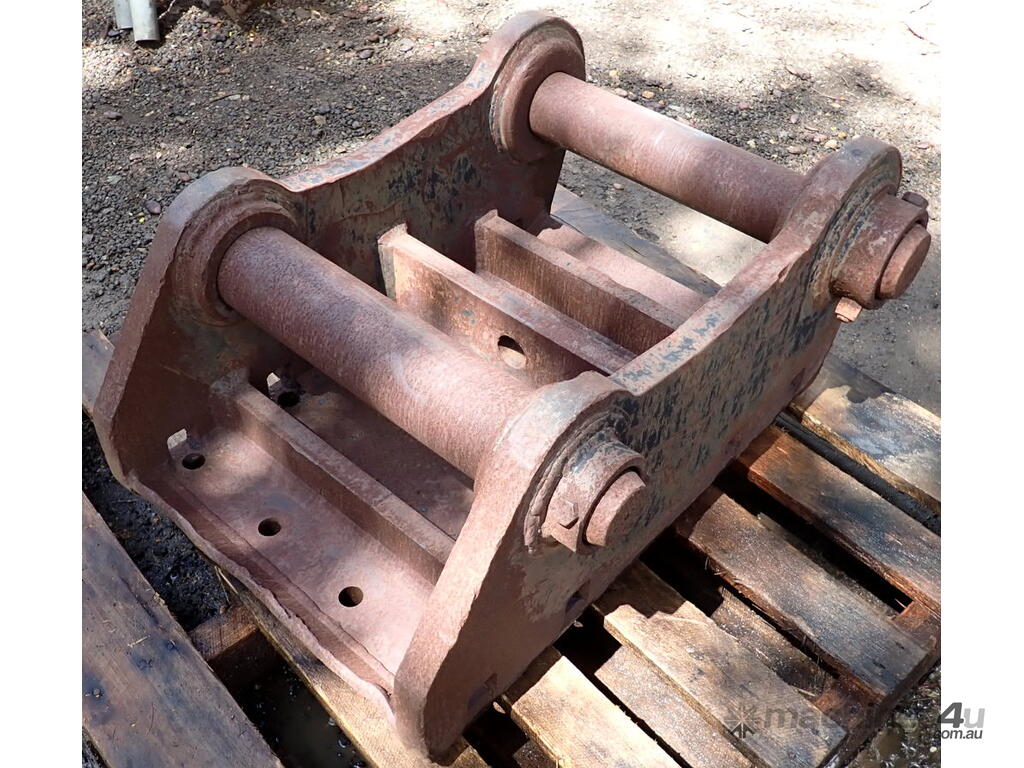

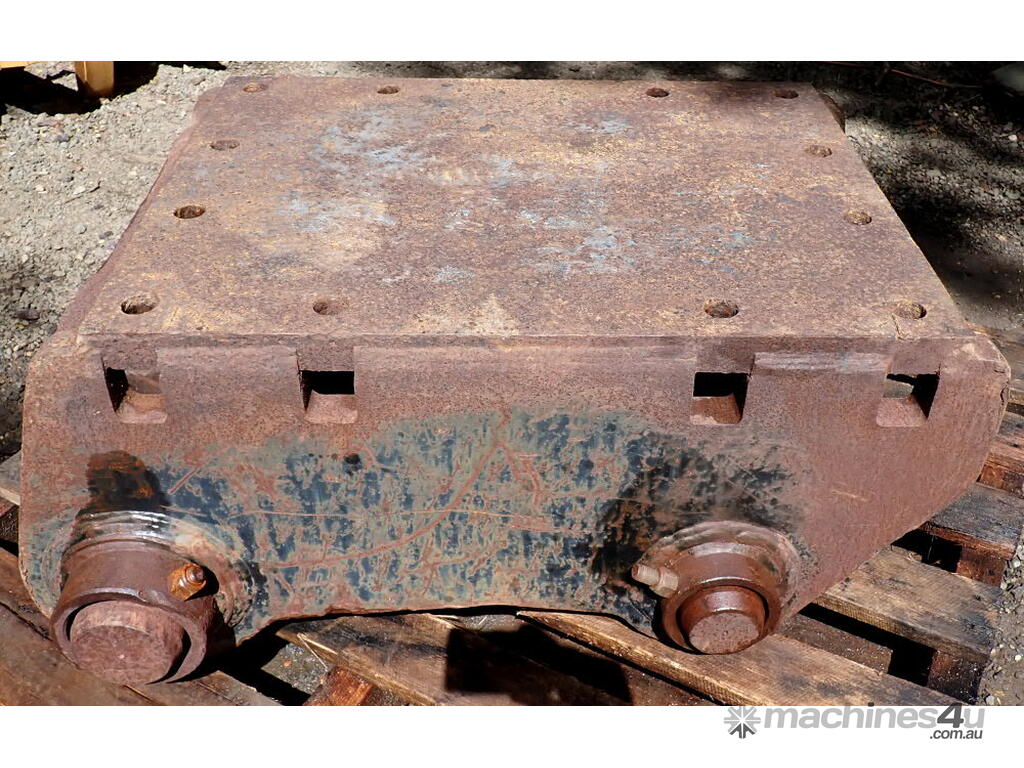

100mm & 110/80mm pin Excavator Headstock to suit 25-46 ton machines. There is some light surface rust and a few bangs around the mount plate but is otherwise in great condition.
Can be used for a mounting headstock for a Rock Breaker Hammer or Auger, or mount as a regular headstock for buckets and other attachments etc.
Current Headstock setup:
One Pin is 100mm Diameter the other is an 80mm pin that has a sleeve (tube) fitted over it to make it 110mm. 555mm Pin Center to Pin Center (CtoC), 430mm Between the inside Ear Bosses (which can be shaved back up to 487mm between the Ear Plates if you need more inside width for your hitch or dipper arm to fit in).

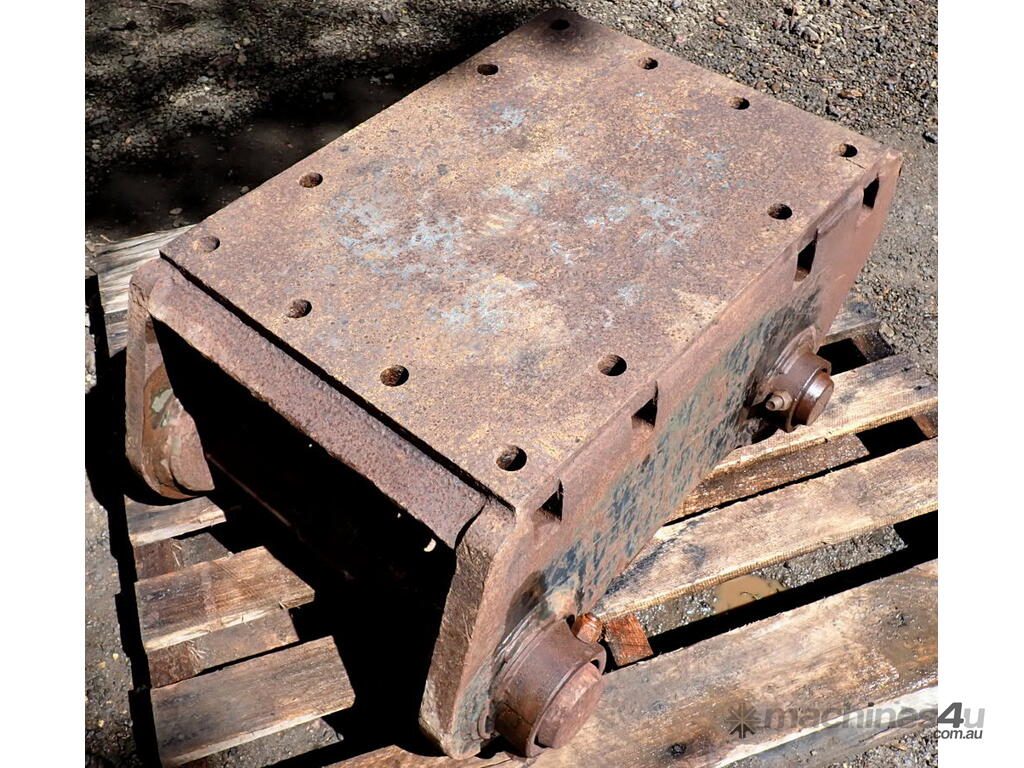

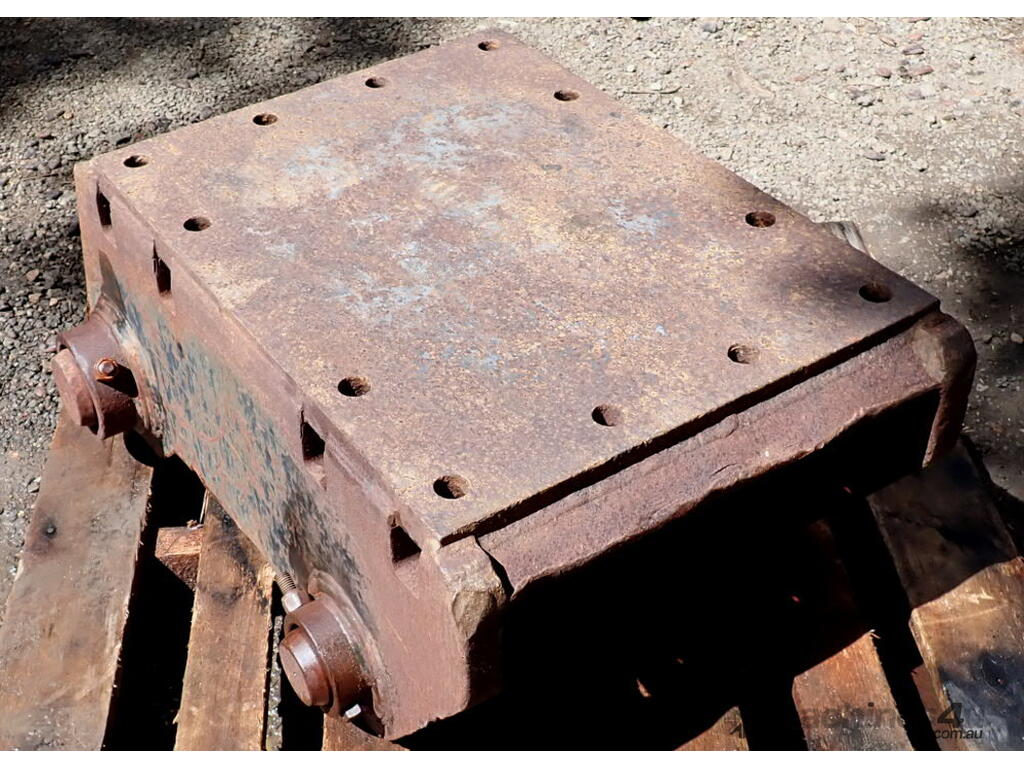

The main Mounting plate and the Ears plates are 40mm thick.
If you remove the sleeve tube off the 80mm pin, you would have a 100mm & 80mm pin setup.
Alternatively the 80mm pin could be sleeved with a 100mm OD tube of 10mm wall thickness, or with the pin removed the holes could be bored out to 100mm to make it an all-100mm headstock.
There are other possible Pin combinations of 80mm / 90mm / 100mm / 110mm, as long as your Pin Center to Pin Center (CtoC) and Between the Ears (BTE) are within range for your machine/hitch.
*** Current 100mm / 110mm Pin configuration:
Should fit: Samsung SE350-3 / SE450-3, Volvo EC330B / EC360 / EC360B / EC460 / EC460B.
Maybe fit: Caterpillar 345C w/TB Link.
*** Simple change to 100mm / 80mm Pins configuration:
Should fit: Caterpillar 330B w/E Link / 330C w/E Link / E Family Linkage.
Maybe fit: Caterpillar 330C w/Mass Linkage 345B w/Reach Linkage.
*** Possible all-110mmm Pins:
Should fit: Daewoo Solar 400LC-2 / 400LC-3 / 400LC-V / 420LC-V, Hitachi EX400-1 / EX400-2 / EX400-3 / EX400 / EX450 / EX455 / EX550 / EX600 Long Arm, Hitachi Zaxis 400 / 450 / 450 & LC / 470H-3 / 500-3, John Deere 450DLC.
Maybe fit: Daewoo DX420 LC, Daewoo Solar 400LC-V, Doosan DX420 / DX420LC-3 / S420LC-V.
*** Possible all-100mmm Pins:
Should fit: Daewoo DX340 LC, Doosan DX340 / DX350LC-3 / S340LC-V, Halla HE360, Hyundai R320L / R320LC-3 / R360LC / R360LC-3.
Maybe fit: Case 9045 / 9060B / CX460, Caterpillar 330D L w/DB Link, Daewoo Solar 330LC-V / 360LC-V, Hitachi EX300 / EX310 / EX330 / EX350 / EX355, Hitachi Zaxis 300 / 330 & LC / 350 / 350LC / 350LC-3 / 370, Hyundai R420LC / R450LC-3 / R450LC-7, JCB JS450, John Deere 350D LC / 370C, Komatsu PC400 / PC400 Mighty / PC400-3 / PC400-5 / PC400-7 / PC400-8 / PC450, Link-Belt 460LX / 5800 QUANTUM, New Holland EC350LC, Samsung SE350-3 / SE450-3, Sumitomo SH400-2 / SH450 / SH450HD / SH450LH, Volvo MX365LS / MX455LS / SE360LC-3 / SE460LC-3.
*** Possible all-90mmm Pins:
Should fit: Case 9033 / 9050B, Halla HE280, JCB JS300 / JS330, Kato 1800 / HD1430, Link-Belt 4300 QUANTUM, Sumitomo SH300.
Maybe fit: Case CX330, Caterpillar 235, Daewoo DX300 LC, Daewoo Solar 290LC-V / 300LC-V / 300LC-V SLR / 320 / 330-3, Doosan DX300 / DX300LC-3 / S300LC-V / S470LC-V, Hyundai R250LC-7 / R290LC-7, Kato 1220SE2 / 1250SE / HD700SEV / HD900SEV, Kobelco SK220 / SK230 / SK250 / SK250LC / SK290LC / SK300 / SK310 / SK320 / SK330 / SK330LC / SK350LC, Komatsu PC300 / PC300 Mighty / PC300-3 / PC300-5 / PC300-6 / PC300-7 / PC300LC-7 / PC340 / PC350 / PC360, Link-Belt 330LX, New Holland FX350, O & K RH 9PMS, Samsung SE280LC, Sumitomo SH300-3 / SH300LC-3 / SH330-5 / SH350HD-3, Volvo EC240B / EC240C.
*** Possible all-80mmm Pins:
Should fit: Kato HD1023.
Maybe fit: Hyundai R250LC-3 / R280LC / R290LC / R290LC-3 / R290LC-3LR, Kato 820, Komatsu PC290.
And possibly fits other machines with similar pin spacings or that have a variable pin spacing hitch (Multi-Hitch).
Shipping dimensions: 680mm Wide, 890mm Long, 420mm High. Weight: 440kg.
Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
