25 Tonne Pressure for Workshop & Garage, Double Acting Cylinder Shop Press HP-25

HP-25 Industrial Motorised Hydraulic Press

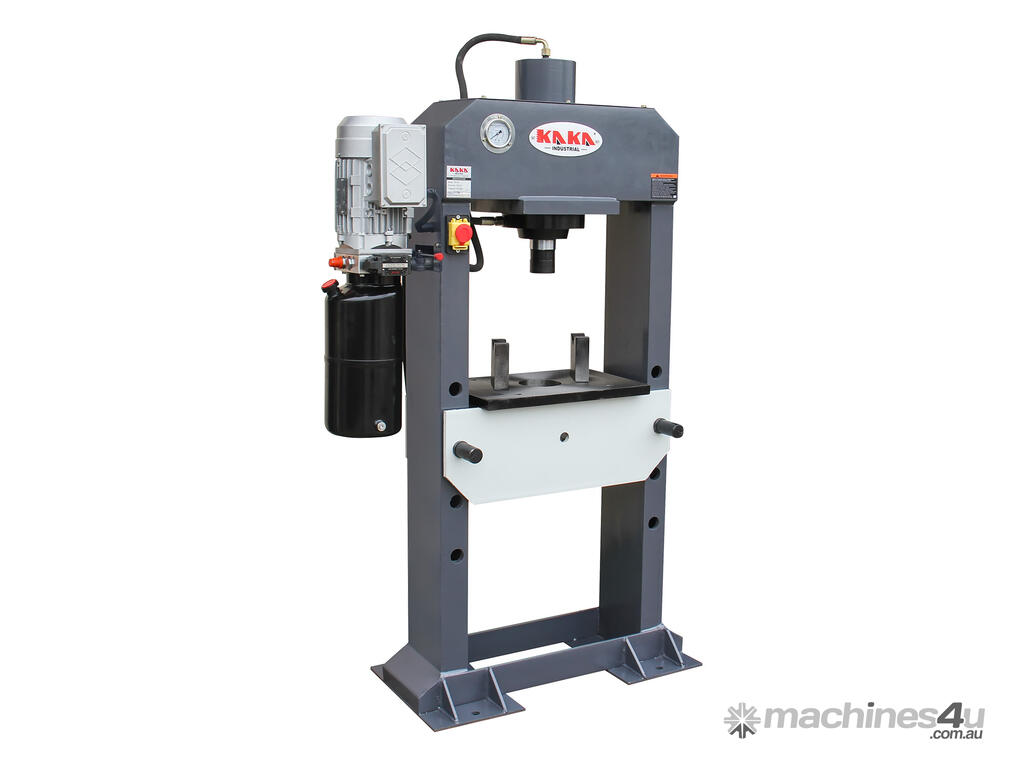

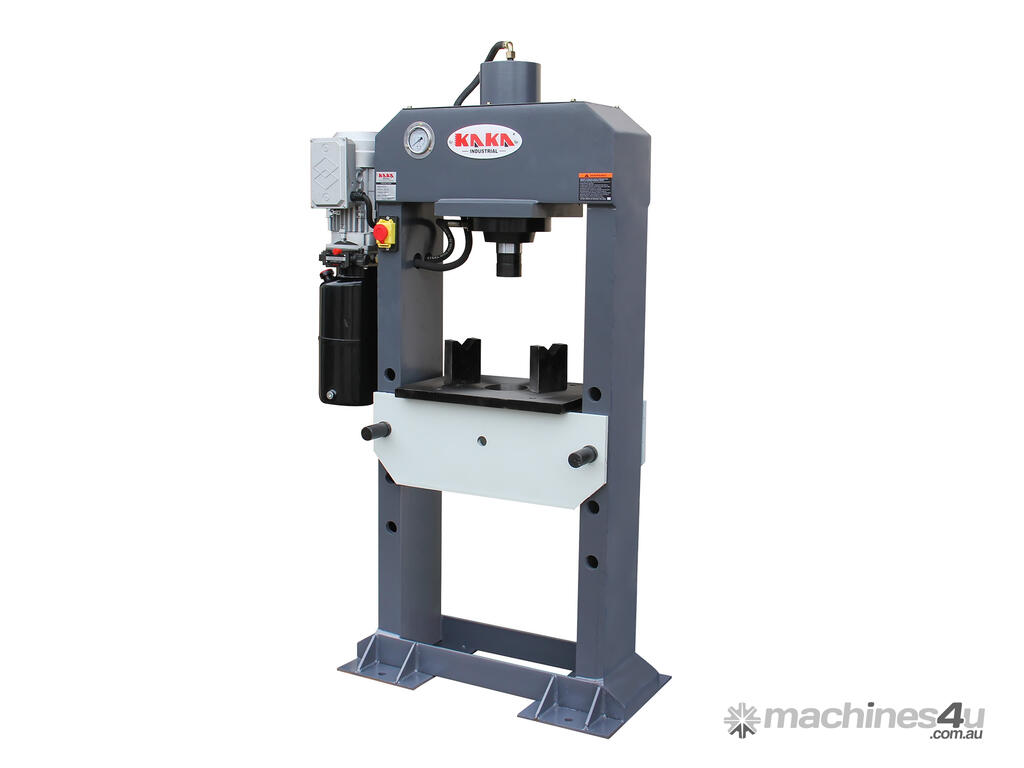

The KANG Hydraulic Press HP-25 is a heavy-duty 25-ton H-frame shop press designed for professional workshops and industrial applications. It features a 250mm stroke double-acting cylinder and an electric solenoid pump for efficient operation. The press is built with heavy steel welded construction for superior strength and longevity, along with a multi-position bed that allows for easy adjustment of work height to suit various tasks

High-Power Efficiency Shop Press. The 25-ton capacity and double-acting cylinder provide fast, powerful pressing with minimal effort, reducing fatigue during long jobs, perfect for busy workshops handling heavy machinery or vehicle repairs.

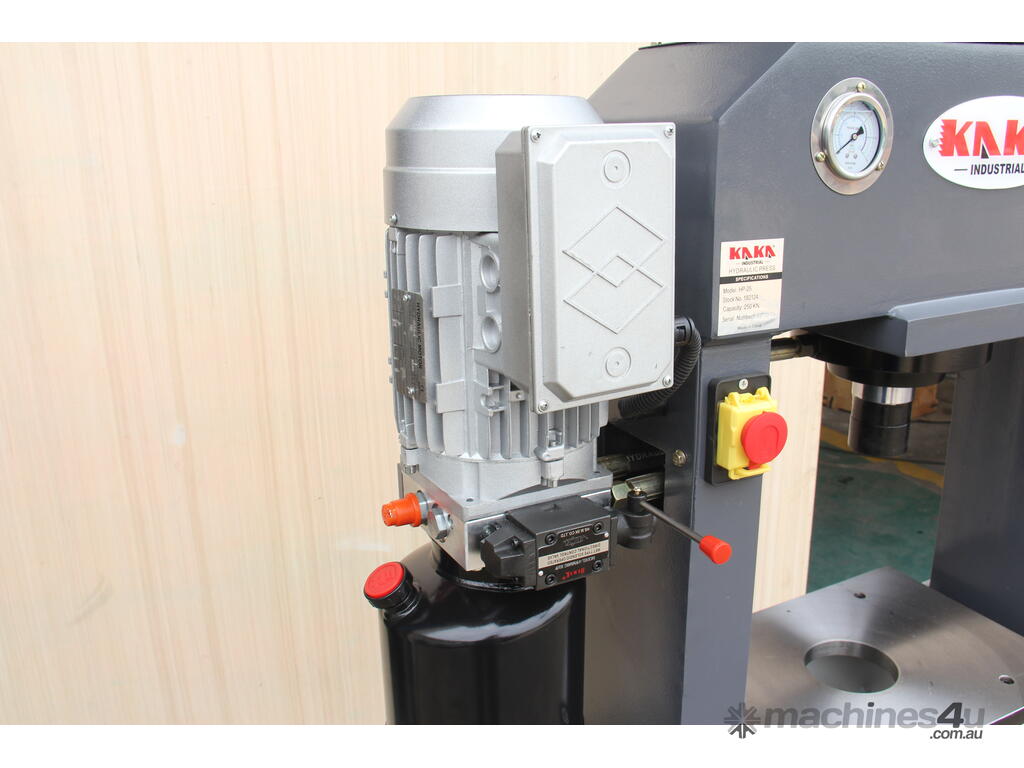

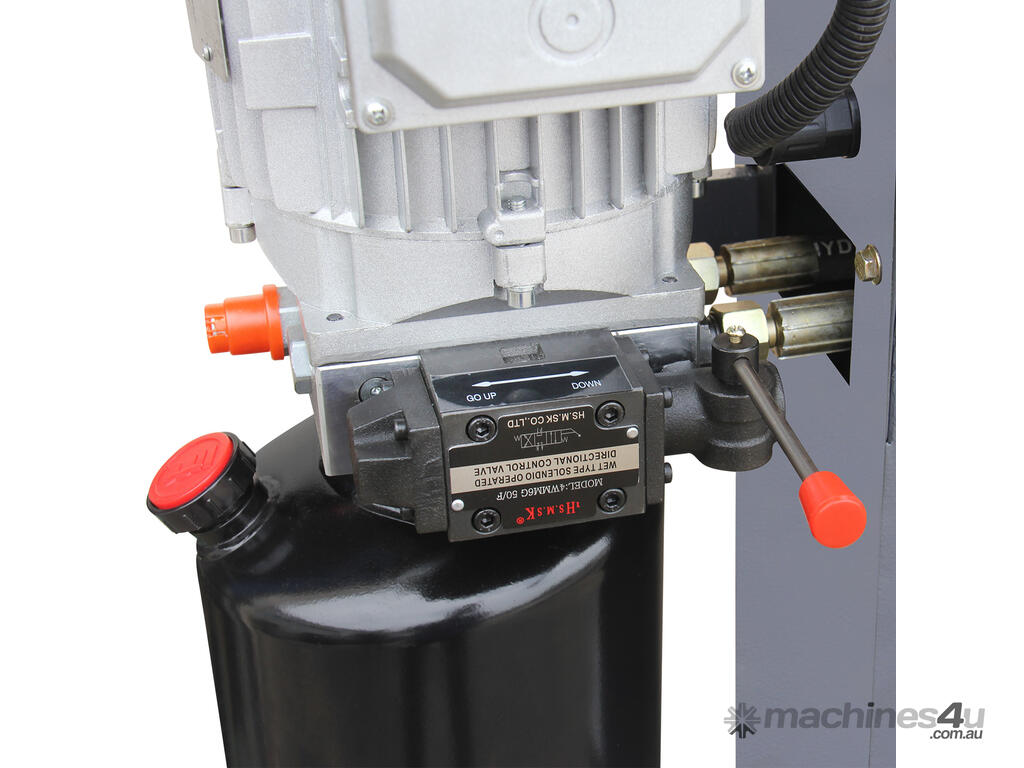

Electric Solenoid Control. The solenoid pump enables precise control, saving time and improving safety in high-volume environments.

Durability in Harsh Conditions. Built with robust steel and high-pressure ratings, it withstands tough use in dusty or humid climates.

Versatile Applications Press Machine. Excels at a wide range of tasks from automotive part installation to metal fabrication, making it a versatile tool for diverse industries.

Adjustable and User-Friendly H Frame Shop Press. The multi-position bed and compact footprint allow for easy setup in space-constrained sheds or trailers.

Features

Runs on 240V power, single-phase hydraulic press machine

Fully welded frame, robotic structure, H-frame workshop press

A fixed, central, strong hydraulic cylinder ensures precise pressing during the operation

Double speed control

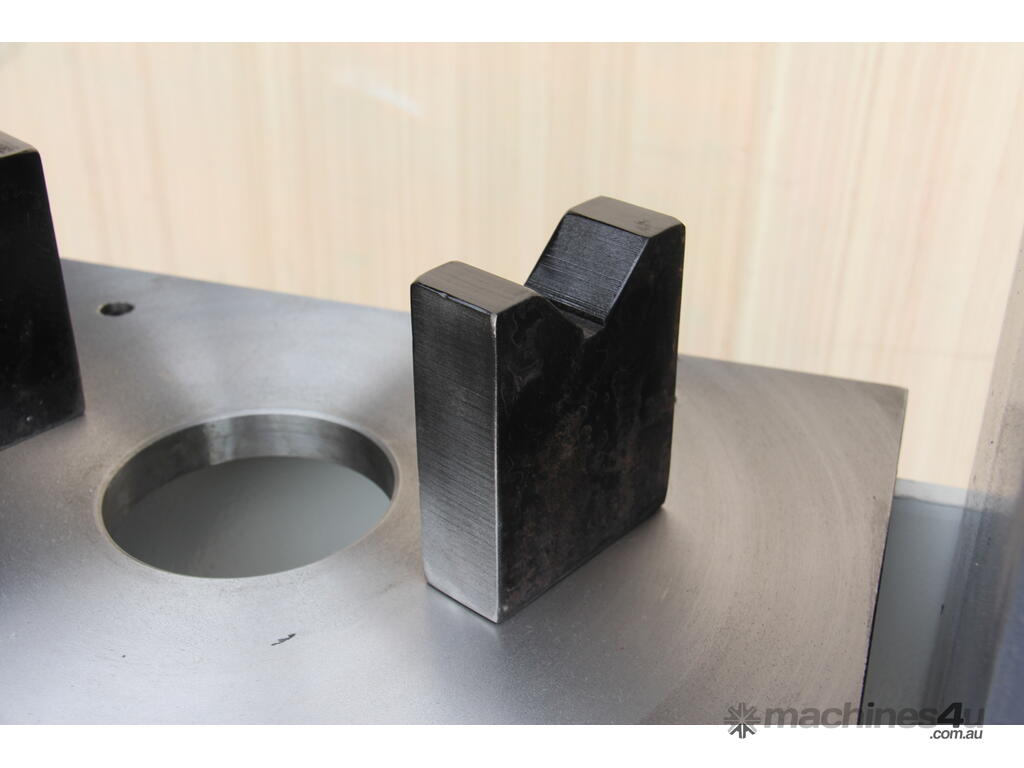

V-blocks supplied as standard

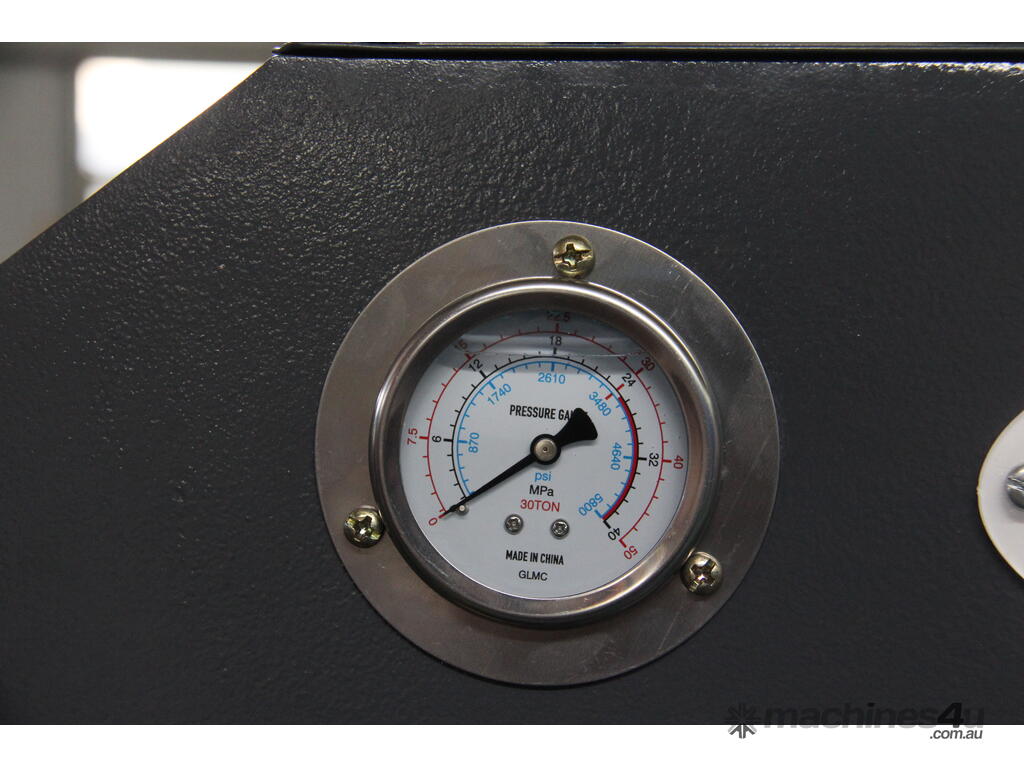

Built-in pressure gauge provides exact pressure reading, ideal for professional mechanics or industrial workshops

A variety of uses, including removing and installing bushes, ball joints, bearings, pulleys, etc.

Specifications

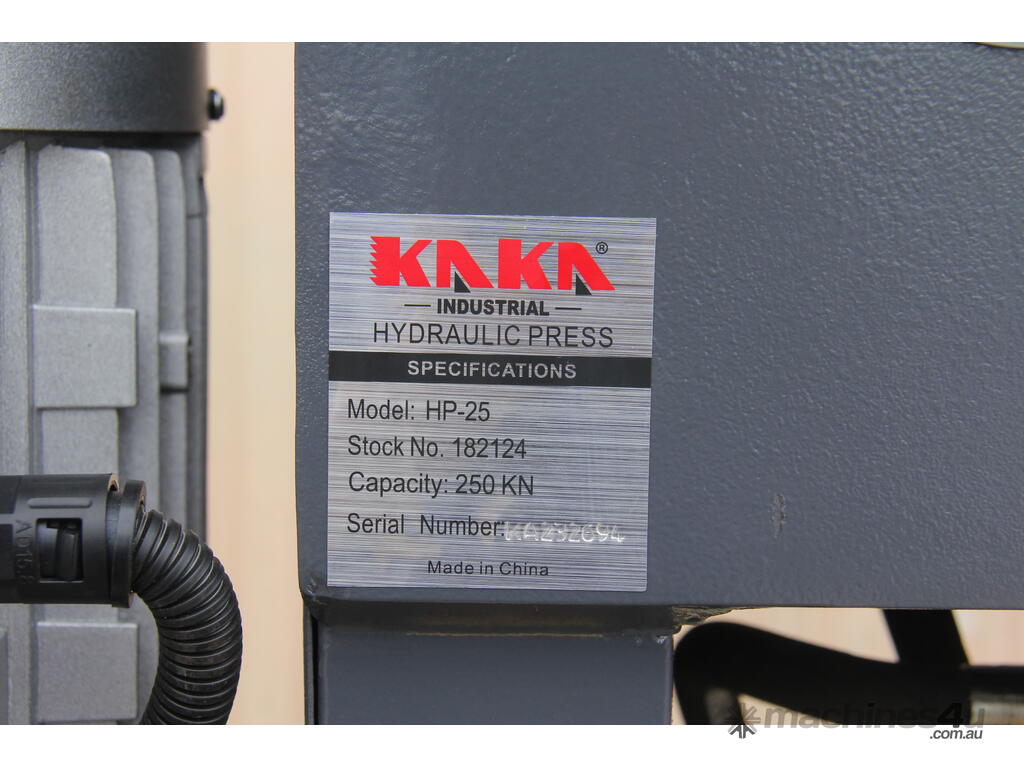

Model HP-25
Item ID. 182124
Pressing capacity 25 Tonne
Hydraulic ram operation Motorised System
Sliding ram (left-right) No.
Hose Length 450/450/450
Reservoir Capacity 8L
Max. Piston Stroke (mm) 250
Hydraulic Cylinder OD (mm) 151
Piston Rod Diameter (mm) Piston 125 / Rod 65
Piston Speed Down 8.3 mm/s,
Up 10.8 mm/s
Max. Distance: Ram to Table (mm) 510
Min. Distance: Ram to Table (mm) 105

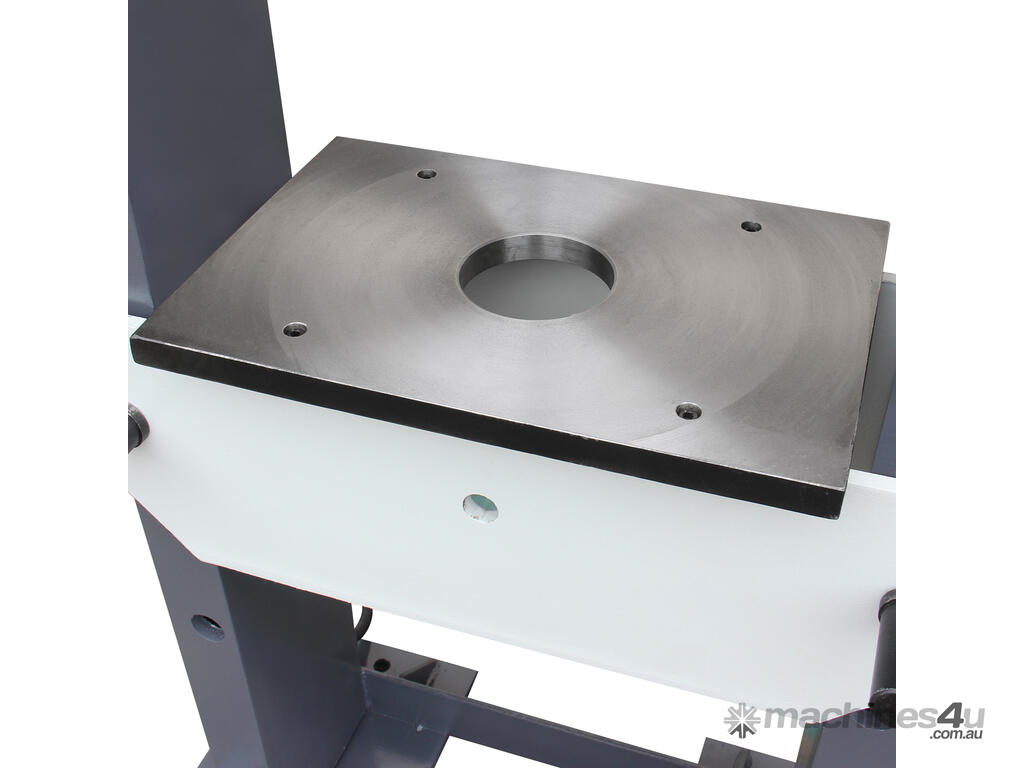

Table Length (mm) 460
Table Width (mm) 300
Table Pin Diameter ?34.5
Number of Adjustment Holes 4
Adjustment Hole Spacing (mm) 135
Overall Height (mm) 1630
Overall Width (mm) 400
Overall Length (mm) 960
Adjustment Hole Diameter ?35
Inner Frame Width (mm) 500
Packing size 176x115x66 cm
N.W./G.W. 260/330 kg
