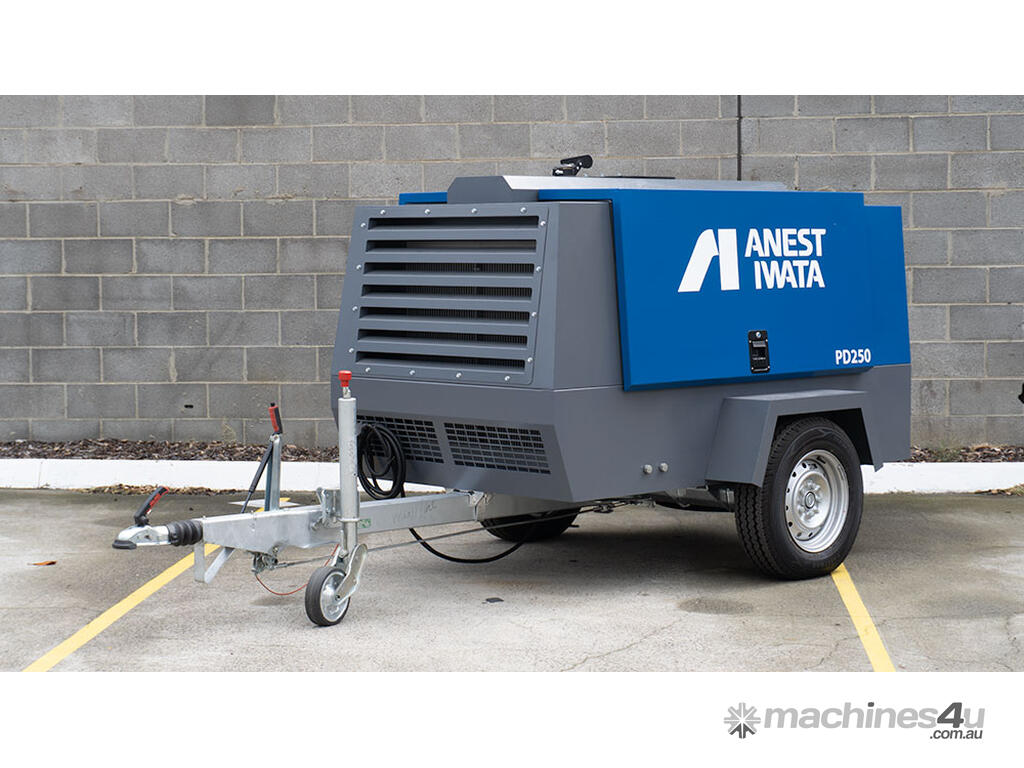

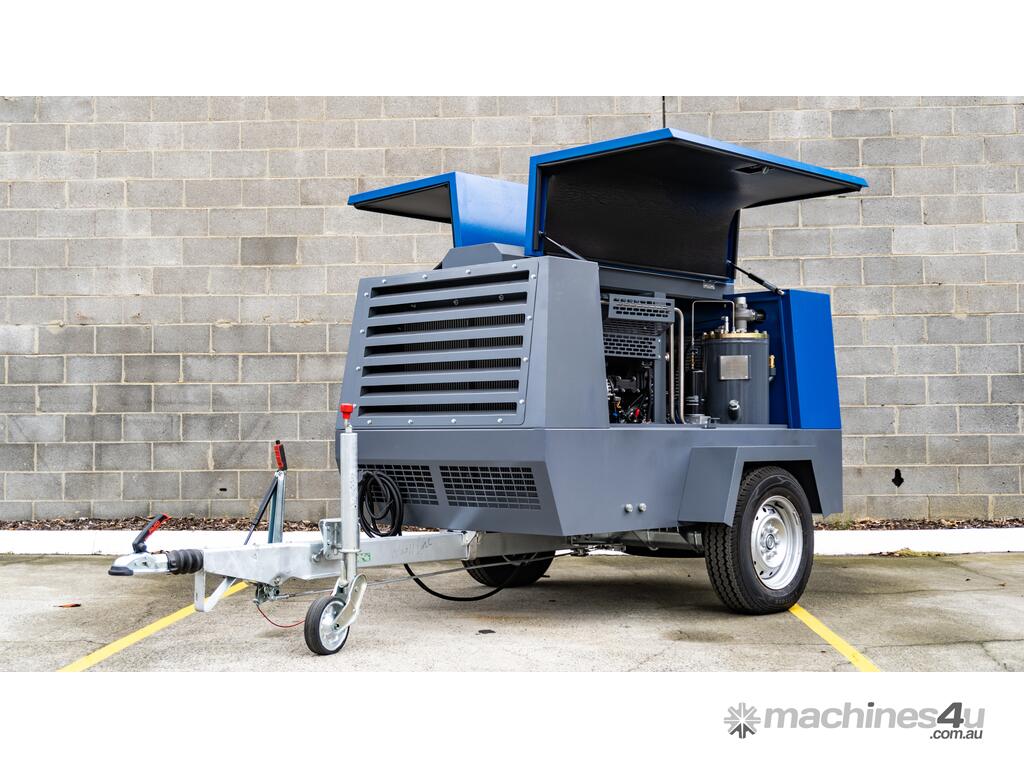

250 CFM Diesel Skid Mounted Air Compressor

Premium Yanmar Powered | Dual Pressure 8–10 Bar | Aftercooler & Filtration Included

The PD250 is a heavy-duty yet highly portable 250 CFM diesel compressor designed for demanding industrial and construction applications. Equipped with a rugged Yanmar engine, dual-pressure control, and integrated aftercooler + filtration pack, it delivers clean, dry, reliable air for even the most critical jobs.

Key Features

250 CFM Skid-Mounted Diesel Compressor

Dual Pressure Settings – 8 or 10 Bar

Premium Yanmar 80 HP Engine (Tier 3 low-emission)

Built-in Aftercooler & Filtration

Optional Mine-Spec Configurations

Lightweight, compact, and stable skid design

Ideal for construction, blasting, industrial, and remote-site applications

Why Choose the PD250?

Built for operators who need performance, flexibility, and reliability, the PD250’s dual-pressure capability lets you adjust output to match the job—saving fuel and improving efficiency. The filtration system provides dry, clean air suitable for sensitive applications.

Technical Specs

Free Air Delivery: 265 CFM 8 bar / 247 CFM 10 bar

Dimensions (LxWxH): 2130 × 1450 × 1153 mm

Weight: 1200 kg

Outlets: 2 × ¾" & 1 × 1"

Fuel Tank: 100 L

Fuel Use: 16–18 L/hr at 100% load

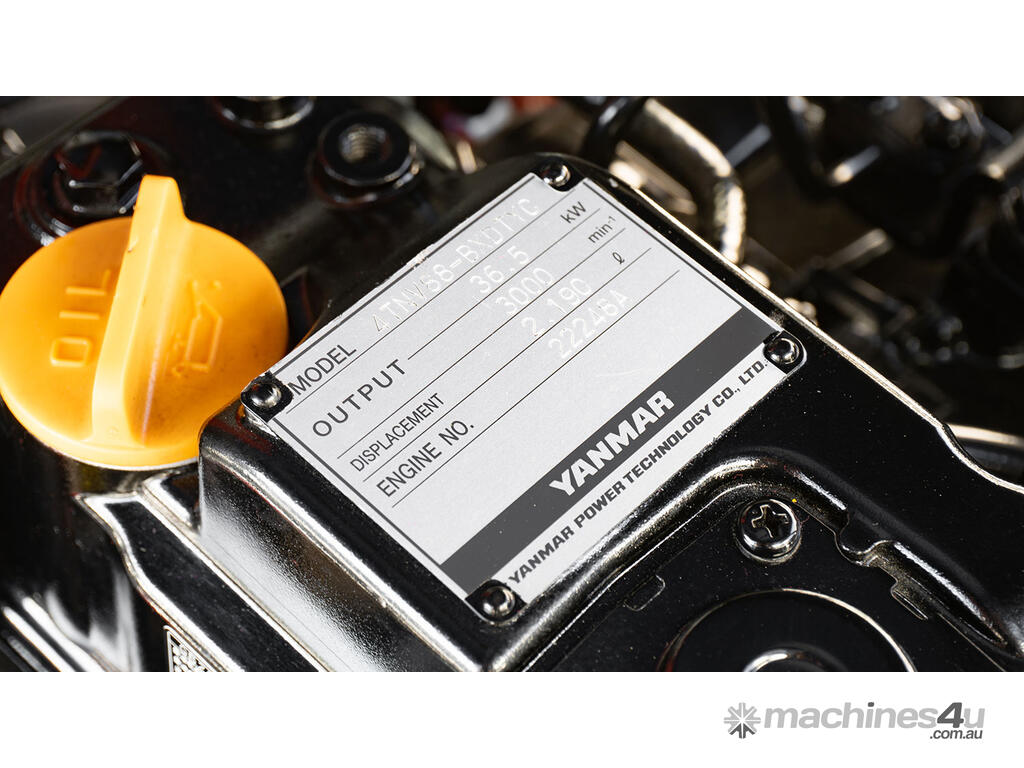

Engine: Yanmar 64 kW / 80 HP

Warranty

18-month compressor warranty

2-year Yanmar engine warranty

Perfect for contractors, hire fleets, blasting operators, industrial maintenance, and any site requiring a dependable, fuel-efficient air source.
