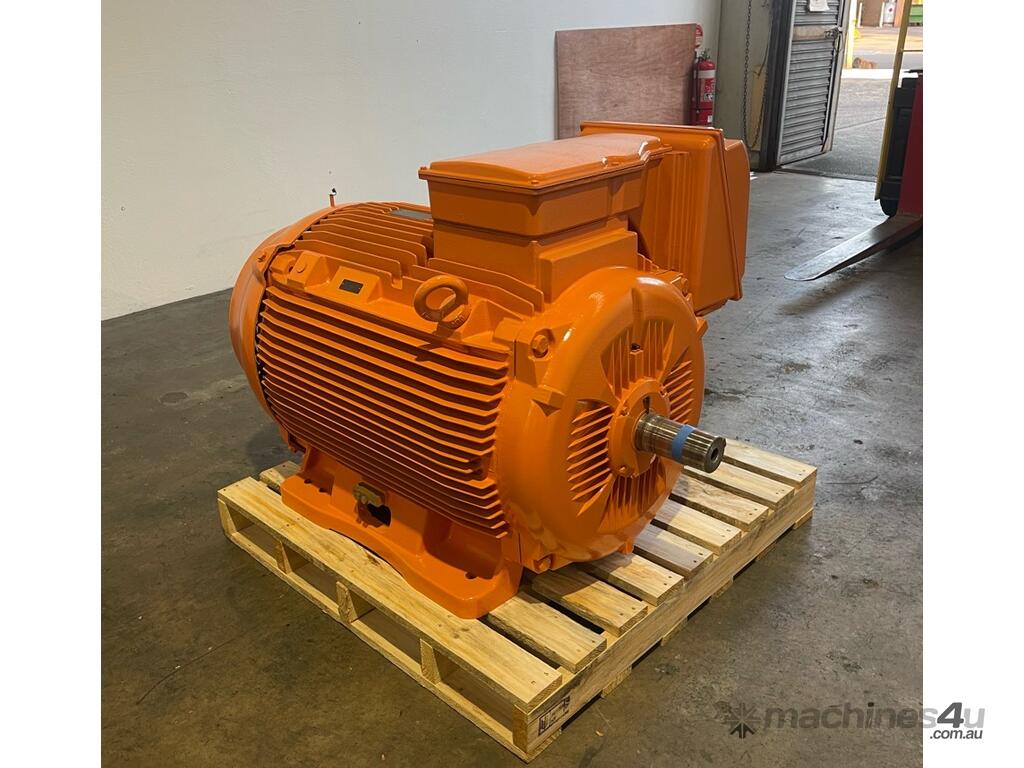

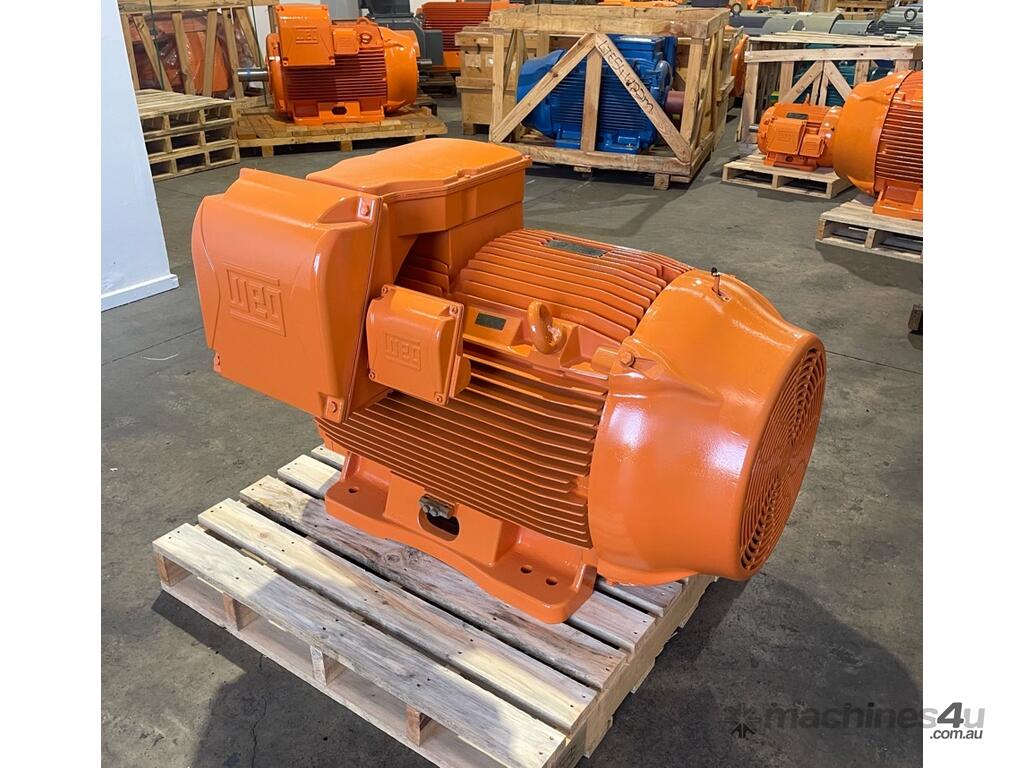

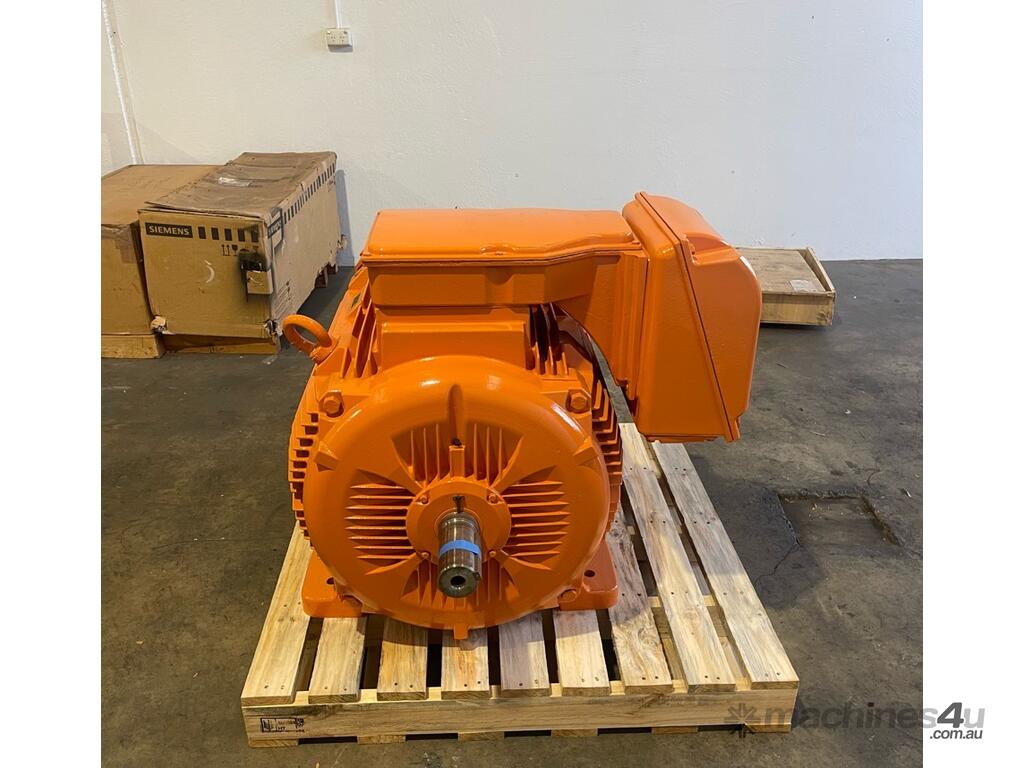

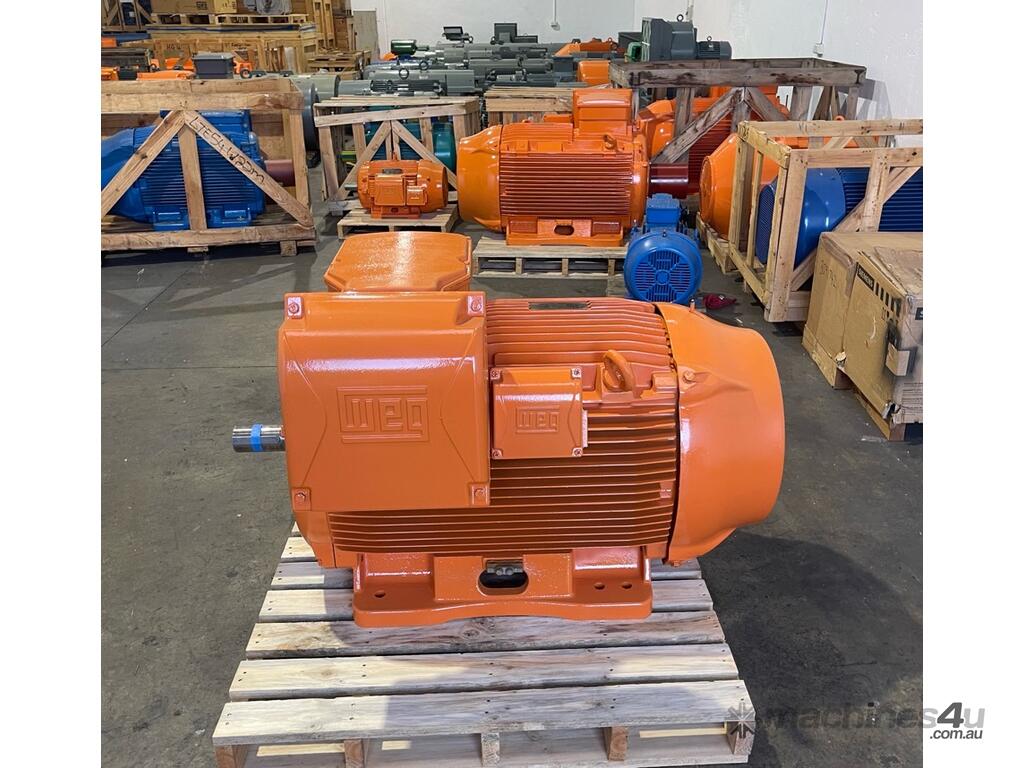

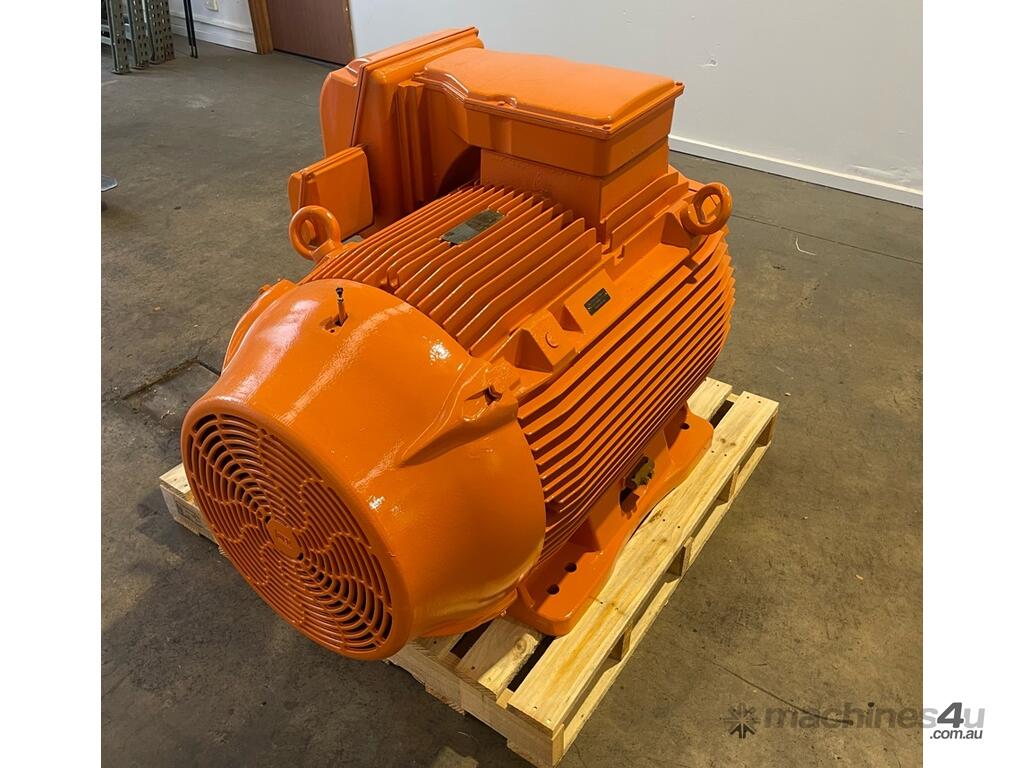

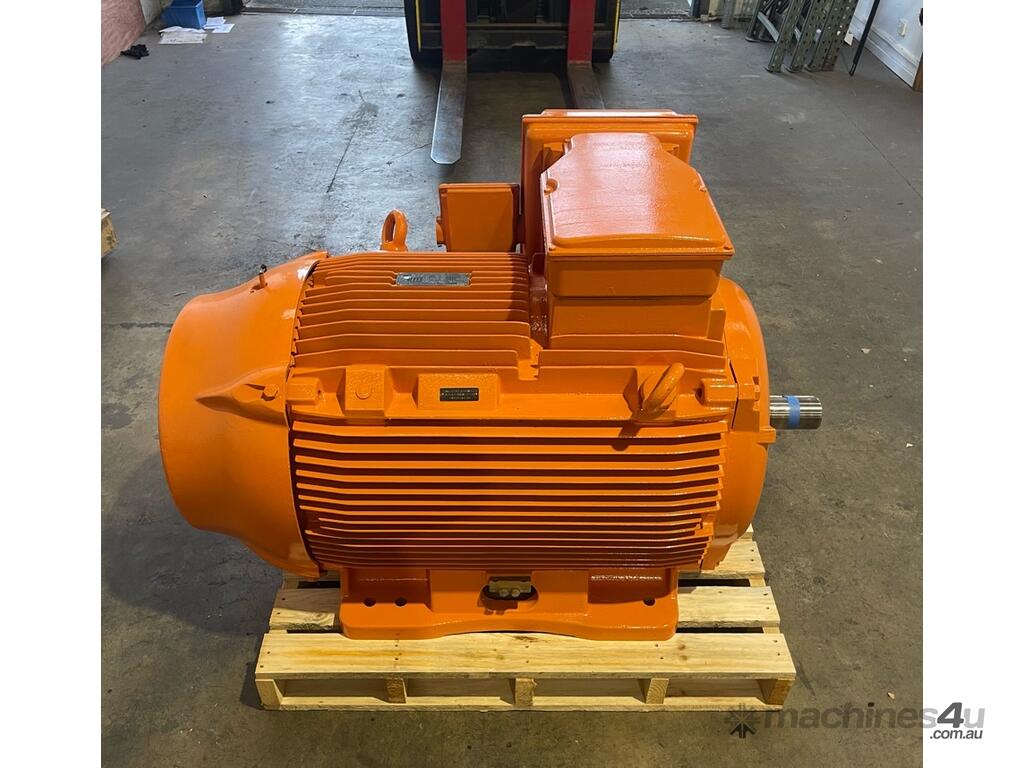

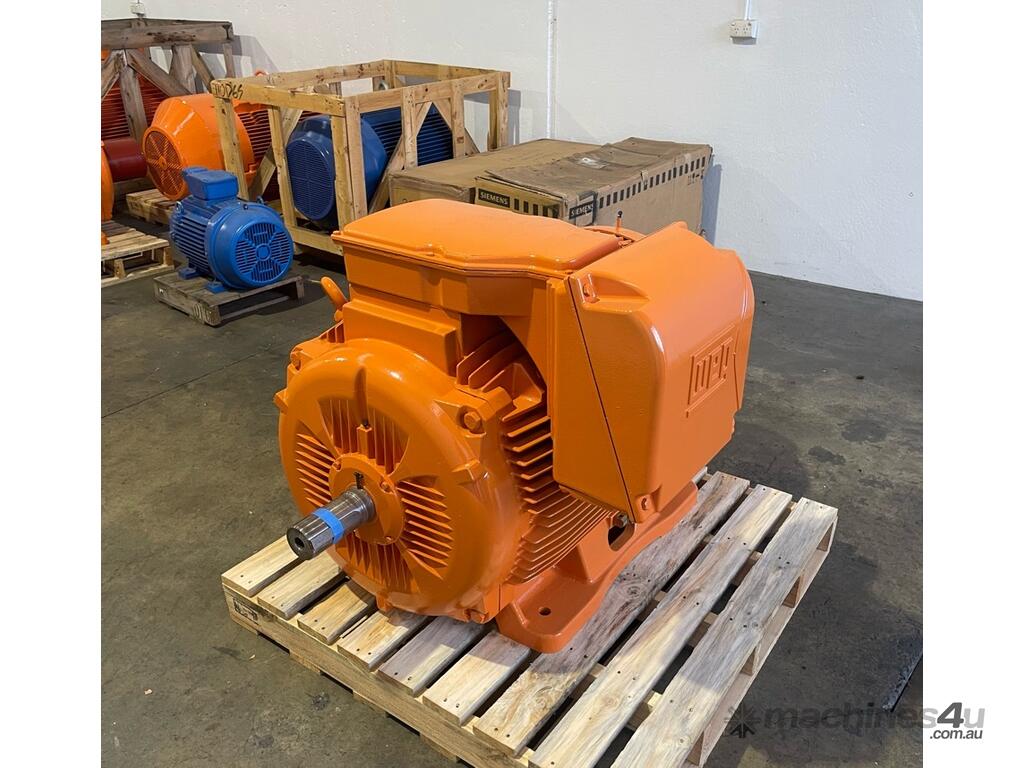

250 kw 330 hp 2-pole 2985rpm 415 volt Foot Mount 355M/L frame IP66 Mining AC Electric Motor WEG Model K57 W22 Unused

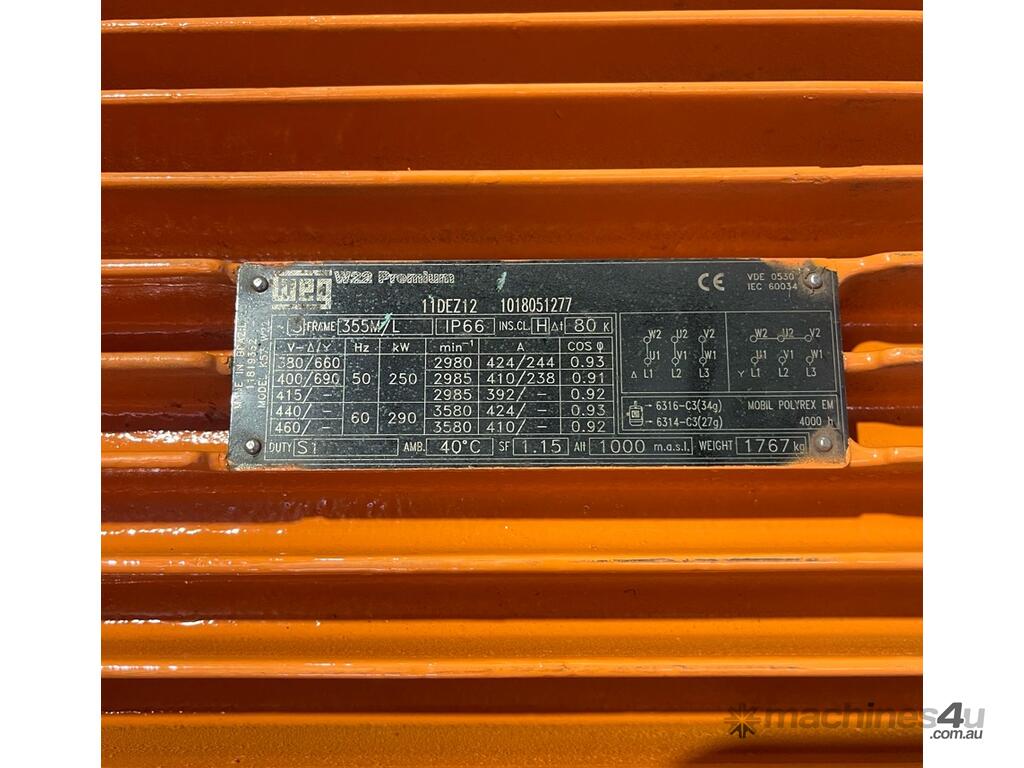

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: WEG
Model: K57 W22
Origin: Brazil
YOM: 2012
Power: 250 kw (330 hp)
Speed: 2-pole (2985 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415v
Full Load Amperage: 392 A
Mount: B3 Foot
Frame: 355M/L
Weight: 1767 kg
Insulation Class: H
Protection Rating: IP66 Mining
Critical DIMS:
Shaft DIA: 75 mm
Shaft Length: 140 mm
Centre Shaft Height: 355 mm
Total Length: 1412 mm (incl. shaft)
Total Width: 970 mm (incl. standard RHS to D.E. terminal box)
Total Height: 884 mm
Feet Measurements: Across 'A' - 610mm, Front to Back 'B' (2-holes) - 560mm & 630 mm
Front hole to shaft 'C' - 254 mm
Available QTY: 1
Condition: Unused & Decommissioned critical spare. N/L Test run in Motor Workshop. Factory storage.
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
