250 kw 330 hp 4-pole 1490 rpm 415v 315LX IP56 Mining AC Electric Motor Toshiba Model SWE315L3-4 New

250 kw 330 hp 4-pole 1490 rpm 415 volt Foot Mount 315LX frame IP56 Mining AC Electric Motor TOSHIBA Model SWE315L3-4 new unused

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: Toshiba
Model: SWE315L3-4
YOM: 2016
Power: 250 KW (330 HP)
Speed: 4-pole (1490 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 407 A
Mount: B3 Foot
Frame: 315LX
Protection Rating: IP56 Mining
Weight: 1587 kg
Inclusions:
- Set up for VSD (Insulated endshield, plus earth brush fitted to shaft)
- Heaters, thermistors, RTD's
- Drive-end roller bearing NU324

Critical DIMS:
Total Length: 1571 mm 9incl. shaft)
Total Width: 935 mm (incl. RHS to D.E. terminal box)
Total Height: 620 mm
Shaft DIA: 110 mm
Shaft length: 210 mm
Centre Shaft Height: 315 mm
Feet Measurements: Across 'A' - 508 mm, Front to Back 'B' (3-holes) - 508 mm, 560 mm, and 710 mm
Front hole to shaft 'C' - 216 mm

Available QTY: 1

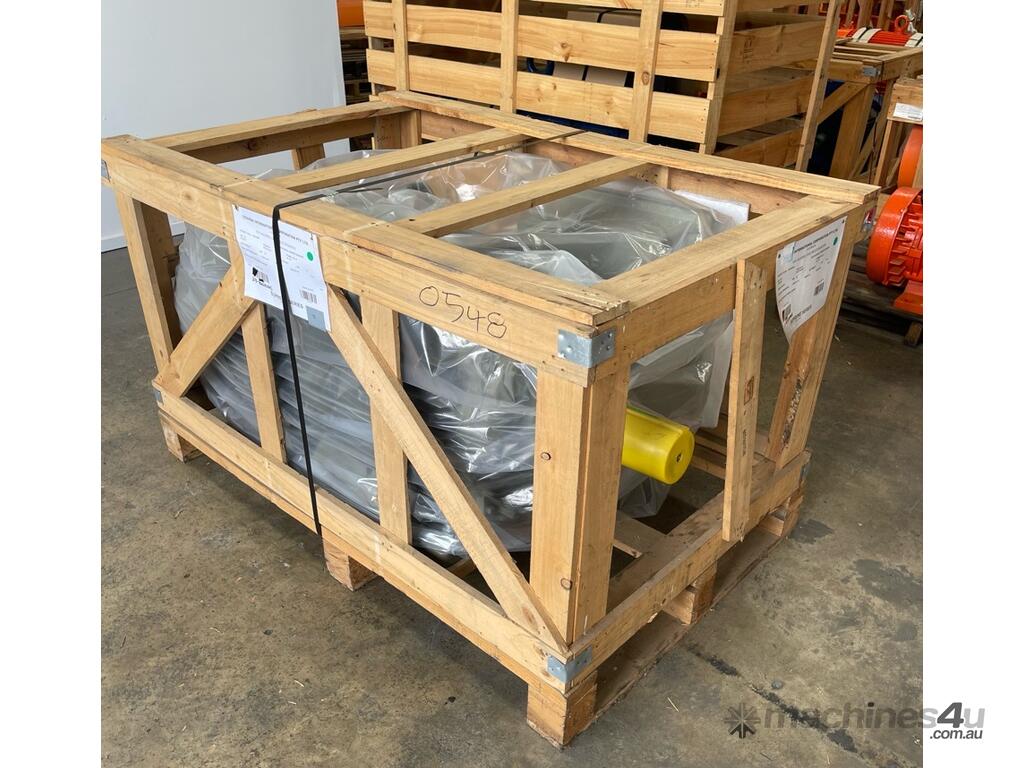

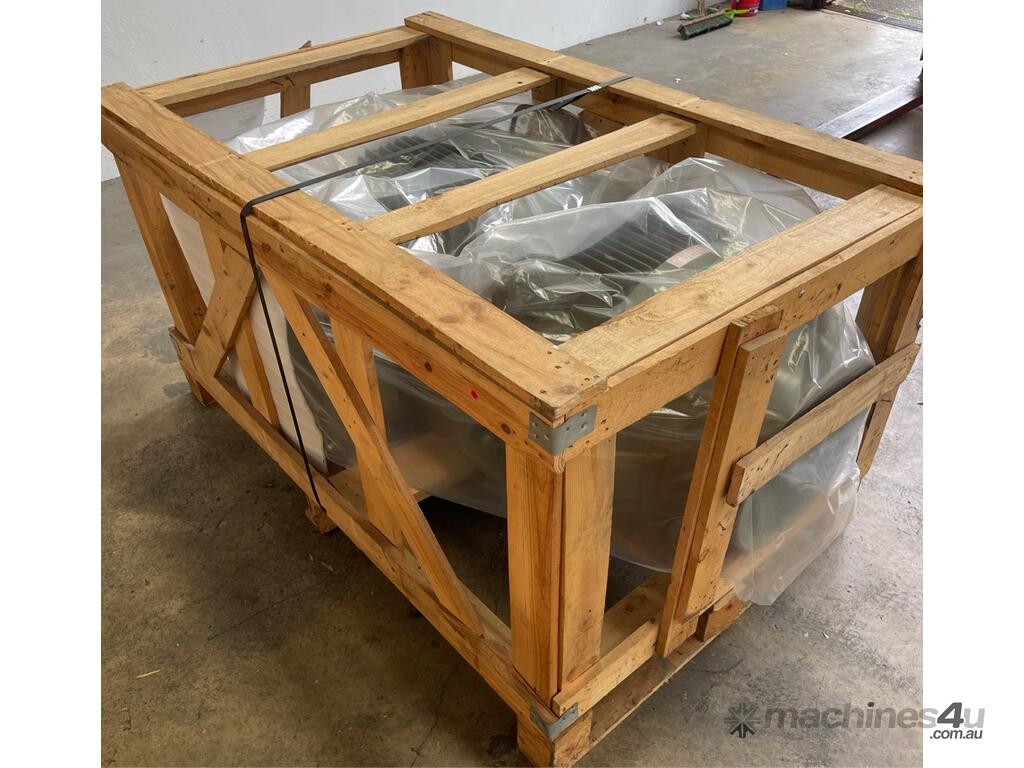

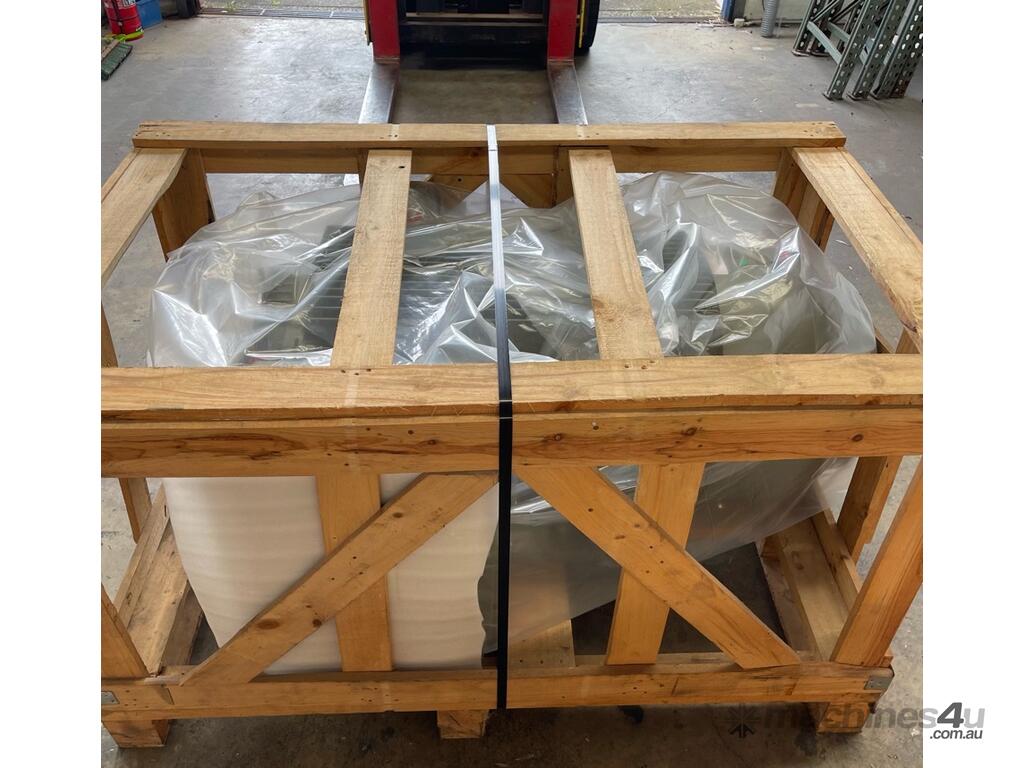

Condition: New / Unused in crate - warehouse storage
exStock Seaford VIC 3198 Australia
Available for immediate supply - freight services Australia-wide available on request
