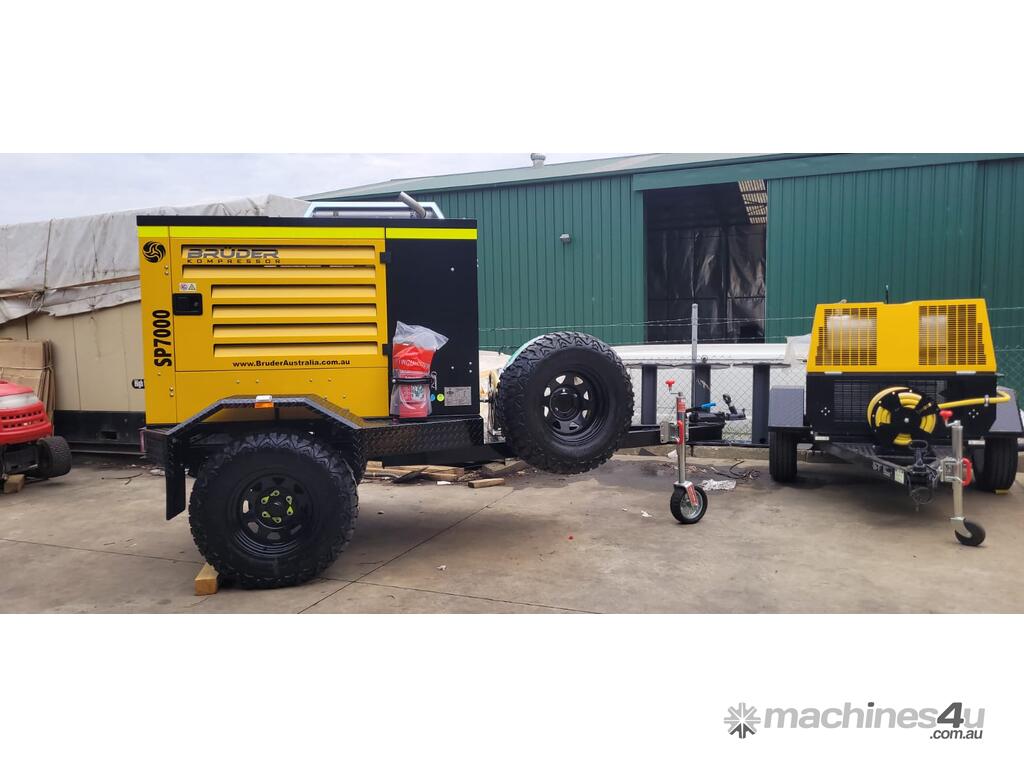

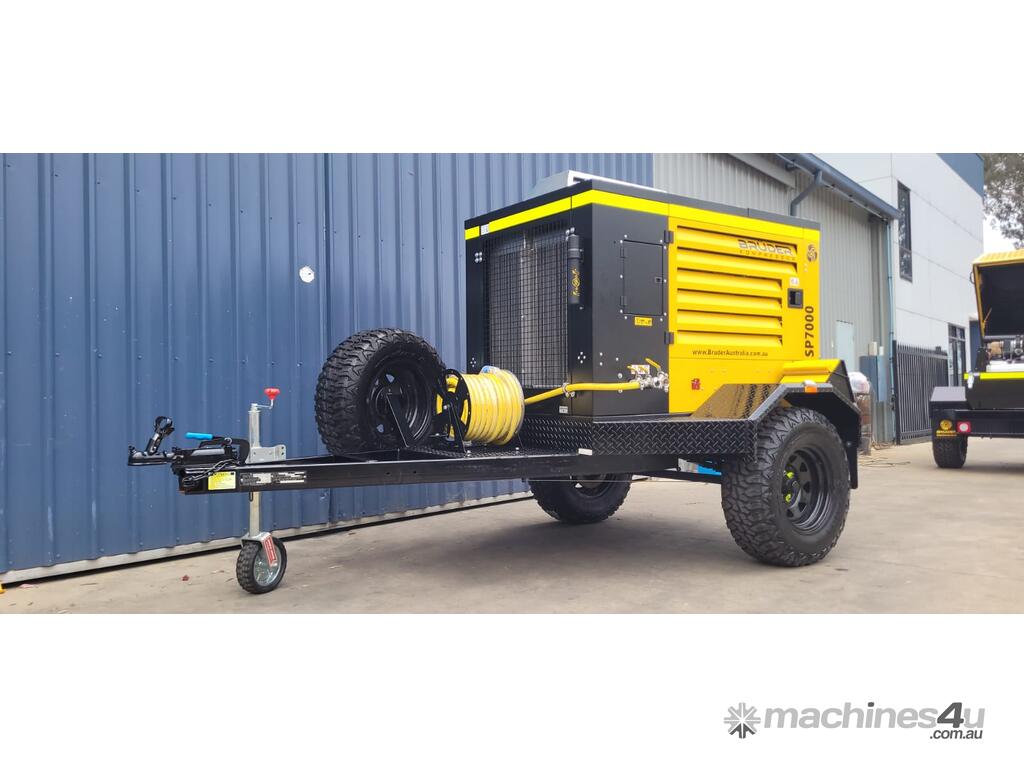

250cfm Rotary Screw Compressor: Diesel Driven, Mounted on a Heavy Duty Trailer

The Brüder SP7000 is a popular choice for heavy duty construction work with plenty of air available on-tap for a wide range of applications including some media blasting operations.

With a smaller footprint and better designed layout than many other compressors in it’s class, the Brüder SP7000 can be supplied either on a heavy duty braked trailer (unbraked option not available) on mounted to a forkliftable steel skid for portability, or (permanently) mounted to a service/comb trailer, ute, or truck tray.

The layout also means that the SP7000 is capable of great performance and high volume air output even in extreme weather conditions with heat and dust. The IntelliDrive engine management system, while being intuitive and very user-friendly, offers good control over standard engine parameters and helps to maintain the engine at peak performance.

These machines have been designed to thrive in some of the world's most demanding applications for air compressors. We've taken this DNA to the next level with simply innovative design choices based on real-world feedback from the people who use our equipment.

Compact yet powerful, the standard size SP7000 Kubota-driven rotary screw compressor pumps out 247 cubic feet per minute – the ideal flow rate for effective use in many applications in road construction, civil, and earthmoving industries. With a unique cooling system and filters designed for hot and dusty conditions, the Brüder SP7000 thrives in high ambient temperatures, ensuring reliability during long, hot days on the job.

SUPERIOR COMPRESSOR FEATURES:
Steel canopy with large wide-opening doors – for easy access to all service parts
Vertical top exit exhaust – reduces fire risk
Extra long drawbar, heavy duty jockey wheel – easier to maneuver
Unique airflow design – provides optimal cooling in high ambient temperatures

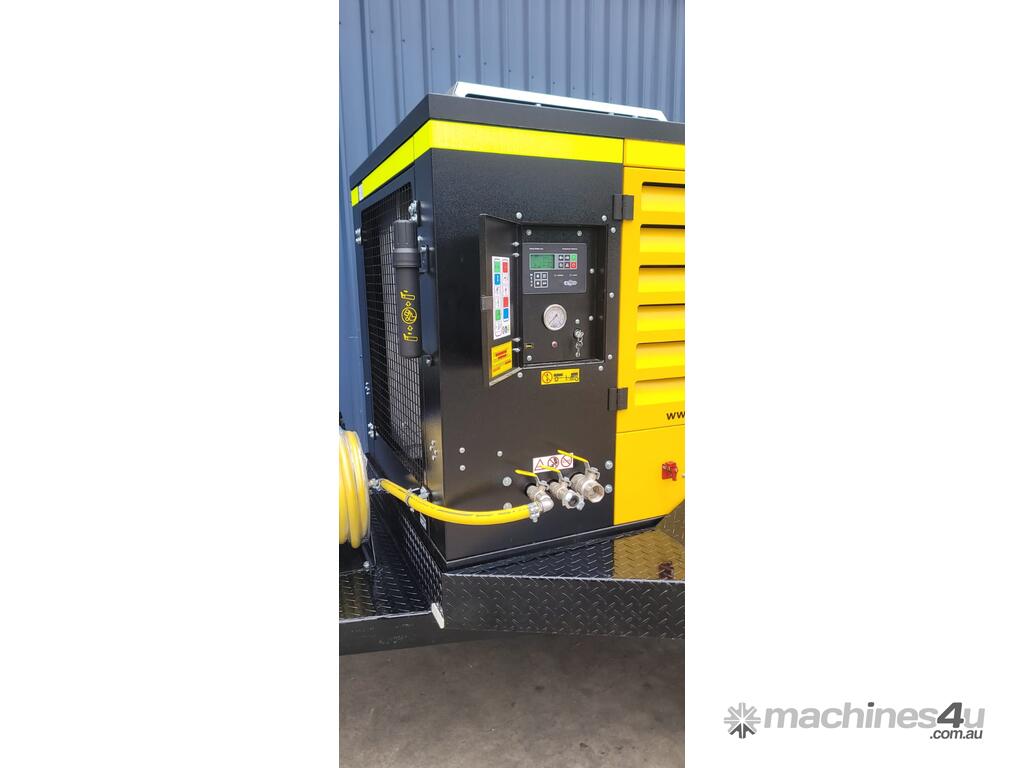

Passenger side mounted controls, valves/outlets – for operator safety and ease of access
Kubota diesel engine – lightweight, compact, reliable, and powerful with established service network
IntelliDrive Nano – user friendly digital control system to protect and regulate compressor
115 litre steel fuel tank – longer running hours

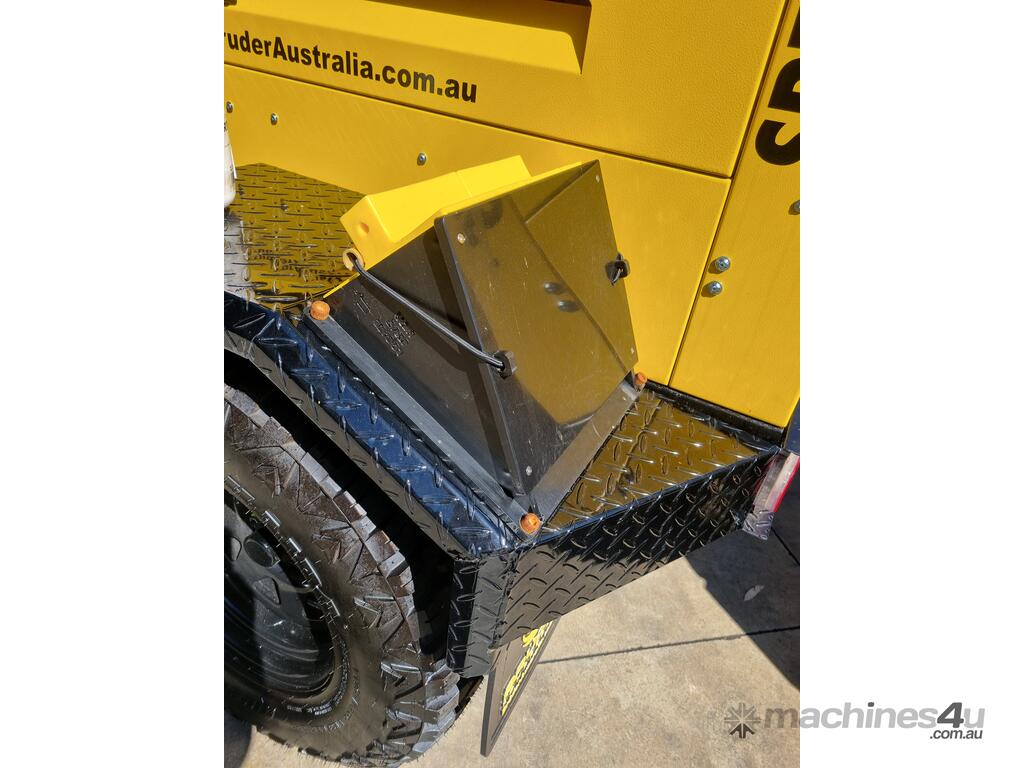

Heavy duty trailer, specifically designed for harsh environments with features like off-road springs, welded steel wheel arches, high ground clearance, and brakes, plus a generous platform on the front for mounting accessories

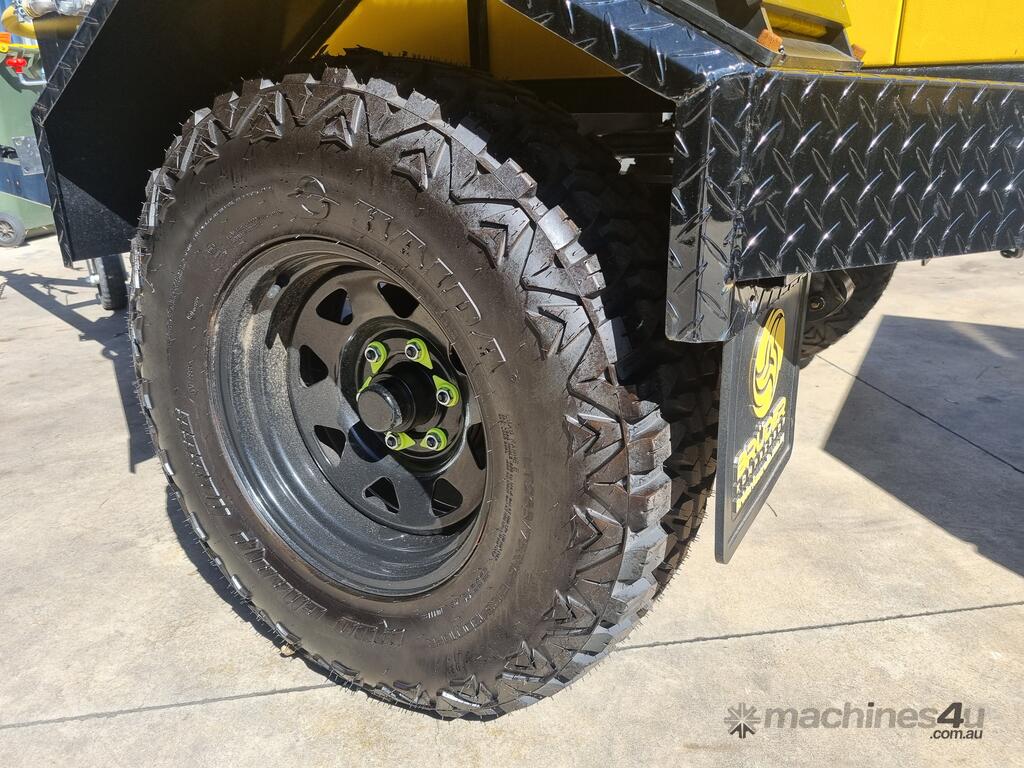

Large steel wheels with all-terrain tyres and a spare included as standard
Spin-on filters – easy servicing and replacement
Reflective tape - high visibility on site

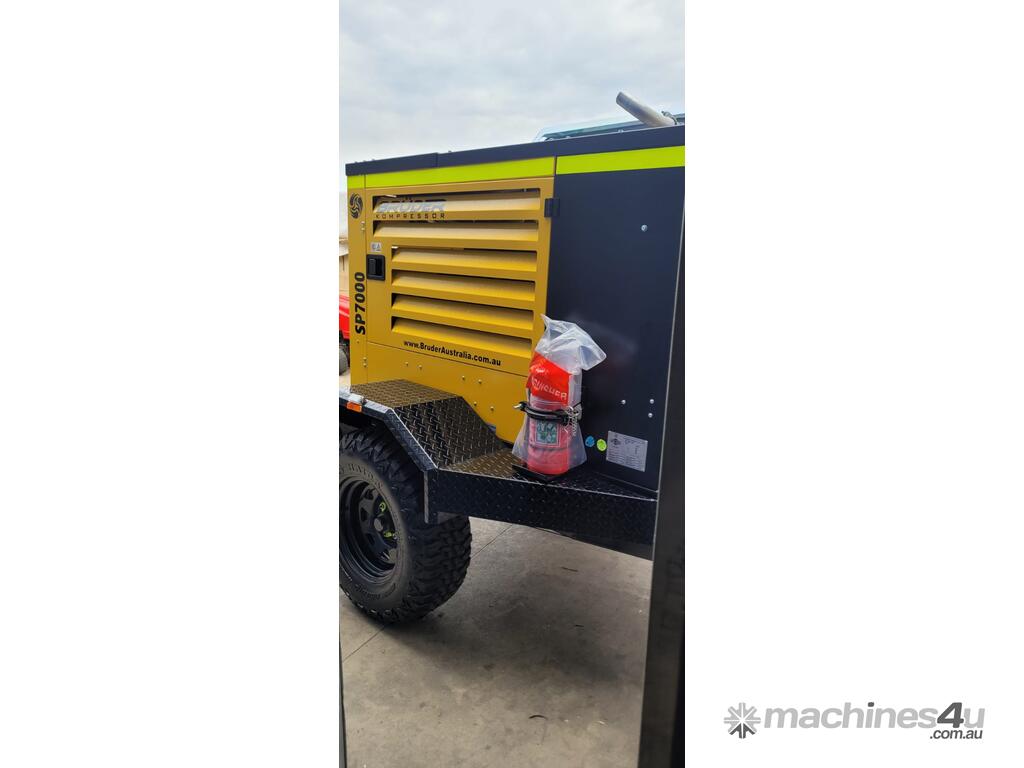

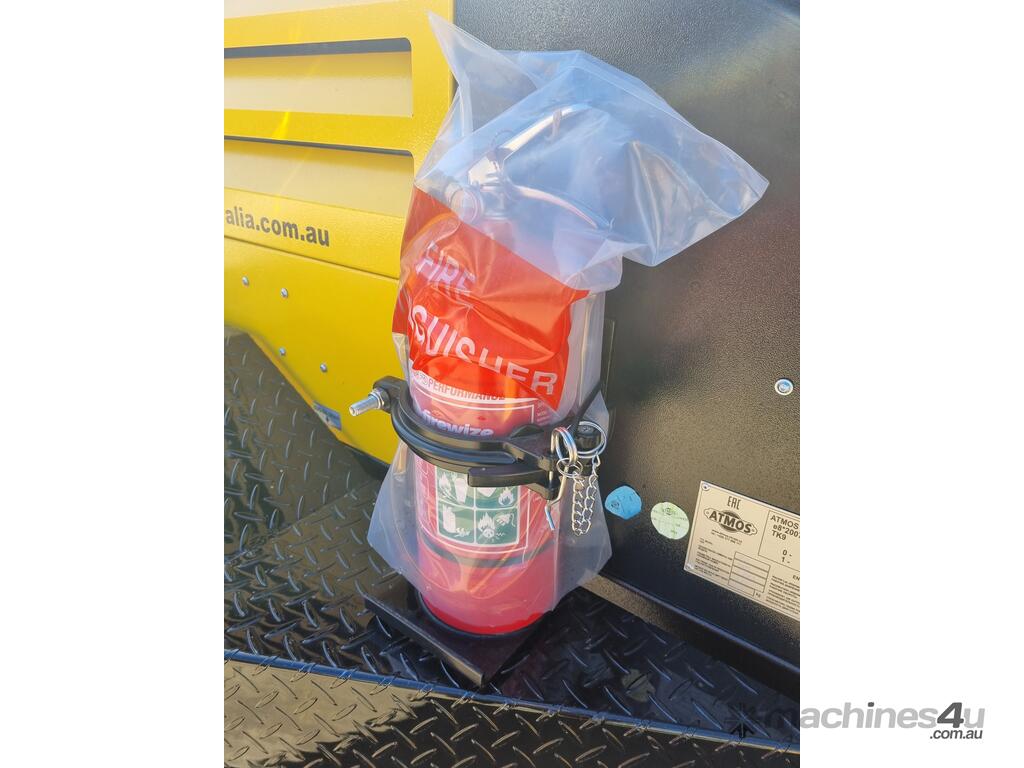

Fire extinguisher installed in a prominent location for ease of deployment in emergency situations
Wheel nut indicators - quick and easy visual indication

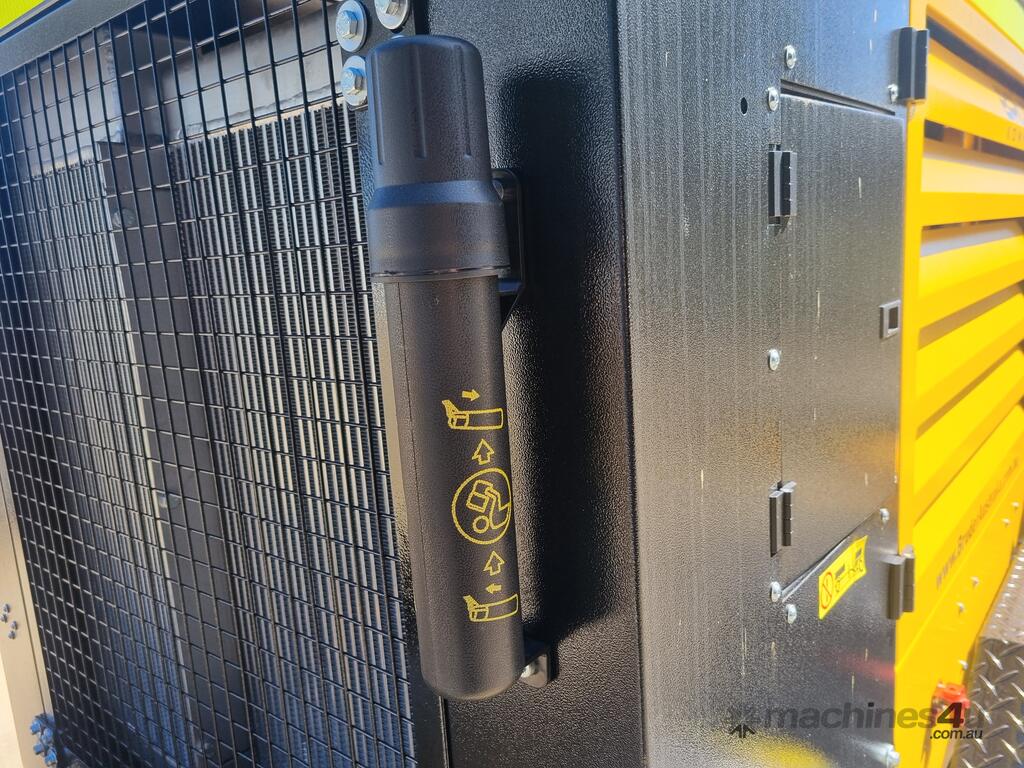

External operating manual holder - easy access
External lockable battery isolator for safety and security

Free Air Delivery: 247cfm (7m3/min)
Working Pressure: 7 bar (101 PSI)
Engine: Kubota V3300DI 4-Cylinder Diesel
Engine Rated Power at 2600RPM: 59.1HP (44kW)

TECHNICAL PARAMETERS:
SP7000 (7 bar)
Air end: EVO9G
Nominal capacity [m3/min]: 7
Nominal overpressure [bar]: 7
Safety valve setting [bar]: 15
Ambient temperature [C]: -10 to +46
Max outlet temperature [C]: 110
Cooling system: Oil injection
Compressor oil filling volume [Litres]: 19
Max oil system temperature [C]: 110
Max oil system pressure [bar]: 8.5
Outlet valves : 2 x G3/4" BSP, 1 x 1 1/4"

ENGINE PARAMETERS:
Type/Model: Kubota V3300DI
Cylinders: 4
Load speed [rpm]: 2600
Idle speed (Eco mode) [rpm]: 1500
Oil filling volume [Litres]: 9
Fuel tank volume [Litres]: 115
Coolant filling volume [Litres]: 4
Battery [V/Ah]: 12/135

NOISE EMISSIONS:
Sound power level LWA [dB(A)/pW]: 102

MOUNTING OPTIONS:
The SP7000 chassis has 3 foot pads which are integral to the design of the machine, placed in a manner to facilitate even load distribution when lifting from the top. As such, the compressor is best fitted to a skid or a trailer for portability. However, the skid can be omitted for permanent installation to a truck tray, service trailer or similar.

TRAILER SPECS:
Max. transport speed [km/h]: 110
Total mass [kg]: 1450
Max. mass on axle [kg]: 1450
Total length [mm]: 3170
Total width [mm]: 1860
Total height (includes lift eye and exhaust) [mm]: 1850
Wheel: R15
Tyre: 235/75/15 L/T
Suspension: Off-Road Leaf Spring
Coupling: 50mm ball
Spare tyre: Yes
Brakes: Mechanical disc
Tyre pressure [kPa/psi]: 450/65
Able to be road registered: Yes
