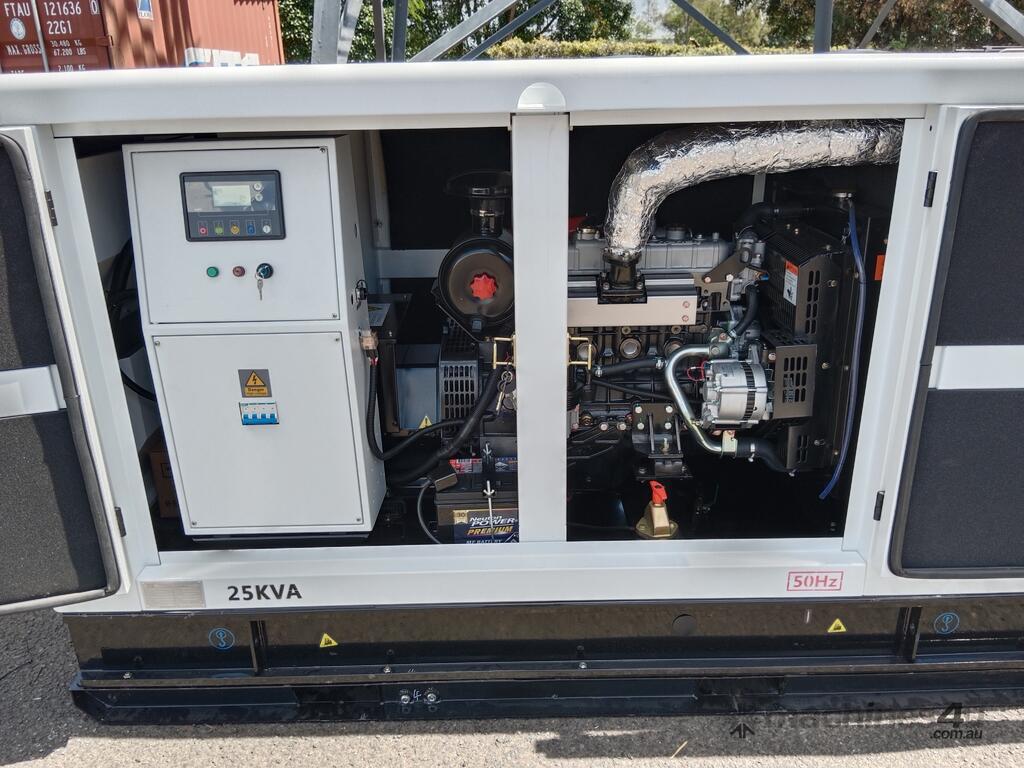

25kVA Isuzu Powered Silenced Diesel Generator 415V / 240V

Main Features
4 pole brushless synchronous alternator with zero THD delivering clean stable energy.
Safe to use on digital electronic equipment.
Water-cooled diesel engine for round the clock use in extreme conditions.
User friendly controller with instruction manuals available.
All generators are ATS or 2 wire start connection equipped
Compliant with Australian safety standards.

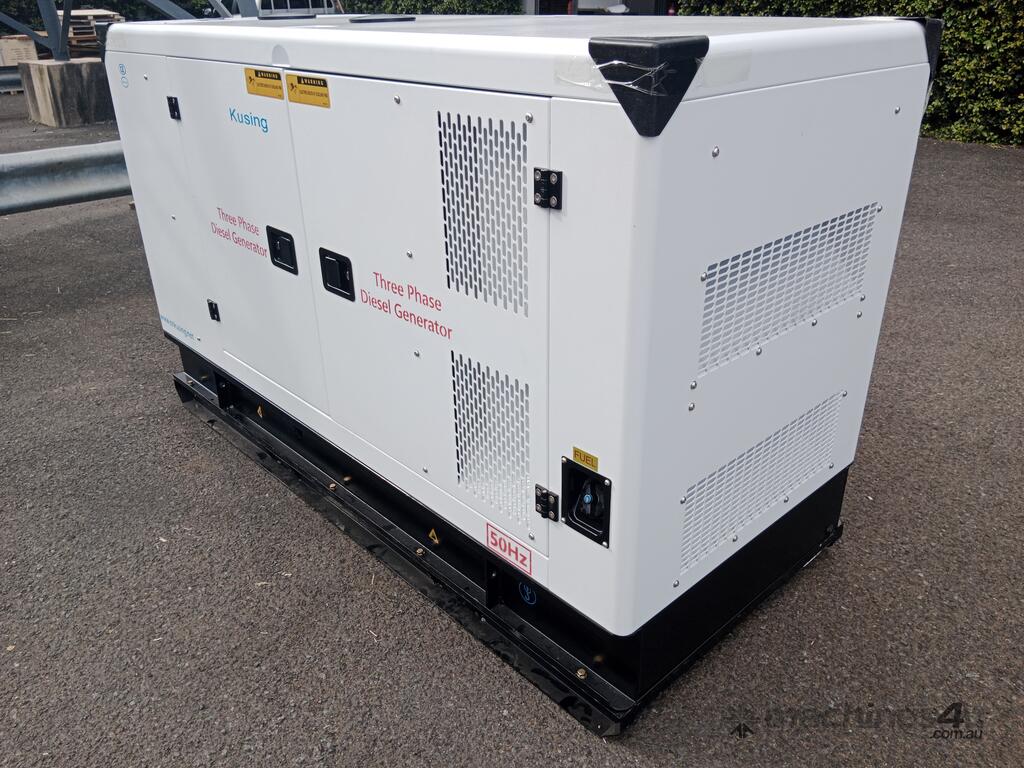

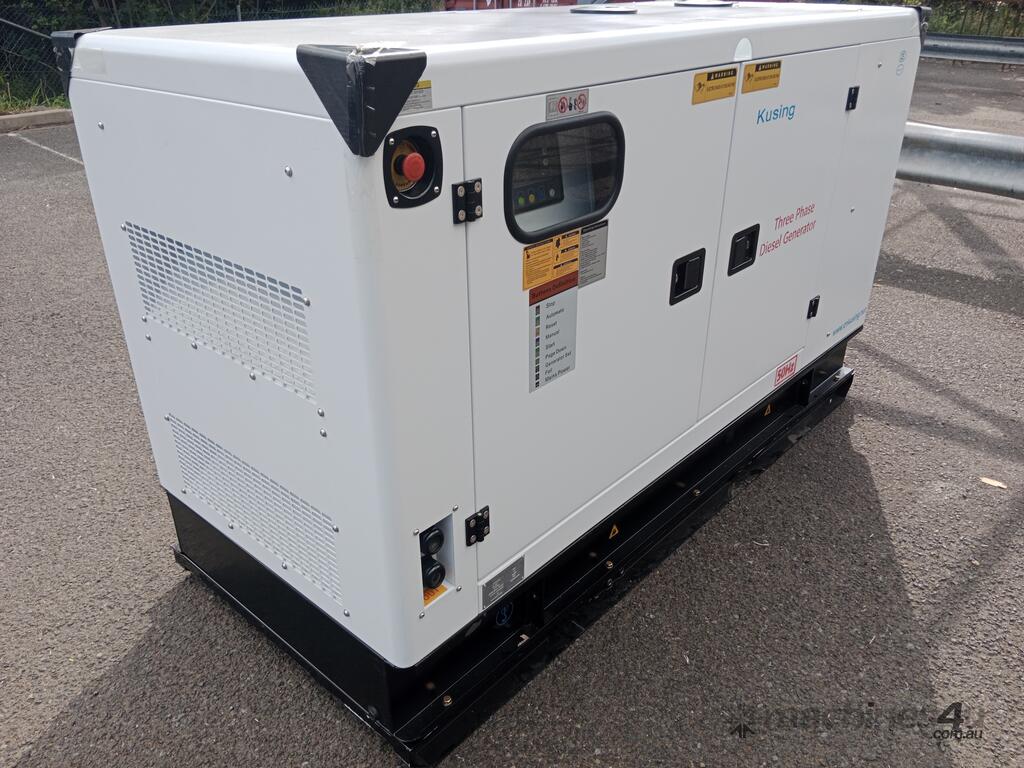

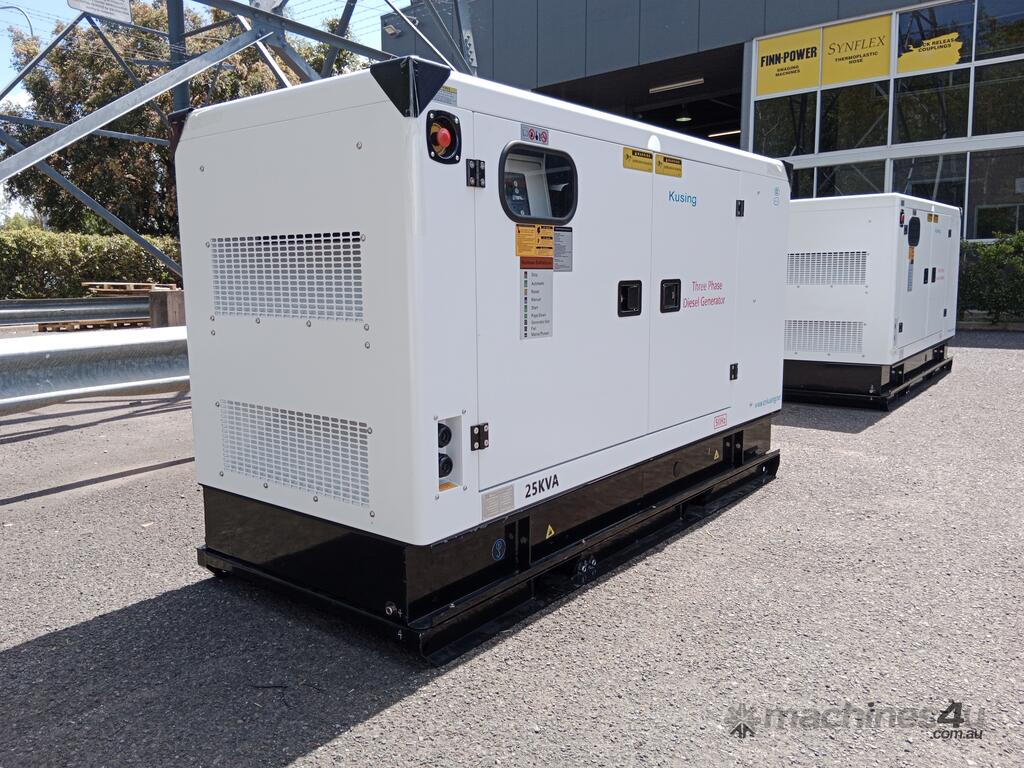

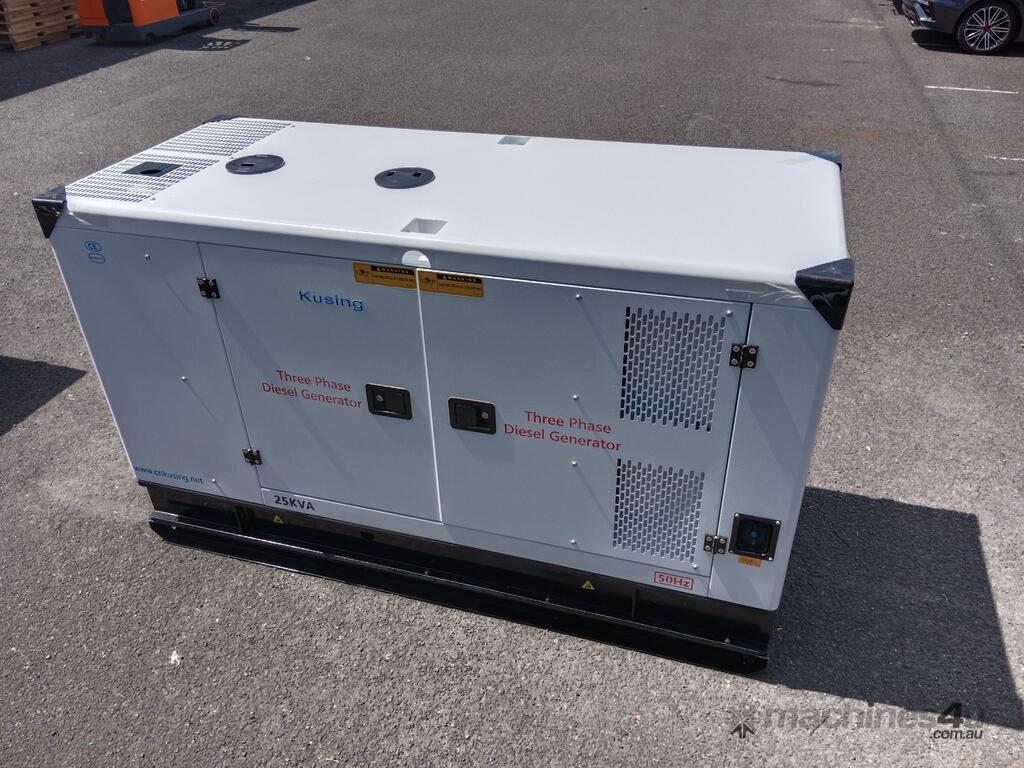

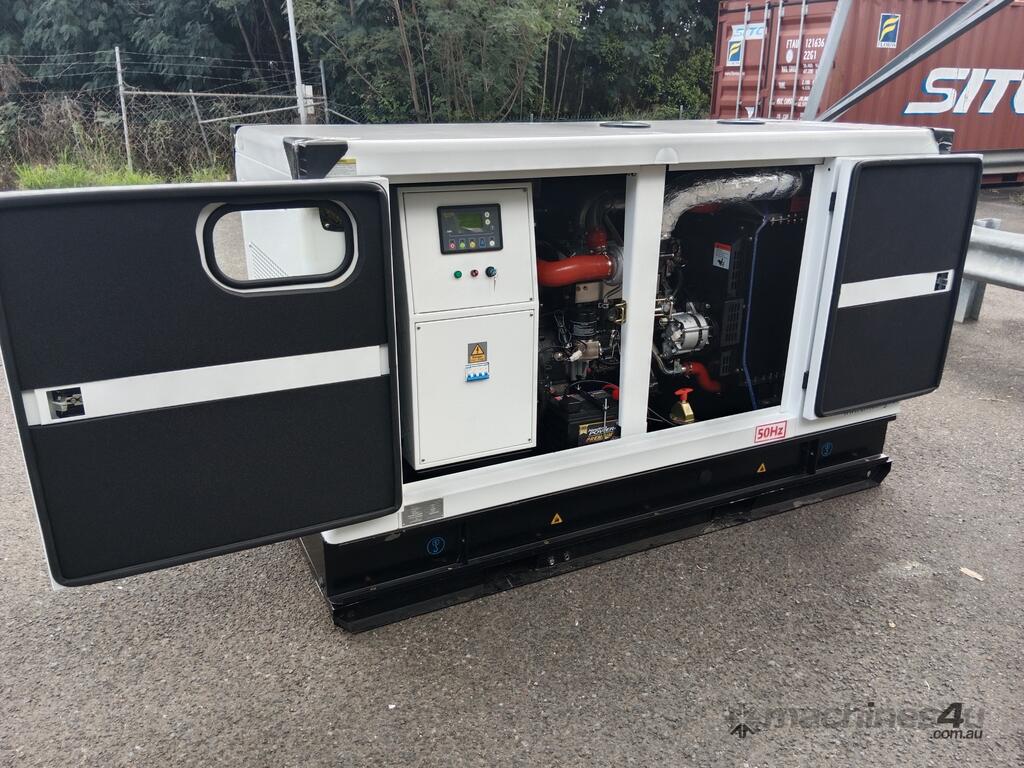

Strong lockable weatherproof canopy with various lifting locations

Safety Features
Emergency stop
Battery Isolator
Over temperature alarm
Low oil alarm
Low fuel alarm
RCD protection
Over current protection
Battery DC charge fault alarm
Phase imbalance protection
Full canopy soundproofing with lockable doors
Baffled poly fuel tank

Specifications

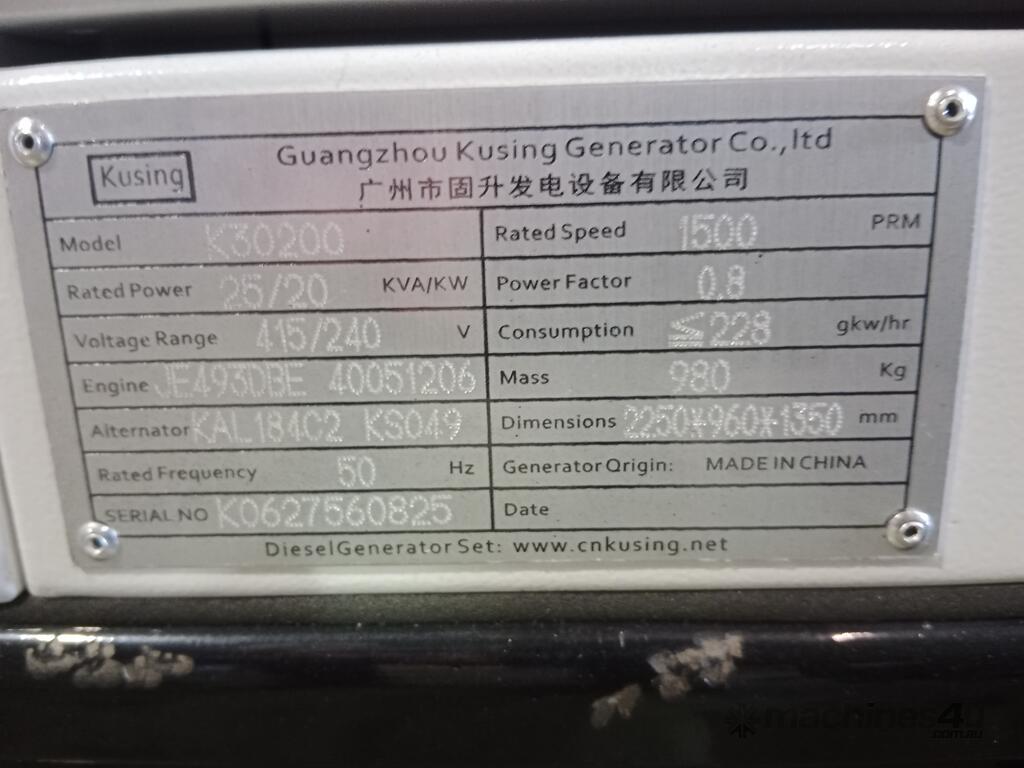

Generator Model K30200
Prime Power 25kVA / 20kW
Standby Power 27.5kVA / 22kW
Voltage 415V 3 Phase / 240V Single Phase
Rated Current 34.8 Amps per phase
Frequency 50Hz 1500 RPM
Power Factor 0.8 (lagging)
Power Sockets 1 x 32A 415V / 2 x 15A 240V

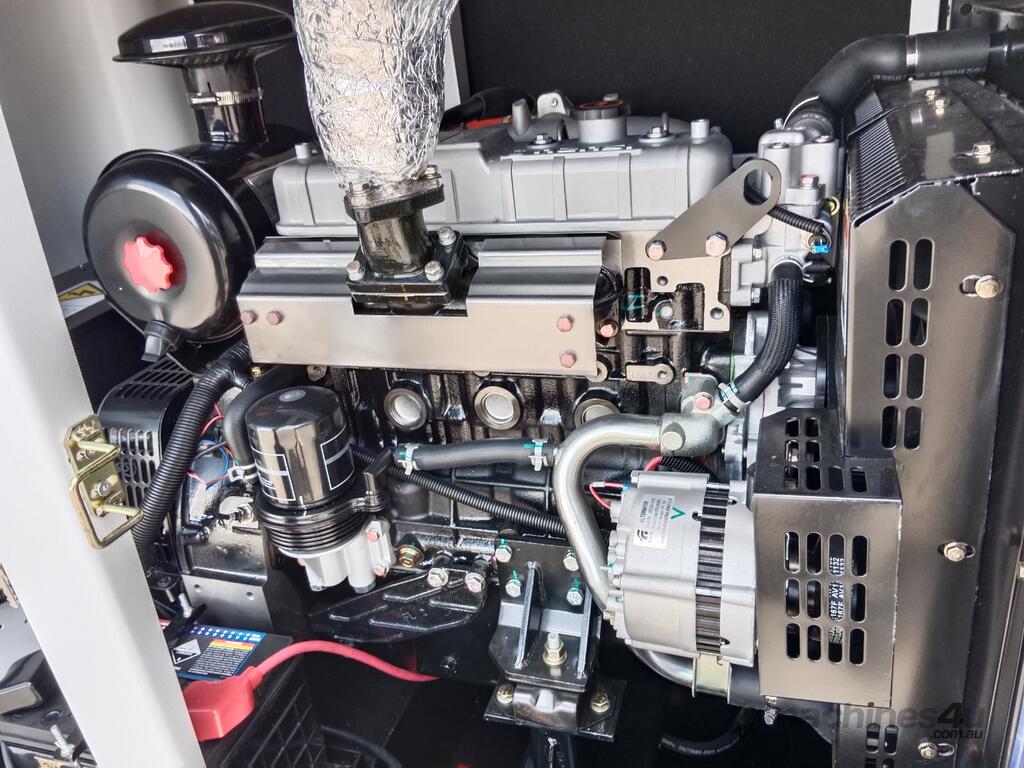

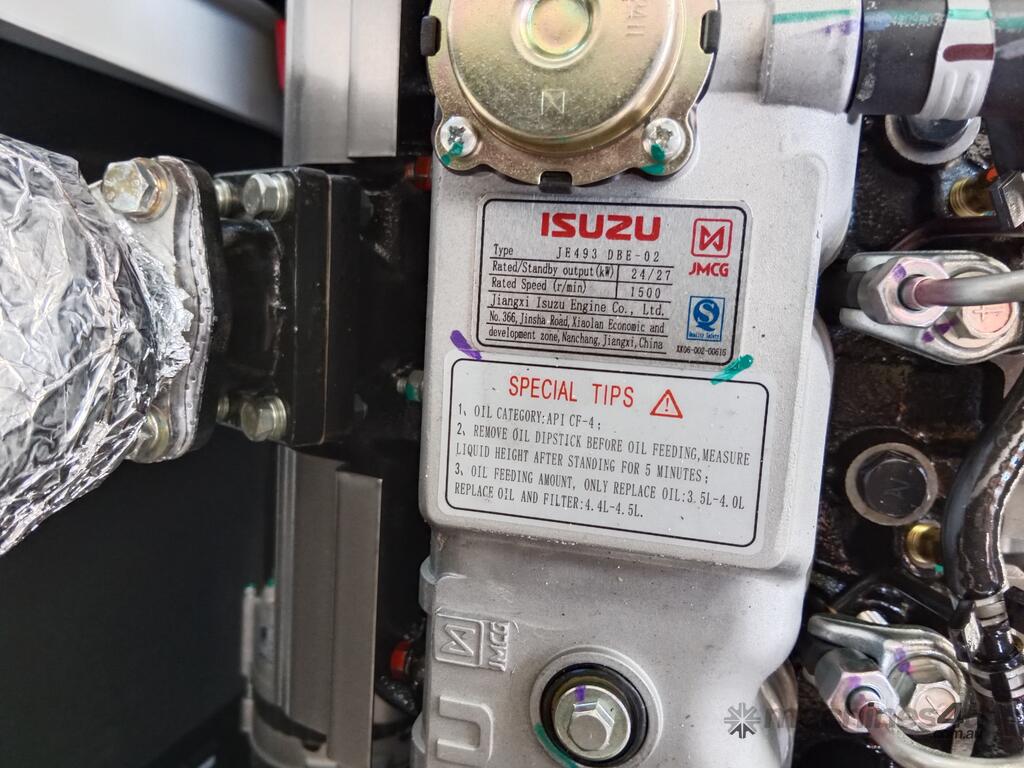

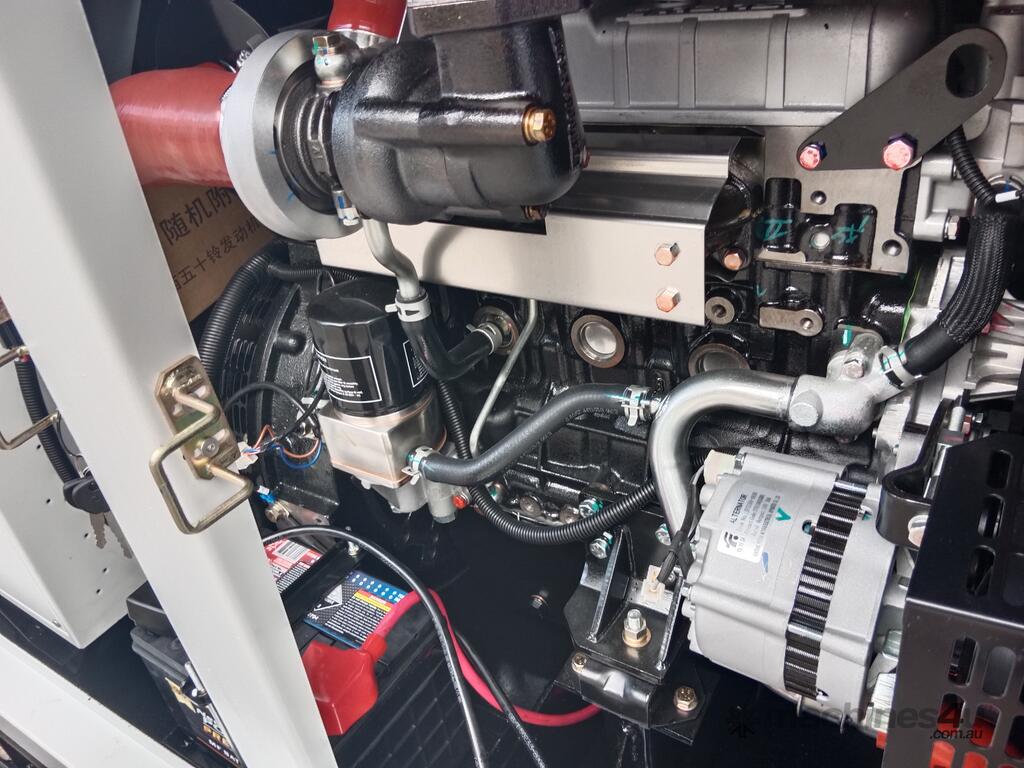

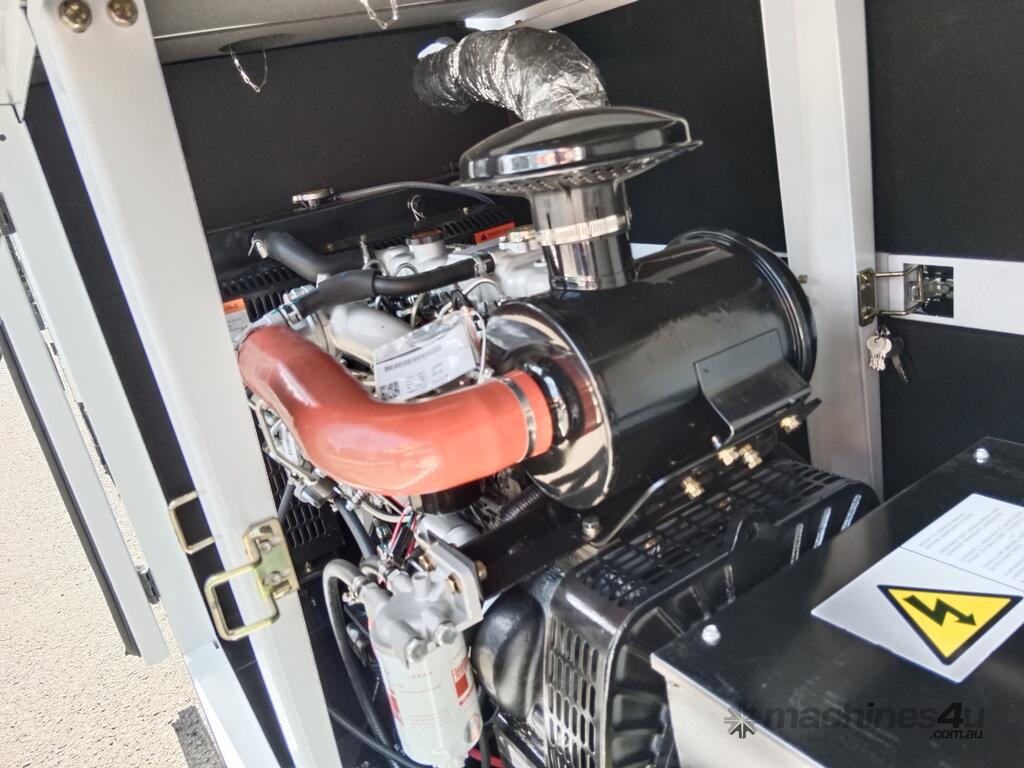

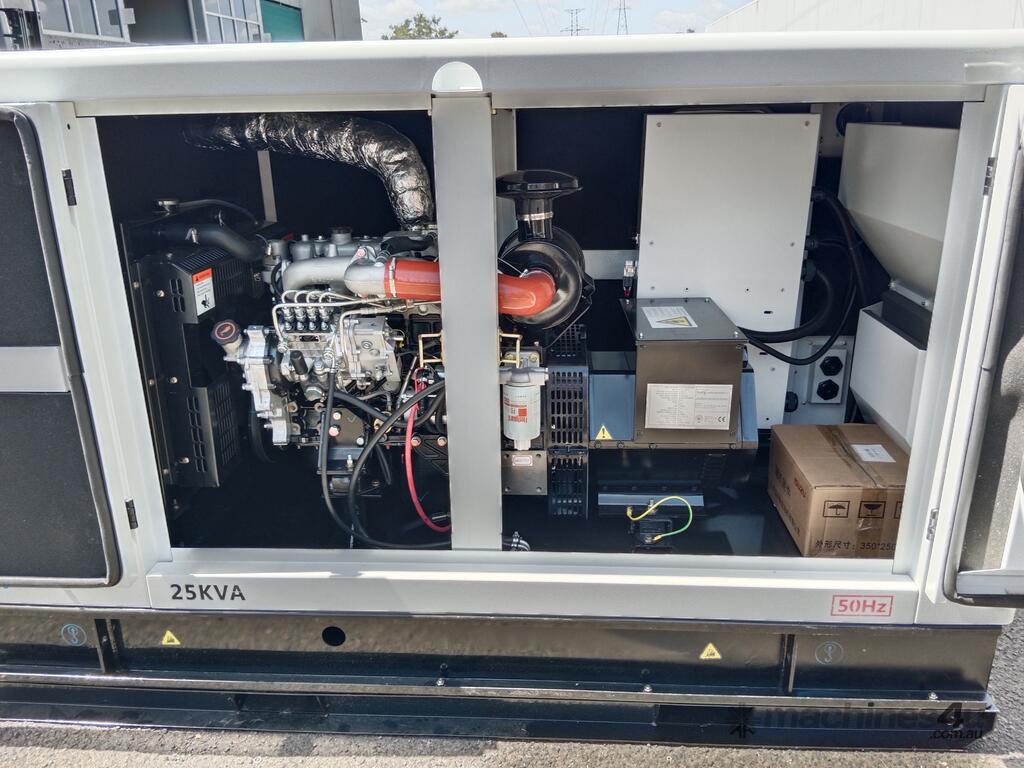

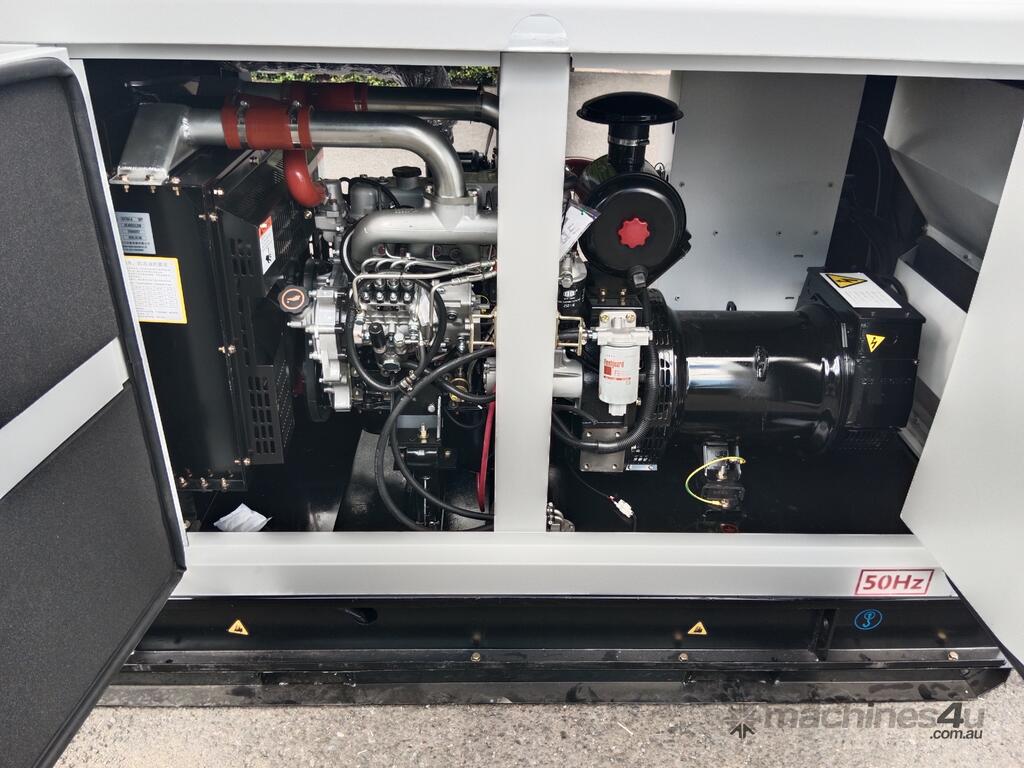

Engine Brand Isuzu JE493DBE 40051206
Engine Type 4 Cylinder Inline Turbo Charged / Intercooled Diesel
Start System 12V Electric Start

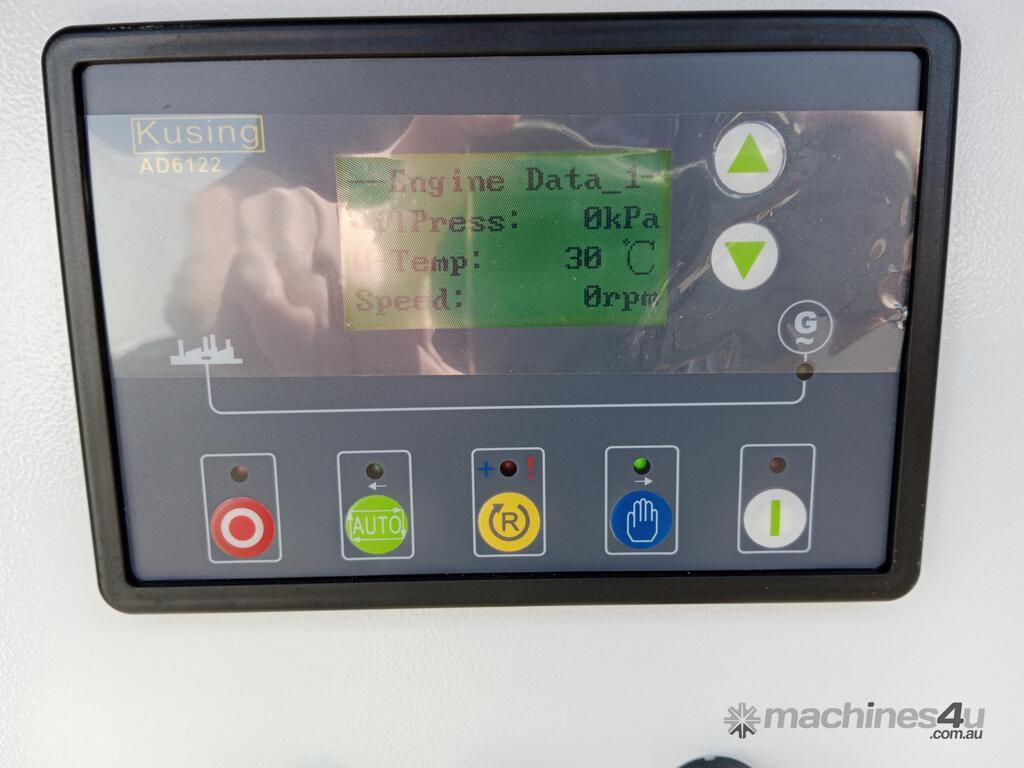

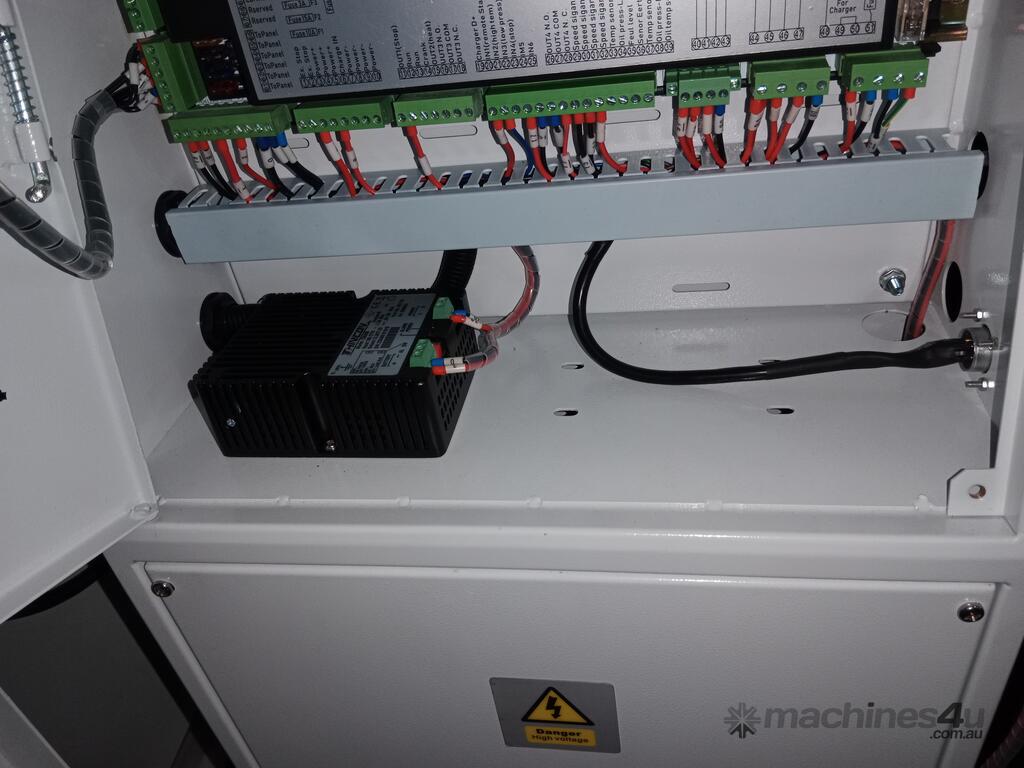

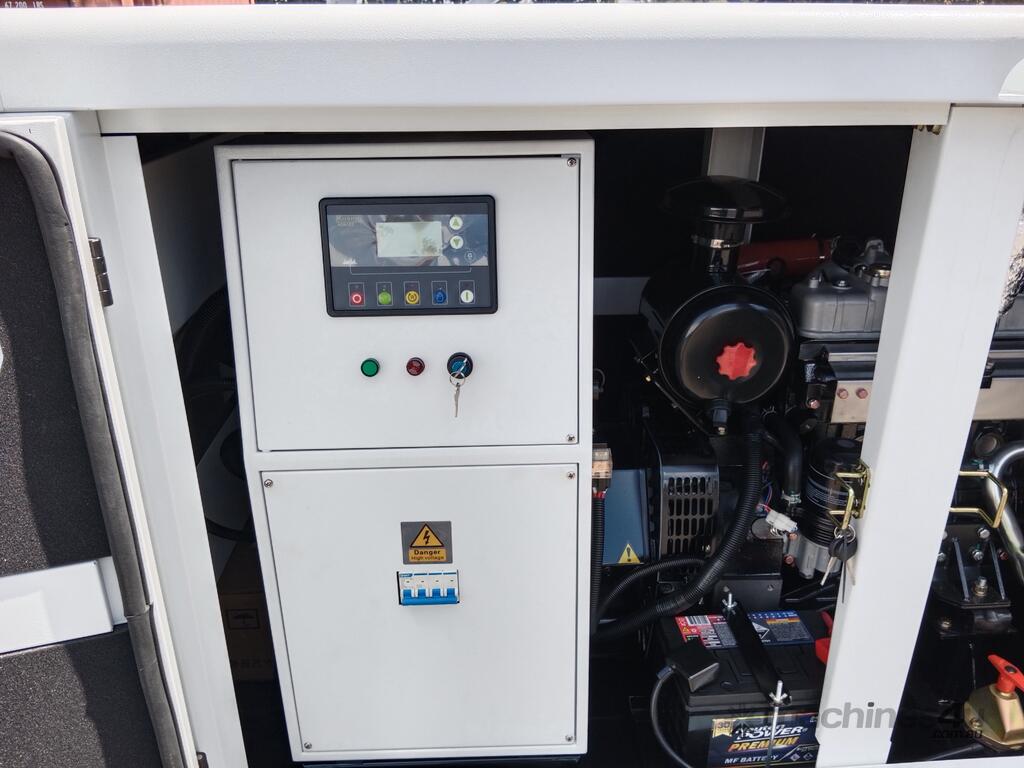

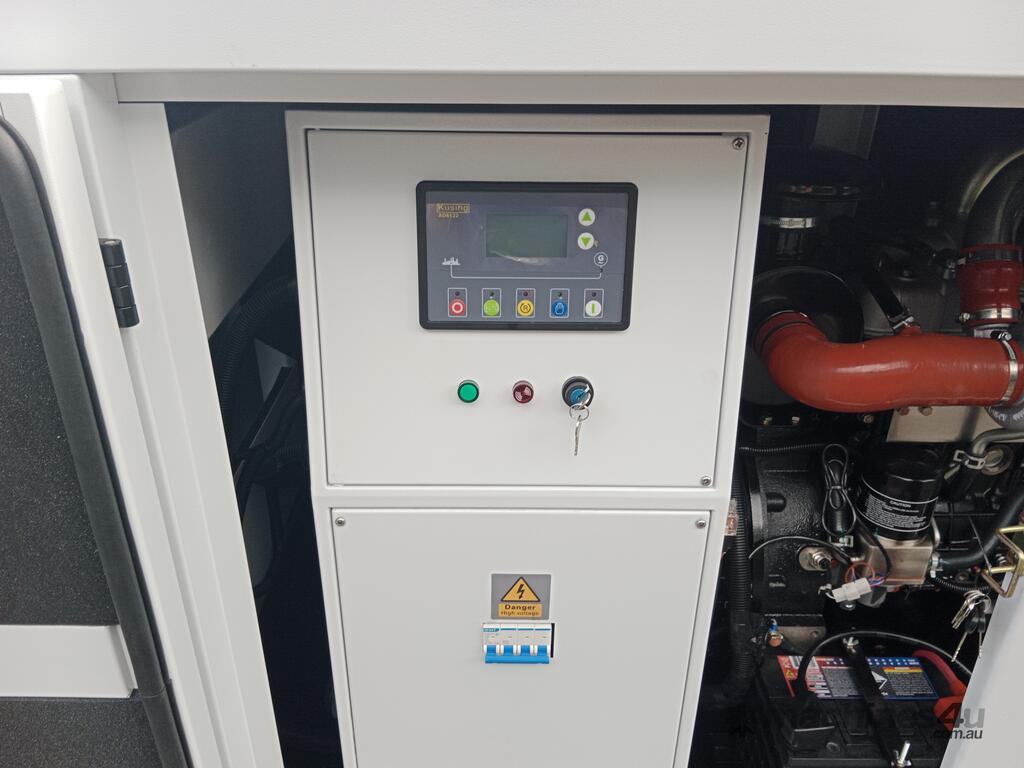

Controller Kusing 6122

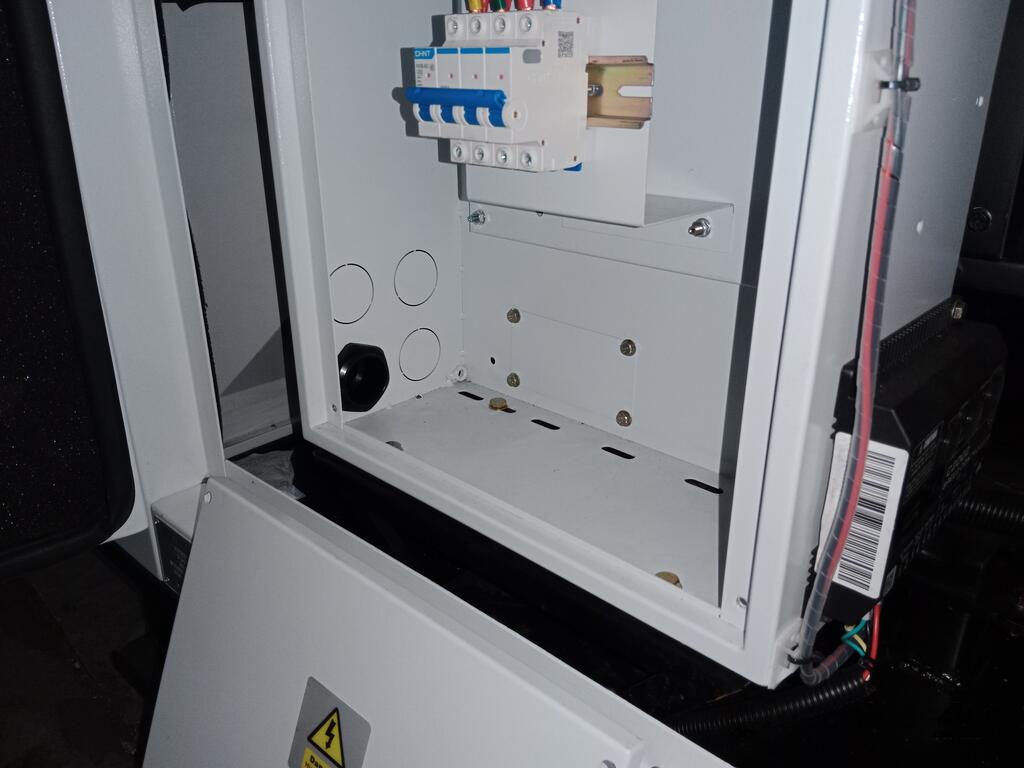

Main Breaker Switch 63A

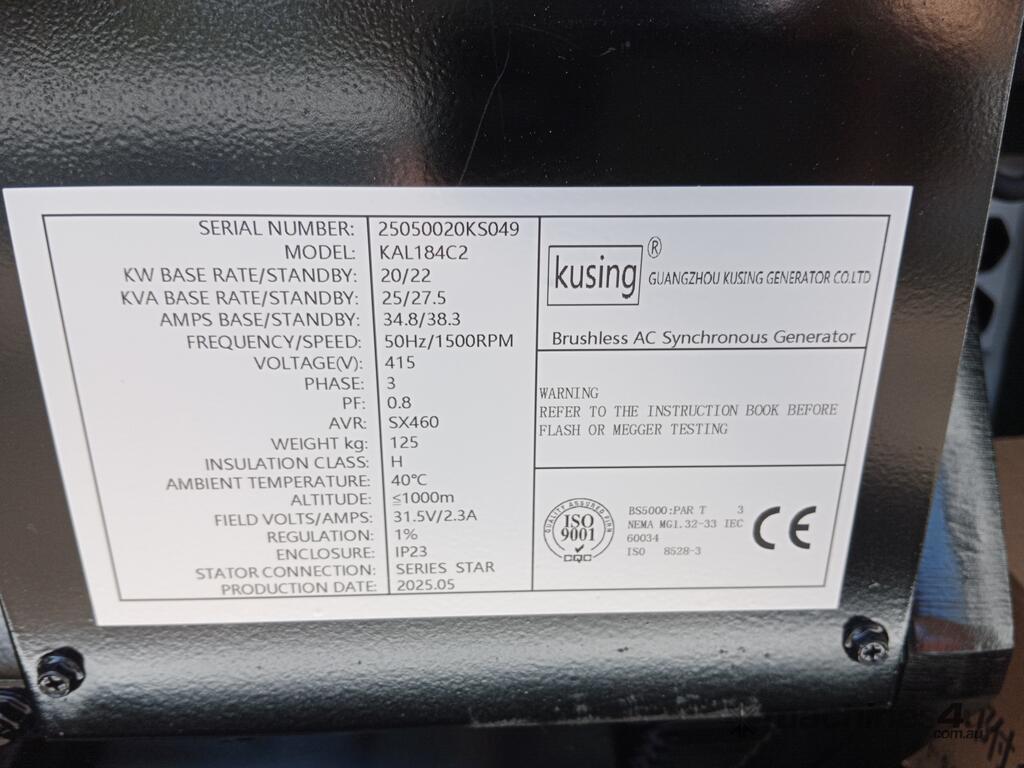

Alternator Make Kusing
Alternator Model KAL184C2 KS049
Alternator Type 4 pole brushless synchronous + SX460 AVR
Internal Protection IP23
Insulation Class H
Voltage Tolerance +/- 0.5%

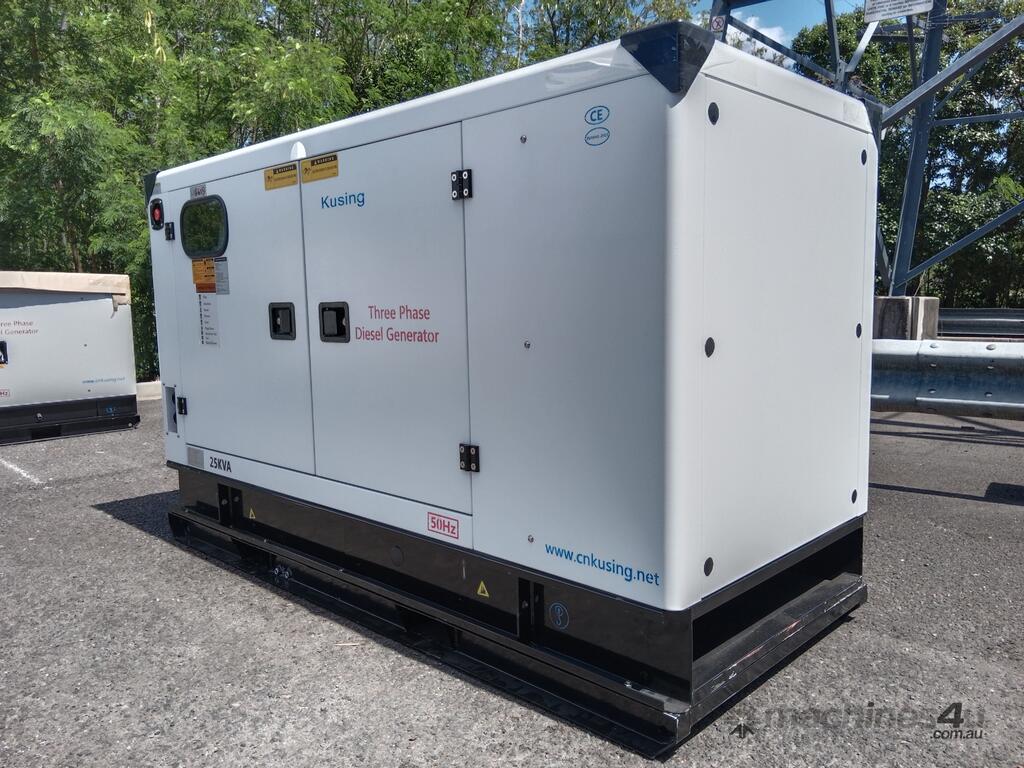

Canopy Silenced
Noise Level 70dB 7m
Fuel Tank Capacity Est. 140 Litres
Dimensions 2250L x 960W x 1350mm
Weight 980kg

12 Months / 1000 Hours parts replacement warranty
