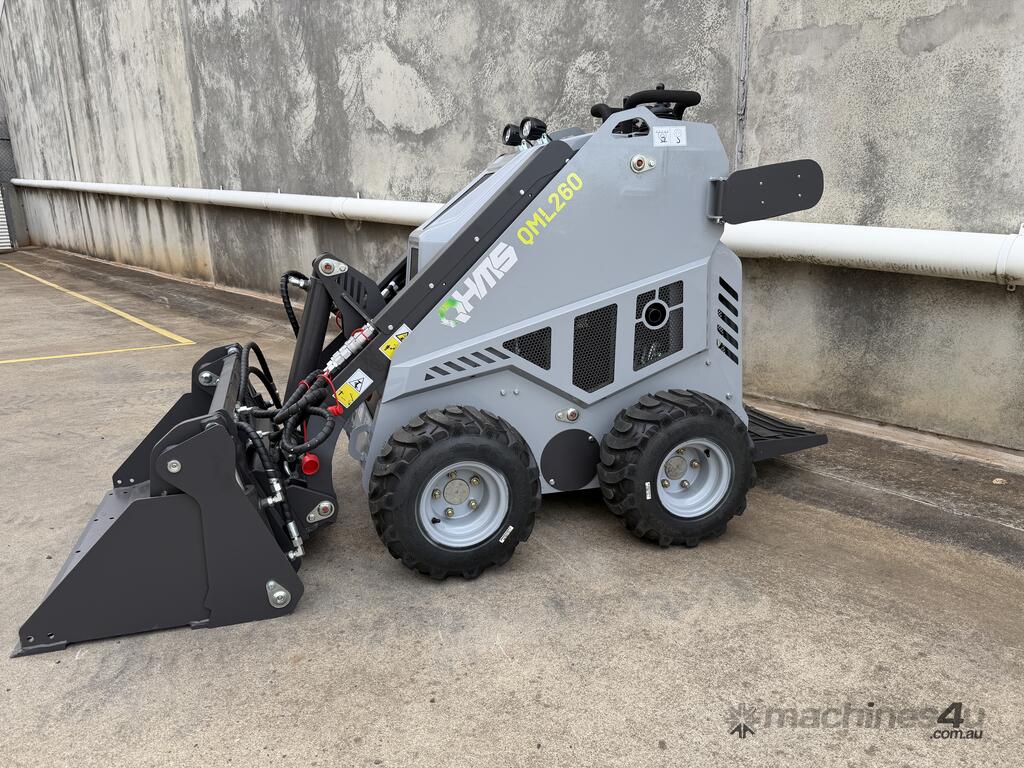

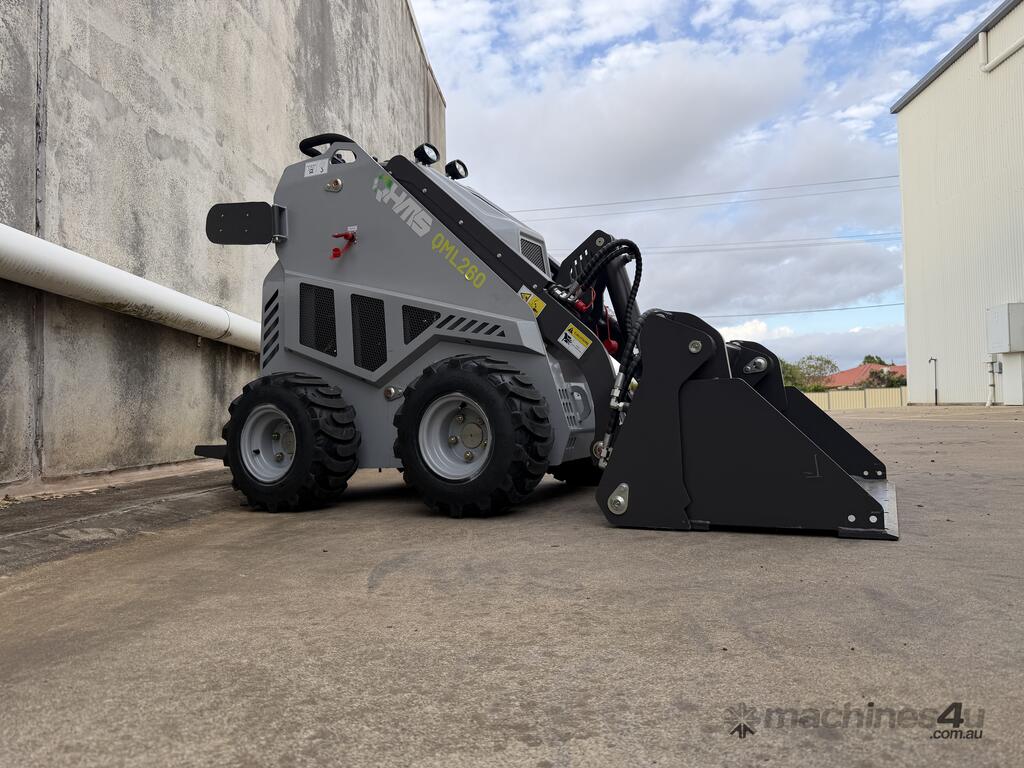

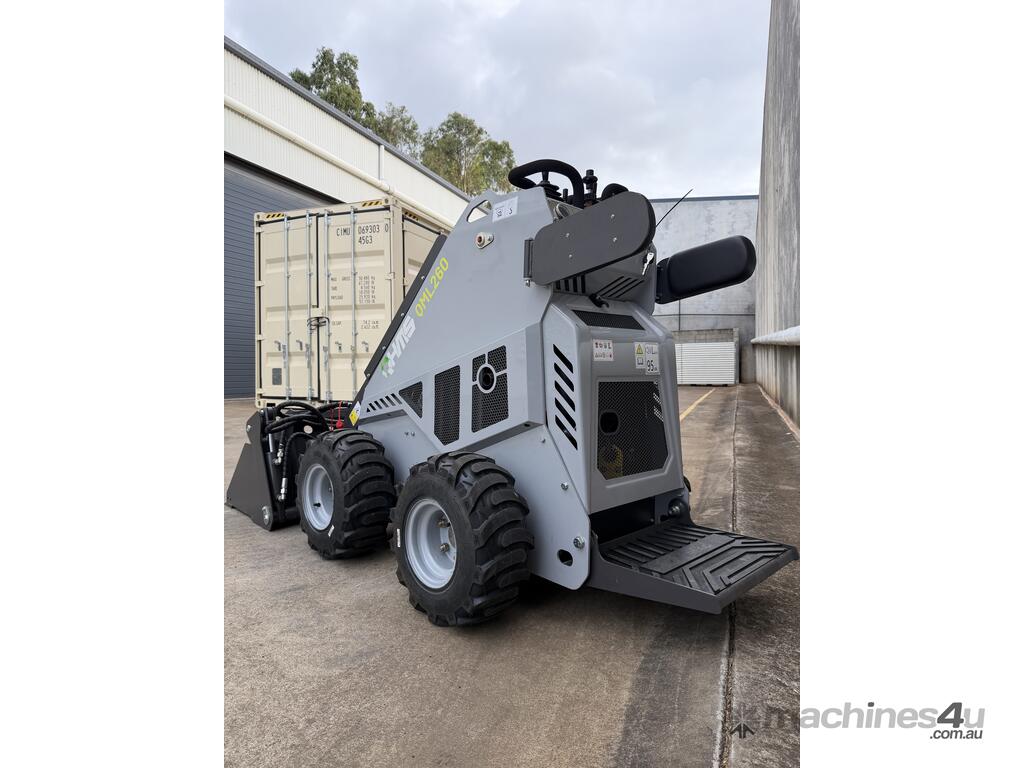

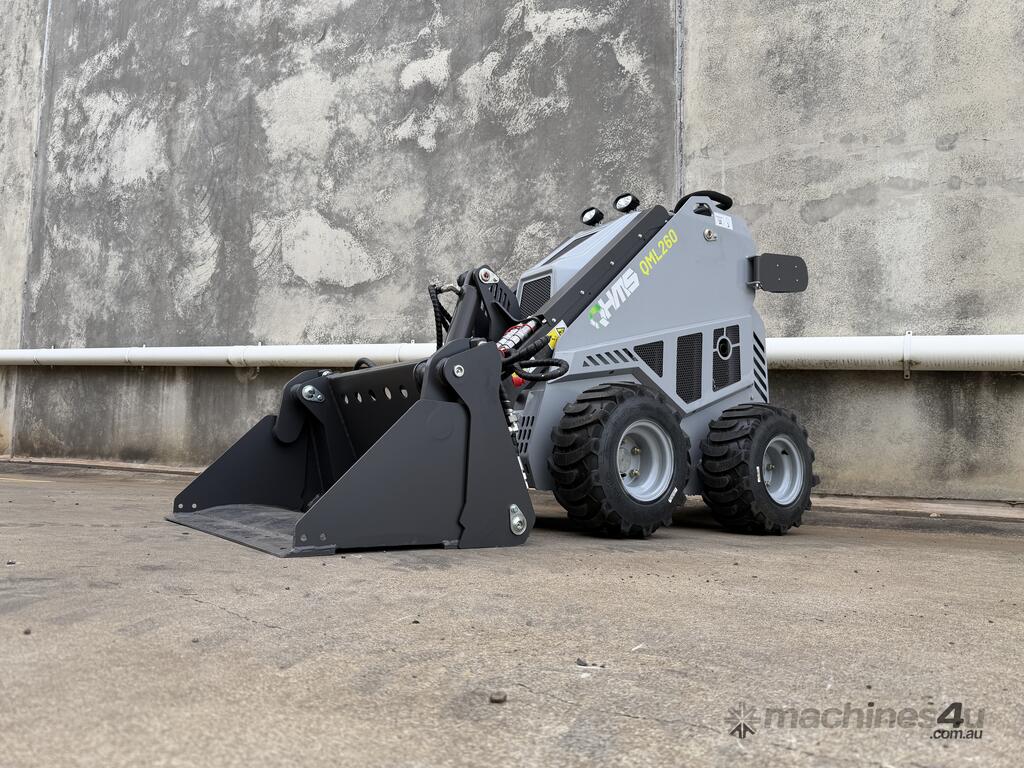

Key Features:
Rated Load 260kg
13.5HP Briggs & Stratton Engine
Electric Start

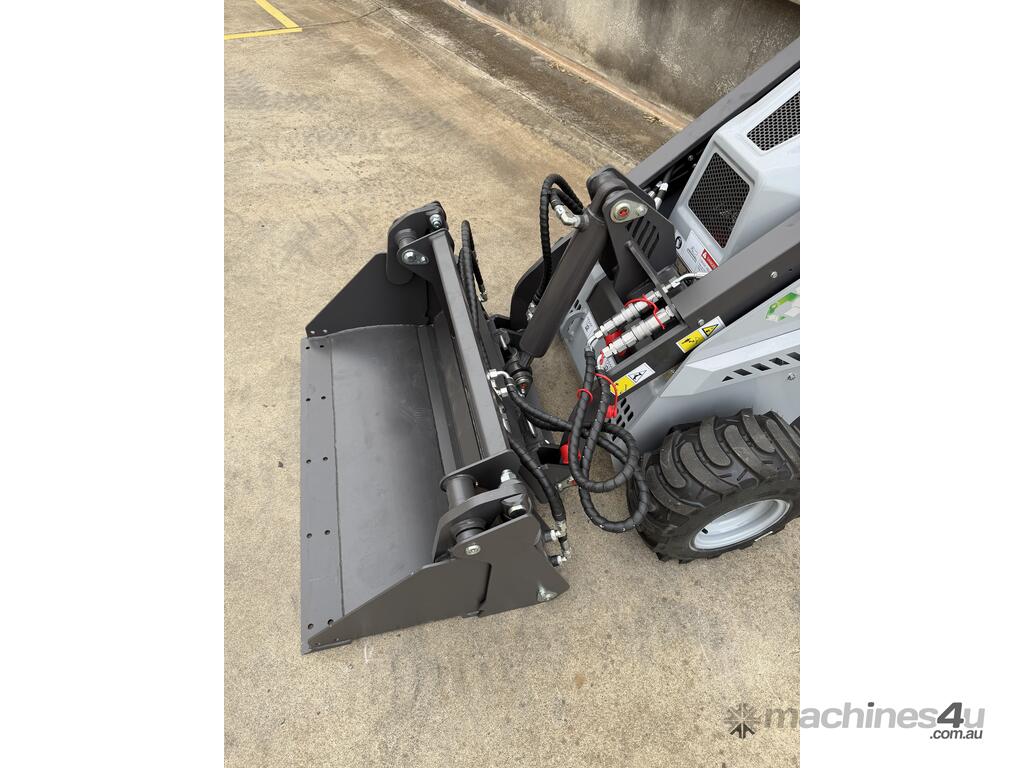

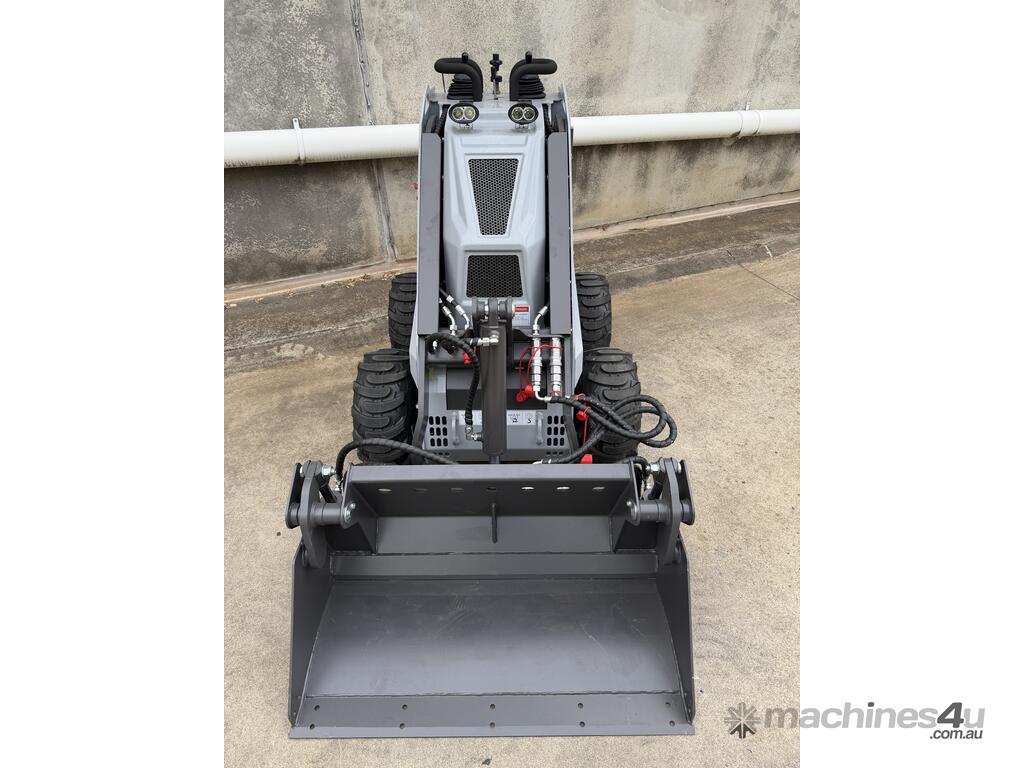

Optioned with 4 in 1 Bucket as Standard
Loader Specifications
Rated Load: 260 kg
Bucket Capacity: 0.13 m³
Max. Lifting Force: 600 kg
Working Speed: 0–5 km/h
Rated Pressure: 17 MPa
Lifting Time: 4.2 s
Descending Time: 3.1 s
Tipping Time: 1.5 s
Climbing Capability: 30%
Working Weight: 690 kg
Overall Size (L×W×H): 2110 × 1050 × 1344 mm

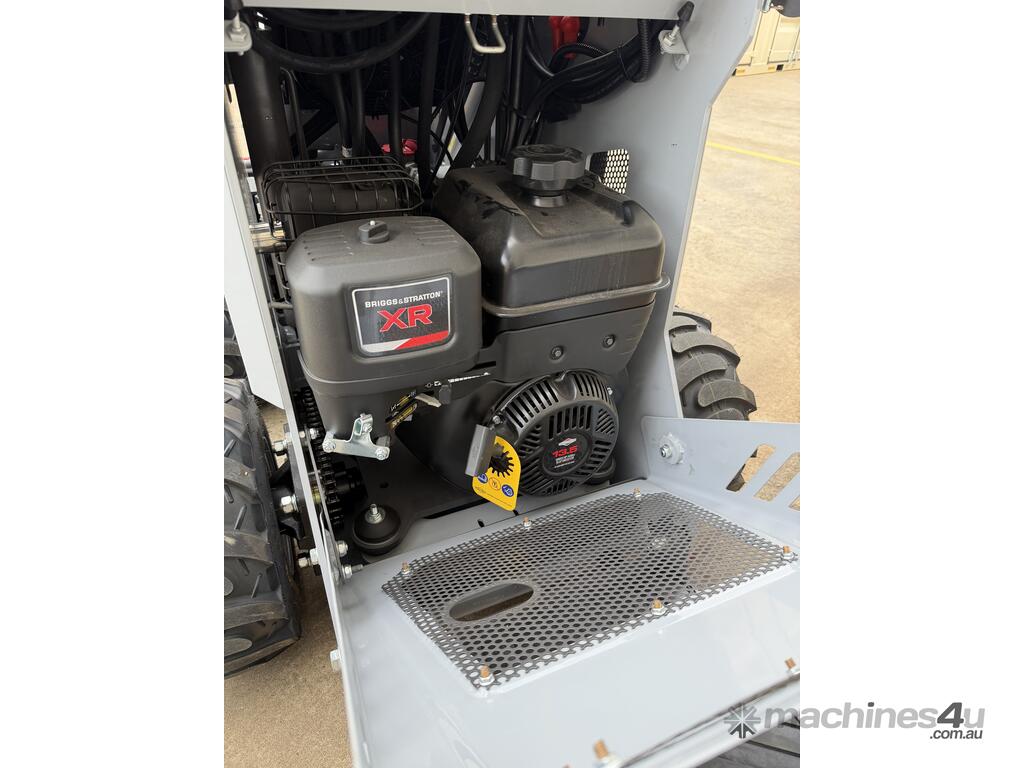

Engine:
Brand: Briggs & Stratton
Model: 25T2
Fuel Type: Petrol
Power Output: 13.5 hp
Fuel Consumption: 4.2 L/h
Starting Method: Electric start
Fuel Tank Capacity: 6.6 L
Engine Oil Capacity: 1.1 L
Hydraulic Oil Capacity: 20 L
