2X3 METER Cantilever type waterjet cutting machine

PRISTINE FINISHES ARE OUR PROMISE. Our industry-standard range can slice through almost any material from stone, wood, glass, fibre and other composites. All machines include a user-friendly and simple interface for programming and are supplied by our friendly team who are more than happy to help.

We are a waterjet cutting system manufacturer with 20 years experiences. So we provide reliable waterjet cutting systems with factory price. Moreover, we will provide spare parts service and maintenance from NSW.

A stand waterjet cutting system includes:

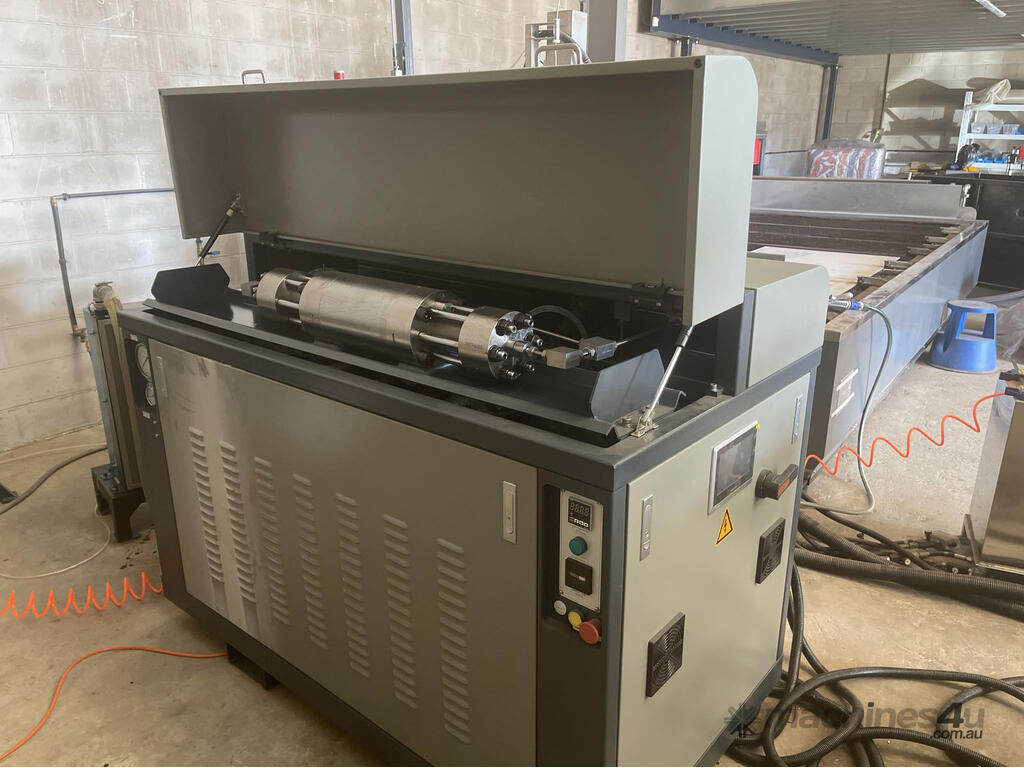

1. Intensifier Pump
Max. Pressure: 420 Mpa (60,000 psi)
Working Pressure: 320 Mpa
2 stages water filter
Oil filters equipped.
Attenuator capacity: 0.86L
Intensifier manufacturer: ER Technology (Seattle, USA)

2. Machine Frame
a. Cantilever Style:
One base beam with one flyer beam sit on it.
Flyer beam has to be shorter than 2 metres.
Easy to load materials.
b. Gantry Style:
One bridge beam sit on two base beams.
Suitable for all table sizes.
c. Integrated Style:
Suitable for small factory.

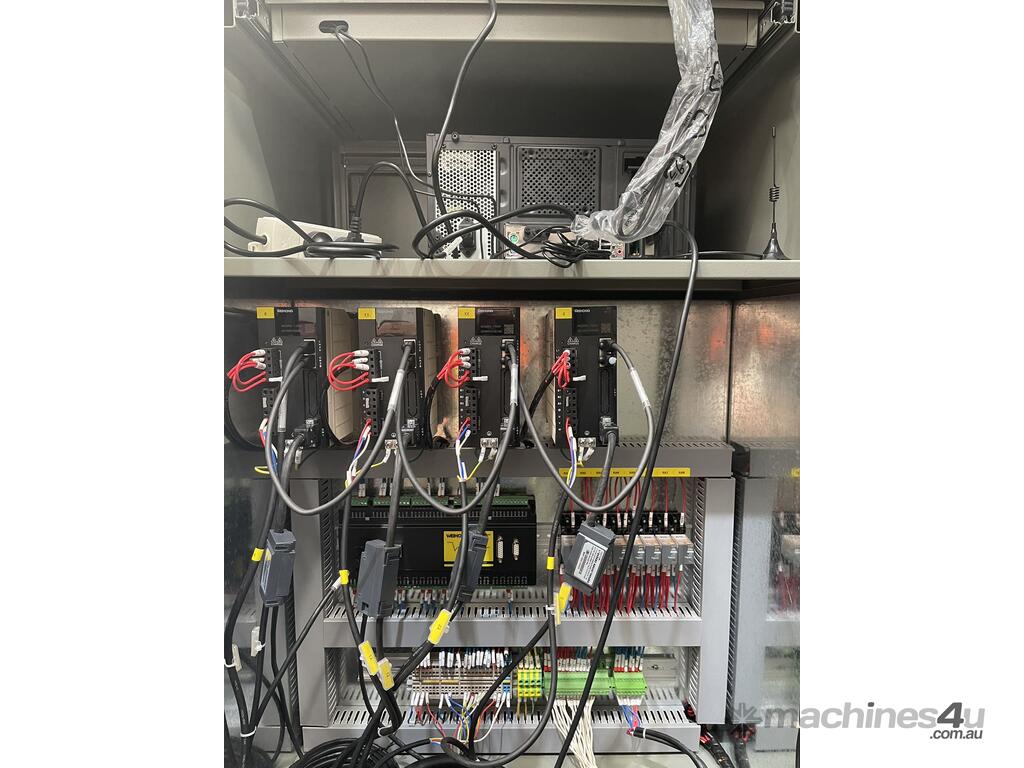

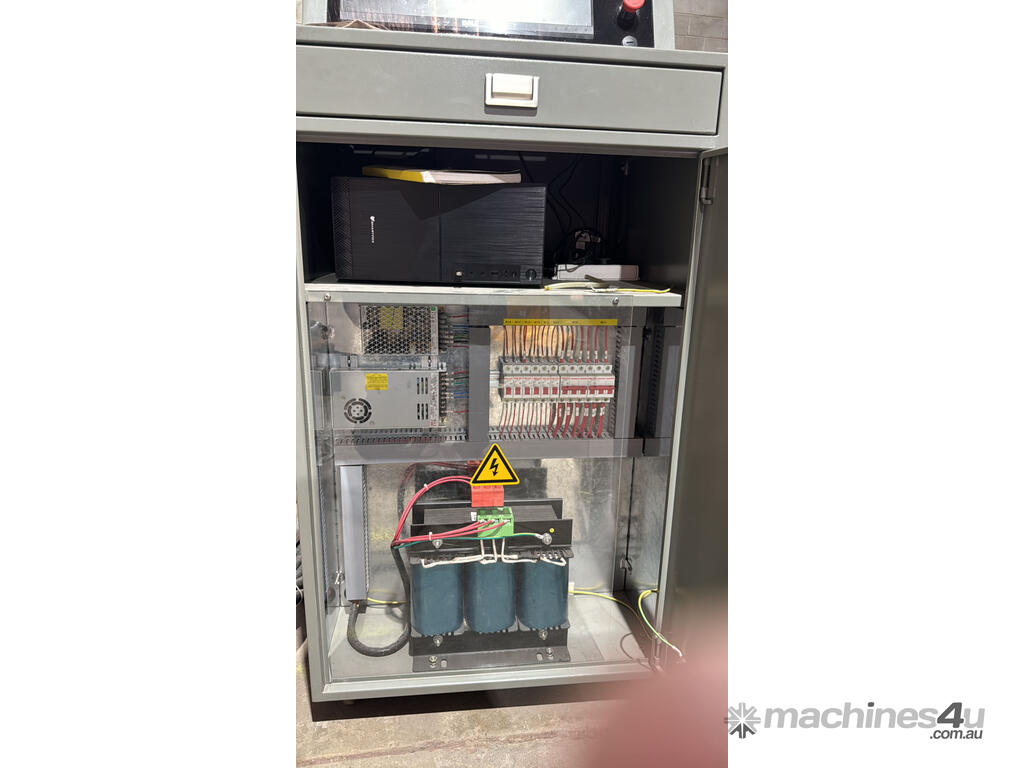

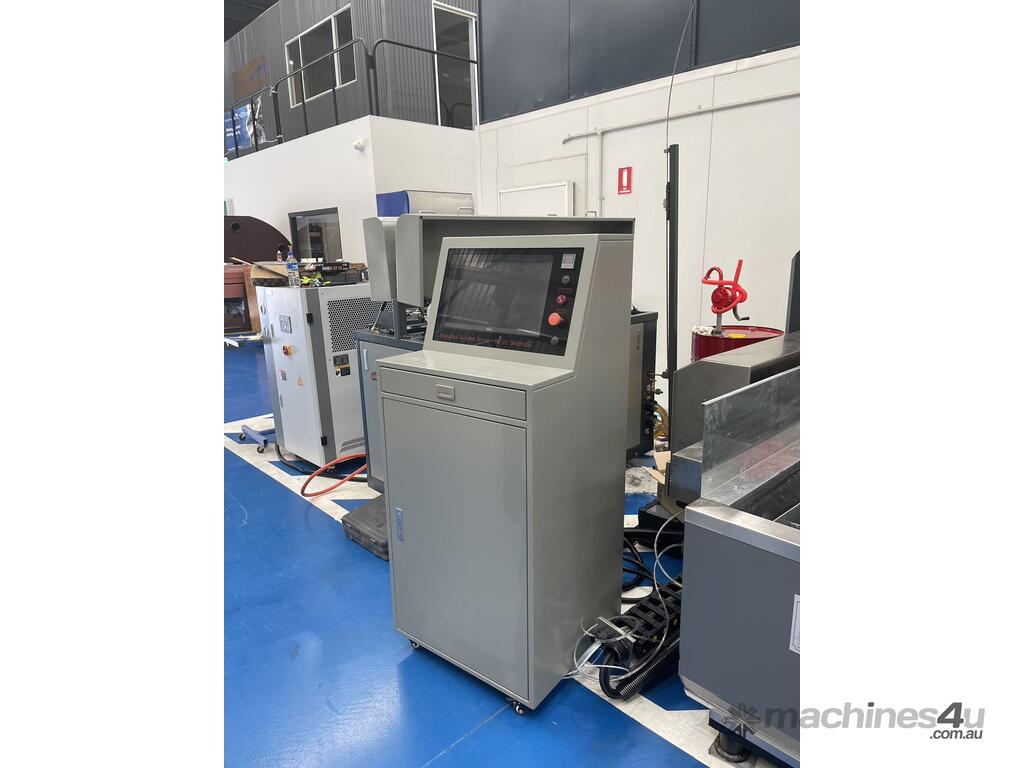

3. Controlling System

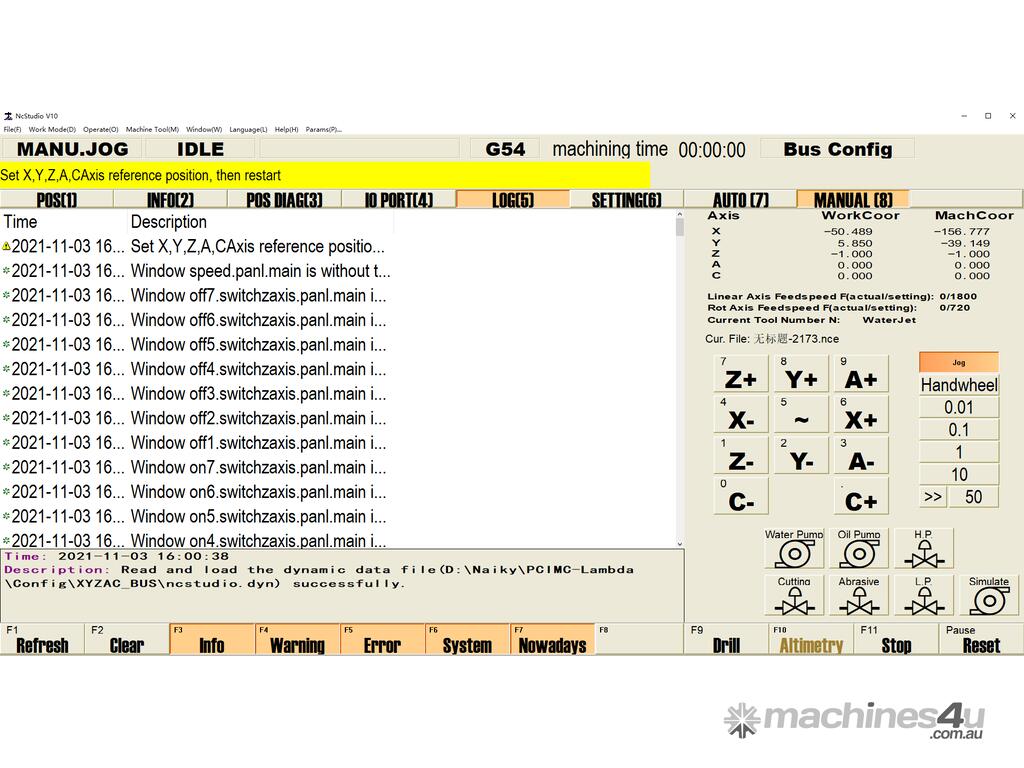

Choose from ESA(Italy) or NcStudio (China)

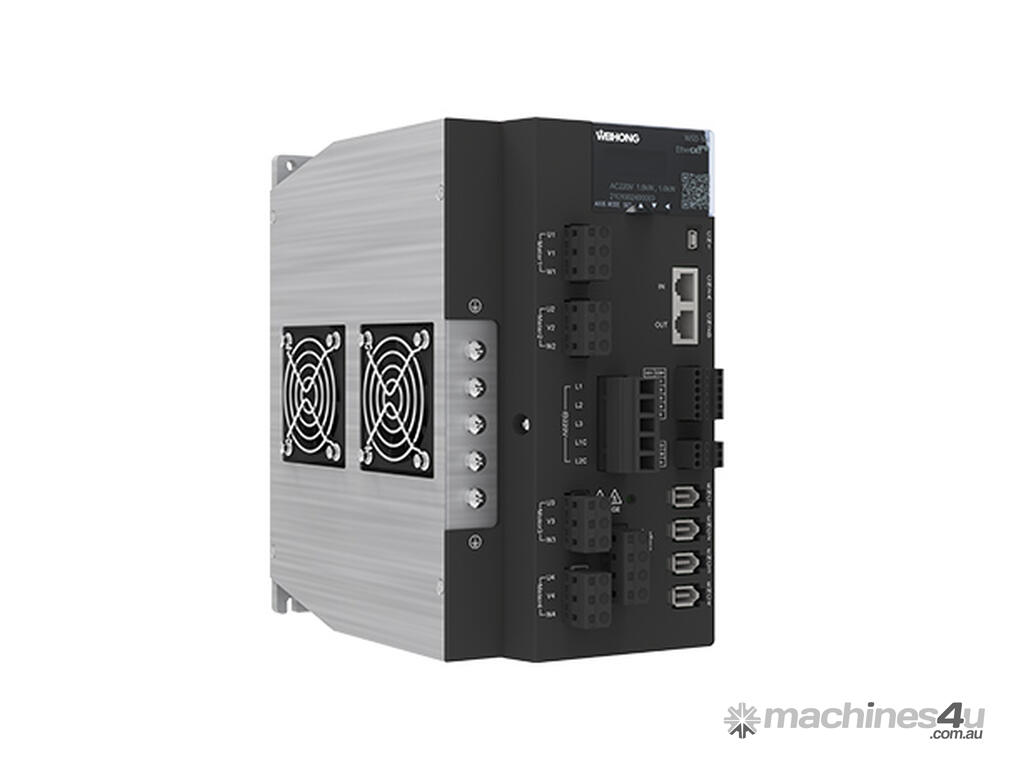

Panasonic servo system

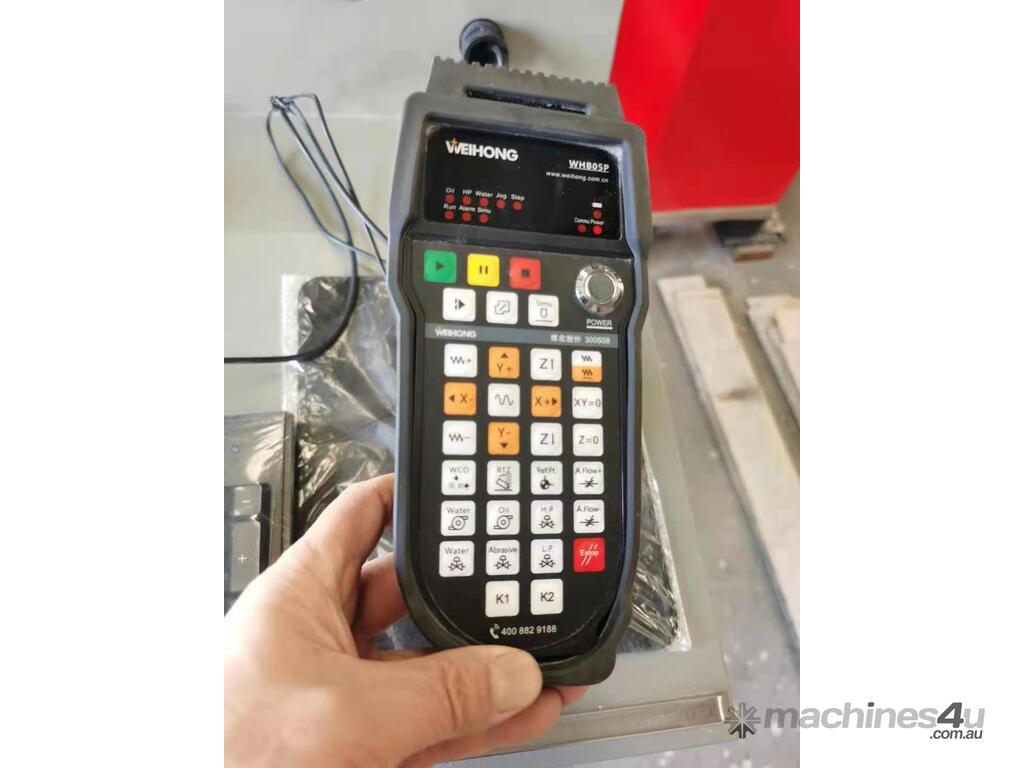

Remote control available

4. Garnet System
Volume: 200 kg

5. Cutting Head
Durable on/off valve repair kit.
Compatible for 7.14mm mixing tube

Optional:
1. Lifting platform

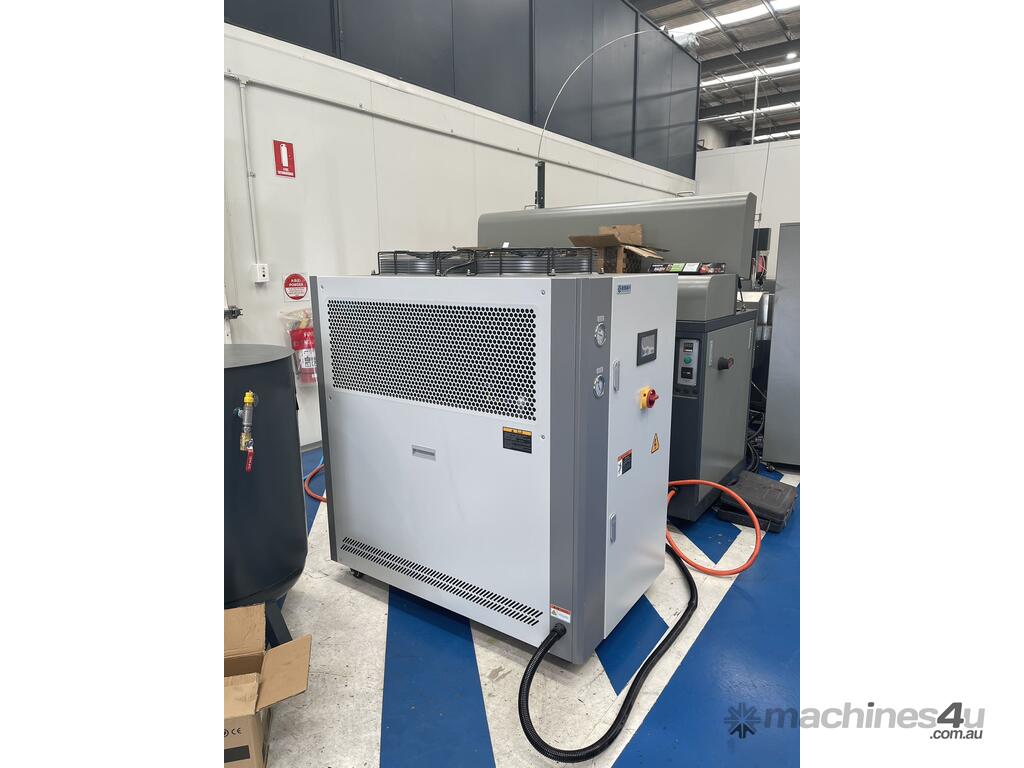

2. Cooling System
a. oil chiller

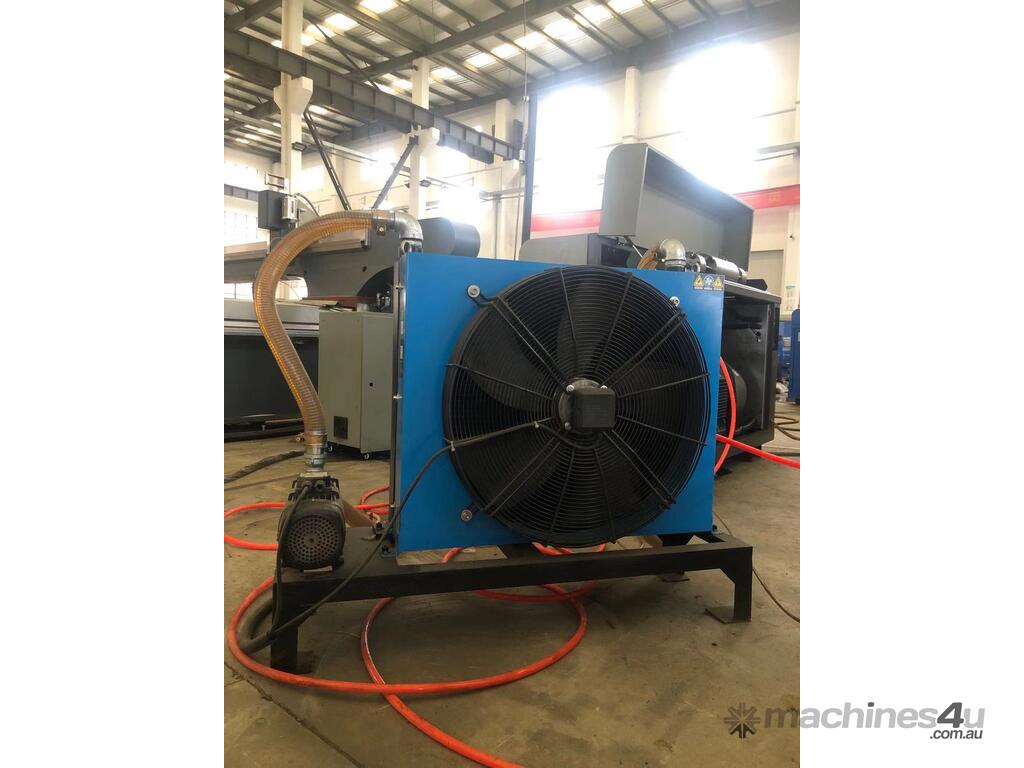

b. fan chiller
c. water tower
3. 5 axis AC cutting head

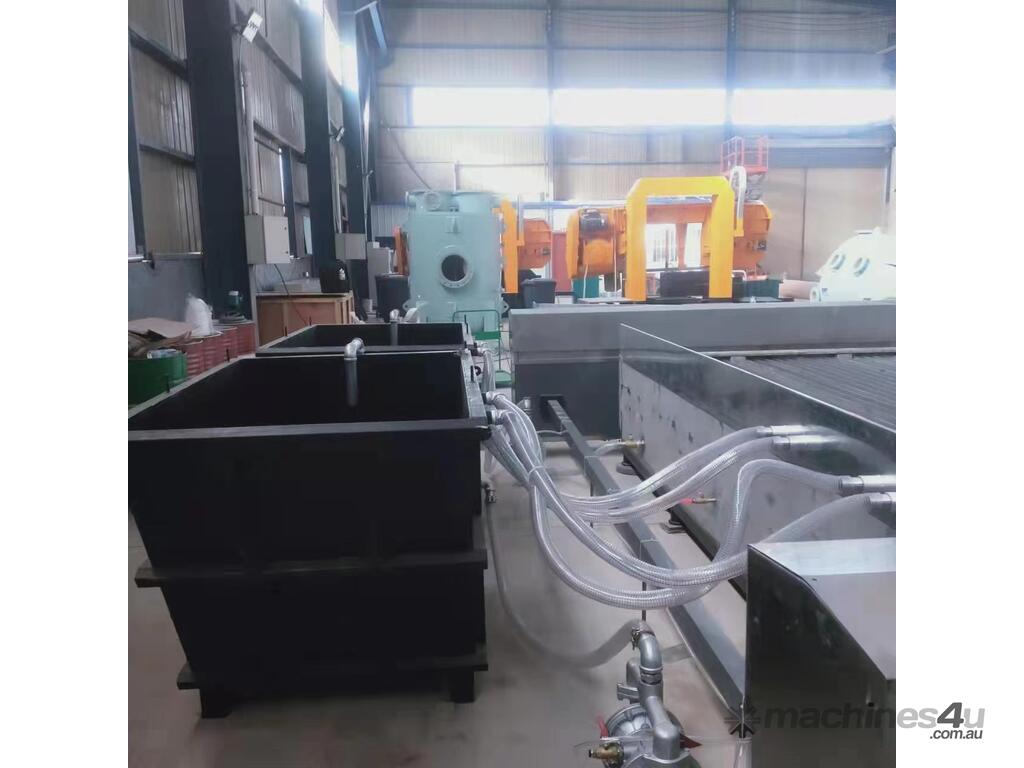

4. Sludge Removal System
