2x3 METER CANTILEVER TYPE WATERJET CUTTING MACHINE

2x3 METER HIGH-QUALITY BED, MACHINE AND FITTING FOR ALL JOBS. Can easily and accurately slice through almost any material. Systems are simple and user friendly.

We are a waterjet cutting system manufacturer with 20 years of experiences. So we provide reliable waterjet cutting systems with factory price. Moreover, we will provide spare parts service and maintenance from NSW.

A stand waterjet cutting system includes:

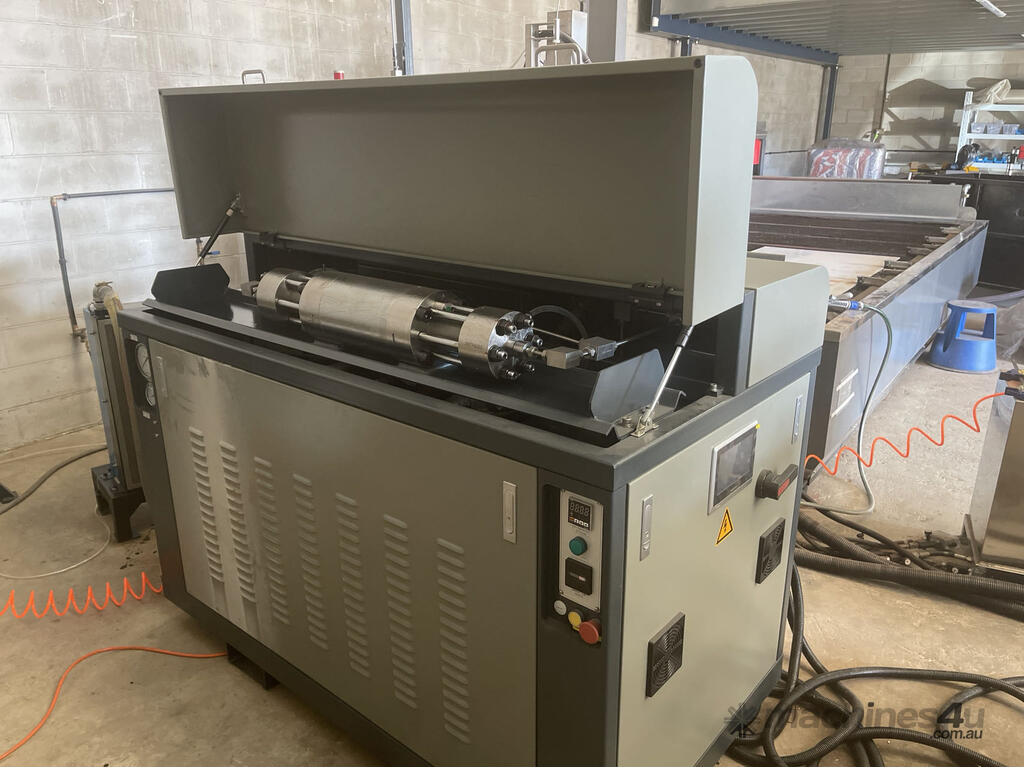

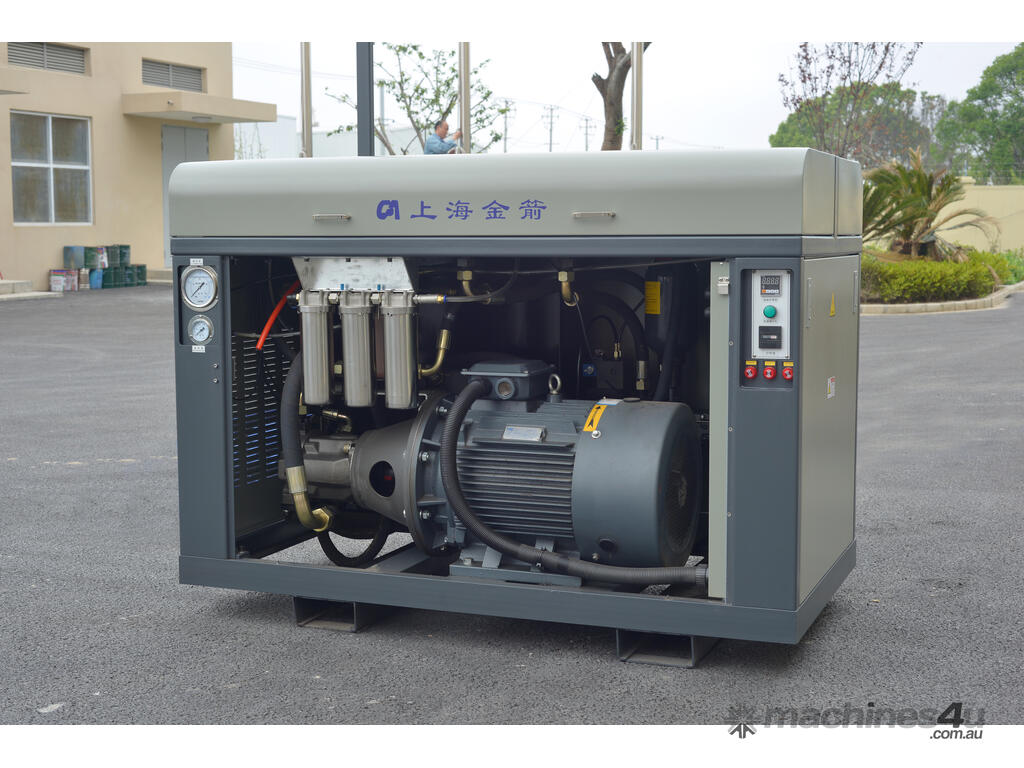

1. Intensifier Pump
Max. Pressure: 420 Mpa (60,000 psi)
Working Pressure: 320 Mpa
2 stages water filter
Oil filters equipped.
Attenuator capacity: 0.86L
Intensifier manufacturer: ER Technology (Seattle, USA)

2. Machine Frame

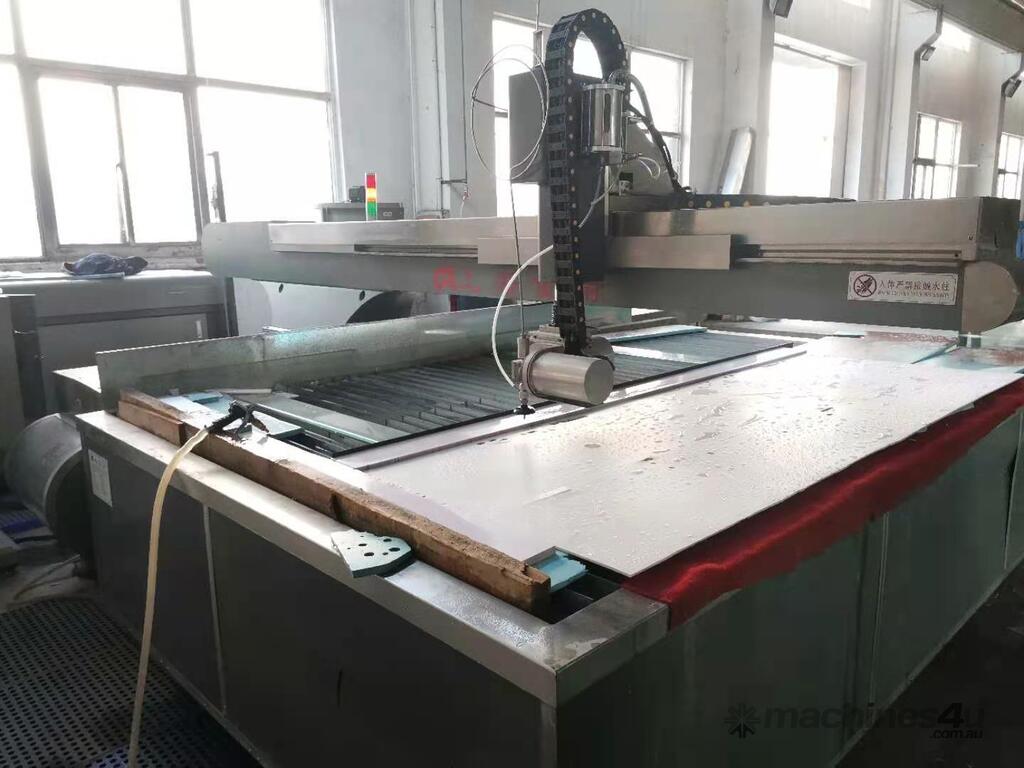

a. Cantilever Style:
One base beam with one flyer beam sit on it.
Flyer beam has to be shorter than 2 metres.
Easy to load materials.
b. Gantry Style:
One bridge beam sit on two base beams.
Suitable for all table sizes.
c. Integrated Style:
Suitable for small factory.

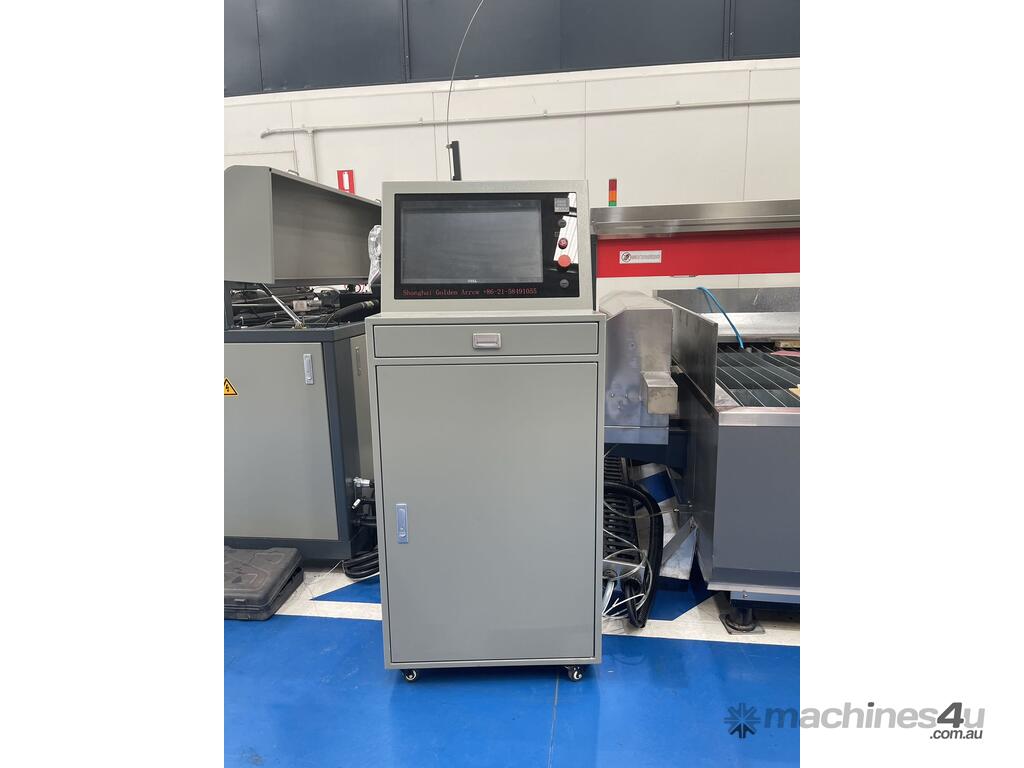

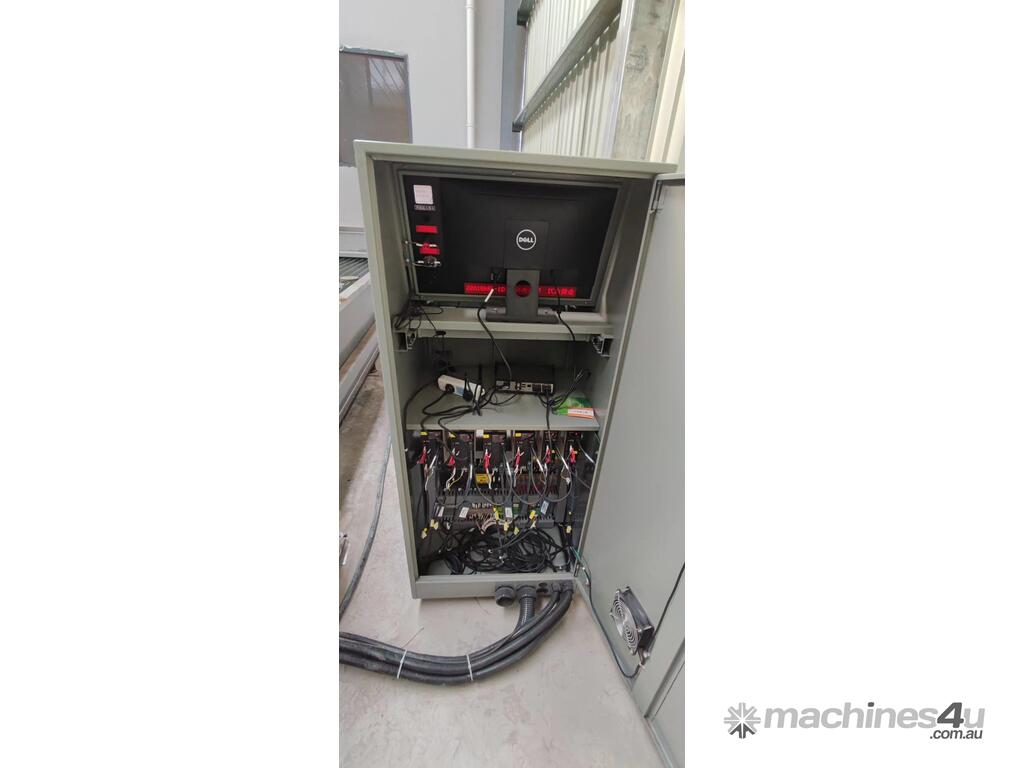

3. Controlling System
Choose from ESA(Italy) or NcStudio (China)
Panasonic servo system

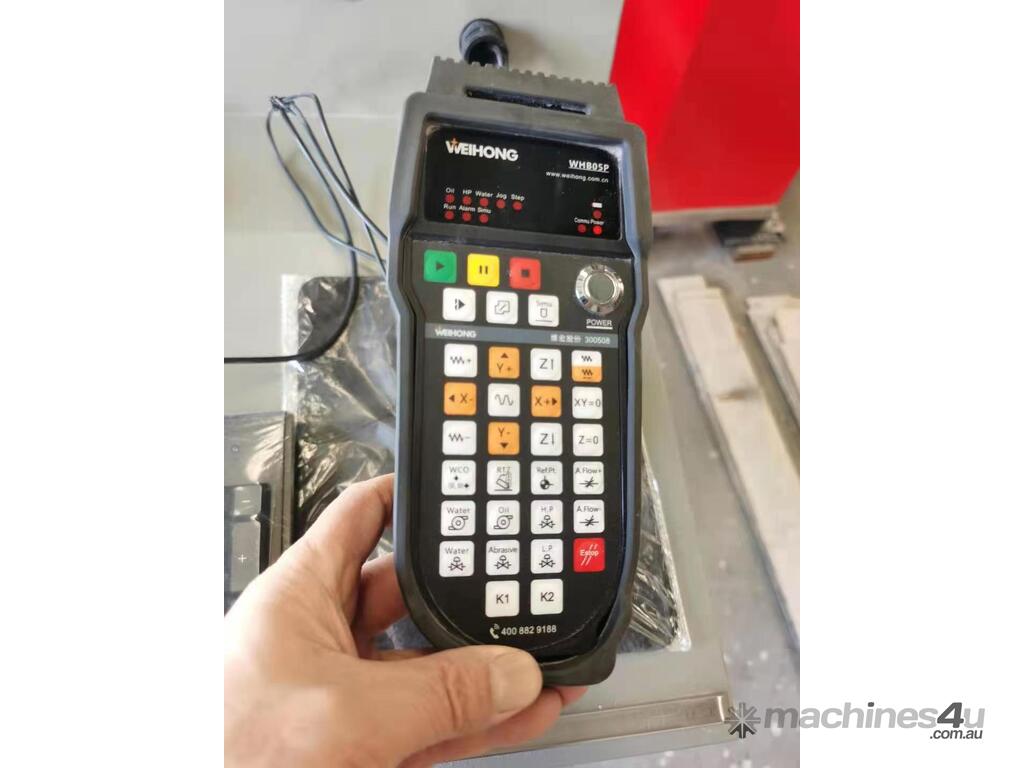

Remote control available

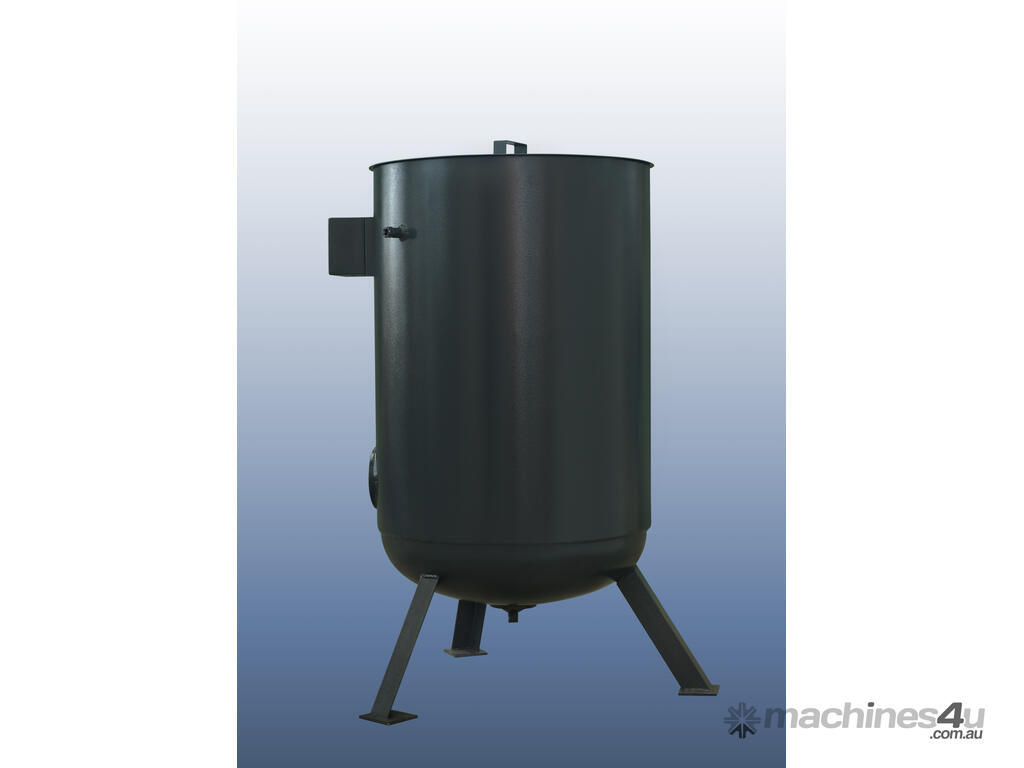

4. Garnet System
Volume: 200 kg

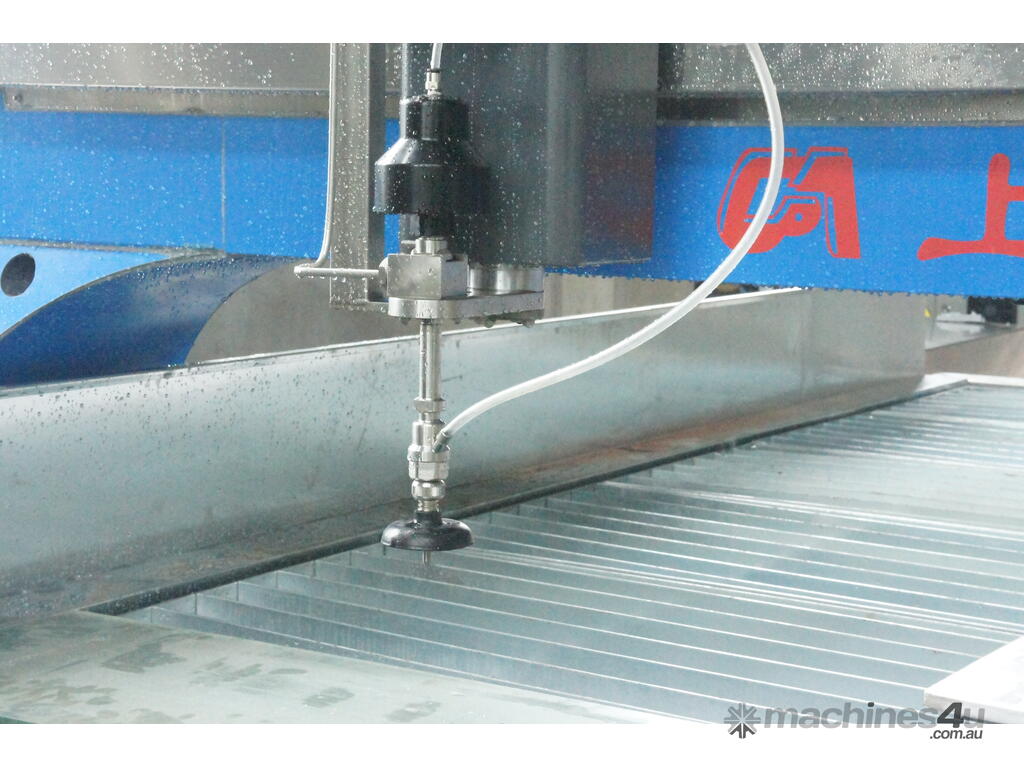

5. Cutting Head
Durable on/off valve repair kit.
Compatible for 7.14mm mixing tube

Optional:
1. Lifting platform
2. Cooling System
a. oil chiller
b. fan chiller
c. water tower

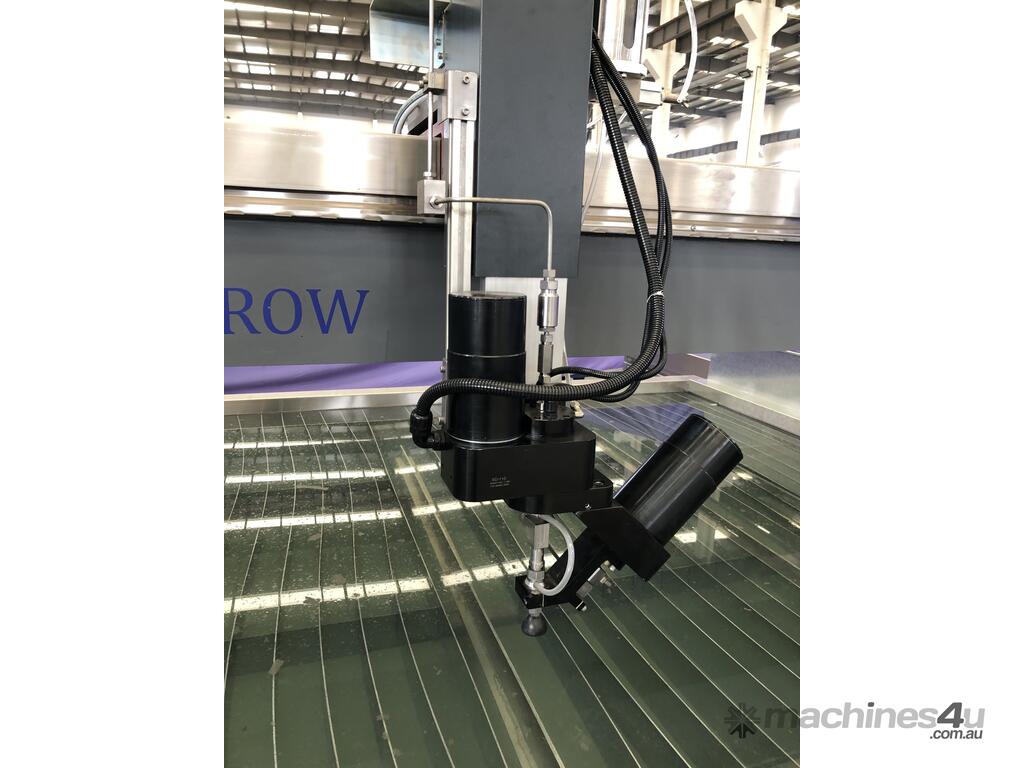

3. 5 axis AC cutting head

Please call for more information, we are more than happy to assist with your inquiries. Please also visit our Machines4u showroom to see other Waterjet cutters we have available.
