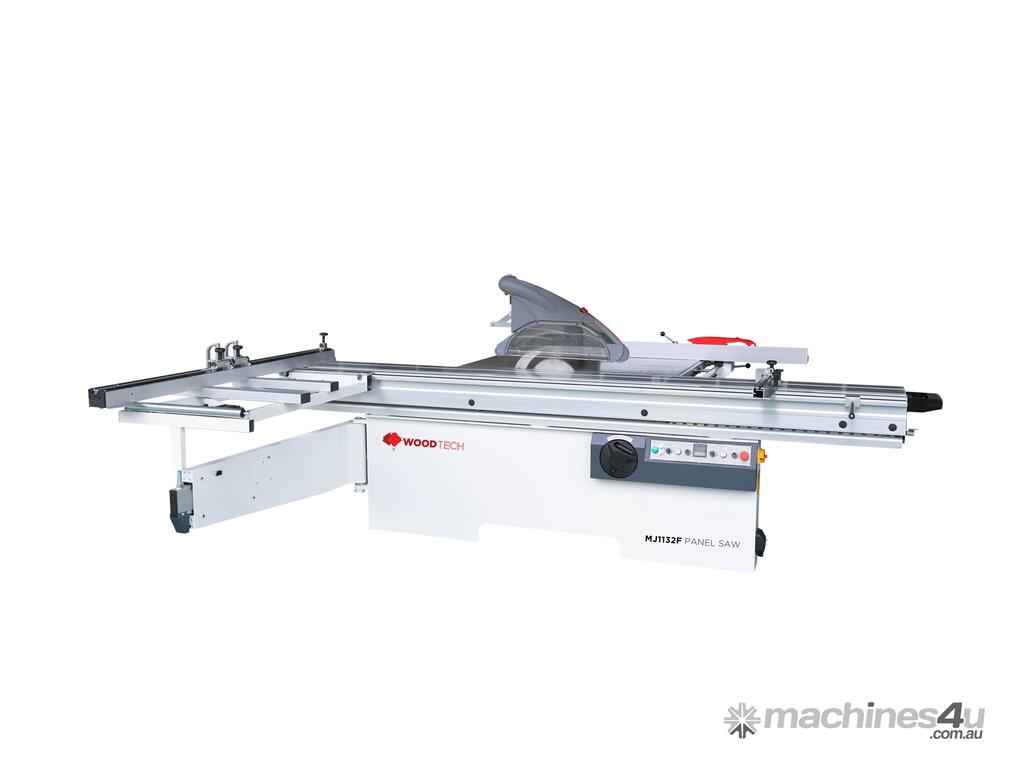

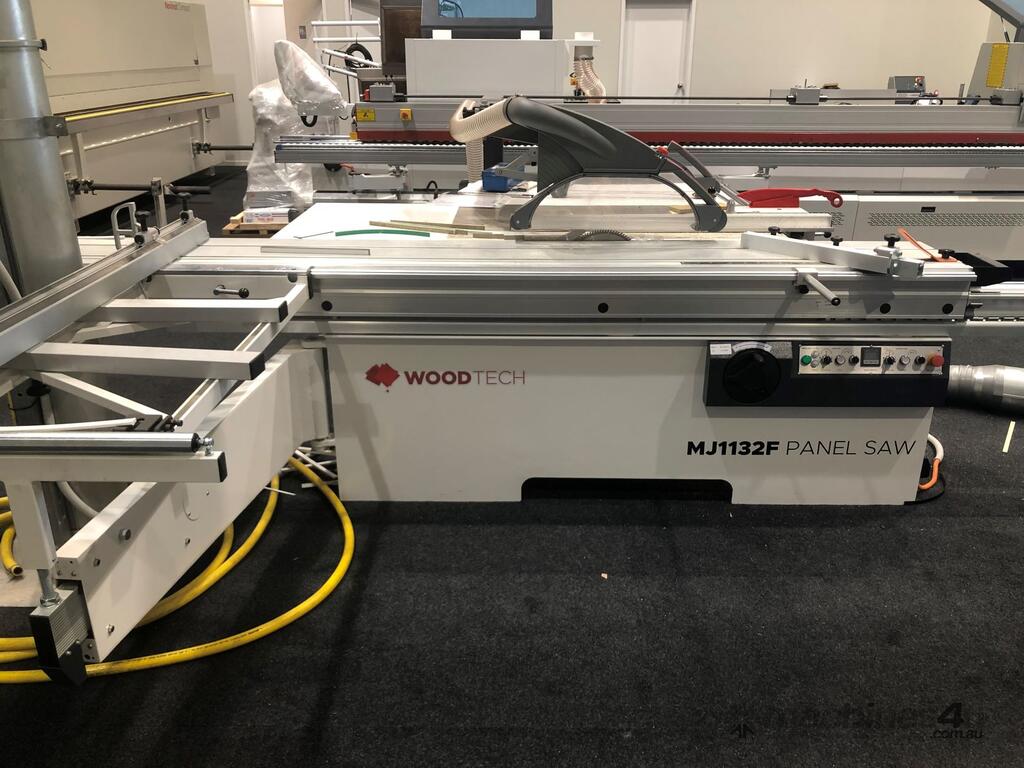

3.2m Panel Saw with Electric Rise, Manual Tilt, Rip Fence

Wood Tech. Aus Owned and Operated. Local Parts and Service in 5 Locations. Download Brochure Now.


An essential, great value panel saw, the Wood Tech MJ1132F is a flexible machine with a powerful saw motor. This panel saw features an easy running table, precise guiding board and tilting adjustment for effective board cutting operations.

• Direct start with push buttons
• Powered lifting of the blade
• Manual blade tilt through hand wheel with gravitational indicator
• Powered Scoring unit with separate motor (side adjustment)
• Rip fence with eccentric stop and micrometric adjustment
• Sliding table locking in all positions
• Overhead guard

BASE FRAME
The steel frame welded with heavy steel plates is made by metal processing centre. After heat treated and constructed, the steel frame is solid and stable that permits high capacity cutting.

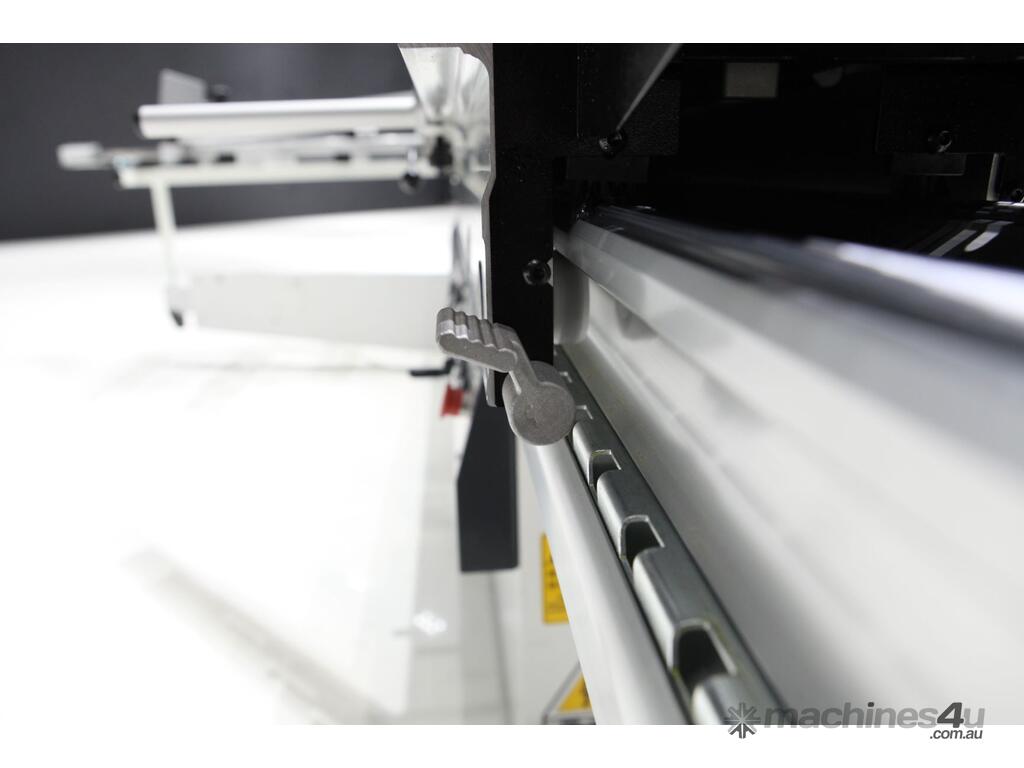

SLIDING TABLE
Easy running sliding table ensures straight accurate cutting. The sliding table can be locked at any position along the rail to make it easy to cut intended dimension.

MITRE FENCE
Single sided mitre fence helps for precise cutting of mitres. It is easy to set and fixed on the sliding table.

CROSSCUT FENCE
Cross-cut fence can easily move from the front to the back for different cutting requirements ensuring precise cutting. Double rulers coupled with magnifying site help the operator to read setting. Maximum 3.1m cutting length with manual locking.

RIP FENCE
Manual rip fence is easy to move and firmly lock into the desired position.

SAW MOTOR
5.5kw Main Saw: 3800/5200RPM
1.1kw Scoring Saw: 9000RPM

SAW CARRIAGE TILTING
0° to 45° Cutting manually set by the operator.

CONTROL PANEL
ON/OFF Switches of main and scribe unit. Powered rise and fall of the sawblade / scribe unit.
Emergency stop button.

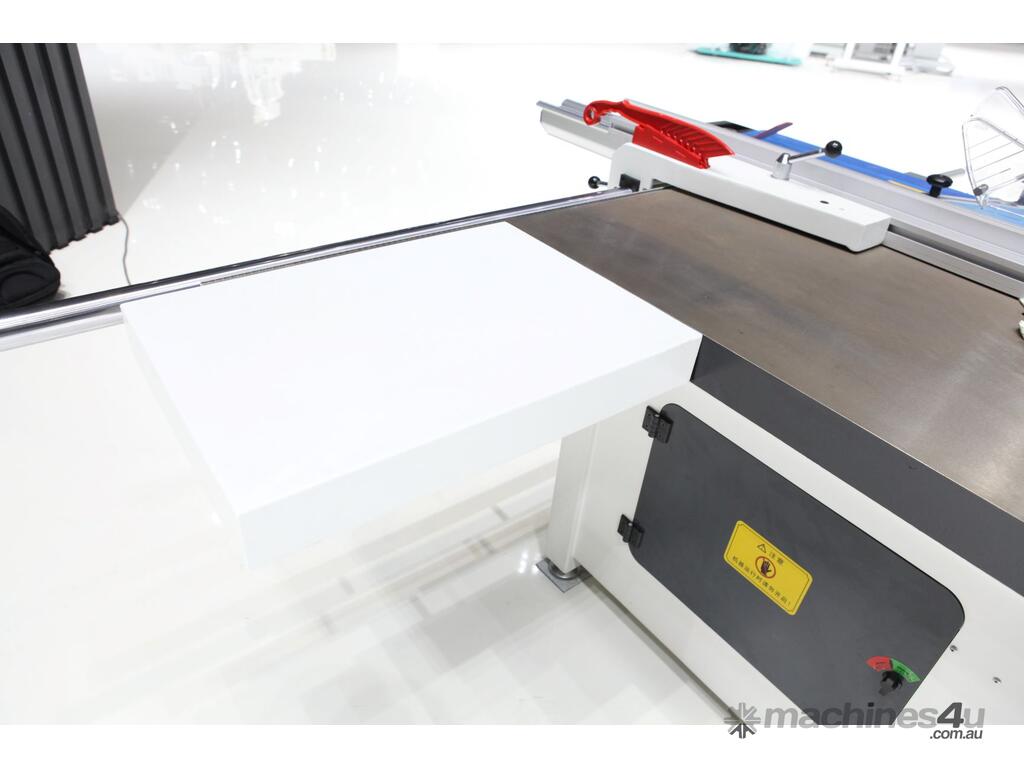

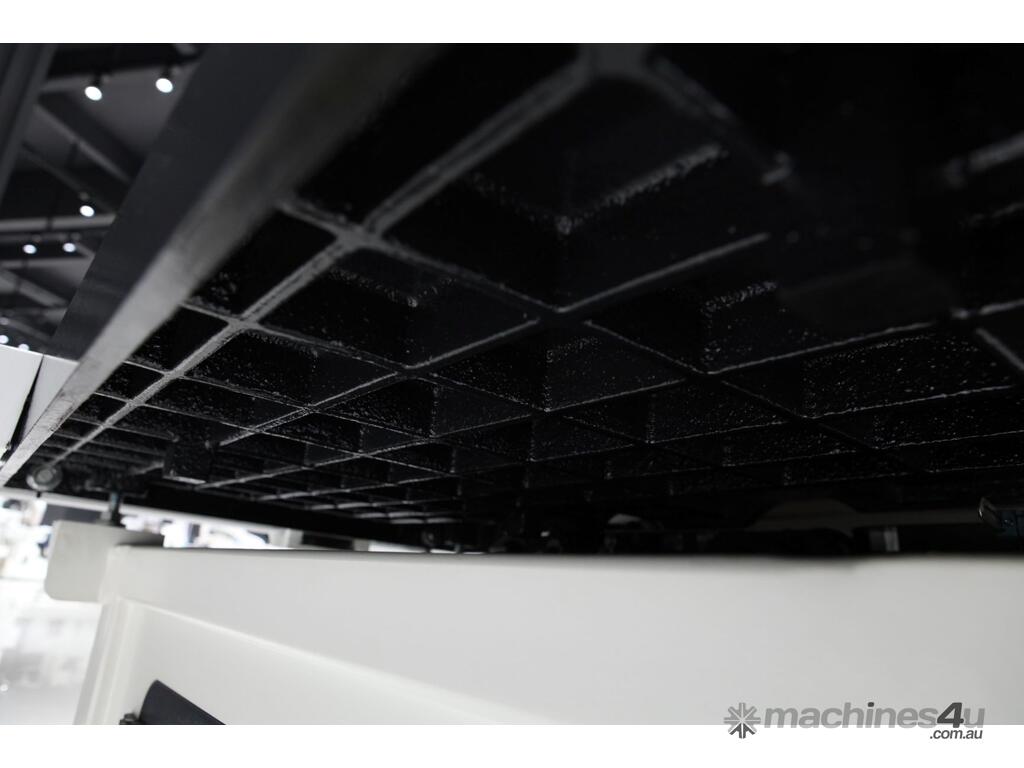

EXTENTED WORKTABLE
Extended working table with high rigidity and stiffness to support large pieces being processed.

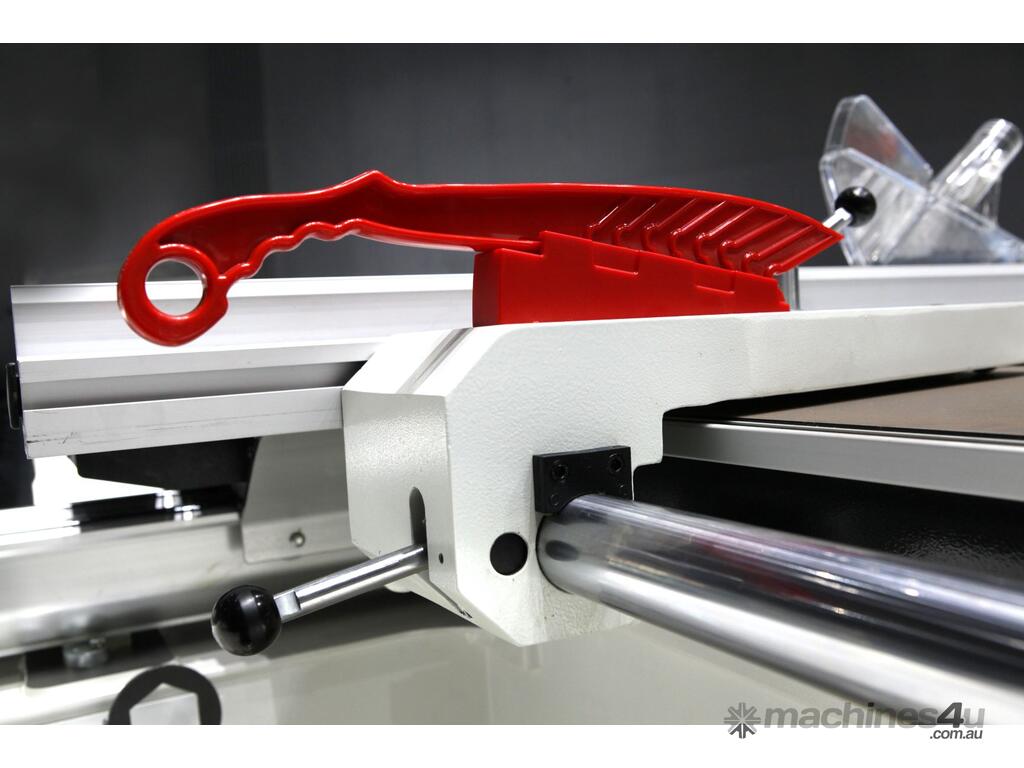

PUSH STICK
The push stick is important safety tools for cutting narrow workpieces. The push stick is used for
cutting workpieces within the danger zone of the saw blade (<120 mm). The push stick must be
used for cutting narrow workpieces.

DUST EXTRACTION
CE compliant saw blade guard with quick exclusion. Easily adjusted vertically to suit the panel thickness using a dedicated knob. Quick rotation, with the machine stopped, giving a wide work area (machine cleaning, large panels etc.) On the machines base there is a 120mm Diameter exit
used to clear dust from the main / scribe blade areas.

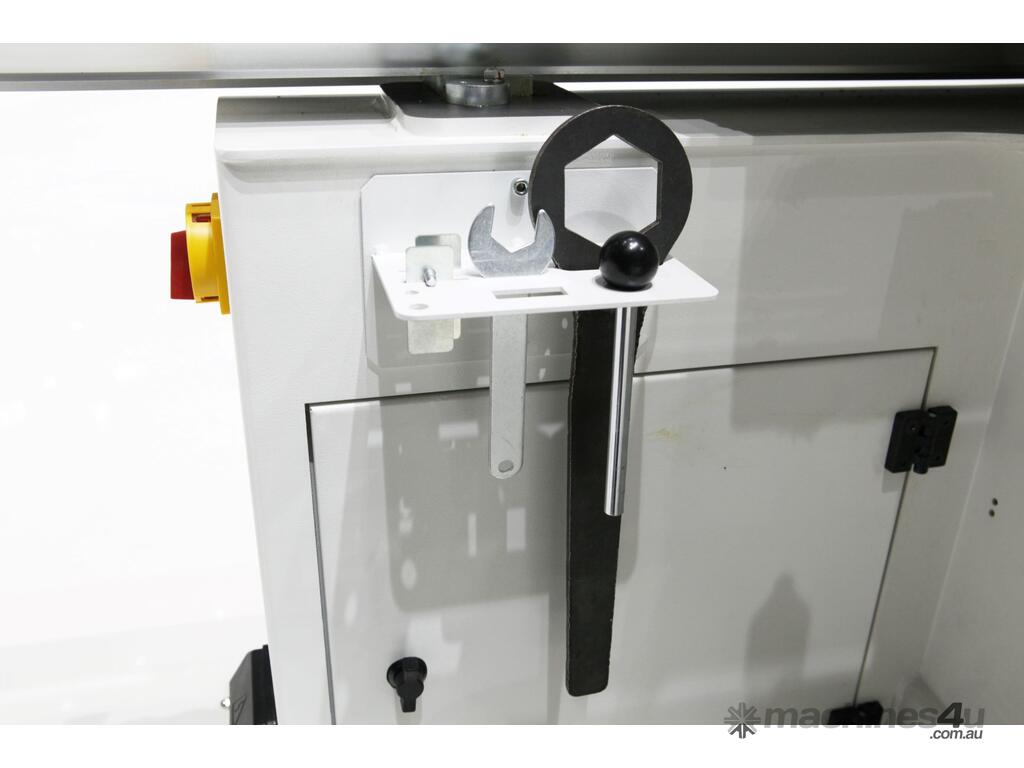

TOOL HOLDER
Tool holder on the machine provides maximum convenience to change saw blade or other
applications.

LUBRICATION UNIT
Lubrication for keeping machine components running smoothly.

TECHNICAL SPECIFICATIONS:
Cutting:
Max cutting length: 3100mm
0° max cutting thickness: 100mm
45° max cutting thickness: 70mm

Main Saw:
Speed: 3800 - 5200 RPM
Motor: 5.5kW

Scoring:
Speed: 9000 RPM
Motor 1.1kW

Saw blade tilting: 0 - 45°
Dust Collection: 120mm Diameter
Total Power: 6.6kW
Dimensions: 3300mm x 3370mm x 1200mm
Weight: 785kg
