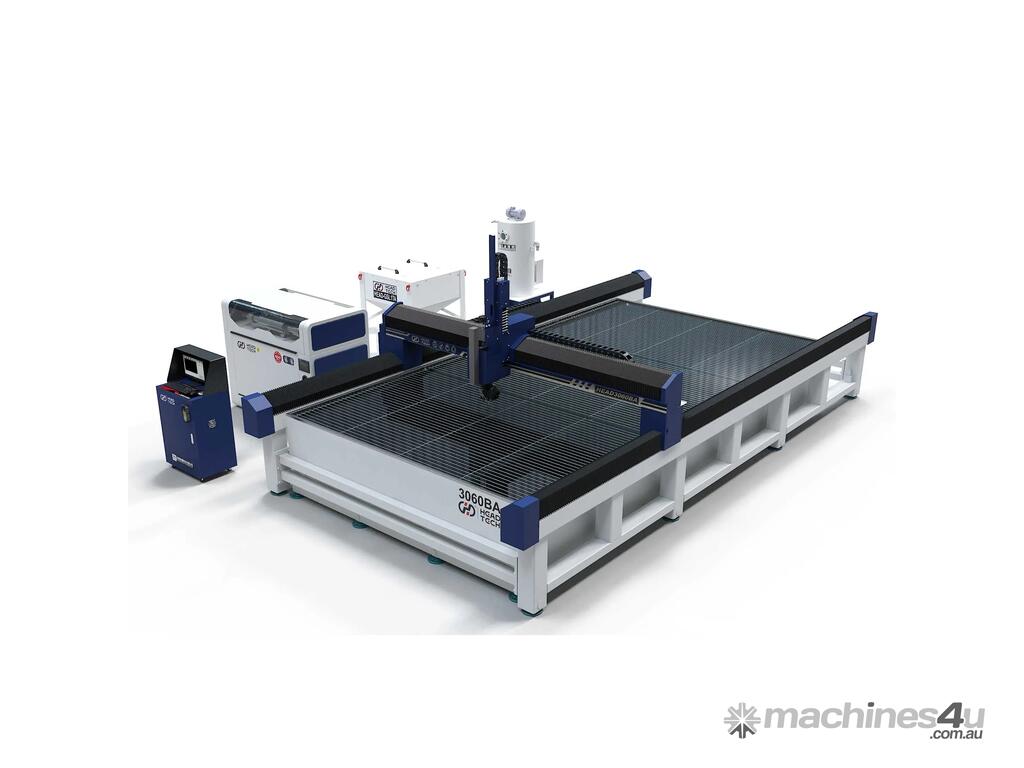

3000*6000mm Water jet Thick Metal Cutting Machine

The HEAD3060BA Waterjet Cutter is designed for thick metal cutting, featuring an intelligent high-pressure pump, thick plate cutting database, and dual intensifier design. It achieves precise cutting of 300mm low-carbon steel at a speed of 3mm/min, with continuous operation of up to 20 hours. The carbon steel welded water tank supports up to 2500kg/m², delivering powerful performance for industrial-grade efficiency.

The HEAD3060BA Waterjet Cutter combines cutting-edge technology with outstanding performance, designed for demanding industrial applications:

Intelligent High-Pressure Pump
Equipped with advanced control technology for stable and efficient cutting, simplifying complex tasks.
Thick Plate Cutting Database
Preloaded with professional cutting parameters, enabling quick setup to cut low-carbon steel up to 300mm thick.
20-Hour Continuous Operation
Supports extended working hours to meet high-demand production requirements, greatly enhancing efficiency.
Heavy-Duty Water Tank
Constructed with carbon steel and an 8mm base plate, capable of handling up to 2500kg/m², ideal for heavy-duty workpieces.
Exceptional Cutting Capability
Cuts low-carbon steel up to 300mm thick at a speed of 3mm/min, delivering outstanding performance for thick material processing.
Dual Intensifier Design
One in use and one on standby, ensuring seamless 24-hour operation with minimal downtime.
The HEAD3060BA is your ideal choice for high-demand cutting tasks, offering intelligence, reliability, and superior efficiency to be your trusted partner in industrial manufacturing

Thick Metal water cutting machine includes: HEAD3060BA CNC cutting platform, CNC system, intelligent high-pressure pump?420 MPA?optional:500 MPA/600 MPA??, remote control, sand supply system (including sand shortage alarm,200KG?optional:400KG/1000KG?), cutting head system (optional 5AB/5AC five-axis cutting head)

Optional Features

Laser Height Measurement: Ensures precise height adjustments for superior cutting quality.
Drill Module: Supports multi-material processing needs.
Safety Protection: Guarantees operator safety during operations.
Abrasive Removal System: Efficiently clears waste abrasives to maintain cleanliness.
Submerged Cutting: Reduces noise and dust, promoting eco-friendly processing.
1. High Pressure pump: OMRON/Siemens PLC, Siemens motor, Japan Yuken reversing valve, U.S. booster pump, to ensure the high quality of the pump.

2. Cutting table: Panasonic servo motor, Hiwin linear guide, ABBA ball screw, automatic lubrication system, Z-axis double linear (most of them are single linear guide, easy to be deformed by long-term use), Y-axis welded metal+concrete structure cutting table (most of them are only welded metal), to improve the stability and precision. x-beam is made of one-time extruded aluminum alloy with low weight and high rigidity.

3. CNC controller; professional brand Weihong software, Schneider electrical components, etc.

4. Abrasive supply, upper and lower air supply, to ensure stable supply of abrasive to ensure cutting quality.

5. We provide you with soft water system to improve the service life of pump and spare parts.

Technical Parameters

Model HEAD3060BA
Working area 3000*6000mm
Equipment size *7900*2200mm
Equipment weight 3500kg (single platform without water tank)
AC five-axis travel 2600*5600*150mm
Power 220/380/400/415/480V-50/60HZ-3PH
Repeat positioning accuracy ±0.05mm
Cooling model Air cooling/Water/Oil cooling
