300W Plused Laser Cleaner (air cooled)

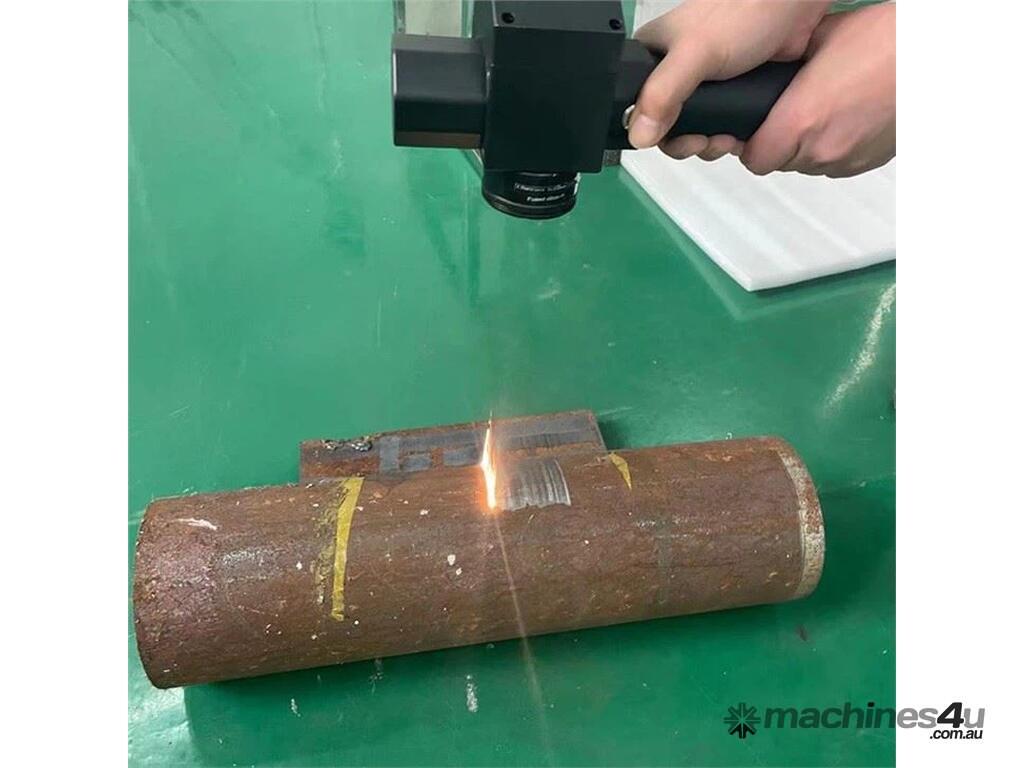

Laser cleaning is fast becoming a popular method of cleaning or preparing a wide range of materials and surfaces.

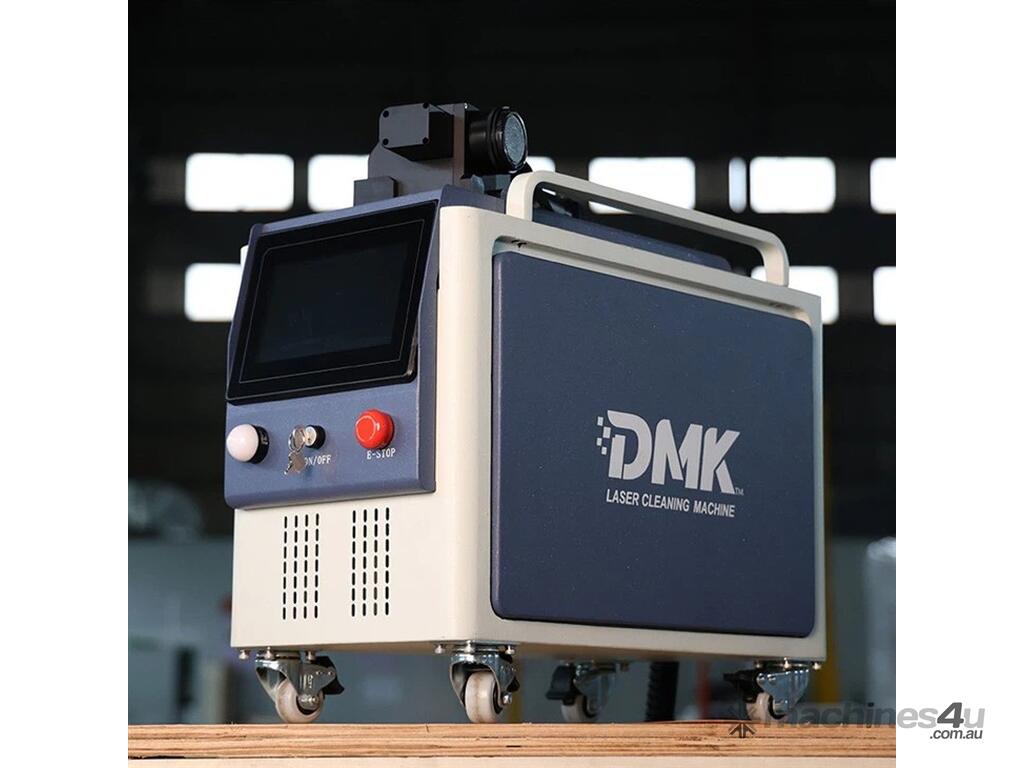

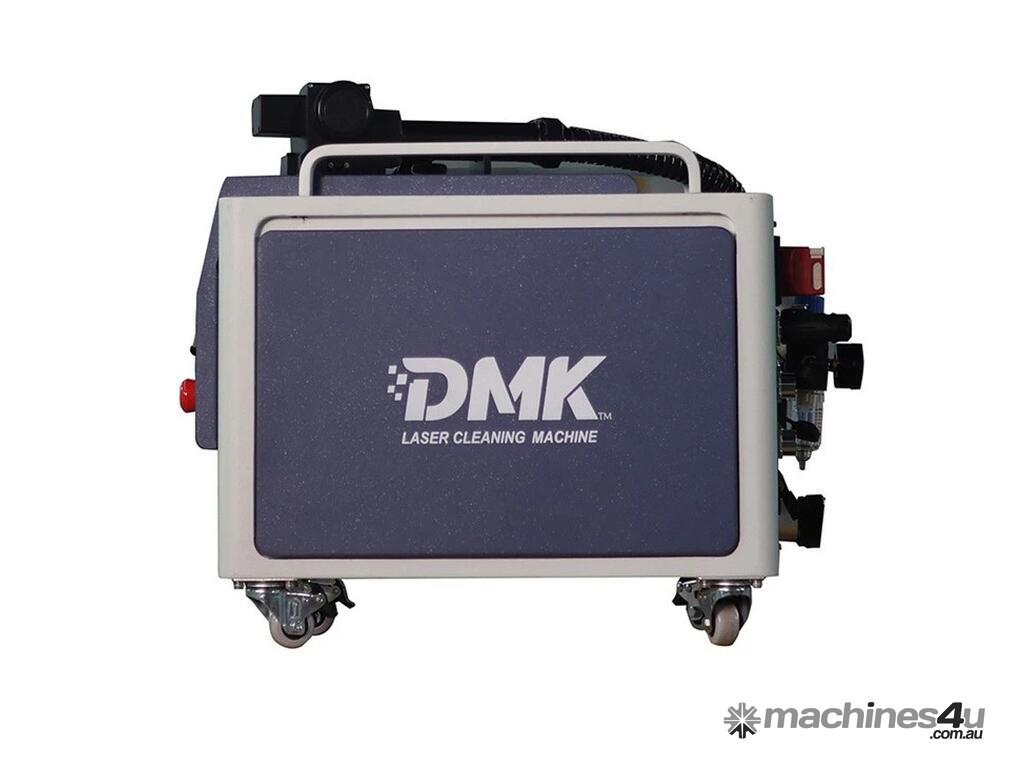

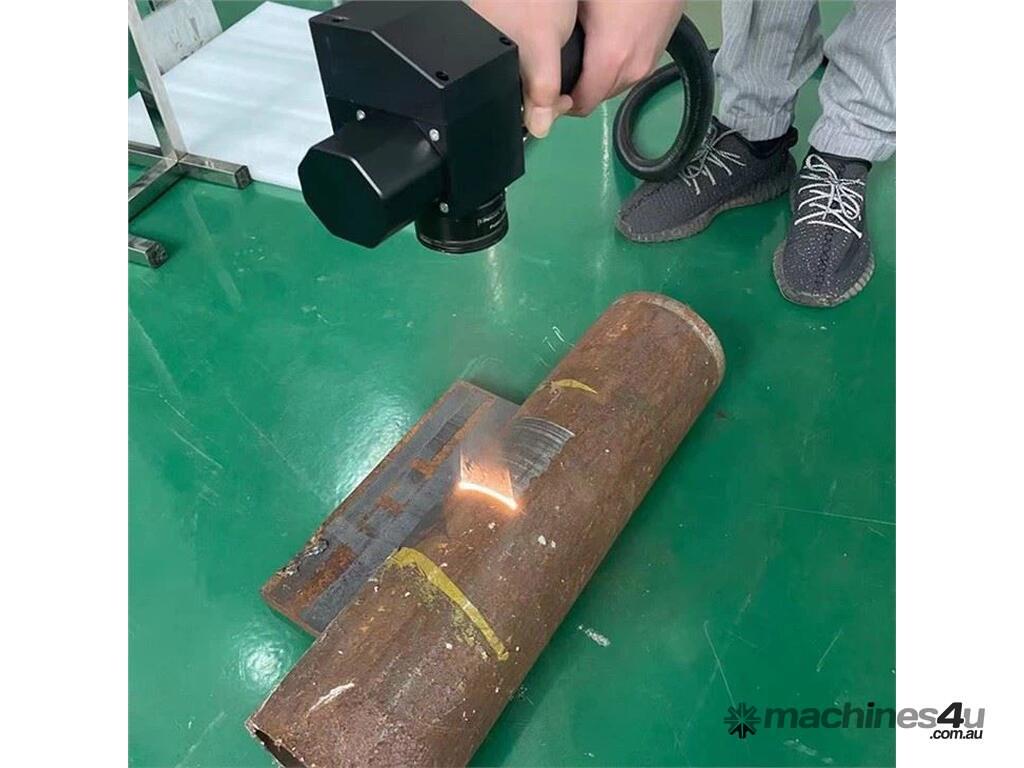

This is a compact and light weight air cooled 300 Watt pulsed laser cleaner. It runs from a standard 240 volt, 10 amp power outlet and is small enough to fit in the back of most cars. This makes it one of the most easily transportable laser cleaners on the market.

We have a demo unit at our factory in Hallam, VIC that can be viewed and tested. If you can’t make it in you can ship samples to us for testing.

Product features:

• Compact size makes it extremely portable
• Air cooled helps to reduce the size and weight of the unit

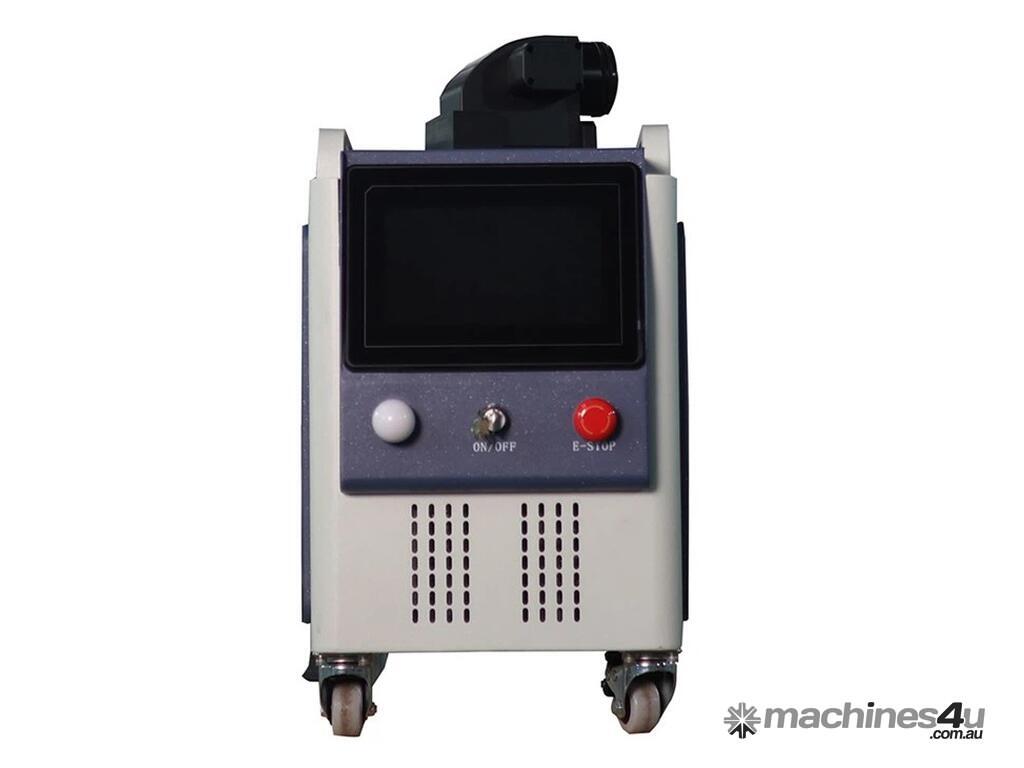

• Easy to use LCD display that allows you to adjust or customise settings.
• 6 preset settings for cleaning various materials and the ability to create and save up to 14 other custom cleaning settings.
• 10 preset scan (beam) patterns.
• 5 metre long fibre cable.

Safety features:

• 3 different interlocks that need to be satisfied to operate machine.
• Ability to set up an external safety switch to prevent operation if triggered (door switch).

What you need to run it:

• Input power
• Compressed air

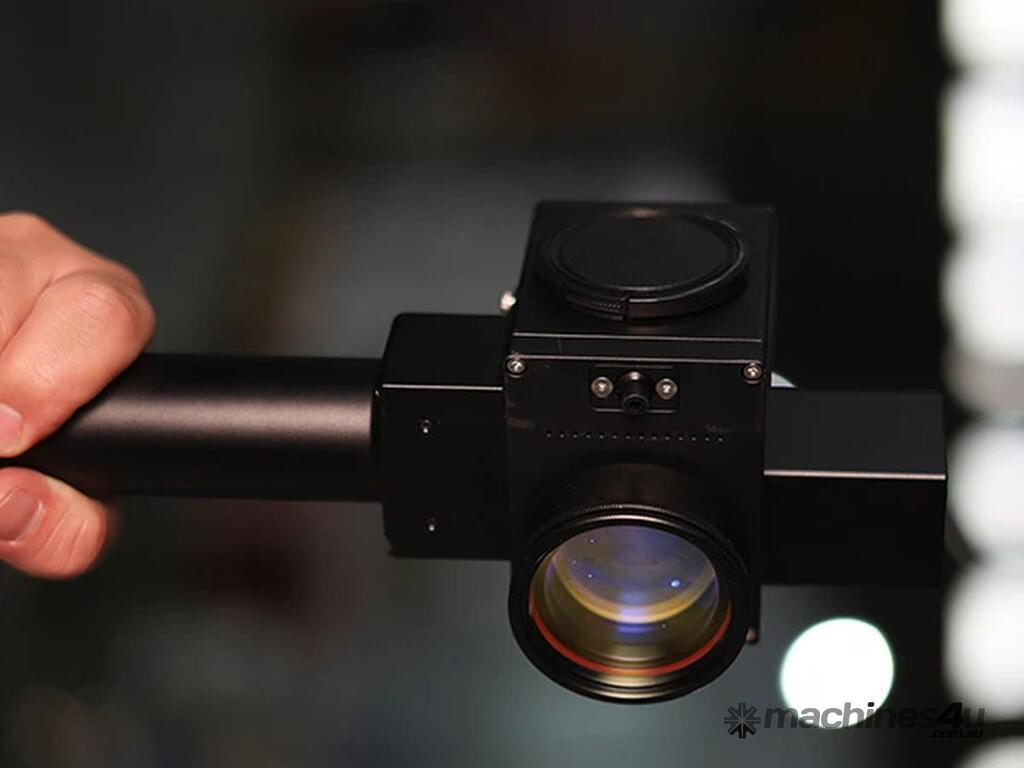

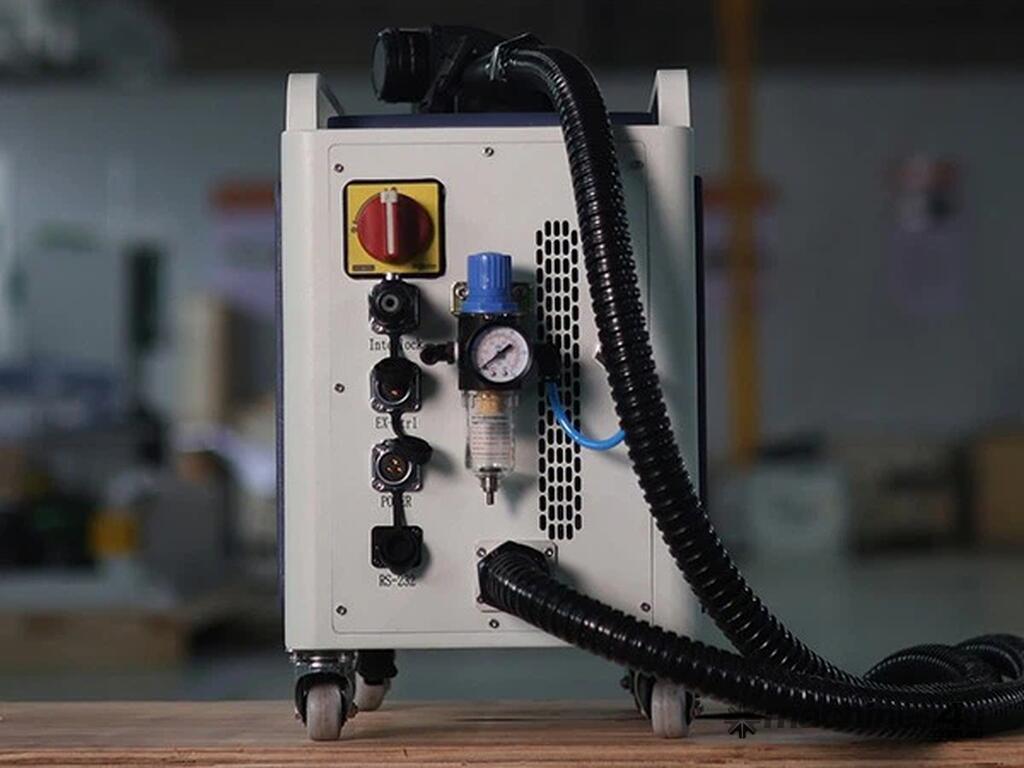

Note: 87 psi of compressed air is needed to satisfy an interlock and supply the air knife on the cleaning head. The air knife
helps prevent the build-up of dust and debris on the protective window.

The unit comes with:

• 5 x Protective windows (Consumable item)
• 1 x Laser safety glasses (900-1100nm, OD8+)
• 1 x Power cable
• 1 x Interlock plug (for mobile use)
• 1 x Interlock with cable (for wiring to safety switch)
• 1 x External control cable
• 1 User guide


Product Specs:

Product Model: DPL-300
Laser type: Pulsed
Laser average power 300W
Cooling type: Air cooled
Fiber length 5m
Net weight 34kg
Cleaning head weight 1.3kg
Unit size: 603mm × W 258mm × H 481mm
Supply voltage: AC 220V ±10%, 8 Amp
Mains frequency: 50 Hz
Power consumption (25?)
