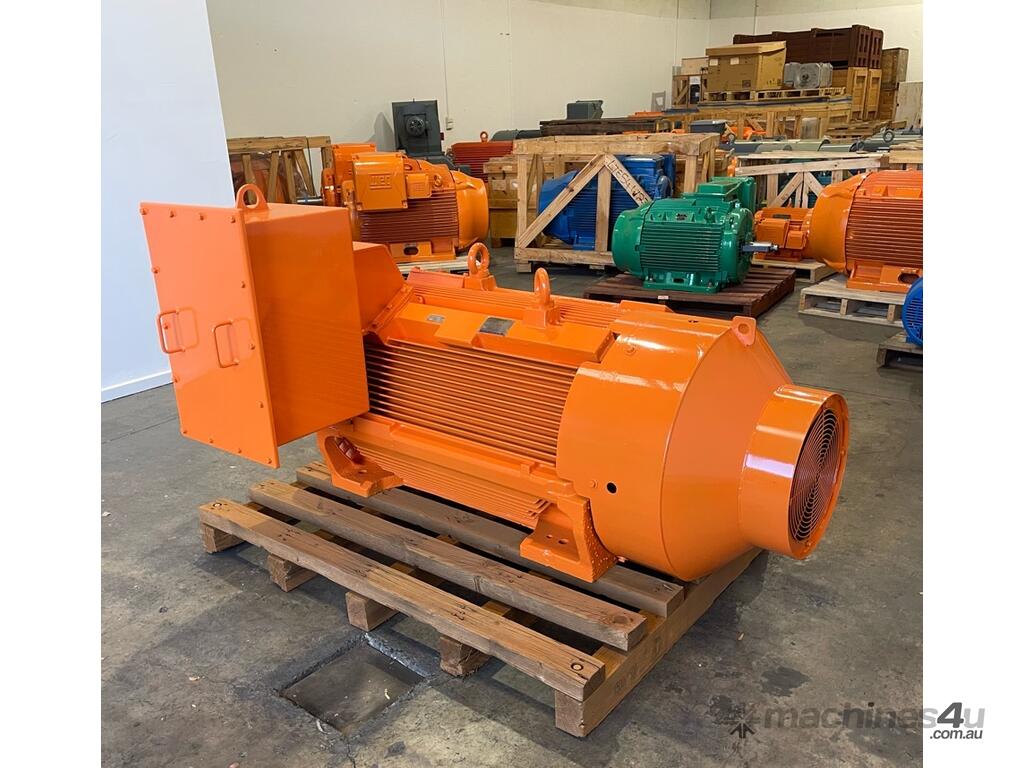

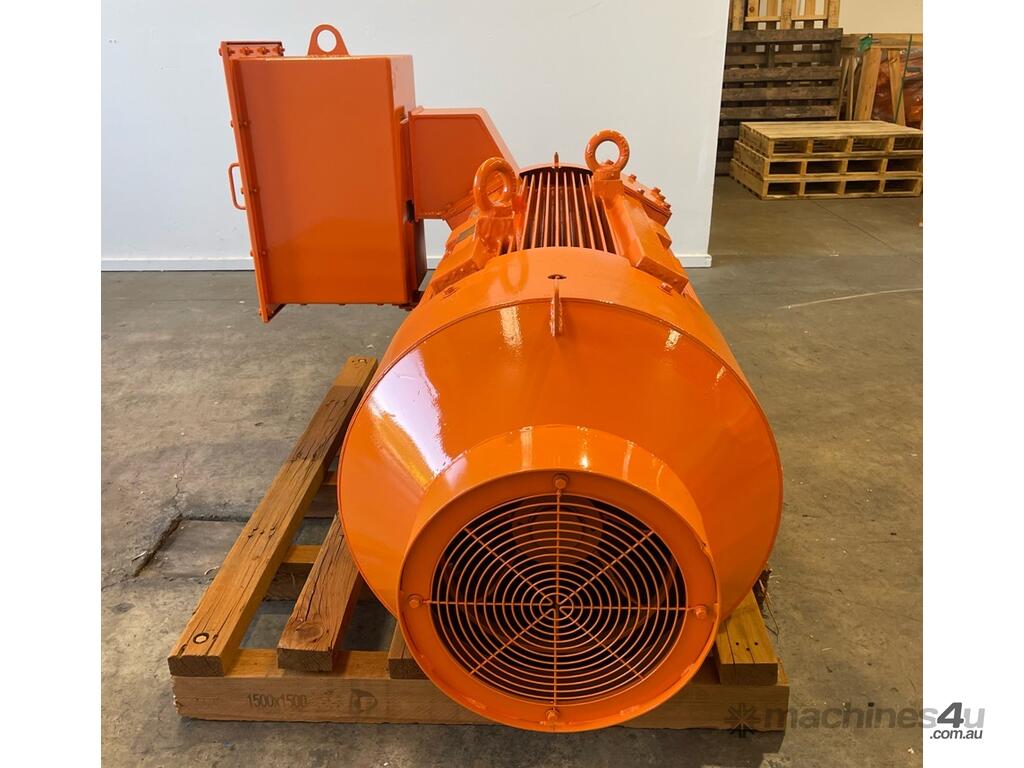

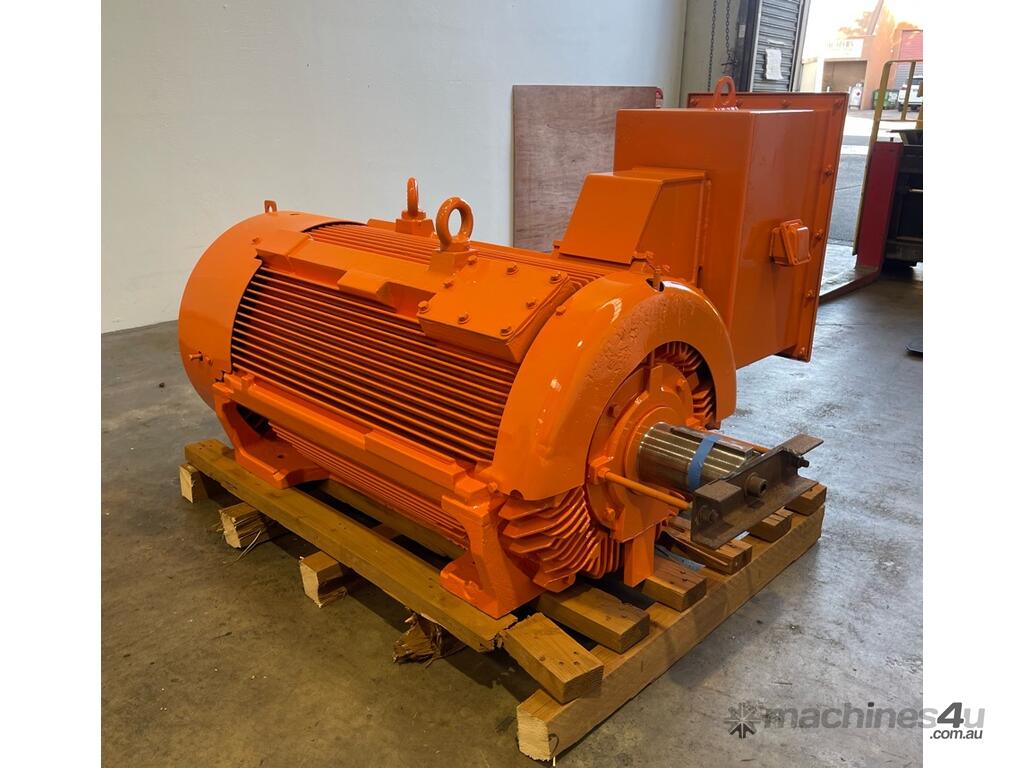

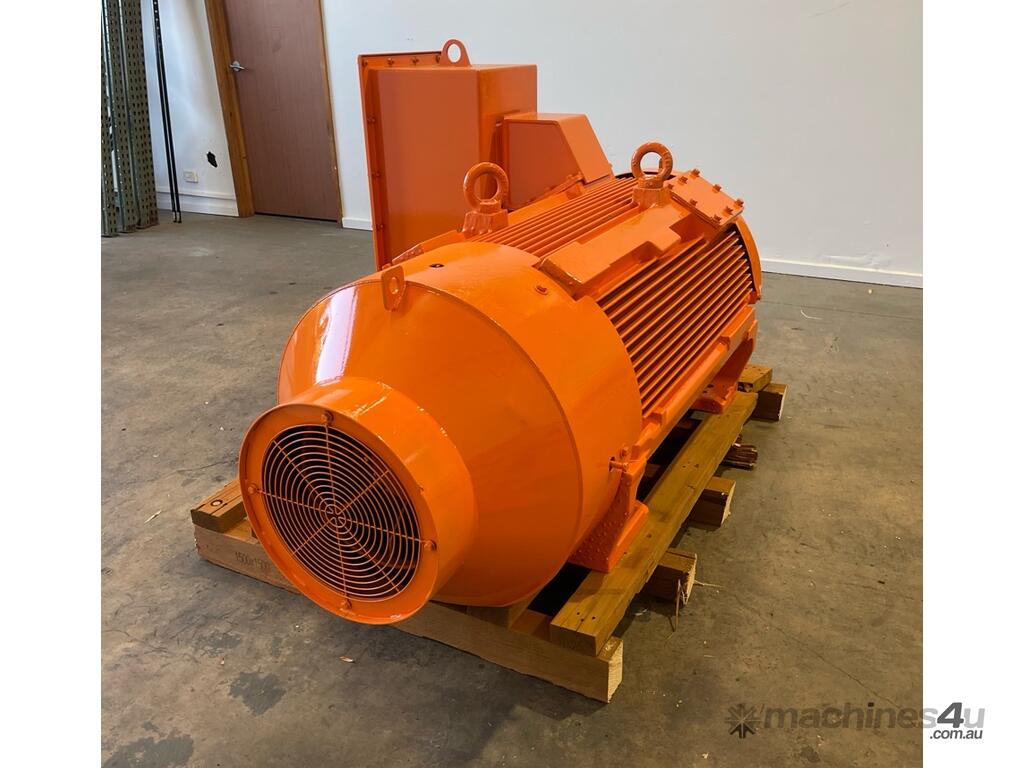

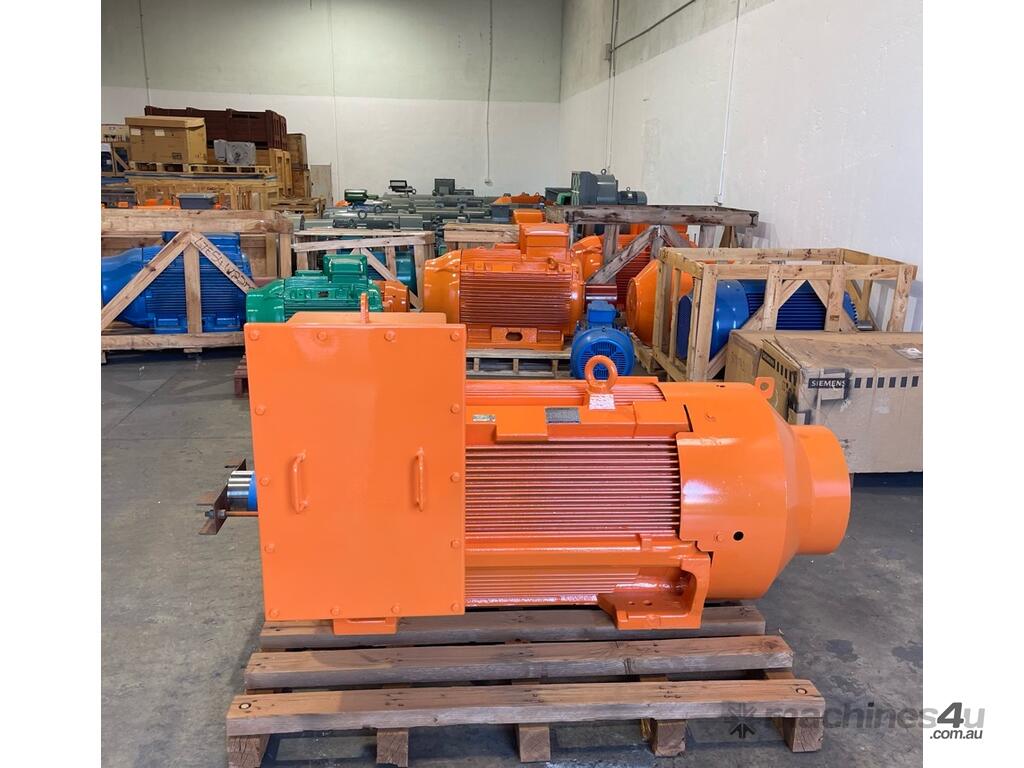

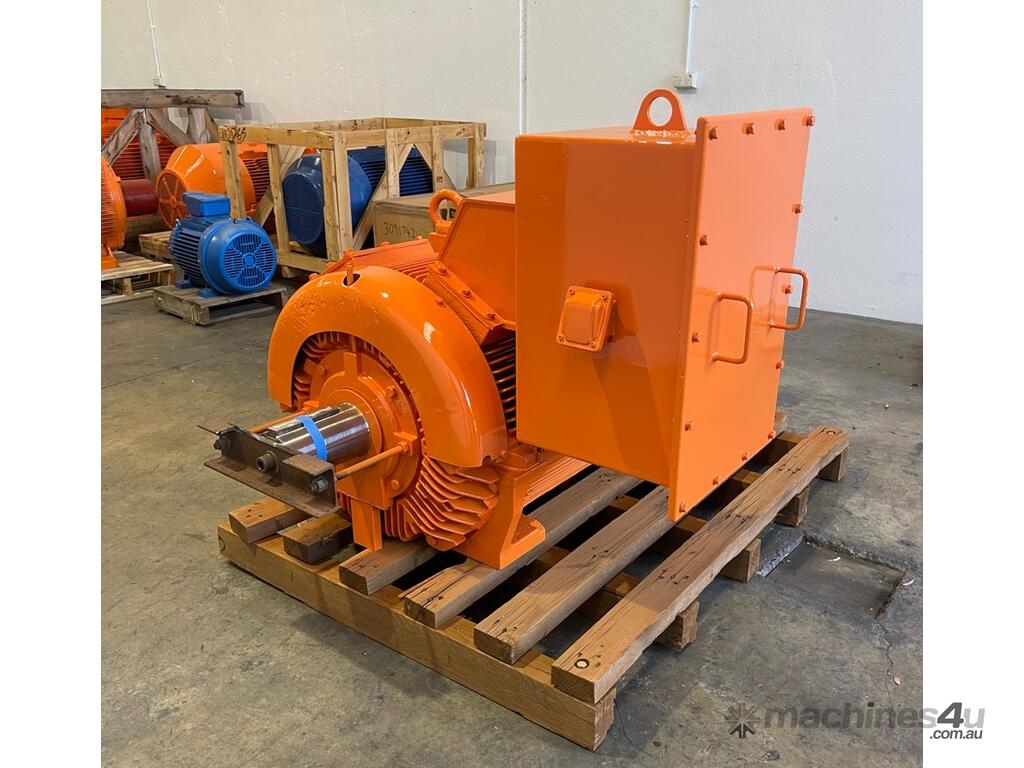

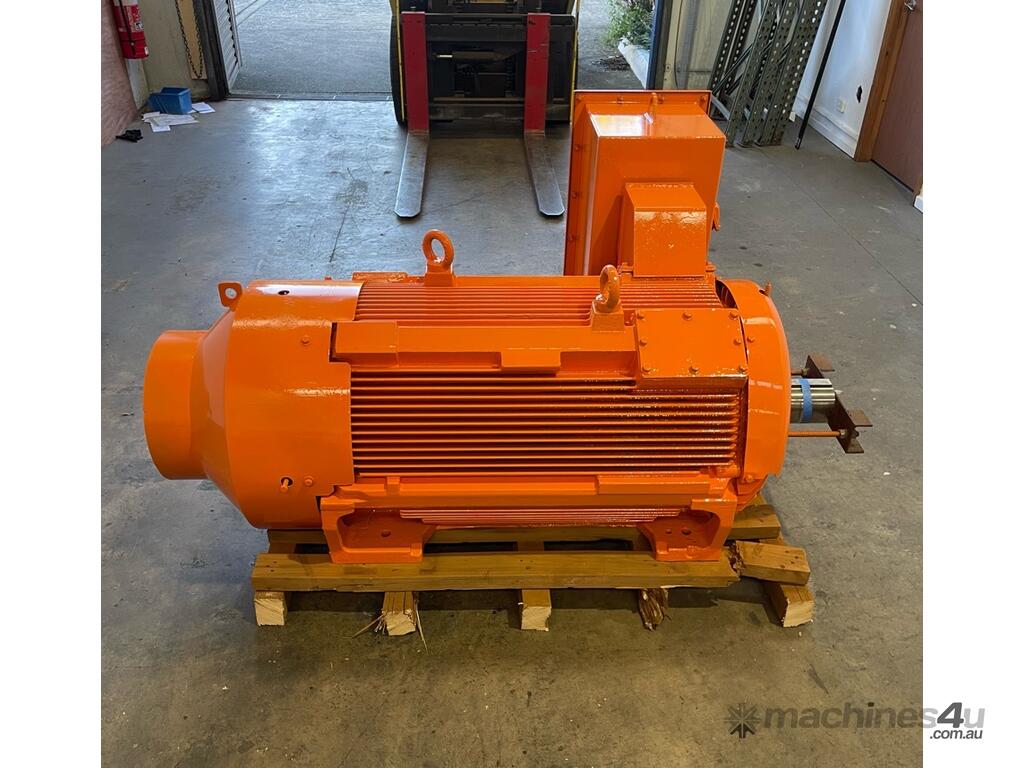

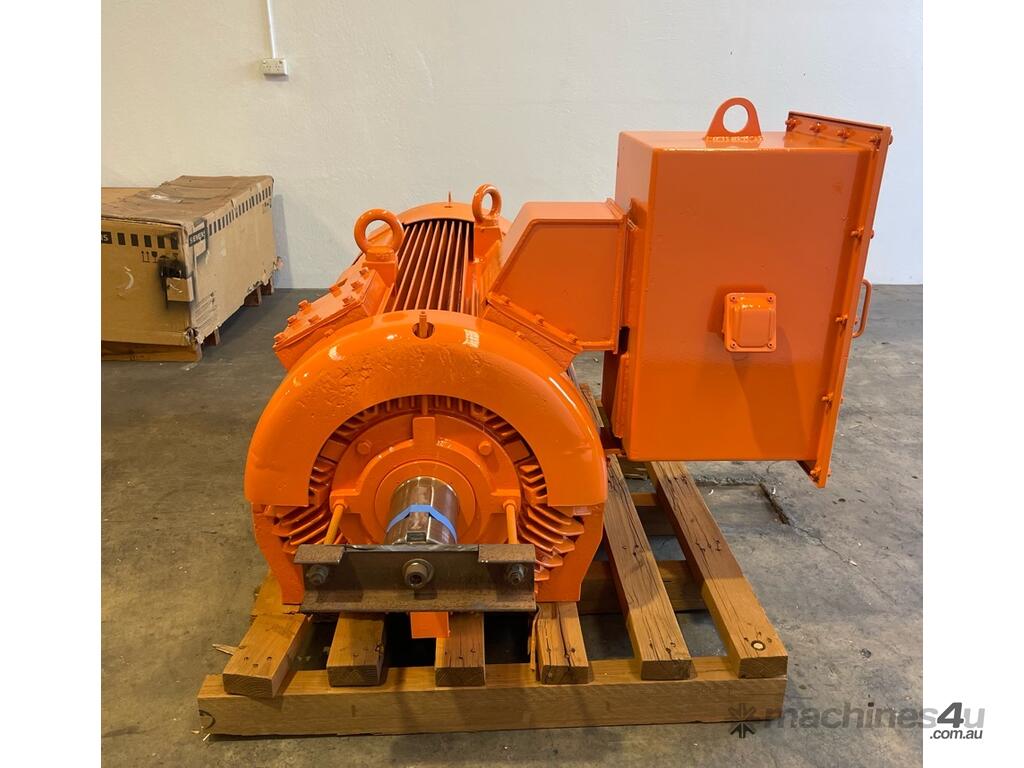

315 kw 420 hp 4-pole 1486 rpm 415v Foot Mount D315DC Frame IP66 Mining AC Electric Motor TECO Type D315DC
Category: AC Squirrel Cage Electric Motor
3-phase Induction Motor

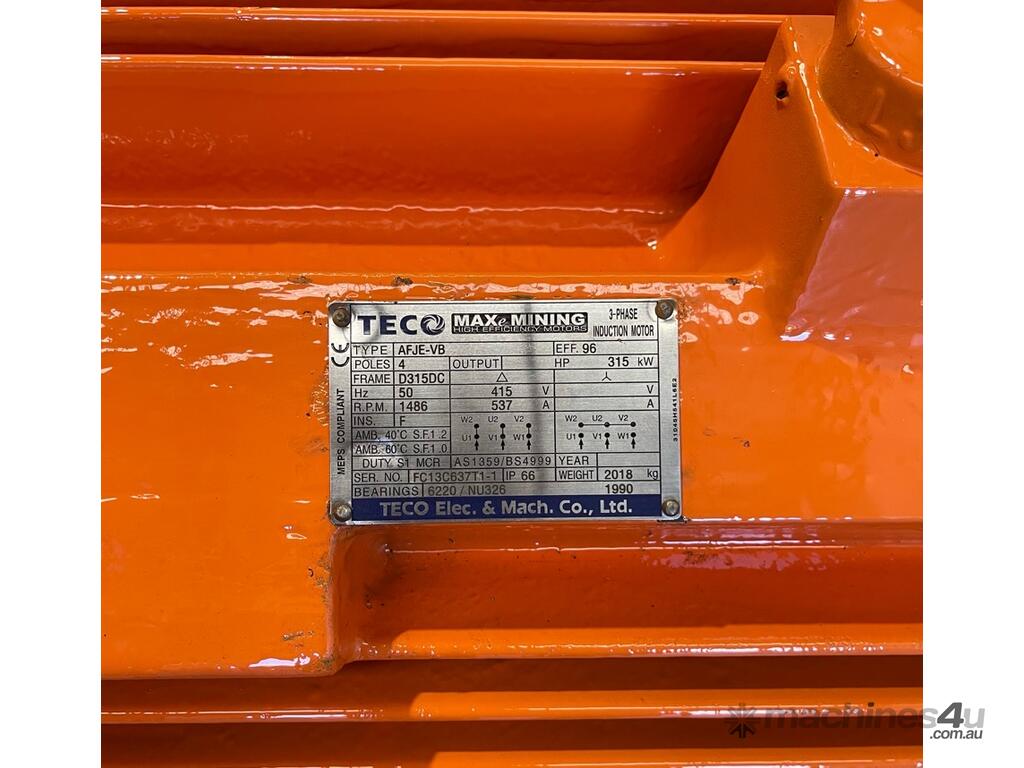

Make: TECO
Type: AFJE-VB D315DC
Power: 315 KW (420 HP)
Speed: 4-pole (1486 rpm)
Rated Frequency: 50 Hz
Rated Voltage: 415 v
Full Load Amperage: 537 A
Mount: B3 Foot
Frame: D315DC
Protection rating: IP66 Mining
Weight: 1990 kg
Shaft DIA: 95mm
Shaft length: 210 mm
Centre Shaft Height: 315 mm
Total Length: 1881 mm (incl. shaft)
Total Width: 1211 mm (incl. standard RHS to D.E. box)
Total Height: 1042 mm
Feet Measurements: Across 'A' - 508mm, Front to Back 'B' - 910mm
Front hole to shaft 'C' - 216mm
Available QTY: 1
Condition: Fully reconditioned & Decommissioned critical spare. Electrically OK. N/L Test run in motor workshop. Warehouse storage
Delivery Point: exStock Seaford VIC 3198 Australia
Freight services available on request
Australian wide distribution of leading Electric Motor brands WEG & TECO.
As well as a large stock of Surplus mining/industrial electric motors, saving our customers cost & downtime.
