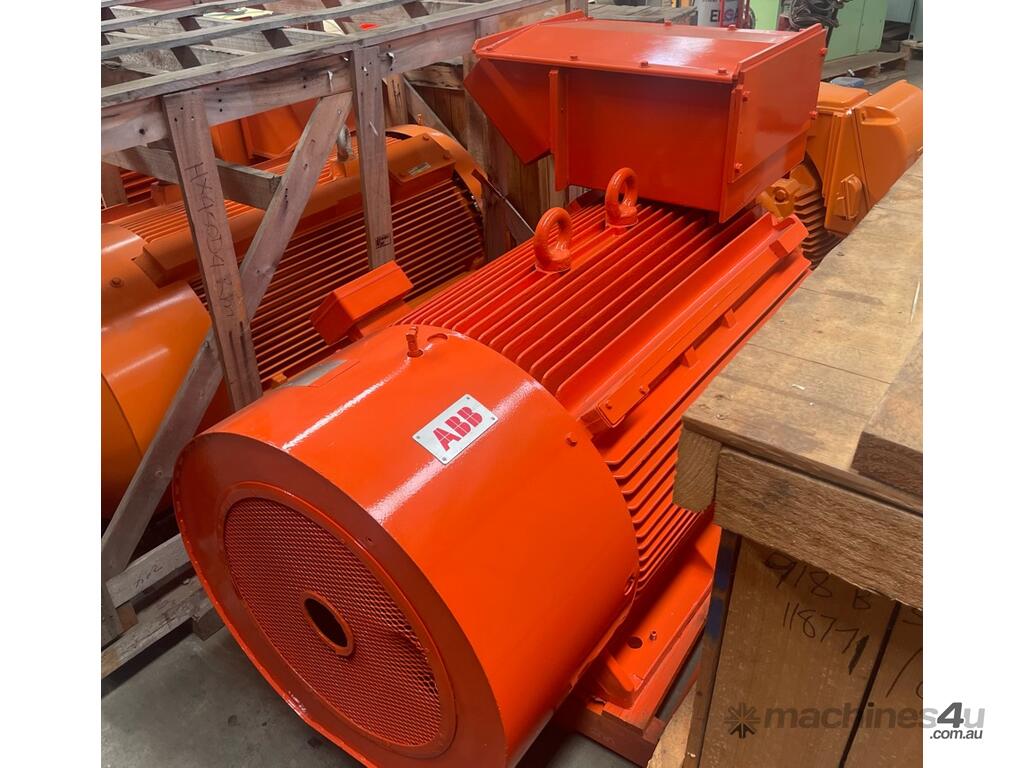

315 kw 420 hp 6-pole 993 rpm 415 volt Foot Mount 400L frame AC Electric Motor ABB Type HXR 400LK6

315 kw 420 hp 6-pole 993 rpm 415 volt Foot Mount 400L frame AC Electric Motor ABB Type HXR 400LK6 Used Reconditioned

Category: AC Squirrel Cage Electric Motor
3-phase induction motor
Make: ABB
Type: HXR 400LK6
Power: 315 KW (420 HP)
Speed: 6-pole (993 rpm)
Rated Frequency: 50 hz
Rated Voltage: 415 v
Mounting: Foot
Frame: 400L
Weight: 3830 kg

Notes:
- Set up for VSD application (N.D.E insulated end shield, plus carbon brush fitted to shaft)
- (Large) D.E. 6324C3 Bearing
- Heavy Duty Cast Iron cooling fan

Critical DIMS:
Shaft DIA: 110 mm (by 210mm long)
Total Length: 1880 mm (incl. shaft)
Total Width: 1000 mm (incl. top mount terminal box)
Total Height: 1180 mm (incl. top mount terminal box)
Feet Measurements: Across 'A' - 690 mm, Front to Back 'B' - 900 mm
Front hole to shaft 'C' - (approx) 216 mm

Available QTY: 2 (Identical pair)
Condition: Fully reconditioned incl. new bearings. High quality motors. N/L test run. Warehouse storage.
exStock Seaford VIC 3198 Australia
Freight services Australia Wide available on request
