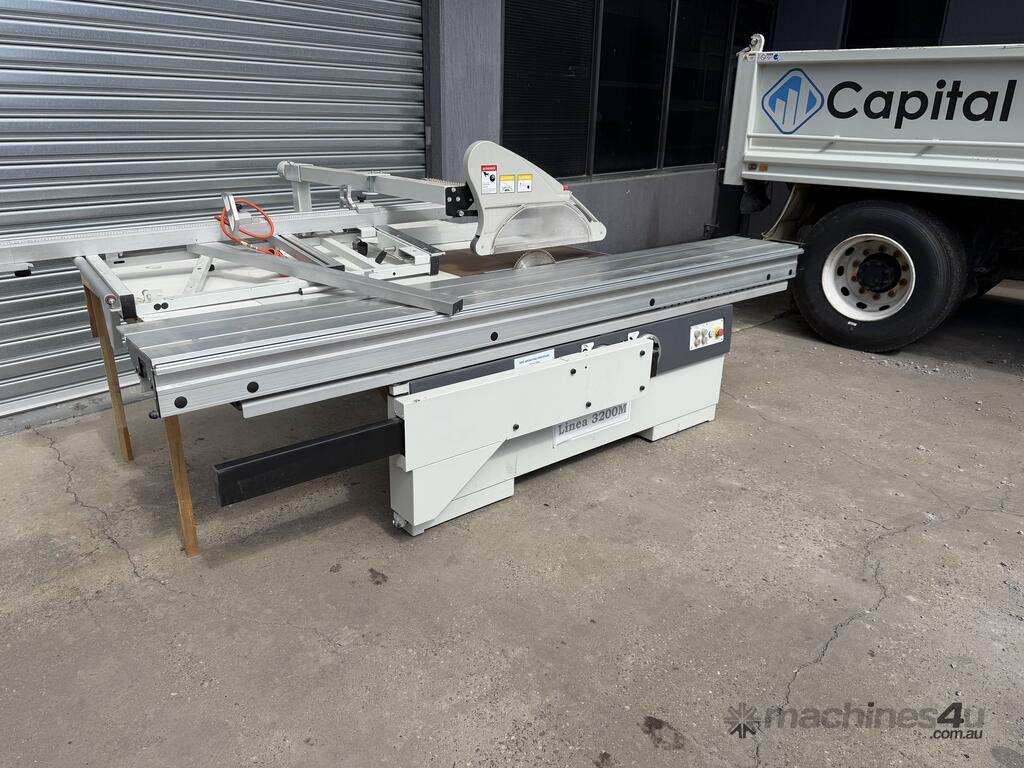

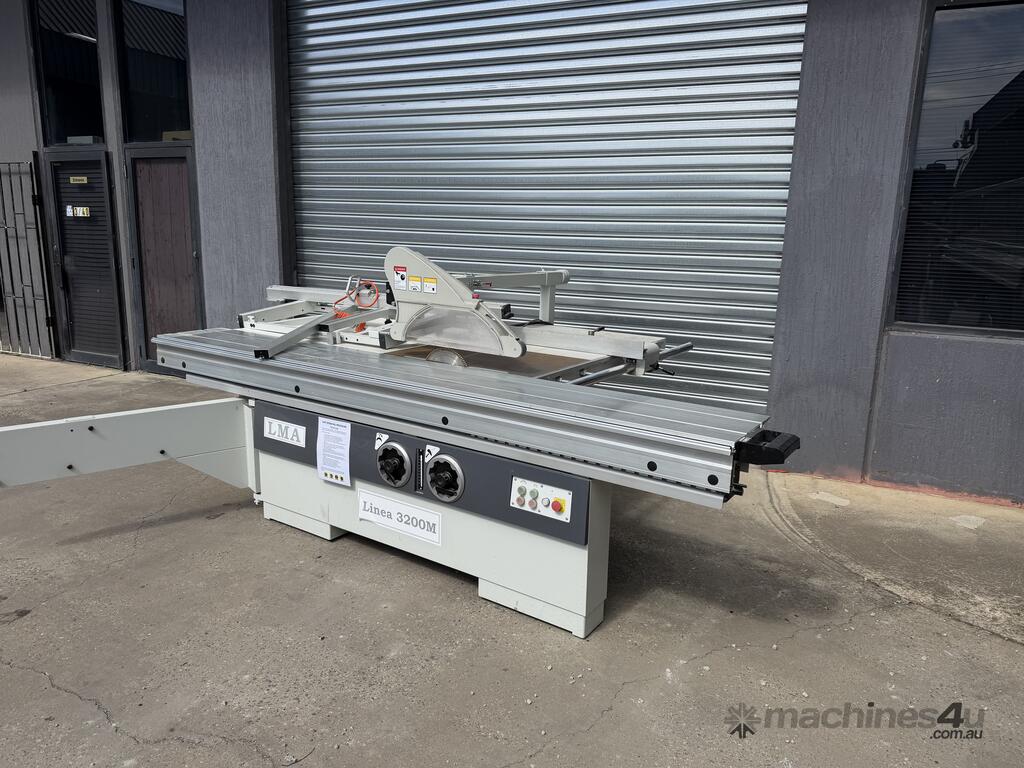

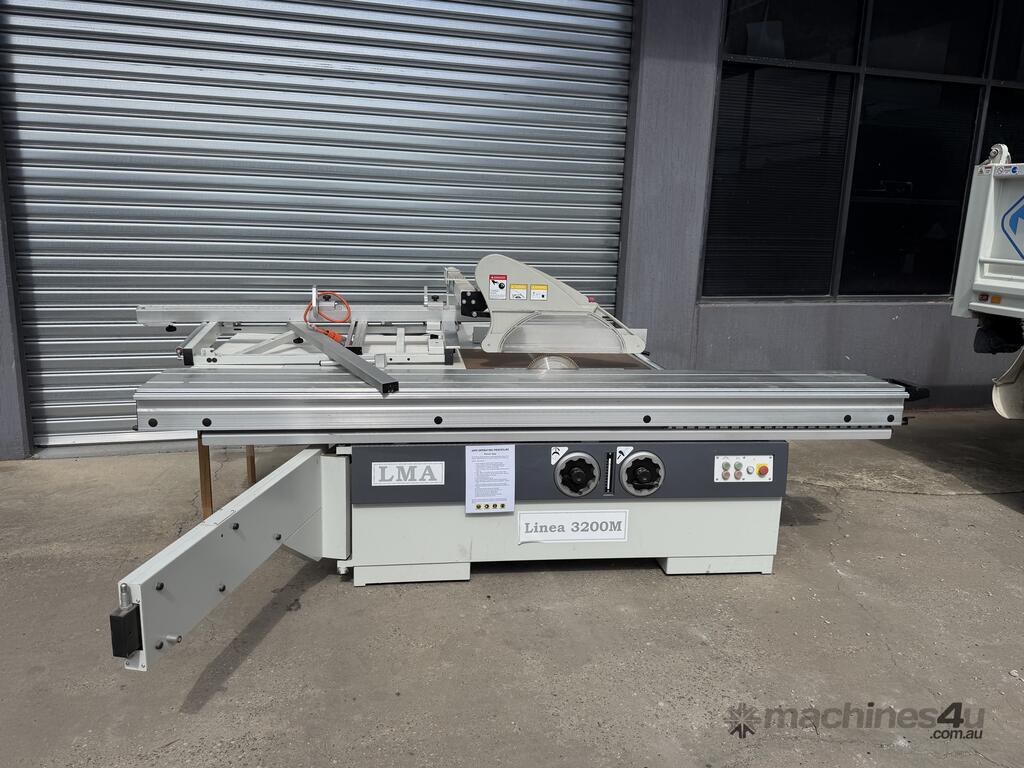

3200mm Crosscut Woodworking Panel Table Saw - Linea 3200M

Make us an offer! We're highly negotiable and take all reasonable offers seriously.

The Linea panel saw is a precision sliding table saw designed for reliable and accurate cutting of panels and sheet materials. Built with a heavy-duty cast iron saw unit and a robust steel frame, it delivers stable performance for a range of woodworking applications. The sliding table ensures smooth, precise straight and angled cuts, with manual controls providing straightforward, dependable operation.

Typical Applications:
- Furniture and cabinet manufacturing
- Joinery and workshop panel processing
- Production of doors, panels, and laminates
- General woodworking and carpentry operations

Table Length/Crosscut: 3200mm
Max saw blade: 400mm
Scorer blade: 120mm
Max cut height (90 degrees): 105mm
Max cut height (45 degrees): 70mm
Saw motor: 7.5hp
Scorer motor: 1.0hp
Scorer setting: Manual
Tilt of sawblade: Manual

Main blade height setting 1300mm
Max rip fence position Manual
Rip fence positioning

Dust extraction connections 120 and 100mm
Net weights 937kg
