UNIMIG WELDERS 350SWF INVERTER Multi-Function Welder-MIG-TIG-MMA 50-350 Amps #KUMJR350SWF
CALL NOW AND DO A DEAL! ADD THIS ASSET TO YOUR WORKSHOP
WE OFFER MACHINERY SOLUTIONS AT AFFORDABLE PRICES.
Order Code: W187

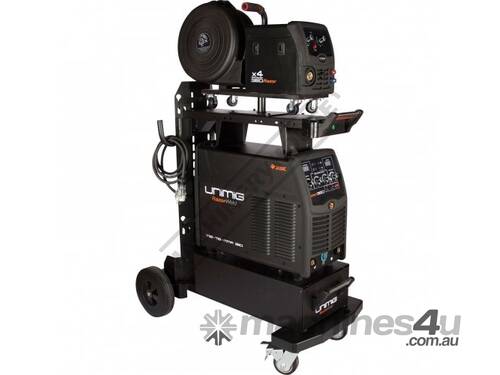

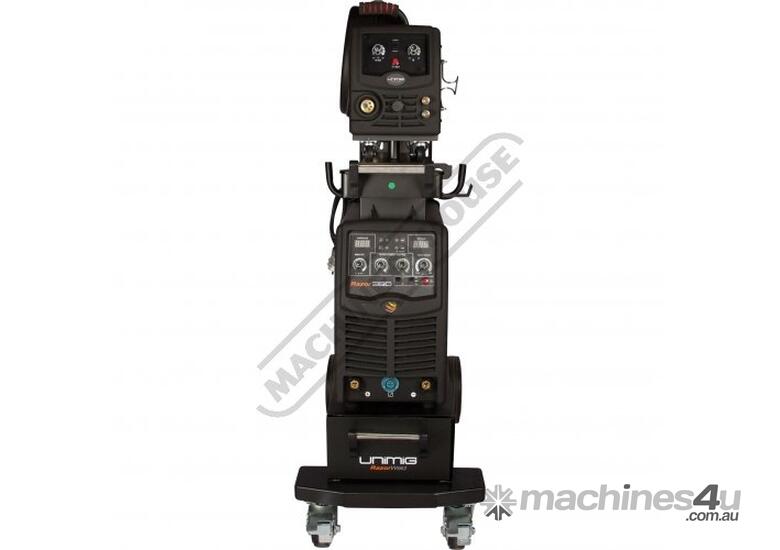

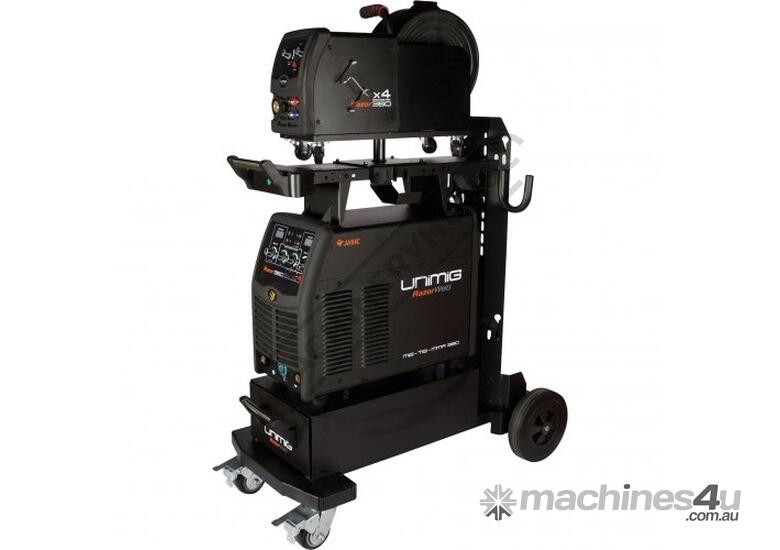

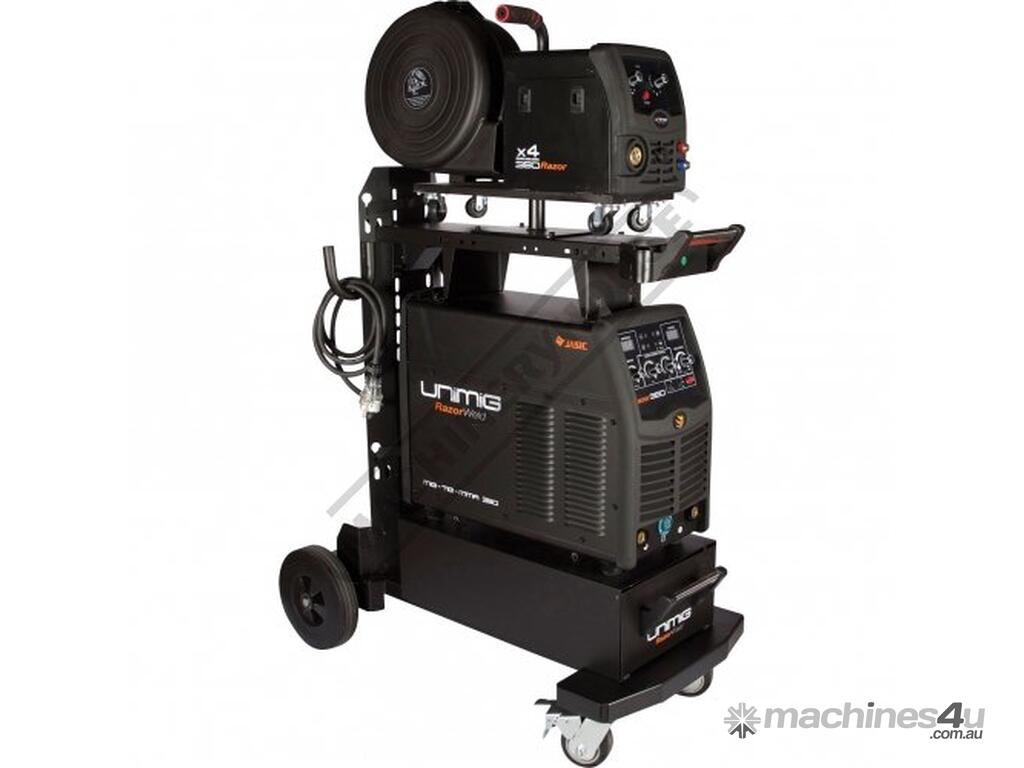

The Uni-Mig350SWF is an inverter-based Mig welding machine with added MMA and Tig function.
This is an industrial machine equipped with a separate 4 roll gear driven wire feeder and 10m interconnecting cables. The Mig function allows you to weld with Solid wires, Fluxcored Gas and Gasless wires. Adjustment of Voltage & Wire Feed at the wire feeder make for easy setting of welding parameters and give the convenience of remote adjustment from the power source.
Crater Current setting delivers perfect finishing of the weld, the electronic inductance offers fine adjustment of the arc characteristic and burn back adjustment leaves the wire stick out ready for the next weld. Wire inch and Gas Check provides set up of wire feed and gas setting with wastage of wire or gas. Added MMA welding capability delivers easy and high quality welding using electrodes, including cast Iron, stainless and low hydrogen. Connection of the 26V tig torch provides quality DC Tig (scratch start) welding of steel, stainless steel and copper.
Ideal for heavy and structural welding applications, general engineers, maintenance workshop, rural workshops.
Designed and built to our specification. Certified to - AS/NZ60974.1
Features:
Latest IGBT Inverter Technology
Mig/Mag Function
MMA (Stick electrode) (DC+ / DC-) function

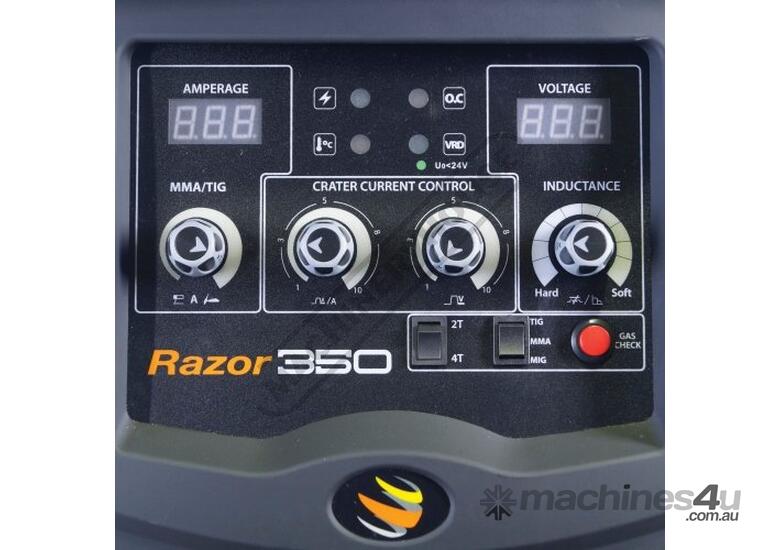

Stepless Voltage & Wire Feed Controls at Wire Feeder
Variable Inductance & Burn Back Controls
Adjustable Crater Current Control
Gas Purge / Inch Wire
2T/4T Trigger Function
Separate Wire Feeder with geared 4 roller drive
LED Volt/AMP Meter Digital Display
Scratch start DC TIG welding
10m Interconnecting Cables
Trolley with pull out tool storage
Includes:
- SB36 4M Uni-Mig Ergo MIG torch with Euro connection
- Argon Regulator
- 4M Earth Lead
- 4M Arc Lead
- Gas Hose with Fittings
Specifications:
ORDER CODE: W187
MODEL: MIG-MMA-TIG 350 SWF
Type: MIG / TIG / MMA
Type: Multifunction
Part Number: KUMJR350SWF
Voltage (V): 415
Recommended Plug Amperage (amp): 20
Welding Current Range MIG (amp): 50 - 350
Welding Current Range MMA (amp): 10 - 350
Welding Current Range TIG (amp): 10 - 350
Duty Cycle: 40% 350amp
Wire Spool Size (kg): 15
Ferrous Wire Size - Range (mm): 0.6 - 1.2
Stainless Steel Wire Size - Range (mm): 0.8 - 1.2
Aluminium Wire Size - Range (mm): 0.9 - 1.2
Recommended Generator (KVA): 14
Dimensions (mm): 1275 x 880 x 475
Nett Weight (kg): 72
