355 kw 475 hp 6-pole 991 rpm 415v 400M frame IP66 Mining AC Electric Motor Marathon Type TCM400M-6

355 kw 475 hp 6-pole 991 rpm 415 volt 400M frame IP66 Mining AC Electric Motor Marathon Motors TerraMAX TCM Range Type TCM400M-6 New unused

Category: AC Squirrel Cage Electric Motor
3-phase induction motor

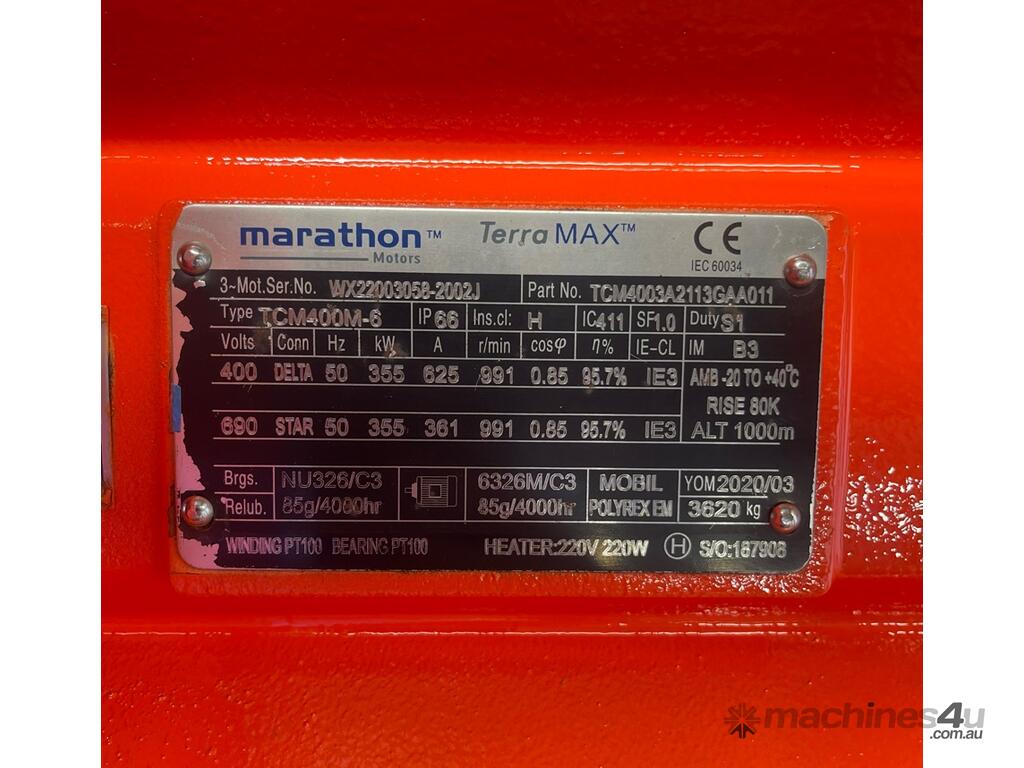

Make: Marathon Motors
Range: TerraMAX TCM
Model: TCM400M-6
YOM: 2020
Power: 355 KW (475 HP)
Speed: 6-pole (991 rpm)
Rated Frequency: 50 hz
Rated Voltage: 400 v
Full Load Amperage: 625 A
Mounting: B3 Foot Mount
Frame: 400M
Protection Rating: IP66 Mining
Insulation Class: H
Weight: 3620 kg
Notes: Includes D.E. Roller Bearing NU326/C3 (for pulley-driven application)

Critical DIMS:
Shaft DIA: 110 mm
Shaft Length: 210 mm
Total Length: 1915 mm (incl. shaft)
Total Width: 1214 mm (incl. RHS to D.E. terminal box)
Total Height: 1200 mm
Feet Measurements: Across 'A' - 686 mm, Front to Back 'B' (2-holes) - 630 mm and 710 mm
Front hole to shaft 'C' - 280 mm

Available QTY: 1

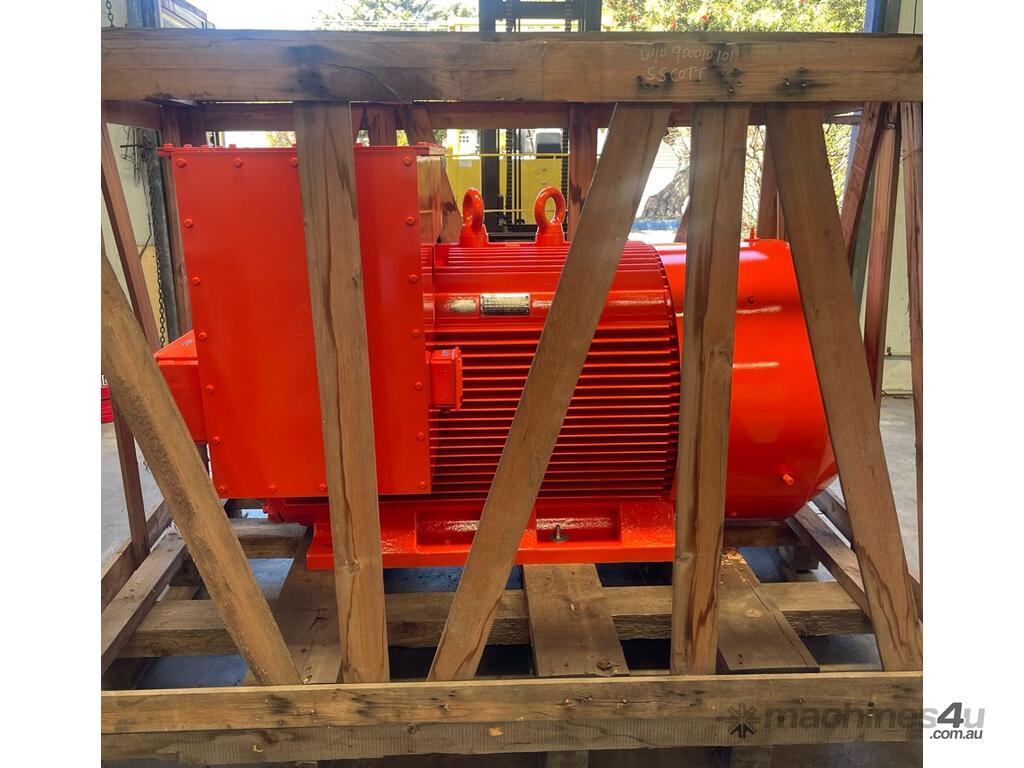

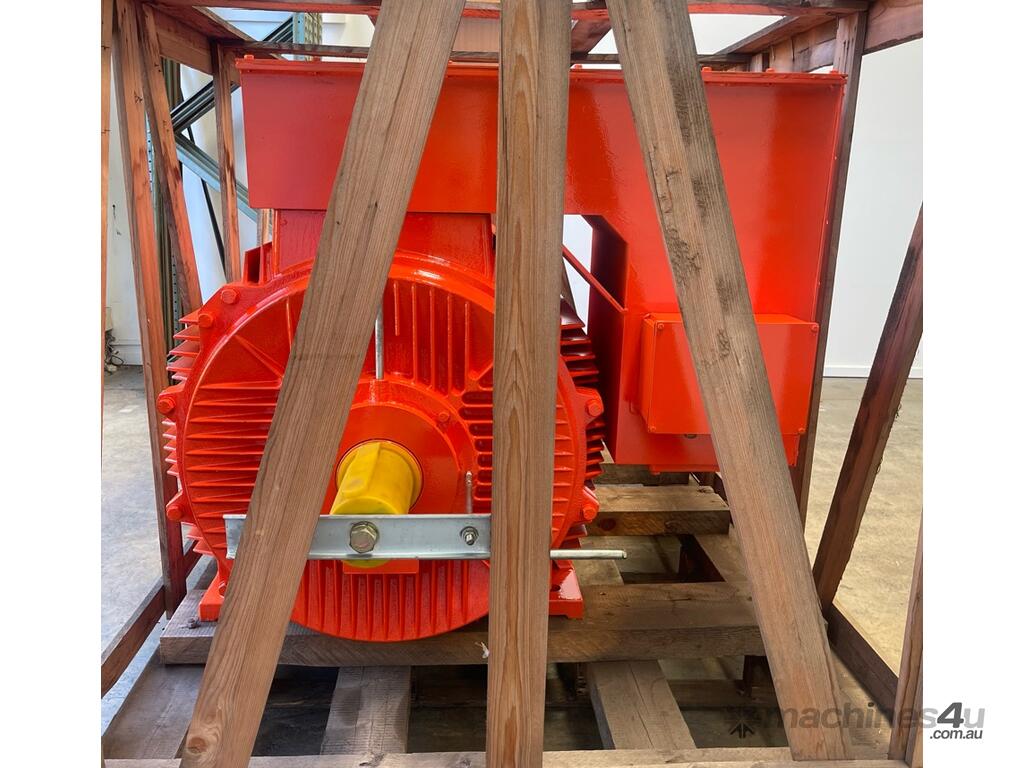

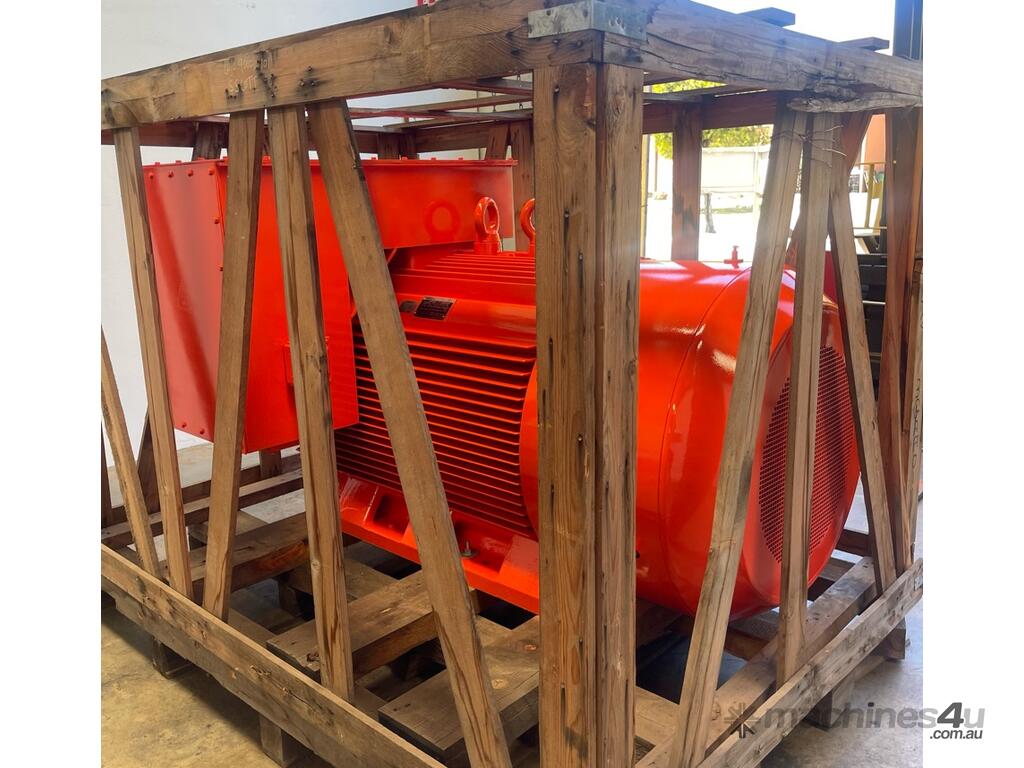

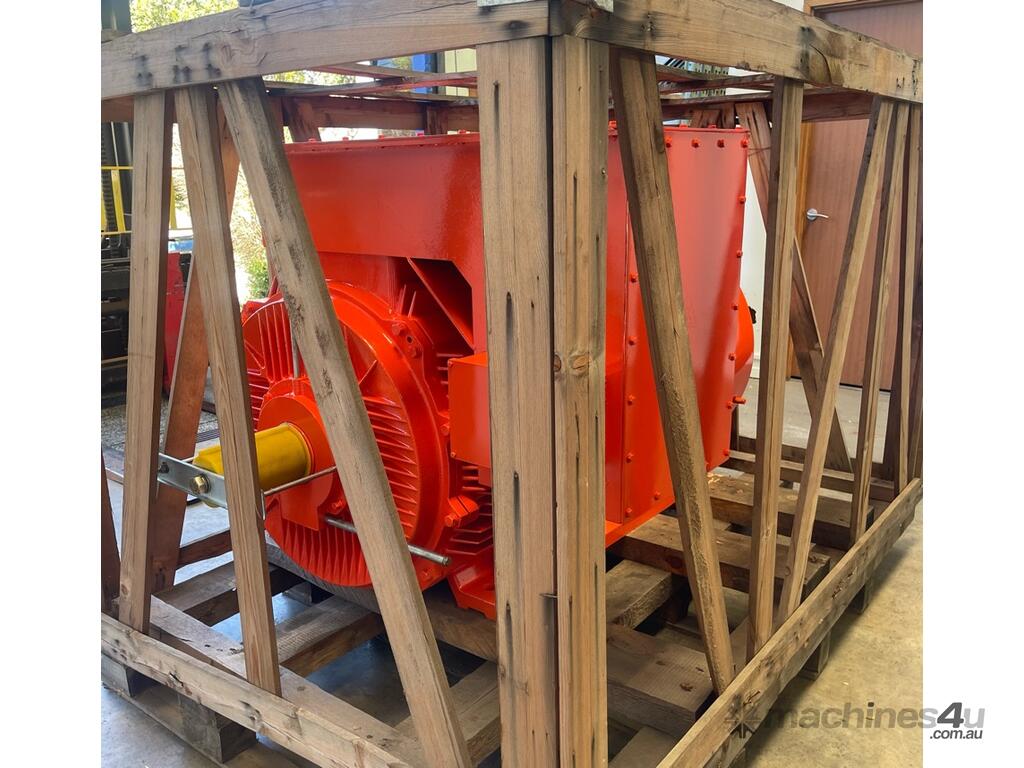

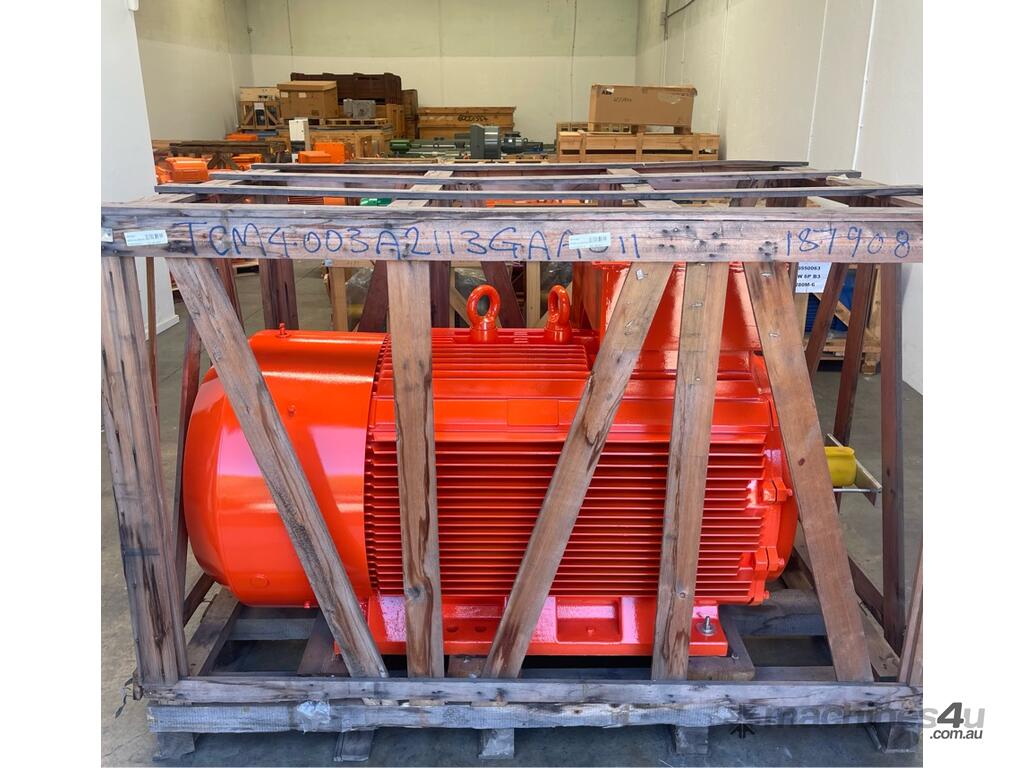

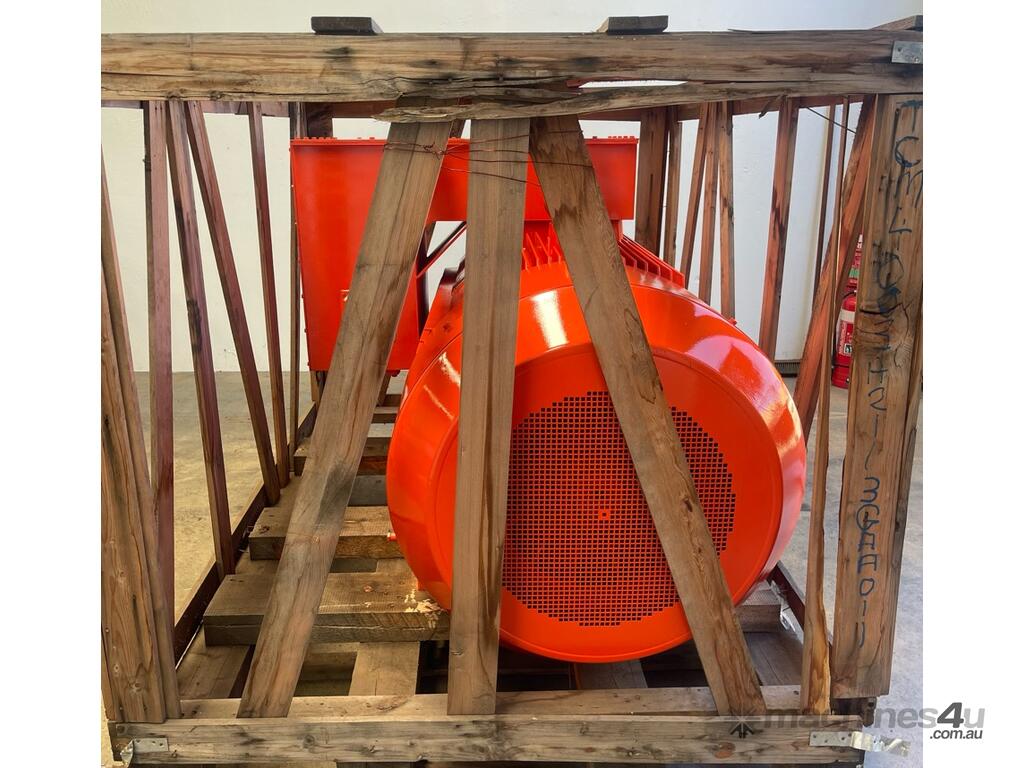

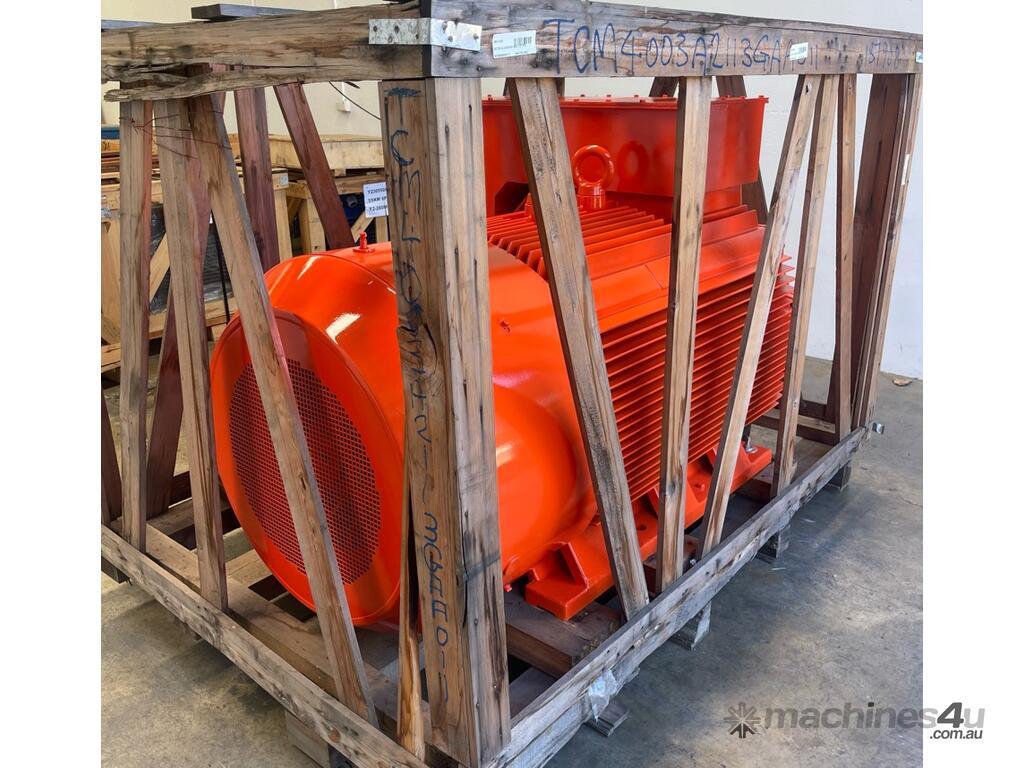

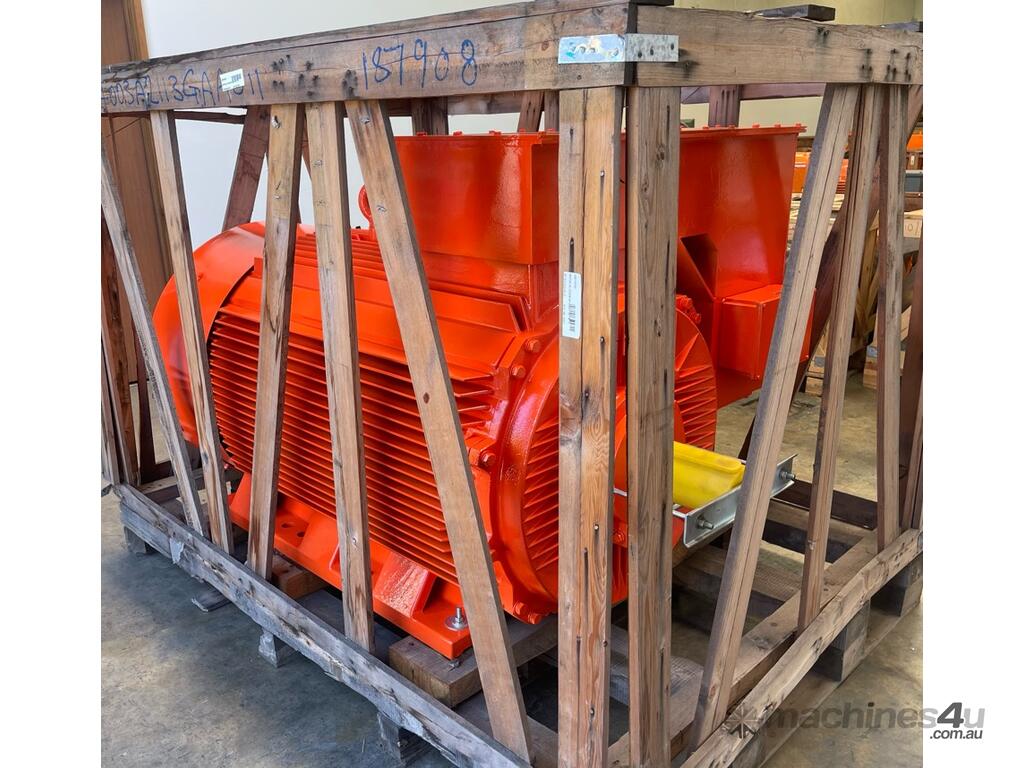

Condition: New/Unused in crate, warehouse storage
exStock Seaford VIC 3198 Australia
Freight services Australia-wide available on request - Available for immediate despatch
