Key Features:
Triangular Tracks
Rated Load 375kg
23HP Briggs & Stratton Vanguard Engine
Electric Start
Triple Pumps
Optioned with 4 in 1 Bucket as Standard!

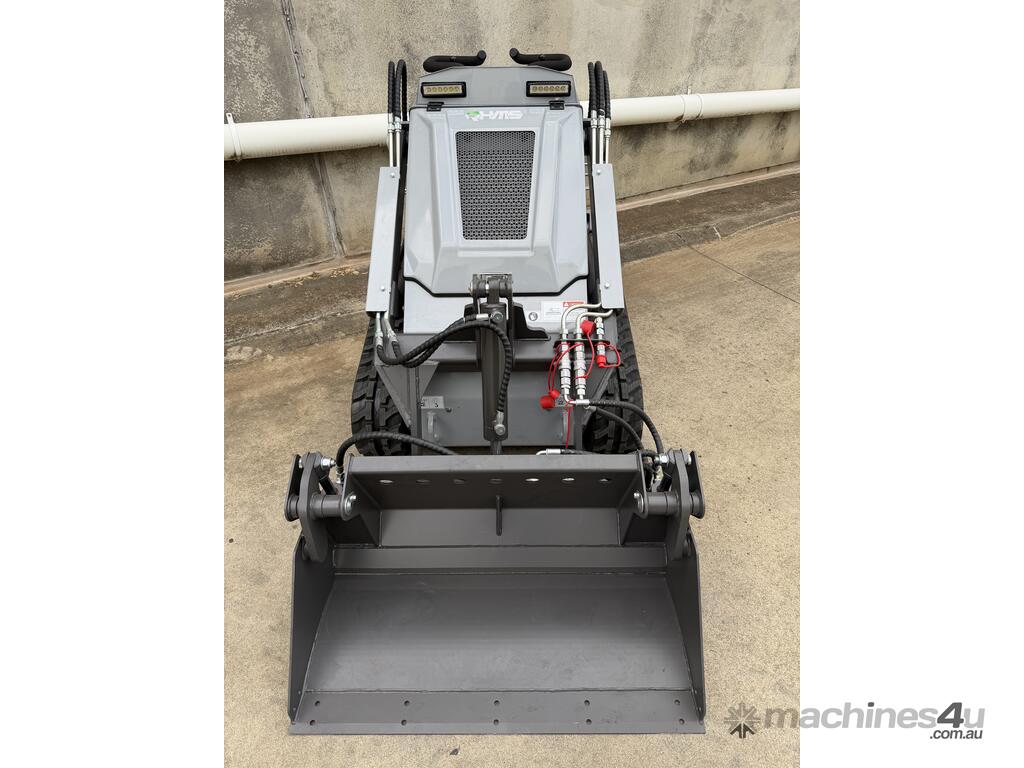

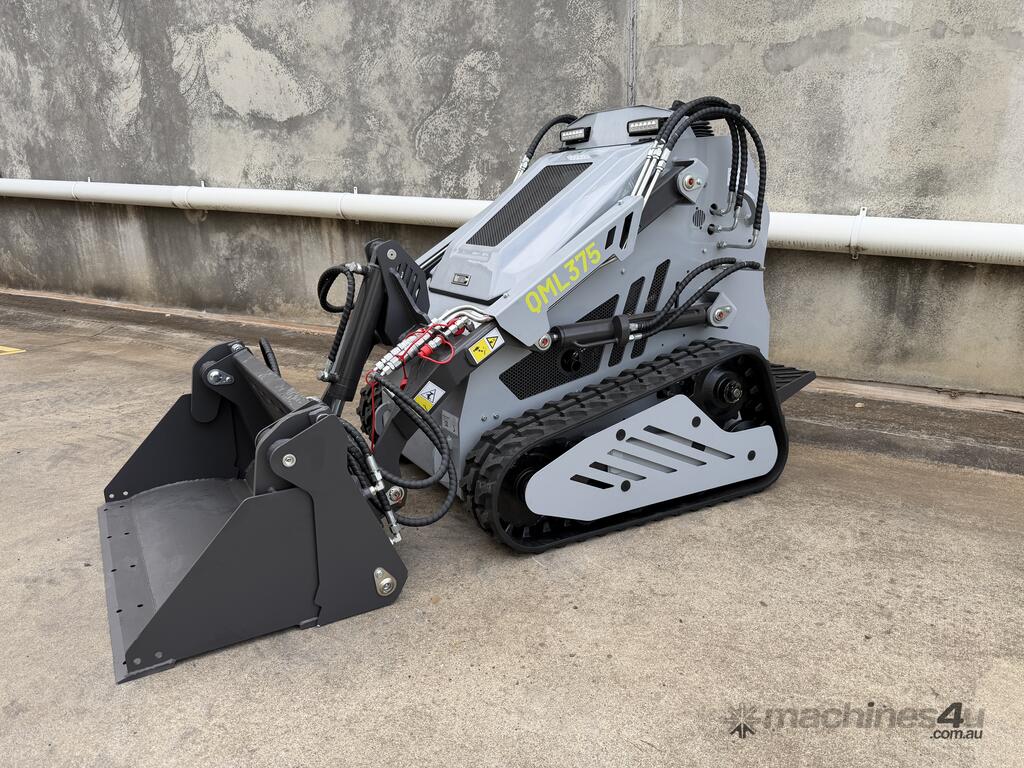

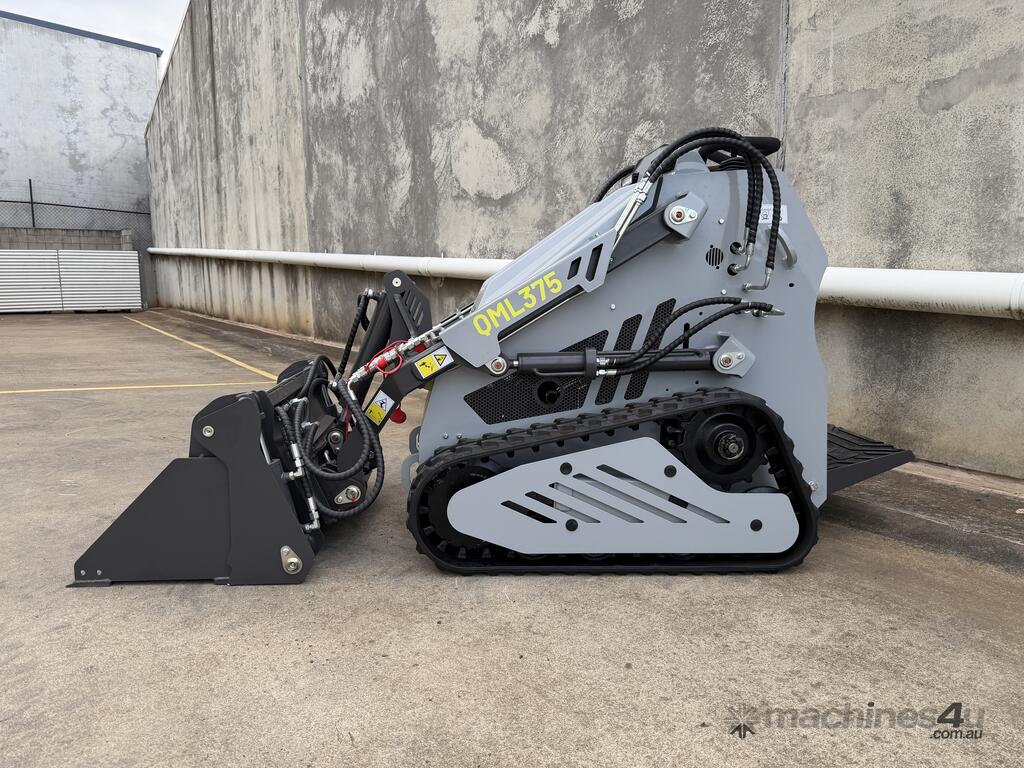

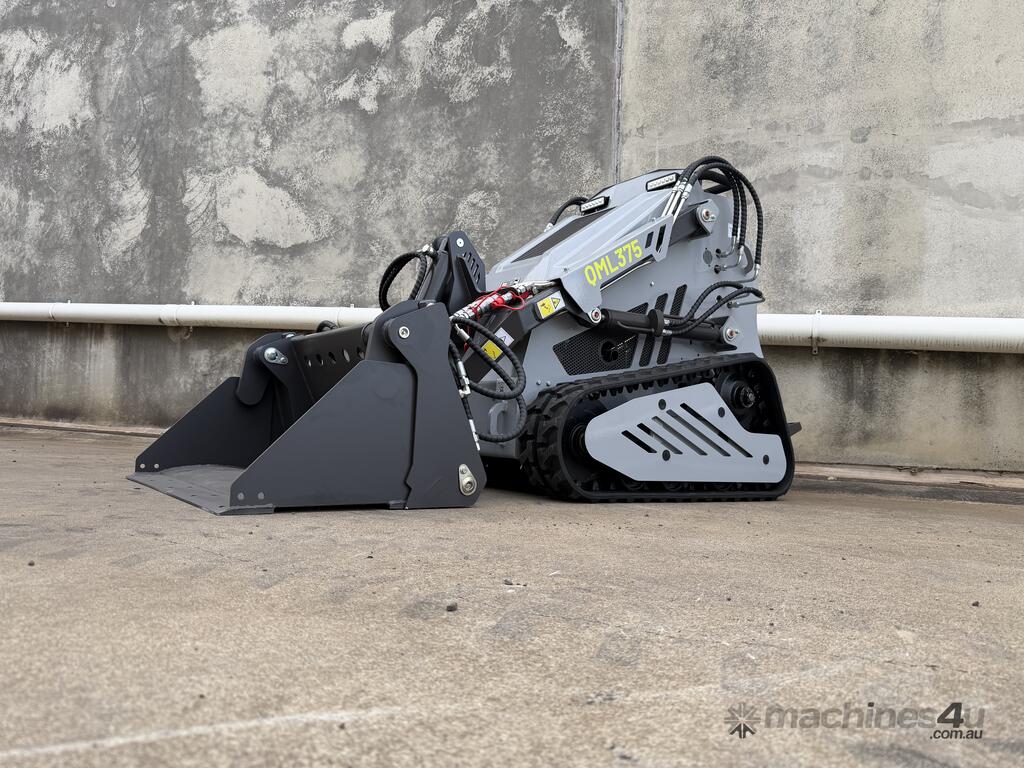

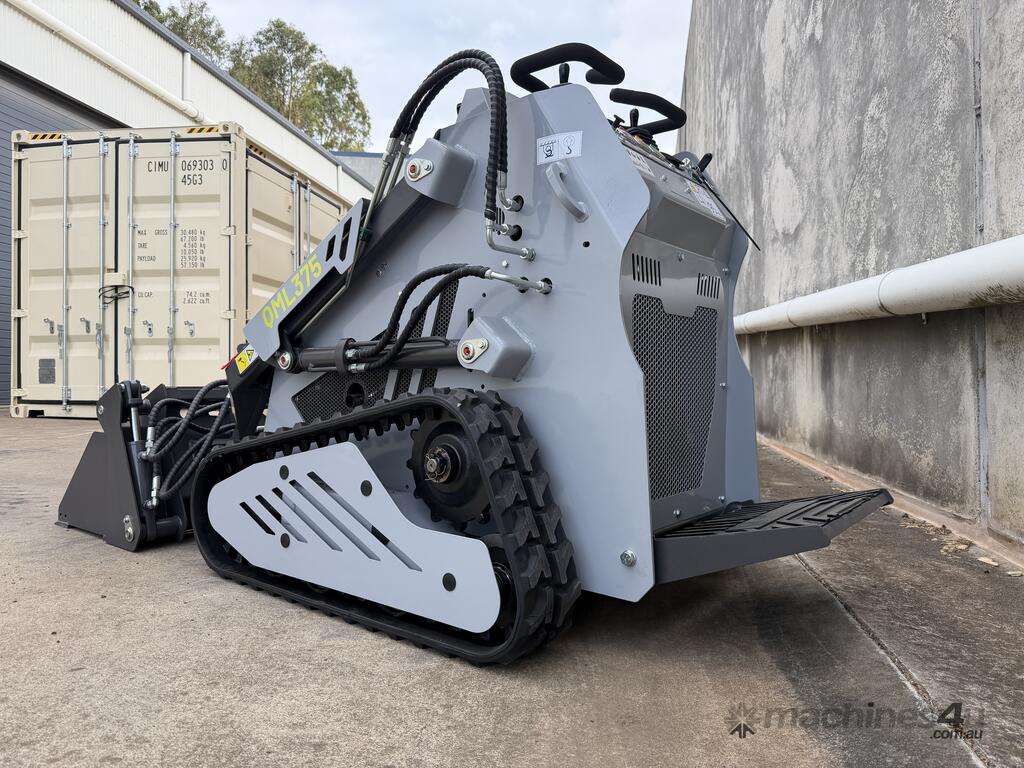

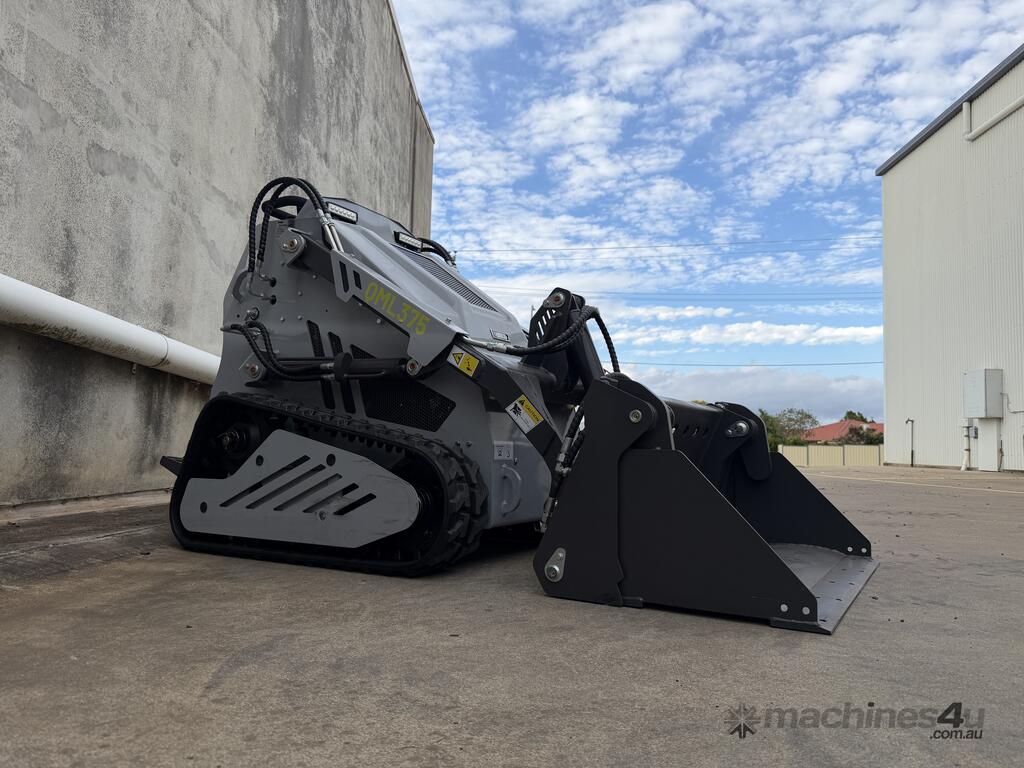

Mini Loader 375kg
Rated Load: 375 kg
Bucket Capacity: 0.15 m³
Max. Lifting Force: 800 kg
Working Speed: 0–4.1 km/h
Rated Pressure: 17 MPa
Lifting Time: 4.3 s
Descending Time: 3.3 s
Tipping Time: 1.5 s
Climbing Capability: 30%
Working Weight: 920 kg
Overall Size (L×W×H): 2310 × 1300 × 1140 mm
Engine:
Brand: Briggs & Stratton Vanguard
Model: 3864
Fuel Type: Petrol
Power Output: 23 hp
Fuel Consumption: 6.7 L/h
Starting Method: Electric start
Fuel Tank Capacity: 25 L
Engine Oil Capacity: 1.7 L
Hydraulic Oil Capacity: 25 L
