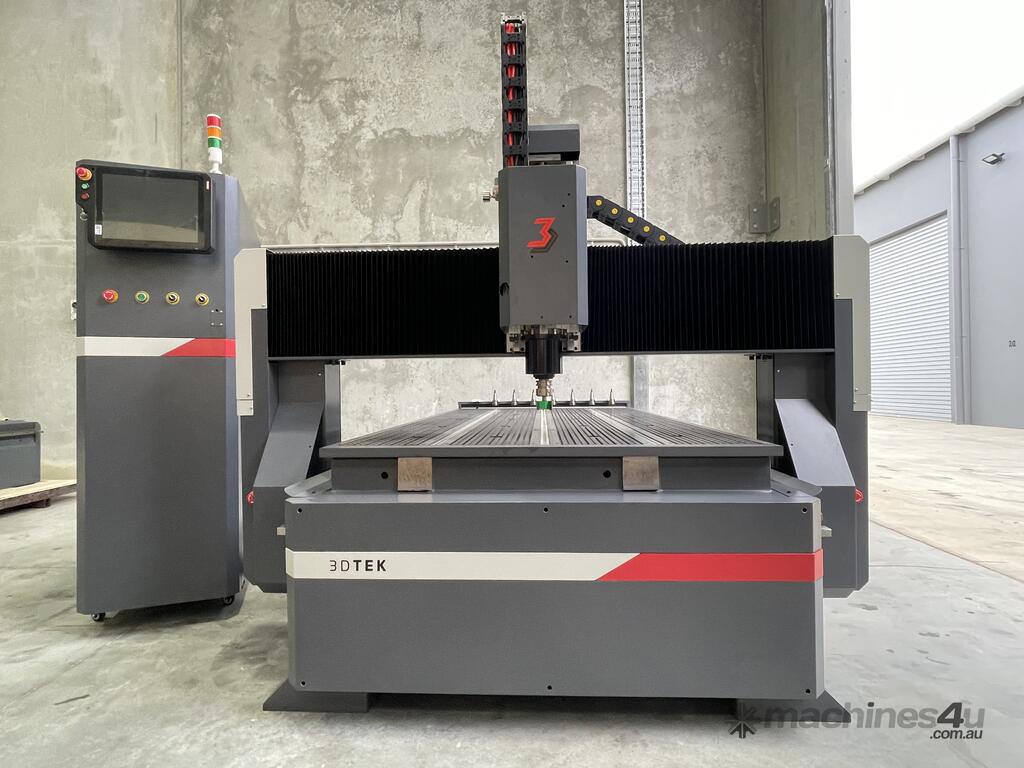

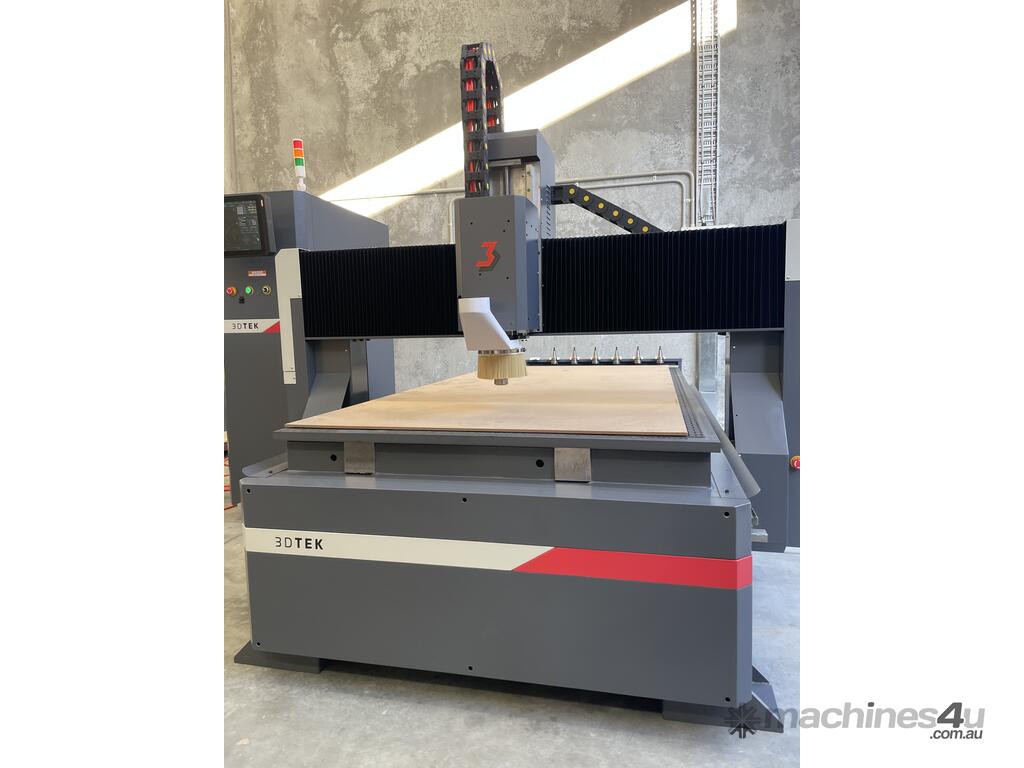

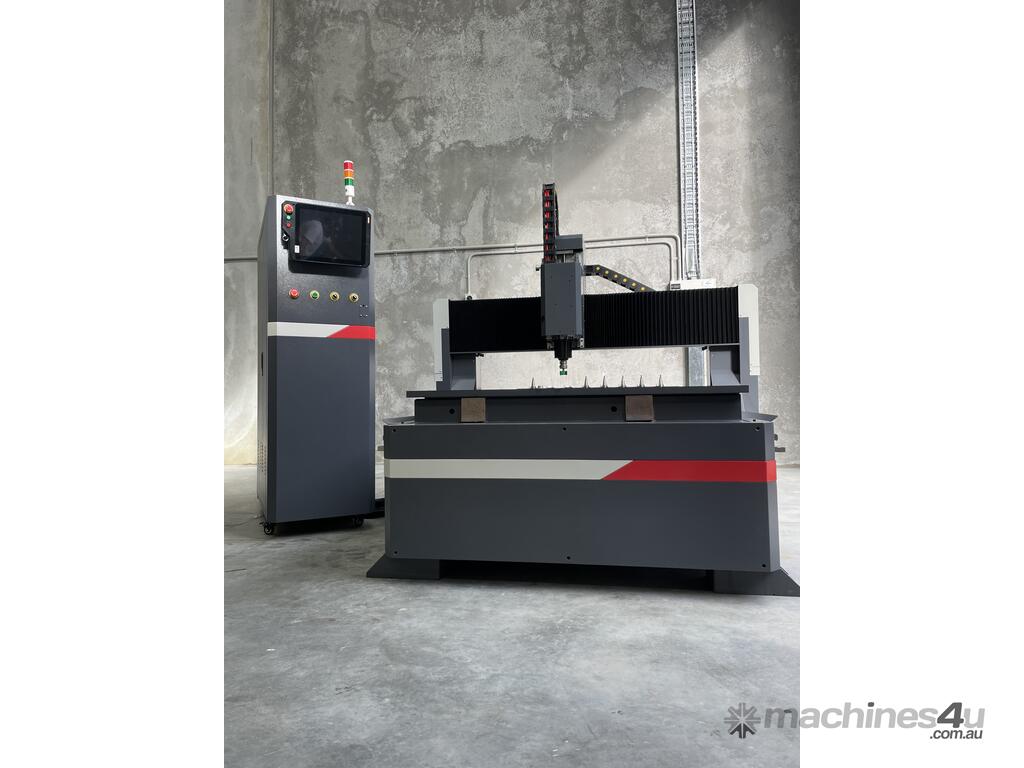

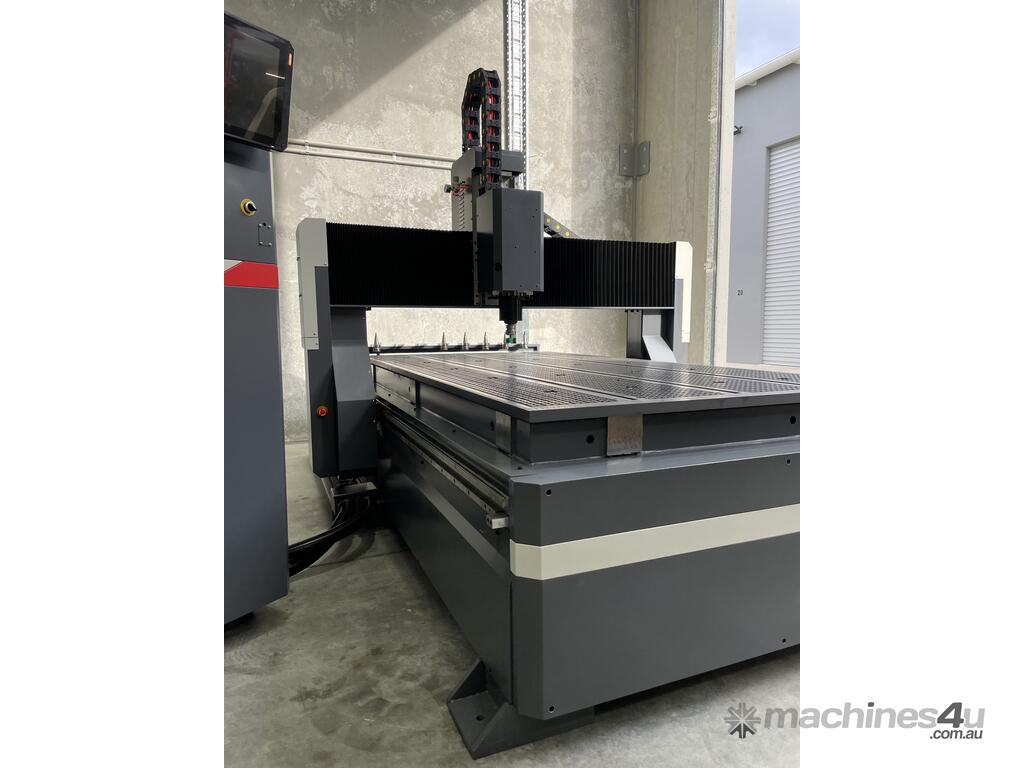

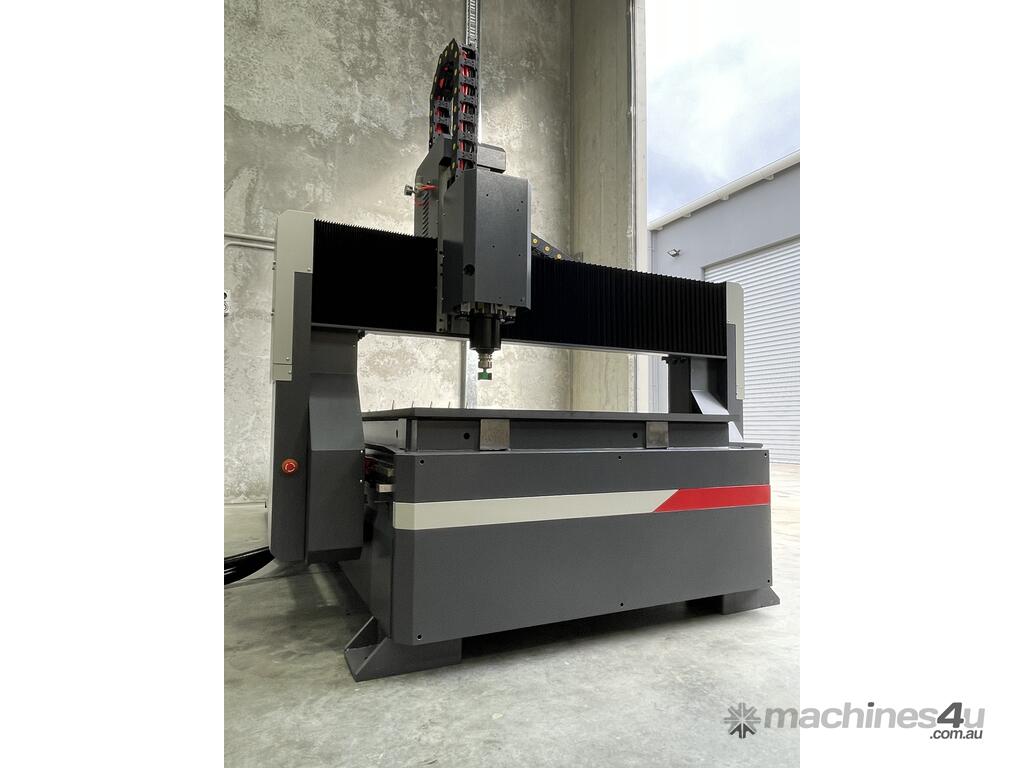

3DTEK ATC Nesting CNC ROUTER

3DTek Industrial 3 Axis Full-Sheet ATC CNC routing Machines. Sold, warranted, and serviced by Bilinq PTY LTD.
All 3DTek machines are available with rent-to-buy and lease options - contact us to find out more.

THIS LISTING PRICE INCLUDES:
• Oversized 2500x1300 cutting area
• Automatic Tool Change 9KW Spindle - 12 Tool Positions
• Automatic work/sheet positioning pins
• 5 Axis Syntec Industrial controller & Masso Touch Screen Controller options.
• 7.5KW Vacuum pump & zoned vacuum hold-down table
• 3-Year Parts Warranty - 12 Months Labour Warranty including commissioning and training

Our machines are designed for the Australian Business, using Australian-designed and supported CNC Control systems compatible with all major CAD & CAM software.

We provide delivery, commissioning, and training to get you up and running ASAP. Our industrial line of CNC machines is so simple to use that YOU WILL be able to operate this machine comfortably from day one and can call on us anytime for tips. 3Dtek can further support customers with machining recommendations and GCode production. All machines include all tool holders, collets, toolkit, electrical connections, etc - everything you need to get started, other than a plug on your wall, a dust collector, compressor and some free floor space.

All 3DTek Industrial CNC machines come standard with a Vacuum work hold-down table, Automatic Tool Height Sensing, Tool Holders, Sample tools, automatic dust hoods, & ONSITE TRAINING AND SUPPORT.

3DTek keeps spare parts in stock in NSW & QLD., We aim to dispatch spare parts the next day without question, & where necessary, attend site asap, with a focus on keeping your workshop running as a priority and worrying about whether a part is a warranty item or not after first ensuring uptime. This can make the difference between owning a valuable production asset or a 2t paperweight.

3DTek Industrial CNC Routers make light work of your entire CNC machining workflow through:
• Wifi transfer of cut files from your clean office down to the production floor
• Vacuum work holding to hold down or release your materials at the flick of a switch
• Automatic tool height calibration to save time and errors

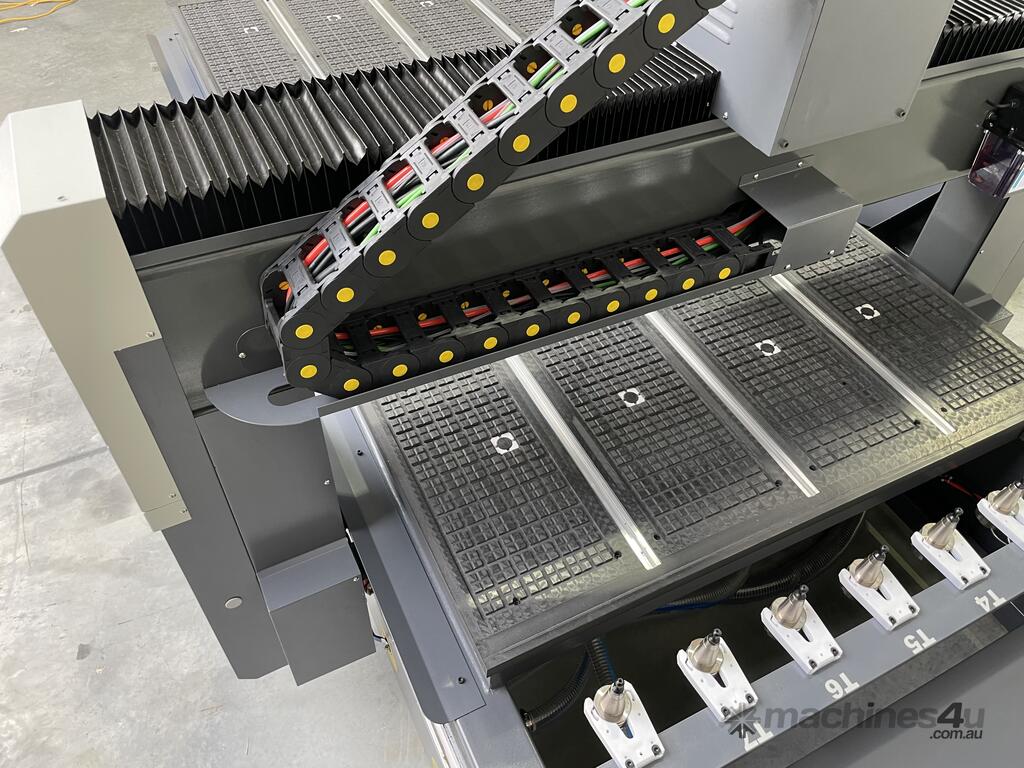

• Automatic Tool Changing, with 12 tool positions.

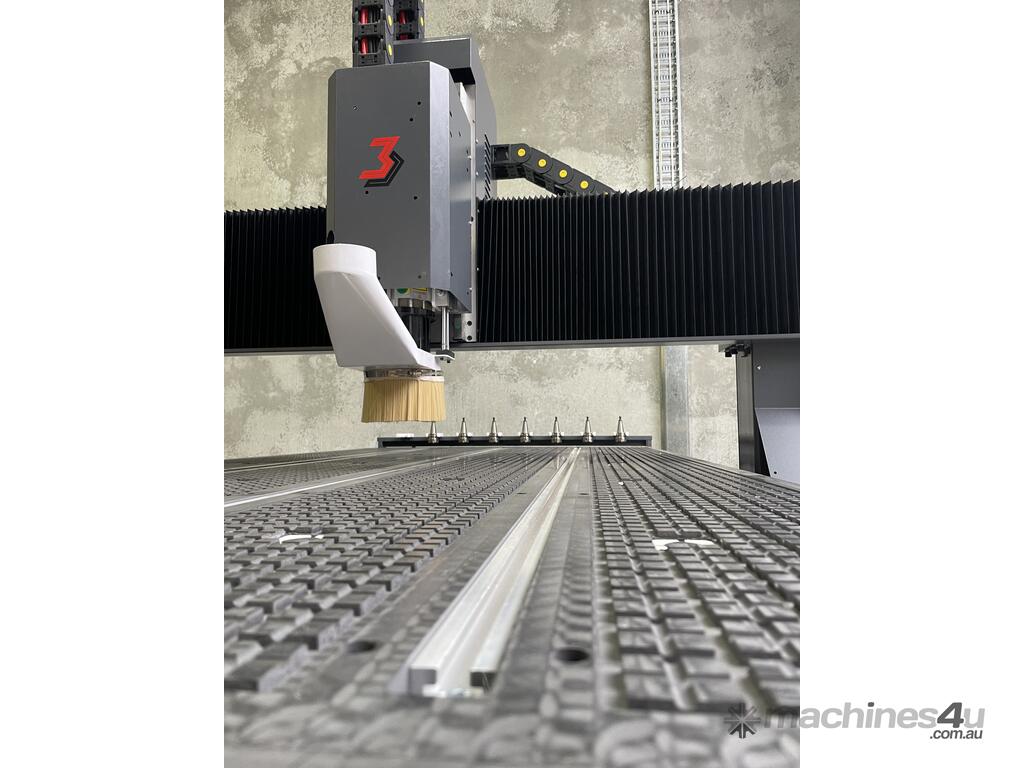

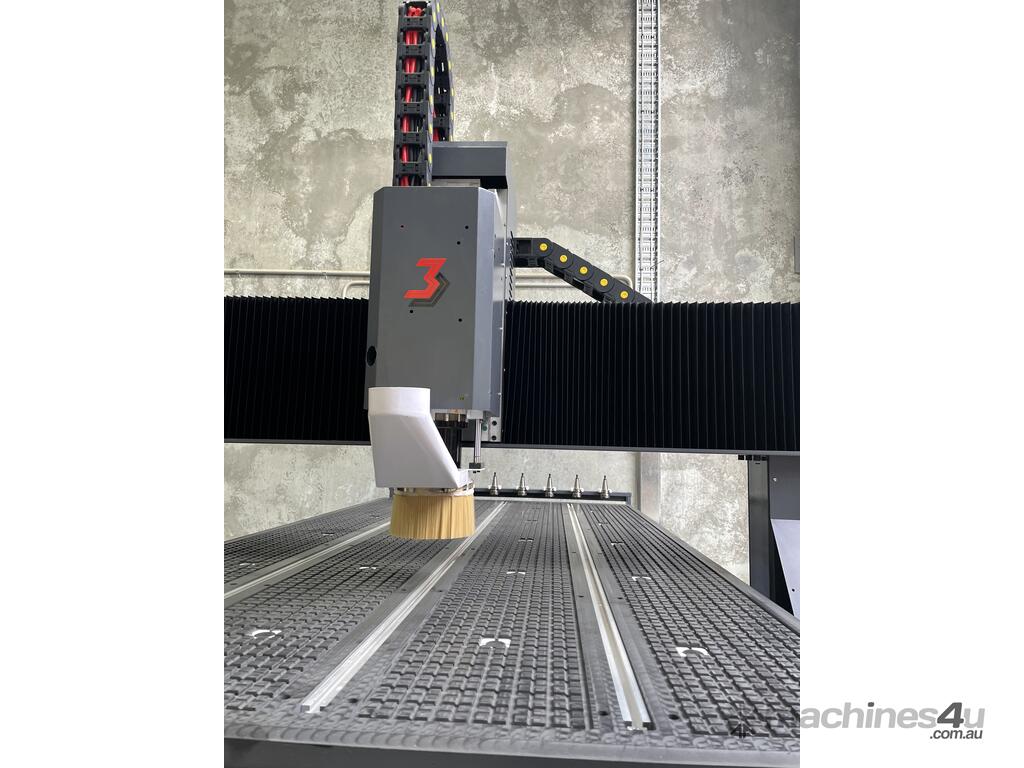

• Automated dust hood retraction to access tooling

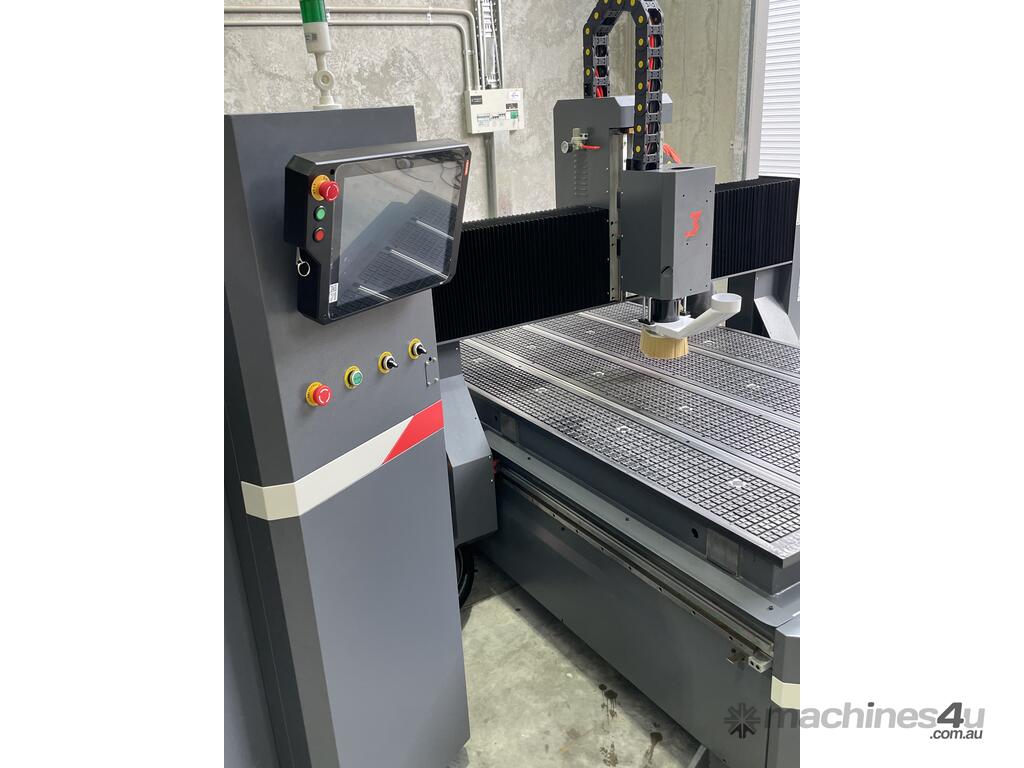

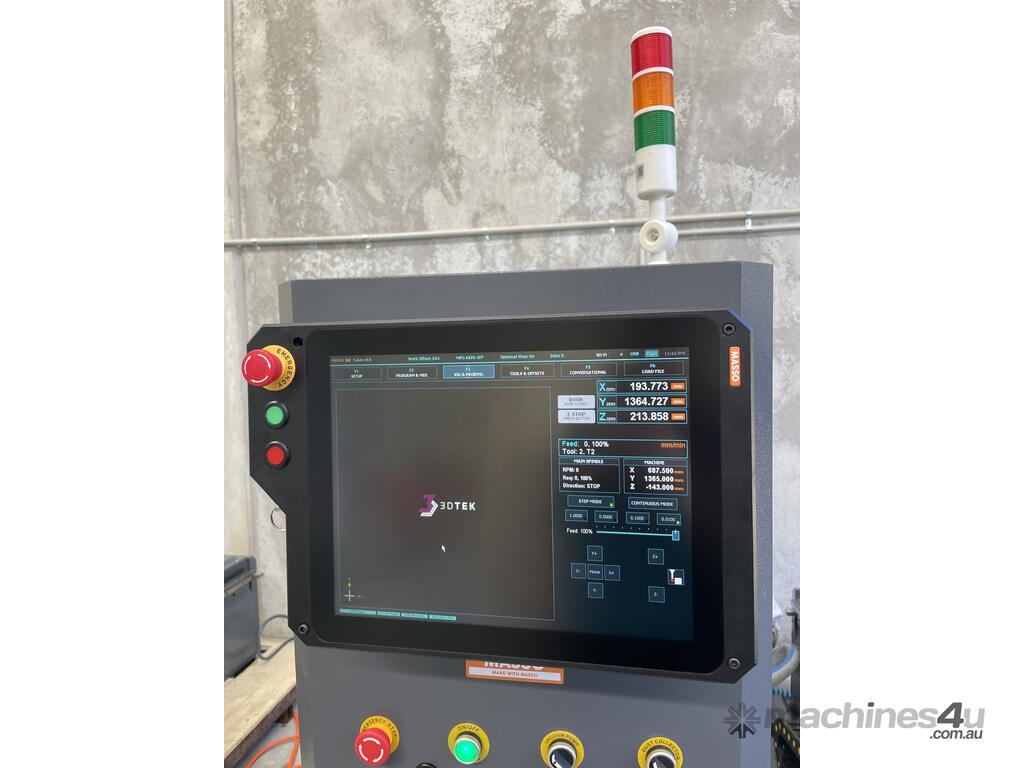

• Large job previews and intuitive machine control on the integrated touchscreen control monitor (Masso Option)
• Extremely simple machine control interface

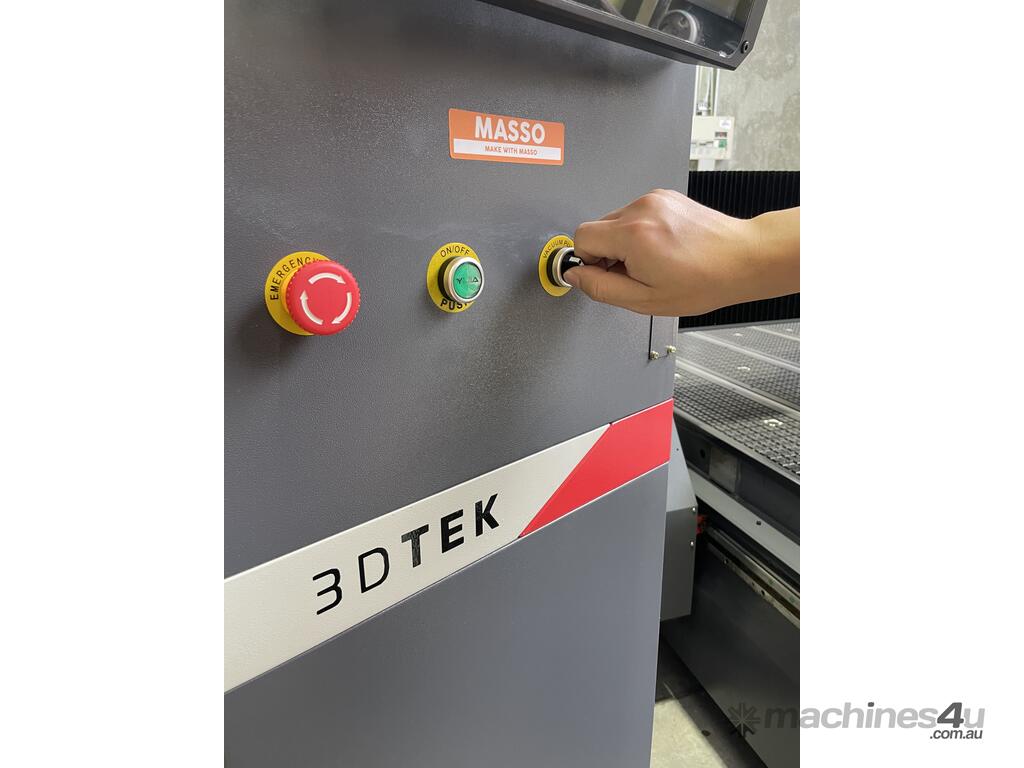

• Multiple safety stops around the machine & wireless keyboard & wired pendant control options.

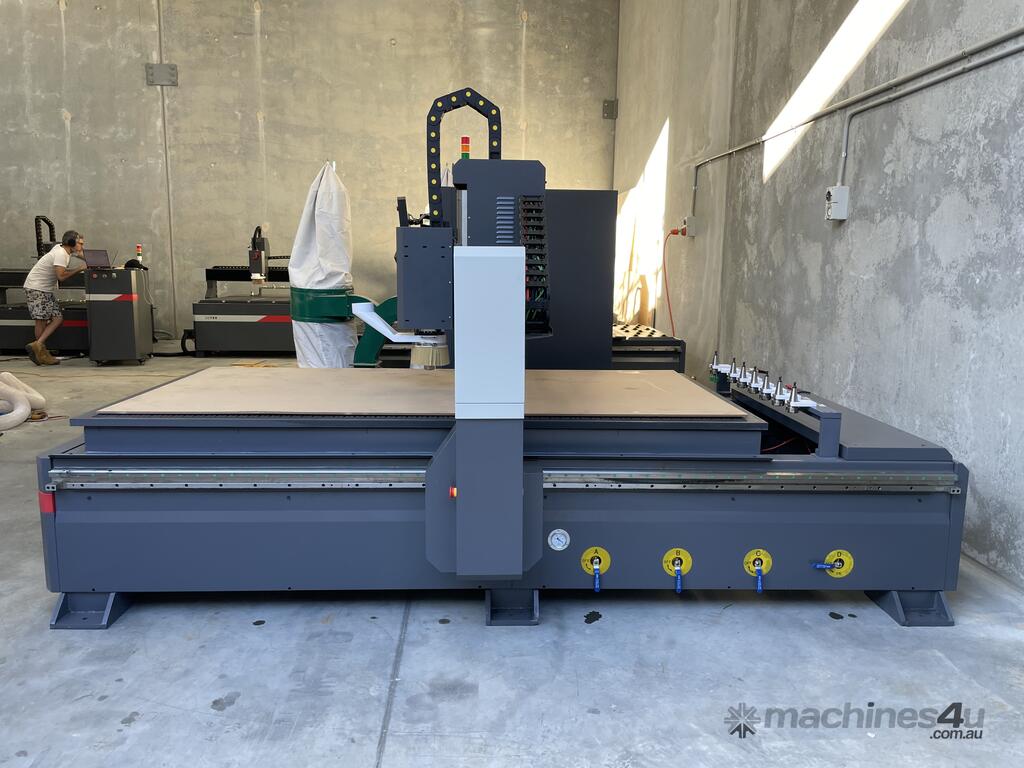

Machine Specs - Full Sheet T2XX Models -
• Cutting Area: 1300 (w) x 2500(d) x 260mm (h)

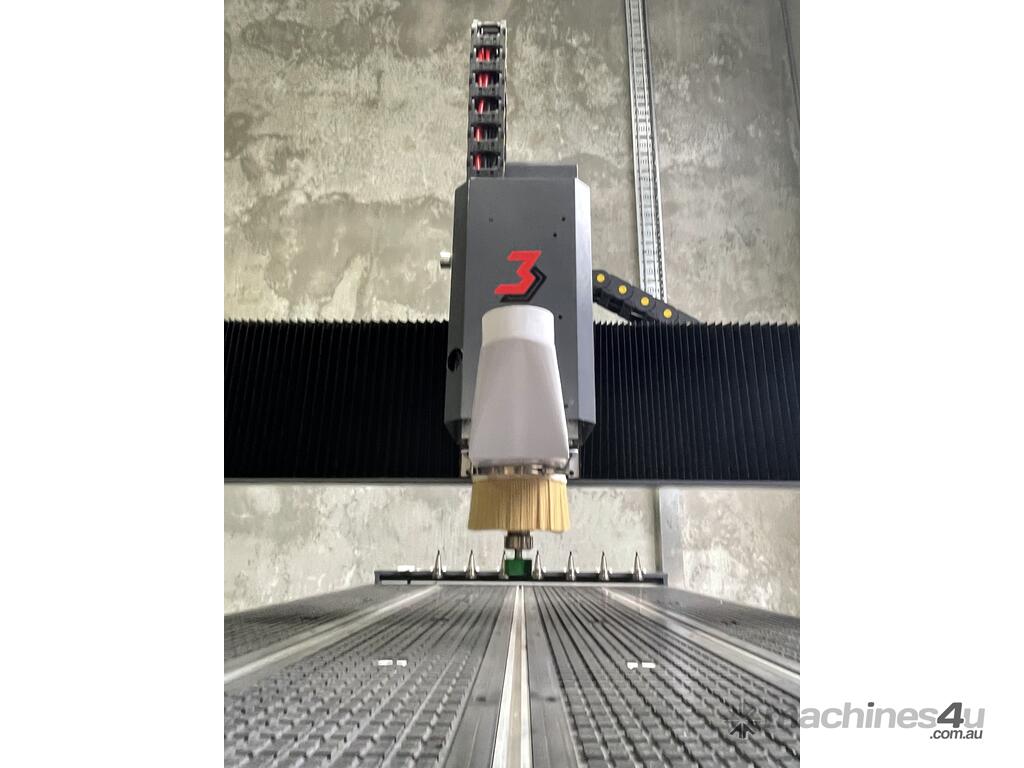

• Spindles: 9.0 kW auto tool change.
• Vacuum pumps: 7.5 KW & up.

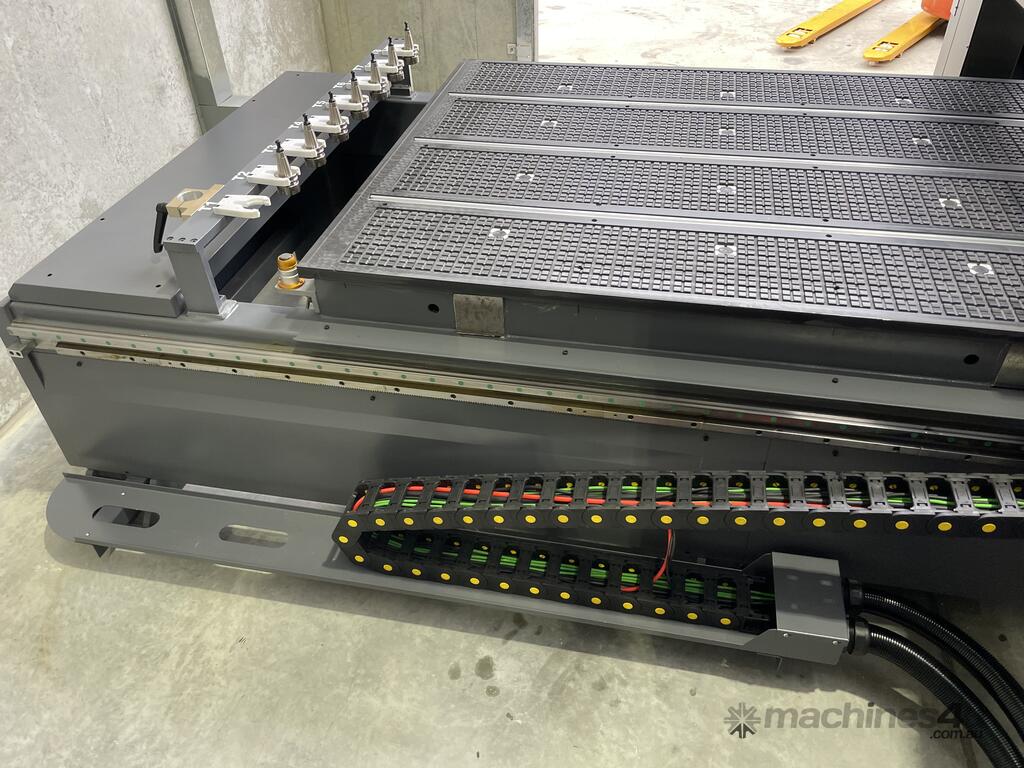

• Work Holding: Zoned Vacuum table with clamp slots.
• Power: 3-phase input - 32- 50A depending on options.
• Overall Dimensions: 2220 (w) x 3430(d) x 2300mm (h)

Features:
• No PC required, no Mach3 headaches.
• Centralised oiling maintenance system

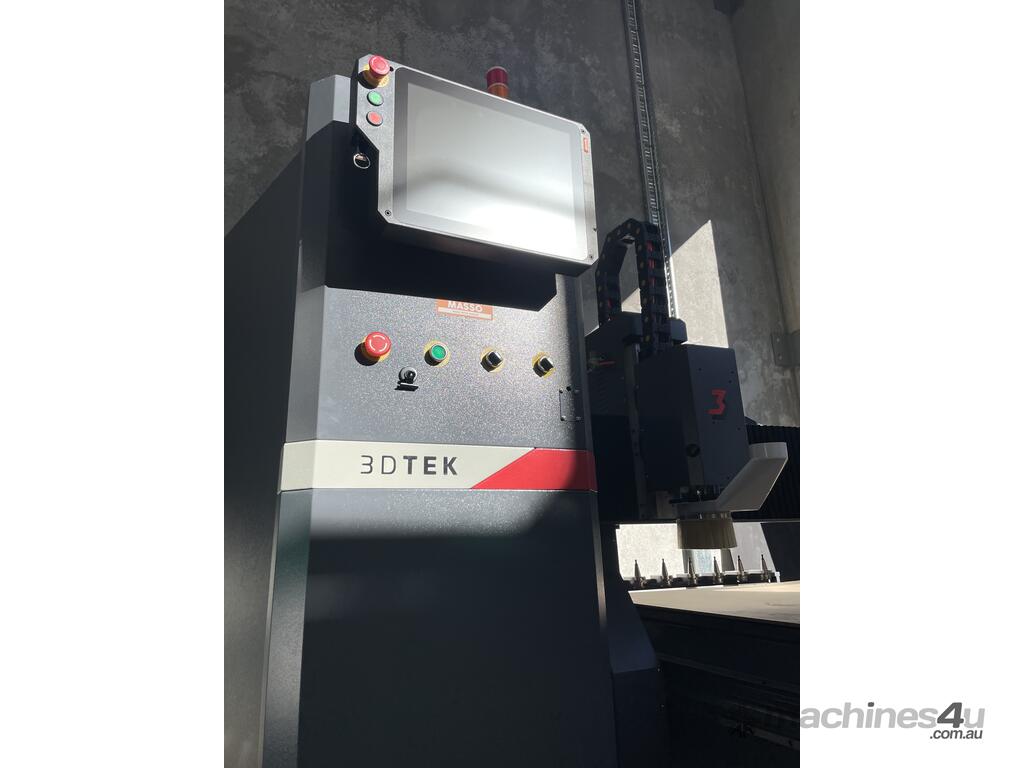

• Touch Screen and Wireless controls (Masso Option)
• Helical rack and pinion + ball screw drive

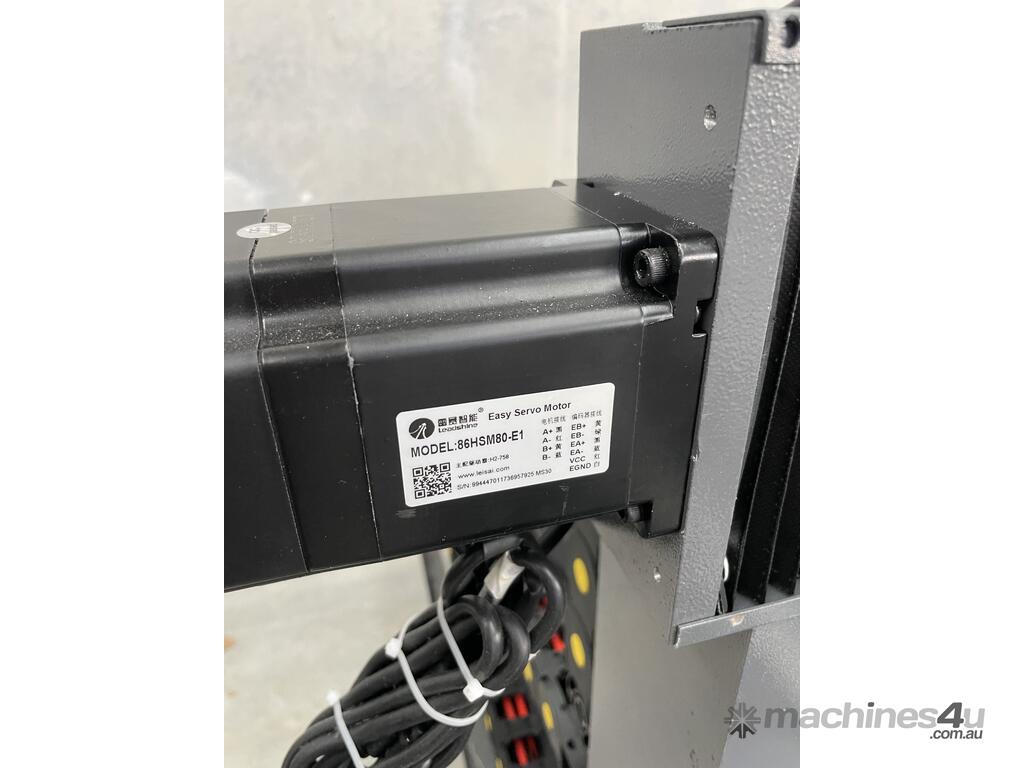

• Delta Closed-loop servo drives

Materials:
• Timbers, solid and engineered
• Most plastics and similar
• Aluminium and other soft metals
• Composite Panel
• Foam products, & More

3DTek Industrial has customers using our machines for:
• Signwriting
• Boat Building
• Furniture manufacture
• Switchboard manufacture
• Luthiering and Signwriting
• Surfboard Manufacture
• Privacy screen, architectural products, & More

3DTek generally tries to keep the T240 (as our best seller) in stock and ready to deliver within a week or two. However, availability and any lead times are dependent on where we are in our production cycle and sales volumes at the time.

Options:
• Tangential oscillating rotating knife 4th axis - for foam, card, and gasket material work.
• Misting Coolant systems for soft metal works
• Rotary 4th axis
• Automatic sheet loading and conveyor outfeed systems
• Auto Labelling systems
• Drilling Heads for high-speed carcass production
• Laser Light safety curtain systems to halt the machine if a person or equipment approaches

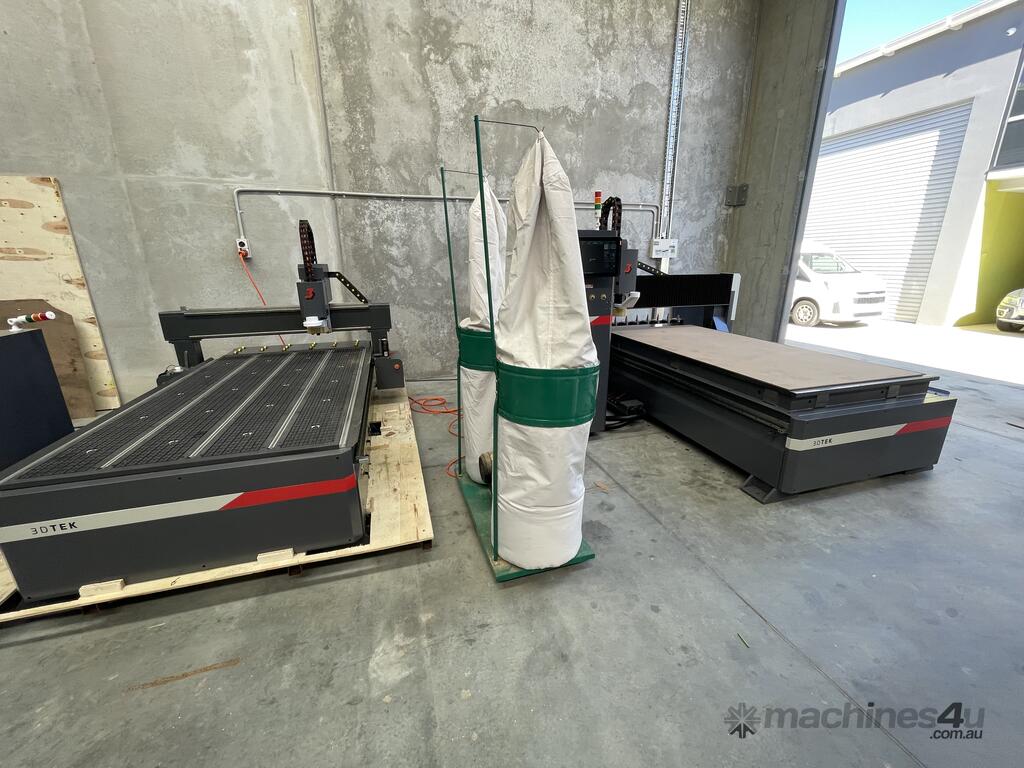

• Dust Collectors, Compressors & Air Dryers

Other Models:

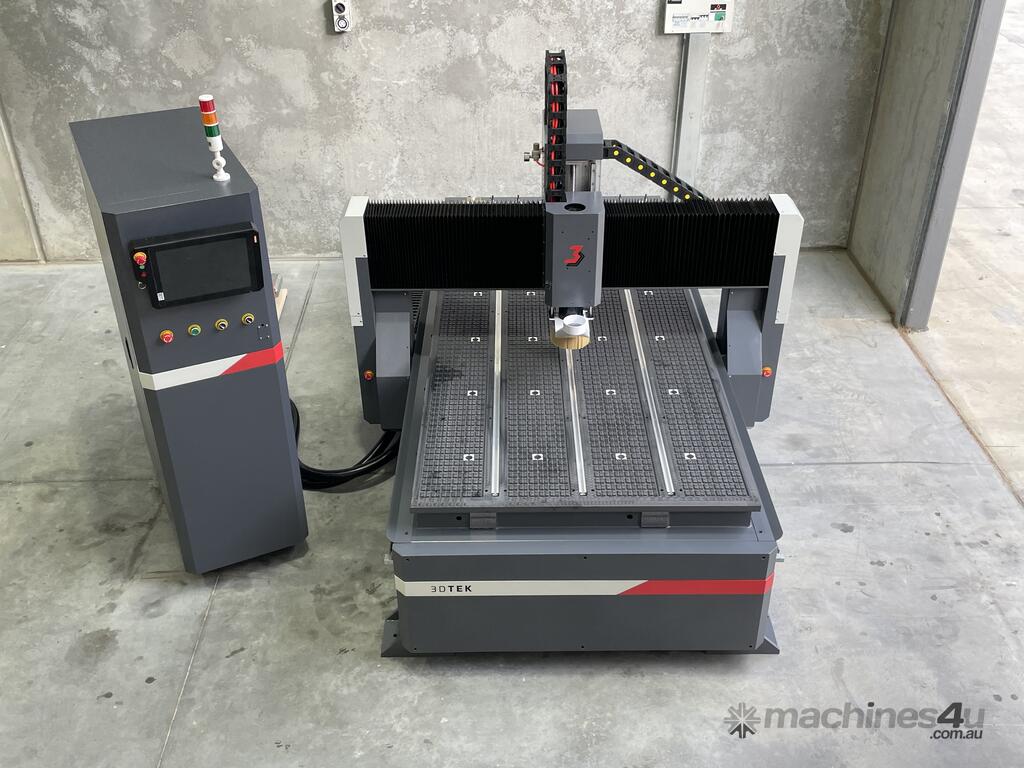

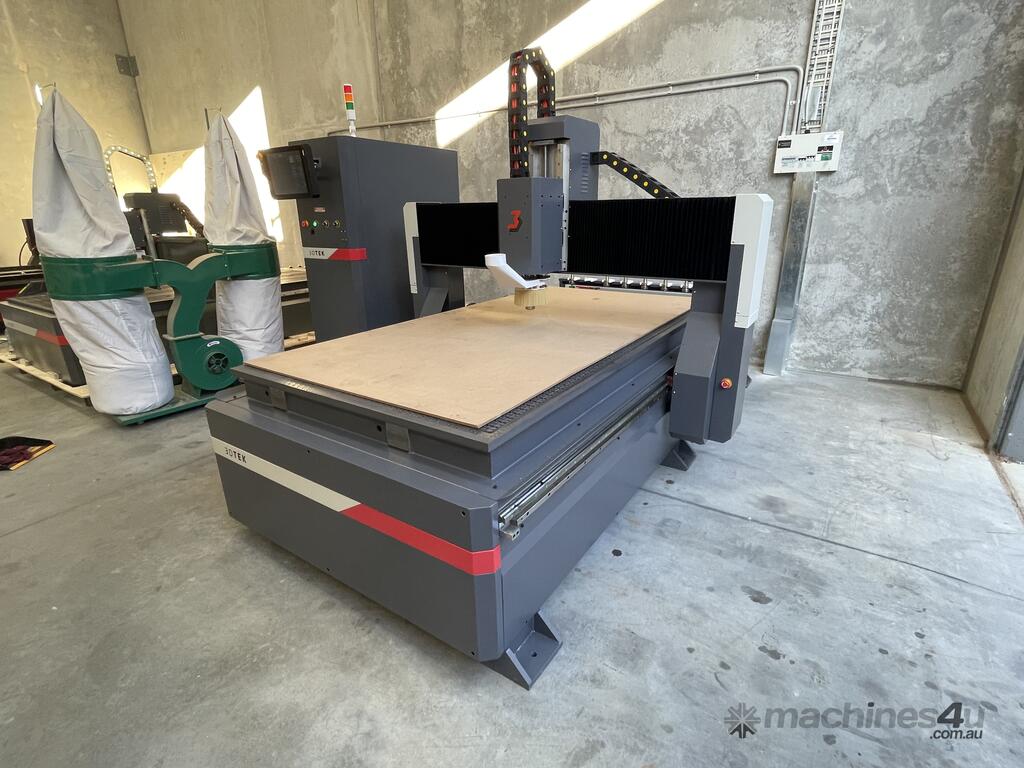

1/2 Sheet T1xx Models:
• Cutting Area: 1300 (w) x 1300(d) x 210mm (h)
• Spindles: 2.2 to 9.0KW manual and auto tool change.
• Power: Single or 3 Phase input - per your requirement
• Work Holding: Zoned Vacuum table with clamp slots.
• Overall Dimensions: 2040 (w) x 1860(d) x 1900mm (h)

T3XX Models:
• Cutting Area: 1500 (w) x 3000(d) x 260mm (h)
• Spindles: 2.2 to 9.0KW manual and auto tool change.
• Power: Single or 3 Phase input - per your requirement
• Work Holding: Zoned Vacuum table with clamp slots.

T4XX Models:
• Cutting Area: 2000 (w) x 4000(d) x 260mm (h)
• Spindles: 2.2 to 9.0KW manual and auto tool change.
• Power: Single or 3 Phase input - per your requirement
• Work Holding: Zoned Vacuum table with clamp slots.
