4.8M Stainless Steel Slatted Conveyor and 1.2M S/S Accumulation Table

Coveyor

Model: PSC-6-4.8

Year: Manufactured August 2022

Description

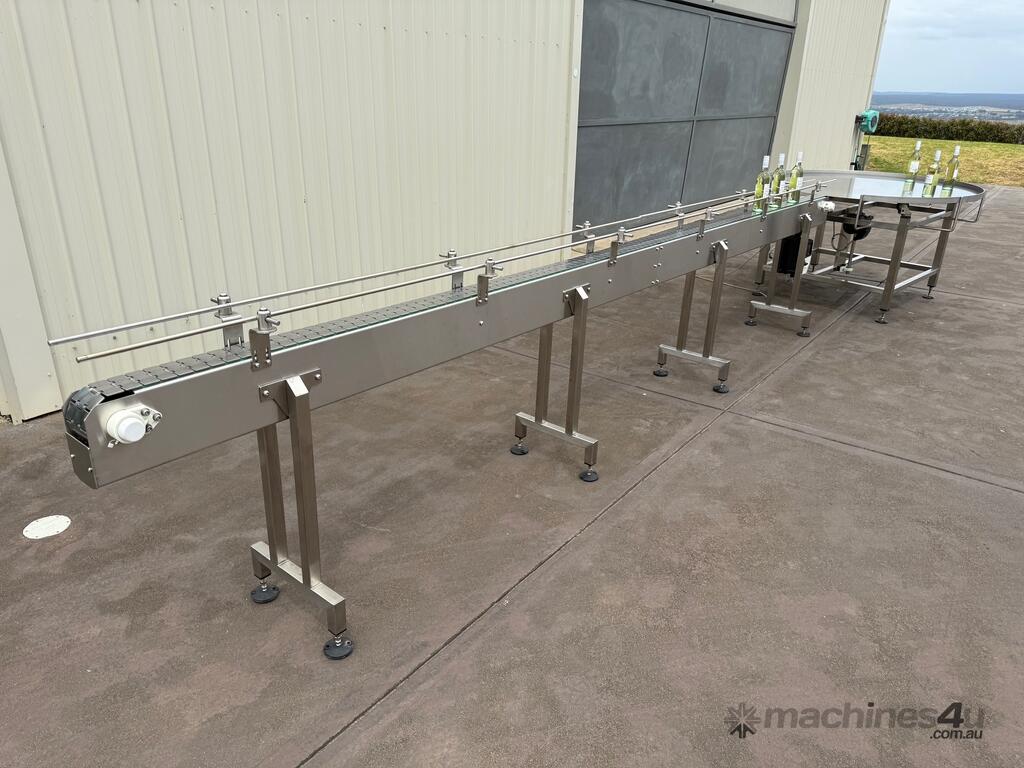

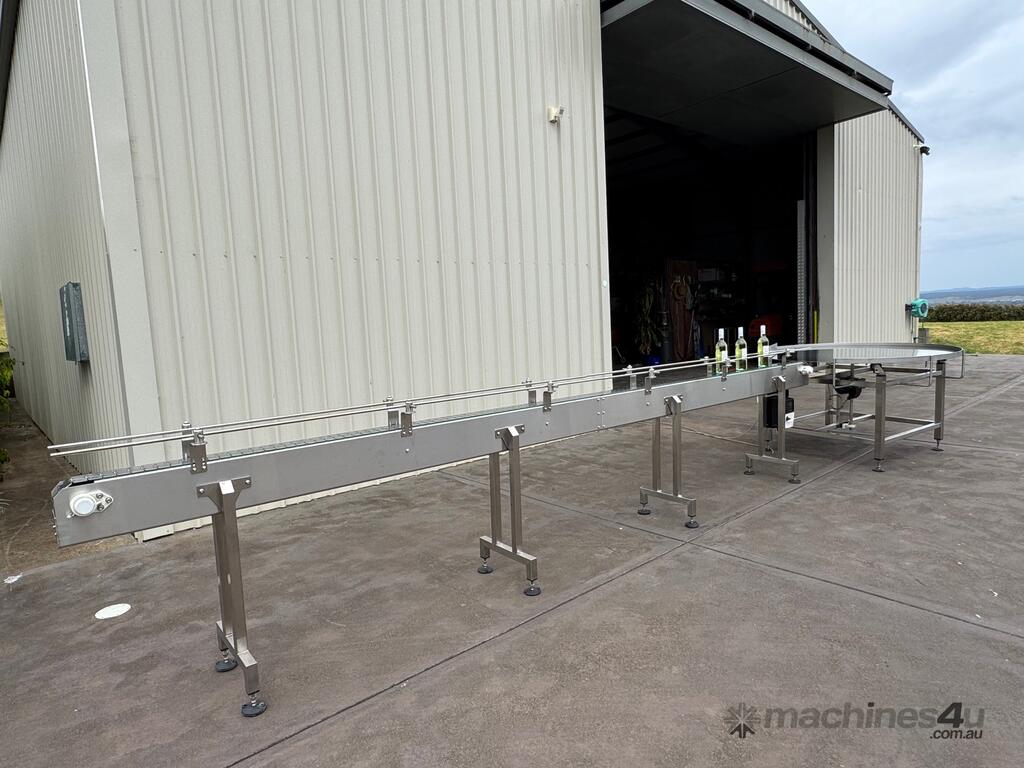

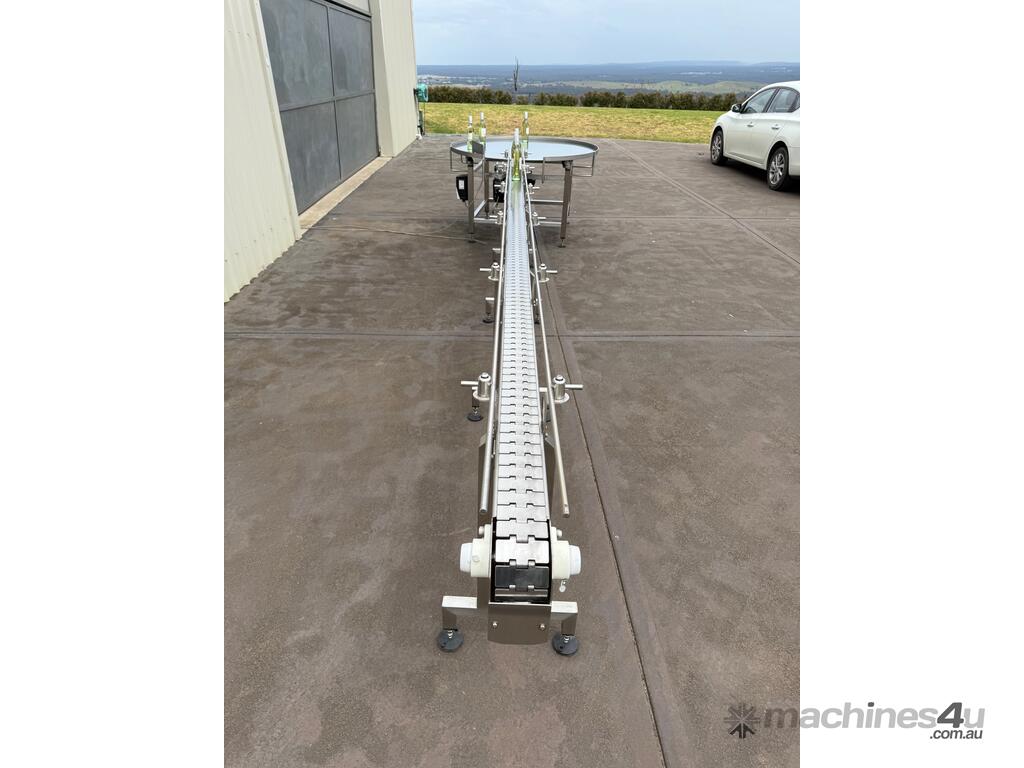

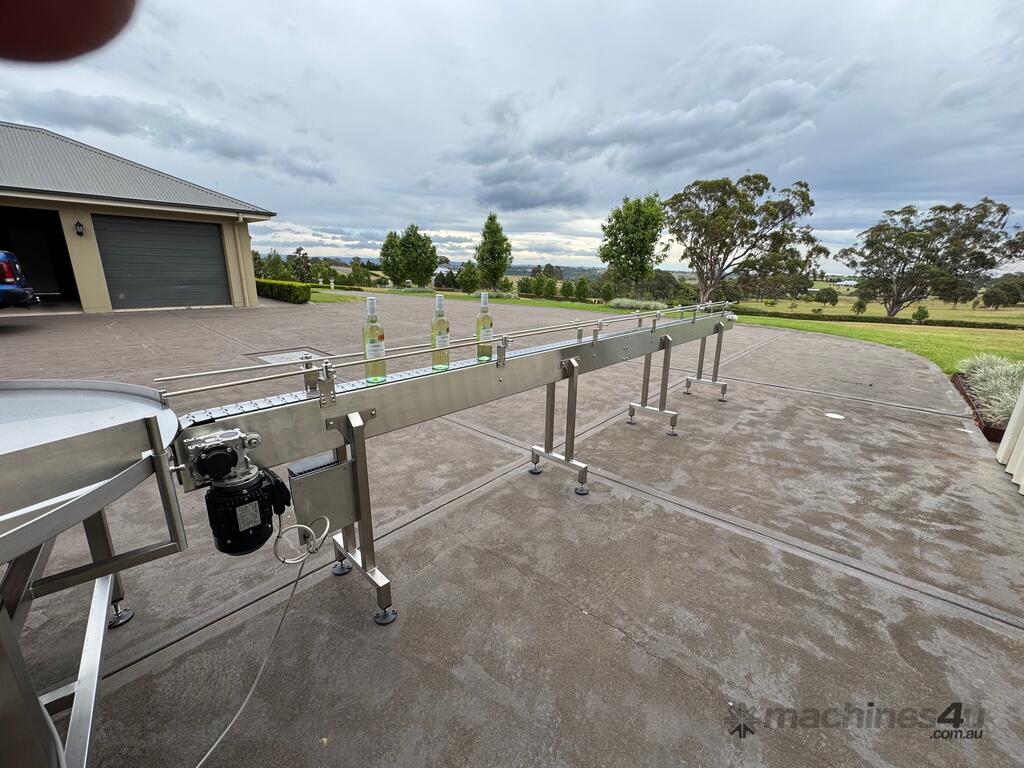

This 4.8 metre stainless steel slat conveyor is in excellent condition and is fully adjustable and made with the highest quality components it’s designed to be durable with minimal maintenance:

- Measures 4800mm in length
- Designed to be modular, there is a 1.2M stainless steel accumulation table also available.
- 316 stainless steel frame is mounted on top of adjustable legs

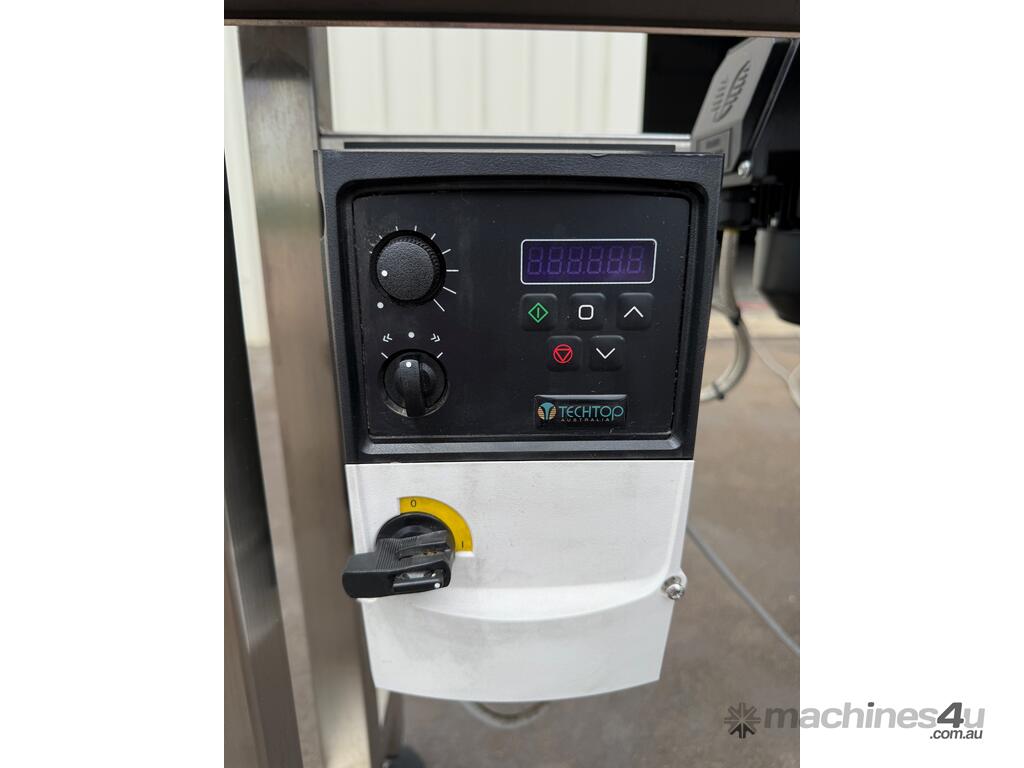

- Has an AC motor with a VSD controller that allows the conveyor to be easily spedup/slowed down or put into reverse at the touch of a button.
- Designed to be utilised with the guide rails that come with this conveyor.
- Mounted on lockable variable feet for easier manoeuvrability
- Conveyor comes with height adjusting jacks
- Variable speed control
- Comes with adjustable guide rails
- Suitable for food and pharmaceutical use
- Fast changeover of containers

Length 4800mm
Width 500mm
Height 1200mm
Operating Height 900mm slat height, adjustable on frame
Power Supply Single phase 240V, 10 Amp
Construction Type All 316 stainless steel and engineering grade plastics
Container Type All containers regardless of shape/material that will stand on their own
Mounting: Lockable adjustable feet
Industries All food, pharmaceutical and industrial applications
Noise Low
Conveyor 406 stainless steel slat material (high-performance stainless)
Speed Variable speed control
Guide Rails Fully adjustable, height and width
Reversible Yes

Automatic Function:
Yes

Mounting:
Frame featuring castors


Purchase Inclusions:

1 x base machine
4 x rubber feet and levelling jacks
4 x castors/wheels
1 x full set of adjustable guide rails
1 x reversible and variable speed controller
1 x full 406 stainless steel slat set
1 x spare piece of belt



Accumulation Table

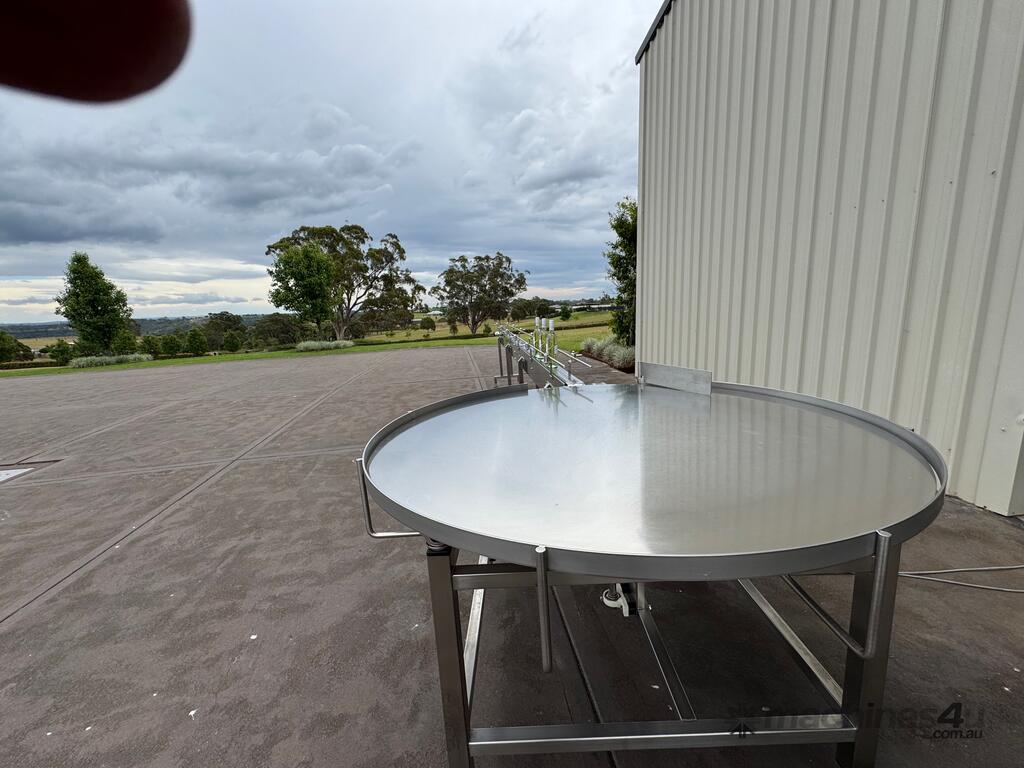

This accumulation / outfeed table designed to be the first or final piece in any production line.

- Suitable for all container types regardless of shape or materials

- 1.2M Australian made stainless steel tabletop allowing for the mass accumulation of your products at the start or completion of a production line.

- Designed to reduce the number of operators required to load or pack off from an automatic line.

- Collects the containers at the out-feed end of the conveyor for packing off into cartons or to load .

- Suited to handling containers of almost any shape and/or size.

- Suitable for food and pharmaceutical use

- Variable speed and rotation direction can be reversed.

- Can be connected to a conveyor or as a stand-alone operation

- 316 stainless steel construction

- Fast changeover of containers type

- Mounted on lockable castors

- Fitted with threaded levelling jacks

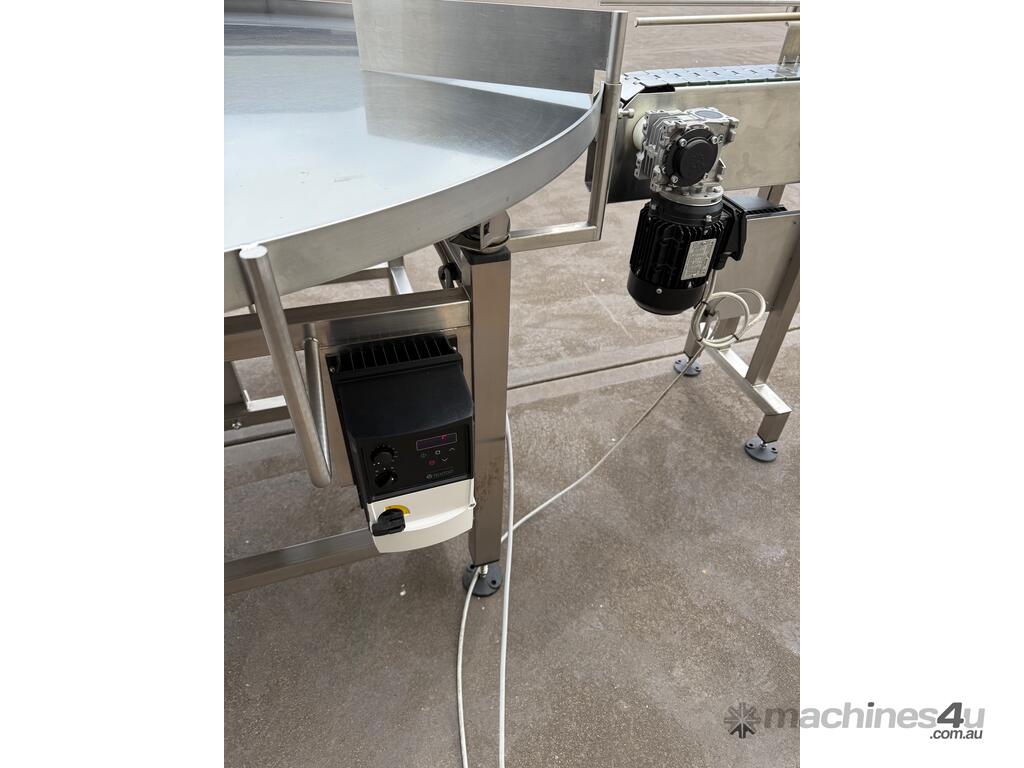

- Driven by a variable speed AC motor and controller

- Fully guarded on edges with safety torque limiting device




Weight: 100 kilograms

Diameter 1200mm

Height: 900mm

Power Supply: Single phase 240V, 10 Amp

Construction Type: 316 stainless steel including table top

Noise: Low

Reversible: Yes

Automatic Function:
Yes

Mounting: Frame featuring castors



Purchase Inclusions:

4 x lockable castors
4 x levelling jack with feet
1 x AC controller with reversible direction function
