4-9 ton (45mm pin) Geith Hydraulic Excavator Quick Hitch Coupler suit Hyundai, Volvo etc.

Used 45mm pin Geith Hydraulic Excavator Quick Hitch Coupling to suit 4-9 Ton machines.

Strong and well engineered. Made in Ireland by Geith.

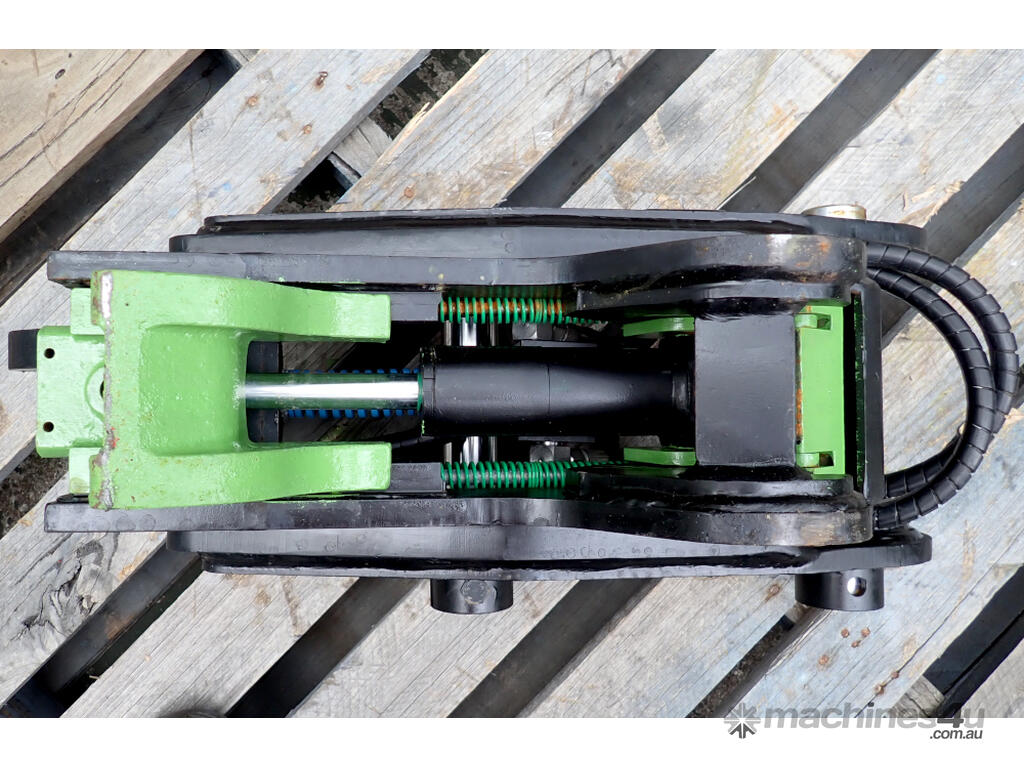

* Automatic pin locking

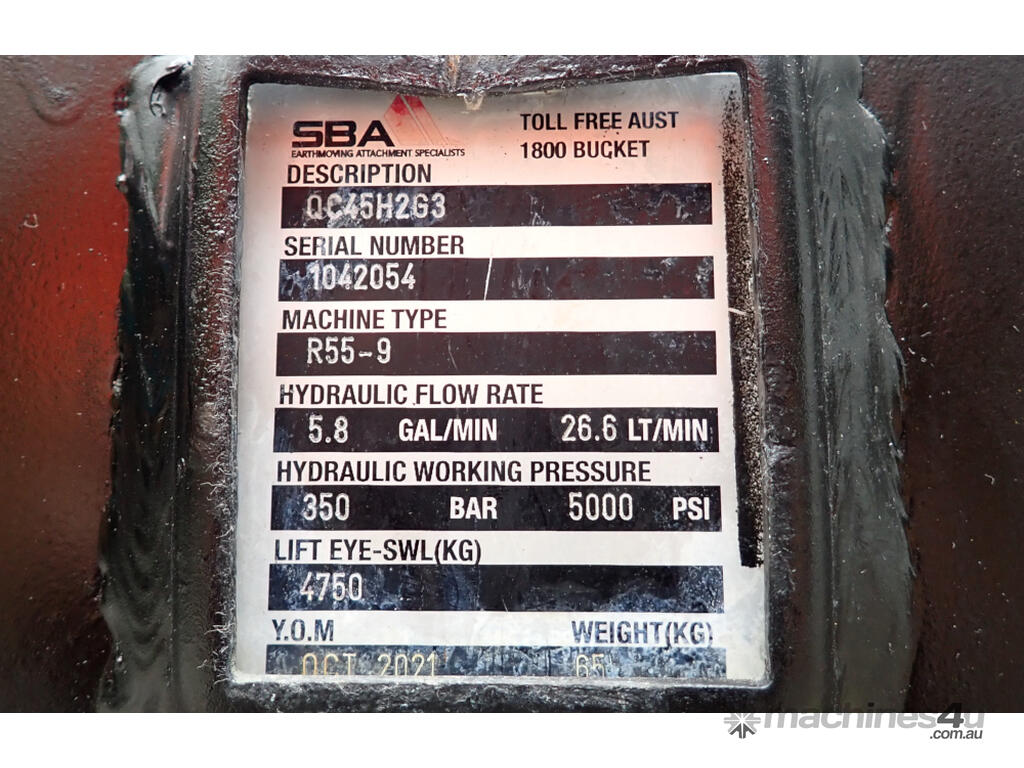

* Has Lifting Eye Hook, SWL: 4750kg.

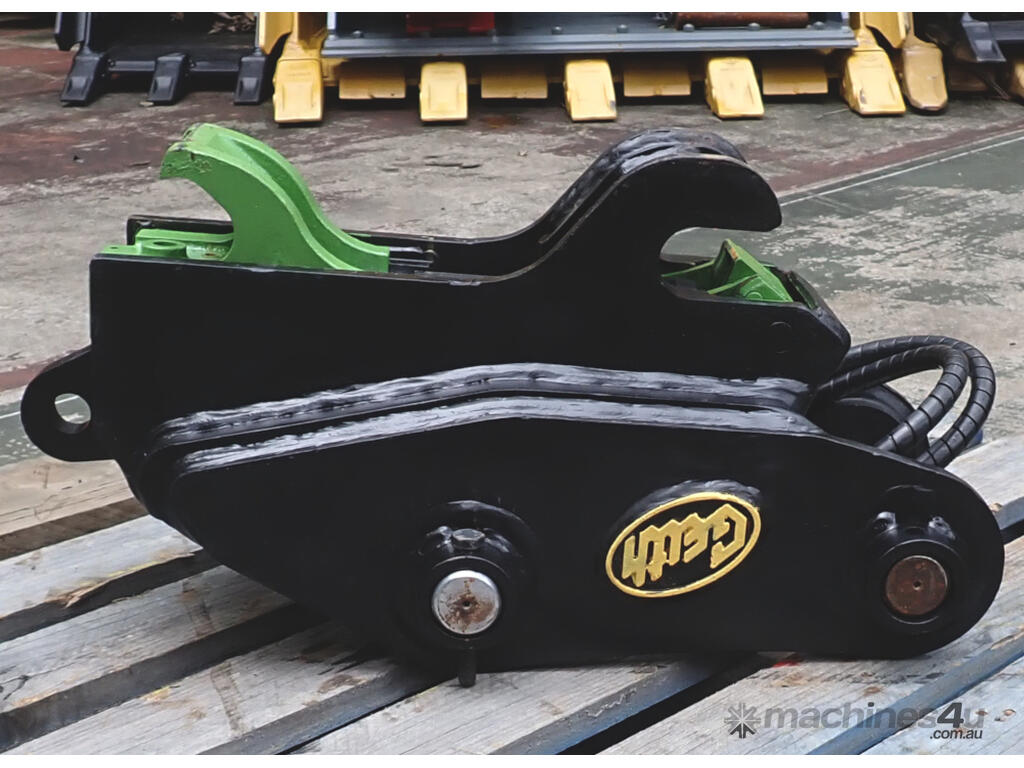

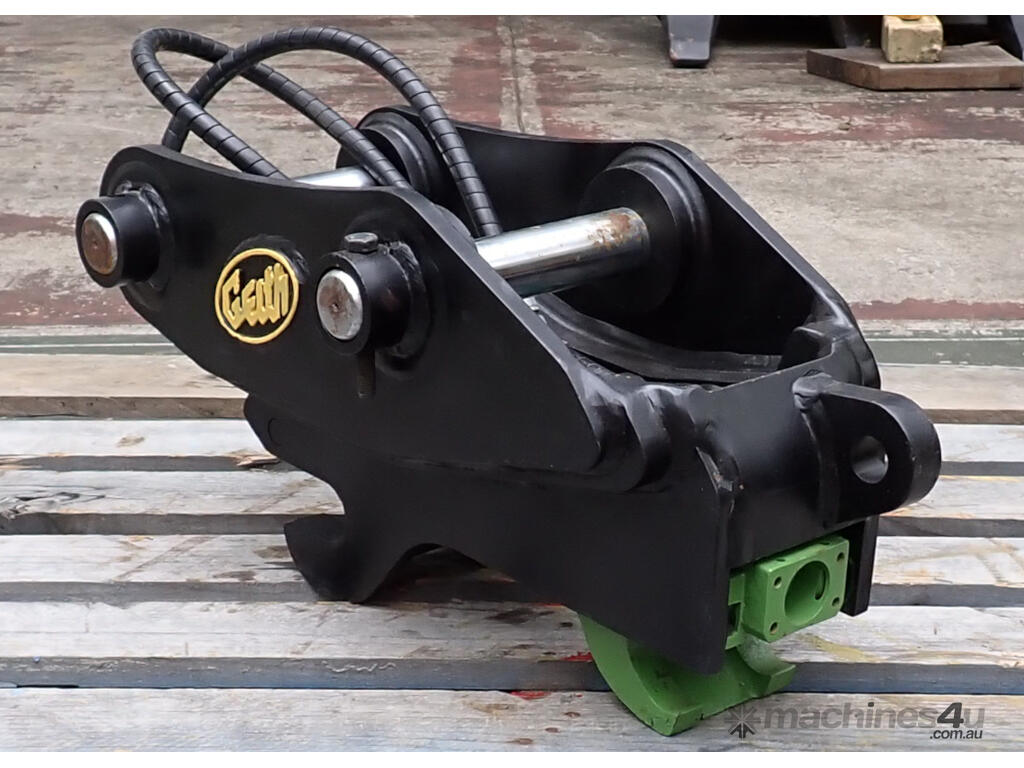

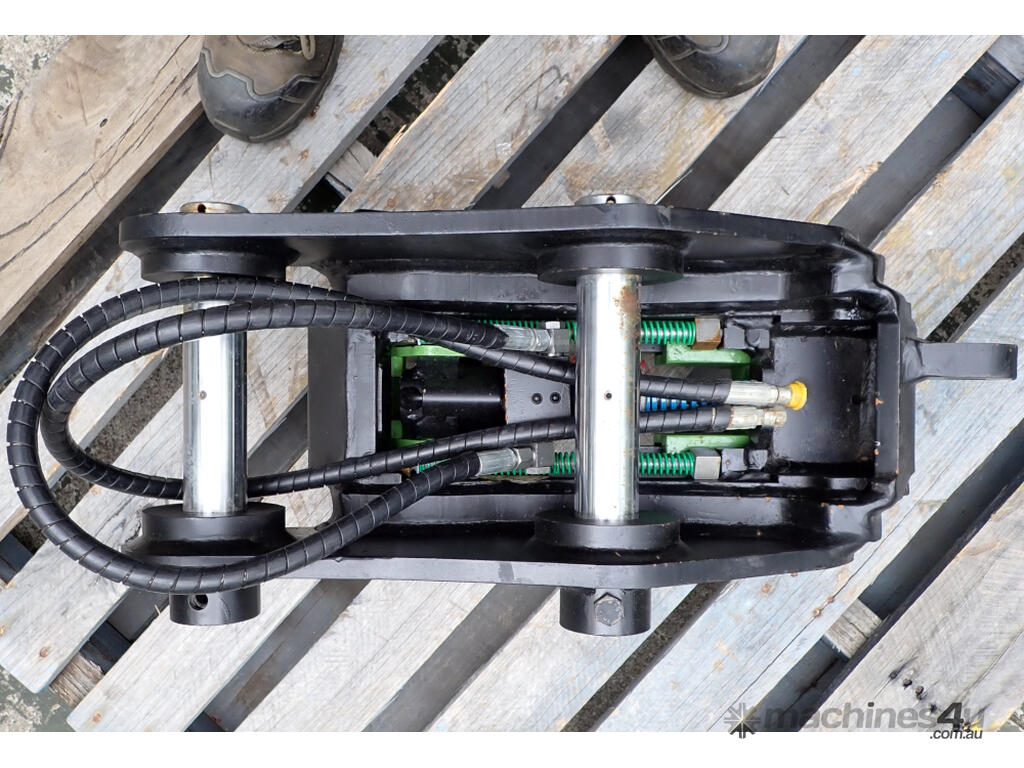

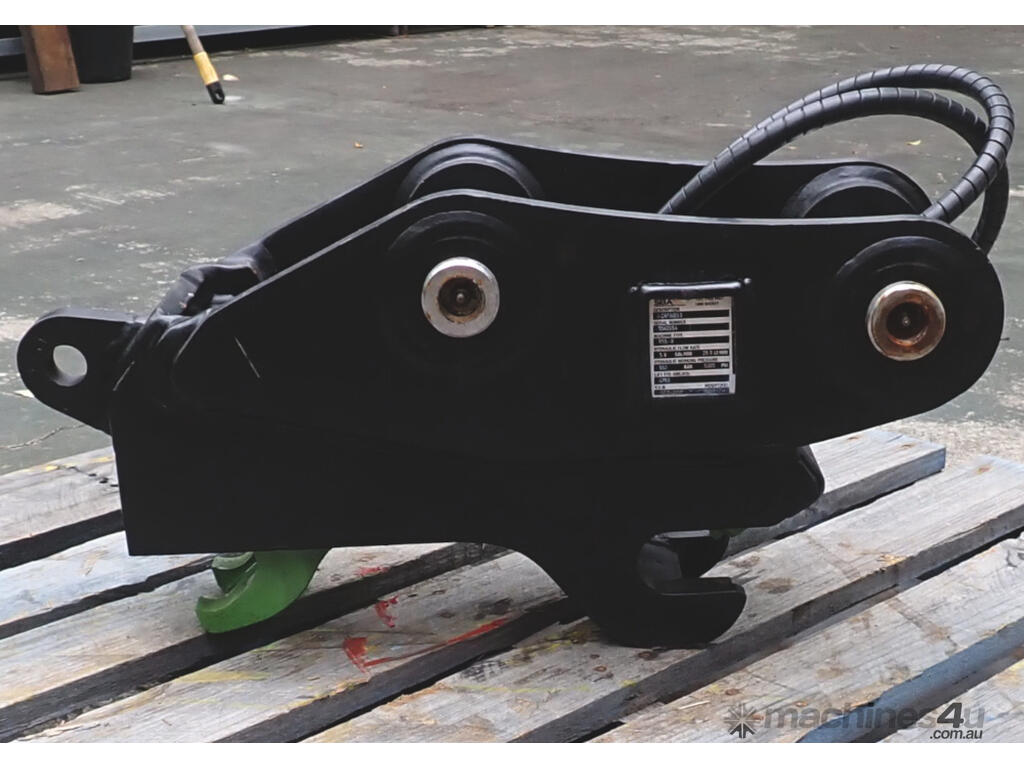

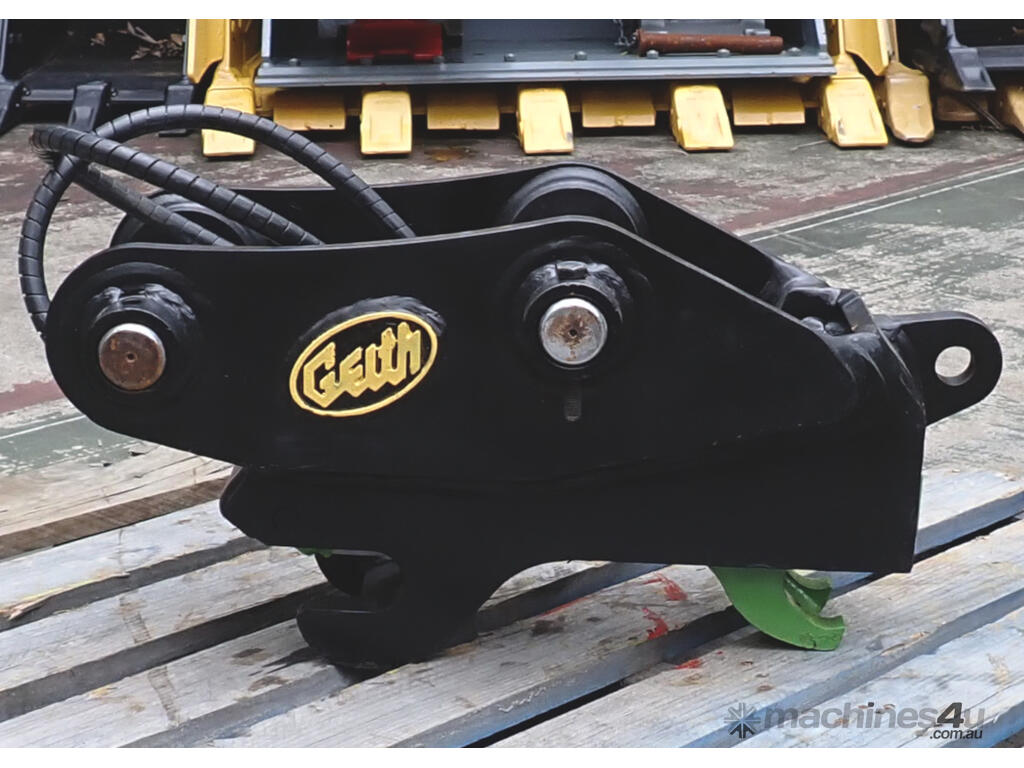

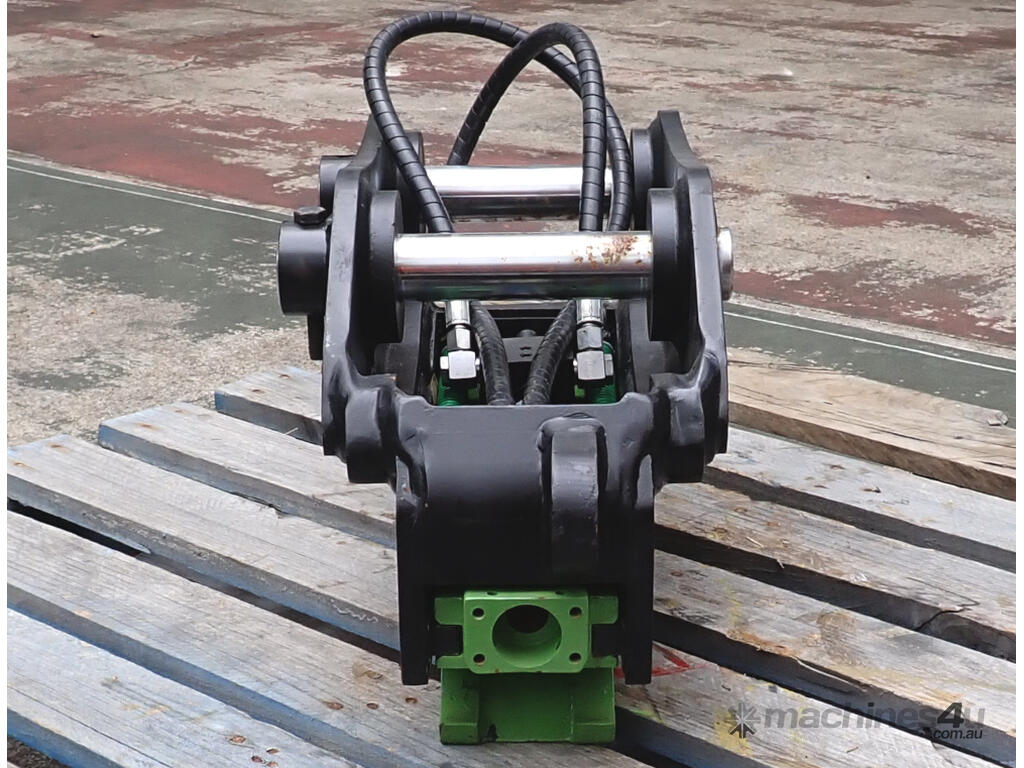

Comes with Pins and Hoses as pictured.


*** Pin Setup Dimensions (where your Dipper Arm goes in):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): 284mm.
* Between The Ears (BTE): 166mm Between the inside Ear Bosses of the hitch (which can be shaved back up to 211mm between the Ear Plates if you need more inside width for your excavator's dipper arm to fit in).
*
*** Pin Setup Dimensions (where the Hitch goes in your bucket):
* Pin Diameter: 45mm.
* Pin Center to Pin Center (CtoC): ???mm up to 314mm (Multi Pickup).
* Between The Ears (BTE): 151mm width (your buckets/attachments need to have at least this much width or more gap between the ears).
*
* Should fit: Daewoo Solar 070 / 075-V, Doosan S 75-V, Ferguson MF 760 / MF 860, Fermac 760 / 860, Hyundai R 55-7 / R 55-9, Samsung SE 50-3, Volvo EC50/W / EC55 / EC55B / ECR58 / MX 55/W / SE 50-3.
*
* Maybe fit: Caterpillar 304C CR / 304CR-ISJ / 305C CR / 305CR-ISJ / 307 / 308 / E 70B, Daewoo Solar 055 / 055V / 055V PLUS / 070-3 / 080-3 / 080W-3, Doosan S 55-V, Hitachi EX55UR / EX55UR Import / EX60 / EX60-3 / EX60-5 UK Version, Kobelco SK 50UR-2, Komatsu PC 50UU-1 / PC 50UU-2 / WB 93-2, Samsung SE 50W, Volvo BL70 / BL71 / BL71B, Yanmar B 50 / B 50-2 / B 50-2B / VIO40-1 / VIO40-2 / VIO40V / VIO45 / VIO45-5 / VIO50 / VIO50-1 / VIO50-2 / VIO55 / VIO55-5 and possibly other machines with similar pin spacings.


Hitch dimensions: 650mm long, 300mm wide, 333mm high. Weight: 76kg.


Call if you would like to discuss or to come inspect it.
We are at Pullenvale, 16km west of Brisbane CBD, between Brookfield and Anstead, near Kenmore.
You can pick up, we can deliver to a reasonable distance for an agreed fee, or we can arrange freight within Australia.
